Welcome to ScanGear CS-U
Welcome to Canon ScanGear CS-U 6.0 software for Windows.
ScanGear CS-U 6.0 (hereafter referred to as ScanGear CS-U) will provide
flexible, efficient image enhancement tools for scanning with your
CanoScan D646U Scanner by providing an interface with a variety of
TWAIN-compliant software applications. (TWAIN ☞p.97)
ScanGear CS-U has a number of powerful features that help you achieve
peak performance with your scanner. Using ScanGear CS-U, you can
preview and adjust an image before the image is scanned and acquired
by the parent software application.
Here is a quick summary of the important features of ScanGear CS-U:
• Two operation modes: Simple mode, which allows you to select all
optimum settings with one selection, and Advanced mode, which
allows you to create professional color and other enhancements for
artistic effects.
• Flexible, fully automatic image acquisition, and pre-scan image
manipulation prior to passing data to the image application
• TWAIN 1.6 compliant
• Text Enhanced mode for OCR applications
• Canon ColorGear (color matching software technology)
• Automatic preview or preview image cache
• ScanGear CS-U can run with or without its main window,
depending on the acquiring application.

7
chapter 1
BeforeYouBegin
Top Page
Glossary
Contents
Index
Normally when you start a scanning job, you will see the ScanGear CS-U
main window with its toolbar, Preview Area, and tabs.
However, some software applications may not open the ScanGear CS-U
main window. When this occurs you cannot use the settings described in
this user’s guide because the host software application will provide the
settings so you can change the image after it is acquired. When a
software application uses ScanGear CS-U without opening the ScanGear
CS-U main window, this is called the windowless mode.

8
chapter 1
BeforeYouBegin
Top Page
Glossary
Contents
Index
System Requirements
The hardware and software listed below is required to use ScanGear
CS-U.
Hardware
• You can use following scanner with ScanGear CS-U: CanoScan
D646U.
• IBM PC or its compatible on which Windows Me, Windows 98 or
Windows 2000 Professional can run
• Memory (RAM) required is determined by your system:
32 MB (64 MB or more recommended)
• 10 MB of free disk space for ScanGear installation
• Free disk space, at least 50 MB. The amount of space required
depends on the scanning area and the Color Mode or Resolution
settings (color images scanned at higher resolution require more
storage space).
Note
Before you scan an image, check the file size in the
status bar. You should have at least twice that amount
of free space available on the hard disk.
• Minimum requirement for monitor: 800 x 600 resolution
(minimum), High Color (16 bit) or greater.

9
chapter 1
BeforeYouBegin
Top Page
Glossary
Contents
Index
Software
• Microsoft®Windows®Me, Microsoft®Windows®98 or Microsoft®
Windows®2000 Professional
• TWAIN-compliant parent software application

10
chapter 1
BeforeYouBegin
Top Page
Glossary
Contents
Index
Getting Help in ScanGear CS-U
For information about using ScanGear CS-U, open the on-line Help by
clicking the Help button on the toolbar or in the dialog boxes.
Click the Contents or Index tab to see if the topic you are looking for is
covered elsewhere in on-line Help.

11
Top Page
Glossary
Contents
Index
chapter 2
Installing ScanGear
CS-U
Installing ScanGear CS-U
Uninstalling ScanGear CS-U

12
chapter 2
Installing
ScanGear CS-U
Top Page
Glossary
Contents
Index
Installing ScanGear CS-U
Before you install ScanGear CS-U, make sure that you have accomplished
the following tasks:
• Make sure that the computer is equipped with an enabled USB
port. In My Computer - Control Panel - System icon, click the
Device Manager tab and double-click “Universal serial bus
controler”. If you can see the names of the Host Controller and
USB Root Hub displayed, the computer is equipped with an
enabled USB port. Some computers may require enabling the USB
function with a BIOS setting. For details about enabling the USB
port with the BIOS setting, see your computer manual.
• Make sure the scanner is connected to a computer.
• If a previous version of ScanGear CS is installed on your computer,
uninstall it before you install ScanGear CS-U 6.0.
Note
• With Windows 2000 Professional, ensure that you log on
as an Administrator to install/uninstall the software.
• If ScanGear CS-U has already been installed according to
the instructions in the Getting Started guide that came
with the scanner, there is no need to perform the
installation procedures described on the following pages.

13
chapter 2
Installing
ScanGear CS-U
Top Page
Glossary
Contents
Index
Installing ScanGear CS-U
After you have attached the scanner to the computer, have the
CanoScan Setup CD-ROM at hand and follow the procedures
below to install the driver software (ScanGear CS-U).
If you use the English version (uni-language) CanoScan
Setup Utility CD-ROM;
1. Turn the computer on.

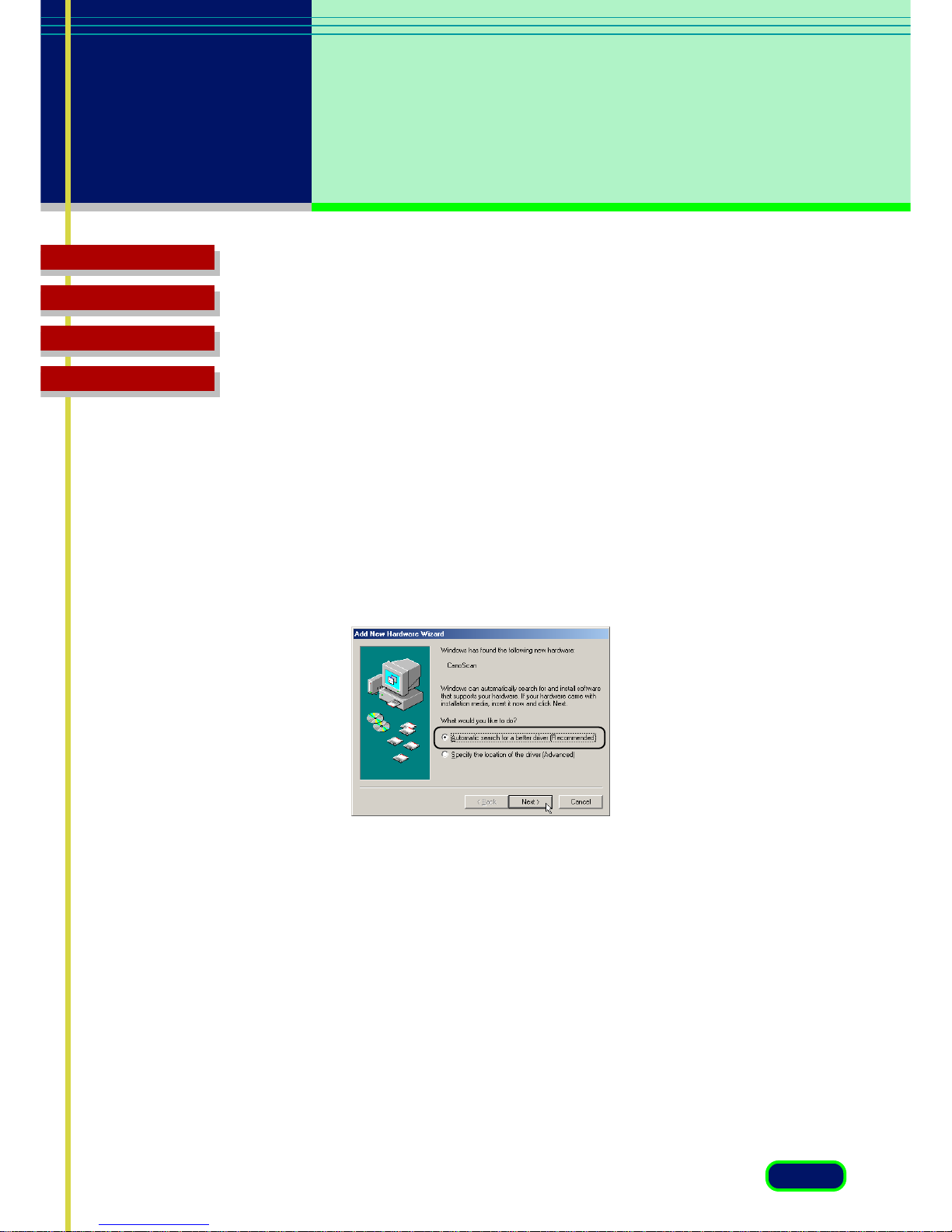

2. When the [Add New Hardware Wizard] displays, confirm that
[Automatic search for a better driver (Recommended)] is selected.
If you selected [Specify the location of the driver] in Step 2 and
then clicked the [Next] button, click the [Back] button and redo the
procedures starting from Step 2.
3. Place the CanoScan Setup CD-ROM in the drive.
4. Wait for approximately 10 seconds, then click the [Next] button.
The driver will begin to install.
If the [Windows was unable to locate the software for this device]
message appears after the [Next] button is clicked, click the [Back]
button and redo the procedures starting from Step 3.
•Windows Millennium Edition (Me)

14
chapter 2
Installing
ScanGear CS-U
Top Page
Glossary
Contents
Index

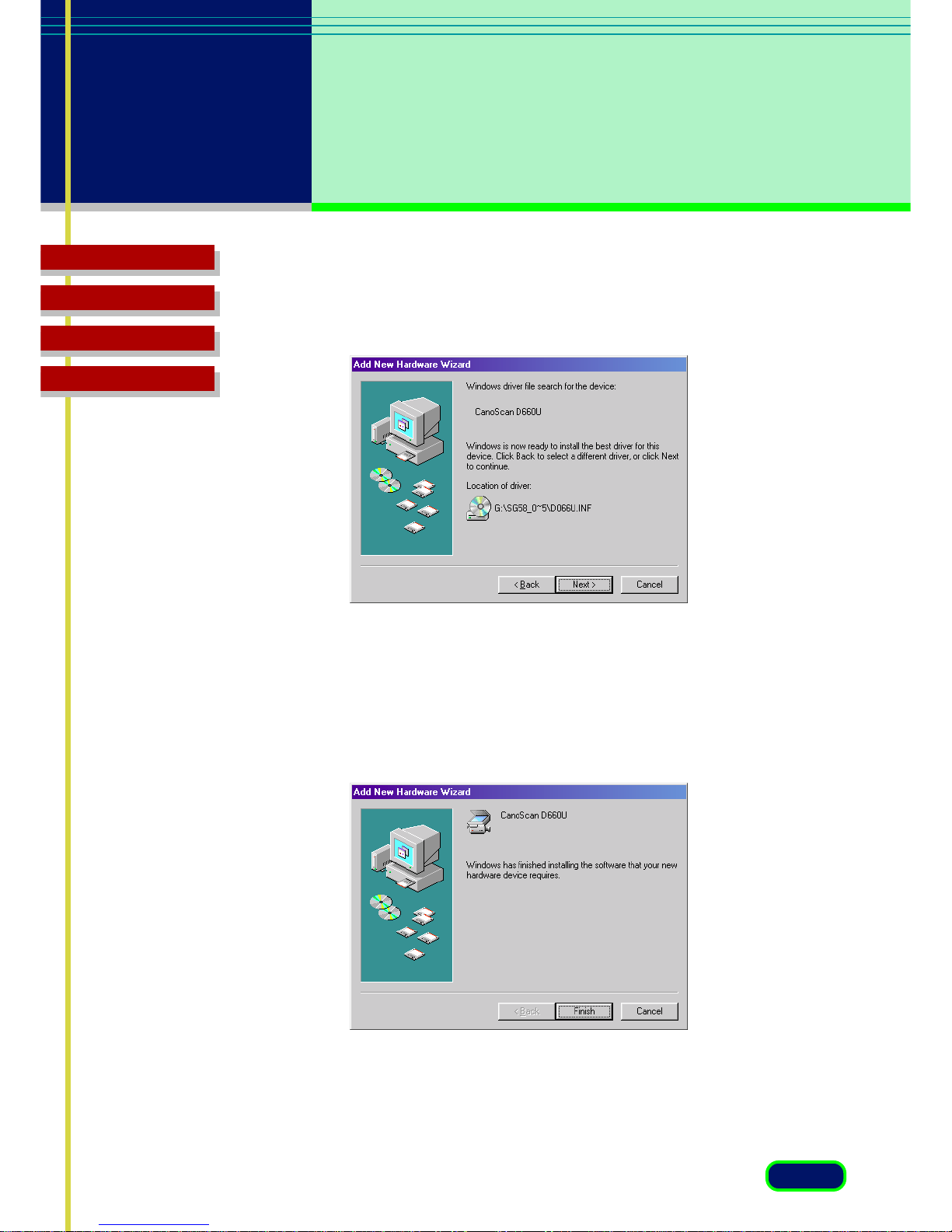

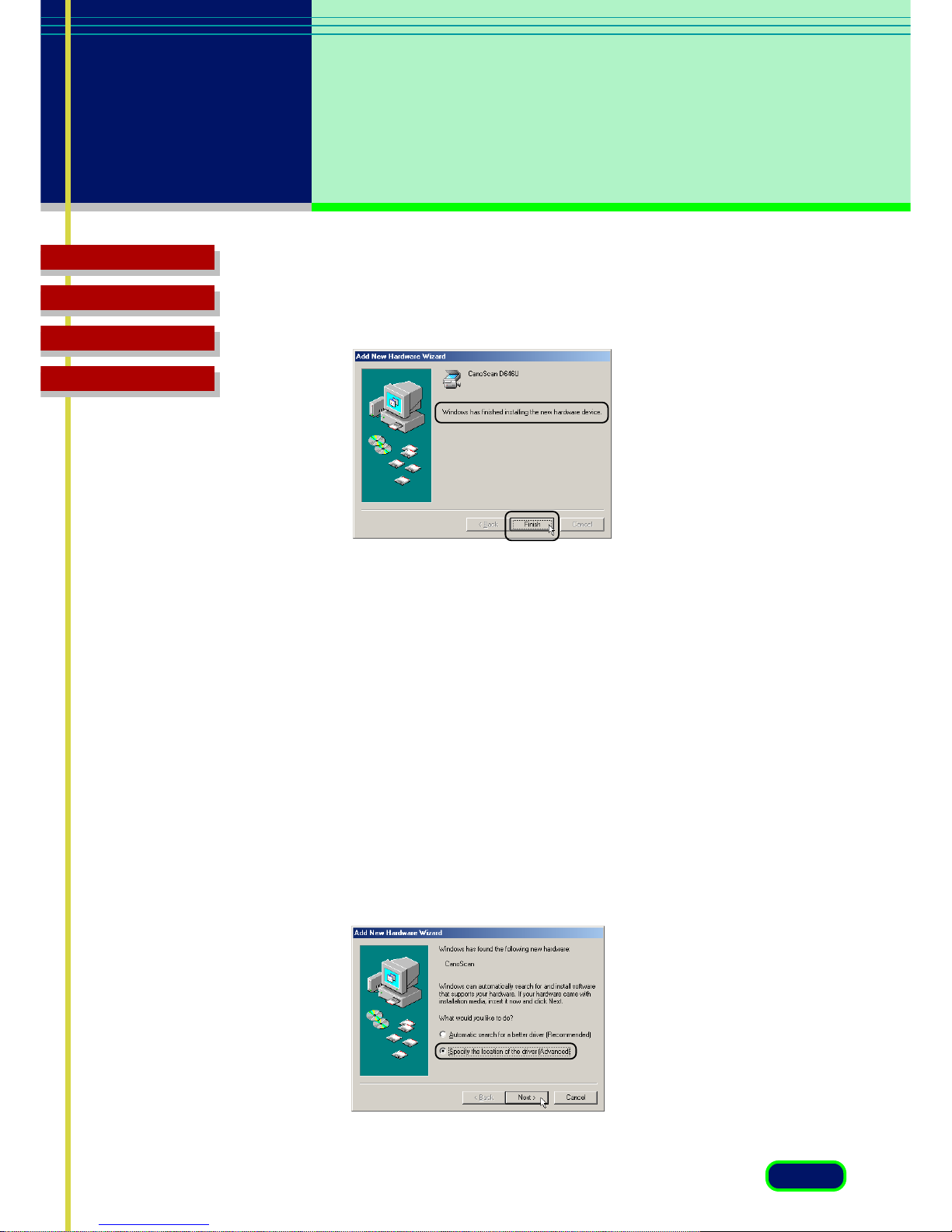

5. When the [Windows has finished installing the new hardware
device.] message appears, click the [Finish] button.
If the window in Step 2 does not appear, ScanGear CS-U may not
have been completely uninstalled and a portion of it may still be
resident on the drive. Follow the instructions in the [Uninstall the
Software] option on the CanoScan Setup Utility to uninstall
ScanGear CS-U.
If you use the multi language CanoScan Setup Utility CD-
ROM.
After you have attached the scanner to the computer, have the
CanoScan Setup CD-ROM at hand and follow the procedures
below to install the driver software (ScanGear CS-U).
1. Turn the computer on.

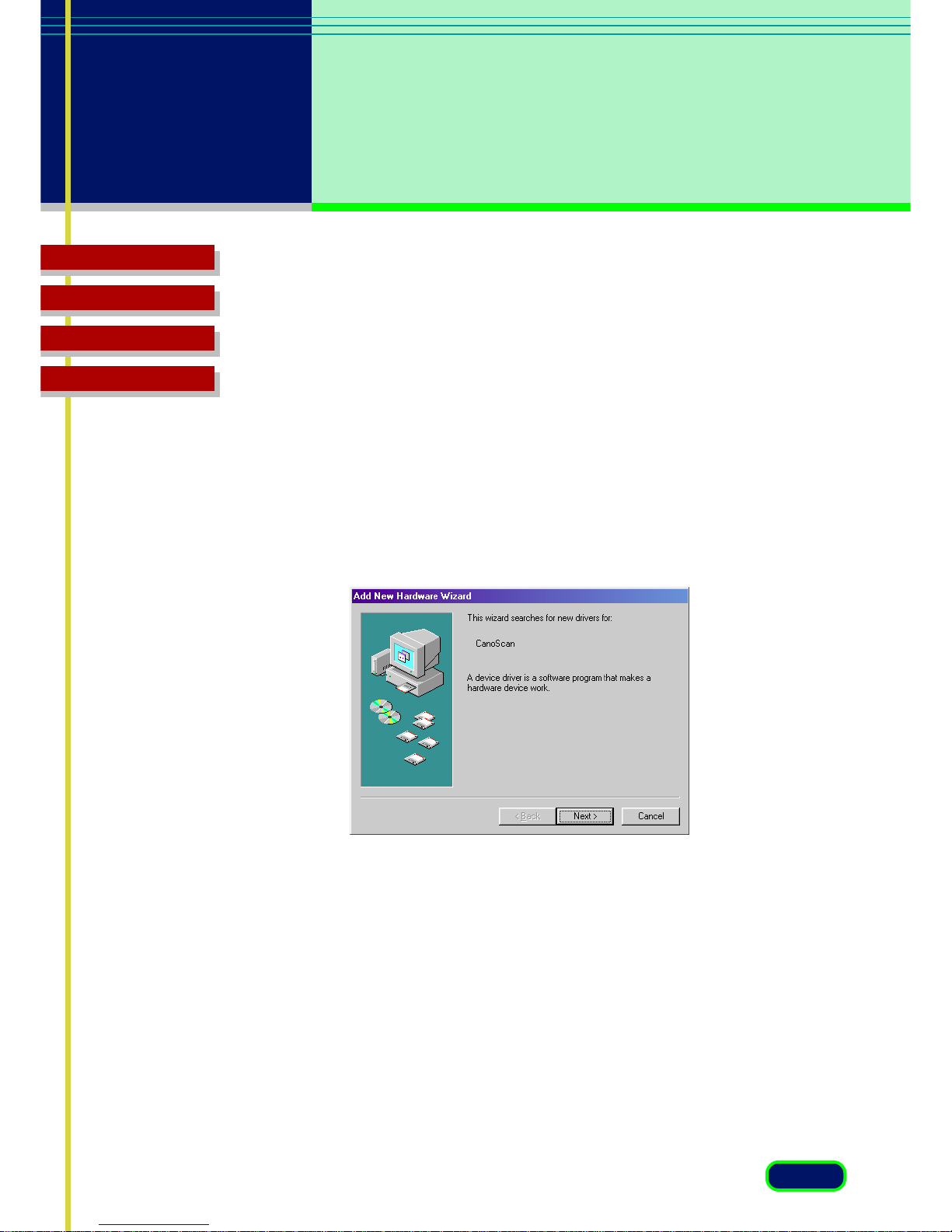

2. When the [Add New Hardware Wizard] displays, select [Specify the
location of the driver (advanced)] and click the [Next] button.

15
chapter 2
Installing
ScanGear CS-U
Top Page
Glossary
Contents
Index
3. Place the CanoScan Setup Utility CD-ROM in the drive.
4. Wait for approximately 10 seconds. Click the [Removable Media...]
option so that it is unchecked, and click the [Specify a location]
option so that it is checked. Then click the [Browse] button.
5. From the [CANOSCAN] CD-ROM, select the [SCANGEAR] folder
followed by the appropriate language folder, and click the [OK]
button.
6. Confirm that the correct folder and path appear beside the Specify
a Location option and click the [Next] button.
7. When the name of the scanner appears, click the [Next] button.
The driver will begin to install.
8. When the [Windows has finished installing the new hardware
device.] message appears, click the [Finish] button.

16
chapter 2
Installing
ScanGear CS-U
Top Page
Glossary
Contents
Index Follow this procedure to install ScanGear CS-U. To perform this
procedure you need CanoScan Setup Utility CD-ROM.
1. Connect the scanner and computer with the USB cable. Then turn
on the computer.
A brief message will tell you that an unknown device has been
detected, then the Add New Hardware Wizard dialog box opens.
2. Click the [Next] button.
•Windows 98 / Windows 2000 Professional

17
chapter 2
Installing
ScanGear CS-U
Top Page
Glossary
Contents
Index
3. Confirm that the first button is selected (Search for the best driver
for your device) and click the [Next] button.
4. Insert the CanoScan Setup Utility CD-ROM into the CD-ROM drive.
5. If you use the English version (uni-language) CanoScan Setup Utility
CD-ROM, select the “CD-ROM drive” then click the [Next] button.
If you use the multi-language CanoScan Setup Utility CD-ROM,
select the “Specify a location:” and click the [Browse] button. In
the Browse for Folders dialog, navigate in the CD-ROM drive to
find the Scangear folder and select the English folder then click the
[OK] button. Finally click the [Next] button.

18
chapter 2
Installing
ScanGear CS-U
Top Page
Glossary
Contents
Index
6. Confirm the name of the scanner is displayed, and click the [Next]
button to start copying the files.
7. When you are prompted to insert the Windows 98 CD-ROM, after
clicking the [OK] button, click the [Browse] button . Specify the
CanoScan Setup Utility CD-ROM drive as the file source, then click
the [OK] button.
8. Click the [Finish] button to complete the installation procedure.

19
chapter 2
Installing
ScanGear CS-U
Top Page
Glossary
Contents
Index
Uninstalling ScanGear CS-U
Always uninstall ScanGear CS-U with this procedure using
the CanoScan Setup Utility CD-ROM
1. Place the CanoScan Setup Utility CD-ROM in the drive.
2. Click the [Uninstall the Software] button in the CD-ROM’s menu
window.
3. Click the [Uninstall ScanGear CS-U] button in the Uninstall menu
window.
4. with Windows Me / 98 : Uninstallation procedure continues.
with Windows 2000 : Scanners and Cameras’ property dialog is
displayed. Select D646U and click [Remove]. Then uninstallation
procedure continues.
Note

20
Top Page
Glossary
Contents
Index
chapter 3
Simple Mode and
Advanced Mode
What are the Simple Mode and Advanced
Mode?
Simple Mode Main Window
Advanced Mode Main Window
