CANTERBURY Z1408 User manual

Basin Mixer with Automatic Pop-up Waste
Art: Z1408
• Handmade in Italy since 1960
• ¼ Turn valves handmade at
Nicolazzi Factory
• Lead Free Brass Compliant to
AZ/NZS 3718
• Suitable even and uneven
pressure
• Handles are interchangeable
Specifications
WM22315
AS/NZS3662
Canterbury Sink & Tap Co.
Max/Min Operating
Pressure: 100/500kPa
Further information Phone [phone] [e-mail]
Available replacement
handles:
El Capitan Handle
-78 Mont Blanc Handle
-70 Half Dome
-18 Dame Anglaise

CAREFULLY READ THROUGH THESE INSTRUCTIONS BEFORE INSTALLATION AND USE OF ALL TAP WARE AND WALL
VALVES
INSTALLATION and WARRANTY INSTRUCTIONS
TECHNICAL INFORMATION
All flexible hoses are designed and manufactured for use with water in exposed locations only. Do not expose to
household cleaners, chlorine, chloride, hydrochloric acid or other corrosive chemicals.
All connections with threads M10x1 male must be hand tighten. Do not over tighten. Over tightening may cause
damage to the hose.
All tap ware washers and o-rings are designed and manufactured for use with water. Do not expose to household
cleaners, chlorine, chloride, hydrochloric acid or other corrosive chemicals.
Our tap ware is designed for use with the temperatures and pressures listed below:
minimum cold water supply 10 °C
maximum hot water supply 62 °C
minimum pressure 100 kPa
maximum pressure 500 kPa
maximum fixing torque value = 13.6 Nm
Please note: The recommended pressure for best performance is between 270 kPa and 420 kPa. More pressure than
420 kPa or less pressure than 270 kPa may affect the diverting action in side spray tap ware.
Do not use any Nicolazzi tap ware with sulphurous water.
The minimum temperature for all tap ware is 10 degrees Celsius . Below 10 degrees Celsius will void the warranty.
When available, filter systems must be placed between hot and cold supply lines and the tap ware. Improper use or
non-use of filters may make diverting tap ware with hand sprays perform poorly.
Don't modify the tap ware and their components.
Use only original spare parts if there are replacements to be ordered. Installation must be made by authorized
plumbers or installers. Improper installation or diagnosis of problems is not covered by the warranty. Yearly
maintenance of cleaning and flushing is recommended.
Operation and use of any tap ware or wall valve that do not conform to these technical instructions will void the
warranty.
Important Notice Model : Z1408
Further information Phone [phone] [e-mail]
2

Installation Instructions Model : Z1408
Further information Phone [phone] [e-mail]
❷
Measure and cut tap holes, with a minimum
hole spacing of 110mm from tap body centre
line.
3
❶
Preparation
Tap body
Flush out the pipework to remove any foreign matter.
Tap body cut out hole sizes : Maximum 40mm diameter.
Under side clearance : Maximum 58mm
Continue…….
Tap section
Tap section cut out hole sizes : Maximum 32mm diameter.
Under side clearance : Maximum 40mm

Installation Instructions Model : Z1408
Further information Phone [phone] [e-mail]
❷
❸
Thread the bottom brass lock nut 5, followed by
the bottom rubber washer 6, onto the Side
body 7, thread section.
Repeat for the opposite side.
Insert the Side body 7, through the tap hole cut
outs in the counter top.
Feed the top rubber washer 6, over the thread
section followed by the top brass lock nut 5.
Note: Make sure that the locking nuts are
fully tightened, otherwise the side body may
turn while turning the On Off lever.
4
❶
Install the pop-up waste body top section 1, and waste
body bottom section 4, to the basin as shown.
Ensure that the top seal 2, and bottom seal 3, are
installed correctly, to ensure proper functioning of the
pop-up waste system and prevent any water leakage.
Continue…….

Installation Instructions Model : Z1408
Further information Phone [phone] [e-mail]
❺
❻

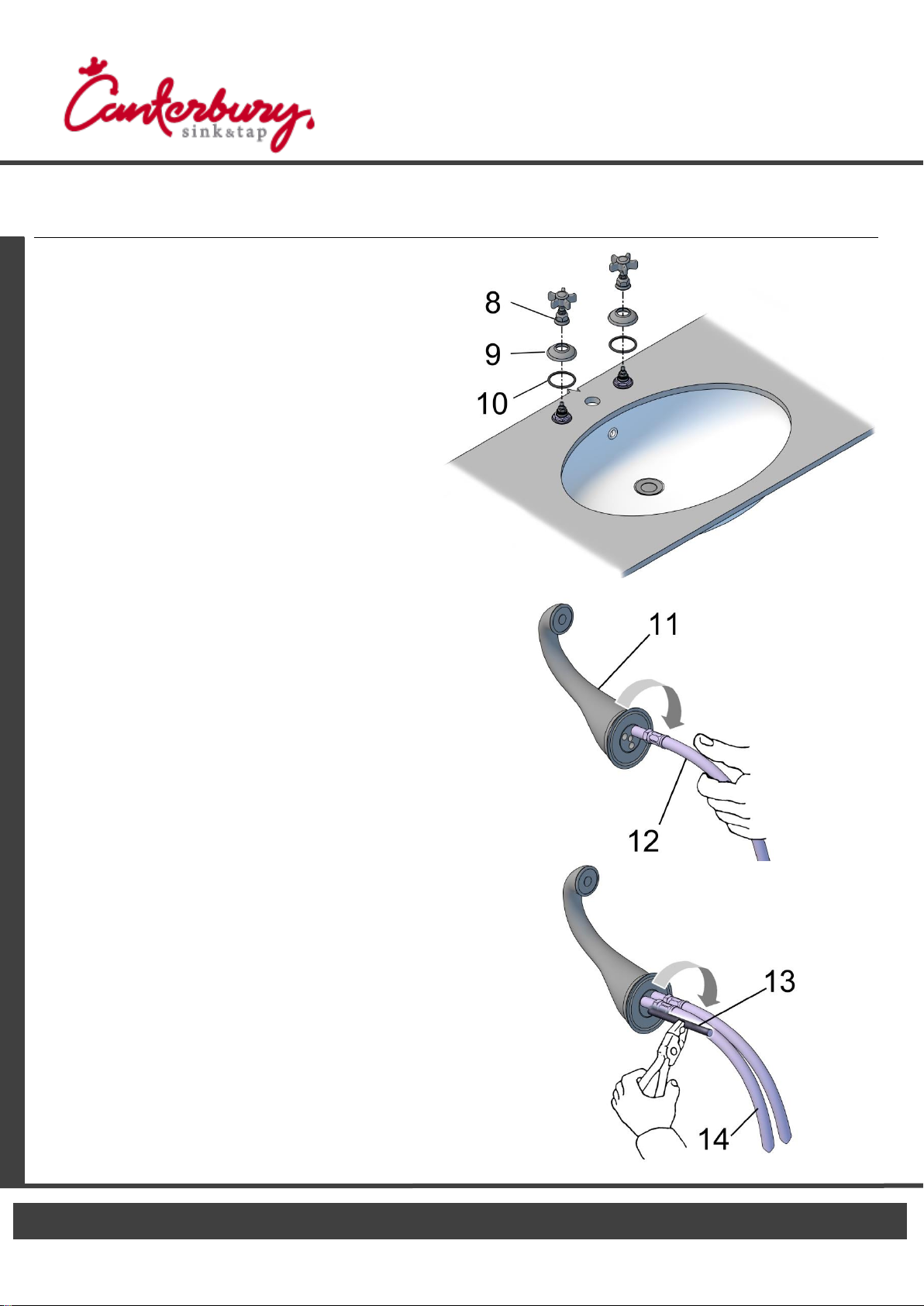

Install the water supply hose 12, into tap
the body 11.
- Note: Hand tighten only, DO NOT over
tighten- 12!
Install the second water supply hose 14,
and supplied mounting stud 13, and
verify that they are securely installed.
- Note: Hand tighten the supply hose only, DO
NOT over tighten- 13!
5
❹
Install the O-ring 10, into the recess of the
on the bottom face of the cover plate 9.
Feed the cover plate 9, onto the tap side
body, until it is flush with the counter top
surface.
Thread the retaining flange and handle 8,
onto the cartridge, securing it firmly by
hand only. See the “Removing and replacing
a handle”, on page “10”for additional
details.
Continue…….

Installation Instructions Model : Z1408
Further information Phone [phone] [e-mail]
❽
Under the sink, stack the supplied half ring
rubber gasket 16, above the half ring
mounting plate 17, and feed them onto the
stud. Then screw the mounting nut 18, onto
the stud. Screw the mounting stud until the
half ring rubber mates up with the
underside of the sink.
❼
Feed the O-ring 15, over the water supply
hoses.
Note: Insert the tap into mounting hole
carefully. Feed the water supply hoses
through the cut out hole ensuring that they
are not bent or kinked, as this could result in
permanent damage or leakage.
6
Continue…….

❾
Check the position on the sink of the tap,
then tighten the nut using a 13mm spanner
or smooth jawed shifter.
Note: the under deck mounting surface must
be flat. If the mounting surface is irregular, the
nut may not be secured, and the tap will be
loose on the sink.
Installation Instructions Model : Z1408
Further information Phone [phone] [e-mail]
❿
Connect water supply hoses 19 and 20,
from the tap body in the centre, to the
protruding stems on side body units.
Ensure all connections are firmly tightened,
and do not cross the supply hoses over
each other!
7
⓫
Connect main Hot and Cold water supplies
to the side body thread sections, using the
correct flexi tail hoses.
From the back view, the Cold water supply
is connected on the left hand side, with the
Hot water supply on the right hand side
Ensure all connections are firmly tightened.

⓬
Install the vertical waste pop-up rod 21, by
feeding it through the hole in the top of the
tap body.
Feed the bottom end of the vertical pop-up
rod onto the articulated joint 22, located
on the horizontal waste pop-up rod.
Adjust the length of the vertical pop-up rod
to ensure the proper working of the pop-up
stopper.
Ensure that the locking screw on the
articulated joint is firmly secured.
Installation Instructions Model : Z1408
Further information Phone [phone] [e-mail]
8
Before use
Turn on the Hot and Cold supplies to the tap.
Maximum temperature for Hot water supply to the tapware is 62 °C.
Minimum recommended pressure is 100 kPa —Maximum recommended pressure is 500 kPa.
Check the installation carefully for leaks.
If further building work is to be carried out in the vicinity of the tapware, it should be covered to
prevent paint, adhesive, etc. from damaging the surface.

Spare Parts list Model : Z1408
Further information Phone [phone] [e-mail]
9

Once totally loose, simply remove the
handle from cartridge spline.
Care and Maintenance Instructions Model : Z1408
Further information Phone [phone] [e-mail]
❶
❷
❸
Loosen and unscrew the retaining flange
A, from the tap body.
10
To reassemble, reverse the disassembly
procedure, given above.
The retaining flange only needs to be hand tight.
NOTE: DO NOT USE A SHIFTER TIGHTEN BY
HAND ONLY !
Do not over tighten as this could damage the
ceramic cartridge!
Removing and replacing a handle
MODEL SHOWN :Z1408
Available replacement handles:
-El Capitan Handle
-78 Mont Blanc Handle
-70 Half Dome
-18 Dame Anglaise
NOTE: At any time, should the handle feel loose,
retighten the retaining flange.
See our video: https://youtu.be/PUbD3GHgg58

Care and Maintenance Instructions Model : Z1408
Further information Phone [phone] [e-mail]
MAINTENANCE FOR THREE HOLE/TWO LEVER TAPWARE
INSTRUCTIONS FOR REPLACEMENT OF THE HOT OR COLD CARTRIDGE
Do not replace the cartridge if there is low flow or no flow. Low flow or no flow is caused by obstruction or
kinking of supply hoses.
If the hand spray is leaking, do not replace the diverter. Service or replace the hand
spray if there is a continous leak.
❶
Turn off the hot and cold supply lines to the tap set.
(Not shown).
Remove the handle and retaining flange. Refer to
“Removing and replacing a handle” section,
page10.
❷
Remove the cartridge with a smooth jawed 17mm
shifter.
❸
Install new cartridge.
Secure the cartridge with a smooth jawed shifter.
❹
Install lever and retaining flange. DO NOT USE A
SHIFTER TIGHTEN BY HAND ONLY!
Turn on supply line and test for leaks. (Not shown).
Continue…….
11
Note: Do not over tighten as this could damage the ceramic
cartridge!

LOW FLOW OR NO FLOW TROUBLESHOOTING INSTRUCTIONS
Current bathroom taps have a max flow rate of 7 Litres per minute from the aerator and the hand spray.
If you are experiencing low flow from the spout: Do not change the cartridge
• Unscrew and clean the aerator -1
• Unscrew and clean the filters inside the supply connections- 3
• Check the supply lines for kinks or obstructions-2,3.
• Make sure the supply line stops are fully on. (Not shown.)
Care and Maintenance Instructions Model : Z1408
Further information Phone [phone] [e-mail]
12

Care of external finishes
Nicolazzi products are all authentic finishes that have not been coated with any product. After each use, pat the
fixture down to remove any excess water. This will prevent any water spotting or mineral build-up. Use only soft
liquid soap and water to clean the surface. Use a soft brush to clean any gaps. Avoid any products that have
ammonia or alcohol like Windex, Jif or Ajax. These products can damage the finish leaving black or white spots.
Never use on abrasive products on tap ware or this will devoid the warranty.
Live Finishes DO NOT carry a warranty as they are living finishes and will change over time.
Raw Brass, Brush Brass (To make the brass lighter again rub the brass tap with lemon juice, this will lighten the dark
colouring).
Shiny Brass, Polished Nickel has an ageing process and will tarnish over time.
Tuscan Brass is a living finish and also carries NO warranty. It will lighten with use. To extend the life of the finish,
apply Bruno’s Wax by patting it on, letting it dry and patting it off. Never rub or buff this finish.
WARNING: The use of cleaning products not recommended might irreparably harm the surfaces of the tap, which in
such cases are not covered by our warranty.
Lime scale build up
The tap is fitted with an aeration device in the Hot/Cold water outlet.
This may need occasional cleaning especially in hard water areas.
This is accomplished by unscrewing the outlet in a counter clockwise direction, dismantling and
leaving the inner screen mesh immersed over night in vinegar
