Thank you for purchasing CANYON CNS-SW5, a multi-functional watch device with
ECG heart rate monitoring function. You have made an excellent choice and we hope
you will enjoy all of its exciting features. To fully utilize the functions and features of
CANYON CNS-SW5, please read through the user manual carefully before using
the product, and follow all of the procedures in the manual to fully enjoy all features
of the product.
Introduction
Safety Precautions
Please observe all safety precautions before using the device. Please follow all
procedures outlined in this manual to properly operate the device. The device
and its accessory, like most electronic or magnetic devices, may be at
interference with pacemaker. Please consult doctor or other professionals
before using the product. The heart rate monitoring function is intended only to
be a supplementary method for measuring heart rate. It is NOT a
substitute/alternative device for professional medical devices. The heart rate
readings from CANYON CNS-SW5 should be periodically cross-checked with
readings from medical devices dedicated to heart rate monitoring.
zDo NOT attempt to disassemble or alter any part of the device that is not
described in this guide.
zDo NOT place the device near a heat source or directly expose it to flame.
zNever place the device in vicinity of equipments generating strong
electromagnetic fields. Exposure to strong magnetic fields may cause
malfunctions.
zAvoid exposing the device to extreme temperatures or chemicals such as
gasoline and alcohol.
zAvoid strong impacts for it will damage the device permanently.
zStore device and its accessory at a dry and well ventilated location when they
are not in use.
2

Package Contents
Product Image Item Name
CANYON CNS-SW5 Main Unit
Chest Strap
Quick Guide
Documentation CD
3

Device Overview
Light Button
Mode Button
Up/Start/Stop
Button
Down/Reset
Button
[EL]
[M]
[U]
[D]
Button Operation Summary
Mode Button [M]
zPress to cycle through 4 functional modes.
zPress and hold to enter/exit Setting Mode.
zDuring Settings Mode, press to cycle through different settings.
Up/Start/Stop Button [U]
zPress to show current date at Current Time Mode.
zPress to toggle between 12 and 24 hour format at Current Time
Mode.
zPress to switch daily alarm on/off at Daily Alarm Mode.
zPress to start/stop time counting at Chronograph, Countdown Timer,
and Heart Rate Mode.
zPress to increase values at Settings Mode.
Down/Reset Button [D]
zPress to activate Heart Rate Mode at Current Time Mode.
zPress to switch hourly reminder on/off at Daily Alarm Mode.
zPress to reset time counting at Exercise Timer, Chronograph and
Countdown Timer Mode.
zPress to reset target time at Timer Mode.
zPress to decrease values at Settings Mode.
Light Button [EL]
zPress to turn on back light for 3 seconds
4

Basic Operation

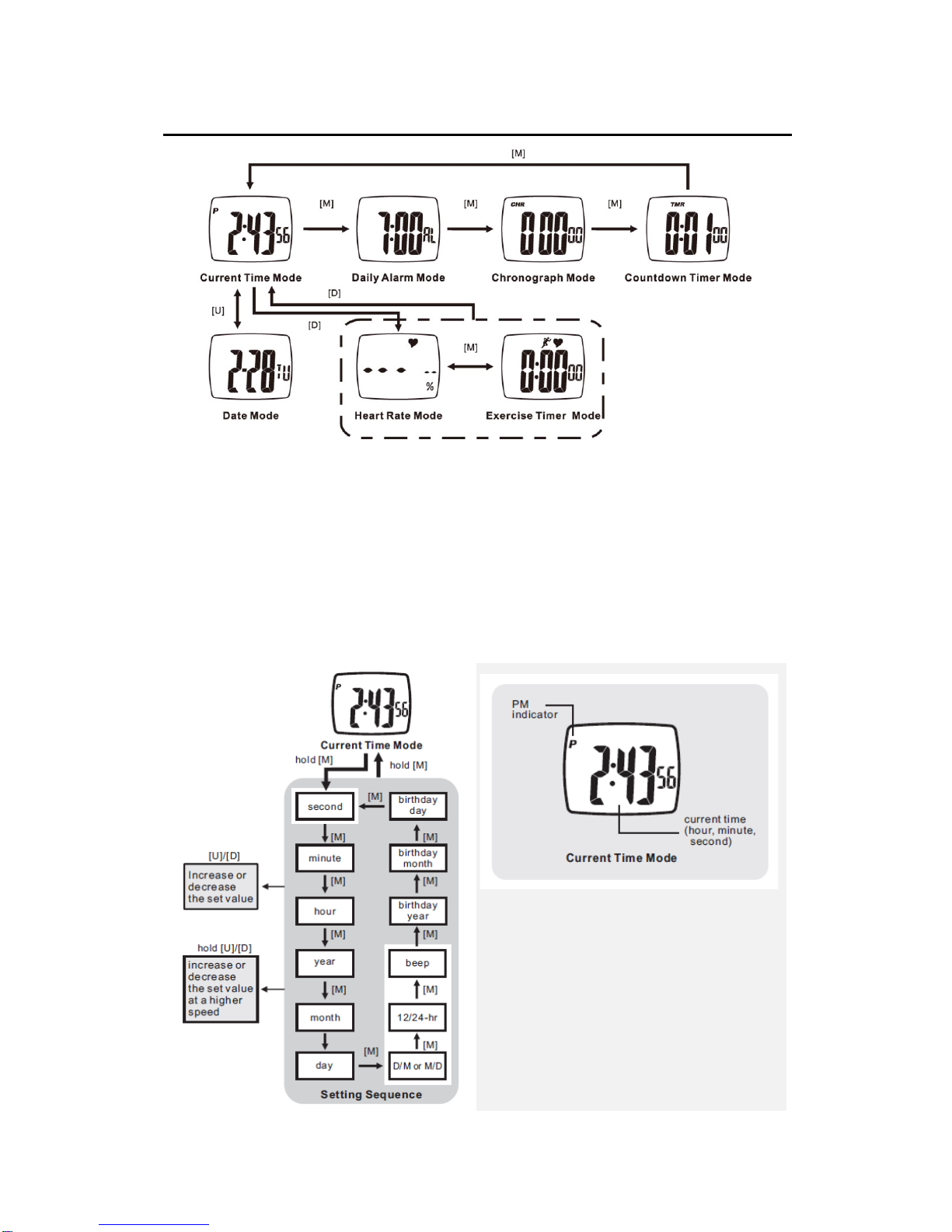

CANYON CNS-SW5 is a multi-functional watch device that contains 5 functional
modes including Current Time Mode, Daily Alarm Mode, Chronograph Mode,
Countdown Timer Mode, and Heart Rate Mode/Exercise Timer Mode. Press [M] to
cycle through 4 functional modes and [D] to activate Heart Rate Mode/Exercise
Timer Mode as shown above.
Current Time Mode
zPress and hold [M] for 2 seconds to
enter Settings Mode.
zPress [M] to cycle through different
digits and settings. Press [U] and
[D] to adjust values.
zPress and hold [M] to save modified
settings and exit Settings Mode.
5

Daily Alarm Mode
zPress [U] to switch daily alarm
on/off. A daily alarm indicator
will be displayed on the screen. The
alarm will ring continuously for 30
seconds.
zPress [D] to switch hourly chime
on/off. An hourly chime indicator
will be displayed on the screen.
zPress and hold [M] for 2 seconds to
enter daily alarm setting.
zPress [M] to switch between hour
and minute digits. Press [U] and
[D] to adjust values.
zPress and hold [M] to save modified
settings and exit Settings Mode.
Chronograph Mode
zUpon entering, the Chronograph
Mode indicator CHR will be
displayed at the side of screen.
zThe device measures elapsed time
and current split time.
6

zPress [U] to start counting. Press
the button again to stop counting
and the elapsed time will be
displayed on the screen. Press the
button the third time to resume
counting.
zPress [D] while counting to display
current split time and press the
button again to display current
counting.
zPress and hold [D] for 2 seconds to
reset counter.
Countdown Timer Mode
zUpon entering, the Countdown
Timer Mode indicator TMR will be
displayed at the top of screen.
zPress [U] to start countdown. The
residual time will be displayed on the
screen.
zPress [U] during count- down to
pause. Press the button again to
resume countdown.
zPress [D] to reset count- down
timer to target time.
NOTE:
The device will beep once per second
when the timer reaches last 5 seconds. It
will also beep for another 10 second
when timer reaches target time.
7

zPress and hold [M] for 2 seconds to
enter target time setting.
zPress [M] to switch between hour,
minute, and second digits. Press [U]
and [D] to adjust values.
zPress and hold [M] for 2 seconds to
save modified settings and exit
target time setting.

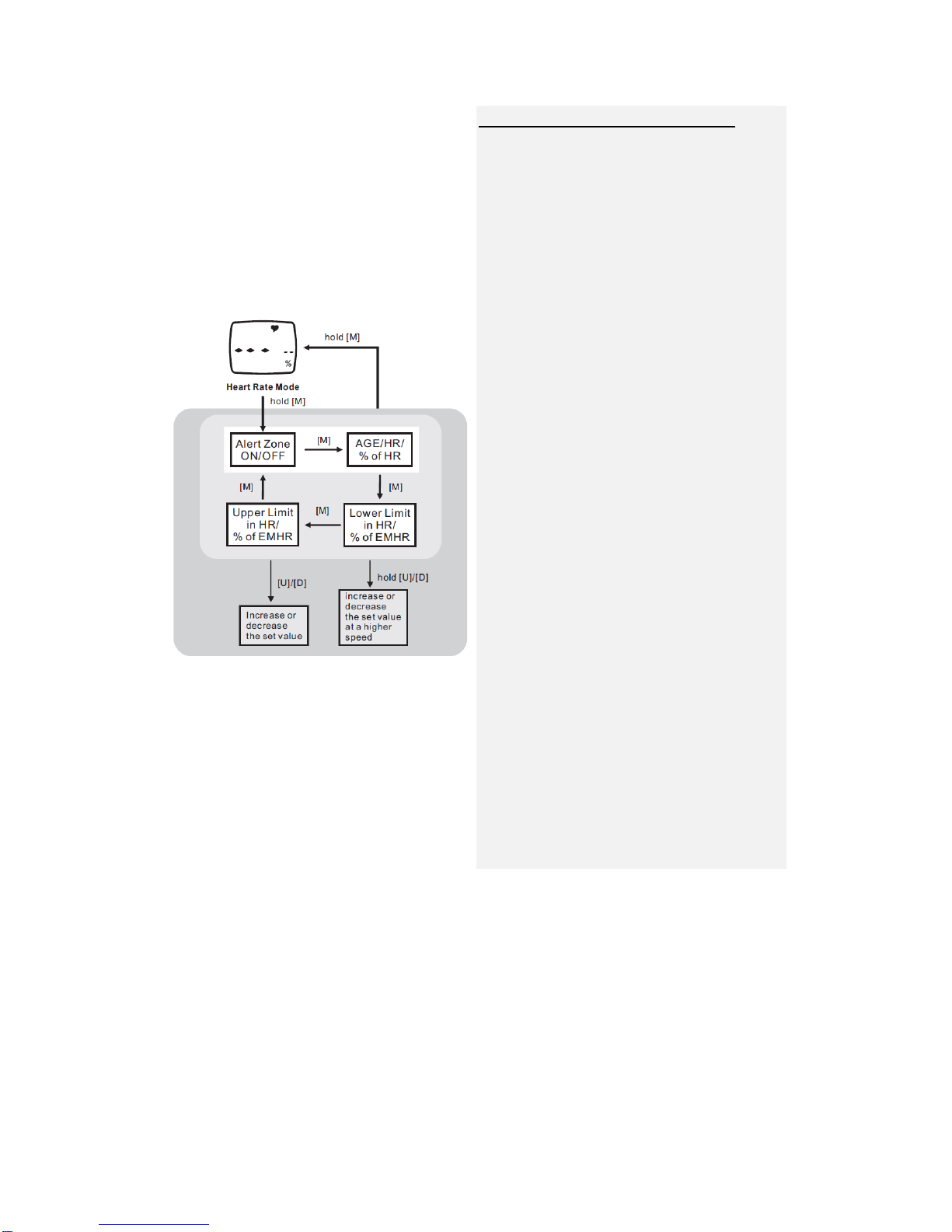

Heart Rate Zone Alert Mode
8

Precautions:
zPlease make sure that the two contact points of chest strap are in direct
contact of user skin and firmly secured during measuring.
zDo NOT take heart rate measurement when diving or under water.
zDo NOT apply hand cream or any other solutions for it will block out signal
transmission between user skin and contact points of chest strap.
zAdjust the chest strap with elastic band included until it is firmly in contact
with user chest.
zClean contact points occasionally by applying few drops of water and wipe
chest strap dry with paper towel to remove residual grease.
zClean user skin with soap and water for better signal transmission. Apply
conductive gel or water for users with extremely dry skin condition.
Obtaining Heart Rate Reading:
zDuring Current Time Mode, Press
[D] to enter Heart Rate Mode. Upon
entering, the Heart Rate Mode
indicator will be displayed at the
top of screen.
zPress [U] to activate heart rate
measuring function. The user heart
rate and percentage of estimated
maximum heart rate will be shown.
NOTE:
zThe estimated maximum heart rate and its relative percentage calculated by
the following formula:
EMHR =220(male)|226(female) – user age
%EMHR = Acquired Heart Rate / EMHR X 100%
zRelative Heart Rate is a percentage that compares one’s acquired heart rate
with estimated maximum heart rate. The number is primarily used to
determine cardio fitness of an individual. Please consult with professional
doctors for more details on its implication.
9

zTo activate %EMHR function, user age and gender must be correctly input and
Heart Rate Zone Alert function must be switched on. Please refer to below
section for more information.

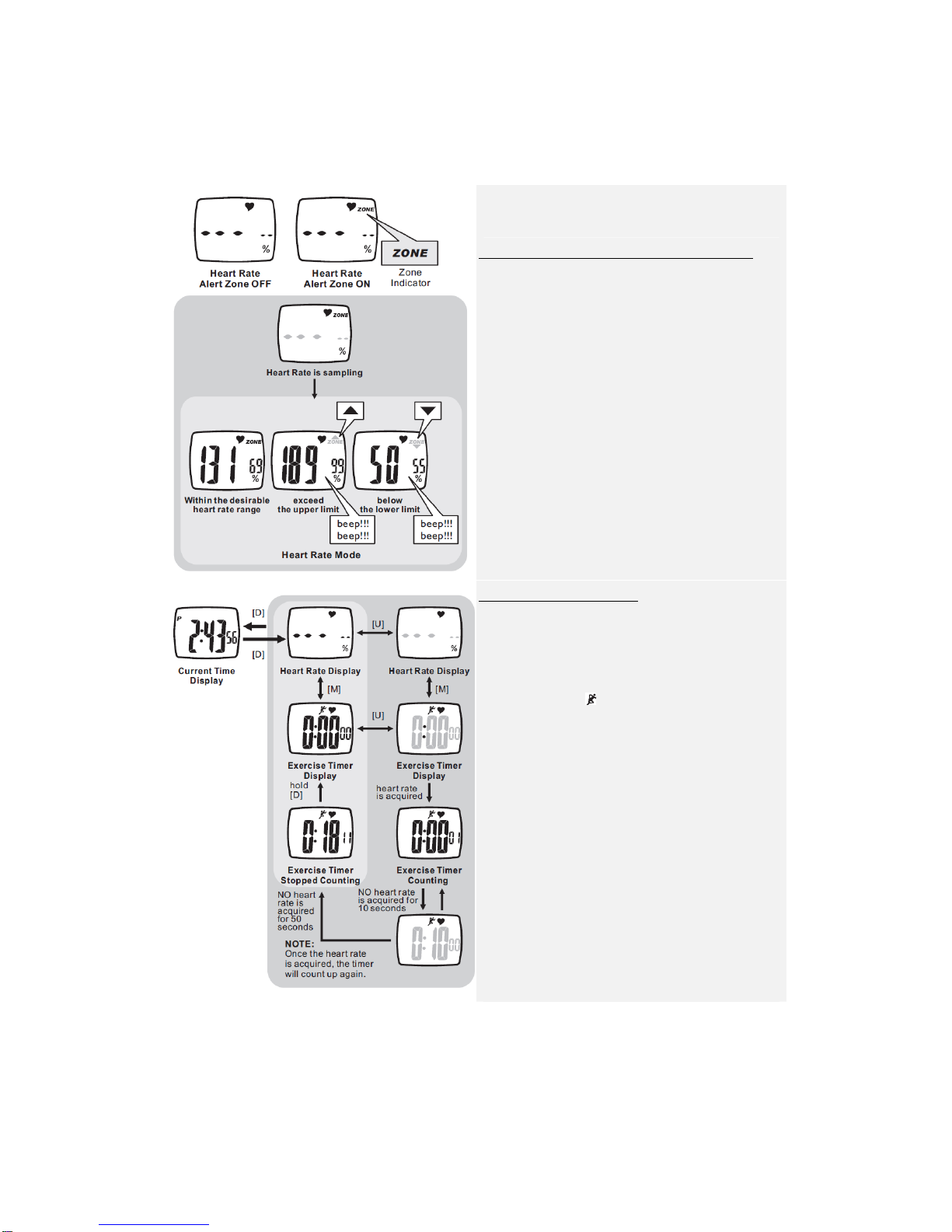

Using Heart Rate Alert Zone Function:
zWhen Heart Rate Alert Zone
Function is activated, a function
indicator ZONE will be displayed at
the top of screen.
zThe device displays S/Tindicator
and releases beep sound twice every
10 seconds when user heart rate is
above/below set range. The device
remains silent when user heart rate
falls within set range.
Exercise Timer Mode:
zDuring Heart Rate Mode, press [M]
to enter Exercise Timer Mode. Upon
entering, the Exercise Timer Mode
indicator will be displayed at the
top of screen.
zPress [U] to activate heart rate
measuring function. The exercise
time will initiate counting
automatically once a valid heart rate
is obtained.
zThe exercise timer stops counting
automatically if no heart rate is
obtained for more than 10 seconds.
Press and hold [D] for 2 seconds to
reset the timer.
