1. Description.
The EXP2PUL is a transducer consists of two phoelectric sensors (Phototransistors), capable to acquire light pulses coming from an
energy meter and transform them into electrical signals.
2. Meter application.
Align the photoelectric sensors with leds placed on meter.
Use the double-sided tape to fix the interface.
Picture 1 - Product Image
Picture 2 - Transducer positioning
EXP2PUL

EXP2PUL
User Manual
WA5044E_EXP2PUL_User Manual_R05
V4.6
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone [phone] - Fax [phone]
e-mail [email protected] - web www.capetti.it
2/5
For new E-Distribuzione meters the adaptation kit, as shown in the next picture, is necessary:
3. POD meter connection.
EXP2PUL may be connected to all Winecap™ product line’s dataloggers and probes suitable for electric consumption monitoring
to acquire flashes coming from energy meter (also for energy production):
IP30
IP65
WSD02-2DI
WSD12-2DI
WSD02-4DI
WSD12-4DI
WSS02-2DI
WSS12-2DI
WSS02-4DI
WSS12-4DI
SD02-2DI
SD12-2DI
SD02-4DI
SD12-4DI
Operation needs correct connections of wires respecting colours:
-brown : RA (active) higher LED
-blue: RR (reactive) lower LED
-black: GND (common)
Pulse weight is declared on meter’s silk-screen printing, set-up weight in proper mode. For small and medium size plants, normally,
weights corresponds respectively to 1 Wh and 1 varh per pulse. For bigger plants with amperometric transformers a correcting
factor can be present.
Use the double-sided tape available on the bottom side to fix the interface to meter’s plastic surface, taking care of dust and/or
liquids.

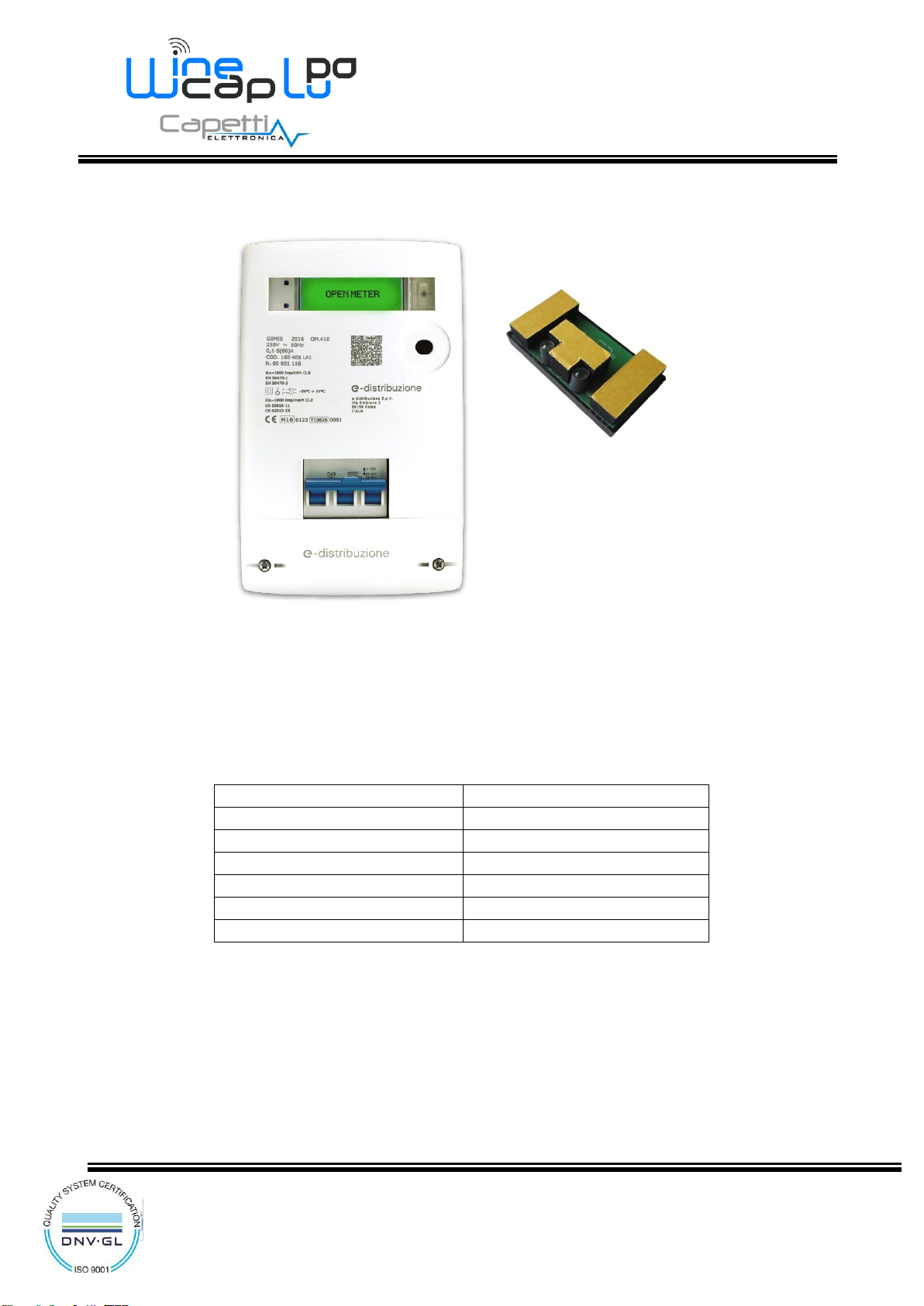

Picture 3 - E-Distribuzione meter and adaptation kit

EXP2PUL
User Manual
WA5044E_EXP2PUL_User Manual_R05
V4.6
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone [phone] - Fax [phone]
e-mail [email protected] - web www.capetti.it
3/5
During the positioning, control the proper photosensor’s alignment with meter’s led. Led flashing can help to center the
photosensor’s position.
CAUTION: POD meter, in case of sampled power equal to ZERO, enlight RA LED continuosly until this condition persist. Datalogger
turns in error status, so all the measures sen twill be declared invalid. When the error condition stops, both meter and datalogger
restarts to count.
4. Technical Information.
Transducer type
Phototransistor
Measures acquired
ENEL energy meter pulses for active power (20Hz)
ENEL energy meter pulses for reactive power (20Hz)
Sampling interval (*)
Selectable from one minute to 24 hours (x minutes default)
Sealing
IP30
Dimensions
52x27x5mm
Weight
50g
Case material
ABS
Mounting
Adhesive strips
Cable lenght
3m

EXP2PUL
User Manual
WA5044E_EXP2PUL_User Manual_R05
V4.6
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone [phone] - Fax [phone]
e-mail [email protected] - web www.capetti.it
4/5
5. Mechanical dimensions.
Picture 4 - Mechanical dimensions

EXP2PUL
User Manual
WA5044E_EXP2PUL_User Manual_R05
V4.6
CAPETTI ELETTRONICA s.r.l. - Strada Stratta 57
10090 CASTIGLIONE TORINESE - TORINO - ITALY
VAT 04837130014 - Phone [phone] - Fax [phone]
e-mail [email protected] - web www.capetti.it
5/5
6. Reference standards.
EN 61010 -1
For electromagnetic compatibility
EN 61000 - 3 - 2
EN 61000 - 3 - 3
EN 300 220 -2
EN 301 489 - 03
EN 61000 - 6 -1
This symbol indicates that this product is compliant with the European Directive 2011/65/CE that restricts
the use of substances in the manufacturing of electronic devices.
The “WEEE” logo on the label indicates that this product is compliant with the "WEEE" EC Directive.This
symbol (valid only in the European Union countries) indicates that the product it is applied to, MUST NOT
be discarded with ordinary household or industrial waste, but must be sent to an authorized reception
point. The end user should contact the device provider, either the manufacturer or the reseller, in order to
agree a collection and disposal process, after having checked the terms and conditions of sale.
The features shown may be subject to change without notice.
