Customer care helpline: 0117 938 1900 www.caple.co.uk
INSTALLATION AND CARE GUIDE
Model code: AXL50
INSET INSTALLATION GUIDE
For undermount installation please refer to the template provided with the sink.
Thank you for purchasing your Caple sink.
This sink have been manufactured with the finest quality 18/10 stainless steel and inspected to
exacting standards and is guaranteed to give years of trouble free operation providing our care and
installation guidelines have been followed.
NOTE: Please see back page for care and maintenance instructions
520mm
8mm
420mm
Sink
30-40mm
25mm
Sink
(1) (2)
1
4
2
5
3
6

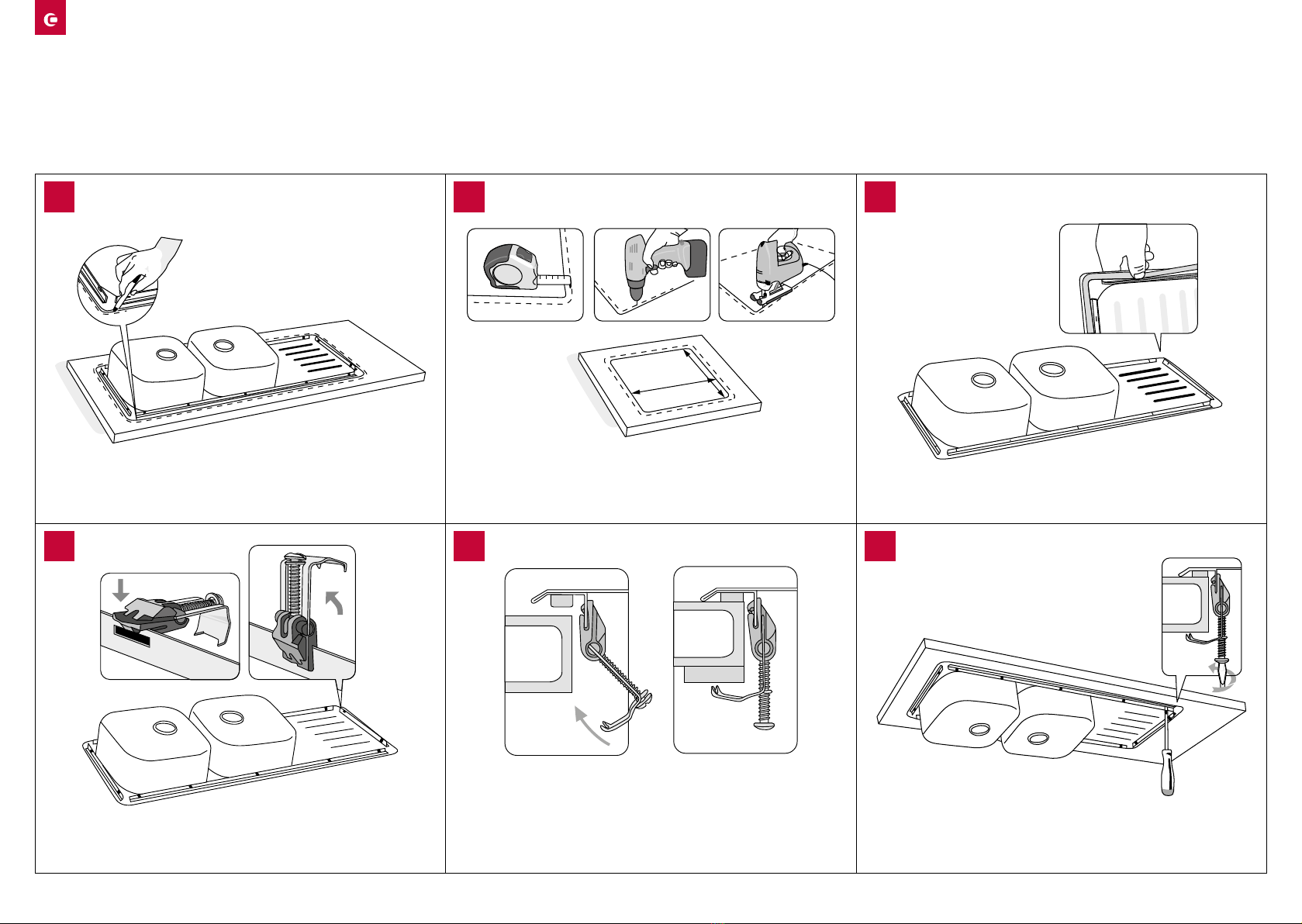

Place the sink upside down in the position where it is to be installed,
and trace the outline of the sink on the worktop with a pencil.
Place the fixing clips horizontally and pull them up to look into their
vertical position. Then position the sink into the worktop.
Draw another line 10mm inside the first line, cut a hole in the worktop
following this second inner line. Alternatively for inset installation cut
a hole 520mm x 420mm as above to accomodate the sink.
The fixing clips are designed for use with worktops 30-40mm thick
(1). If your worktop is thinner, insert wooden wedges between the
counter top and the fixing clips to secure them (2). After placing two
at each corner of the sink, place the rest evenly spaced around the
perimiter of the sink.
Adhere the seal tape around the under side of the edge of the sink,
being careful to lay it smoothly (without ridges).
Tighten the screws of the fixing clips (with a screwdriver), to secure
the sink in place.
CAUTION: Sink edges may be sharp, handle with care
SINK MAINTENANCE TIPS – STAINLESS STEEL SINKS
- By following these maintenance tips, you can maintain the finish of
your stainless steel sink for longer:
- Scratching on the surface of sinks will occur over time through
normal usage. Scratches cannot be removed only made less
noticeable by using stainless steel polishing creams and cleaning
products. The best form of maintenance is frequent, regular cleaning.
A little bit of cleaning on a regular basis is preferable to a major clean
on a sporadic basis.
- The best method of preventative maintenance is to ensure the sink
is clean and dry. Rinse and towel dry the sink after each use in order
to minimise major cleaning, keeping it shiny and relatively free of
water spots.
- Keep the sink free of any standing water, which may build up mineral
deposits. The quality of your water can affect the sinks appearance
and this water quality will vary from household to household.
- To clean your sink use the mildest cleaning procedure that will do
the job effectively. Exercise extreme care with household cleaners in
particular detergents or bleaches.
- Always rinse the sink after using a cleaning agent and wipe the sink
dry to discourage water spotting.
- Metallic scouring pads and steel wool pads should not be used to
clean your sink or any utensils in the sink. They will not only scratch
the sink but also leave a residue of small iron particles, these may not
be visible but they will most certainly lead to rusting and corrosion on
the sink surface.
- Do not leave any mild steel, cast iron cookware or implements
anywhere on the sink for extended periods of time. The combined
presence of iron and moisture with stainless steel leads to surface
corrosion and sink staining.
- Do not leave wet sponges or cleaning pads in the sink overnight as
they will trap water which could lead to staining or discolouration
of the sink surface. The unique properties of stainless steel are
dependent upon exposure of the surface to the atmosphere.
- We recommend that you do not use chlorine bleach in your stainless
steel sink, as chlorine will attack the protective layer that makes
stainless steel truly stainless. Any drain cleaning products containing
sulphuric or hydrochloric acid will also attack the sink.
- For the occasional treatment of grime and mineral deposits that may
build up over time, use cleaning products specifically designed for
stainless steel following the manufacturer’s instructions.
- If rusting or spotting occurs it can easily be removed with the use of
a cutting compound, a soft scrubber (such as nylon or plastic) and a
little elbow grease.
STAINLESS STEEL SINK PRODUCT CARE AND CLEANING INSTRUCTIONS
- Always wipe the sink down with warm soapy water and a cloth.
This will remove general everyday stains from your sink.
- In hard water areas limescale deposits can build up on the sink over
time. The limescale can become strongly coloured by such foods as
coffee and red wine etc, we recommend the use of lemon juice or
vinegar to remove this. Simply apply, leave for a few minutes and
rinse away with water.
- If stains become ingrained in the bowl, an overnight soak using
diluted biological washing powder should remove the marks easily.
Ensure you thoroughly rinse the sink with water afterwards.
- For further advise on cleaning products please contact our Customer
Service team on Tel: 0117 938 1900 or email: [email protected]
- We recommend the use of baskets, grids and chopping boards to
help reduce the risk of accidental damage.
- You must not pour strong chemicals down the sink such as bleach,
ammonia, caustic soda, white sprit and sterilising solutions. If this
should accidentally happen, quickly wipe the spill away and rinse
with plenty of water.
- We do not recommend the use of a plastic washing up bowl, as
particles of grit which may be impregnated in the base of the bowl
could scratch surface of the sink.
- Do not chop food directly on the sink surface, as this will cause
damage. Wooden chopping boards are available for this purpose.
- Avoid dropping sharp objects into the sink, as this may scratch or
damage the surface.
- Leaving neat bleach in the sink can cause damage to all sinks even
stainless steel. If neat bleach should come into contact with this
product, please rinse thoroughly with warm soapy water.
EN 13310:2015
Kitchen sink
Cleanability PASS
Durability PASS
SINK GUARANTEE
- Caple products are manufactured to the highest standard, however,
should any defect in the material or construction arise within the
guarantee period and in the judgment of Caple or an authorised
representative is agreed as being defective, we will replace the
product or parts free of charge providing the item has been used
in a solely domestic application and fitted in accordance with
the installation instructions provided. The care instructions and
maintenance information must be observed at all times and the
product has been cleaned as recommended.
- Caple reserves the right to inspect any product reported to be
defective prior to replacement and the manufacturer’s decision
is final.
EXCLUSIONS
- Normal wear and tear or any damage or defect due to improper
installation or abuse of fitting or damage from misuse, negligence or
accident.
- Consequential damage resulting prior to or as a result of agreement
to replace the product. – Labour and transport.
CONDITION
- This guarantee applies to the original purchase only and cannot be
transferred.
The original installation was completed by a qualified tradesman.
CLAIMS
- A claim will only be recognised by Caple if accompanied by
a copy of invoice/receipt confirming the date and proof of
ownership.
PRODUCT IMPROVEMENT
- Due to our continued product development policy, we reserve the
right to modify product specifications and/or dimensions without
notice.
- This guarantee is in addition to and does not diminish your
statutory or legal rights.
CAPLE GUARANTEES
- Sinks: Lifetime guarantee against manufacturing defects
AFTER SALES SUPPORT
- Telephone: 0117 938 1900
- Please contact your retailer, call Caple direct on 0117 938 1900,
email [email protected] or visit our website at www.caple.co.uk for
further product information.
