Steaming Water Tap
Instruction Manual
VAP2/3IN1/BS, VAP2/3IN1/SS, VAP2/3IN1/GM,
VAP2/3IN1/GD,VAP2/3IN1/CO, VAPQ2/3IN1/SS,
JOY3IN1/SS, JOY3IN1/GD, JOY3IN1/CO

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN12
CONTENTS
Safety Instructions 3
Environmental Protection 7
Accessories Supplied 8
Installing the Vapos 3IN1 9
Vapos 3in1 Installation 10
Installing the Joya 3IN1 14
Joya 3in1 Installation 15
Operation 19
Tap Dimensions 21
Boiler Dimensions 23
Care and Maintenance 24
Troubleshooting 26
Caple Contact Details 28

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN1 3
SAFETY INSTRUCTIONS
This steaming hot water tap is not intended for use
by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Cleaning and user maintenance must not be made by
children without supervision.
This is a household appliance only. It is not intended to be
used in:
-Staff kitchen areas in shops, offices and other
working environments,
-Bed and breakfast type environments,
-By clients in hotels, motels and other residential
type environments.
To avoid all risk, if the plug or power cable is damaged, it
must only be replaced by a Caple appointed engineer.
Do not wash children, hair or any pets in a sink within
reach of this steaming water tap. Although there are
safety features in place, the steaming water could cause
scalding by release of near boiling water.
This appliance can be used by children aged from 8
years and above if they have been given supervision or
instruction concerning use of the appliance in a safe way

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN14
and if they understand the hazard involved.
Cleaning and user maintenance must not be made by
children unless they are older than 8 and supervised. Keep
the appliance and its cord out of the reach of children
aged less than 8 years.
Appliances can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved.
Children must not play with this appliance.
When not in use and before cleaning, always unplug
the appliance.
IMPORTANT
Read the instruction manual carefully before using the
appliance for the first time.
This appliance is designed solely to dispense hot and cold
water, also to dispense near boiling water. Other types of
use are not permitted and may prove dangerous. Caple
will not be held liable for any damage caused by the
incorrect use of the appliance.
Do not use any accessories or attachments not
recommended by Caple as this may result in fire, electric
shock or injury.

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN1 5
To protect against fire, electrical shock and injury to
persons, do not immerse cord or plugs in water or any
other liquid.
Never touch the under-counter parts of the appliance with
wet or damp hands.
Never touch the plug with wet or damp hands.
Make sure the socket used is freely accessible at all times,
enabling the appliance to be unplugged when necessary.
Unplug directly from the plug only. Never pull the power
cable as you could damage it.
If the appliance is faulty, do not attempt to repair it.
Unplug from the mains electric socket and contact Caple
Service either by phone [phone] or
email [e-mail].
Keep all packaging (including plastic bags, polystyrene
foam etc) out of the reach and away from children.
This appliance produces very hot, near boiling water and
steam may form while it is in operation. Avoid contact
with splashes of hot water or hot steam. Always follow the
instructions and use the lever handles to control
the product.
Do not rest large or unstable objects on any part of
the appliance.
Do not rest vessels containing liquids, inflammable or
corrosive materials on top of any part of the appliance.

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN16
IMPORTANT
Caple cannot be held responsible for injuries or losses caused
by incorrect use or installation of this product. Please note
that Caple reserve the right to invalidate the guarantee
supplied with this product following incorrect installation or
misuse of the appliance. The guarantee may become void
in the event of the water filter not being replaced at the
required six month intervals or it not being set to the correct
setting as outlined in the filter installation instructions. Under
no circumstances should any external covers be removed for
servicing or maintenance except by suitably
qualified personnel.

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN1 7
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is
marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
CE DECLARATIONS OF CONFORMITY
This appliance has been designed, constructed and marketed in compliance with safety
requirements in force.
This appliance has been manufactured to the strictest standards and complies with all applicable
legislation, including Electrical safety (LVD) and Electromagnetic interference compatibility (EMC).

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN18

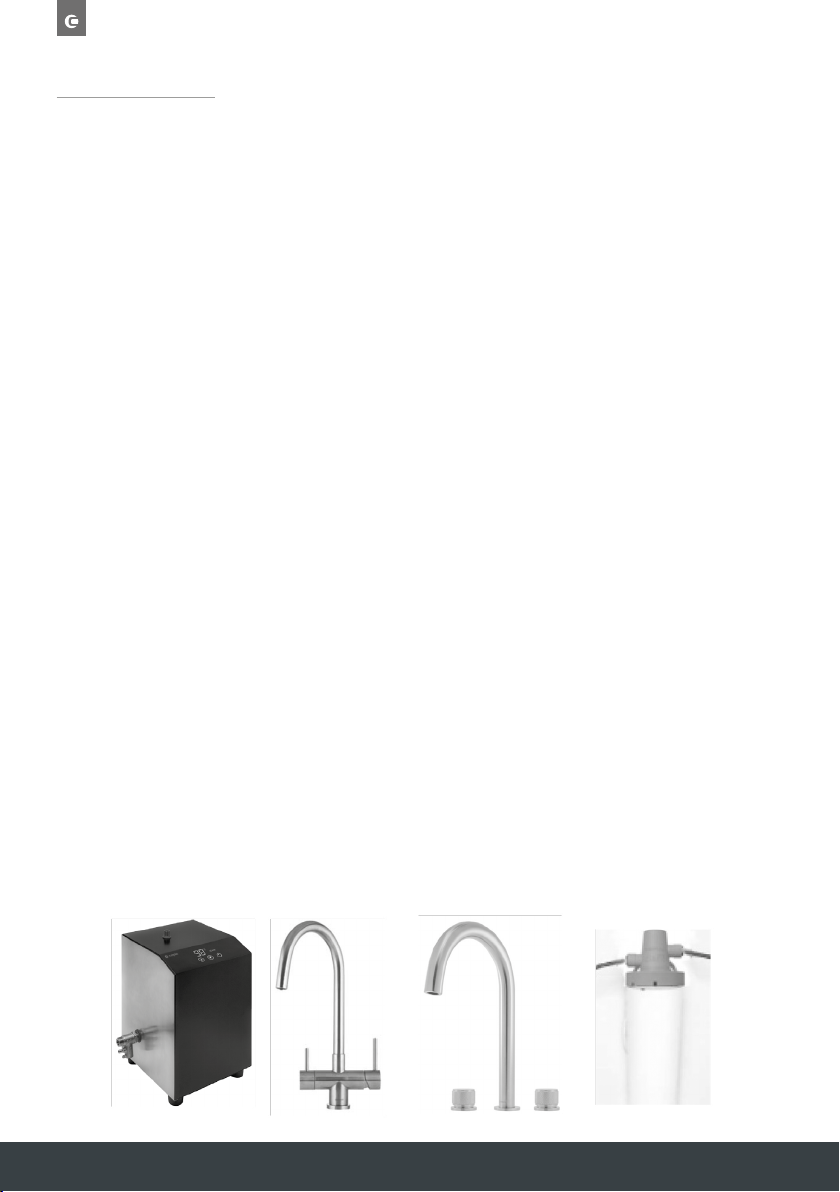

ACCESSORIES SUPPLIED
You will receive 3 separate boxes for this product:
»Tap
»BOILER2 – boiler tank
»PURITI7 – Filter and fixings
The contents of the boxes should be as follows:
Tap
1 x Tap and relevant fixings (including all flexi tails for hot, cold and boiling water connections)
Boiler
1 x Boiler
1 x Steam release valve
1 x Flexi tail for boiler inlet
1 x Clear silicone steam release tube with threaded metal connector for plumbing
1 x Instruction book
1x Hanging Plate
Included in the PURITI7 filter box:
1 x T-piece connector for main cold water to supply
1 x Push fit to thread adaptor
1 x Claris Ultra filter with installation guide
1 x Adjustable filter head and fittings
1 x Blue tube for cold water supply to filter
2 x Water hardness testing strips

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN1 9
BOILER
WATER FILTER
98º
Steam release valve
(to be connected
to plumbing)
T-piece connector
Push fit to
thread adaptor
98˚ Water
C [Filtered]
H C
C
Hot & Cold Water
Normal Cold Water
98˚ Water from Boiler Normal Hot Water
Mains
Hot
Mains
Cold
INSTALLING THE VAPOS 3IN1 STEAMING HOT WATER TAP
1. In order to prevent an electric shock, do not place electrical wires, plugs or the dispenser in a
wet or damp location.
2. If any cables or sockets have signs of damage, do not connect the appliance to the power
supply. These should be replaced by a Caple Service agent.
3. When installing the dispenser, you should allow 10 to 15cm of space around it for ventilation.
4. You must never use a spare part which is not recommended by Caple.
5. The temperature adjustment controls the water temperature, not the water flow.
6. Do not ‘dry heat’ the water tank as this can cause heating of the pipes and the water tank will
become damaged. You must ensure the tank has been filled with water before switching the
boiler on at the mains.

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN110
VAPOS 3IN1 INSTALLATION
»The power outlet must be correctly earthed and also be able to be isolated by a switch.
»Use a separate circuit for the boiler, which is also correctly earthed.
»The tap can be installed into the sink or the worktop using a 35mm hole.
»Install the water boiler vertically, it must not be placed on its side. It can be stood on the base
of the cabinet, but it is recommended to fix the boiler in position using the brackets provided.
INSTALLATION STEPS
1. Install the tap onto the sink or the worktop as shown below, and tighten the fixing screw.
Diameter of cut out = 35mm

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN1 11
Normal Cold Water
98˚ Water from Boiler Normal Hot Water
2. Screw the 3 flexible hoses into the base of the tap. The red hose connects to the hot water,
the blue hose connects to the cold water, and the longer plain steel hose (1 meter) connects
to the boiling water.
3. Attach the T-piece connector to the Cold mains water supply,
to allow a seperate flow to go direct to the water filter. Using
the Blue tube supplied with the filter, cut it to the appropriate
length and connect this to the T-piece connecter via the push fit
connection. The opposite end can then be attached to the inlet
on the filter head.
4. Follow the instructions supplied with the filter and filter head to ensure it is installed correctly,
and set to the correct setting for the water hardness in your area. Failure to do this will
invalidate your guarantee.
5. The hot & cold tap tails can be connected directly to the hot & cold mains water, and the
boiling water flexi tail can connect to the outlet on the top of the boiler.
6. Attach the Boiler inlet flexi tail onto the valve on the side of the
boiler, and finally, using the remainder of the blue tube, connect
this to the filter head outlet and then to the end of the Boiler
inlet flexi tail using the push fit to threaded adaptor.
98°
C
H

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN112
7. The clear silicone hose connects to the steam release valve on the side of the boiler, and can
then be attached to the existing plumbing using the threaded metal connector.
8. Once all of the connections have been made, turn on the standard cold/hot water supply by
using the right hand lever on the tap to test the cold water (blue colour indicator) and hot
water (red colour indicator). Switch it off after the flow becomes normal.
9. Turn on the left lever of the tap (with child safety lock, push the lever down and backwards),
until the water completely fills the boiler tank and begins to flow from the tap continuously.
Let the water flow for at least 5 minutes in order to flush the tubes, boiler and filter.
Plumbing
Threaded Metal Connector
Clear Tube
10. Check all connections to ensure that no tubes are stretched or twisted and there are no
leakages, then fix the boiler in the final location using the brackets supplied. The boiler must
be installed upright.

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN1 13
11. Connect the boiler to the power supply.
(PLEASE ENSURE THE BOILER TANK IS FULL OF WATER BEFORE SWITCHING ON,
ANY DAMAGED CAUSED BY NOT FOLLOWING THIS INSTRUCTION WILL NOT BE
COVERED BY THE GUARANTEE).
12. Test the dispenser. Adjust the temperature of the boiler to the highest setting, wait for 10
minutes until you can hear the water boiling. The ‘HEATING’ light will illuminate whilst the
boiler is heating. Once it has reached the desired temperature, ‘READY’ will be displayed.
NOTE:
It may take a few seconds for the water to begin to flow as it makes the way up the tube (the time
will vary depending on the length of the tube). Always allow the water to run for a few seconds
before using the steaming water to make a drink. This will ensure any water which may have
cooled in the tube has been expelled first, allowing for a steaming hot beverage to be made.
To fix the boiler to the cabinet, remove the hanging plate from the packaging:
»Mark the fixing location of the hanging bracket on the inside of the cabinet and install the
bracket fixing screws into the cabinet.
»Using the nut and thread on the top of the boiler, fit the bracket.
»Fix the boiler in position by locating the bracket on the screws previously fixed into
the cabinet.
»Tighten all screws to securely fix in place.

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN114
C
Mains
Cold
BOILER
WAT E R F I LTER
98º
Steam release valve
(to be connected
to plumbing)
T-piece connector
Push fit to
thread adaptop
98˚ Water
C [Filtered]
H
C
Hot & Cold Water
Mains
Hot
BOILER
INSTALLING THE JOYA 3IN1 STEAMING HOT WATER TAP
1. In order to prevent an electric shock, do not place electrical wires, plugs or the dispenser in a
wet or damp location.
2. If any cables or sockets have signs of damage, do not connect the appliance to the power
supply. These should be replaced by a Caple Service agent.
3. When installing the dispenser, you should allow 10 to 15cm of space around it for ventilation.
4. You must never use a spare part which is not recommended by Caple.
5. The temperature adjustment controls the water temperature, not the water flow.
6. Do not ‘dry heat’ the water tank as this can cause heating of the pipes and the water tank will
become damaged. You must ensure the tank has been filled with water before switching the
boiler on at the mains.

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN1 15
JOYA 3IN1 INSTALLATION
»The power outlet must be correctly earthed and also be able to be isolated by a switch.
»Use a separate circuit for the boiler, which is also correctly earthed.
»The tap and handles can be installed into the sink or the worktop using 35mm cutout holes.
»Install the water boiler vertically, it must not be placed on its side. It can be stood on the base
of the cabinet, but it is recommended to fix the boiler in position using the brackets provided.
INSTALLATION STEPS
1. Install the tap onto the sink or the worktop as shown below, and tighten the fixing screw.
Diameter of cut outs = 35mm

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN116
2. Screw the Hot & Cold flexi hoses into the base of the hot & cold handle. The red hose
connects to the hot water, the blue hose connects to the cold water. The boiling water
flexible hose connects to the base of the boiling water handle. Each handle then needs to be
connected to the spout via the additional flexi hoses, as shown in the diagram here:
3. Attach the T-piece connector to the Cold mains water supply, to allow
a seperate flow to go direct to the water filter. Using the Blue tube
supplied with the filter, cut it to the appropriate length and connect
this to the T-piece connecter via the push fit connection. The opposite
end can then be attached to the inlet on the filter head.
4. Follow the instructions supplied with the filter and filter head to ensure it is installed correctly,
and set to the correct setting for the water hardness in your area. Failure to do this will
invalidate your guarantee.
5. The hot & cold tap tails can be connected directly to the hot & cold mains water, and the
boiling water flexi tail can connect to the outlet on the top of the boiler.
98°
C
H

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN1 17
6. Attach the Boiler inlet flexi tail onto the valve on the side of the boiler, and finally, using the
remainder of the blue tube, connect this to the filter head outlet and then to the end of the
Boiler inlet flexi tail using the push fit to threaded adaptor.
7. The clear silicone hose connects to the steam release valve on the side of the boiler, and can
then be attached to the existing plumbing using the threaded metal connector.
8. Once all of the connections have been made, turn on the standard cold/hot water supply to
test the cold water (blue colour indicator) and hot water (red colour indicator). Switch it off
after the flow becomes normal.
9. Turn on the Boiling water supply (with child safety lock, push the button inand backwards),
until the water completely fills the boiler tank and begins to flow from the tap continuously.
Let the water flow for at least 5 minutes in order to flush the tubes, boiler and filter.
Plumbing
Threaded Metal Connector
Clear Tube

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN118
11. Connect the boiler to the power supply (please ensure the boiler tank is full of water
before switching on, any damaged caused by not following this instruction will
not be covered by the guarantee).
12. Test the dispenser. Adjust the temperature of the boiler to the highest setting, wait for 10
minutes until you can hear the water boiling. The ‘HEATING’ light will illuminate whilst the
boiler is heating. Once it has reached the desired temperature, ‘READY’ will be displayed.
NOTE:
It may take a few seconds for the water to begin to flow as it makes the way up the tube (the time
will vary depending on the length of the tube). Always allow the water to run for a few seconds
before using the steaming water to make a drink. This will ensure any water which may have
cooled in the tube has been expelled first, allowing for a steaming hot beverage to be made.
10. Check all connections to ensure that no tubes are stretched or twisted and there are no
leakages, then fix the boiler in the final location using the brackets supplied. The boiler must
be installed upright.
To fix the boiler to the cabinet, remove the hanging plate from the packaging:
»Mark the fixing location of the hanging bracket on the inside of the cabinet and install the
bracket fixing screws into the cabinet.
»Using the nut and thread on the top of the boiler, fit the bracket.
»Fix the boiler in position by locating the bracket on the screws previously fixed into
the cabinet.
»Tighten all screws to securely fix in place.

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN1 19
OPERATION
Turn on the boiler press the button. To adjust the water
temperature, press the and arrows on the control panel
to increase and decrease the temperature. The temperature
can be adjusted from approximately 25°C to 98°C.
Once the required temperature has been selected, ‘HEATING’ will illuminate until the boiler has
reached the set temperature. Once the set temperature has been reach, the ‘HEATING’ light will
turn off, and ‘READY’ will illuminate to show the boiler is now ready to use.
To begin using the boiling water:
Vapos Press the lever downwards to release the safety lock, and then push the lever backwards.
There is a safety spring mechanism which will switch off the water supply if you let go
of the lever. Please hold the lever back for the full time you need to draw boiling water
from the tank. Then release it to switch it off.
Joya Push the button at the rear of the handle inwards to release the safety mechanism, and
then turn the handle. There is a safety spring mechanism which will switch off the water
supply if you let go of the handle. Please keep the handle fully twisted for the full time
you need to draw boiling water from the tank. Then release it to switch it off.
°C HEATING
READY

Please keep this instruction manual for future reference Instruction manual VAP2/3IN1, VAPQ2/3IN1, JOY3IN120
If the flow reduces this may be due to the filter needing replacement. The water filter must
be replaced at least once every 6 months, failure to do this may invalidate the
guarantee.
If the boiler is not going to be used for a long period of time, please turn it off, and disconnect it
from the power supply. Allow the steaming water to flow from the tap until it runs cold.
When you are ready to use the boiler again, ensure you fill the tank completely before connecting
the boiler to the power supply and setting the temperature control to the desired temperature
setting. Failure to fill the tank prior to switching on may cause damage and invalidate the
guarantee.
It is important that the water filter is replaced at least every 6 months and installed according to
the instructions supplied with the filter. Failure to correctly set the filter head to the correct setting
or replace the filter when required will affect the boilers performance and cause scale build-up,
this may invalidate the guarantee.
In order to guarantee the performance and quality of your steaming water tap, do not stretch the
tubes after installation, take extreme care not to touch any of the tubes or fixings.
