Caple RIL1800 User manual

Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
Premium Built-In Fridge
Instruction Manual
RIL1800

2Instruction manual RiL1800 Please keep this instruction manual for future reference
CONTENTS
Warnings 3
Environmental Protection 11
Electrical Connection 12

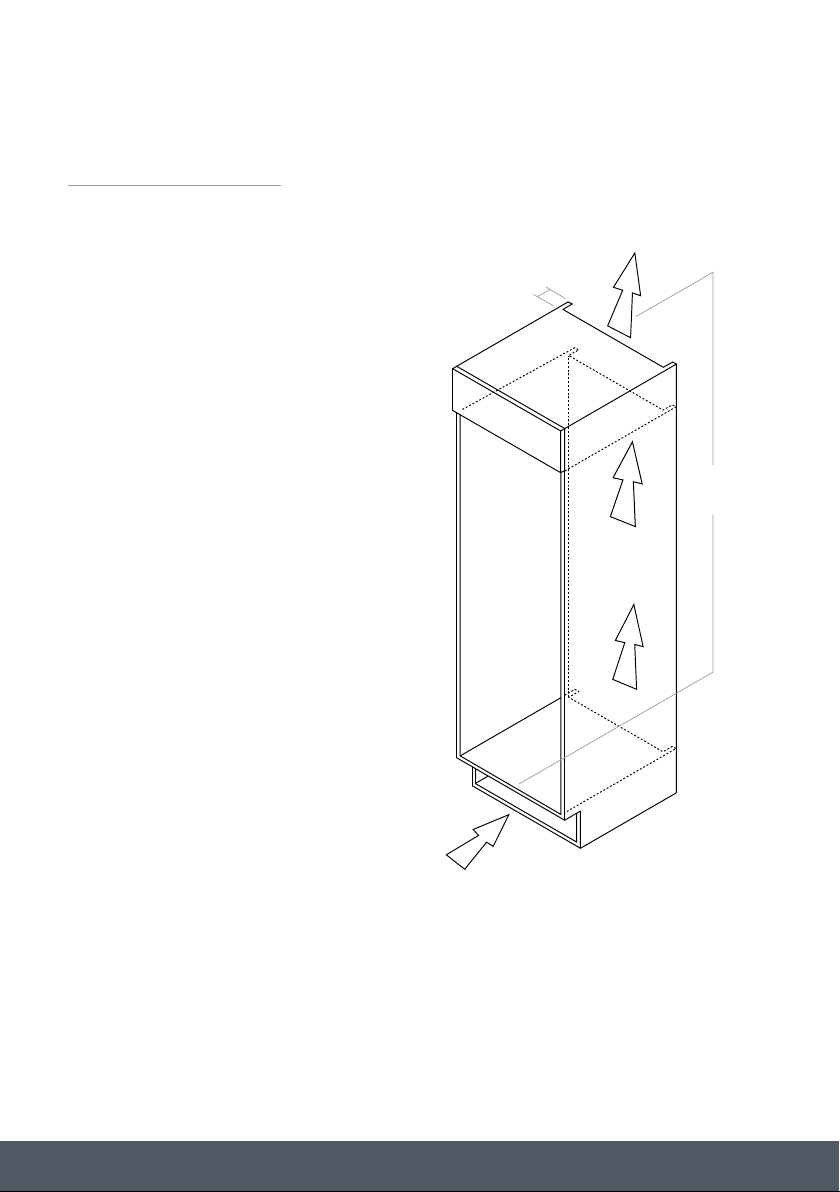

Ventilation Requirements 13

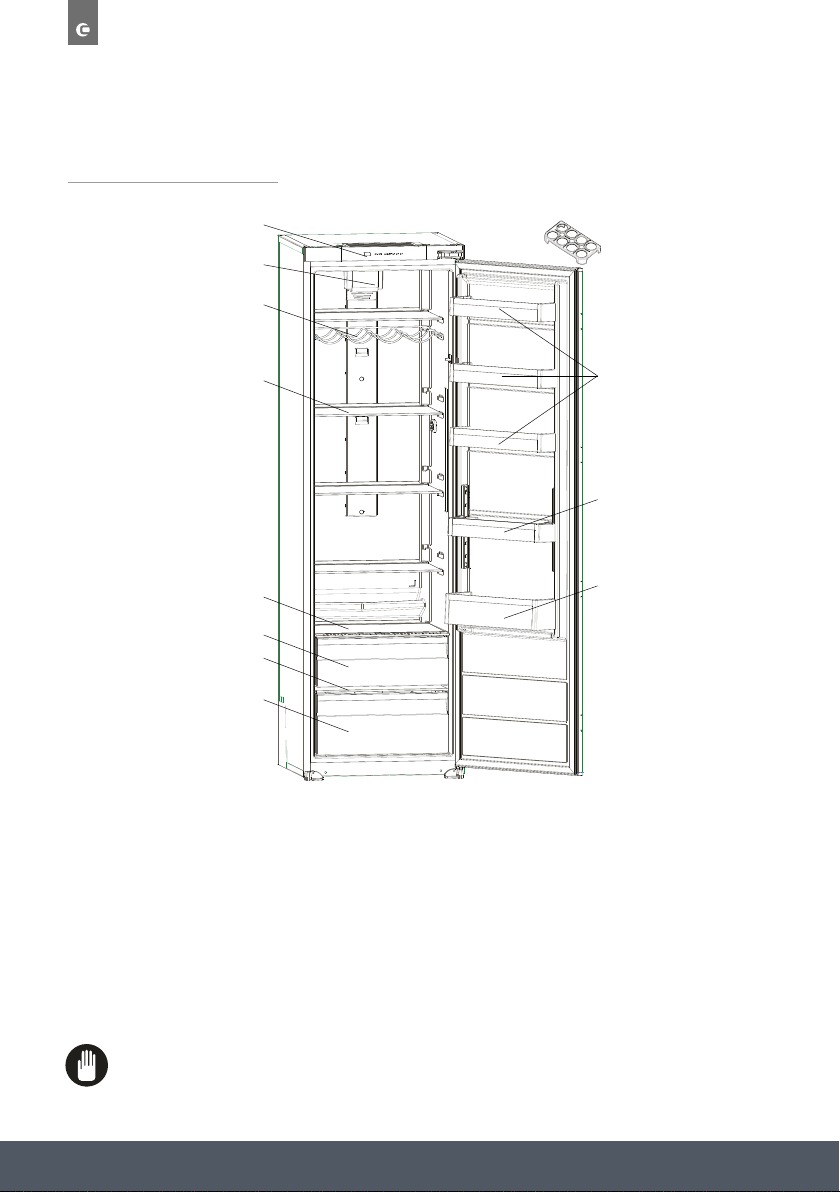

Product Overview 14
Using The Appliance 15

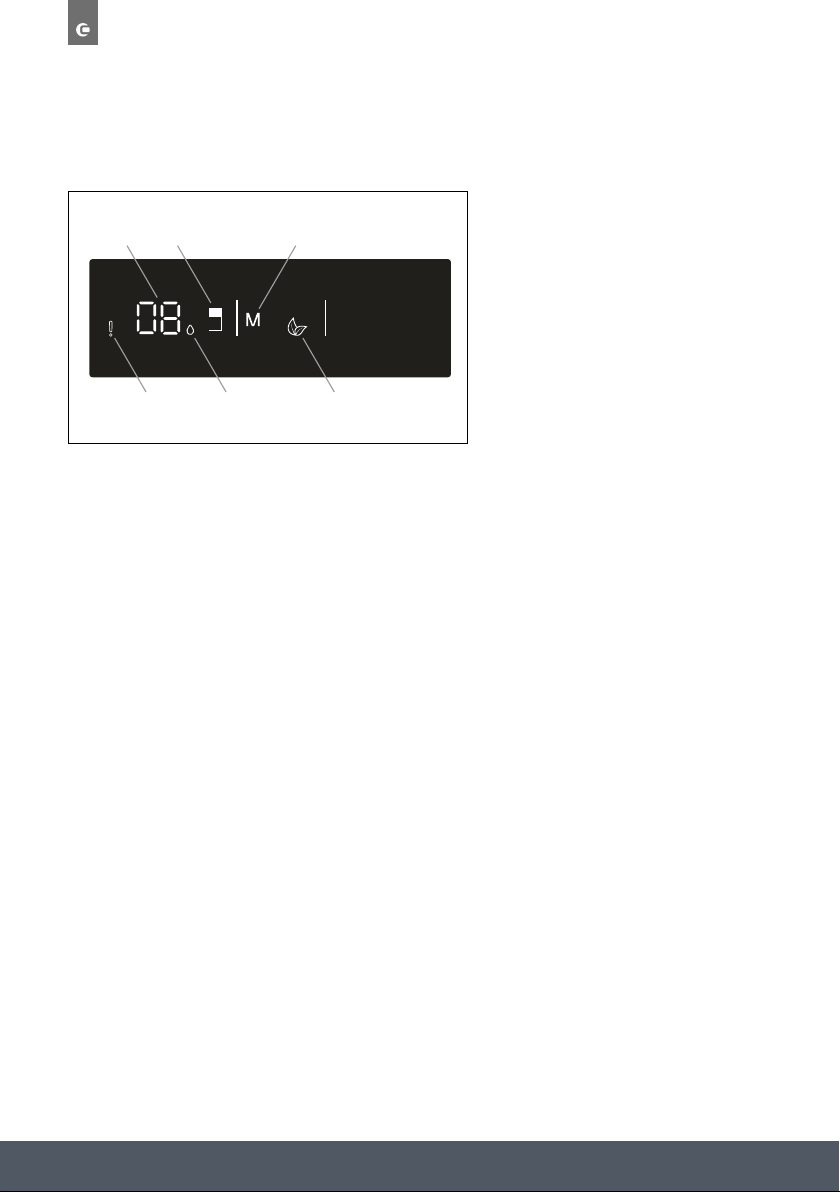

Operating Your Fridge 17
Humidity Controlled Drawer 22
Easy Adjustable Door Shelf 23
The Turbo Fan 23
Caple Fresh 24
Food Storage 25
Cleaning And Maintenance 27
Transport And Repositioning 29
Troubleshooting 30
Energy Saving Tips 33
Caple Contact Details 36

3Instruction manual RiL1800Please keep this instruction manual for future reference
SAFETY INSTRUCTIONS
Read these instructions carefully and completely before
using your appliance. They provide you with important
information regarding the safe installation, use and
maintenance of the appliance as well as useful advice
for getting the best out of your fridge. Keep this booklet
in a safe place for future reference and pass on to any
future owner.
-This appliance is produced in accordance with all
applicable local and international standards
and regulations.
-This appliance is intended to be used in household and
similar applications such as:
› Staff kitchen areas in shops, offices and other
working environments.
› Farm Houses.
› By clients in hotels, motels and other residential type
environments.
› Bed and breakfast type environments.
-This appliance may only be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, if
they are supervised whilst using it. They may only use
it unsupervised if they have been shown how to use it
in a safe manner. They must be able to recognise and
understand the dangers of misuse.

4Instruction manual RiL1800 Please keep this instruction manual for future reference
SAFETY WITH CHILDREN:
-This appliance can be used by children aged from 8
years and above.
-Children less than 8 years of age should be kept away
unless continuously supervised or they have been
shown how to use it in a safe manner. Children must
be able to understand and recognise the possible
dangers caused by incorrect operation.
-Children should be supervised in the vicinity of
the appliance.
-Never allow children to play with the appliance.
-Cleaning and user maintenance should not be carried
out by children without supervision.
-Children aged from 3 to 8 years are allowed to load
and unload refrigerating appliances.
-Materials used for packaging (nylon, staplers,
Styrofoam etc.) may cause harmful effects to children,
they should be disposed of immediately.
-Children can injure themselves on an open door. Do
not let children sit on the open door, lean against it or
swing on it.
TECHNICAL SAFETY:
-Maintenance and repair work must be made only
by authorised Caple service technicians. Installation
and repair work that is carried out by unauthorised
technicians may endanger you.

5Instruction manual RiL1800Please keep this instruction manual for future reference
-While the appliance is under warranty, repairs should
only be undertaken by a Caple authorised service
technician. Otherwise the warranty will be invalidated.
-It is dangerous to alter or modify the specifications of
the appliance in any way. The requirements for this
appliance are stated on the rating label.
-Risk of injury due to electric shock. Any contact with
live connections or tampering with the electrical
or mechanical components of the appliance will
endanger your safety and may lead to the appliance
malfunctioning.
-To maintain the efficiency and safety of your appliance,
we recommend you always use original spare parts
and to call only our authorised Caple Service agents in
case of need.
-Multi-socket adapters and extension leads should
not be used to connect the appliance to the mains
electricity supply.
-The electrical system of this appliance may be used
safely only when it is correctly connected to an
efficient earthing system in compliance with the safety
standards currently in effect.
-Insert the plug into a socket with an efficient ground
connection. If the socket has no ground contact or the
plug does not match, we recommend you consult a
qualified electrician for assistance.
-The appliance must be connected with a properly
installed fused socket. The power supply (AC) and

6Instruction manual RiL1800 Please keep this instruction manual for future reference
voltage at the operating point must match with the
details on the rating plate of the appliance.
-Consult a qualified electrician or service person if the
Grounding instructions are not completely understood,
or if you have doubts on whether the appliance is
properly grounded.
-The incorrect grounding may cause breakdown and
electric shock.
-We do not accept responsibility for any damages that
occur due to ungrounded usage.
-If the socket does not match the refrigerator plug, it
must be replaced by the manufacturer, a service agent
or similarly qualified persons in order to avoid
a hazard.

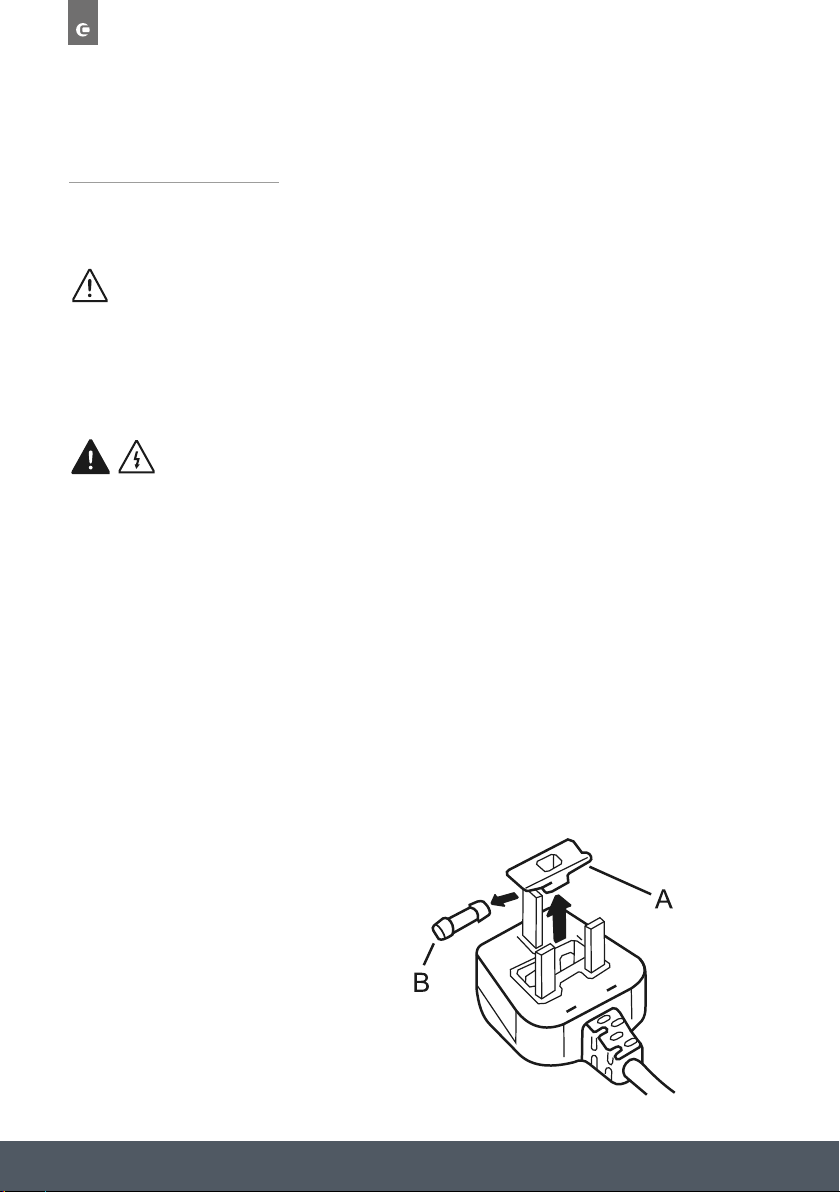

-A specially grounded plug has been connected to the
power cable of your refrigerator. This plug should be
used with a specially grounded socket of 13 amperes.
If there is no such socket in your house, please have
one installed by an authorised electrician.
INSTALLATION WARNINGS:
-Prior to installation, ensure that the local distribution
conditions (electricity voltage and frequency) and the
requirements of the appliance are compatible.
-During installation the appliance must be completely
disconnected from the mains electricity supply.
-Do not operate the appliance before it is fully installed.

7Instruction manual RiL1800Please keep this instruction manual for future reference
-The appliance must be installed by an authorised
technician.
-WARNING: In order to avoid any hazards resulting
from the instability of the appliance, it must be fixed in
accordance with the following instructions.
-This appliance is not intended for use at altitudes
exceeding 2000m.
-Your appliance must be at least 50 cm away from
stoves, gas ovens and heater cores, and at least 5 cm
away from electrical ovens.
-If your fridge is placed next to a deep fridge, there
must be at least 2cm between them to prevent
humidity forming on the outer surface.
-Do not cover the body or top of fridge with lace. This
will affect the performance of your fridge.
-Clearance of at least 150 mm is required at the top of
your appliance. Do not place anything on top of
your appliance.
-Caple is not responsible for any damage that may
be caused by defective placement and installation by
unauthorised persons.
-When unpacking the appliance, make sure that it is not
damaged during transportation.
-Check the appliance for any damage.
-In the case of any defect; do not use the appliance and
contact your retailer or Caple Service immediately.
-WARNING: When positioning the appliance, ensure

8Instruction manual RiL1800 Please keep this instruction manual for future reference
the supply cord is not trapped or damaged. If the
supply cord is damaged, it must be replaced by a Caple
service technician or similarly qualified persons in order
to prevent a hazard.
-Never touch the power cord/plug with wet hands. This
may cause a short circuit or electric shock.
-The plug must be accessible after installation.
-WARNING: Do not locate multiple portable socket-
outlets or portable power supplies at the rear of the
appliance.
-Protect your appliance against atmospheric effects. Do
not expose it to effects such as sun, rain, snow etc.
DURING USE:
-Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
-Place drinks with high alcohol content vertically in
the fridge compartment and make sure their tops are
tightly closed.
-If you know you will not be using the appliance for a
while switch it off from the main supply and unplug it.
-WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
-Do not place your appliance on a carpeted surface as
this will prevent adequate ventilation.
-When the appliance is not in use, we recommend you
turn it off, and isolate it from the electrical supply.

9Instruction manual RiL1800Please keep this instruction manual for future reference
-This appliance must be used in the vertical position on
a flat surface.
-WARNING: Do not use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer.
-The manufacturer will not be held liable for any
damages that might arise out of incorrect or improper
use of the appliance.
CLEANING AND MAINTENANCE:
-Clean the appliance thoroughly before use.
-Always switch off the appliance from the mains
isolating the electrical supply before any cleaning or
maintenance.
-WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
TRANSPORT:
-WARNING: Do not damage the refrigerant circuit.
-Always transport the appliance in its original packaging
and in an upright position.
-If your appliance uses R600a as a refrigerant, you
should take care during transportation and installation
to prevent the cooler elements from being damaged.
R600a is an environmentally friendly and natural
gas, but it is explosive. In the event of a leak due to

10 Instruction manual RiL1800 Please keep this instruction manual for future reference
damage of the cooler elements, move your fridge away
from open flames or heat sources and ventilate the
room where the appliance is located for a few minutes.
-Never use the door handles for lifting.
-The appliance is heavy and could cause injury, it must
be transported by two people.
DISPOSAL OF OLD APPLIANCE:
-Old fridges and fridges contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
-If your old fridge or fridge has a lock, break or remove
the lock before discarding it, because children may get
trapped inside it and may cause an accident.
-Be careful to avoid damaging the pipework before
disposal, e.g. by puncturing coolant channels, bending
pipework, scratching the surface coating.
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
- The appliance is heavy and could cause injury, it must be transported by two people.DISPOSAL OF OLD APPLIANCE:- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.- If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.- Be careful to avoid damaging the pipework before disposal, e.g. by puncturing coolant channels, bending pipework, scratching the surface coating.
WARNING:
Serious injury or death risk
RISK OF ELECTRIC SHOCK:
Dangerous voltage risk
FIRE:
Warning; Risk of fire / flammable materials
CAUTION:
Injury or property damage risk
IMPORTANT:
Operating the system correctly
- The appliance is heavy and could cause injury, it must be transported by two people.DISPOSAL OF OLD APPLIANCE:- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.- If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.- Be careful to avoid damaging the pipework before disposal, e.g. by puncturing coolant channels, bending pipework, scratching the surface coating.
Warning; Risk of re / ammable materials
- The appliance is heavy and could cause injury, it must be transported by two people.DISPOSAL OF OLD APPLIANCE:- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.- If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.- Be careful to avoid damaging the pipework before disposal, e.g. by puncturing coolant channels, bending pipework, scratching the surface coating.
Warning; Risk of re / ammable materials
- The appliance is heavy and could cause injury, it must be transported by two people.DISPOSAL OF OLD APPLIANCE:- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.- If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.- Be careful to avoid damaging the pipework before disposal, e.g. by puncturing coolant channels, bending pipework, scratching the surface coating.
Warning; Risk of re / ammable materials
- The appliance is heavy and could cause injury, it must be transported by two people.DISPOSAL OF OLD APPLIANCE:- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.- If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.- Be careful to avoid damaging the pipework before disposal, e.g. by puncturing coolant channels, bending pipework, scratching the surface coating.
Warning; Risk of re / ammable materials
- The appliance is heavy and could cause injury, it must be transported by two people.DISPOSAL OF OLD APPLIANCE:- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.- If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.- Be careful to avoid damaging the pipework before disposal, e.g. by puncturing coolant channels, bending pipework, scratching the surface coating.
Warning; Risk of re / ammable materials

11Instruction manual RiL1800Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice. This
appliance is marked according to the European Directive on Waste Electrical and Electronic
Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The symbol on the product indicates that
this product may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. Disposal
must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our website
www.caple.co.uk
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date
of purchase, model and serial number (placed on the inside of the appliance storage drawer).
Registration can also be completed online by visiting www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together
with proof of purchase.
If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.

12 Instruction manual RiL1800 Please keep this instruction manual for future reference
ELECTRICAL CONNECTION
For your safety please read the following information
- The appliance is heavy and could cause injury, it must be transported by two people.DISPOSAL OF OLD APPLIANCE:- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.- If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.- Be careful to avoid damaging the pipework before disposal, e.g. by puncturing coolant channels, bending pipework, scratching the surface coating.
Warning; Risk of re / ammable materials
WARNING:
This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse
in the plug.
- The appliance is heavy and could cause injury, it must be transported by two people.DISPOSAL OF OLD APPLIANCE:- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.- If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.- Be careful to avoid damaging the pipework before disposal, e.g. by puncturing coolant channels, bending pipework, scratching the surface coating.
Warning; Risk of re / ammable materials
- The appliance is heavy and could cause injury, it must be transported by two people.DISPOSAL OF OLD APPLIANCE:- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.- If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.- Be careful to avoid damaging the pipework before disposal, e.g. by puncturing coolant channels, bending pipework, scratching the surface coating.
Warning; Risk of re / ammable materials
IMPORTANT:
Do not use the appliance without the fuse cover in position.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and
approved to BS1362.
The mains lead of this appliance has been fitted with a BS 1363A 13A fused plug. To change a
fuse in this type of plug, follow the steps below:
1. Remove the fuse cover and fuse.
2. Fit replacement 13A fuse, ASTA approved to BS 1362 type, into the fuse cover.
3. Replace fuse cover.
Warning; Risk of re / ammable materials
Warning; Risk of re / ammable materials
The mains lead of this appliance has been fitted with a BS 1363A 13A fused plug.To change a fuse in this type of plug, follow the steps below:1.Remove the fuse cover and fuse.2.Fit replacement 13A fuse, ASTA approved to BS1362 type, into the fuse cover.3.Replace fuse cover.

13Instruction manual RiL1800Please keep this instruction manual for future reference
VENTILATION REQUIREMENTS
The main consideration when installing
a refrigeration product into a cabinet is
ventilation. The heat removed from the
appliance needs to be dissipated into the
room. Failure to correctly ventilate the
product can result in increased running
costs and premature failure. It will also
invalidate the guarantee provided with
the appliance.
An air intake in the plinth is required
to allow for the correct air flow
(recommended 500mm x 40mm). If
preferred a decorative stainless steel plinth
grille is available, product code:
GRILL/ SENSE600.
This can be purchased from your retailer or
www.caple.co.uk.
To ensure the correct operation of the
appliance it is important the top of the
housing is not blocked off. The top of
the cabinet needs to be vented into the
room,the recommended minimum size of
the vent opening is 500 x 40mm.
There should also be space at the rear
of the cabinet to allow the cool air to be
drawn over the condenser. This should also
be at least 500mm x 40mm. The more air
available to circulate the product, the more
efficiently it will operate.
NOTE:
Installation instructions are supplied with the appliance in a separate document. Only the solid
metal fixing bracket is included (part 1a) for installation.
min.฀40mm
Ventilation space at rear to allow heat dissipation from the condenserPlinth ventilation
min. 200cm2
Air flow
Air flow
min. 40mm
oduct into a cabinet is ventilation.
minimum size of the vent opening is 500x40mm.
cabinet to allow the cool air to be drawn over the

14 Instruction manual RiL1800 Please keep this instruction manual for future reference
PRODUCT OVERVIEW
1
2
3
4
5
6
7
8
9
10
12
11
1. Control panel
2. Turbo fan
3. Wine rack
4. Fridge shelves
5. Upper crisper cover
6. Upper crisper
7. Crisper cover
8. Crisper
9. Bottle shelf
10. Easy adjustable door shelf
11. Door shelves
12. Egg holder
This presentation is only for information about the parts of the appliance. Parts may vary
according to the appliance model.

15Instruction manual RiL1800Please keep this instruction manual for future reference
USING THE APPLIANCE
› Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of
sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge
after cleaning.
› Remove all transport tapes and foam protection pieces.
Clean the interior with a cloth dampened in lukewarm
soap and water. Rinse with clean water and dry.
› The adjustable front legs should be stabilised at an
appropriate height to allow your fridge to operate in a
stable and proper way. You can adjust the legs by turning
them clockwise (or in the opposite direction). This should
be done before placing food in the fridge.
› Install the distance adjustment plastic (the part with
black vanes at the rear) by turning it 90° as shown in the figure to prevent the condenser
from touching the wall.
› Your fridge may have an odour when it is operated for the first time. This is normal and the
odour will fade when your fridge starts to cool.
WARNING:
Connect to the electrical socket but do not switch the power to the refrigerator on for at least
12 hours. The coolant within the product needs time to settle after it has been transported and
put into position, failure to do this will affect the cooling performance of your appliance.
to
he
his

16 Instruction manual RiL1800 Please keep this instruction manual for future reference
123465DISPLAY AND CONTROL PANEL
1. Fridge Temperature Setting.
2. Temperature Set Button. To select a temperature setting and Super Cool mode to be
activated if desired. Fridge may be set to 8, 6, 5, 4, 2°C and Super Cool mode.
3. Mode button. Enables the economy mode to be activated if desired.
4. Economy mode indicator.
5. Super Cool mode indicator.
6. Alarm indicator. Lights when there is an error with the appliance
(see Troubleshooting Section).

17Instruction manual RiL1800Please keep this instruction manual for future reference
OPERATING YOUR FRIDGE
When the product is plugged in for the first time, the interior lights may turn on 1
minute late due to opening tests.
TEMPERATURE SET BUTTON
This button allows you to change and set the temperature of the fridge. In order to set the
temperature of the fridge, press this button until the desired temperature setting is selected.
Use this button also to activate Super Cool mode.
SUPER COOL MODE
PURPOSE:
› To cool and store a large quantity of food
in the fridge compartment.
› To quickly cool drinks.
HOW TO USE:
› Press the Fridge set button until Super Cool symbol can be seen on the screen. The buzzer
will sound. Mode will be set.
DURING THIS MODE:
› Economy mode can not be selected.
› Super Cool mode can be cancelled by the same operation of selecting.
COOL To cool and store a large quantity of food in the fridge compartment. To quickly cool drinks.Press the Fridge set button until Super Cool symbol can be seen on the screen. The buzzer will sound. Mode will be set.When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.Cool

18 Instruction manual RiL1800 Please keep this instruction manual for future reference
ECONOMY MODE
PURPOSE:
› Energy saving. During periods of less frequent
use (door opening) or absence from home, such
as a holiday, Economy Mode can provide optimum
temperature whilst saving power.
HOW TO USE:
› Push the “mode” button until the ‘eco’ symbol appears.
› Eco symbol will blink 3 times. When mode is set, the buzzer will sound.
› Fridge temperature segments will show “E”.
› Economy symbol and E will light till mode finishes.
DURING THIS MODE:
› Fridge may be adjusted. When Economy mode is cancelled, the selected setting values
will proceed.
› Super Cool mode can be selected. Economy mode is automatically cancelled and the
selected mode is activated.
› To cancel, press the “mode” button.
idgehidge Cool

19Instruction manual RiL1800Please keep this instruction manual for future reference
SCREEN SAVER MODE
PURPOSE:
› This mode saves energy by switching off
all control panel lighting when the panel is
left inactive.
HOW TO USE:
› Screen Saver Mode is default to Active when you use the appliance for the first time.
› If no button is pressed within 30 seconds, when the mode is active, the lights of the control
panel will go Off.
› If you press any button when the lights of the control panel are Off, the current settings will
appear on the screen; adjustments can then be made. If you neither cancel Screen Saver
mode nor press on any button for 30 seconds the control panel will turn Off again.
› To cancel Screen Saver mode, press the “Mode” button for 3 seconds.
› To activate this mode, press on the “Mode” button for 3 seconds.
FRIDGE TEMPERATURE SETTINGS
› The initial temperature value for the fridge
is 4°C.
› Press the “Temperature Set” button once.
› When you first push this button, the last set
value will appear on the setting indicator.
› Whenever you press this button, a lower temperature will be set (8°C, 6°C, 5°C, 4°C, 2°C,
Super Cool).
› When you push the “Temperature Set” button until the Super Cool symbol appears, and you
do not push any other button within 1 second, Super Cool will flash.
› If you continue to press it, it will restart from 8°C.
› The temperature value selected before Super Cool Mode or Economy mode is activated will
remain the same when the mode is over or cancelled. The appliance continues to operate
with this temperature value.
ing off all control panel lighting when the panel is
freezerIDGEthe freezer is 4°C.
Temperature Set 86542CoolTemperature SetCool Cool 8Cool

20 Instruction manual RiL1800 Please keep this instruction manual for future reference
STAND-BY MODE
PURPOSE:
› This mode can be used to save energy when you go on holiday.
HOW TO USE:
› Select “8” set value.
› Push the “mode” and Fridge Temperature set button for 5 seconds.
› The display will show “St” “bY” on the screen.
DURING THIS MODE:
› All components will be disabled.
› If you push the display button, display will show “St” “bY” on the screen to show stand-by
mode is active.
› To cancel, push the mode and cooler set button for 5 seconds.
NOTE:
After this mode is deactivated, an error code may light on the display because the product may
not be cool enough. The error code will turn off when the product reaches normal temperature.
