SERVICE MANUAL
MODEL : CAFF19SI
1. Spacecraft insulation technology
2. Digital temperature with VEDA display
3. full-out fridge tray
4. Ica and water dispenser
5. Super freezing
6. Direct current variable-frequency
7. Direct current variable-frequency blower fan
8. Deluxe bar , ice machine
9. Cold drink outside access design
10. Deluxe deep bottle holder
11. Detachable door seal
Features:
1 of 48

1. This manual is NOT intended as a comprehensive repair/maintenance
g
uide to the appliances.
2. it should ONLY be used b
y
suitabl
y
qualified persons havin
g
the
technical competence, applicable product knowledge and suitable
tools and test equipment
3. Servicing of electrical appliances must be undertaken with the
appliance disconnected (unplugged) from the electrical supply
4. Servicing must be preceded by Earth Continuity and Insulation
Resistance checks.
5. Personal safety precautions MUST be taken to protect against
accidents caused by sharp edges on metal and plastic parts
6. After servicing the appliance must be rechecked for Electrical Safety.
7. Checks must be made for leaks from seals, gaskets and pipe work,
and rectification carried out where necessary
8. Whilst the company has endeavoured to ensure the accuracy of the
data within this publication, the
y
cannot hold themselves responsible
for any inconvenience or loss occasioned by any error within.
2 of 48

1 INTRODUCTION
2 SPECIFICATION
3 DOOR ADJUSTMENT
4 CONTROL PANEL FUNCTIONS
5 TEST PROCEDURES
6 SELF DIAGNOSIS
7 WIRING DIAGRAM
8 PCB DIAGRAM
9 PARTS LIST/DIAGRAM
10 USER GUIDE
11 PRODUCT TECHNICAL SUPPORT CONTACTS
CAFF19SI REFRIGERATOR
CONTENTS
3 of 48

CAFF19SI FRIDGE FREEZER
Introduction
The Caple CAFF19SI is an American side by side refrigerator. The
system uses a cold blown air system. The system has only one
evaporator situated in the freezer. A fan distributes the cold air around
the freezer. In the top of the freezer is a damper that opens into the
fridge cabinet. The cold air is blown in to the fridge cabinet by the
freezer fan. When the fridge temperature is reached the damper closes,
stopping the cold air entering the fridge.
FREEZER STORAGE
1 ICE MAKER
3 GLASS SHELVES
2 STORAGE DRAWERS
4 DOOR STORAGE SHELVES
FRIDGE STORAGE
4 GLASS SHELVES
2 SALAD DRAWERS
6 DOOR STORAGE SHELVES
1 WATER TANK
4 of 48

5 of 48

MODEL CAFF19SI
PART 1. Specifications
Unit Dimensions
WDH (mm X mm X mm)
Box Dimensions
WDH (mm X mm X mm)
Specifications are subject to change without prior notification.
Unit Weight (Kg)
Power Consumption (Kw.h/year)
Cavity Supply (V/Hz) 220~240/50
156
36
Model CAFF19SI
537
770 * 890 * 1768
138
960 * 770* 1894
Container Quantity (40' Hc)
Box Weight (Kg)
6 of 48

PART 2. Refrigeration Principle
2.1 Schematic Diagram of Refrigerating Principle
1 Compressor
2 Condenser
3 Dry Filter
4 Capillary Tube
5 Evaporator
6 Air Fan
2.2 Brief Description of Refrigerating Principle
For the forced air cooling single-system refrigerator, there is only
a finned evaporator mounted generally at the rear of its freezer
compartment. Refrigeration of both its refrigerator compartment and
freezer compartment is achieved by this evaporator and cooled air is
sent to its refrigerator and freezer compartments via air ducts. The
temperature inside its freezer compartment is regulated with the freezer
thermostat, whereas the temperature in its refrigerator compartment
is controlled by regulating the throttle, or alternatively, using a
refrigerator to control the start and stop of compressor, and matching
the evaporator to control the freezer temperature.
7 of 48

Choosing the right location
This appliance should be installed in a room,
which is dry and well ventilated.
In order to ensure adequate ventilation, the
appliance should be at least 1,5cm clear on all
sides from cabinetry, and any units placed above
the appliance must be clear by 1.5cm - allowing
adequate ventilation for the appliance.
see clearance diagram
if located close to a corner adequate spacing
must be left for door opening and removal of
shelves. Refer to diagram
The appliance should be 10cm at least from any
electric or gas cooker and 30cm from any coal
or oil stove. If it is not possible, ensure that
appropriate insulation is used.
Avoid exposing the appliance to direct sunlight,
and sources of heat (radiators, heaters, cookers etc)
if the appliance is situated in a cold environment
(shed, out house, garage etc.) it will affect its
performance. You may find that the performance
of the appliance is not consistent and this may
damage foods. Please ensure that the ambient
temperature does not drop below that specified
by the climate class and that temperature are
maintained as consistently as possible.
Connection to the electricity supply
Connect the appliance to the electrical supply
(220-240V ~ 50Hz) with the plug and lead, which
are fitted. Connections to the mains supply should
be in accordance with local regulations.
NB! This appliance will operate within a range of
187 - 253 V. Operation outside this range may
result in damage to the control panel, thermostat
or compressor, unless a regulator with a capacity
of 750W, or higher is installed.
The appliance must be plugged into an earthed socket.
Always make sure that the plug is accessible
after the appliance has been positioned.
Positioning Your Appliance
This appliance
must be earthed
!
8 of 48

Adjustable feet
Make sure that the appliance is on solid level flooring. If the refrigerator is
placed on a plinth, flat, strong and fire resistant materials must be used.
This appliance has front adjustable feet, which can be used to level the
appliance, or adjust door alignment (see below).
Door Adjustment
The doors may require some alignment adjustment before you connect the
appliance to the electricity supply. This can be done by making minor
adjustments to the feet:
If the freezer door height is lower than the refrigerator door, use a
screwdriver in the slots of the front left hand adjustable foot, turning
clockwise until the freezer door height is raised in line with the
fridge door.
If the freezer door is higher, use a screwdriver in the slots of the
front right hand adjustable foot, turning clockwise until the fridge
door height has changed in line with the freezer door.
Positioning Your Appliance
9 of 48

DISPLAY PANEL
Once the fridge freezer has reached the preset temperatures the compressor
will switch off. 30 minutes later the display panel will darken, This is an energy
saving measure and is completely normal. This may cause the customer to
contact the customer care service line to report the fridge freezer has, or keeps
switching off. The customer should be assured that this is normal and not a
malfunction.
To light the display panel push any of the buttons on the display or open the
doors.

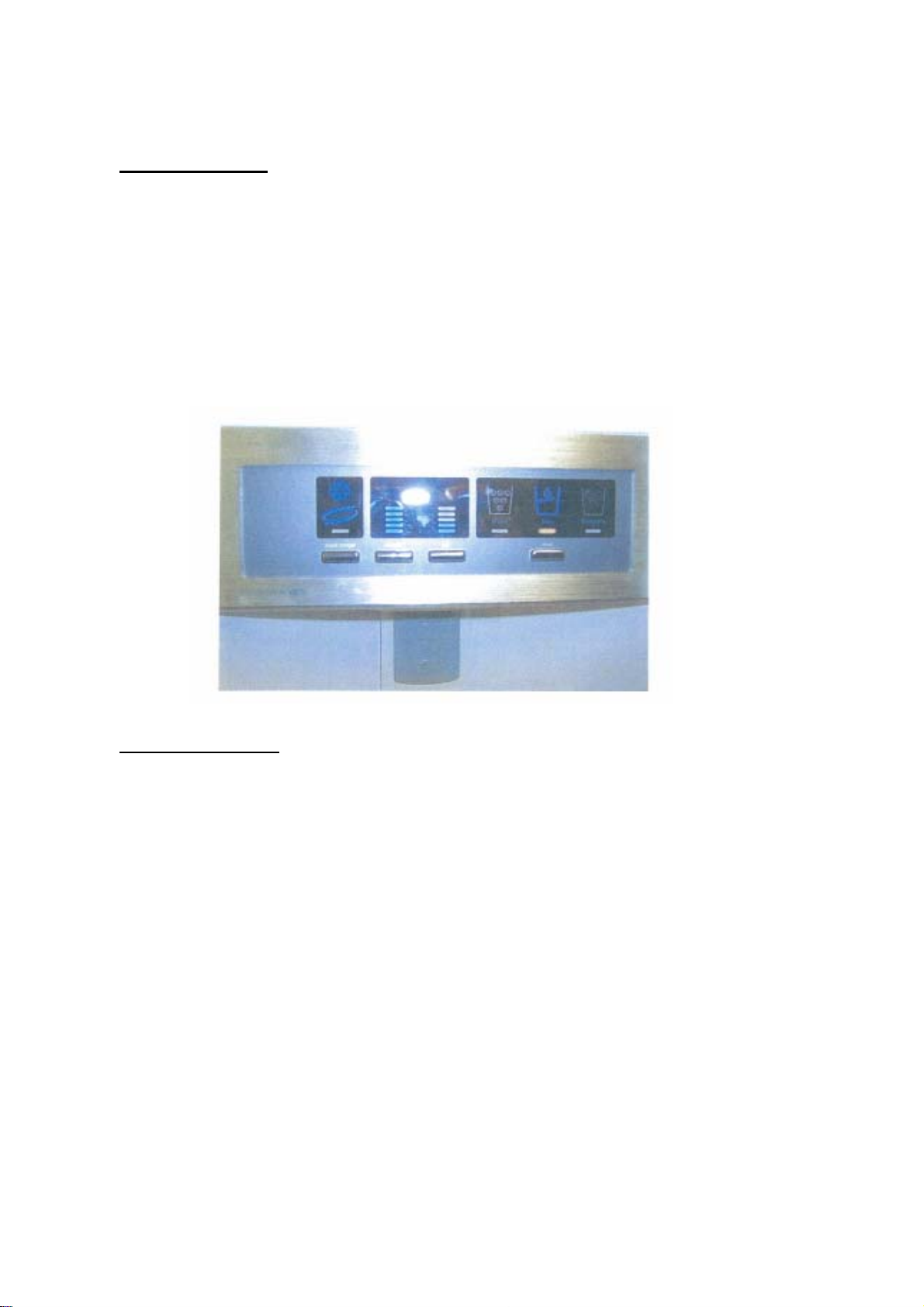

CONTROL PANEL
The factory preset for the freezer is -18 and for the fridge +3.
The control panel has four control buttons. These are (from left to right)
FAST FREEZE CONTROL BUTTON, FREEZER TEMPERATURE CONTROL,
REFRIGERATOR TEMPERATURE CONTROL BUTTON, ICE/WATER
OPTION BUTTON.
The temperature is displayed as coloured segments. Each segment is a
temperature setting 1-5. The temperatures are as follows:
FREEZER TEMPERATURES FRIDGE TEMPERATURES
1 = -15 1 = +7
2 = -17 2 = +6
3 = -18 3 = +5
4 = -20 4 = +4
5 = -22 5 = +3
10 of 48

Press and hold Fast Freeze and Fridge Temperature Buttons
for 5 seconds.
This will turn off the ice maker and the lights for the Crushed Ice
and Cubed Ice icons will go out.
Press and hold Fridge Temperature button to turn off fridge
Procedure to turn off Ice Maker
(This information is very important as it is not in the instruction manual)
Procedure to turn off Fridge
11 of 48

TEST PROCEDURE
REMOVE THE FRIDGE/FREEZER TOP PANEL, THEN OPEN THE PCB COVER
ON THE PCB THERE IS A TEST BUTTON (SEE DIAGRAM)
1. PRESS ONCE FOR FORCED FAN TEST . THE COMPRESSOR/FANS
WILL OPERATE AND THEY SHOULD BE HEARD RUNNING.
2. PRESS TWICE FOR FORCED DEFROST TEST.
3. PRESS AND HOLD THE BUTTON UNTIL YOU HEAR A CONTINUOUS
BEEP. THE ICE MAKER WILL CARRY OUT A FULL FUNCTION TEST
AND WILL REFILL WITH WATER.
12 of 48

ICE MAKER REMOVAL
REMOVE THE TWO SCREWS (AS SHOWN IN THE DIAGRAM BELOW).
PULL THE ICE MAKER FORWARD AND REMOVE THE PLUG CONNECTION IN THE
FREEZER ROOF. THE ICE MAKER CAN THEN BE REMOVED.
Screws
ICE MAKER TEST PROCEDURE
REMOVE THE FRIDGE/FREEZER TOP PANEL AND OPEN THE PCB COVER.
ON THE PCB THERE IS A TEST BUTTON - PRESS AND HOLD THE BUTTON FOR
5/8 SECONDS, THE ICE MAKER WILL THEN OPERATE A FULL CYCLE AND REFILL
WITH WATER.
13 of 48

The air damper is mounted at the top/back of the fridge compartment. To check
the damper is working - check that there is air flowing from the vents in the front
of the damper. If the fridge compartment is switched off via the control panel
the damper should close and the airflow cease. When the fridge compartment is
switched back on the damper will reopen and air flow resume.
DAMPER REMOVAL
On the bottom of the damper assembly there is a light cover. Remove the light
cover by removing the two screws fixed at the front top edge. When the cover is
pulled down and to the right the assembly will drop down. Unplug the connectors
and remove the assembly.
FRIDGE SENSOR REMOVAL
The top sensor is mounted in the damper assembly housing. Remove as above.
The bottom sensor is mounted two thirds of the way down the right hand side of
the fridge wall. To remove the sensor unclip the cover and pull the sensor forward.
Cut the wires close to the sensor head. Join the new sensor to the old lead by
soldering and protecting with heat shrink. Refit the sensor and cover.

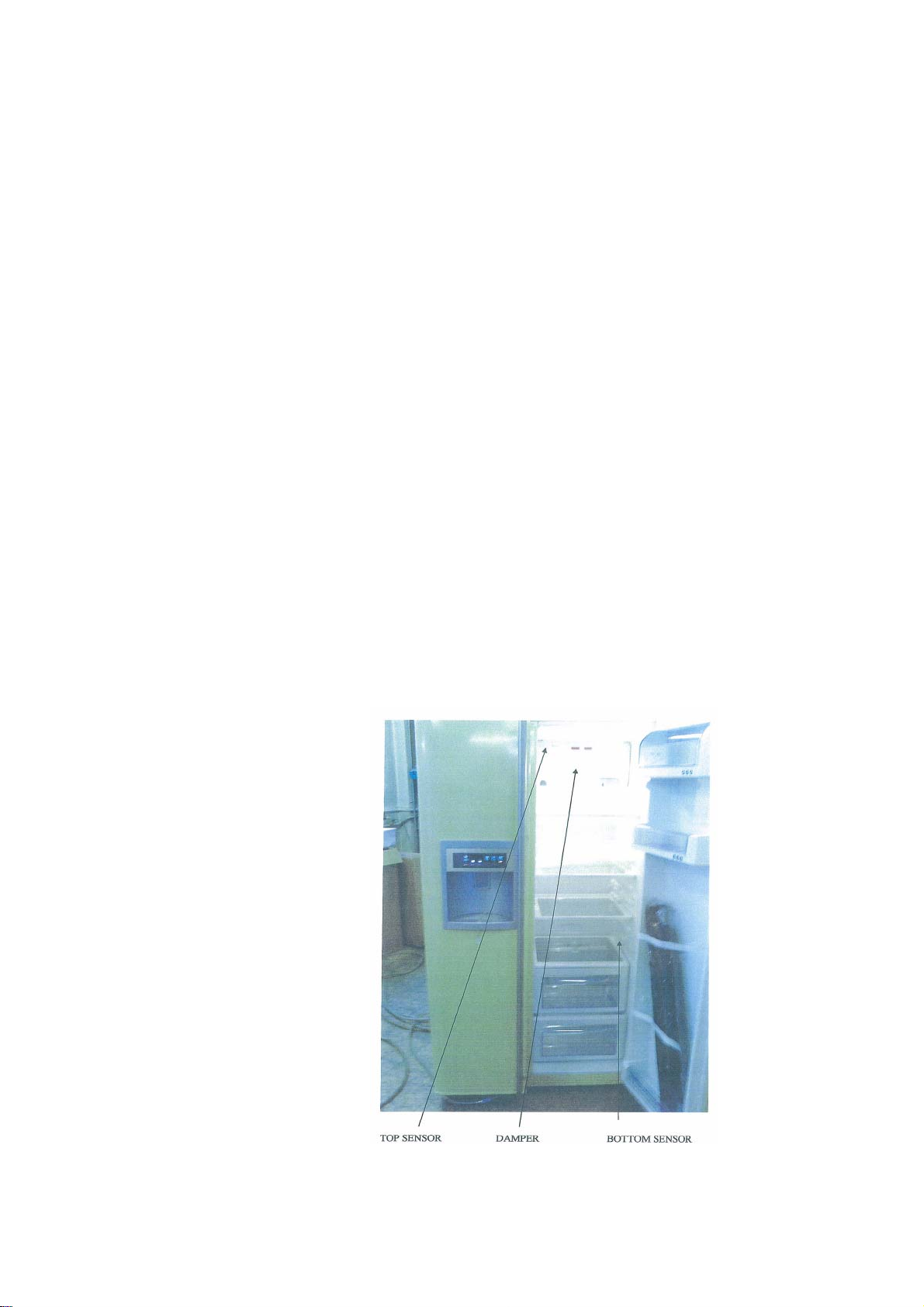

The fridge compartment has
a damper assembly that
controls the cold air that is
blown into the fridge.
Two sensors top and bottom
control the temperature.
If the temperature rises by
four degrees between the
sensors cold air is blown
into the fridge compartment
FRIDGE AIR DAMPER OPERATION TEST
14 of 48

3.3 Control
3.3.1 Temperature Control
(1) Temperature control of freezer compartment/refrigerator compartment
( 2 ) Name and position of each sensor
3.3.2 Compressor Control
( 1 ) ON/OFF conditions of compressor
Item Compressor OFF or air
damper OFF Sensor
Refrigerator
Compartment
Compressor ON or air
damper ON
NOTCH +1.5 oC
NOTCH +1.5 oC
Below ice making tray
Above freezer evaporator
RT SNR
Ice-making sensor
F SNR
R1 SNR
Name
Freezer sensor Position
NOTCH -1.5 oC
NOTCH -1.5 oC
Freezer Compartment
Defrosting sensor
Code
F SNR
R1 SNR
R2 SNR
RT SNR
ICE SNR
D SNR
Refrigerator sensor 1
Refrigerator sensor 2
middle of freezer compartment
Control box (refrigerator air damper assembly)
Right wall of refrigerator compartment
Below freezer hinge box
ON
1. Powered on for the first time or after
defrosting (F SNR is higher than
shutdown point).
OFF
1. After defrosting, F SNR is not
higher than shutdown point.
2. F SNR reaches start-up point
3. In fast freeze state. 2. F SNR reaches shutdown point 3. In defrosting state
4. Refrigerator load in correspondence
with condition 2
5. TEST MODE 1 (PULL DOWN).
4. Refrigerator load not in
correspondence with condition 2
5. TEST MODE 2 (forced defrosting)
15 of 48

( 2 ) The compressor will be shutdown during operation if one of the following appears:
During the ice-making, if ice is detected to be full, water supply is stopped.
*Water inlet control
( 1 ) Check whether the ice-making tray is levelled after ice-releasing control
(in normal TEST state) finishes; if it is levelled, the water valve is activated
to control inlet water.
( 2 ) Water inlet is controlled by ice valve relay, which is on the main control panel
( 3 ) The intake control volume is controlled by DIP S/W
< intake volume >
S1 S2 S3
1 OFF OFF OFF
2 ON OFF OFF
3 OFF ON OFF
4 ON ON OFF
5 OFF OFF ON
6 ON OFF ON
7 OFF ON ON
8 ONONON
( 4 ) The intake volume can be adjusted when the refrigerator is ON or OFF;
under the intake state, the previous setting of intake time will be performed
and the new intake time will be carried out next time.
( 5 ) If both drinking-water valve and inlet valve of ice-maker need water intake
drinking water should be prior to icemaker. For water-in of icemaker and
water-out of drinking water dispenser, the water intake process will occur
simultaneously.
3.12 Functional tests
MODE
TEST 1
TEST 2
Normal
reset
Serial
number Time of water
inlet
6 seconds
3.5 seconds
4.0 seconds
5.0 seconds
5.5 seconds
6.0 seconds
7.0 seconds
8 seconds
ACTION DESCRIPTION
Enter by pressing
TEST key one time
(cooling capacity
MODE)
Enter by pressing
TEST key once more
in TEST1 MODE
(forced defrosting
MODE)
reset by pressing
TEST key for the 3rd
time
(1) COMP ON
(2) F FAN (high speed) ON
(3) C FAN (low speed) ON
(4) DEF/BAR HTR OFF
(5)air dampers are opened
(1) COMP OFF
(2) F/C FAN OFF
(3) D HTR ON
(4) air dampers are closed
Press exit key to force defrosting
to operate
Reset of refrigerator functions (the compressor will start 7
minutes later)
Remark
Depending on different water
pressures, the water intake
time can be changed by
adjusting DIP S/W. The intake
volume in the left table is 80-
120cc.
REMARK
With TEST1, TEST1 mode
is maintained until manually ended
16 of 48

3.13 Fault diagnostics
3.13.1 Description and display
R SET
1
2 Normal
FREEZER DISPLAY FAULT CODE
S
FLASHING SEGMENTS
1 F (SNR) FAULTY
2 D (SNR) FAULTY
3 ICE TRAY SENSOR FAULTY
4 CONTROL PANEL FAULTY
FRIDGE DISPLAY FAULT CODES
1 RT SENSOR FAULTY
2 R1 SENSOR FAULTY
3 R2 SENSOR FAULTY
4 DEFROST SYSTEM FAULTY
Refer to diagram for sensor positions
FAULT DIAGNOSIS
NO
Normal setting indication of
preset temperature
Item
None
F SNR short
circuit or broken
circuit
Keys are in
Normal
Check the
connection of
each sensor
F SET
Normal
F (LD) SNR is
defective Freezer setting 1 glitters
Indication Description Remark
17 of 48

INSIDE THE FRIDGE CABINET IS FREEZING
Check the operation of the fridge damper. See the DAMPER TEST in the
manual.
If the damper fails to operate check the power supply. If the power supply
is present change the damper assembly. If there is no power supply
change the PCB.
SALAD TRAY/WATER TANK AT THE BOTTOM OF THE FRIDGE ARE FREEZING
Check the operation of the fridge damper. See the DAMPER TEST in the
manual.
If the damper fails to operate check the power supply. If the power supply
is present change the damper assembly. If there is no power supply
change the PCB.
Check the freezer fan is operating correctly by carrying out a forced
fan test as per the manual.
NOT MAKING ICE
Carry out the ice maker function test as per manual. If the ice maker
doesn't operate check the power supply by removing the connector
and testing with a volts meter. If the power supply is present change the
ice maker. If there is no power to the ice maker then change the PCB.
ICE CUBES STICKING TOGETHER IN THE ICE STORAGE BOX
Check the freezer door seal
Check the ice chute flap is sealing
Check with the customer that they are not experiencing intermittent
power failures as this will cause ice problems
Check the water level in the ice tray. If it is overfilling adjust the water
timer as per manual.
ALARM FAULT
If the alarm sound once intermittently this means there is a fault with the
plug connector of the ice maker. Clean and dry the connector and re-seal
with silicon.
If the alarm sound as three short beeps. This means that there is a door
or light problem. Check door adjustment. If the problem persist check the
door light switch.
SCRAPING NOISE FROM THE FREEZER
The noise could be the ice tray catching on the water fill pipe. Adjust the
water fill pipe or the ice maker unit.
18 of 48

19 of 48

20 of 48
