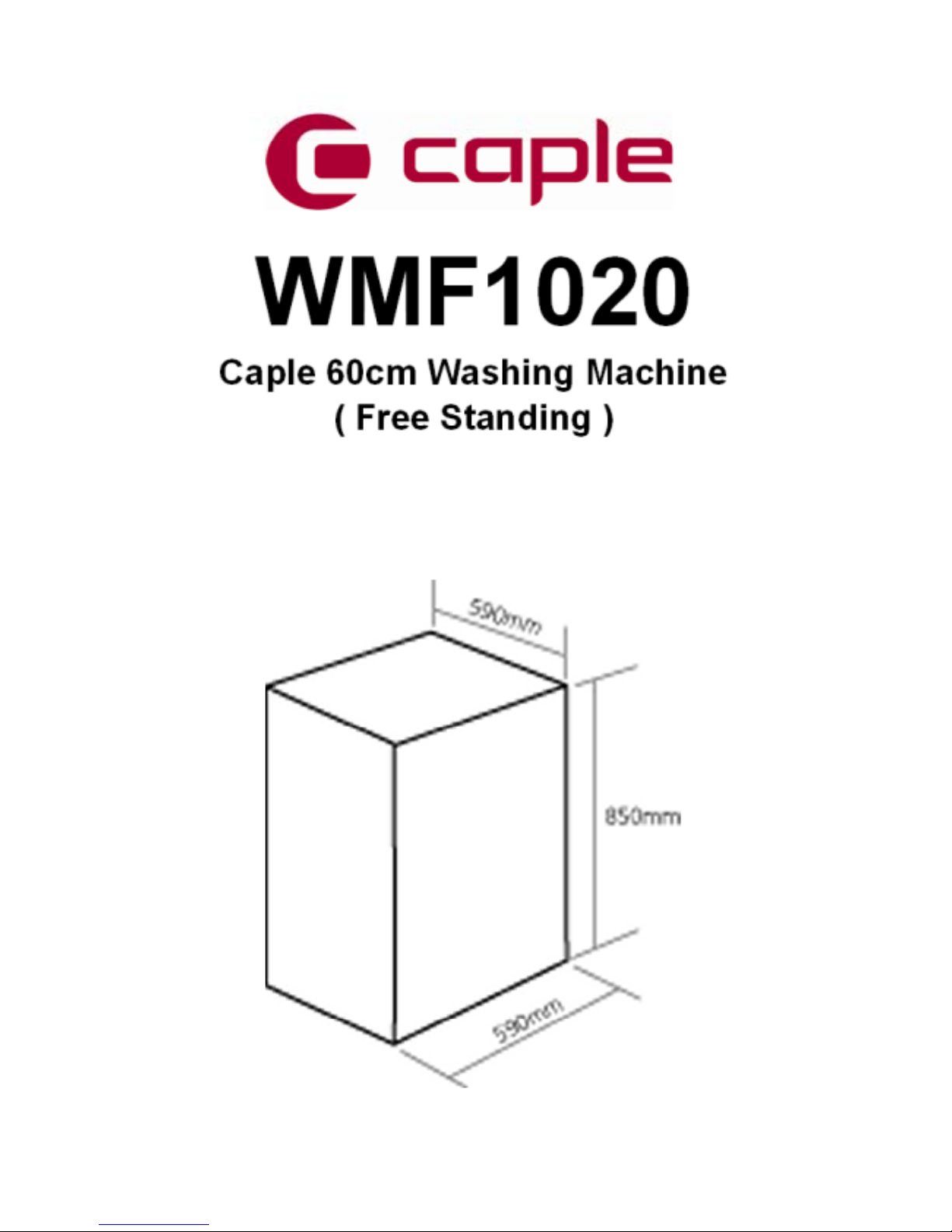

Caple WMF1020 User manual

Technical manual for washing machine
Model code: WMF1020
Contact Caple on 0844 8003830 or for spare parts www.4caple.co.uk

New product information sheet
Product name: WMF1020
Description: Freestanding washing machine
Product code: WMF1020
Features
Energy class A+
Wash class A
Spin efficiency B
16 programmes:
- Cotton 30c
- Cotton 40c
- Cotton 60c + pre-wash
- Cotton 60c
- Cotton 90c
- Delicates cold
- Delicates 30c
- Hand Wash
- Wool 30c
- Synthetic 30c
- Synthetic 40c
- Synthetic 60c
- Duvet 30c
- Express 15 minutes
- Spin
- Daily 45minutes
Options:
-Rinse hold – anti crease
- Extra rinse
- Easy iron
- Intensive wash
- Anti-bacteria
1400rpm max. spin speed
8kg washing capacity
59 Litre water consumption

New product information sheet
Product name: WMF1020
Description: Freestanding washing machine
Product code: WMF1020
LCD display which features
-Electronic clock - delay timer 1 – 24 hours
-Wash progress
-Total time remaining
-Programme and spin speed indicator
Features
Cold fill
Child lock
Variable load
340mm extra large door
180 degree opening, for easy access.
Stainless steel drum
Self cleaning pump and filter
Anti-flood safety device
Spin system with wash optimization with minimum water and energy consumption.
Foam control
Electrical connection
Rated load 2.2kw ok
Fuse rating 13A ok
Advance balance system – which electronically controls and distributes clothes evenly during
the spin cycle.

How to use this manual
This document is intended for all persons rendering technical support services (T.S.S.).
It is designed to facilitate the repair of the product described. It provides documentary
support for technical consultations.
This manual contains notes warning about safety issues:
technical
I
Electrical hazard: This identifies potential risks for the
product. Such risks may cause permanent damage to the
product.
Important: This identifies information that is critical for a
correct understanding of the product.
!Warning: This identifies information or circumstances that
may cause personal injuries or death.

Table of contents
technical
1.- Warnings and precautions ..................................1
2.- Features ................................................................3
3.- Description of operation.......................................8
3.1.- General description ............................................................ 8

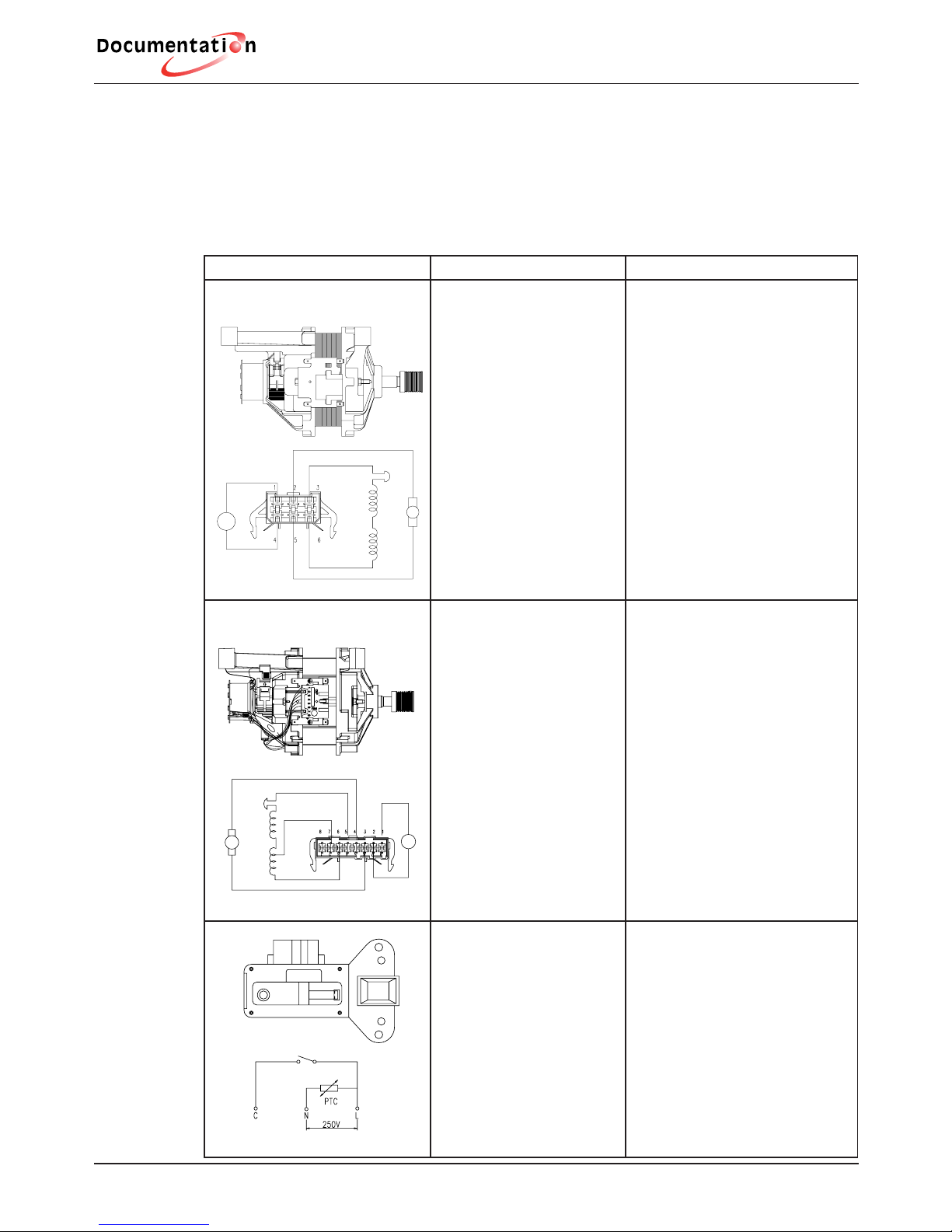

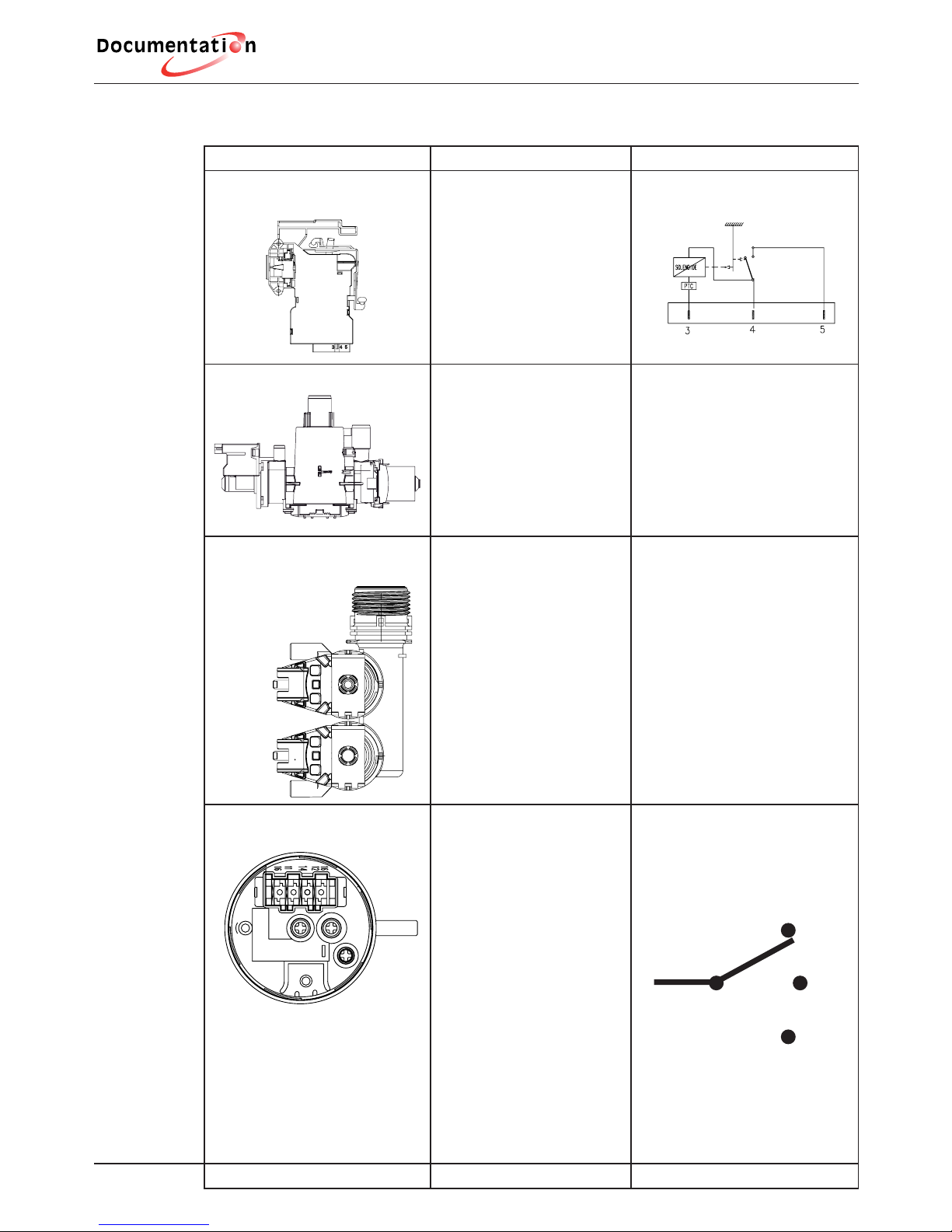

3.1.1.- Component characteristics ....................................................... 8
3.1.2.- V3 and V4 circuit configuration ................................................11
3.1.3.- Washing machine vibrations ................................................... 16
3.1.4.- Description of the operation of programme no. 2 ................... 19
3.1.5.- Attempts to spin....................................................................... 20
3.2.- Drawings and diagrams ................................................... 21

Warnings and precautions
technical
1
1.- Warnings and precautions
!The washing machine must be connected to an earth. If this basic safety rule is
not respected, the manufacturer shall under no circumstances accept liability for
injuries suffered by persons or for damage to objects.
To prevent fire and electrical sparking hazards, personal injury, or other dam-
age when using your washer, take the following precautions:
This washing machine iis supplied with a manual which includes operating,
maintenance, and installation instructions. Read all the instructions before using the
the washing machine.
Do not wash articles which have been previously cleaned, washed, soaked or treated
with gasoline, dry-cleaning solvents or other inflammable or explosive substances as
they produce vapours that may ignite or explode.
Do not add gasoline, dry-cleaning solvents or other inflammable or explosive
substances to the wash water since they produce vapours which may ignite or
explode.
Do not repair or replace any part of the washer, nor attempt any type of service unless
it has been recommended in the maintenance instructions in the manual.
Do not stand or sit on the machine, or support yourself on the open loading door.
To reduce the risk of fire or electric shock, do NOT use an extension lead or adapter
to connect the washing machine to the mains electricity.
The machine must only be used for what it was designed for.
Follow the washing instructions recommended by the manufacturer of the item to be
washed.
Do not start the washing machine until you have made sure that:
• It has been installed according to the installation instructions.
• All the water, drainage, mains and earth connections comply with local
standards and other applicable standards.

Warnings and precautions
technical
2
Specifications plate (Registration plate)
This is situated on the hatch on the front of the washing machine. This plate indicates
the following:
CAPLE 3F-2609
COD.905013069
0905013069050900001
2200W 220-230V-50Hz
10A. 4.9-98N/cm2
NIF ESF20020517
N.050900001
TYPWM-900E3B
Mains electricity grid voltage and frequency
Month of manufacture
Year of manufacture
Washing machine code
(9 digits)
Total power
2%')342!4)/.0,!4%
-!2+!.$-/$%, 490%/&!00!2!453
/&&)#)!,#%24)&)#!4)/.39-"/,
!.$/4(%23
3%2)!,.5-"%2
0/7%26/,4!'%!.$&2%15%.#9 #!0!#)49
-!).37!4%202%3352%
"!2#/$%
490%/&!00!2!453

Features
technical
3
2.- Features
This range is comprised of the following models:
F7-212
Select
Turbo Time Plus
ABS
AA
8kg
+
1200 r.p.m.
Select
F7-412 X
Turbo Time Plus
ABS
AA
8
kg
1200 r.p.m.
+

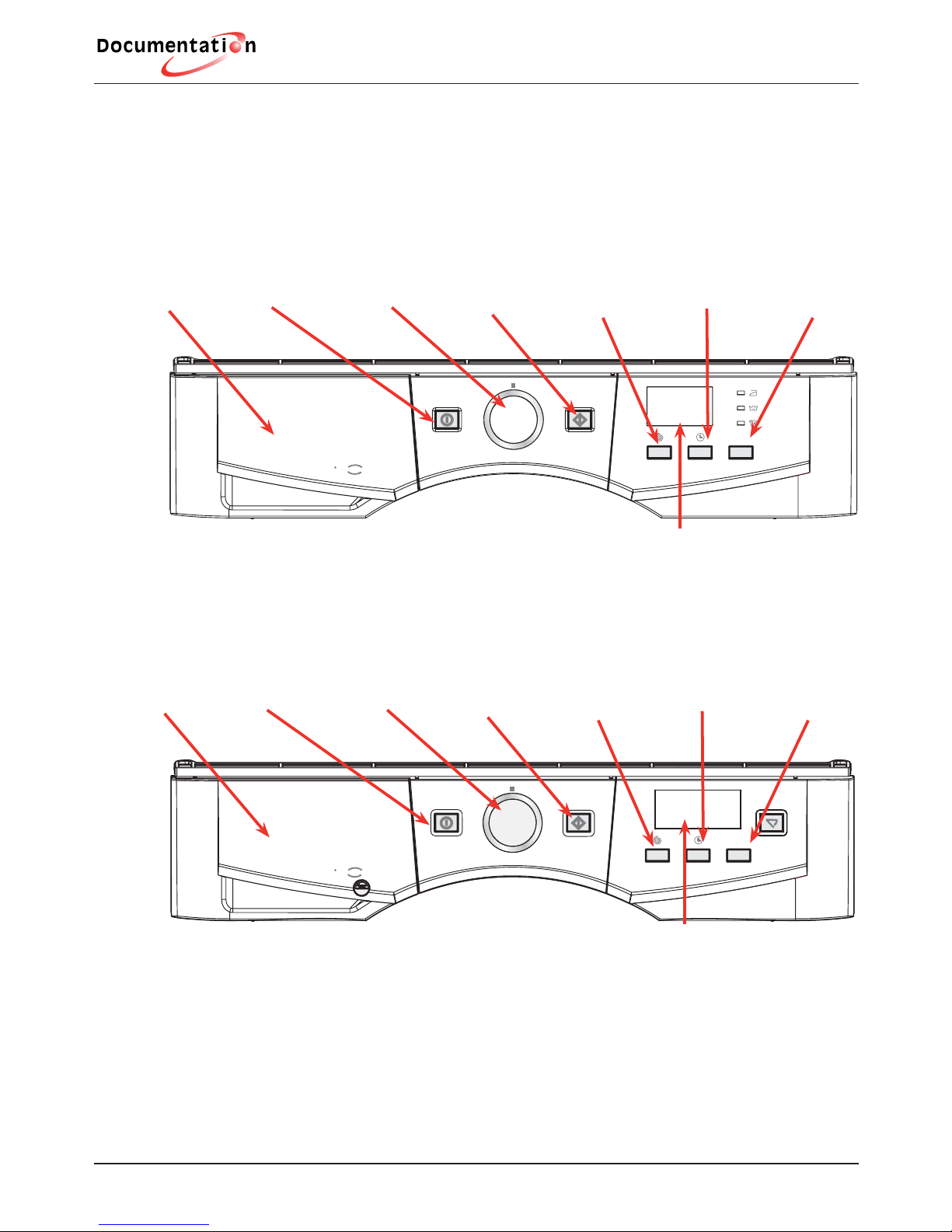

V4 display
ON/OFF
button
Detergent
drawer
Programme
selector control
Start-Pause
button
Spin + flot
button Time delay
button
Additional
functions
button
V3 display
ON/OFF
button
Detergent
drawer
Programme
selector control
Start-Pause
button
Spin + flot
button Time delay
button
Additional
functions
button

Description of operation
technical
4

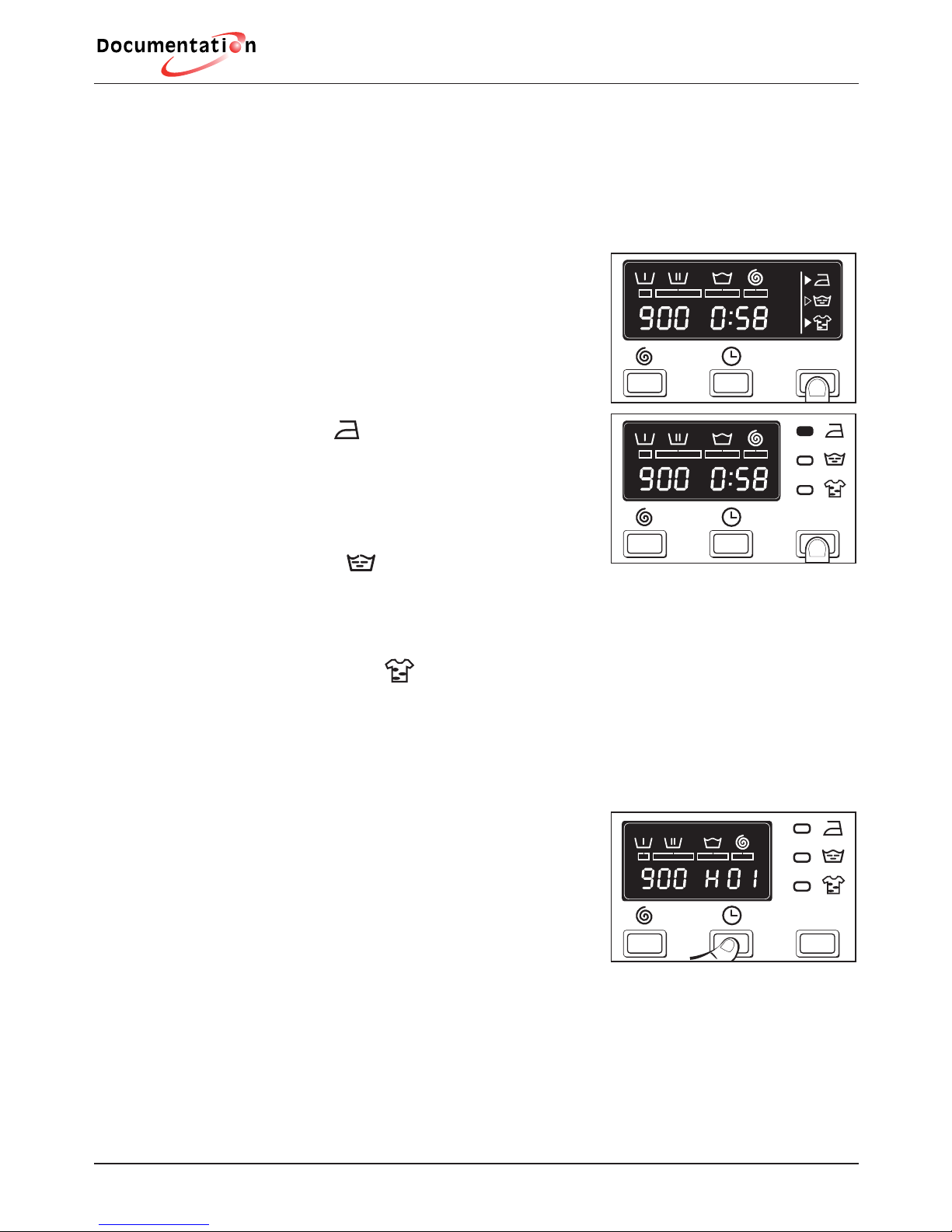

Selecting additional functions
Button for selecting additional functions according to programmes.
a) It has 3 options: easy iron, intensive wash, extra
rinse. Press the select button to display to required
option.
b) By clicking several times you can choose between
various combinations, of one, two, and even three
additional functions at the same time, depending on
the chosen programme.
Key: Easy iron
This option reduces the formation of creases in
garments by performing a special programme with
special movements to fluff up the garments after the
spin and make ironing easier.
Key: Extra rinse
This increases the intensity of the final rinse applied to the clothing. This is
recommended for large loads and garments belonging to users with sensitive skin.
Increases water consumption!
Key: Intensive Wash
This option, specially recommended for very dirty or stained garments, gives better
results by lengthening the wash cycle.
Time delay option
Timedelayselection key A delay of up to 24hours
may be selected. The delay must be selected after
choosing the wash programme.
To select the time delay in hours, press the clock
button. Each press delays the start time by one
hour.
Cancelling time delay To cancel the time delay, press the clock button repeatedly.
The delay will be cancelled by reaching 24 hours and then pressing once more.
Changing to another programme also cancels the delay.
3ELECT
3ELECT
3ELECT

Description of operation
technical
5
Spin selection
The wash options must always be selected after selecting the wash programme. Any
change of programme during the selection annuls the options which had previously
been selected.
a) Spin selection and anti-crease (flot) button
The selected programme has an associated spin
speed in revolutions per minute, as shown on the
screen.
b) This can be modified by pressing the spin button
repeatedly and the spin speed in revolutions will go
down by 100 each time, until 400.
c) Skip spin option
Press the spin button once more to reach the skip
spin option. A programme without a final spin is
used to prevent creases from forming when washing
special fabrics.
d) Flot/anti-crease option
This stops at the final rinse, leaving the clothing
floating in water. When the function is deactivated,
the washing machine continues the programme,
draining and spinning. This is used when you are
not at home, for example, to delay the spin until you
have arrived so that creases are not caused by the
clothes being spun and then left in the drum.
3ELECT
B
3ELECT3ELECT
A
3ELECT
C
D
3ELECT

Description of operation
technical
6

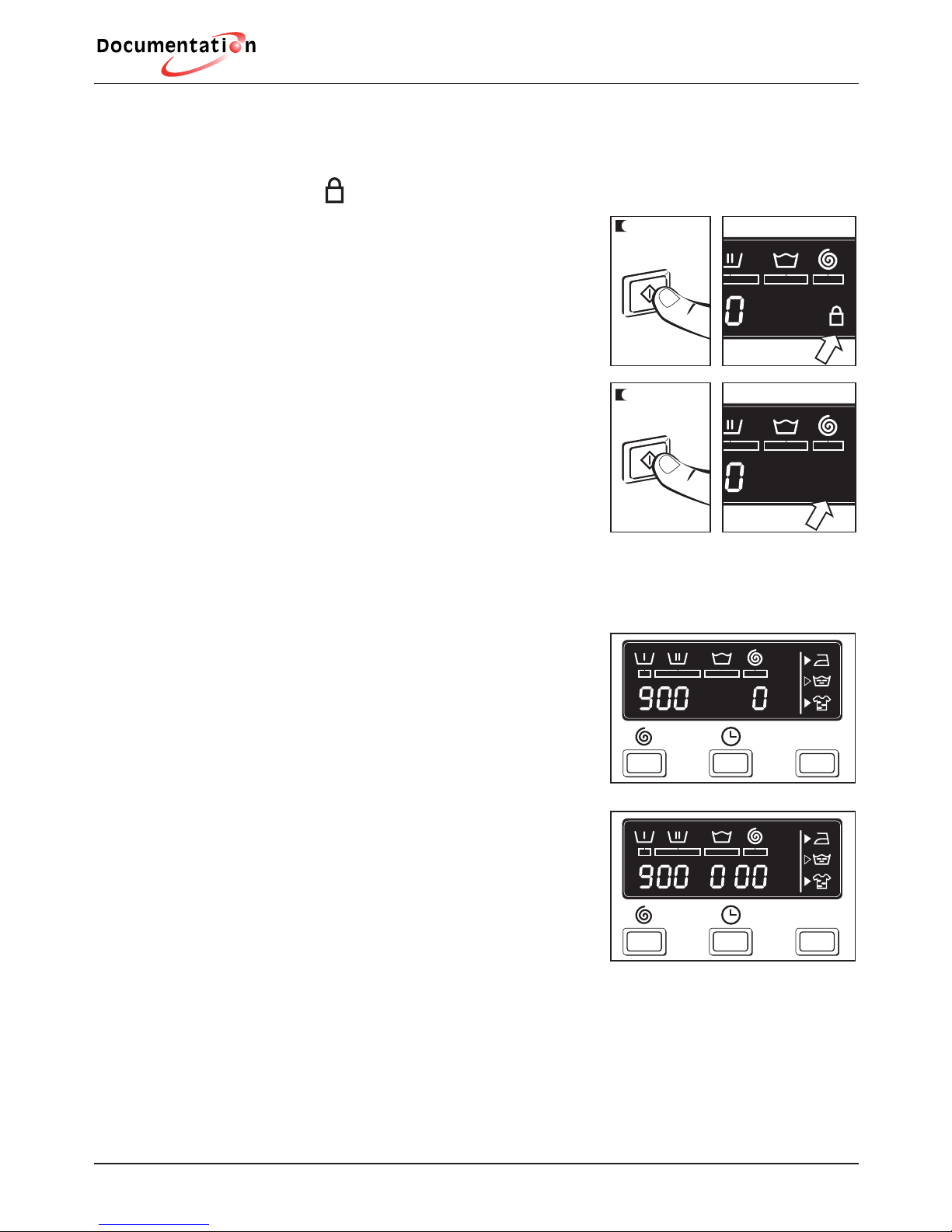

Lock selection
Activate lock
a) Locking is activated by keeping the start/pause
key pressed for at least 3 seconds.
The screen will show that it has been activated.
Deactivate lock
b) The lock is deactivated when the wash programme
ends.
To unlock before the end of the programme, press
the start key again for at least 3 seconds. After
3 seconds the lock indicator on the screen will
disappear and the machine will be paused.
The ON/OFF button does not deactivate the lock.
Programme ending
When the programme ends the screen will display
0.
When the door is opened or the lock is deactivated
the screen will display 000.
Demo Programme
Press the spin and select buttons simultaneously for at least 3 seconds to activate
and deactivate the DEMO programme.
a
b
Select
Select

Features
technical
7
Programme tables
Wool/mix wool very light soiling Wool/mix wool
WOOL 35 white/colour
light soiling
— — —
Programme
Recommended
temperature
Type of material
Buttons for possible options
1 2 3 4
5(*)
6 7 8 9
10 11 12 13 14 15 16
Rinses Spin Drainage/End
30
30 40
60 90
60
40
60
40
30
30
Extra
rinse
Intensive
wash
Easy
iron
Select
spin
Skip
spin
Anti-crease
Max. load (Kg
Normal cold
Fast 30ºC
Normal 30ºC
Normal 40ºC
Normal 60ºC
Normal 90ºC
Pre-wash 60ºC
Delicate cold
Delicate 30ºC
Delicate 40ºC
Delicate 60ºC
Cold wool
Wool 35ºC
cold cold
WOOL Cold
Cotton/Linen delicate colours very slightly soiled
Cotton/Linen white/coloured very slightly soiled
Cotton/Linen delicate colours slightly soiled Cotton/Linen Solid colours Slightly soiled Cotton/Linen Solid colours Normal soiling Cotton/Linen White Very dirty
Cotton/Linen White/solid colours Very dirty
Synthetic/mix Cotton delicate colours Very slightly soiled Synthetic/mix Cotton delicate colours Slightly soiled
Synthetic/mix Cotton delicate colours Normal soiling Synthetic/mix Cotton white/solid colours Normal soiling
Cotton/mix cotton Synthetic/Delicate Wool/wool mix
Cotton/mix cotton Synthetic/Delicate Wool/wool mix
Cotton/mix cotton Synthetic/Delicate Wool/wool mix
YES
YES
YES
YES
YES
YES
YES YES
YES
YES
NOYES
NO
NO
YES
YES
YES
YES YES
NO YES NO
NO
YES YESNO
Normal programme
Delicate programmes
Prog. Wool
Additional programmes
0.10/59 0.25/30 0.30/59 0.60/59 1.52/59 2.20/64 1.50/64 0.10/45 0.20/45 0.40/45 1.00/45 0.05/55 0.45/55 0.05/25
0.05/0 0.00/0
50 30 52 57 80
110 100
50 50 55 70 30 40 23 10
2
_ _
8 2 8 8 8 8 8
3.5 3.5 3.5 3.5
2 2 8 8 8
Wash products
compartiment
TURBO TIME PLUS
Máx. load (Kg)
Programme Description
Total consumption KWh / litres
Approx. duration (min.)
Normal wash, rinses, automatic additive absorption if required, and long nal spin
SHORT wash, rinses, automatic additive absorption if required, and long nal spin
Normal wash, rinses, automatic additive absorption if required, and long nal spin
Pre-wash, normal wash, rinses, automatic additive absorption if required, and long nal spin
Delicate wash, rinses, automatic additive absorption if required, and gentle nal spin WOOL wash, rinses, automatic additive absorption if required, and gentle nal spin
Rinses, automatic additive absorption if required, and long nal spin
Emptying and long nal spin Emptying and end of programme. Takes the programme to the nal position

Description of operation
technical
8
3.- Description of operation
3.1.- General description
3.1.1.- Component characteristics
Component Function Features
Motor
1250 RPM
Used in machines with
variable spin; makes
rotating movements
when washing and
spinning.
Motor power supply:
- Clockwise, power
220V. , contacts 2 and
3. Bridge between
contacts 5 and 6.
- Anti-clockwise,
power 220V. , contacts
3 and 5. Bridge
between contacts 2
and 6.
Voltage: 220 v / 50 Hz
Stator resistance: 1.3 Ω
Rotor resistance: 1.7 Ω
Tachogenerator resistance:
184 Ω
Tachogenerator voltage: 1.2
v / 1,000 rpm
Double field motor
1400 RPM
Used in machines with
variable spin; makes
rotating movements
when washing and
spinning.
Motor power supply:
- Clockwise, power
220V. , contacts 4 and
5. Bridge between
contacts 3 and 6.
- Anti-clockwise,
power 220V. , contacts
4 and 6. Bridge
between contacts 5
and 3.
Voltage: 220 v / 50 Hz
Stator resistance: 3.3 Ω
Rotor resistance: 2.46 Ω
Tachogenerator resistance:
90 Ω
Door lock Opens and closes
hatch lock.
Voltage: 220 v / 50 Hz
16 Amp.
Between 40 and 75
seconds delay.
2
4' 34!4/2
4(%2-)#
02/4%#4/2
34!4/2 4'
2
4(%2-!,
02/4%#4/2

Description of operation
technical
9
Component Function Features
Door lock with instant
opening Hatch closing Manual opening for use
in case of electricity
supply failure.
Recirculation pump Re-circulates the drum
water for greater wash
effectiveness and
reduced programme
times.
Voltage: 220-240 V /50 Hz
Drainage pump resistance
170 Ω
Recirculation pump
resistance 180 Ω
Both with thermal protector.
Power 30 (W)
Doubly connected
electrically operated
valve
Allows water intake in
the pre-wash, wash and
rinse phases.
EV1 pre-wash orange
connector
EV2 wash black
connector
EV1 + EV2 additive
intake
Voltage: 220-240 V /50 Hz
Power: 5 W
Flow: 6.7 litres/ minute
Pressure: 0.5-10 kg / cm²
Resistance: R1=R2=R3=
3.7 KΩ
3/4 Thread Gas
12mm conduit diameter
Pressure switch The pressure gauge
is activated in the
following conditions:
- When the wash level
reaches 12 litres.
(11-12)
- When the level
exceeds 33 litres
(overflow), the drainage
pump is activated
(safety).
(11-16)
- The rinse level is
performed according
to the time of the
microprocessor of the
electronic card.
Level 1
102 / 72 ± 3
Overflow safety device
310 ± 10
11
12
14
16
12 Water intake
14 Heating
16 Overflow
11 Common

Description of operation
technical
10
Componente Function Features
Heating resistance Heating element +
thermal fuse incorpo-
rated into the element
itself
Thermal fuse cut-out
temperature165º
Resistance: 26.4 Ω
Material: Austenitic
stainless steel
Power: 2022 W
Voltage: 230 v
NTC ≤30ºC variable
resistance value 9786 Ω
V3 electronic circuit Power and display
circuit
Voltage: 220 v / 50 Hz
Important: It is necessary
to configure the circuit
before starting the machine.
(Follow configuration
instructions)
V4 electronic circuit Power and display
circuit
Voltage: 220 v / 50 Hz
Important: It is necessary
to configure the circuit
before starting the machine.
(follow configuration
instructions)

Description of operation
technical
11

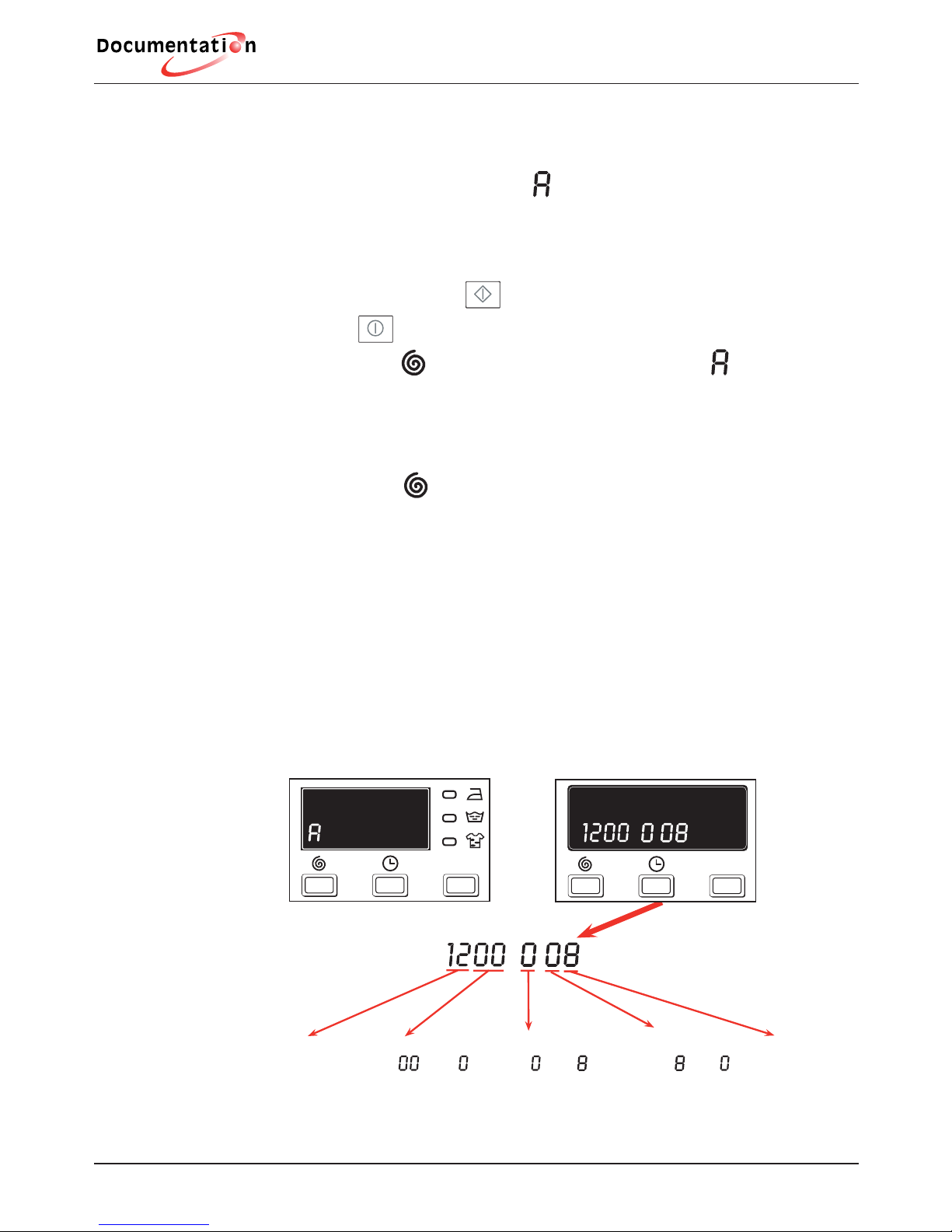

3.1.2.- V3 and V4 circuit configuration
If the circuit is not configured it will go into status as soon as it is plugged in (go to
step no. 7) If the circuit is configured it enters the current configuration. To change the
configuration, follow these steps:
1.- Turn the machine off
2.- Press the start / pause button and keep it pressed (until step 5)
3.- Press the button for 1 second until the LCD screen lights up
4.- Press the spin button and wait 2 seconds until the letter is displayed on
the LCD screen
5.- Release all keys simultaneously
6.- The door lock will be locked
7.- Press the spin button (the last digit of the LCD will flash).
8.- Pressing the CLOCK button changes the parameter to be adjusted, starting with
the KG digit and following the sequence KG – RPM – RECIRCULATION – HOT
WATER – DOOR OPENING – KG….
Pressing the SPIN button changes the value of the parameter; the possible values
are limited to the circuit’s hardware reference and the selected KGs.
If the KGs are changed after having selected the RPM and the previous RPM value is
not permitted for the newly selected KGs, the RPM will re-adjust to the value closest
to the newly selected KGs.
RPM RECIRCULATION PUMP
YES /NO
COLD WATER
YES /NO
DOOR OPENING
YES /NO
KG
Select Select

Description of operation
technical
12
KG – Drum capacity
7: 7 kg
8: 8 kg
KG options depending on circuit references /
washing machine model.
HOT WATER
0: Cold water
8: Hot water
If the circuit does not have this option it will
always be 0.
R.P.M. (Revolutions per minute)
These values depend on the hardware
reference and the KGs selected.
DOOR OPENING
0: WITHOUT door opening
8 : WITH instant door opening
If the circuit does not have this option it will
always be 0.
RECIRCULATION
0: WITHOUT Recirculation Pump
00: WITH Recirculation Pump
If the circuit does not have this option it will
always be 0.
Circuit validation (see table 1)
Once the circuit has been configured it is
confirmed by pressing the start/pause button for
3 sec. until the digits stop flashing. After 3 sec. it
exits the configuration process, entering the TSS
programme (See table 1)
• Fagor T.S.S. Programme
In order to check the operation of the washing machine’s electric components, select
the T.S.S. programme by following these steps:
1.- General ON / OFF switch (LCD off)
2.- Press the start / pause button and keep it pressed
3.- Hold down the ON/OFF switch until the LCD screen lights up.
4.-Press and hold down the select spin button and wait approx. 2/ 3 sec. until the
letter is displayed on the screen
5.- Release all buttons simultaneously
6.- Press the spin button and wait until the digits on the screen (LCD) appear (the last
button on the right flashes).
7.- Press and hold down the start / pause button until all the digits on the screen
are flashing.
8.- The number 1 will be displayed on the screen – then follow the instructions in table
1, below.
DISPLAY SELECTION MODE TIME (APROX.)
1 Water intake via Pre-wash Electrovalve + Movement of wash
motor at 55 rpm
10 seconds
2 Emptying + Spin 5 min.
3 Water inlet via the electronic valve for washing until wash level is
reached
Pressure switch
level
4 The resistance starts to heat up until it reaches 40ºC +
Intermittent recirculation 90 sec. without being activated and 30
sec. activated
40ºC
5 Water input via pre-wash, wash and softener electrically operated
valve + Recirculation
5 seconds
Pump empty 30 seconds
6
5
4
3
2
1

Description of operation
technical
13
Select
F7-412 X
Turbo Time Plus
ABS
AA
8
kg
1200 r.p.m.
+
XXXX XXXXXXX
LF5S017A3
F-2812
12
(00)
(0)
(0)
R
AF
AP
8
REFERENCE BARCODE
CONTROL PANEL
(COD. 39)
R.P.M. 1200
R (00) With recirculation
AF (0) Cold water
AP: Does not have instant door
opening
KG. 8 Kg.
To display the washer
configuration:
1º Configure Kg.
2º Configure R.P.M.
3º Configure Recirculation
4º Configure Cold water
5º Configurar Door opening
Press the START button for
3 seconds and the screen
displays:
F7-212
Select
Turbo Time Plus
ABS
AA
8 kg
+
1200 r.p.m.
F-4812 X
XXXX XXXXXXX
LF5S004X7
12
(00)
(0)
(8)
R
AF
AP
8
CODIGO DE BARRAS REFERENCIA
PORTAMANDOS
(COD. 39)
To display the washer
configuration:
1º Configure Kg.
2º Configure R.P.M.
3º Configure Recirculation
4º Configure Cold water
5º Configure Door opening
Press the START button for 3
seconds and the screen dis-
plays:
R.P.M. 1200
R (00) With recirculation
AF (0) Cold water
AP: Has instant door opening
KG. 8 Kg.
Label location: It is located in the detergent drawer.

Description of operation
technical
14
Fault modes description table
T.S.S. programme fast forward function: Press the start / pause button to move to another programme step without having to execute the step condition.
SAFETY
MECHANISMS FAULTS ACTIONS RESET (security end)
FILLING
(F01) EV activated for 8 min. and without water (except in the programme) The machine stops with the door lock activated All options are reset if:
1 – Power is lost (unplug or ON/OFF) 2.- Selector position changed 3.- If, when the programme finishes, the start button is pressed
DOOR OPEN (F04) - Washing machines with instant opening door lock:
At the beginning of the programme the circuit detects that the door is not closed Washing machines with PTC door lock: If the door lock is without power for 8 seconds the fault is displayed
IN USER PROGRAMME STOP (Programme end)
All options are reset if: 1.- Power is lost (unplug or ON/OFF) 2.- Selector position changed 3.- Door is closed (IF THE CIRCUIT IS IN A SPECIAL PROGRAMME (AP_01, AP_ 01, REP_01 OR SAT) WHEN RESET IT RETURNS TO STATUS A)
EMPTYING (F02) EB ON 6 min. and PN ON (full) STOP (Programme end) All options are reset if:
1 – Power is lost (unplug or ON/OFF) 2 - Selector position changed
OVERFULL (F07) The fault is displayed:
If the pressure switch detects that the washing machine is too full If the pump connector is broken or is not connected
NTC
(F05) NTC in short circuit or open circuit The programme ends without heating the water
DOES NOT HEAT
(F06) ß < 5°C/15 min. (Except in reliability program)
MOTOR
(F08) Tachogenerator failure, motor blocked
- The wash programme is stopped for 120 seconds - The error counter starts counting - If the error counter counts 3 faults the error code F08 is displayed - When the stop time is exceeded the programme begins again If the error does not occur in the next 20 seconds the error counter is reset. The programme stops (in any instance) and starts again in the same position. If the error occurs in the spin phase the programme will start the whole spin sequence again from the start. This error returns to the initial conditions if the error is reset.
STOP (Programme end) Door lock always activated
The same as the previous ones but with the door lock activated
MOTOR INVERSION
FAULT (F09) The drum rotation direction does not change until the motor stops
(max. time 2 min.)
INTERNAL DOMOTIC
FAULT (F10) Communication between the micro and the bus fails In V1 nothing happens
In V3 and V4 the “@” symbol will flash intermittently
See domotic document
EXTERNAL DOMOTIC
FAULT (F11) While communicating with the washing machine it is detected that a node is absent In V1 nothing happens
In versions V3 and V4 the “@” symbol and the lock symbol will flash intermittently
See domotic document
BMF BUS FAULT
(F12) While communicating with a washing machine a BMF fault is detected. In order to detect it, the following
must happen: - Display board: If the board does not receive the correct message (can be checked in the BMF variable “SinTraficoEnBus==1”) from the power board for more than 10 seconds, or if it is continually receiving LINK messages but not data (no status messages. (Can be checked in the BMF by its meaning “TramaDatosATratar==0”) for more than 10 seconds, the fault F12 will be displayed. - Power board: If the power board is continually sending LINK messages to the display board for more than 10 seconds (the master can recognise and check the BMF variable “EtadoLinkNodos”), the F12 fault is then displayed and should be activated in the master. If the power board receives a correct message from the display board (Link_Response or Data) the F12 fault is reset
In version V1 nothing happens In versions V3 and V4 the washing machine stops (Programme end)
See BMF document ‘- Display Board: Ihe fail and the related 10sec timer have to be reset when a correct data frame (identification or status frame) is received by the Display Board from the Power Board. ‘-Power Board: If the Power Board receives a correct message (Link_Response or Data) from the Display Board, the F12 and the related 10sec timer have to be reset.
WARNING CHECK ACTION RESET
IMBALANCE
(C03) If an imbalance is detected when it makes 18 attempts to spin or during 15 minutes of
attempts
The washing machine spins at the lowest speed The fault is reset in the following manner:
1.- Cutting off the power (unplug or ON/OFF) 2.- Change the selector position
