Captiva Designs E02GR007 User manual

Questions, problems, missing parts? Before returning to the store,
please contact our Customer Service
h
[email protected]
inually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Captiva Desings!
THANK YOU
This appliance is for Household use only.
This is not a commercial appliance.
Assembly, Care And Use Instructions
Read Carefully Important:Retain These
Instructions For Future Reference.
USE AND CARE GUIDE
E02GR007
Enjoy Your

2
Preparation & Lighting Instructions
Operating Instructions
Care and Maintenance
Controller Instructions
21
22-24
25-27
28-29
Troubleshooting 30-34
ENJOY YOUR CAPTIVA DESIGNS
Warning
Components
Assembly Instructions
2-3
4
5-9
10-20
Preparation
Table of Contents
Warning
Please read this entire manual before assembling and using this pellet fuel burning appliance. Failure to
follow these instructions could result in property damage, bodily injury or even death.Contact local
building or re ofcials about restrictions and installation inspection requirements in your area.Please
save this instruction manual for future reference.
WARNING:
WARNING:
• The grill is for outdoor use only!
• Never use gasoline, gasoline-type fuel, kerosene, charcoal lighter uid, or similar liquids to start or
“freshen up” a re in this appliance. Keep all such liquids away from the appliance when in use.
• Do not store ammable liquids or materials on the bottom shelf or side shelf.
• The grill is for adult use only.
• This grill gets extremely hot during use! Use extreme caution around the grill.
• Use caution when opening the lid as hot steam or a are up could cause burns.
• Keep the grill a minimum of 36 in. Away from buildings, structures, any ammable items and vehicles during
use.
• Keep children and pets away while the grill is being used.
• Use caution after the re has been extin-guished- surfaces will remain hot for some time.
• Never put your ngers in the auger channel for any reason!
• The hopper pellet fuel screen must be in place during use.
• Never use the grill under covered porches, awnings, combustible ceilings, low hanging tree branches,
trellis, or overhangs of any kind.
• Never use inside enclosed areas such patios, garages, enclosed rooms, buildings or tents.
• Do not use in windy conditions.
• Do not use in very wet or rainy conditions.
• Keep the lid closed during use. This pellet grill is intended to be used with a closed lid.
• Never use this grill as a heater.
• This grill is not for commercial use.
• Before starting, make sure the grease bucket is in place.
Warranty
35

3
ENJOY YOUR CAPTIVA DESIGNS
Warning
WARNING:
• Always unplug grill after using. Wind cord around the cord wrap so it is out of the way.
• During use, the plug wiring should be sorted so it does not impose a tripping hazard.
• Always use the grill on a hard, stable and level surface.
• This grill operates automatically through the control panel. Do not manually ll the re pot or over-ll the
re pot by hand . This will cause a dangerous over-ring condition.The side shelf can hold 15 lbs. Safely, do
not put more than 15 lbs. On the side shelf.
• Do not lean or push down on the side shelf.
• Do not move the grill while it is being used.
• Do not use accessories not specied for use with this appliance.
• Make sure the front wheel casters are locked while in use.
• Do not leave unattended at any time while in use.
• Before each use, make sure the grill is in good working condition.
• Do not alter the grill in any way.
• Do not modify or hardwire the auger to run continuously.
• Do not use the grill until it is completely as-sembled with all parts securely tightened.
• The grill must be completely cooled off and must be extinguished before any cover can be used.
• Maintaining the grill is the responsibility of the owner or user . The rebowl, drip tray and drip tray tube must
be cleaned occa-sionally to remove grease buildup. Failure to clean grease buildup can cause grease res
which are very dangerous.
• After every 20 hrs of use, the re pot must be cleaned out to remove any ash buildup. This is required
maintenance.
• Never pour water into the rebowl, re pot or drip tray.
• If a grease re were to occur, baking soda can be used to extinguish the re . Use extreme caution not to
burn yourself.
• If the re does not extinguish, remove the food if possible. Keep the lid closed, close the chimney damper
and press the power button to off.
• Once the re is extinguished, clean the grease buildup before cooking is resumed.
• Disposal of ashes - any ashes that are removed from the grill should be placed in a metal container with a
tight tting lid. The closed container of ashes should be placed on a noncombustible oor or ground, well
away from all combustible materials, pending nal disposal . If the ashes are disposed of by burial in soil
or otherwise locally dispersed, they should be retained in the closed container until all cinders have
thoroughly cooled.
WARNING:
• Outdoor use only!
• It is good practice to alwayshave a well maintained reextinguisher available wheneverany type of grill is
being used.

4
Preparation
ENJOY YOUR CAPTIVA DESIGNS
WARNING:
Carbon monoxide hazard!
Burning wood or charcoal produces carbon monoxide, which has no odor and can cause death if burned
in enclosed areas. Never burn wood or charcoal inside homes, vehicles, tents or any other enclosed areas.
Note the following to prevent this colorless, odorless gas from poisoning you, your family or others:
•Know the symptoms of carbon monoxide poisoning: headache, dizziness, weakness, nausea, vomiting,
sleepiness, and confusion. Carbon monoxide reduces the blood’s ability to carry oxygen. Low blood
oxygen levels can result in loss of consciousness and death.
•See a doctor if you or others develop cold or u-like symptoms while cooking or in the vicinity of this
appliance. Carbon monoxide poisoning, which can easily be mistaken for a cold or u, is often detected
too late.
•Carbon monoxide is especially toxic to mother and child during pregnancy, infants, the elderly, smokers,
and people with blood or circulatory system problems, such as anemia or heart disease.
FUEL:
• Use only food grade hardwood pelletsmade for pellet grills.
• Do not use heating pellets which may contain hazardous contaminants.
• It is recommended that excess pellets are not stored in the hopper for extended periods as they can
absorb moisture causing the auger to seize.
• If the pellets are going to be stored in the bag they were purchased in, close the bag tightly and place in
a dry location. A better choice is a moisture proof sealed container. Care must be taken to insure
the pellet fuel is kept from all moisture.
• Do not use pellets that have gotten wet. Do not use pellets that have become excessively powdery or
dusty. This is a sign the pellets are defective or have been exposed to moisture at some time.
• Use only wood pellet fuel specied by the manufacturer. Do not use pellet fuel labeled as having
additives

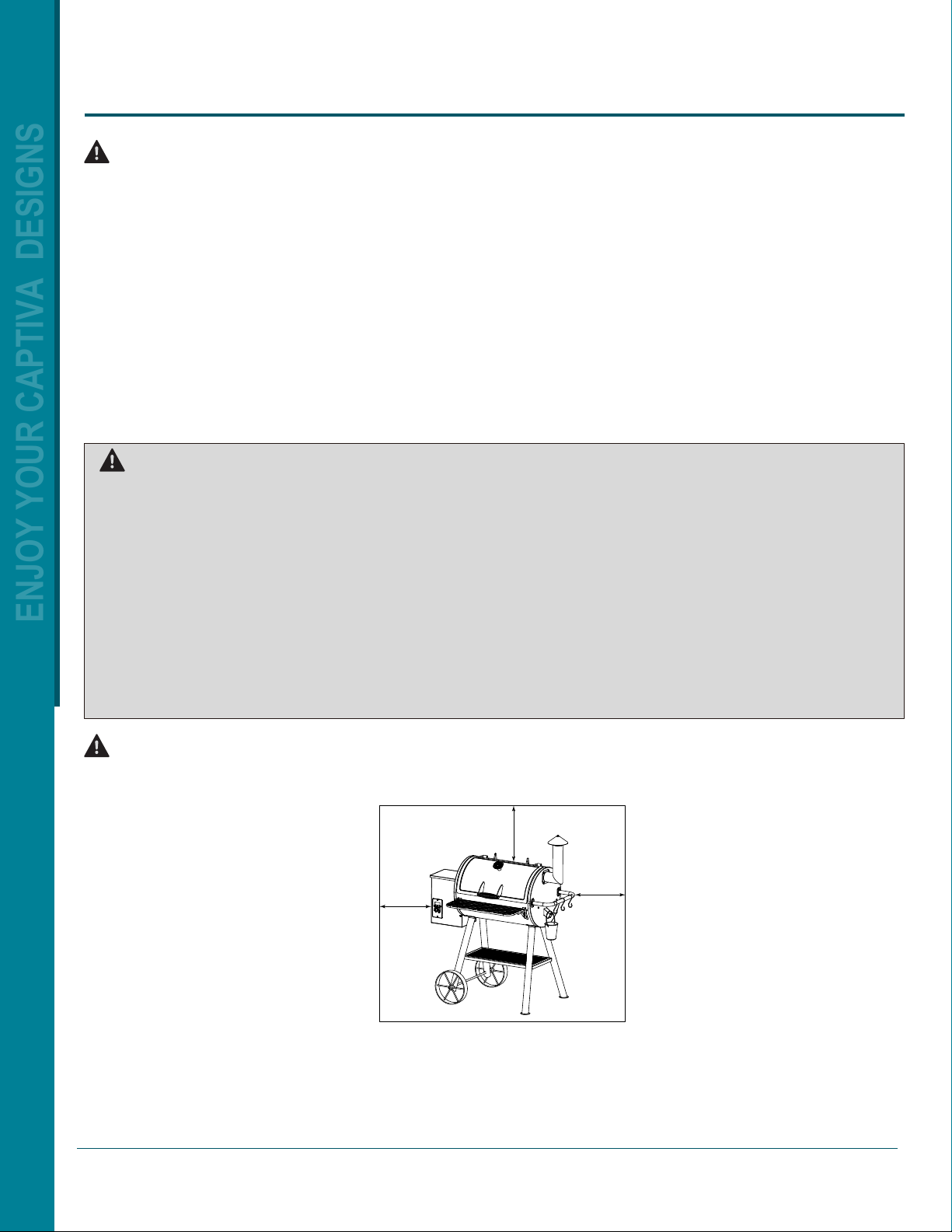

WARNING:
Do not use this appliance under overhead combustible surfaces.
• Keep the grill a minimum of 36 in. Away from buildings, structures, any ammable items and vehicles during
use.
• Never use the grill under covered porches, awnings, combustible ceilings, low hanging tree, branches, trellis,
or overhangs of any kind.
• It is recommended that the appliance be installed on noncombustible oors. The appliance can be installed on
combustible oors with a noncombustible surface where the protective surface has been approved for such
use by the authority having jurisdiction.
36″
36″
36″

Components
5
ENJOY YOUR CAPTIVA DESIGNS
117
16
15
14
20
25
27
22
23
24
13
12
11
10
9
8
18
19
2
3
4
5
6
26
7
28
29
21

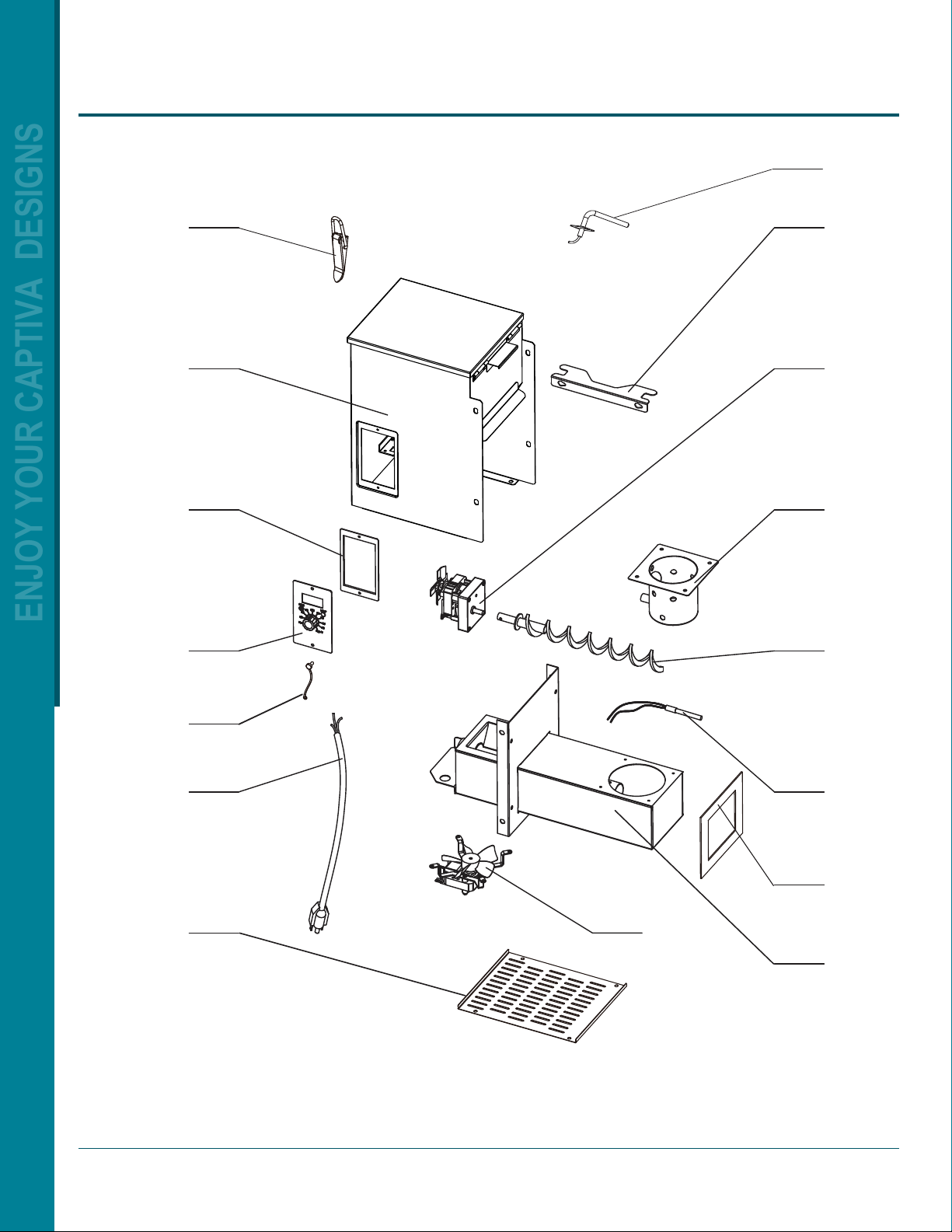

Components
6
ENJOY YOUR CAPTIVA DESIGNS
36
30 3
37
38
39
40
42
43
31
32
33
34
35
44
41

Components
7
ENJOY YOUR CAPTIVA DESIGNS
Warming Rack
Bracket
Chimney Cap
115
Chamber Lid16
Warming Rack17
Cooking Grate18
Flamer Tamer19
Grease Tray
20
Cooking Chamber21
Front Shelf22
Bottom Shelf23
Wheel Axle
24
Chimney Gasket25
Front Shelf Bracket R
Back Left Leg
26
27
Front Right Leg28
Meat Probe29
1
1
1
3
1
1
1
1
1
1
1
1
1
1
1
4
5
6
2
3Power Cord Bracket
Hopper Assembly
Front Shelf Bracket L
Front Left Leg
7 Wagon Wheel
8 Back Right Leg
9 Grease Bucket
10 Utensil Hook
11 Grease Bucket
Bracket
12 Chamber Right
Bracket
1
1
1
1
2
1
2
1
1
3
1
1
13 Side Handle 1
14 1Chimney Pipe
Part # QtyDescription Picture Part # QtyDescription Picture
Temp Gauge

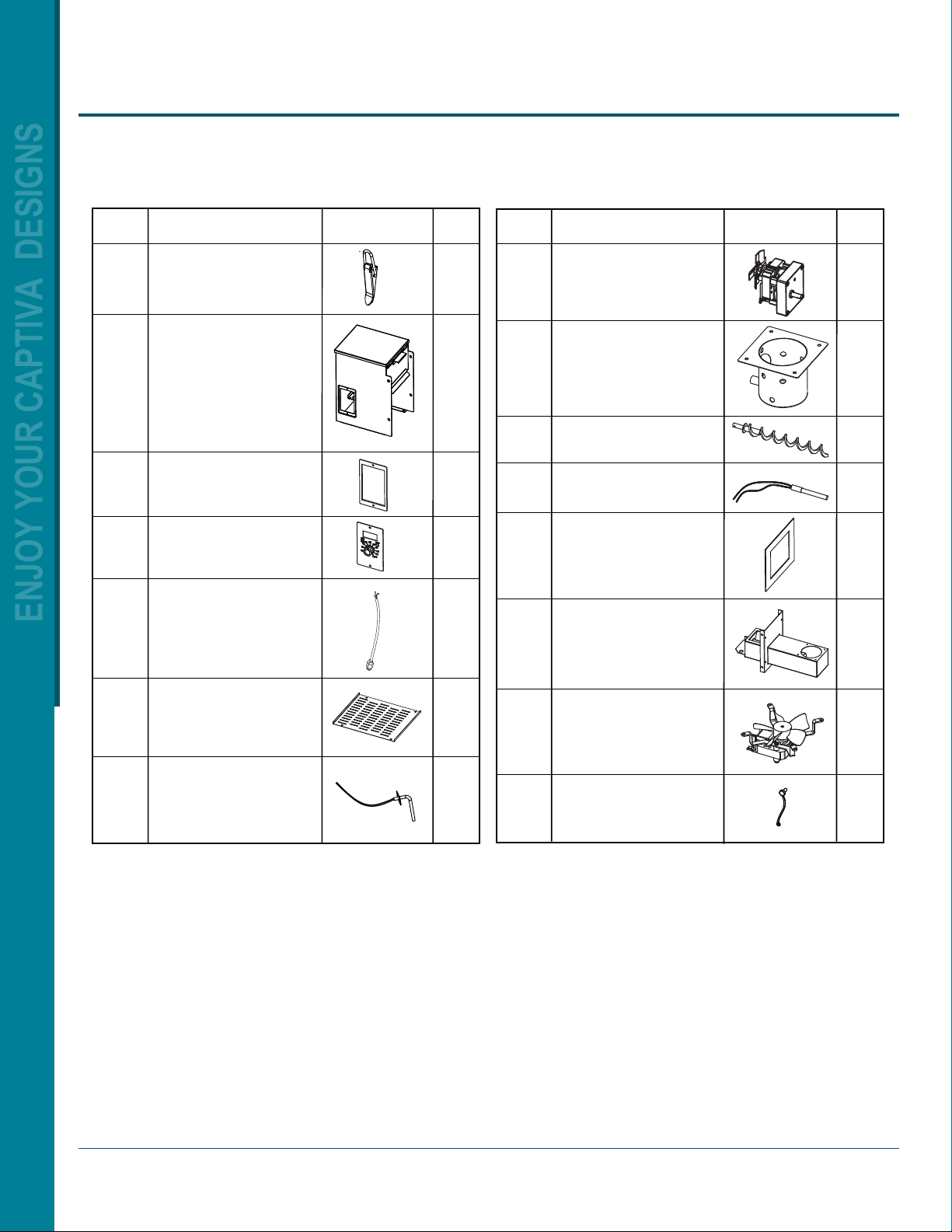

Components
8
ENJOY YOUR CAPTIVA DESIGNS
30 Hopper Latch
31 Hopper Box
32
33
34
35
1
1
1
1
1
1
Rubber Sealer
PTC Controller
Power Cord
Part # Qty
Description Picture
38 Fire Pot
39 Auger
Hot Rod
41
Auger Housing
42
Blower Fan
43
1
1
1
1
1
1
Part # QtyDescription Picture
36 1
Hopper Bottom Panel
Auger Motor 1
37
Grill Probe 1
Rubber Cap
44
40
Hopper Gasket

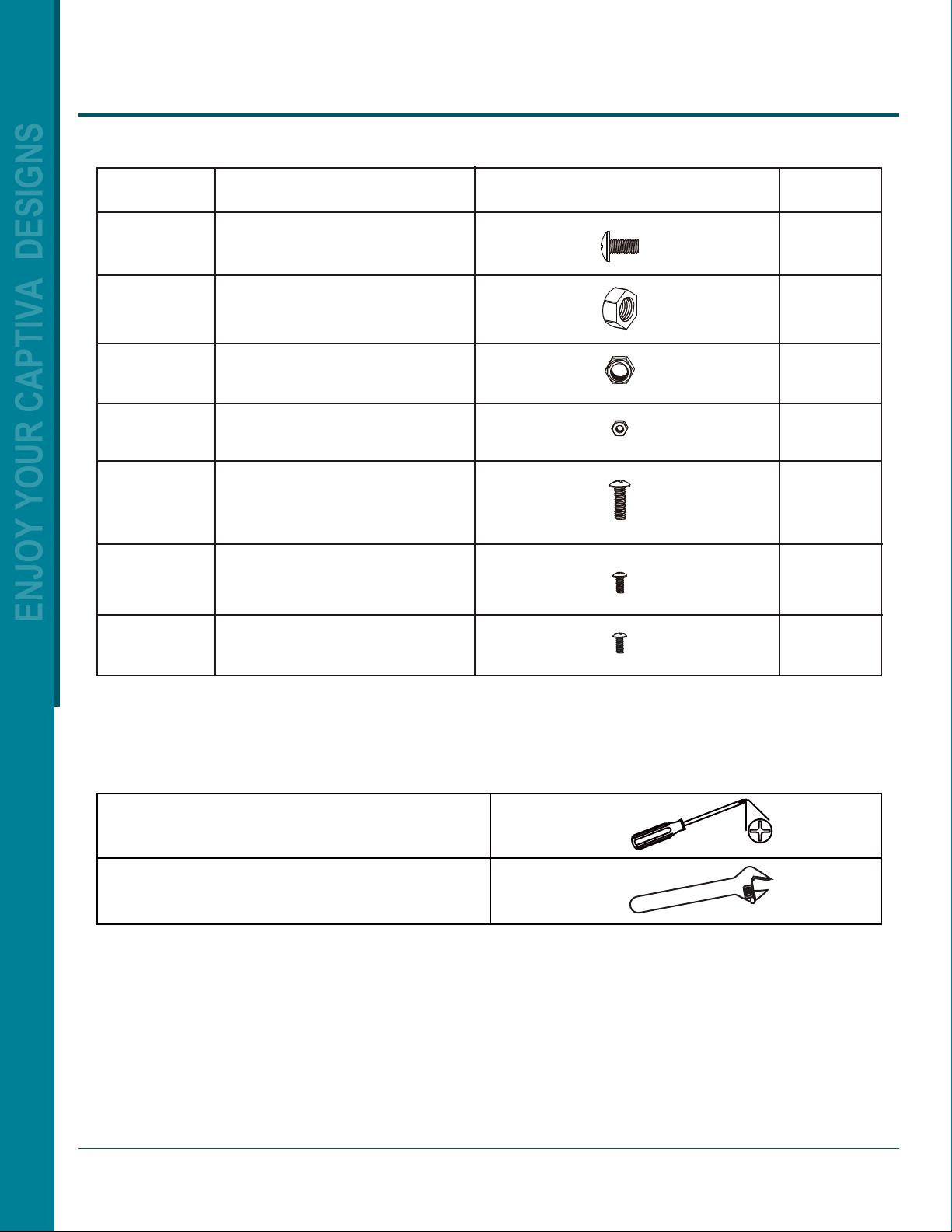

Components
9
ENJOY YOUR CAPTIVA DESIGNS
Hardware # Description
M6 x 12 Bolt 31
Picture Qty
M6 Nut 30
AA
BB
CC M12 Lock Nut 2
DD
M6 x 20 Bolt 4 EE
M4 x 10 Bolt 1
2
FF
M5 x 12 BoltGG
Phillips Head Screwdriver
(Not included)
Adjustable Wrench
(Not included)
M4 Nut 1

10
Assembly Instructions
Choose a suitable, clear area for assembly. Ask a friend for help as some parts are heavy or difcult for one
person to hold and assemble. To help protect the smoker’s nish, cover the area with cardboard.
ENJOY YOUR CAPTIVA DESIGNS
27
8
AA
BB
21
2

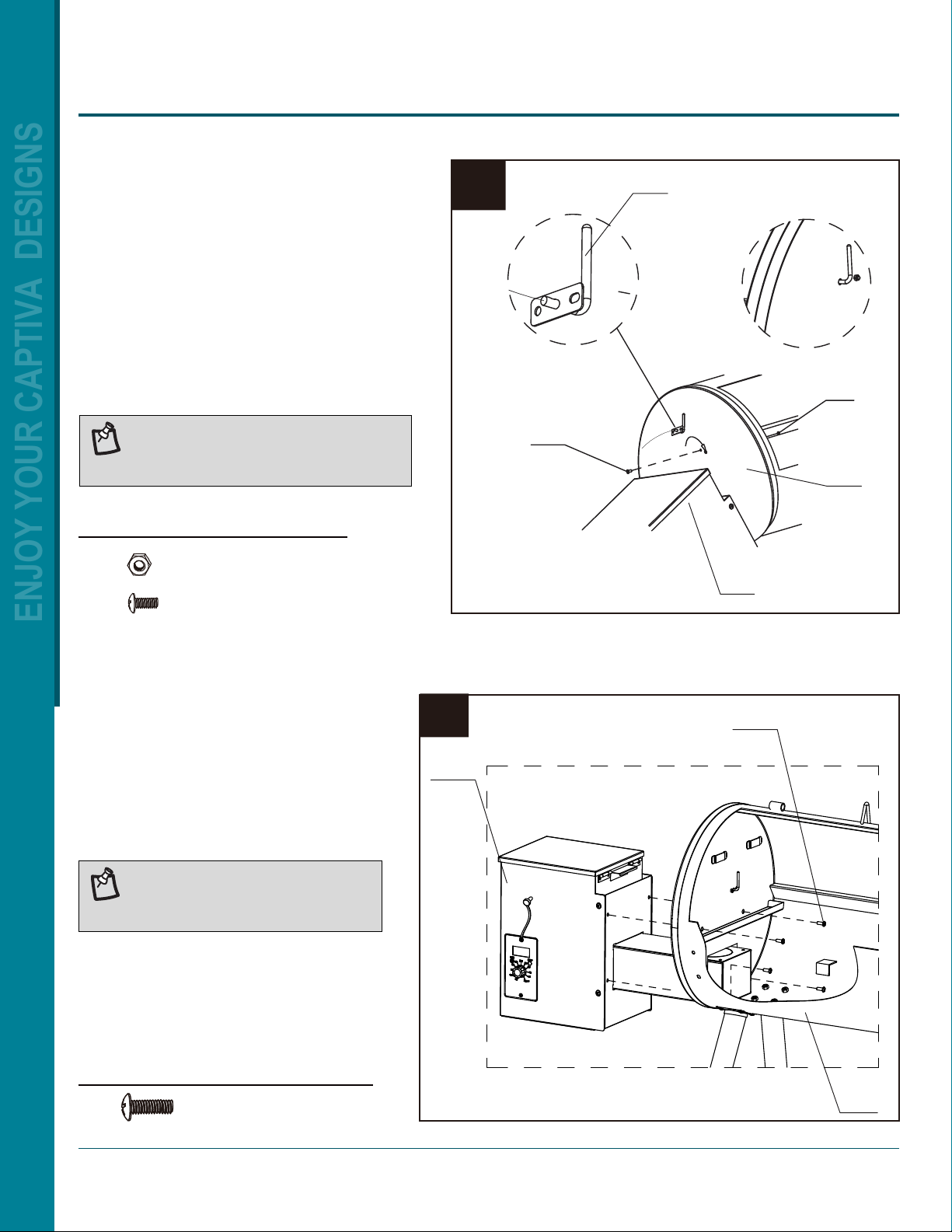

Step 1
Remove the lid (#16) from the cooking
chamber (#21) y removing bolt and
washer and sliding the hinge pins
on the lid out of the hinge holes on
the cooing chamber. Set bolt and
washer aside for Step15.
Step 2
With the help of a friend, place the
cooking chamber (#21) on its side.
Orient the cooking chamber (#21) so
the hopper side faces up. Make sure
that another person is holding the
cooking chamber (#21) during the
assembly process.
Find legs labeled "Back Left" and
"Back Right". Attach back left leg
(#27) and back right leg (#8) to the
cooking chamber (#21) with (8)
M6 x 12 bolts (AA) and (8) M6 nuts
(BB) as illustrated.
Hardware Used
M6 Nut
M6 x 12 Bolt 8 pcs
8 pcs
AA
BB
NOTE:
Leave hardware loose for now.
1
21
16

Assembly Instructions
11
ENJOY YOUR CAPTIVA DESIGNS
4
7
828
24
23
CC 21
27 6
3
6
27
21
AA
BB
23
8
28
Hardware Used
M6 Nut
M6 x 12 Bolt 8 pcs
8 pcs
AA
BB
Hardware Used
M12 Lock Nut 2 pcs
CC

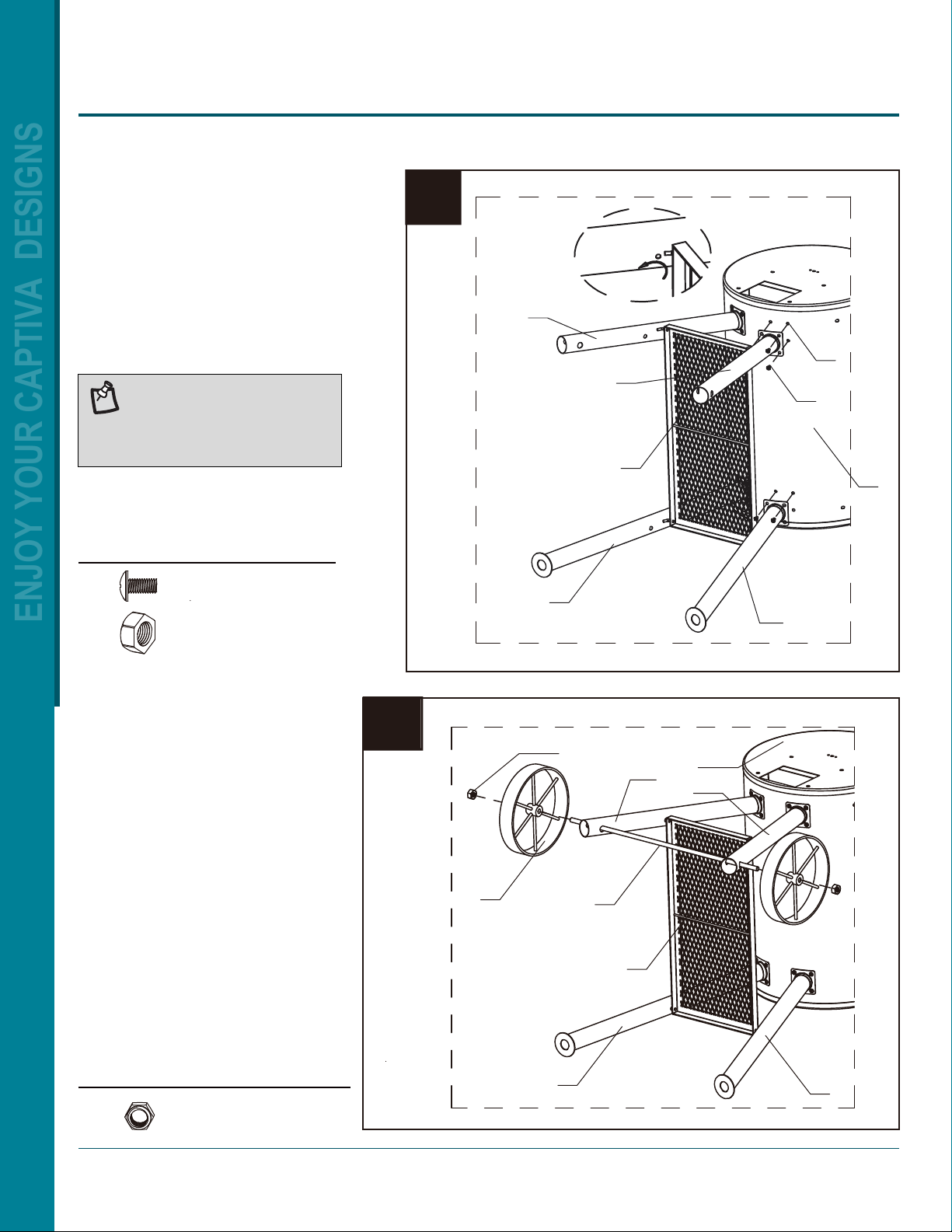

Step 3
Insert the bottom shelf (#23) into the
mounted legs. Attach remaining two
legs ("Front Left" (#6) & "Front Right"
(#28)) by inserting the hooks of the
bottom shelf (#23) into the holes in
the legs before bolting to the cooking
chamber (#21) with (8) M6 x 12 bolts
(AA) and (8) M6 nuts (BB) as illustrated.
Tighten all leg hardware.
Step 4
Insert the wheel axle (#24) through
the bottom holes in the "Front Left"
(#6) and "Back Left" (#27) legs.
Attach the wagon wheels (#7) onto
the wheel axle (#24) with (2) M12
lock nuts (CC) as illustrated.
Do not over tighten.
NOTE:
Bottom shelf (#23) must be
mounted before securing
remaining two legs.

Assembly Instructions
12
ENJOY YOUR CAPTIVA DESIGNS
7 pcs
6 pcs
AA
BB
Hardware Used
M6 Nut
M6 x 12 Bolt
514
25
BB
12
21
BB
AA
11
615
AA
BB
14
13
21
Hardware Used
M6 Nut
M6 x 12 Bolt 4 pcs
4 pcs
AA
BB
Step 5
With assistance, turn the cooking
chamber assembly horizontally.
Attach chamber right bracket (#12)
onto cooking chamber right endcap
inside with (2) M6 x 12 bolts (AA)
and (2) M6 nuts (BB).Fix grease
bucket bracket (#11) on the square
tube end of chamber right bracket
(#12) with (1) M6 x 12 bolt (AA) as
illustrated.
Attach chimney pipe (#14) and
chimney gasket (#25) to the cooking
chamber (#21) right endcap with (4)
M6 x 12 bolts (AA) and (4) M6 nuts
(BB) as illustrated.
Step 6
Attach side handle (#13) to chamber right
endcap with (4) M6 x 12 bolts (AA) and (4)
M6 nuts (BB) as illustrated.
Screw chimney cap (#15) into chimney
pipe (#14) top as illustrated.

Assembly Instructions
13
ENJOY YOUR CAPTIVA DESIGNS
Hardware Used
M6 x 20 Bolt 4 pcs EE
736
4
21
FF
DD
8
21
4
EE
Step 7
Slide hopper gasket over auger housing.
Slide the pellet hopper assembly (#4) onto
the cooking chamber (#21) by inserting
the auger housing through the left side
wall. Slide hopper halfway, while holding
the hopper assembly (#4) away from the
wall, insert grill probe (#36) through the wall.
The grill probe (#36) should be vertical as
illustrated. Secure the grill probe (#36) into
the place with (1) M4 x 10 bolts (FF) and (1)
M4 nuts (DD) as illustrated.
Step 8
Secure the hopper assembly (#4) to the
cooking chamber (#21) left wall with (4)
M6 x 20 bolts (EE) asillustrated.
Hardware Used
M4 x 10 Bolt
M4 Nut 1 pc
1 pc
DD
FF
NOTE:
Make sure grill probe is vertical and
the tip faces up when installing.
NOTE:
Step must be performed by two
capable adults.

Assembly Instructions
14
ENJOY YOUR CAPTIVA DESIGNS
Hardware Used
M6 Nut
M6 x 12 Bolt 4 pcs
4 pcs
AA
BB
9
26
26
22
21
AA
5
BB
22
10
Position Slot
19
Step 9
Attach front shelf bracket L (#5) to the
front of cooking chamber (#21) near
the left leg with (2) M6 x 12 bolts (AA)
and (2) M6 Nuts (BB).
Position front shelf (#22) to front shelf
bracket R (26) by inserting the shelf
hooks through the bracket.
Then insert the left side of the shelf
through the front shelf bracket L (#5)
on the cooking chamber (#21).
Attach front shelf bracket R (#26) to
the front of the cooking chamber
(#21) with (2) M6 x 12 bolts (AA) and
(2) M6 nuts (BB).
See illustration for proper orientation.
Tighten all hardware.
Step 10
Place ame tamer (#19) over the re pot
inside the cooking chamber. It should
rest in place as illustrated.

Assembly Instructions
15
ENJOY YOUR CAPTIVA DESIGNS
12
18
11
Chamber Left Side Bracket
Tray should fit into
chamber left bracket
Left Side
Right Side
20
20
Step 11
Place grease tray (#20) on the chamber right
side bracket and chamber left side bracket
as illustrated.
Step 12
Place cooking grates (#18) onto cooking
chamber grid brackets / rails as illustrated.

O
Assembly Instructions
16
ENJOY YOUR CAPTIVA DESIGNS
14 2
17
13
2
Step 13
Insert warming rack brackets (#2) into
the mounting tabs found on cooking
chamber side walls.
Step 14
Place warming rack (#17) on warning
rack brackets (#2)

Assembly Instructions
17
ENJOY YOUR CAPTIVA DESIGNS
16
1
15
Step 15
Step 16
Reinstall the cooking chamber lid (#16)
by sliding the hinge pins into the hinges.
Secure it with the washer and bolt
removed in Step 1.
Carefully screw the temp gauge (#1) fully
into the lid. Adjust the orientation and
lock the gauge into position using the
pre-attached nut.

Assembly Instructions
18
ENJOY YOUR CAPTIVA DESIGNS
Hardware Used
M5 x 12 Bolt 2 pcs
GG
17
9
10
18
GG
3
4

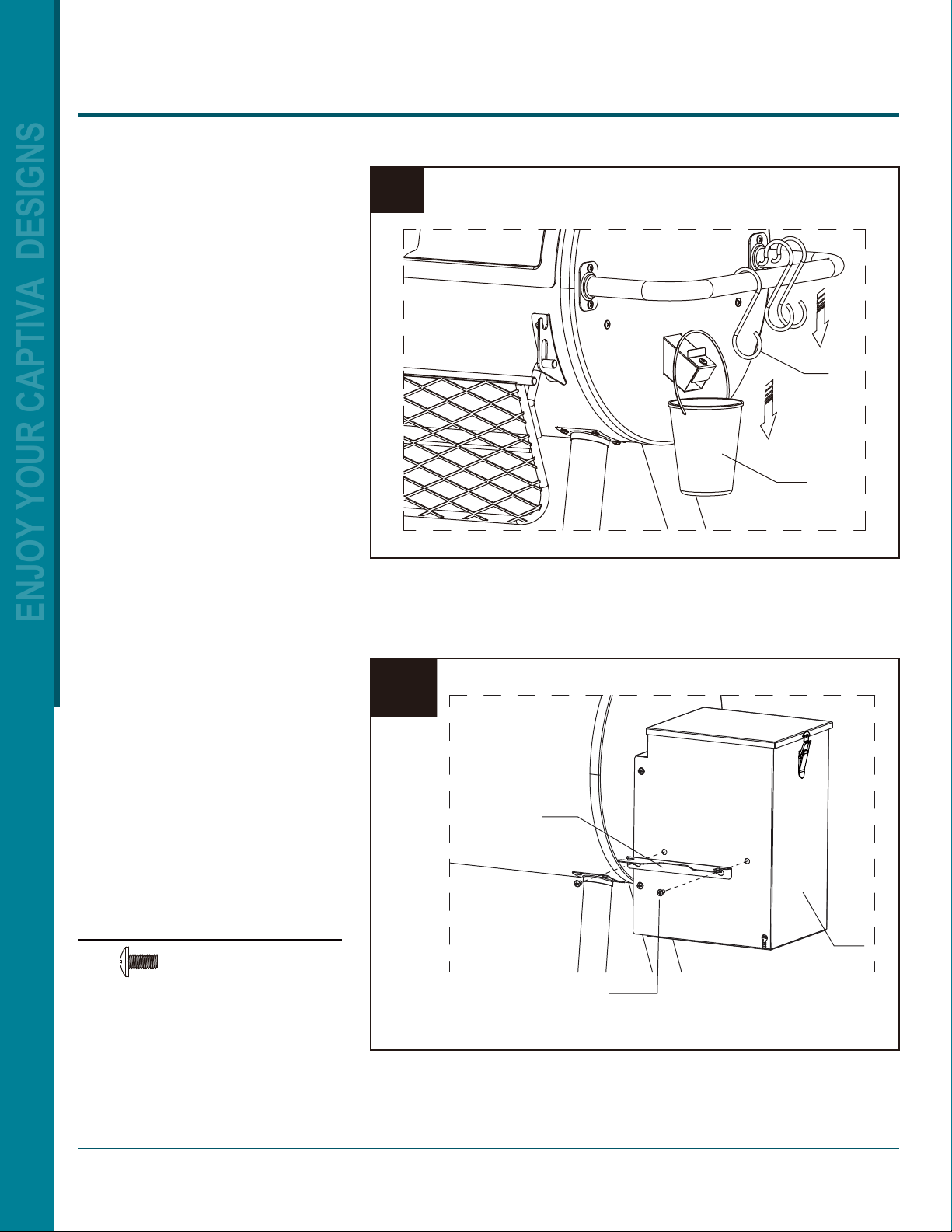

Step 17
Step 18
Hang the grease bucket (#9) from
the tube as illustrated.
If desired, install the utensil "S"
hooks onto the side handle.
Attach the power cord bracket (#3)
to the back of the hopper assembly
(#4) with (2) M5 x 12 bolts (GG)
as illustrated.

Assembly Instructions
19
ENJOY YOUR CAPTIVA DESIGNS
19
29
Step 19
When needed, connect the meat probe to the
controller by inserting the female plug into the
controller socket marked “PROBE”. If not in use,
leave disconnected and store indoors.
NOTE:
When connecting meat probe, unplug the rubber cap from the controller socket rst.
CAUTION:
When not in use, the rubber cap should be placed in the meat probe adaptor socket to keep rain or
moisture from damaging the circuit board.

Assembly Instructions
20
ENJOY YOUR CAPTIVA DESIGNS
20
Step 20
Pellet Grill (Assembled)
