Captiva PAD 10.1 FHD LITE User manual

1
Introduction, Important Notes ...................................................................................2
Precautions before Use................................................................................................2
Cleaning, Disposal, Used Logos ................................................................................3
Intended Use ...............................................................................................................3
Layout Definitions ......................................................................................................4
Power on/off..................................................................................................................6
Using touch screen .......................................................................................................7
Desktop..........................................................................................................................8
Settings..........................................................................................................................9
Wi-Fi settings..............................................................................................................11
Bluetooth settings.......................................................................................................12
4G / LTE .....................................................................................................................12
Use of extended storage.............................................................................................13
1. Using USB disk ...................................................................................................13
2. Using SD card .....................................................................................................13
Downloading, installing/uninstalling applications..................................................13
Connecting to PC .......................................................................................................14
Battery charging.........................................................................................................14
Specifications..............................................................................................................14
Package Content.........................................................................................................15
R&TTE Directive.......................................................................................................15
Manufacturer .............................................................................................................15
GNU General Public License, Version 2 (GPL)......................................................15
Troubleshouting.........................................................................................................16

2
Introduction
Thank you for purchasing this tablet.
The tablet is equipped with a built-in wireless module and 4G LTE module. Running on Android
5.1, Intel Atom Quad-Core processor und highly responsive capacitive multi-touch screen, it brings
you a wonderful user experience. The tablet allows you view photos, watch movies, read e-book
and news and communicate with the whole world. This guide serves to enable users to get to know
familiar with the product as soon as possible. Here we have made a brief introduction to the key
layout and definitions in figures and words.
Before beginning, please read this user manual carefully.
*Software not included
Important Notes
1. Charge the battery for at least 12 hours before initial start-up.
2. The display has 2 protective films, one transportation film and one screen protector film. The
transportation film, protect the display during the transportation. Please remove this film,
when the tablet is used. The screen protector film, protect the screen against scratches during
touch operation. Please keep this film on the display.
Precautions before use
1. This product is suitable for use in non-tropic areas below 2,000 meters
2. Prevent this product from falling to the ground, it could be strongly damaged.
3. Keep the tablet away from rain, moisture, direct sunlight and heat source.
4. Avoid using it in the strong magnetic and strong static environment as much as possible.
5. Once any water or other liquid splashes on to this product, close it immediately and do not use
until it dries out.
6. Do not clean this product with any detergent containing chemical element or other liquid to
avoid causing damage due to corrosion and becoming damp. If cleaning is really necessary,
clean it with dry soft cloth tissue paper.
7. Handle the screen gently. To clear fingerprints or dust on the screen, use soft cloth dedicated
for camera lens instead of gauze.
8. Please back up your important files at any time to avoid loss.
9. Please do not disassemble this product by yourself; otherwise you will lose the right to
warranty.
10. Do not disconnect the tablet from power suddenly, when formatting or uploading and
downloading, which can lead to program errors.
11. Please use the original AC adapter for charging. Nonconforming chargers may cause harms.
12. Protect the power cord. When connect the power cord, do not step onto it or place any object
on it, which may cause extrusion. Protect the connector of the power cord connected devices
specially.
13. This product supports the overwhelming majority of mainstream brands of 3G DONGLE
network cards. The cases for 3G Dongle may be different. It is suggested that you test it to
make sure it is OK before buying it.

3
14. Batteries
The batteries in this product cannot be easily replaced by users themselves.
Replacement with incorrect type batteries may cause explosion.
15. While using the earphone, if the volume is excessively high it may cause hearing
damage. So please adjust the volume of the player to a moderate level and
balance the time of using.
Note:
Pictures in this manual are for demonstration purpose only and may differ from the real
product.
Cleaning
Handle the screen gently. To clear the fingerprints or dust on the screen, use soft cloth dedicated
for camera lens instead of gauze.
Caution!
This unit contains a battery. If the battery is defective, it should not be disposed of with household
waste. Batteries can possibly contain harmful substances that can harm the environment and
people's health. Please dispose of the battery commercially or at municipal recycling plants. Return
is free of charge and is prescribed by law. Please only dispose of empty batteries in the containers
provided and tape their terminals.
Used Logos
All brandmarks, trademark and products are registered by their respective company.
Intended Use
The tablet offers many opportunities for the use. For example surf internet*, read e-books, look
movies, play games and communication with the whole world.
The tablet is intended for home and office use and not for industrial application.
*Internet-connection is needed which could cause cost.

4
Layout and Definitions
Front View
Front Camera

5

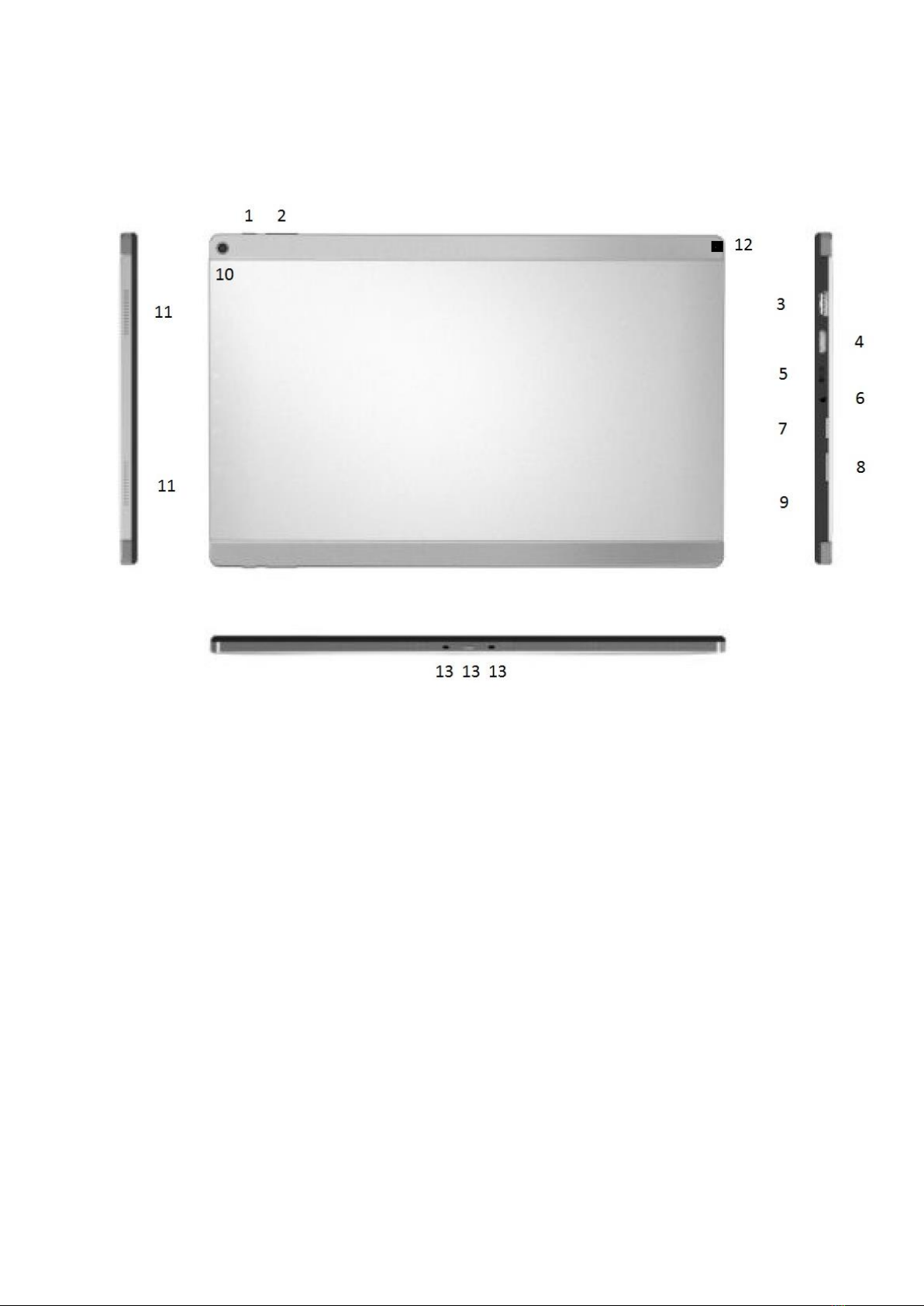

Rear View
1. Power Button: see Power on/off
2. Sound+/ Sound-: raise/ lower the volume
3. USB 2.0 Type A: for data transfer
4. Mini HDMI port: connect this output to HDMI input of TV or TFT
5. Micro USB port: for data transfer and recharge battery
6. Headphone connector: for earphone or active loudspeaker
7. Micro SD card card slot: supports microSD and micro SDHC format, max. 32GB
8. Sim card slot: support mini SIM card 25x15mm
9. Microphon: Microphon outlet
10. Rear Camera
11. Speaker outlet
12. Touch Pen
13. Keyboard Port: The port enables to connect the tablet with the keyboard

6
Power on/off
Power on: press and hold the power key for 5 seconds. Startup may take about 22 seconds.
Power off: press and hold the power key for 5 seconds→ click Power off → click OK
Lock/unlock screen/ Power saving mode:
Press the power key to lock the screen. The system will enter into sleep mode. Press the power
button again to unlock the screen and wake up the system.
Note: During screen lock, the basic functions of the unit will not be turned off, only the
screen is turned off.
Forced shutdown: In case of no response of the device, press power button (approx.. 30sec.)
to switch off the tablet.
Note: Do not use forced shutdown unless necessary. Shut down the device following power off
steps.
Screen locked
Unlock the screen: Touch and drag up

7
Screen unlocked
Using touch screen
Single click: click an icon to select the option you require.
Press and hold: select an icon and hold to drag it to the desktop.
Drag: drag on the desk to switch among different interfaces.
☆To avoid scratching or damaging the screen, never put anything on it.

8

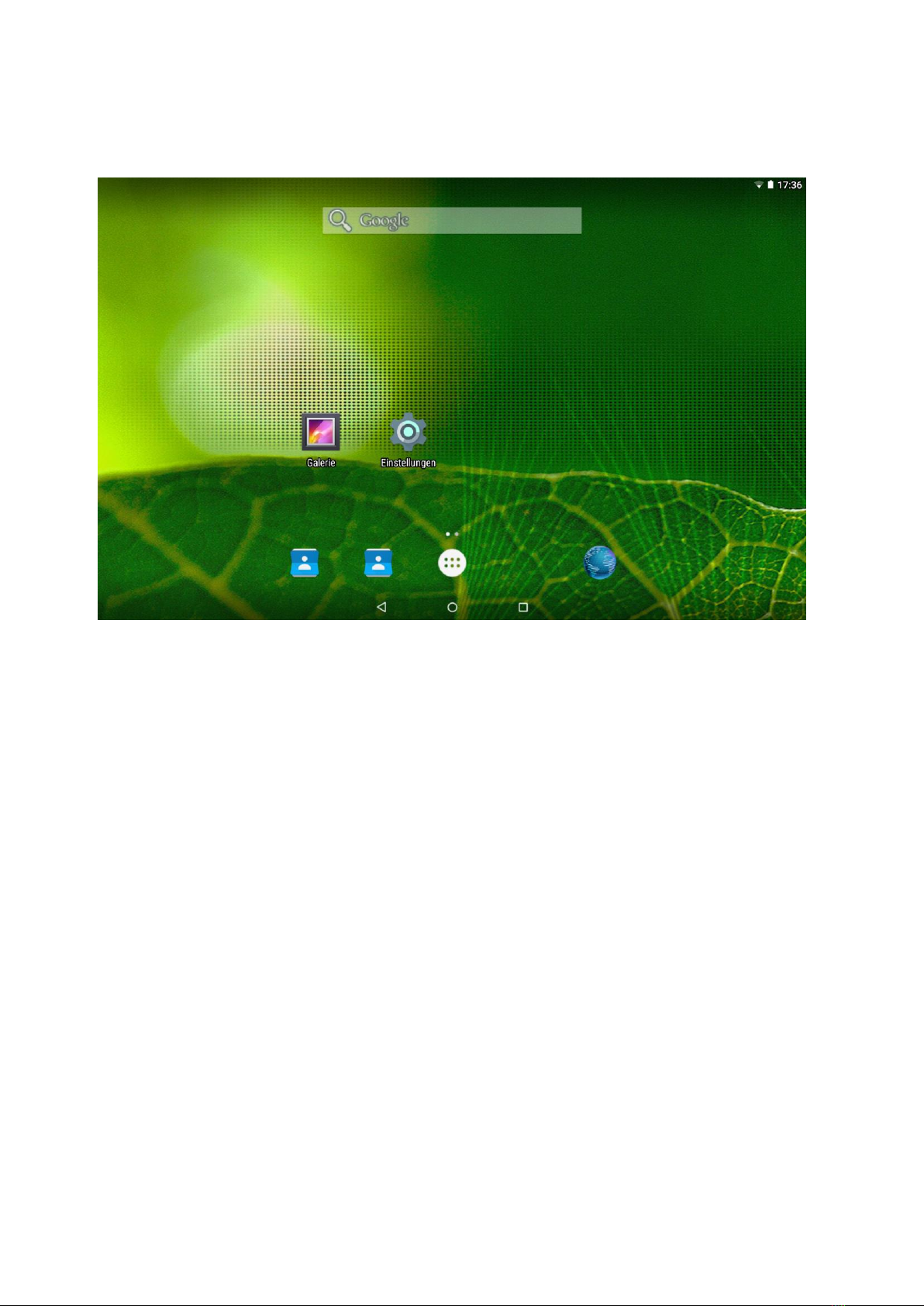

Desktop
1: Google Search: this icon starts a Google search
2: Wi-Fi icon: shows the WIFI status
3: Battery icon: shows battery state of charge
4: Time icon: shows current time
5: App icon: click to start the application
6: Settings: click to start the settings of the tablet
7: User icon: click to start for different user
8: Application icon: click to see all applications
9: Browser: click to start the Internet Browser
10: Return: return to previous page
11: Home Button: return to Home Screen
12: Current Apps: shows all the Applications which are executed

9

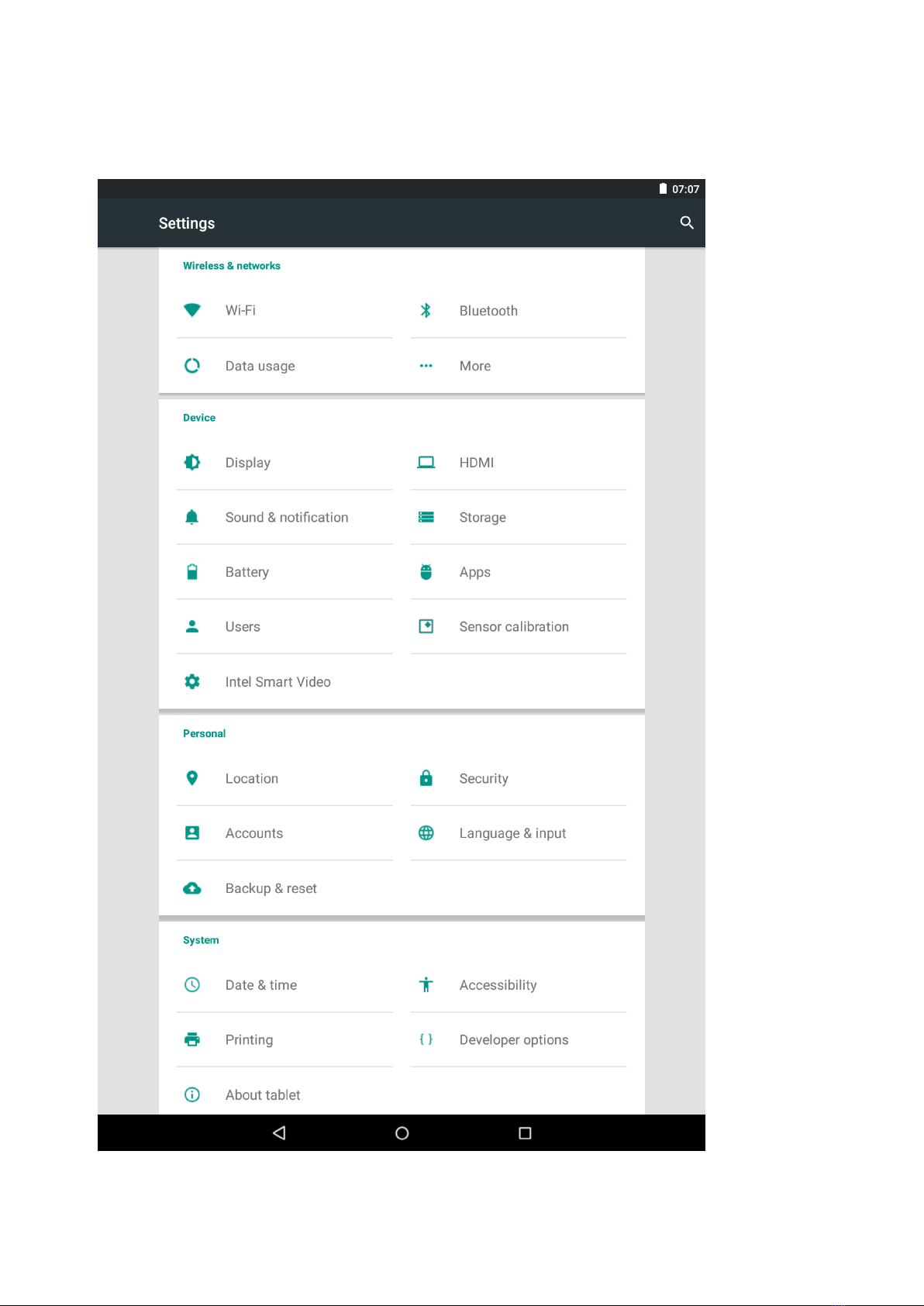

Settings

10
Wireless network & networks
Wi-Fi
Set and manage wireless access point (refer to WIFI setting
for details).
Bluetooth
Set and manage wireless connections (Bluetooth)
Data usage
Set and manage data traffic.
More…
Flight mode
On-/ off wireless connections
Hotspot
Set Wi-Fi Hotspot
VPN
Configure VPN network
Device
Sound &
notification
Volume
Adjust volume of media, alarm clock and notification.
Click and slide to adjust
volume and then click OK.
Notifying ringtone
Select the notifying ringtone you want.
Screen lock
prompt tone
Prompt tone when screen is locked/unlocked
Display
Brightness
Click and slide to adjust
brightness and then click OK.
Wallpaper
Set wallpaper
Sleep
Adjust sleep time
Daydream
Interactive Screensaver
Font size
Adjust font size in the interface
Casting screen
Mirror the screen to TV (Miracast, Chromecast)
HDMI
Manage the HDMI output settings
Storage
Display storage status
Battery
Display battery status
Apps
Manage and display status of applications in the device
Sensor
calibration
Calibration of sensors, i.e. Gyro-Sensor
Users
Managing user accounts
Intel Smart
Video
Wireless transfer of video and photos to devices which
supports Intel Smart Video function
Personal
Location
Display my location and source of location information
Accounts
Link an account with an user account (i.e. Google account)
Security
Screen lock
Set screen security protection

11
User’s
information
Set to display user’s information on the screen.
Device
management
1. Add or delete device manager.
2. Unknown source APK installation settings.
Credential storage
Manage application access security credentials and other
credentials.
Language
& input
Language
Set default language
Keyboard and
input method
Set default keyboard and input method
Sound
Set relevant parameters for sound function
Mouse/Touchpad
Adjust mouse speed.
Backup &
reset
1. Backup/restore device data.
2. Restore default settings.
System
Date & time
Set or adjust time and date in the device.
Accessibilit
y
Set different options for inputs of the application software
Printing
Manage printer services (may require additional software)
Developer
options
Basic applications for developers.
About the
tablet PC
View system status, battery status, legal info, model,
Android version, core version and version number.
Wi-Fi settings
Many functions require Wi-Fi connection, so we suggest you use the preset Wi-Fi network.
1. Click → Settings → Wireless and network
2. Enable Wi-Fi.
The device will search and list all available Wi-Fi networks automatically. The icon beside
Wi-Fi means you need to enter a password to connect to it.
3. Click the Wi-Fi network you want to connect to → if there is a password, you need to enter
the password → Click Connect. After connecting to WIFI network, you will see an icon on
the desktop.
4. Click to return to desktop.
☆If your Wi-Fi is set to be hidden, it will not be searched automatically. You need to
click Add Wi-Fi network, and then enter required information to add your Wi-Fi.

12
Bluetooth settings
1. Make device discoverable
You must pair your tablet with a device before you can connect to it. Once you pair your tablet
with a device, they stay paired unless you unpair them.
Under “Settings”, choose “Bluetooth”. Tap Bluetooth to turn on it and tap “Search for devices”.
The Bluetooth indicator then appears in the status bar.
2. Scan for devices
After scanning, there will be a list of the IDs of all available Bluetooth devices in range. If the
device you want to pair with isn’t in the list, ensure that the other device is turned on and set to be
discoverable.
3. Pair with the Bluetooth device
Tap the name of an available Bluetooth device to pair with. In the popup “Bluetooth pairing
request” dialog, type a PIN.
If the pairing is successful, your tablet connects to the device.
Example: to transmit a photo
Go to “Gallery”, choose a photo to share. Tap any spot on the photo to view a submenu. Tap
icon → , and then choose the device name in the Paired devices list. The photo
will then be sent.
You can touch the right icon to unpair the device.
Note: After pairing, it shows under the Bluetooth device “Paired but not connected”, but file
transmission is still possible.
You can see the received files by touching the right corner icon. At present, the Bluetooth function
only supports files transmission.To extend battery life, turn Bluetooth power off when not in use.
4G / LTE Network
A 4G / LTE network is a mobile network that allows high-speed data access and advanced network
capacity. This tablet supports 4G Network. You can access to the Internet via your 4G SIM card
while Wi-Fi network is not available. Please insert your 4G card into the SIM Card slot and enter
the required PIN number. Please make sure your SIM card is activated.
This tablet supports:
4G / LTE (FDD): B3, B7, B20
max. UL (50 Mbps) / DL (100 Mbps) @bandwidth 20M (CAT3)
WCDMA / HSPA+: 2100/ 900 MHz
WCDMA PS: max. UL (384 kbps) / DL (384 kbps)
DC-HSPA+: max. UL (11Mbps) / DL (42 Mbps)
GSM/GPRS/EDGE: 850/ 900/ 1800/ 1900MHz
Multi-slot Class 12

13
Use of extended storage
1. Using USB stick
Insert the USB stick into USB 2.0 Type A or into OTG connection wire, →then insert the
OTG connection wire into the USB OTG port of the device. You can use the USB stick when
it is ready.
☆Do not insert and remove USB disk repeatedly in a short time, otherwise the USB disk
may be damaged.
2. Using SD card
☆The device supports micro SD or micro SDHC cards up to 32GB.
Insert the storage card into the card slot, and press it down with your finger, the message
Preparing for SD card will display on screen. When this message disappears, it means the
SD card is ready, and you can use it.
Removing SD card
Close all applications or files on the card. Click → Settings → Storage → SD card→
Remove SD card. Press the card softly and it will be ejected. Then move it out.
☆Do not insert and remove the card repeatedly in a short time, otherwise it may be
damaged.
☆We recommend you use a card of famous brand so as to avoid incompatibility.
Downloading, installing/uninstalling applications
☆You can find many free interesting Android applications in the internet. Just open the
browser and search for “Android applications”.
The Android applications you purchase or download can be installed through File
manager in a fast and easy way.
1. Copy the .apk file you want to install to SD card or USB stick →Insert the card or
connect USB stick to the tablet.
2. Click File manager icon.
3. Click or (USB) and find the folder in which .apk file is saved.
4. Select a .apk file → Install. After installing, the icon of the application will display in
the interface where all applications are displayed.
5. Click to run the application directly, or click Complete to return to File manager
interface.

14
Downloading and installing application from internet
You can download Android applications from internet or other e-market directly and
install them into your device quickly and conveniently.
1. Click Browser icon to connect to internet.
2. Enter address and click the download link of the application you want to download to
the device.
3. After downloading, click and hold the download file (in download record interface),
→ Click Open → Install.
Uninstalling applications
You can uninstall any installed Android application conveniently.
1. Click Menu → Settings →Apps →Manage applications.
2. Click the application you want to uninstall, →Uninstall.
3. Click Yes to uninstall.
Connecting to PC
1. Connect the device to a PC, and then this device can be used as a mobile storage
device. When using a USB cable to connect to PC, connect one end of the cable to the
USB OTG port of the device, and the other end to USB port of PC.
2. The PC with Windows OS recognize the tablet as external drive. You are able to
exchange files between PC and tablet very easily.
Battery Charging
Connect the USB plug to the micro USB port of the tablet and plug the USB power adapter into a
power outlet. It takes around 5 hours according to the existing battery capacitiy to charge to full
battery. Please only use a 5V/ 2.0 A adapter included in the gift box.
During charging, the icon of battery will be , and when charging completes, the icon will be
.
You can still use the device while charging, but this will prolong the charging time.
Use the device at least once every week.
Fully charge the battery regularly.
Don’t keep the battery empty for a long time.
Note:
In order the WiFi work fine, the battery should be charged for a minimum of 30%.

15
Specifications
Display: 25,7 cm (10.1”) capacitive IPS multitouch, 10 pt., 1920x1200, 16:10
CPU: Intel Atom Z3735F Quad Core 4x 1,33GHz, max. 1,83 GHz
Operating System: Android 5.1
RAM: 2 GB DDR3
Flash Memory: 32 GB (approx.. 23GB free available)
Slots: USB 2.0 Type A, micro USB 2.0, mini HDMI, headphone jack,
micro SD card reader (up to 32GB), 2x built-in speaker, built-in microphone
SIM card slot
Camera: front 2.0MP, back 5.0MP
Communication: WLAN 802.11 b/g/n, Bluetooth 4.0
4G / LTE: FDD B3, B7, B20 CAT3
Battery: 8.000 mAh, approx. 5 hrs. working time
Note: The battery in this product cannot be easily replaced by users
themselves.
Others: G-Sensor, Google Play Store Ready
Dimension: approx. 260 x 168 x 10 mm
Weight: approx. 564g
Package content:
Tablet with Touch Pen, Power Adapter, USB cable, this manual
R&TTE Directive:
This product complies with the essential requirements of Directive 1999/5/EC.
This product is intended for home and office use in all member states of the EU.
Manufacturer:
CAPTIVA® GmbH
Siemensstrasse 9
D-85221 Dachau/ Germany
Tel: ++49 (0) 8131 / 5695-0
Fax: ++49 (0) 8131 / 5695-500
GNU General Public License, Version 2 (GPL)
1. This tablet contain Software, which may used regarding
the license conditions of GNU General Public License, Version 2 (GPL).
2. Disclaimer in relation to the licensors of the software:

16
“This program is distributed in the hope that it will be useful, but WITHOUT
ANY WARRANTY; without even the implied warranty of MERCHANTABILITY
of FITNESS FOR A PARTICULAR PURPOSE.
See the GNU General Public License for more details.
3. The GPL License is available on the device under legal information.
4. We will send you on demand the full corresponding Source Code on a normal disk
against reimbursement of our costs. Please send your request to the manufacturer
address in the manual, by pointing GPL-Sourcecode for
CAPTIVA PAD 10.1 FHD LTE
Troubleshooting
1. Can not turn on the tablet
Check the tablet’s power level; please charge it before starting it.
2. No sound from earphone
Check if volume is set to ‘0’. Or earphone may be broken, please change for another one.
3. Big noise
Check if there is dust in the earphone or speaker. Check if the file is broken.
4. Screen drift or unresponsive screen
Switch off the tablet by a long press (approx.. 30 sec.) of the power button.
Do not use this way to switch off the tablet unless it is necessary.
5. Application not workable
Possible reasons may be that this app is not compatible with your OS or the downloaded .apk
file is broken so you may need to download a full version.
6. How to delete a Google account?
The accounts are added, shown or deleted in “Settings” →“Personal” → “Accounts”, or in
“Settings” →“Personal” → “Backup&reset”→ “Factory setting”. Your tablet’s internal
storage, downloaded apps, etc. will also be deleted, except the info in your flash memory. Be
careful before you carry out this operation.
7. USB unmounted, SD card unmounted
Some times after inserting SD card or USB, it will show on the tablet that “unmounted”.
Remove SD-card or USB device and excute factory setting. Then turn off and turn on
tablet once again. If fail, you have to upgrade the firmware.

17
Einführung, Wichtiger Hinweis................................................................................18
Vorsichtsmaßnahmen vor der Verwendung ............................................................18
Reinigung, Entsorgung ............................................................................................19
Benützte Logos, Bestimmungsgemäßer Gebrauch.................................................20
Tablet Ansicht.............................................................................................................20
Ein-/ausschalten .........................................................................................................22
Verwendung des Touchscreens..................................................................................23
Vorstellung des Desktops...........................................................................................24
Einstellungen..............................................................................................................25
WLAN-Einstellungen ................................................................................................28
Bluetooth.....................................................................................................................28
4G/ LTE Netzwerk.....................................................................................................29
Verwendung von Speichererweiterungen................................................................29
1. Verwendung von USB-Sticks.............................................................................29
2. Verwendung von SD-Karten..............................................................................29
Herunterladen, Installieren und Deinstallieren vonApps .....................................30
Mit einem PC verbinden ...........................................................................................31
Akku Laden................................................................................................................31
Technische Daten........................................................................................................31
Packungsinhalt...........................................................................................................32
R&TTE Richtlinie......................................................................................................32
Hersteller ....................................................................................................................32
GNU General Public License, Version 2 GPL.........................................................32
Fehlerbehebung..........................................................................................................33

18
Einführung
Vielen Dank für den Erwerb dieses Tablets.
Dieses Tablet ist mit einem eingebauten WLAN- und 4G LTE Module ausgestattet. Es läuft mit
dem Betriebssystem Android 5.1, verfügt über einen Intel Atom Quad-Core-Prozessor und einen
äußerst reaktionsfreudigen, kapazitiven Touchscreen-Bildschirm für ein angenehmes
Benutzererlebnis. Das Tablet ist geeignet zum Betrachten von Fotos und Filmen, zum Lesen von
E-Books* sowie Nachrichten und für die Kommunikation mit der ganzen Welt. Diese Anleitung
soll es Benutzern ermöglichen, das Produkt kennenzulernen und sich so schnell wie möglich damit
vertraut zu machen. Hier finden Sie eine kurze Vorstellung und Definitionen in Wort und Bild.
Vor der Inbetriebnahme dieses Handbuch bitte sorgfältig durchlesen.
*Software nicht enthalten
Wichtiger Hinweis
1. Laden Sie die Batterie vor dem erstmaligen Einschalten mindestens 12 Stunden lang auf.
2. Das Display hat 2 Schutzfolien, eine Transportschutzfolie sowie Displayschutzfolie. Die
Transportschutzfolie schützt das Display während dem Transportweg. Sie können diese
Schutzfolie vor der Inbetriebnahme entfernen. Die Displayschutzfolie schützt das Display
gegen Kratzer während der Touch-bedienung.
Bitte entfernen Sie diese Schutzfolie nicht vom Display.
Vorsichtsmaßnahmen vor der Verwendung
1. Dieses Produkt ist für die Verwendung in nicht tropischen Gebieten auf einer Höhe von unter
2.000 m geeignet.
2. Achten Sie darauf, dass das Produkt nicht auf den Boden fällt, da es sonst stark beschädigt
werden könnte.
3. Halten Sie das Tablet von Regen, Feuchtigkeit, direktem Sonnenlicht und Wärmequellen fern.
4. Vermeiden Sie möglichst, das Tablet in stark magnetischen und stark statischen Umgebungen
zu verwenden.
5. Sollte Wasser oder eine andere Flüssigkeit auf das Produkt spritzen, schließen Sie es sofort
und verwenden Sie es erst wieder, wenn es trocken ist.
6. Reinigen Sie dieses Produkt nicht mit chemischen Reinigungsmitteln oder anderen
Flüssigkeiten, um Schäden durch Korrosion und Feuchtigkeit zu vermeiden. Reinigen Sie das
Produkt bei Bedarf mit einem trockenen, weichen Papiertuch.
7. Behandeln Sie den Bildschirm vorsichtig. Verwenden Sie zum Entfernen von Fingerabdrücken
oder Staub auf dem Bildschirm ein weiches Tuch für Kameraobjektive statt scheuender Stoffe
oder Flüssigkeiten.
8. Bitte sichern Sie Ihre wichtigen Dateien immer, um einen Verlust zu vermeiden.
9. Bitte zerlegen Sie dieses Produkt nicht, da sonst die Garantie erlischt.
10. Trennen Sie das Tablet nicht von der Stromversorgung, wenn eine Formatierung, ein Upload

19
oder ein Download durchgeführt wird, da dies sonst zu Programmfehlern führen kann.
11. Bitte verwenden Sie den Original-Netzadapter für das Aufladen. Nicht konforme Ladegeräte
können Schäden oder Störungen verursachen.
12. Schützen Sie das Netzkabel. Achten Sie beim Anschließen des Netzkabels darauf, nicht darauf
zu treten oder Gegenstände darauf zu stellen, durch die es gequetscht werden kann. Schützen
Sie speziell den an Geräte angeschlossenen Stecker des Netzkabels.
13. Dieses Produkt unterstützt die überwiegende Mehrzahl an USB 3G DONGLE-Netzwerkkarten
gängiger Marken. Die 3G Dongle-Netzwerkkarten können sich unterscheiden. Sie sollten
testen, ob sie funktionieren, bevor Sie sie kaufen.
14. Akkus
Der Akku dieses Produkts kann nicht ohne weiteres vom Benutzer selbst ausgetauscht werden.
Bei Austausch durch Akkus des falschen Typs besteht Explosionsgefahr.
15. Wenn bei Verwendung von Kopfhörern die Lautstärke zu hoch ist, kann dies zu
Hörschäden führen. Stellen Sie daher die Lautstärke des Players auf einen
mittleren Pegel ein und passen Sie die Lautstärke dann bei der Verwendung an.
Hinweis:
Die Bilder in diesem Handbuch dienen nur Demonstrationszwecken und können sich vom
eigentlichen Produkt unterscheiden.
Reinigung
Behandeln Sie den Bildschirm vorsichtig. Verwenden Sie zum Entfernen von Fingerabdrücken
oder Staub auf dem Bildschirm und Kameraobjektive ein weiches Tuch.
Achtung!
Das Tablet enthält einen Akku. Defekte Akkus dürfen nicht mit dem Hausmüll entsorgt werden.
Akkus können Schadstoffe enthalten, die für die Umwelt und die Gesundheit gefährlich sein
können. Bitte entsorgen Sie den Akku über den Handel oder an kommunalen Recyclingstellen.
Die Rückgabe ist kostenlos und gesetzlich vorgeschrieben. Bitte entsorgen Sie in den
bereitgestellten Containern nur leere Akkus, deren Anschlussklemmen mit Klebeband versehen
sind.
