Carbine 55CSR User manual

1
OWNER ’S MANUAL
®
REMOTE START with SECURITY & KEYLESS ENTRY SYSTEM

2
Congratulations
Congratulations on the purchase of this CARBINE keyless entry
and remote start system.
Reading this owners guide prior to using the system will familiarize
you with it’s many features. If issues arise or you have questions,
contact your installing dealer first. Additionally, you can contact us
online at www.CARBINE.com or call 310-735-2000.

3
Replacement Remote Controls
To purchase replacement remote controls, please
see your authorized dealer/installer or visit us at
www.CARBINE.com
Remote part numbers are found on the back of
the remote control.

4
Contents
Congratulations .........................................................................................2
Replacement Remote Controls...................................................................3
Remote Configuration ................................................................................5
LCD Configurations....................................................................................6
Arming/ Disarming.....................................................................................8
Disarm without a Transmitter .....................................................................8
Passive Arming/Locking.............................................................................9
Panic Alarm ...............................................................................................9
Trunk Release (CH#3) ................................................................................9
Car Finder................................................................................................10
Valet Mode...............................................................................................10
Trigger the System...................................................................................11
Progressive Door Trigger..........................................................................11
Tamper Warnings.....................................................................................12
Forced Passive Arming.............................................................................12
Nuisance Prevention System....................................................................13
Remote Starting the Vehicle .....................................................................13
Key Takeover ...........................................................................................14
Quick Stop Mode .....................................................................................15
Timer Mode Starting ................................................................................16
Short Run Turbo Mode .............................................................................17
Programming the LCD Remote Controller.................................................18
Pairing a Replacement Remote Control ....................................................21
System Maintenance / Battery Replacement ............................................22

5

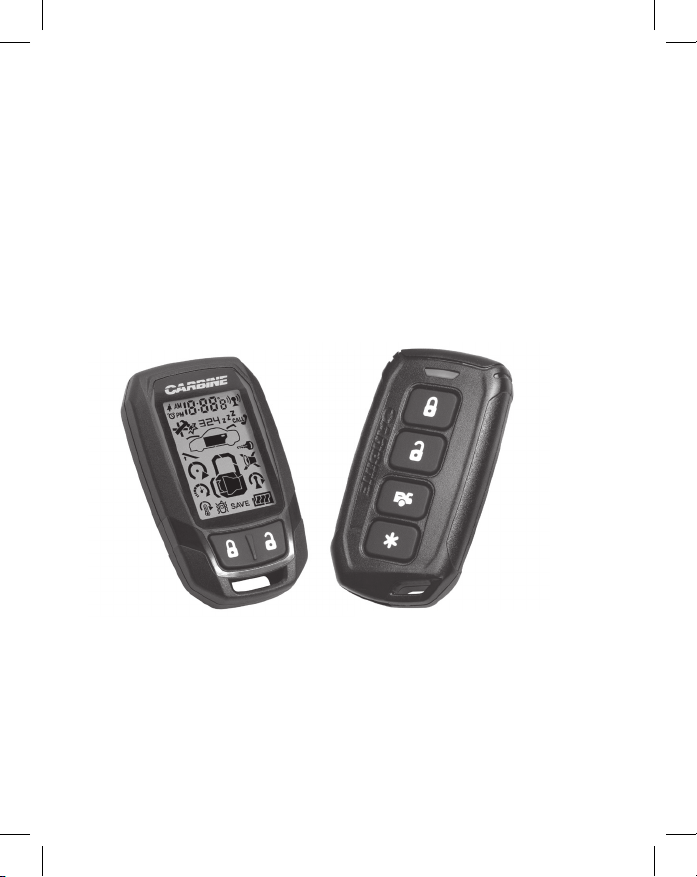

Remote Configuration
Button Feature Comment
Lock/ Arm Press and release.
Unlock/ Disarm Press and release.
Panic Alarm On Press and hold for 1.5 sec.
–
Arm and delete the
on-board shock sensor
Press two times within
5 seconds. 2 short chirps +1 long
––
Arm and delete all trigger
devices. Ignition trigger
and Tilt sensor is active.
Press three times within
10 seconds. 3 short chirps +1 long
or Panic Alarm Off Press and release either.
–Silent Arm/ Lock Press first then
–Silent Disarm/ Unlock Press first then
Activate Ch#3 (trunk) Press and hold for 1.2 sec.
––Remote Valet Mode On/Off Open a door first. Press and release
in sequence.
Remote Start On or Off Press and release.

6
Standard LCD Icon Configurations
LCD Icon Description LCD Icon Description
The lock icon will be
displayed when the doors
are locked and the system
is armed
The unlock icon will be
displayed when the doors
are locked and the system is
disarmed
The valet mode icon will be
displayed when the system is
in valet mode
The time display shows actual
time, RS countdown time, alarm
clock time and countdown timer
Driver Paging
Someone is paging you from
your vehicle
The remote is in range
of the vehicle
The remote is transmitting The remote is receiving
Remote Configuration (continued)
+Timer Start Press together and release.
Arm While Driving Ignition must be on. Press and
hold for 1.0 sec.
+Turbo Timer Activation Engine Running. Press both
then release.
+Car Finder Press together and release.

7
LCD Icon Description LCD Icon Description
The remote battery needs to
be replaced
The remote battery is full
The door is open or the alarm
has been triggered from an
open door
The hood is open or the alarm
has been triggered from an
open hood
The trunk is open or the
alarm has been triggered
from an open trunk
Button lock is active or the
alarm was triggered by voltage
from the ignition key
The alarm was triggered by
the shock sensor
The shock sensor is inactive
The tilt sensor is active
The alarm was trigged by the
tilt sensor (flashing)
Manual transmission mode
is active
Engine is cranking Engine is running
Timer start mode is active
The panic alarm is active or the
alarm is triggered
Siren is active
Melody mode is off, vibrate
mode is active
Transmitter battery save
mode is active Countdown timer mode is active
Alarm clock is active

8
Lock / Arm
Press and release the button to arm the security system and lock
the doors. The parking lights will flash one time. (door lock control
must be installed)
Unlock / Disarm
Press and release the button to disarm the security
system and unlock the doors. The parking lights will flash two
times. (door lock control must be installed)
Silent Arm / Disarm
Press and release the button before pressing the or
button to initiate silent mode. The system will LOCK or UNLOCK
without arming or disarming chirps.
Note: If the system had previously been triggered, the tamper
warning chirps will always sound upon disarm.
Disarm without the Remote Control
Your CARBINE system has an override mode that allows you to
disarm your system in the event that you have lost or damaged
your remote controller.
- While the alarm is sounding, turn the ignition key to On, then press
and release the valet switch button. This will disarm the system.
Note: If your system was installed and programmed to
“Automatically Arm”, the system should be placed into
“Valet Mode” to prevent it from becoming re-armed until
you can correct the issue with your remote control.

9
Passive Arming/Locking
Your CARBINE system can be programmed to Passive Arm and
Lock the doors. If this feature is programmed on, it will automat-
ically arm and lock the doors 30 seconds after the last protected
entrance is closed.
During the 30 second countdown, the RCC LED will flash fast and
the siren/horn will chirp after 20 seconds to warn that the system
is about to arm and lock.
Panic Alarm
1. Press and hold the button for 3 seconds to activate panic
alarm. Once activated, the panic alarm will sound the horn or siren
and flash the parking lights for 30 seconds.
2. Press and release the or button to stop the panic mode.
Trunk Release (CH#3)
Press and hold the button for 1.2 seconds to release
the trunk/ hatch lid
- The vehicle must have electronic trunk control
- The trunk release control option must be installed

10
Car Finder
The Car Finder feature will help you locate your
vehicle by flashing the parking lights.
To Activate the Car Finder feature
1. Press and release the and buttons at the same time.
2. The vehicle parking lights will flash (5) times.
3. Repeat the procedure as needed to locate your vehicle.
Valet Mode (By Valet Button)
Valet mode is a convenience when you take your car in for
service or allow someone who may not be familiar with
your security system to drive your vehicle.
- All doors must be closed
- Turn the ignition key On then Off.
- Press and release the valet button (1) time.
The status LED will be on.
- Parking lights flash fast 9 times.
- Repeat the procedure to turn off the valet mode.
The status LED will be off.
- Parking lights flash slow 9 times.

11
Valet Mode (By Remote)
Valet mode is a convenience when you take your car in for
service or allow someone who may not be familiar with your
security system to drive your vehicle. To activate Valet Mode
using your remote control. Repeat the following procedure.
1. Open the driver’s door.
2. Press then then on your remote control.
3. The LED status indicator will be on solid.
- Parking lights flash fast 9 times.
4. Repeat 1 and 2 above to exit Valet Mode.
The status LED indicator will be off.
- Parking lights flash slow 9 times.
Trigger the System
If at any time the system becomes triggered, the horn/siren will
sound for 30 seconds and then re-arm. If a protected entrance is
left open, the alarm will sound for three, 30 second cycles and then
the protected entrance is bypassed while the remaining detection
zones are active.
Progressive Door Trigger
This feature is ON by default and can be programmed off by the
installer. When your CARBINE system is armed and a door is
opened, instead of “full alarm mode” the system will chirp the
horn/siren 10 times prior to going into full alarm mode.

12
Tamper Warning at Disarm
If the alarm had been triggered while you were away from the
vehicle, upon disarming, a 4-chirp tamper disarm warning will
occur. In addition to the 4-chirp warning, the status LED will
flash a distinctive number of times to indicate which alarm
zone set off the alarm.
Tamper LED Flashes Trigger Source
1 Doors
2 Trunk
4 Onboard Shock Sensor
5Ignition Voltage
6 Tilt Sensor
7 Hood
Forced Passive Arming
As additional protection, the Forced Passive Arm feature will
arm the security system 1 hour after exiting the vehicle. In some
cases, you may forget to press the button to arm your
system. Forced Passive Arming will keep the vehicle protected.
By default, this system is ON and active unless programmed
differently by the installer.

13
Nuisance Prevention System
To prevent continuous alarm cycles from faulty and over-sensitive
sensors or an attempted theft that has left a protected door open,
the Nuisance Prevention System will monitor all trigger inputs.
If the alarm triggers (3) times with a 60-minute period from the
same sensor, the NPS will interpret this as a false trigger. The NPS
will ignore the affected sensor while leaving all other sensors and
triggers active.
Remote Starting the Vehicle
Warning!
1) Never remote start your vehicle when the keys are in the ignition.
2) Never start the vehicle unless the transmission is in PARK
or NEUTRAL.
3) Never start your vehicle while it is inside a building that
has minimal ventilation.
1. Make sure the parking brake is set ON.
2. Press and release the one time (or the amount
of times programmed by the installer).
3. The parking lights will flash once to confirm the vehicle
will attempt to start the engine.
- Gasoline vehicles will begin the starting procedure
4 seconds after the parking lights flash.
- Diesel vehicles will begin the starting procedure after
the “Wait to Start” timer has expired.
4. Once the vehicle’s engine has started, it will run for a
pre-programmed period of time (12, 24 or 60 minutes).

14
Key Takeover:
When you are ready to drive the vehicle
1. Unlock the door using the CARBINE remote control.
2. Enter the vehicle and do not step on the foot brake.
3. Insert the ignition key and turn it to the RUN position.
4. Step on the foot brake. The remote starter will shut off and the
parking lights will turn off.
5. Disengage the parking brake and begin driving.
Note 1: If the foot brake is pressed before the ignition key is placed
in the RUN position, the remote starter will disengage,
and you will have to re-start the engine using the normal
starting procedure.
Note 2: If your vehicle uses a Smart Key or PTS (Push To Start)
starting system. Step on the brake (the engine will stop) and
press the START button to re-start the engine as normal.

15
Quick Stop Mode:
Your CARBINE remote starter can also keep the engine running
during short trips away from the vehicle.
To Enable Quick Stop Mode
1. Park in a well-ventilated area.
2. With the engine running, set the transmission in park and
set the parking brake.
3. Press and release the one time (or the amount of times
programmed by the installer).
4. Turn the ignition key off and remove the ignition key.
The engine will continue to run.
Note: If your vehicle uses a Smart Key or PTS (Push To Start)
starting system, press the start button once. DO NOT press
the foot brake.
5. Exit the vehicle and lock the doors using the
CARBINE remote control.
Note: This feature will not work if the foot brake
is pressed at any time.

16
Timer Mode Starting
Timed Mode allows you to keep the engine warmed by starting the
engine every (3) hours. After (6) starts, this system will be off.
To initiate Timer Mode Starting, press the +
buttons at the same time then release them.
- The parking lights will flash (4) times.
- The vehicle engine will start.
- Press the button to shut off the remote starter.
- Timer start mode is now engaged.
To deactivate Timer Start Mode, turn on the ignition key ON or
activate any of the remote start safety features (press the brake
pedal, release the parking brake, open the hood).
- The parking lights will flash (4) times when timer
start mode is deactivated.

17
Short-Run TurboTimer Mode:
Short Run Turbo Mode keep the engine running for a
short length of time to allow the engines turbo boost
system to cool down before stopping the engine.
Activate theTurbo Timer Mode
- Stop the vehicle and set the parking brake.
- Press and release the + at the same time.
The parking lights will flash.
- Remove the ignition key and exit the vehicle. At this time you can
arm the system with the remote controller. Arming will not stop
the Turbo Timer Mode.
- The engine will be off after the programmed runtime expires.

18
Enter Settings:
To get into transmitter feature programming mode, press and hold
the “F” button for 3 seconds. You will hear 2 beeps and the clock
display will flash. Follow the instructions enclosed for each setting
you want to program or change.
Exit Settings:
To exit any setting mode, push and hold the “F” button for
3 seconds or simply do nothing for 15 seconds.
LCD Remote Controller Settings and Programming

19
Function Setting
Daily Clock Display 1. Press the button to adjust hours.
2. Press the button to adjust minutes.
3. To exit the clock setting mode, push and
hold the “F” button for 3 seconds or
simply do nothing for 15 seconds.
Note: Adjusting hours will change AM-PM.
Adjusting minutes will not.
Alarm Clock Time Setting 1. Press and release the “F” key once. The
Alarm icon will display and the display will
flash “12:00”.
2. Press the button to adjust hours.
3. Press the button to adjust minutes.
Note: Adjusting hours will change AM-PM.
Adjusting minutes will not.
Alarm Clock On/Off 1. After setting the alarm time, press and
release the “F” button. The display will
show “OFF”.
2. Press the button to turn the alarm ON.
3. Press the button to turn the alarm OFF.
Countdown Timer Setting 1. Press and release the “F” key three times.
The timer icon will display and the display
will flash “0:00”.
2. Press the button to adjust hours
from 0 - 19.
3. Press the button to adjust minutes
from 0 - 59.
Countdown Timer On/Off 1. After setting the countdown timer time,
press and release the “F” button.
The display will show “OFF”.
2. Press the button to turn the timer ON.
3. Press the button to turn the timer OFF.

20
Function Setting
Backlight Brightness Setting 1. Press and release the “F” key five times.
“50p” will be displayed.
2. Press the button to adjust the light
level. You have “0p”, “50p” and “100p”
to choose from. Note: Raising the display
brightness to 100p will consume more
battery power.
Feature Control:
Feature Operation Related Icon
Power Save On/Off Press and hold “F” then
press and release
Melody - Vibrate Press and hold “F” then
press and release
Alarm Clock On/Off Press and hold “F” then
press and release
Countdown Timer Press and hold “F” then
press and release
Timer Start Press and release +
Car 1-2 Select
Press and hold “F” then
press and hold +
for 3 seconds
Button Lock
Press and hold “F” then
press and hold for
3 seconds
