CARBONEX ECHO-PG User manual

CARBONEX Sp. z o.o.
ul. Budowlana 19
41-100 Siemianowice Śląskie
tel/fax [phone]
www.carbonex.com.pl
====================================================================================================
DEVICE OF WIRELESS SHAFT COMMUNICATION
ECHO-PG
TECHNICAL AND OPERATING MANUAL
No. DTR- 8PG/ 014
December 014

E C H O - P G V E R S I O N E N 1
2
TABLE OF CONTENTS
1 Use and range of application.
Marking.
3 Certificates.
4 Terms of application.
5 Technical data.
6 Description.
7 Installation.
8 Maintenance.
9 Transport and storage.
10 List of spare parts.
11 Guarantee.
LIST OF DRAWINGS
8PG.V1 ECHO-PG Overall structure variant 1
8PG.V ECHO-PG Overall structure variant
8PG.01.V1 ECHO/AK-PG Cage unit - overall structure variant 1
8PG.01.V ECHO/AK-PG Cage unit - overall structure variant
8PG.01.01 ECHO/AK-PG Cage device - outline drawing
8PG.01.0 ECHO/AK-PG Cage device - block diagram
8PG.01.03 ECHO/AK-PG Cage device - assembly diagram
8PG.01.04 ECHO/AK-PG Manipulator EPG - outline drawing
8PG.01.05 ECHO/AK-PG Manipulator EPG - assembly diagram
8PG.0 ECHO/AS-PG Headframe unit - overall structure
8PG.0 .01 ECHO/AS-PG Headframe device - outline drawing
8PG.0 .0 ECHO/AS-PG Headframe device - block diagram
8PG.0 .03 ECHO/AS-PG Headframe device - input/output circuits
8PG.0 .04 ECHO/AS-PG Headframe unit - assembly diagram
8PG.0 .05 ECHO/AS-PG Headframe unit - diagram of microphone and feedback microphone
8PG.03 Coupler SK - outline drawing
8PG.03.01 Coupler SK - installation drawing
8PG.04 Coupler SS - outline drawing
8PG.04.01 Coupler SS - installation drawing

E C H O - P G V E R S I O N E N 1
3
Hazards identification
The cage nit is powered by 12VDC NiMH battery. It sho ld be taken to consider that
in a f lly charged battery d ring setting p might be done by accident shorting pins
which may ca se battery leakage, overheat and in a conseq ence may ca se inj ries
(s ch as b rns). The battery sho ld be charged only by the original charger ŁAE-S3.
Used batteries sho ld not be thrown away in the trash. The cage nit sends once per
min te to the headframe nit control signal, accompanied by a beep. The PAK cable
has incorporated connection between pins 4 and 7 for a thorization higher speed. This
cable sho ld be installed in safe place for raise and lower with high speed.
Headframe nit is s pplied from 230 VAC network and sho ld be connected to a wall
o tlet with a protective pin (this applies to primary and reserve power s pply). The
casing of headframe nit is made of sheet steel, so it sho ld be gro nded. Opening the
ho sing is allowed only after disconnect from the power. The "

 " sign on the
inp t/o tp t block means that inside can be dangero s voltage from the shaft system.
Headframe nit sho ld be installed in safe place i.e. not in EX zone. Power- p seq ence
is as follows: first main power and second reserve power. In other case there might be
occ r an electrical arc on contacts of power s pply switch relay
1. Use and range of application
Device of wireless shaft communication ECHO-PG version EN1 is intended to use in
shaft sinking to communicate between crew in platform and hoist operator in mine shaft.
Whole communication system consists of two sets of components named as the headframe
unit and the cage unit. Communication between these units is realized by means of hoisting
ropes, which are carriers of the electromagnetic wave.
The basic advantages of this system are following:
- two-way semiduplex audio communication,
- sending remote control signals from platform to a hoist machine,
- receiving information signals from a hoist machine to platform.
The cage unit is made as intrinsically safe device group I, category M1.
The principle of working of this device is utilization rope as carrier to move electromagnetic
waves. Carrier is created by:
- guiderope and earth,
- additional rope and earth.
Electric continuity of such loop is the main condition of correct work of device.
Electromagnetic wave is generated to the loop and received from it by inductive couplers.
There are fixed two inductive couplers (transmitter and receiver) in headframe in such way,
that headrope crosses by their center. Over conveyance there are fixed another pair of
couplers. Headframe unit sends signal by inductive coupler (transmitter) to rope and cage unit
receive signals from rope by other inductive coupler (receiver). Communication from cage
unit to headframe unit is performed in the same way by pair of couplers fixed over
conveyance. Only one device can work in one loop, which means that one headframe unit can
only communicate with one cage unit. The device has four frequency version:
A, B, C, D thanks to which, it is possible to use four system in one shaft.

E C H O - P G V E R S I O N E N 1
4
2. Marking
MARKING ABBREVIATED MARKING
Device of wireless shaft communication ECHO-PG-
frequency version: A,B,C,D - software version: EN1
ECHO-PG-A,B,C,D-EN1
Example of order: ECHO-PG-A-EN1.
The device consists of a cage unit, headframe unit and battery charger.
Cage unit consists of:
MARKING ABBREVIATED MARKING
Cage device ECHO/AK-PG frequency version: A,B,C,D
- software version: EN1
ECHO/AK-PG-A,B,C,D-
EN1
Battery BAKS-9
BAKS-9
Manipulator EPG
EPG
Coupler SS-32 (transmitter, frequency version A)
SS-32
Coupler SS-64 (receiver, frequency version A)
SS-64
Coupler SS-48 (transmitter, frequency version B)
SS-48
Coupler SS-80 (receiver, frequency version B)
SS-80
Coupler SS-80 (transmitter, frequency version C)
SS-80
Coupler SS-80 (receiver, frequency version C)
SS-80
Coupler SS-80 (transmitter, frequency version D)
SS-80
Coupler SS-80 (receiver, frequency version D)
SS-80
Headframe unit consists of:
MARKING ABBREVIATED MARKING
Headframe device ECHO/AS-PG frequency version: A,B,C,D
- software version: EN1
ECHO/AS-PG-A,B,C,D-EN1
Microphone unit MNO
MNO
Loudspeaker G G
Feedback microphone MK
MK
Coupler SK-32 (receiver, frequency version A)
SK-32
Coupler SK-64 (transmitter, frequency version A)
SK-64
Coupler SK-48 (receiver, frequency version B)
SK-48
Coupler SK-80 (transmitter, frequency version B)
SK-80
Coupler SK-80 (receiver, frequency version C)
SK-80
Coupler SK-80 (transmitter, frequency version C)
SK-80
Coupler SK-80 (receiver, frequency version D)
SK-80
Coupler SK-80 (transmitter, frequency version D)
SK-80
MARKING ABBREVIATED MARKING
Battery charger ŁAE-S3
ŁAE-S3
Note:
1. The cage unit does not include additional signaling devices. They should be provided
by manufacturer of the whole system, or other competent body.
. Shall be permitted to replace couplers SS and SK between units as well as using of
two pairs of couplers SS. Type of couplers and place of installation is dependent only
on the best way of use of couplers.

E C H O - P G V E R S I O N E N 1
5
3. Certificates
Device met requirement of electromagnetic compatibility in accordance with the European
Union directive no. 89/336/EEC including the changes 91/263/EEC,92/31/EEC and
93/68/EEC and standards harmonized with it protocol no. LKE/043/2004 issued by the
Laboratory of Electromagnetic Compatibility, Institute of Telecommunication and Acoustics
Wroclaw Engineering College. 50-370 Wrocław, ul. WybrzeŜe Wyspiańskiego 7.
The PCA (Polish Centre for Accreditation) accreditation no AB 167.
Cage unit met requirement of the European Union directive no. 94/9/WE (ATEX) and other
standards which are harmonized with them certificate no. KDB 09ATEX023X
issued by the Notified Body no. 1453 Central Mining Institute. Experimental Mine
„BARBARA” 43-190 Mikołów , ul. Podleska 7 . The PCA (Polish Centre for Accreditation)
accreditation no. AC038.
4. Terms of application
4.1. The shaft has to have: tailrope, or there must be two guide ropes, or the conveyance must
be suspended on at least two ropes (does not apply to frequency version D).
4. . There should be electrical connection between headrope and tailrope or between two
guideropes (does not apply to frequency version D).
4.3. Over the conveyance which we want to get communication should be mounted a pair of
couplers, and second pair of couplers should be mounted in headframe.
4.4. In one shaft there may work only one cage unit in specific frequency version, in the case
of using two devices they have to have different frequency version or one of them should
be switched off. The same applies to two cage units installed in one conveyance.
4.5. Battery BAKS-9 can be charged only by battery charger ŁAE-S3 made by CARBONEX.
4.6. Maintenance may be carried out only by authorized personnel.
4.7. It is forbidden to make any change in device and use the device in another way as
mentioned in this manual.
4.8. Headframe unit should be installed in safe place i.e. not in EX zone.
4.9. The EX input parameters for additional signaling devices:
- contact electrically isolated, dielectric strength 500V,
- Ui ≥ 15V, Ii ≥ mA.

E C H O - P G V E R S I O N E N 1
6
5. Technical data
5.1. Normal working conditions
5.1.1. Cage unit
5.1.1.1. Temperature range - 0ºC to + 40ºC
5.1.1. . Humidity < 98%
5.1. . Headframe unit
5.1. .1. Temperature range 0ºC to + 40ºC
5.1. . . Humidity < 80%
5.2. General parameters
5. .1. Type of work
- audio signal semiduplex
- remote control signals duplex
5. . . Type of modulation FM
5. .3. Frequency performance:
- A (from cage unit to headframe unit) 3 kHz
- A (from headframe unit to cage unit) 64 kHz
- B (from cage unit to headframe unit) 48 kHz
- B (from headframe unit to cage unit) 80 kHz
- C (from cage unit to headframe unit) 11 kHz
- C (from headframe unit to cage unit) 144 kHz
- D (from cage unit to headframe unit) 1 8 kHz
- D (from headframe unit to cage unit) 160 kHz
5. .4. Method of sending signals serial
5. .5. Delay of sending signals < 0,1 s
5. .6. Range of work 1500 m
5.3. Cage nit
5.3.1. Power supply battery 1 V (10.5÷15 V)
5.3. . Indication of low battery <11,5 V
5.3.3. Current consumption < 400 mA
5.3.4. Output signal > 7 Vpp
5.3.5. Receiver sensitivity 1 mV
5.3.6. Operating time without battery replacement 10 h
5.3.7. Number and type of input NO contact
5.3.8. Marking I M1 Ex ia I Ma
5.3.9. Protection degree IP65
5.3.10. Dimensions 5 0 x 300 x 145 mm
5.3.11. Weight 15 kg
5.4. Headframe nit
5.4.1. Main and reserve power supply 30 VAC
5.4. . Power consumption < 50 VA
5.4.3. Output signal > 7 Vpp
5.4.4. Receiver sensitivity mV
5.4.5. Number and type of outputs 9 relays (DPDT 1A, 50VAC)
5.4.6. Number and type of input 9 NO contact
5.4.7. Dimensions 8 x 350 x 40 mm
5.4.8. Weight 10 kg

E C H O - P G V E R S I O N E N 1
7
5.5. Co pler SK
5.5.1. Nominal inductance
SK-3 178 µH
SK-48 80 µH
SK-64 40 µH
SK-80 40 µH
5.5. . Protection degree IP54
5.5.3. Dimensions 65 x 0 x 90 mm
5.5.4. Weight 4,5 kg
5.6. Co pler SS
5.6.1. Nominal inductance
SS-3 178 µH
SS-48 80 µH
SS-64 40 µH
SS-80 40 µH
5.6. . Protection degree IP54
5.6.3. Dimensions 335 x 65 x 40 mm
5.6.4. Weight 4,5 kg

E C H O - P G V E R S I O N E N 1
8
6. Description

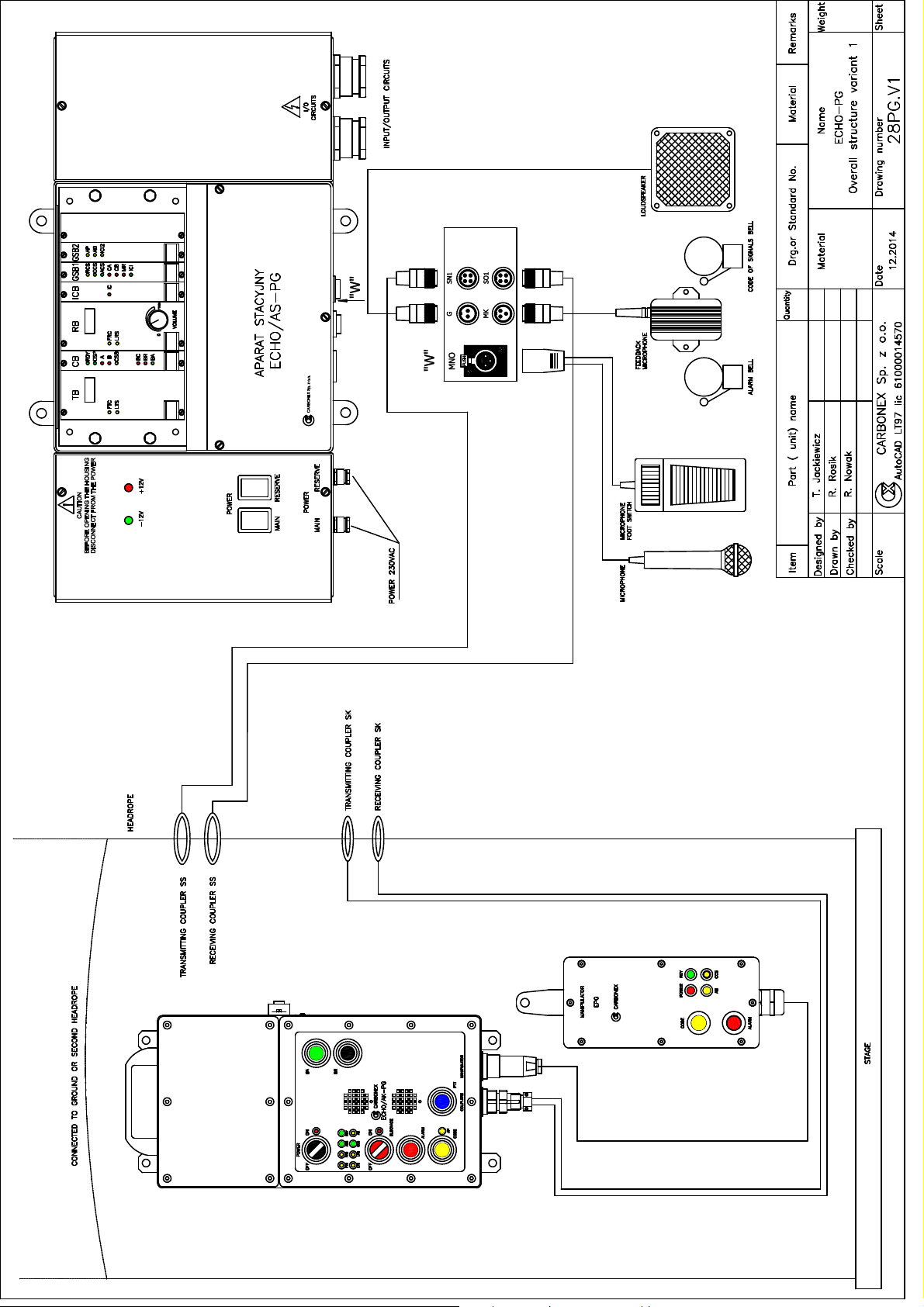

Drawing no. 8PG.V1 shows overall structure a communication system in variant 1

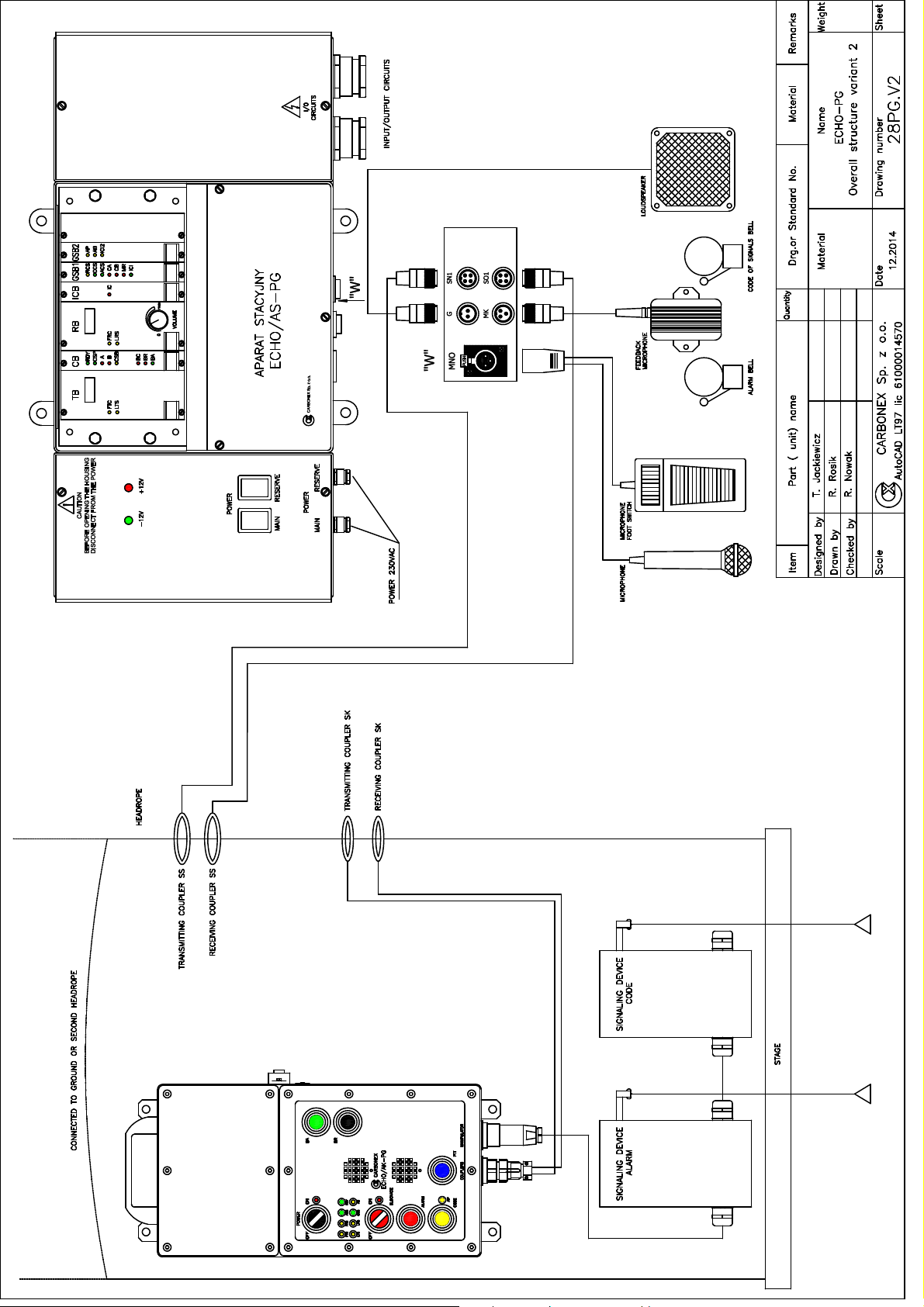

with manipulator EPG. Drawing no. 8PG.V shows overall structure a communication
system in variant with additional signaling devices. System consists of two sets of
components: the headframe unit which is shown in drawing no. 8PG.0 and the cage unit
drawing no. 8PG.01. There are installed two inductive couplers in headframe in such way
that the rope passes through the center of couplers. One of them is transmitter and the second
one is receiver. The second pair of couplers is fitted over conveyance. Transmitting coupler
sends current signal, which flows through rope to the receiving coupler. The main condition
of proper work of system is existence of a closed loop for current flow (does not apply to
frequency version D). This loop is formed by headrope and platform. In case of existing
guiderope loop may be done by making connection between two such ropes or by connecting
to ground ends of guiderope. For frequency version D such loop is formed by headrope and
the capacitance headrope-shaft. Blok diagram of cage device is shown in drawing no.
8PG.01.0 . Blok diagram of headframe device is shown in drawing no. 8PG.0 .0 .
Transmitters of both devices emit continuously carrier frequencies. There are two carrier
frequencies at each system, which depend on version of devices. When both carrier
frequencies are present the device is switched to ready mode. Contacts NO or NC of the
circuits which will be connected to the headframe device inputs should be connected between
proper input and common terminal. Communication from a platform is realized by a cage
device. Communication from a bottom is performed by a manipulator EPG drawing no.
8PG.01.V1. In the case where using a manipulator is burdensome instead of it can be use the
additional signaling devices, what is shown in drawing no. 8PG.01.V . If the socket is
unconnected there will be emitted a continuous alarm.
6.1. A dio comm nication is realized in a semiduplex way. Cage device is continuously in
the receive mode when the unit is in ready mode and not transmitting. Voice communication
is done only from cage device after pressing and hold blue button PTT, platform has priority.
In headframe unit broadcast is done after pressing microphone foot switch.
6.2. Signal code is used to transmit the Code of Signals. After pressing yellow button CODE in
cage device, output relay P7 is turned on in headframe device if input no. (ACS) and input no. 7
(AP) in headframe device will be closed. After pressing yellow button CODE in manipulator or
after using additional signaling device, output relay P8 is turned on in headframe device if input no.
(ACS) and input no. 8 (AB) in headframe device will be closed. In cage device we should hear
bell if feedback microphone would be fastened near to signal bell as well as we should see green
led CCS if input no.1 (CCS) in headframe device will be connected to output of relays P7 and P8.
6.3. Signal alarm is send from cage device after pressing red button ALARM in cage device or
red button ALARM in manipulator. It is possible to hear alarm bell in cage device, for this purpose
should be closed input no. 3 (CA) in headframe device. This input activates feedback microphone
so it should be fastened near to alarm bell.

E C H O - P G V E R S I O N E N 1
9
TABLE OF OUTPUTS OF HEADFRAME UNIT
Relay F nction Description
P1
Ready
RDY
Relay is turned on when cage unit and headframe unit are turned on,
both are operational, and there is communication between them.
P
Impulse control
IC
Relay will be turned on for 6 seconds when:
- will be closed input no. in headframe device and,
- will be closed input no. 5 in headframe device and,
- will be closed two or three times input no. 6 or 9 in headframe device.
Relay is released:
- after 6 seconds or,
- after opening input no. or
- after opening input no. 5 or,
- after closing one time input no. 6 or 9.
P3
Alarm
A
In normal operation when headframe unit is in ready mode, relay is
turned on. The relay will be turned off when:
- red button ALARM in manipulator or cage device would be pressed,
- there will be a loss of communication between units.
P4
Blockade
B
In normal operation when headframe unit is in ready mode, relay is
turned on. The relay will be turned off when:
- red switch BLOCKADE in cage unit would be set into right position,
- there will be a loss of communication between units.
P5
Button of
announcement
BA
The general purpose button, in normal operation when headframe unit
is in ready mode, relay is turned off. The relay will be turned on when
green button BA in cage device would be pressed.
P6
Button of reset
BR
The general purpose button, in normal operation when headframe unit
is in ready mode, relay is turned off. The relay will be turned on when
black button BR in cage device would be pressed.
P7
Code of Signals
from platform
CSP
Relay is turned on when:
- will be closed input no. in headframe device and,
- will be closed input no. 7 in headframe device and
- yellow button CODE in cage device would be pressed.
P8
Code of Signals
from bottom
CSB
Relay is turned on when:
- will be closed input no. in headframe device and,
- will be closed input no. 8 in headframe device and
- yellow button CODE in manipulator would be pressed.
P9
Battery control
BC
Relay is switched on when the battery is working properly and charged.
Relay is switched off when battery voltage drops below 11,5 V.

E C H O - P G V E R S I O N E N 1
10
6.6. Description of faceplate of cage device
• „POWER”-power switch on/off, when red led next to the switch lights means that the
battery voltage is correct, when led flashes means discharging the battery.
• „FTC”- failure of the transmitting coupler yellow led lights when transmitter coupler is
unserviceable not connected or its inductance is too low.
• „FRC”-failure of the receiving coupler yellow led lights when receiver coupler is
unserviceable not connected or its inductance is too low.
• „LTS”-lack of a transmitting signal yellow led lights when there is a lack of carrier
frequency of the transmitter or its level is too low.
• „LRS”-lack of receiving signal yellow led lights when there is a lack of carrier frequency
of the receiver.
• „ACS”-authorization for Code of Signals green led indicates activation the Code of Signals
button, lights when input no. in headframe device is closed.
• „CCS”-confirmation for Code of Signals green led confirms code, lights when input no.1
in headframe device is closed.
• „RDY”-ready green led indicates when cage unit is in ready mode.
• „AB”-authorization for bottom yellow led indicates activation the Code of Signals button
in manipulator, lights when input no.8 in headframe device is closed.
• „AP”-authorization for platform yellow led indicates activation the Code of Signals button
in cage device, lights when input no.7 in headframe device is closed.
• „BA”-button of announcement, general purpose button.
• „BR”-button of reset, general purpose button.
• „BLOCKADE”-blockade switch, red led next to switch confirms that blockade is in switch
on state, lights when input no.4 in headframe device is closed.
• „ALARM”-alarm button.
• „CODE”-the Code of Signals button.
• „PTT”-push to talk button, pressing this button the microphone is activated.
6.6.1. Description of faceplate of manip lator
• „POWER”-power red led lights when the battery voltage is correct, when led flashes
means discharging the battery.
• „RDY”-ready green led indicates when cage unit is in ready mode.
• „AB”-authorization for bottom yellow led indicates activation the Code of Signals button
in manipulator, lights when input no.8 in headframe device is closed.
• „CCS”-confirmation for Code of Signals green led confirms code, lights when input no.1
in headframe device is closed.
• „ALARM”-alarm button.
• „CODE”-the Code of Signals button.
6.7. Description of faceplate of headframe device
6.7.1. Power block
There are led indicate the presence of power supply in the power block.
6.7.2. The transmitting block TB
„FTC” failure of the transmitting coupler yellow led not lights when transmitter coupler is
unserviceable not connected or its inductance is too low. „LTS” lack of a transmitting signal

E C H O - P G V E R S I O N E N 1
11
yellow led lights when there is proper level of carrier frequency of the transmitter, 10 bar led
indicator indicates the level of transmitting wave.
6.7.3. The control block CB
RDY Ready
CSP Code of Signals from platform
A Alarm
B Blockade
CSB Code of Signals from bottom
BC Battery control
BR Button of reset
BA Button of announcement
6.7.4. The receiving block RB
„FRC” failure of the receiving coupler yellow led not lights when receiver coupler is
unserviceable not connected or its inductance is too low. „LRS” lack of a receiving signal
yellow led lights when there is proper level of carrier frequency of the receiver, 10 bar led
indicator indicates the level of receiving wave. Knob is used to adjust volume level.
6.7.5. The imp lse control block ICB
IC Impulse control
6.7.6. The galvanic separation block GSB1
RCS Not used in this version
CCS Confirmation for Code of Signals
ACS Authorization for Code of Signals
CA Confirmation for alarm
CB Confirmation for blockade
MR Machine in rest
ICI Impulse control input
6.7.7. The galvanic separation block GSB2
AP Authorization for platform
AB Authorization for bottom
ICI Impulse control input

E C H O - P G V E R S I O N E N 1
12
7. Installation
7.1. Unpacking
During unpacking, check completeness of the set according to the proof of delivery.
Check if the power switch on cage device was in OFF position during transport and storage.
The switch in ON position could cause discharging of battery.
7.2. Cage device
Cage device is shown in drawing no. 8PG.01.01. Housing is divided into two parts. At
the bottom there are placed electronics board, buttons and switches, at the top socket battery
BAKS. The walls of the housing are made of stainless steel sheet. In the bottom side of the
housing there are sockets for connecting: sensors and couplers. In the right side there is socket
to charge battery BAKS without removing it out of housing. Access to battery and electronics
board is possible after unscrewing proper cover. Device is designed for mounting on
crosshead by means of 4 screws M8.
7.3. Co pler SK
Coupler SK is shown in drawing no. 8PG.03. Coupler consists of two parts, to allow
his assembly around rope. There is a ferromagnetic core with coil inside housing of device.
Core and coil are encapsulated by chemical compound. There is shown in drawings
no. 8PG.03.01.
7.4. Manip lator EPG
Manipulator EPG is shown in drawing no. 8PG.01.04. It is designed to
communication with headframe device. If you want to use additional signaling device instead
of manipulator to the socket should be connected additional plug kit, otherwise will be
emitted a continuous alarm.
7.5. Headframe device
Headframe device is shown in drawing no. 8PG.0 .01. Housing consists of three
parts: power supply unit from the left side, main unit in the center and input/output circuits
unit at the right side. Center unit consist of mainboard and subrack for 7 eurocards.
Headframe device is designed for mounting in the winding engine room using 4 screws M8.
Method of connecting headframe unit is shown in drawing no. 8PG.0 .04.
7.7. Co pler SS
Coupler SS is shown in drawing no. 8PG.04. Coupler consists of two parts, to allow
his assembly around rope. There is a ferromagnetic core with coil inside housing of device.
Core and coil are encapsulated by chemical compound. There is shown in drawings
no. 8PG.04.01. The couplers SK and SS differ only way of fixing.

E C H O - P G V E R S I O N E N 1
13
8. Maintenance
Before using any cage device it is recommended to charge the battery, using a charger
ŁAE-S3 CARBONEX company production. To do this, connect the plug of charger into the
battery socket in cage device or remove the battery from the cage device housing and put it on
the charger basket and then turn on the power of charger. Charging may take place only in
room without any danger vapours. Battery, on which there are traces of leakage should be
withdrawn by person of service and returned to the manufacturer. The battery may not have
dents. In the headframe device power-up sequence is as follows: first main power and second
reserve power. In other case there might be occur an electrical arc on contacts of power
supply switch relay. Cage device should not be at the same time, use the audio and control.
After pressing simultaneously two control buttons only one of them will be send. The foot
switch should be pushed only in time of audio transmission. Measurements of the installation
should be performed at least once a year.
Ind ctance of co pler SK should be measured in disconnected plug of cage unit.
During the measurements the headframe unit must be turned off.
T
ype
Value
(Required)
Version
Pin
SK
-
3
178 µH (150
-
40) µH
A
3
-
6
SK
-
64
40 µH
(30
-
60) µH
A
-
5
SK
-
48
80 µH
(65
-
1 0) µH
B
3
-
6
SK
-
80
40 µH
(30
-
60) µH
B
,
C,
D
-
5
, 3
-
6
Ins lation resistance of co pler SK should be measured in disconnected plug of cage unit.
Measurement voltage 500 V. Measurement performed in safe zone between conveyance and
pin in accordance with the table.
Type
Value
Version
Pin
SK
-
3
>
100 k
Ω
A
3
SK
-
64
> 100 k
Ω
A
SK
-
48
> 100 k
Ω
B
3
SK
-
80
> 100 k
Ω
B,
C,
D
, 3
Ind ctance of co pler type SS should be measured in disconnected plug of cage unit.
During the measurements the cage unit must be turned off.
Type
Value (Required)
Vers
ion
Pin
SS
-
3
178 µH (150
-
40) µH
A
3
-
6
SS
-
64
40 µH (30
-
60) µH
A
-
5
SS
-
48
80 µH (65
-
1 0) µH
B
3
-
6
SS
-
80
40 µH (30
-
60) µH
B,
C,
D
-
5
, 3
-
6
Ins lation resistance of co pler type SS should be measured in disconnected plug of
headframe unit. Measurement voltage 60 V. Measurement performed between ground and pin
in accordance with the table.
Type
Value
Version
Pin
SS
-
3
> 100 kΩ
A
4
SS
-
64
> 100 kΩ
A
4
SS
-
48
> 100 kΩ
B
4
SS
-
80
> 100 kΩ
B,
C,
D
4

E C H O - P G V E R S I O N E N 1
14
9. Transport and storage
The device can be transported by any means of transport. During transport, equipment
shall be protected against rain and strong mechanical shock. The temperature during transport
should be in the range of - 5ºC to +60ºC. The device will be ready for use after keeping it in
the room temperature for 6 hours. The device shall be stored in a closed room where the
humidity should not exceed the permissible limit of 75% and the temperature ranging from
0°C to 60ºC. The room should be free of active vapors or chemical compounds. In case of
storage longer than 14 days before installing cage device should be connected to the battery
charger.
10. List of spare parts
10.1. Cage nit
10.1.1. Cage device ECHO/AK-PG-(A or B or C or D)-EN1
10.1. . Battery BAKS-9
10.1.3. Manipulator EPG
10.1.4. Coupler SS-3 , 64, 48, 80
10.1.5. Plug ZGT 8KP7a
10.1.6. Socket ZGT 8B7Sa
10.1.7. Socket CM0 E 0- 7P
10.2. Headframe nit
10. .1. Headframe device ECHO/AS-PG-(A or B or C or D)-EN1
• power supply block
• transmitting block TB
• control block CB
• receiving block RB
• impulse control block ICB
• galvanic separation block GSB1
• galvanic separation block GSB
• relay type Finder 48.5 (1 VDC)
10. . . Microphone unit MNO-6
10. .3. Loudspeaker G
10. .4. Feedback microphone MK
10. .5. Coupler SK-3 , 64, 48, 80
10. .6. Plug MIC-3 4
10. .7. Plug MIC-3 3
10. .8. Plug MIC-3
10. .9. Plug XLR
It is allowed to replace these items. Any repair of components may only be performed by
authorized employees of the CARBONEX company.

E C H O - P G V E R S I O N E N 1
15
11. G arantee
The manufacturer,
CARBONEX Sp. z o.o.
ul. Budowlana 19
41- 100 Siemianowice Śląskie, Poland
guarantees:
11.1. The highest quality and proper functioning of the device in accordance with the terms
and conditions given in this manual.
11. . Guarantee period: 1 months from the date of purchase.
11.3. During guarantee period, all the repairs are carried out free of cost, provided that the
customer shall be responsible for any transportation cost.
11.4. Guarantee terms and conditions do not apply if the mechanical damages are caused by
improper use and operation of the device.
11.5. Sales and after sales service. After sales service and supply of spare parts on payment.
Any repair/damage shall be reported through phone/fax no. [phone] or to
service department of:
CARBONEX Sp. z o.o.
ul. Budowlana 19
41- 100 Siemianowice Śląskie, Poland
e-mail: [email protected]
web: www.carbonex.com.pl
