General Warnings
Please keep this instruction manual for future reference
Read carefully all the instructions contained in this manual. It provides you with
important information regarding the safe installation, use and maintenance of the
appliance as well as useful advice for getting the best out of your combination
microwave oven. Keep this booklet in a safe place for future reference. After
removing the packing, check that the appliance is not damaged in any way.
Be careful not to leave the packing materials (plastic sheeting, expanded
polystyrene etc.) where children can get at them, as they can be dangerous.
IMPORTANT: Do not use the oven door handle to move the appliance, such as to
remove it from the packaging.
ATTENTION
The microwave oven is an appliance which becomes hot during use, especially the
glass door.
It is therefore a good rule that children do not approach the combination microwave
oven when it is functioning, particularly when the grill is in use.
Before you use the microwave oven for the first time, heat the empty oven at
maximum temperature for a minimum of 1 hour to remove any unpleasant smells
and smoke caused by working residues and thermal insulation, making sure the
area is well ventilated.
Never roast or bake on the oven base.
This product is not designed for commercial use, it is a household appliance only.
The electrical system of this appliance may be used safely only when it is correctly
connected to an efficient earthing system in compliance with the safety standards
currently in effect.
The manufacturer will not be held liable for any damages that might arise out of
incorrect or improper use of the appliance.
The following items are potentially dangerous, and therefore, appropriate measures
must be taken to prevent children and the disabled from coming into contact with
them:
−Controls and the appliance in general;
−Packaging (bags, polystyrene, nails, etc.);
− The appliance immediately after use of the oven or grill due to the heat
generated;
− The appliance when no longer in use (potentially dangerous parts must be
made safe).

2 4
5678
9 10 11
4
WARNING
Accessible parts will become hot when in use. To avoid burns and scalds children should
be kept away.
During use the appliance becomes hot, Care should be taken to avoid touching heating
elements inside the oven.
− If the door or door seals are damaged, the oven must not be operated until it has
been repaired.
−It is hazardous for anyone other than a competent person to carry out any service or
repair operation that involves the removal of a cover which gives protection against
exposure to microwave energy.
−Liquids and other foods must not be heated in sealed containers since they are
liable to explode.
−Only use utensils that are suitable for use in microwave ovens.
−When heating food in plastic or paper containers, keep an eye on the oven due to
the possibility of ignition.
−The microwave oven is intended for heating food and beverages.
−Drying of food or clothing and heating of warming pads, slippers, sponges, damp
cloth and similar may lead to risk of injury, ignition or fire
−The oven should be cleaned regularly and any food deposits removed.
−Failure to maintain the oven in a clean condition could lead to deterioration of the
surface which could adversely affect the life of the appliance and possibly result in a
hazardous situation.
Please keep this instruction manual for future reference
WARNING
To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive
microwave energy:
−Make sure that all the packing materials are removed from the inside of the door.
−WARNING: Check the oven for any damage, such as misaligned or bent door,
damaged door seals and sealing surface, broken or loose door hinges and latches
and dents inside the cavity or on the door. If there is any damage, do not operate the
oven and contact Cardini service immediately.
−This combination microwave oven must be built into a cabinet which has a stable
base underneath capable of holding its weight and the heaviest food likely to be
cooked in the oven.
−Do not place the microwave oven where heat, moisture, or high humidity are
generated, or near combustible materials.
−Do not operate the microwave oven when empty.
−Do not operate this appliance if it has a damaged cable or plug, if it is not working
properly or if it has been damaged or dropped. If the supply cable is damaged, it
must be replaced by Cardini or an approved service agent in order to avoid a hazard.

2 3
5678
9 10 11
5
− WARNING: Liquid or other food must not be heated in sealed containers since they
are liable to explode.
− Microwave heating of liquids can result in delayed eruptive boiling, therefore care has
to be taken when handling the container.
−Do not fry food in the microwave oven. Hot oil can damage oven parts and utensils
and even result in skin burns.
−Eggs in their shell and whole hard-boiled eggs should not be heated in microwave
ovens as they may explode even after microwave heating has ended.
−Pierce foods with heavy skins such as potatoes, whole squashes, apples and
chestnuts before cooking.
−The contents of feeding bottles and baby jars should be stirred or shaken and the
temperature should be checked before serving in order to avoid burns.
−Utensils should be checked to ensure that they are suitable for use in a microwave
oven.
−WARNING: It is hazardous for anyone other a trained person to carry out any
service or repair operation which involves the removal of any cover which gives
protection against exposure to microwave energy.
−This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless the have been
given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
−Children should be supervised to ensure that they do not play with the appliance.
−When heating food in plastic or paper containers, check the microwave oven
frequently for the possibility of ignition.
−Remove wire ties from paper or plastic bags before placing them in the microwave
oven.
−If smoke is observed, switch off or unplug the appliance and keep the door closed in
order to stifle any flames.
−Do not leave paper products, cooking utensils or food in the microwave oven when
not in use.
−WARNING: The appliance and its accessible parts become hot during use.
−Care should be taken to avoid touching heating elements.
−Children less than 8 years of age shall be kept away unless continuously supervised
−This appliance can be used by children aged from 8 years and above as well as
persons with reduced physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or instructions concerning use of
the appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
−During use the appliance becomes hot. Care should be taken to avoid touching
heating elements inside the oven.
−WARNING: Accessible parts may become hot during use. Young children should
be kept away.
Please keep this instruction manual for future reference

234
678
9 10 11
6
DECLARATIONS OF CONFORMITY
This appliance has been designed, constructed and marketed in compliance with safety
requirements in force. This appliance has been manufactured to the strictest standards.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.
This product may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. Disposal
must be carried out in accordance with local environmental regulations for waste disposal.
ATTENTION
−Before use, remove all plastic films protecting some parts of the appliance (fascia -
panel, parts in stainless steel, etc)
−Do not use the appliance to heat a room.
−When the appliance is not in use, we recommend you turn it off and isolate it from the
electrical supply.
Please keep this instruction manual for future reference

234
57 8
9 10 11
7
IMPORTANT:
ISOLATE YOUR COMBINATION MICROWAVE OVEN FROM THE ELECTRICAL
SUPPLY BEFORE PERFORMING INSTALLATION OR MAINTENANCE.
Installation should be carried out according to the instructions by an electrician.
The manufacturer declines all responsibility for any damage to persons, animals or
materials due to incorrect installation.
FITTING THE APPLIANCE
Fit the appliance into its surround (beneath a
worktop or above another appliance in a tall
housing) by inserting screws and plastic covers
into the 4 holes (A - fig.3) that can be seen in the
frame of the oven when the door is open.
For the most efficient air circulation, the
microwave oven should be fitted according
to the dimensions shown in fig.1
The rear panel of the cabinet
must be removed so that air can
circulate freely. The panel to
which the microwave oven is
fitted should have a gap of at
least 35mm at the rear for
ventilation as well as a 500 x
70mm cutout in the shelf under
the microwave oven (fig.4 &
fig.5).
Plastic cover
Fig.3
Installation
500 x 70
cut-out in
cabinet
450
565 min.
550
min.
550
595
453.6
21.6
547.4
note: all dimensions in mm
Please keep this instruction manual for future reference

234
5 6 8
9 10 11
8
Fig. 4 Fig. 5
70 x 400 cut-out
for ventilation
35mm minimum clear
ventilation to rear
See below for full dimensional drawings of your combination microwave oven to help
with installation.
For a built-in microwave to work well, the cabinet must be of the right design.
The panels of the adjoining cabinets should be heat resistant. Particularly when the
adjoining cabinet is made of veneered wood. The adhesives should be able to withstand
a temperature of 120°C. Plastic materials or adhesive which cannot withstand this
temperature may become deformed or unstuck.
To comply with safety regulations, once the appliance has been fitted it should not be
possible to make contact with the electrical parts.
All parts which offer protection should be fixed in such a way that they cannot be
removed without the use of a tool.
COMBINATION MICROWAVE OVEN DIMENSIONS
515.6 31.8
8.6
8
595
116
453.6
569
2.8
26.4 26.4
Fig. 6
note: all dimensions in mm
Please keep this instruction manual for future reference

234
5678
10 11
9
WARNING: THIS APPLIANCE MUST BE EARTHED
Check that the power rating of the mains supply is suitable for the maximum power of the
appliance as indicated on the rating label.
The circuit breaker rating for this appliance is 16 amp.
If the appliance is supplied with a mains lead it should be “hard wired” as follows:
The “yellow/green” earth wire, which must be connected to a terminal, and has to be about
10mm longer than the other wire.
The neutral wire has to be connected to the terminal marked 'N'.
The Live wire should only be connected to the terminal marked 'L'.
Mains connection can also be made by fitting a double pole switch with a minimum gap
between the contacts of 3mm, proportionate to the load and complying with the regulations
in force.
The yellow/green earth wire should not be controlled by the switch.
When a double pole switch is used for mains supply connection it should be easily
accessed, once the appliance is in position.
IMPORTANT:
The mains supply cable should be positioned so that it is never subjected to temperatures
which are more than 50ºC above ambient temperature.
The electrical safety of the appliance can only be guaranteed when it has been correctly
connected to a properly earthed mains electrical supply, as laid down in the current
regulations for electrical safety.
The manufacturer cannot be held responsible for any damage to persons or objects due to
lack of an earth connection.
The ovens are designed to operate with a mono-phase alternating current of
220-240V, 50Hz.
Before the installation of the appliance, check the specifications on the
rating label.
Electrical Connection
Please keep this instruction manual for future reference

234
5678
911
10
AUTO
˚C / W/ g
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
13 10
11
Control Panel
Display
1. Power
2. Programme
3. Timer
4. Temperature °C /
Power (watts) /
Weight (grams)
5. Auto cooking
6. Up
7. Down
8. Select
9. Light / Child lock
10. Start / Pause
1. Programme / Function
2. Microwave
3. Defrost
4. Auto cooking
5. Temperature / Power /
Weight (grams)
6. Timer
7. Time
8. Child lock
9. Light
10. Alarm
11. End time
12. Duration time
13. Temperature /
Time Display
Please keep this instruction manual for future reference

234
5678
9 10
11
Accessories
Please keep this instruction manual for future reference

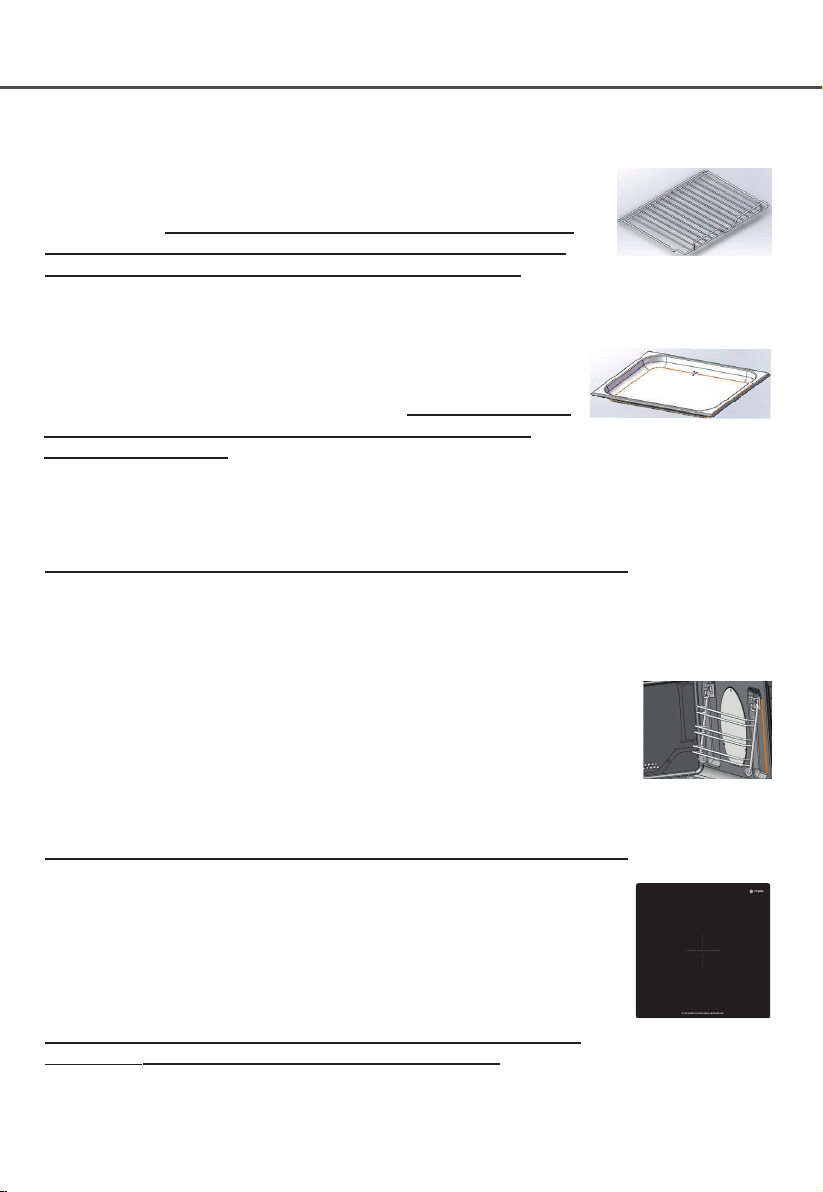

WIRE SHELF (FIG. 7)
The wire shelf allows you to brown or grill food. The shelf can be
used for normal fan heat, conventional cooking and grilling
functions only. It must not be used for any microwave function.
If a microwave function is selected, ensure the wire shelf has
been removed before starting any microwave functions.
ENAMELED TRAY (FIG. 8)
The enameled tray allows you to cook foods on normal fan heat,
conventional cooking, and grilling functions. The silicone corners
applied to the enameled tray also enables it to be used in
microwave functions.
NOTE: Do not remove the silicone corners, as this could damage the oven.
WARNING
Do not use the wire shelf (fig. 7 above) with any microwave function. This could
damage the shelf or even your microwave oven. The wire shelf is for normal
convection / fan cooking or grilling only.
THE SIDE SHELF SUPPORTS (FIG. 9)
2 hook-on shelf supports allow you to use the accessories on multiple
levels. Three cooking levels are available, depending on the method used
and the type of food. With the Grill or Grill + Microwave setting, the
accessories (shelf or tray) are placed on the first level for thick foods like
roasts and on the third level for thinner foods like sausages. In normal
cooking modes, or microwave functions, the shelf or tray should be used
on the first or second levels depending on the item(s) being cooked.
Do not use the wire shelf (fig. 7 above) with any microwave function.
GLASS BASE PLATE (FIG. 10)
When microwaving only, foods and beverages can be placed on the
glass base plate. The glass base plate protects the bottom of the
microwave cavity from any scratches, marks or spillages. It can also
be easily removed for cleaning by either hand or in the dishwasher.
NOTE: Always remove the wire shelf (fig. 7 above) when using
microwave functions, as this could damage the oven.
Fig. 7
Fig. 8
Fig. 9
Fig. 10

12 Please keep this instruction manual for future reference
Operation
Press the (1) button to turn the oven on. When turned on, the display will light up and
the time of day will be shown.
Programme / Function
To Select a function, press the PROG (2) button to toggle through the functions and press
SELECT (8) once you have reached the required function. Press the °C/W/g (4) button to
enter the temperature (°C), power (W) or weight (g) mode depending on what function has
been selected.
To adjust the temperature, power or weight, use the / (6,7) keys followed by
SELECT (8) to confirm.
Once confirmed, press the (10) button to start cooking. The main timer will show the
actual temperature, with the set temperature shown above this.
Light function
Press the / (9) button once to turn the internal microwave oven lights on & off.
The lights will automatically turn off after 3 minutes of no operation.
When the light is activated, the symbol will be shown on the display.
Child lock
Hold the / (9) button for 2-3 seconds to activate the child lock. To deactivate, press
and hold the / (9) button again for 2-3 seconds.
When the Child lock is activated, the symbol will be shown on the display.
(Refer to page 10 for button locations & numbering)

13 Please keep this instruction manual for future reference
Alarm setting
To set the Alarm/minute reminder, press the (3) button until the symbol starts
to flash. Use / (6,7) to adjust the time and then press SELECT (8) to confirm.
If you want to cancel the alarm, set the alarm time back to '0:00' and press SELECT
(8) to confirm. When the time is up, the alarm will sound for 90 seconds and the
symbol will begin to flash. To stop the alarm, press any button.
Setting the time
To set the time, turn the oven on and then press and hold the (3) button for 3
seconds until the time begins to flash. Adjust the time using the / (6,7) buttons
and then press SELECT (8) to confirm.
When the oven is first turned on or re-starts, the time must be set before using the
oven.
Duration cooking (0-10hrs)
Once a function and temperature have been selected, press the (3) button and
the Duration time will begin to flash. Press / (6,7) to adjust the time and then
SELECT (8) to confirm. Once the time is up, the alarm will sound and the oven will
switch off. Press any of the buttons to turn off the alarm / , SELECT and
To cancel Duration cooking, set the cooking time to '0:00' and confirm.
End cooking time
Once the Duration cooking time has been set, press (3) twice and the End
cooking time should start to flash. Adjust the time to the time you wish cooking to
stop and press SELECT (8) to confirm.
Your oven will then work out when to turn on, so that it cooks for the required duration
time and finishes at the required end time eg: Duration time set at 30 minutes and the
end time set to 18.15, the oven will automatically turn on at 17.45 and cook for 30
minutes on the set function and temperature (start time = End time - duration time).

14Please keep this instruction manual for future reference
Microwave Oven Functions
 

 
P
R 

 
g
& 
&
 
& 
&
 
& 
&
 

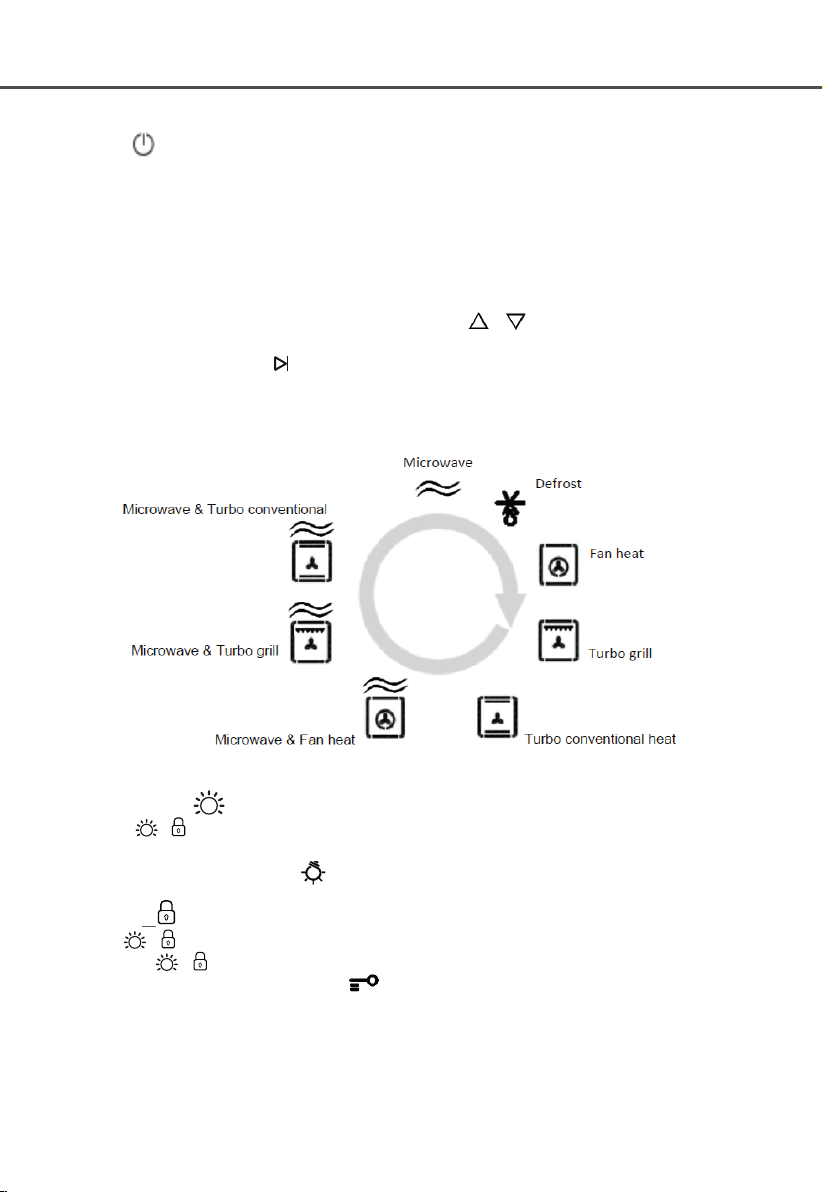

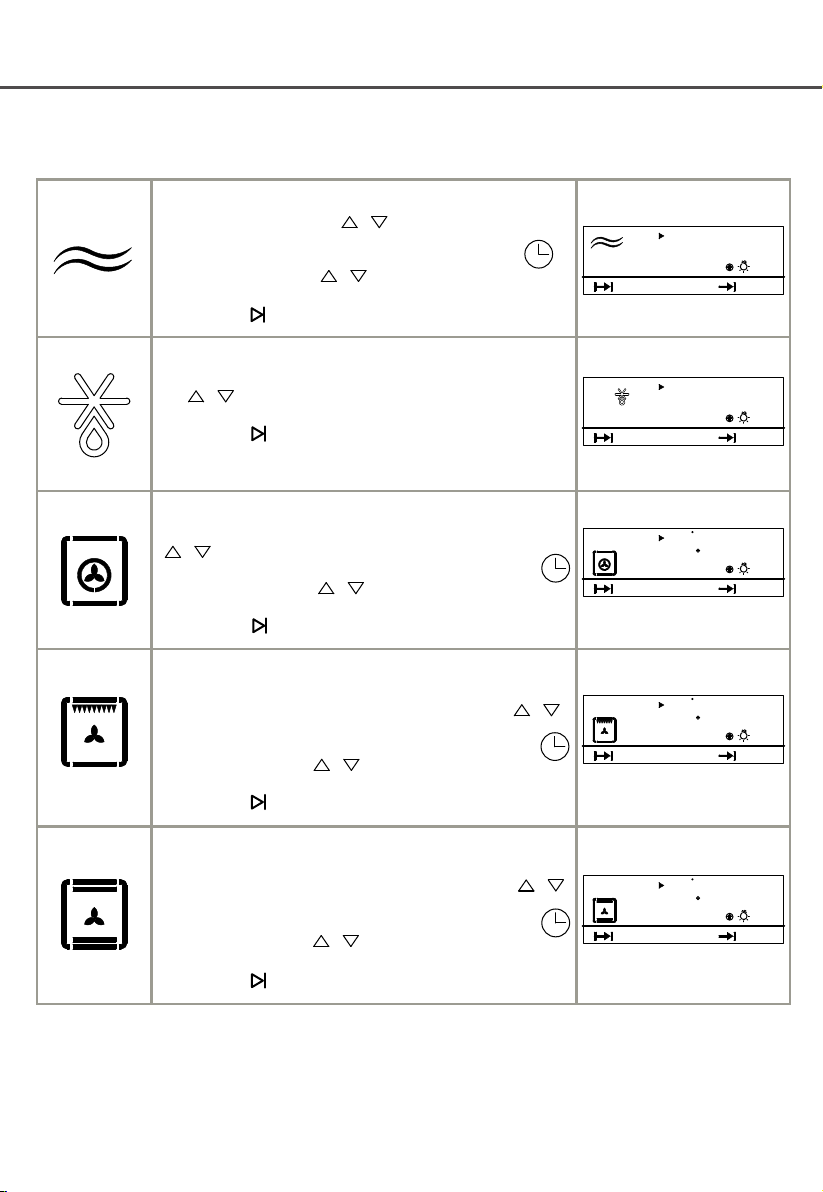

Press the PROG button to select the following functions.
Microwave - Default power P100 (power range P10-P100).
To adjust the power, press / until the correct power is
reached followed by SELECT.
Default time is 1 minute. To adjust the time, press the
button, followed by the / and SELECT to confirm.
Finally press to start the programme.
Defrost - Default weight 1000g (weight range 100-2000g).
To adjust the weight press the °C/W/g button followed by
the / and SELECT to confirm.
Finally press to start the programme. The default time
will be adjusted according to the set weight (See the
'Defrost time table' for more info).
Fan heat - Default temperature 200°C
To adjust the temperature press °C/W/g button followed by
/ Press SELECT to confirm.
The default time is 1.00hr. To adjust the time, press the
button followed by the / and SELECT to confirm.
Finally press to start the programme.
Turbo grill - Default temperature 200°C (Temperature range
50-220°C).
To adjust the temperature press °C/W/g followed by /
Press SELECT to confirm.
The default time is 1.00hr. To adjust the time, press the
button followed by the / and SELECT to confirm.
Finally press to start the programme.
Turbo conventional - Default temperature 200°C
(Temperature range 50-220°C).
To adjust the temperature press °C/W/g followed by /
Press SELECT to confirm.
The default time is 1.00hr. To adjust the time, press the
button followed by the / and SELECT to confirm.
Finally press to start the programme.

15Please keep this instruction manual for future reference
& 
&
 
& 
&
 
& 
&
 

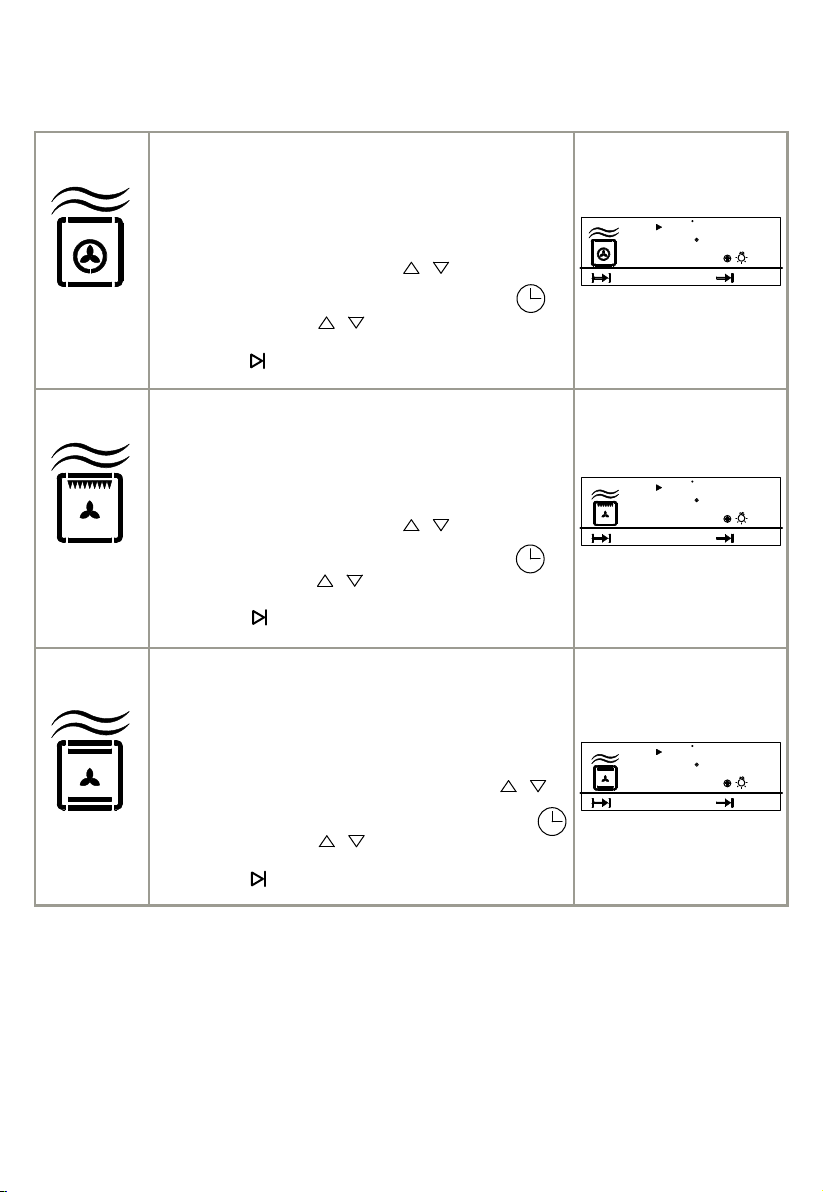

Microwave & Fan heat - Microwave default power P50
(power range P10-P50).
Fan heat default temperature 200°C (Temperature range
50-220°C).
Press °C/W/g once to enter the Microwave power mode and
then again to enter the fan heat temperature mode. These
can both then be adjusted using the / keys followed
by SELECT to confirm.
Default time is 1:00hr. To adjust the time, press the
button, followed by the / and SELECT to confirm.
Finally press to start the programme.
Microwave & Turbo conventional heat - Microwave
default power P50 (power range P10-P50).
Turbo grill default temperature 200°C (Temperature range
50-220°C).
Press °C/W/g once to enter the Microwave power mode and
then again to enter the Turbo conventional temperature
mode. These can both then be adjusted using the /
keys followed by SELECT to confirm.
The default time is 1:00hr. To adjust the time, press the
button, followed by the / and SELECT to confirm.
Finally press to start the programme.
Microwave & Turbo grill - Microwave default power P50
(power range P10-P50).
Turbo grill default temperature 200°C (Temperature range
50-220°C).
Press °C/W/g once to enter the Microwave power mode and
then again to enter the Turbo grill temperature mode. These
can both then be adjusted using the / keys followed by
SELECT to confirm.
Default time is 1:00hr. To adjust the time, press the
button, followed by the / and SELECT to confirm.
Finally press to start the programme.

16Please keep this instruction manual for future reference
Auto Cooking
Example:
 

 
g
SYMBOL DESCRIPTION DISPLAY
SYMBOL DEFAULT
WEIGHT
WEIGHT
ALTERNATIVES FUNCTION TIME
(MINUTES)
250g
500g
300g
200g
250g
500g
500g
800g
300g
600g
100g
200g
300g
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
2
4
19
22
5
8
2
4
5
Milk (Auto programme)
Press the auto programme button until the Milk symbol is
displayed.
Press the °C/W/g to enter the weight selection. Use the /
to adjust the weight and press SELECT to confirm.
The default time will be adjusted according to the weight
selected.
Finally press to start the programme.
400g
500g
600g
Microwave
Microwave
Microwave
6
7
8
MIlk
Soup
Noodles
Vegetables

17Please keep this instruction manual for future reference
SYMBOL DEFAULT
WEIGHT
WEIGHT
ALTERNATIVES FUNCTION TIME
(MINUTES)
200g
100g Microwave 1
Bread
Microwave
Microwave
Microwave
Fish
Meat
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
Microwave
200g
300g
2
3
100g 3
200g
300g
5
6
500g
400g 7
500g
600g
8
9
700g 10
800g 11
900g
1000g
12
13
500g
200g
300g
400g
500g
600g
800g
1000g
7
8
10
12
14
16
19

18Please keep this instruction manual for future reference
SYMBOL DEFAULT
WEIGHT FUNCTION TIME
(MINUTES)
1000g
200g Microwave + Grill 15
Chicken
WEIGHT
ALTERNATIVES
Microwave + Grill
Microwave + Grill
Microwave + Grill
Microwave + Grill
Microwave + Grill
Microwave + Grill
Microwave + Grill
Microwave + Grill
Microwave + Grill
20
400g
600g
800g
1000g
1200g
1400g
1600g
1800g
2000g
25
30
32
35
40
46
52
56
TIME
(MINUTES)
WEIGHT
(GRAMS)
TIME
(MINUTES)
WEIGHT
(GRAMS)
100
200
300
400
500
600
700
800
900
1100
1000
1200
1300
1400
1500
1600
1700
1800
1900
2000
3
5
6
8
10
12
14
16
18
20
32
34
36
38
40
22
24
26
28
30
Defrost Time Table
The maximum weight for defrost is 2000g. The default defrost time will be
adjusted according to the weight selected.

19Please keep this instruction manual for future reference
IMPORTANT
Electrically isolate your combination microwave oven before cleaning, or
performing maintenance.
To extend the life of your microwave oven, it must be cleaned frequently.
DO NOT USE STEAM EQUIPMENT TO CLEAN THE APPLIANCE
•To protect against the risk of electrical shock, do not immerse the unit, cord or
plug in water or other liquid or sprinkle water to clean the appliance.
•Don’t clean the appliance when it still hot. The inside and external surface of
the oven should preferably be cleaned with a damp cloth once it has cooled
down.
•Wash all accessories in hot soapy water or in a dishwasher. Wipe dry with a
paper or cloth towel.
•If you use your oven for an extended period of time, condensation may form.
Dry it using a soft cloth.
•There is a seal surrounding the oven opening which seals the oven door.
Check the condition of this seal and clean it regularly. Avoid using abrasive
products or objects to clean the seal. Should it become damaged, please
contact our service centre. We recommend you avoid using the oven until it
has been repaired.
•Never line the oven bottom with aluminium foil, as the accumulation of heat
could compromise the cooking and damage the enamel.
•Clean the glass door using a damp cloth and dry it with a soft cloth.
•Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven
door glass as they can scratch the surface, which may result in shattering of
the glass.
Care and Maintenance

20 Please keep this instruction manual for future reference
Removing the Microwave Oven Door
To make it easier to clean the inside of your combination microwave
oven, the door can be removed by proceeding as follows:
•Open the door completely and lift the 2 levers “B” (Fig.11-1);
•By shutting the door slightly, you can lift it out by pulling it towards you off the
hooks “A” as shown in Fig.11-2.
To reassemble the door:
•With the door in a vertical position, insert the two hooks “A” into the slots;
•Ensure that seat “D” is hooked perfectly onto the edge of the slot (move the
oven door backwards and forward slightly);
•Keep the oven door open fully, unhook the 2 levers “B” downwards and then
shut the door again.
Fig.11-1 Fig.11-2
Lift levers
both sides
Bottom of
oven door
Oven
door
pull
Step 2
REMOVING OVEN DOOR
Step 1
