CareOne AHBPS-060 User manual

AHBPS-060
El manual en español
empieza en la página 30
Manual Inflate
Blood Pressure Monitor

1 2
TABLE OF CONTENTS
INTRODUCTORY INFORMATION:
Important Product Notices and Safety Instructions......... 3
About Blood Pressure......................................................... 5
What is Blood Pressure?
Why Measure Your Blood Pressure?
Blood Pressure Standard.................................................... 5
How This Blood Pressure Monitor Works ......................... 7
USAGE INFORMATION:
Name/Function of Each Part ............................................... 8
Display Explanations........................................................... 9
Installing Batteries ............................................................ 11
Date & Time Set Procedure............................................... 13
Using The Arm Cuff ........................................................... 14
Measurement Procedure................................................... 18
Risk Category Index .......................................................... 21
Recalling Values from Memory......................................... 22
Clearing Values from Memory .......................................... 22
Important Notes Regarding Your
Blood Pressure Measurement.......................................... 23
Care, Maintenance & Cleaning ......................................... 24
Potential for Electromagnetic Interference ..................... 26
Troubleshooting................................................................. 27
Specifications .................................................................... 28
5 Year Limited Warranty .................................................... 29

3 4
• Thepulsedisplayisnotsuitableforcheckingthefrequencyof
heartpacemakers.
• Electromagneticinterference:Thedevicecontains
sensitiveelectroniccomponents.Avoidstrongelectricalor
electromagneticfieldsinthedirectvicinityofthedevice(e.g.
mobiletelephones,microwaveovens).Thesemayleadto
temporaryimpairmentofmeasurementaccuracy.
• Usebloodpressuremonitoronlyforitsintendeduse.
• Donotwrapthecuffaroundbodypartsotherthanyourarm.
• Notforusebyoronpersonsundertheageof18.
• Useonly1.5VAAalkalinebatteriesforpowersupply.
Bloodpressuremeasurementsdeterminedwiththisdeviceare
equivalenttothoseobtainedbyatrainedobserverusingthecuff/
stethoscopeauscultatorymethod,withinthelimitsprescribedby
theAmericanNationalStandard,Manual, electronic, or automated
sphygmomanometers.
IMPORTANTPRODUCTNOTICESANDSAFETY
INSTRUCTIONS
Whenusingyourbloodpressuremonitor,basicprecautions
shouldalwaysbefollowed.Pleasereadandfollowallinstructions
andwarningsbeforeusingthisproduct.Savetheseinstructions
forfuturereference.
• Pleasenotethatthisisahomehealthcareproductonlyand
itisnotintendedtoserveasasubstitutefortheadviceofa
physicianormedicalprofessional.
• Donotusethisdevicefordiagnosisortreatmentofanyhealth
problemordisease.Measurementresultsareforreference
only.Consultahealthcareprofessionalforinterpretation
ofpressuremeasurements.Contactyourphysicianifyou
haveorsuspectanymedicalproblem.Donotchangeyour
medicationswithouttheadviceofyourphysicianorhealthcare
professional.
• Propercuffsizeiscriticalforaccuratemeasurements.Follow
theinstructionsinthismanualandprintedonthearmcuffto
ensuretheappropriatesizeofcuffisbeingused.
• Thisdevicemayhavedifficultydeterminingtheproperblood
pressureforindividualswithirregularheartbeat,diabetes,poor
circulationofblood,kidneyproblemsorforuserswhohave
sufferedfromastroke.

5 6
Thistableisapplicabletomostadultsaged18andolder.
Bloodpressuretendstogoupanddown,eveninpeoplewho
normallydon’thavehighreadings.Ifyournumbersstayabove
the“normal”rangemostofthetime,youmaybeatincreased
riskandshouldconsultyourphysician.
Althoughonecaneasilyfindwheretheirownbloodpressure
readingsfallonthistable,thismonitorcomesequippedwitha
RiskCategoryIndexthatautomaticallycompareseachreading
todefinedlevelsandprovidesahelpfulcueifyourreadingfalls
intooneofthestagesthatcouldpotentiallyindicateincreased
risk.Seepage21formoreinformationonthisfeature.
Pleasenotethatcuesprovidedbythismonitorareonlyintend-
edtoassistyouinusingthistable.Thetableandcuesareonly
providedforconveniencetohelpyouunderstandyournon-inva-
sivebloodpressurereadingasitrelatestotheNIHinformation.
Theyarenotasubstituteforamedicalexaminationbyyour
physician.Itisimportantforyoutoconsultwithyourphysician
regularly.Yourphysicianwilltellyouyournormalbloodpres-
surerangeaswellasthepointatwhichyoumayactuallybe
consideredtobeatrisk.
ABOUTBLOODPRESSURE
What is Blood Pressure?
Bloodpressureisthepressureexertedontheartery
wallswhilebloodflowsthroughthearteries.Thepressure
measuredwhentheheartcontractsandsendsblood
outoftheheartissystolic(highest)bloodpressure.The
pressuremeasuredwhentheheartdilateswithblood
flowingbackintotheheartiscalleddiastolic(lowest)
bloodpressure.
Why Measure Your Blood Pressure?
Amongtoday’svarioushealthproblems,thoseassociated
withhighbloodpressureareverycommon.Highblood
pressuredangerouslycorrelateswithcardiovascular
diseases.Therefore,bloodpressuremonitoringis
importantforidentifyingthoseatrisk.
BLOODPRESSURESTANDARD
Thetableonpage6containsdefinedlevelsforhypertensionthat
arepubliclyavailablefromtheNationalHeartLungandBlood
InstituteattheU.S.NationalInstitutesofHealth(NIH)
(http://www.nhlbi.nih.gov/health/dci/Diseases/Hbp/HBP_WhatIs.html).Users
cancomparetheirownbloodpressurereadingsagainstthese
establishedcriteriatodetermineiftheymaybepotentiallyat
increasedrisk.
Category Systolic(mmHg) Diastolic(mmHg)
Normal Lessthan120 and Lessthan80
Prehypertension 120-139 or 80-89
HighBloodPressure
Stage1 140-159 or 90-99
Stage2 160orhigher or 100orhigher

7 8

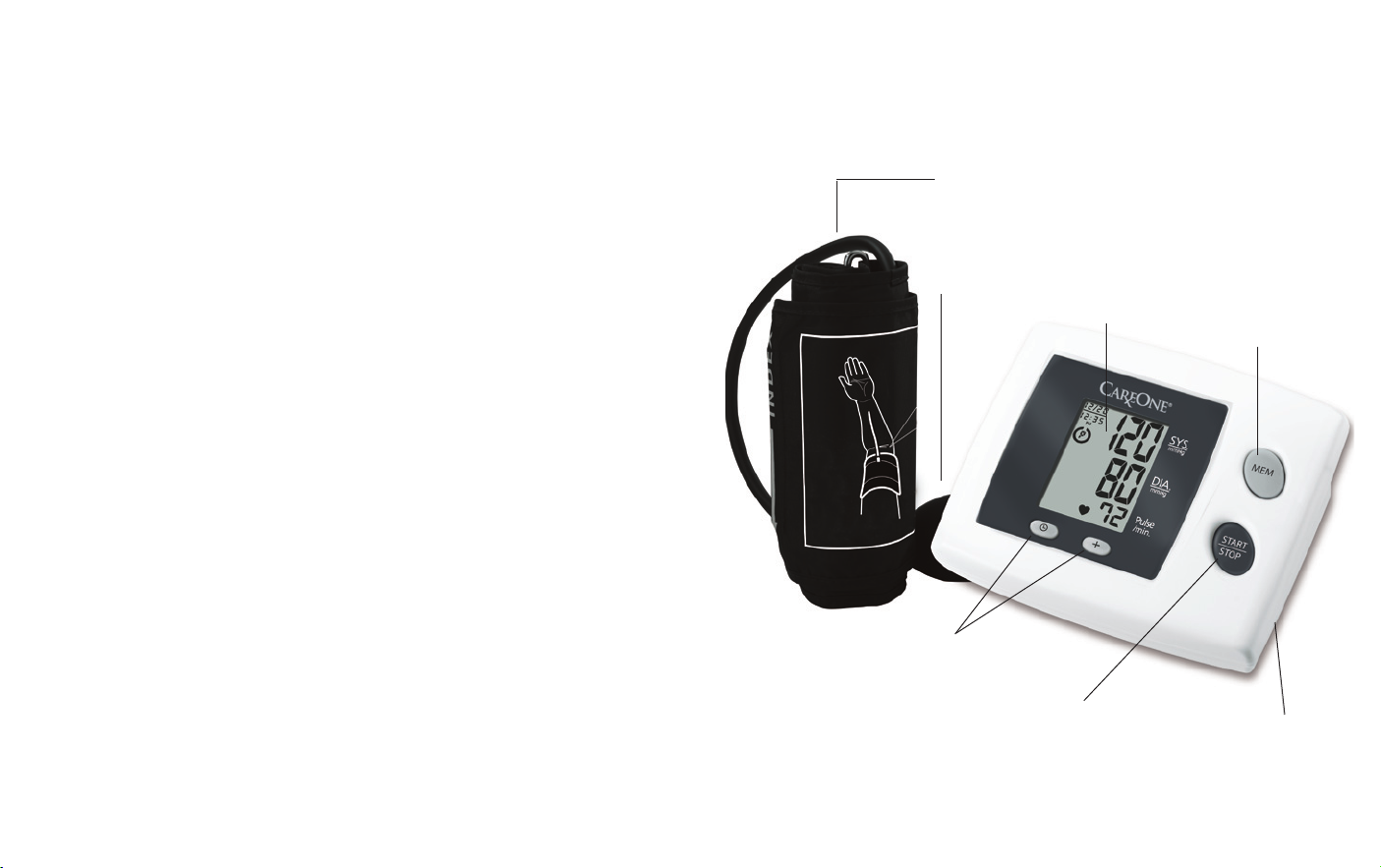

NAME/FUNCTION OF EACH PART
LCD
Display
BatteryCover
(Located on bottom
of unit)
MemoryRecall
Button
START/STOPButton
CuffTube
ArmCuff
InflationBulb
Date/Time
SetButtons
HOWTHISBLOODPRESSURE
MONITOR WORKS
Thismanualinflatedigitalbloodpressuremonitorprovides
systolicpressure,diastolicpressureandpulsereadings
quicklyandeasily.Oncethecuffisinflated,themonitor
willdetermineyourbloodpressuresbyanalysisofyour
pressureoscillations.Whenthemeasurementiscompleted,
thedevicewilldeflatethecuffanddisplayyoursystolic
pressure,diastolicpressureandpulsereadings.
Themonitorautomaticallyfindswhereyourmeasurement
resultsfallontheNIH’sNationalHeartLungandBlood
Institute’stableandprovidesacueifyourreadingfallsinto
oneofthestagesthatcouldpotentiallyindicateincreased
risk.Pleaserefertopage21formoreinformationonthis
feature.

9 10

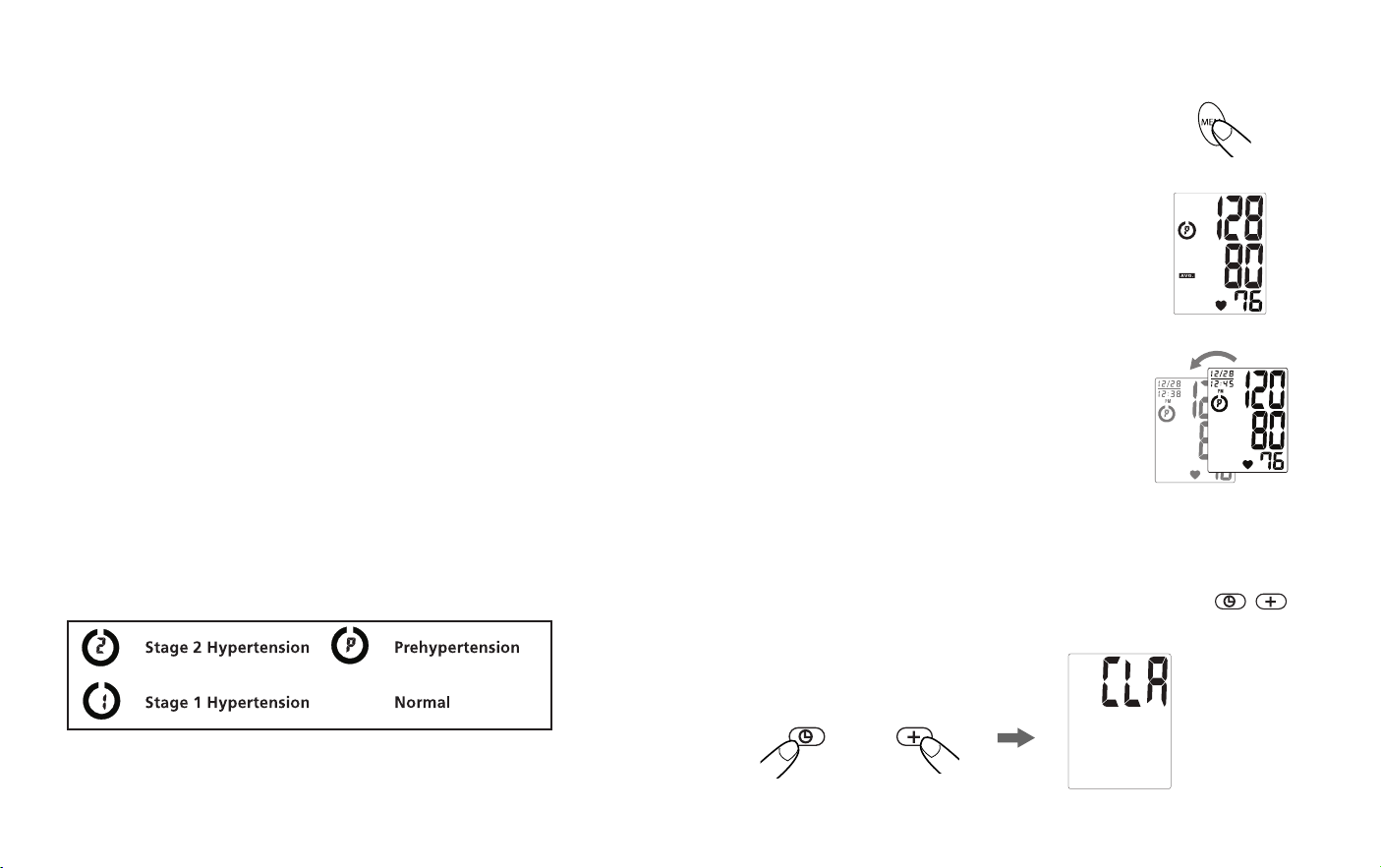

Inflation Symbol:Appearswhencuffrequiresinflation.
Deflation Symbol:Appearswhencuffisdeflating.
Weak Battery Symbol:Appearswhenbatteriesshould
bereplaced.
Pulse Symbol:Showstheheartrateperminute.
Memory Average: Displaysaverageoflast3readings.
Risk Category Index: Seepage21formoreinformation.
Display Symbols:
Measurement Error:Measureagain.Wrapthecuff
correctlyandkeeparmsteadyduringmeasurement.
Air Circuit Abnormality:Checkcuffconnection.Measureagain.
Pressure Exceeding 300 mmHg:Turntheunitofftoclear,
thenmeasureagain.
Error Determining Measurement Data:Measureagain.
Ifandanyofthefollowinglettersandnumbersappearinthe
areathatsystolicpressureshouldbedisplayed,anerrorhasoccurred
withyourreading.SeeTroubleshootingsectionofthismanualformore
information.
(No Symbol)
DISPLAY EXPLANATIONS
Systolic
Pressure
Diastolic
Pressure
Date/TimeIndicator
HeartRate

11 12
Replace the batteries if:
1.Theweakbatterysymbolappearsonthedisplay.
2.Nothingappearsonthedisplaywhenthepoweris
switchedon.
Asthesuppliedbatteriesarefortestonly,theymaybe
dischargedearlierthanbatteriesyoubuyinstores.Replace
allbatteriesatonetime(assimultaneousset).Useonly
1.5VAAalkalinebatteries.Removebatterieswhenunitis
notinuseforextendedperiodsoftime.Dateandtimewill
needtoberesetifbatteriesareremovedorreplaced.Clean
contactsonbatteryandinbatterycompartmentwithasoft
dryclotheachtimeyouinstallbatteries.
Note:Batteriesarehazardouswaste.Donotdisposeof
themtogetherwiththehouseholdgarbage.

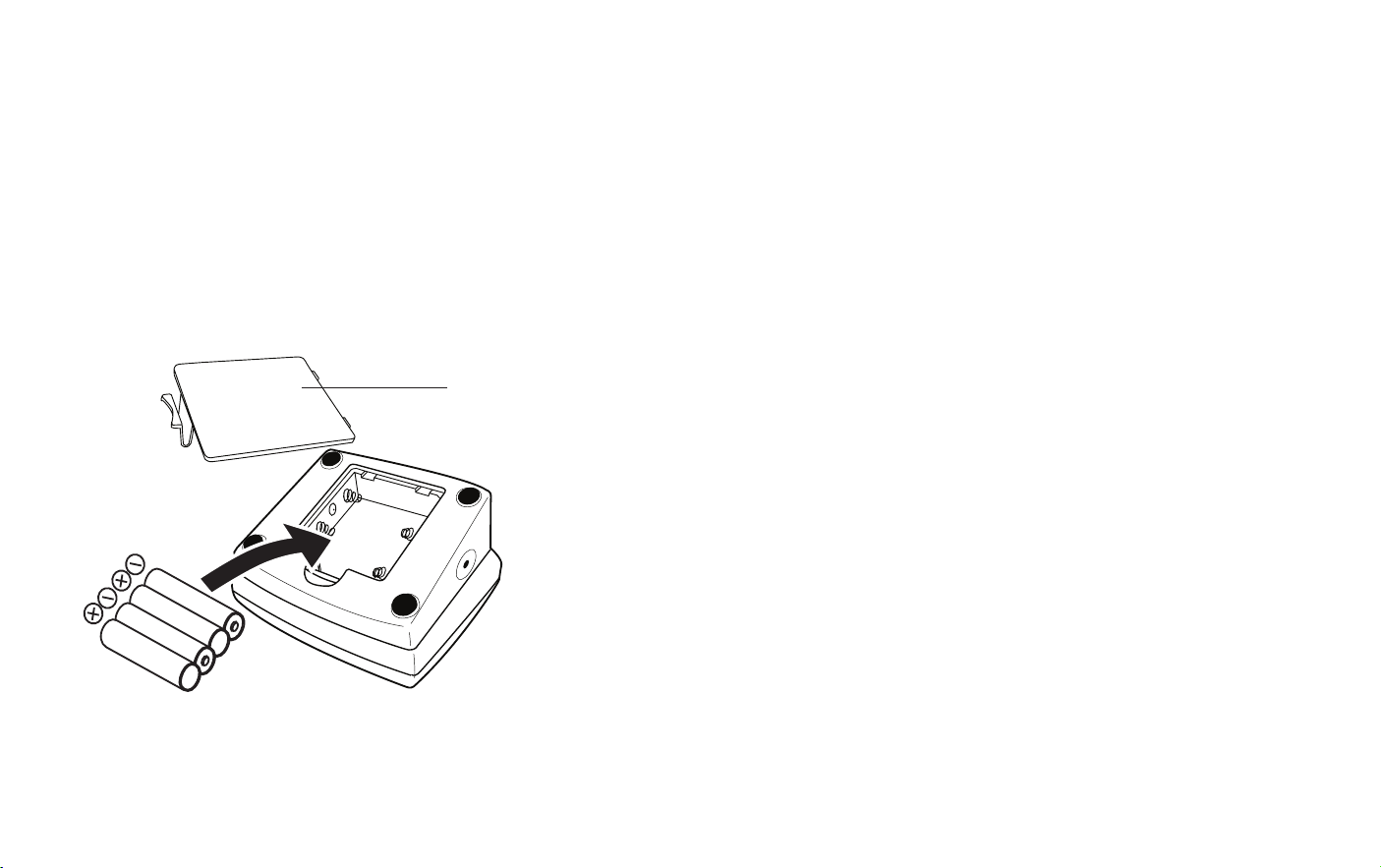

INSTALLING BATTERIES
1.Pressdownonlatchandliftthebatterycovertowards
youtoopenthebatterycompartment.
2.Installorreplace4“AA”sizedbatteriesinthebattery
compartmentaccordingtotheindicationsinsidethe
compartment.
3.Replacethebatterycoverbyclickinginthebottom
hooksfirst,thenpushinthetopendofthebattery
door.
Battery
Cover

13 14

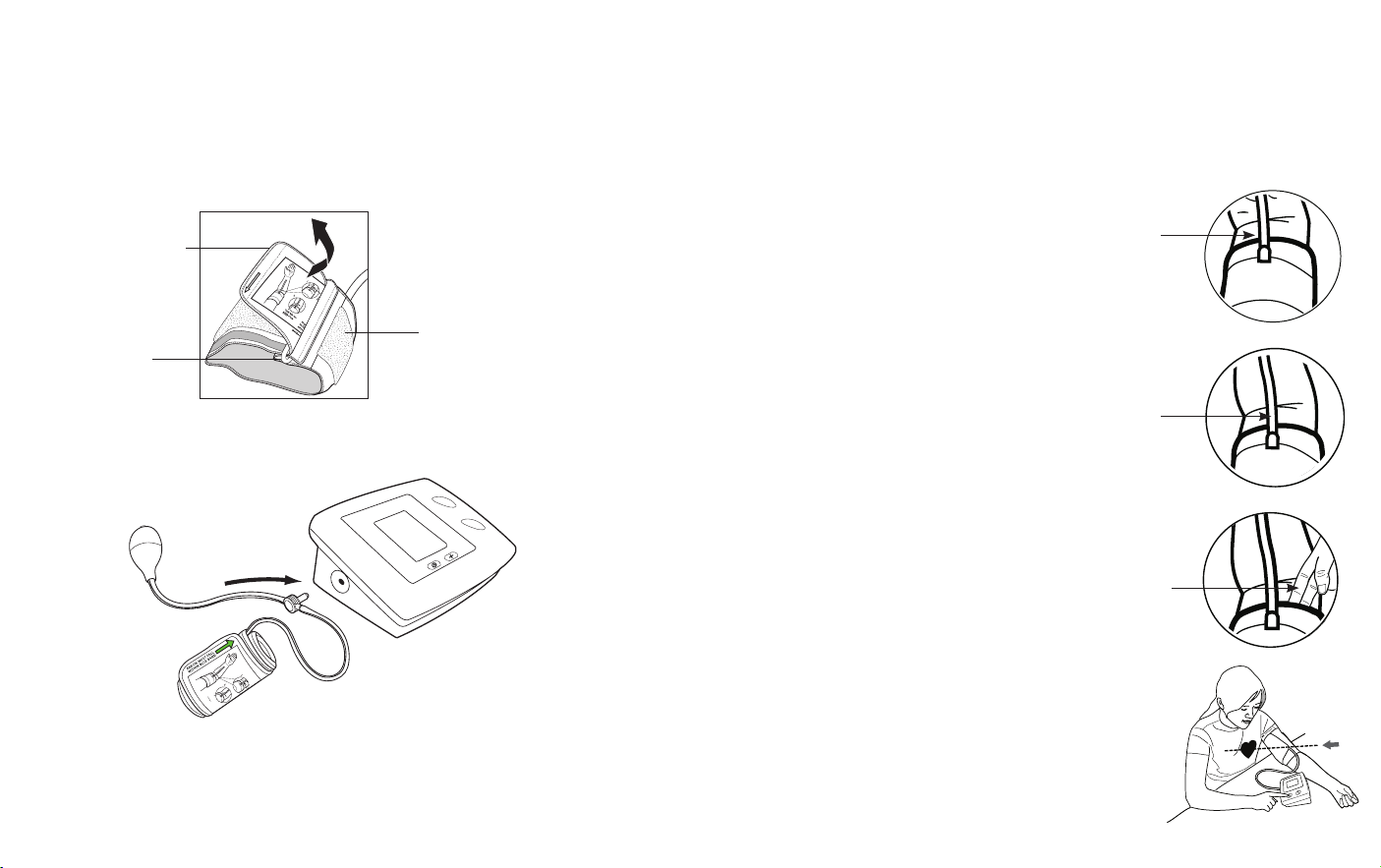

USING THE ARM CUFF
Very Important: Proper cuff size is critical to accurate
measurement.
This monitor comes with a Standard Size arm cuff that
fits arms with circumferences of 9”–13” (23 cm – 33 cm).
This cuff is suitable for your use if the colored arrow
falls within the solid color line as shown below.
If the arrow falls outside of the solid color line, you
will need a cuff with another circumference. Contact
HoMedics Consumer Relations at 1-800-466-3342.
ARROW MUST FALL
WITHIN YELLOW BAND
ARROW MUST FALL
WITHIN YELLOW BAND
Center tube over
middle of arm
MODEL#PP-BPCUFF5
Position cu
edge 0.6˝
–
1.0˝
(1.5
–
2.5cm)above elb ow.
Center tube over
middle of arm.
Fit cu securely. Allow room for
two ngers to t between t he cu
and your arm.
SolidColoredLine
ColoredArrow

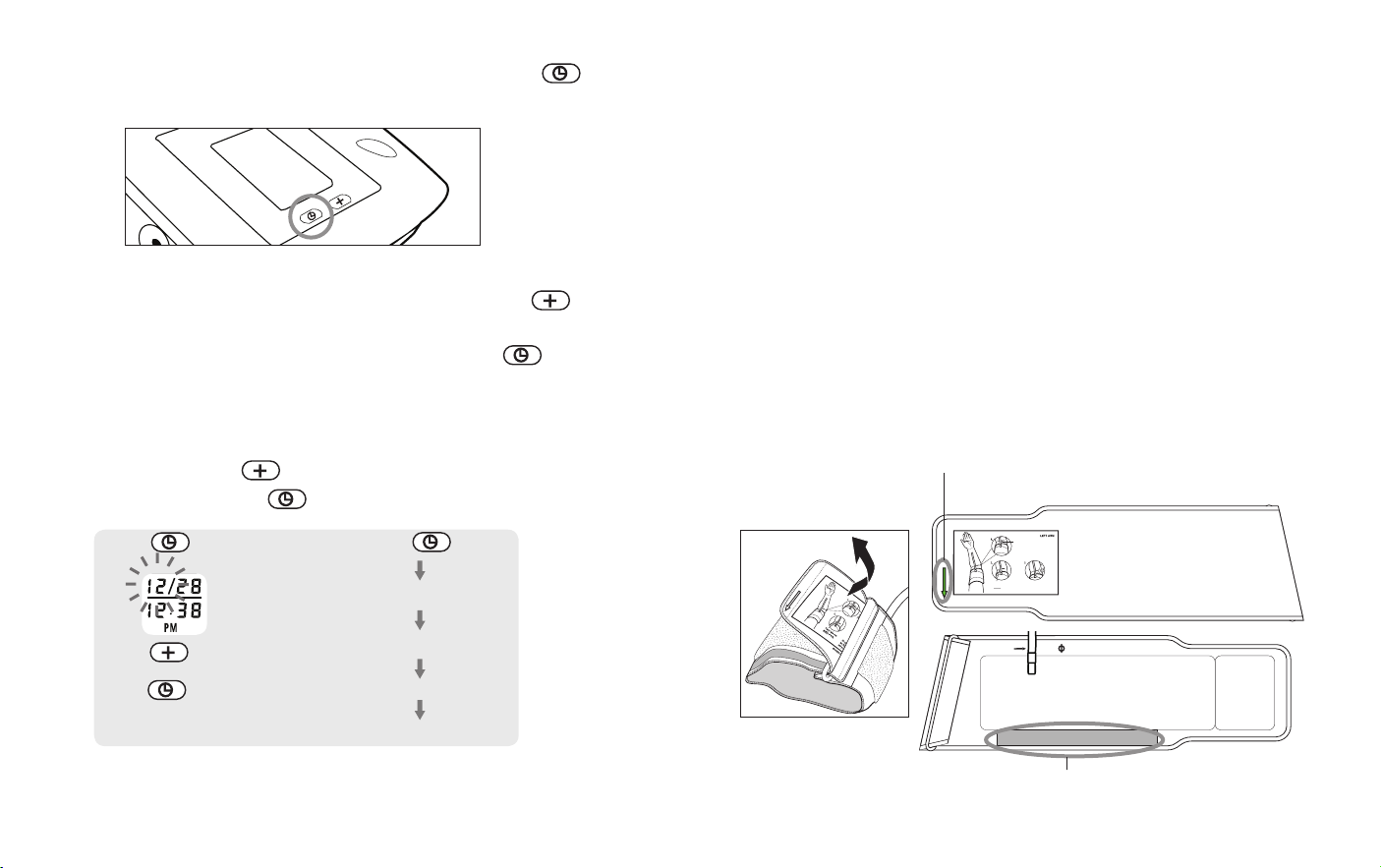

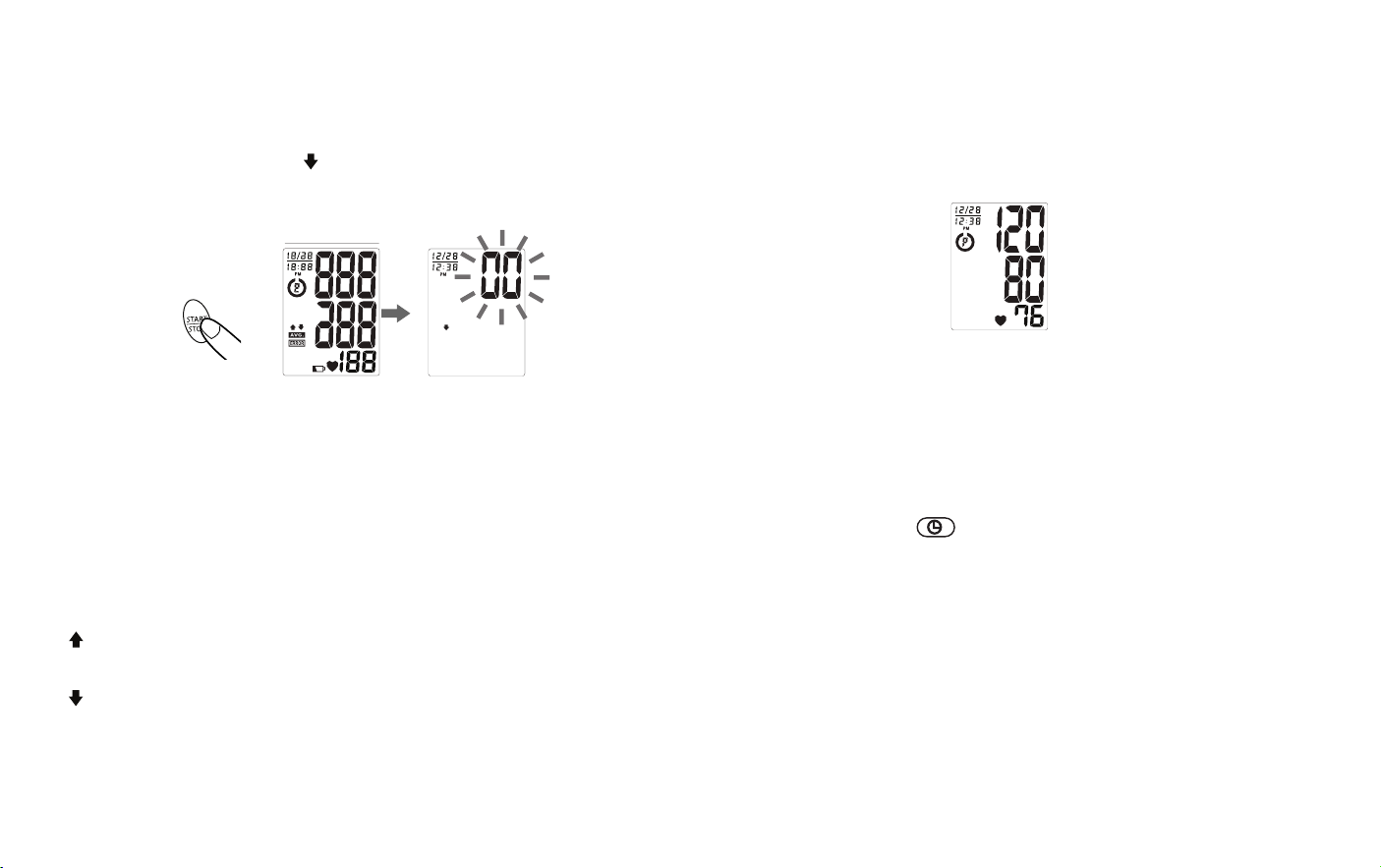

DATE & TIME SET PROCEDURE
1.Toadjustthedate/time,presstheSet button .
2.Thedisplaywillshowablinkingnumbershowing
thedate.Changethemonthbypressingthe
button.Eachpresswillincreasethenumberbyone
inacyclingmanner.PresstheSet button again
toconfirmtheentry,andthescreenwillshowa
blinkingnumberrepresentingthedayofthemonth.
3.ChangethedateandtimeasdescribedinStep2
above,usingthe buttontochangethenumbers
andtheSet button toconfirmtheentries.
Press the button
blinking month
increasing month
confirm the entry
repeat process to set date and time

15 16
3.Openthearmcuffsothatyourarmmaybeplaced
throughit.
4.Removetightfittingclothingfromyourupperleftarm
sothatthecuffcanbewrappedaround
yourexposedarm.

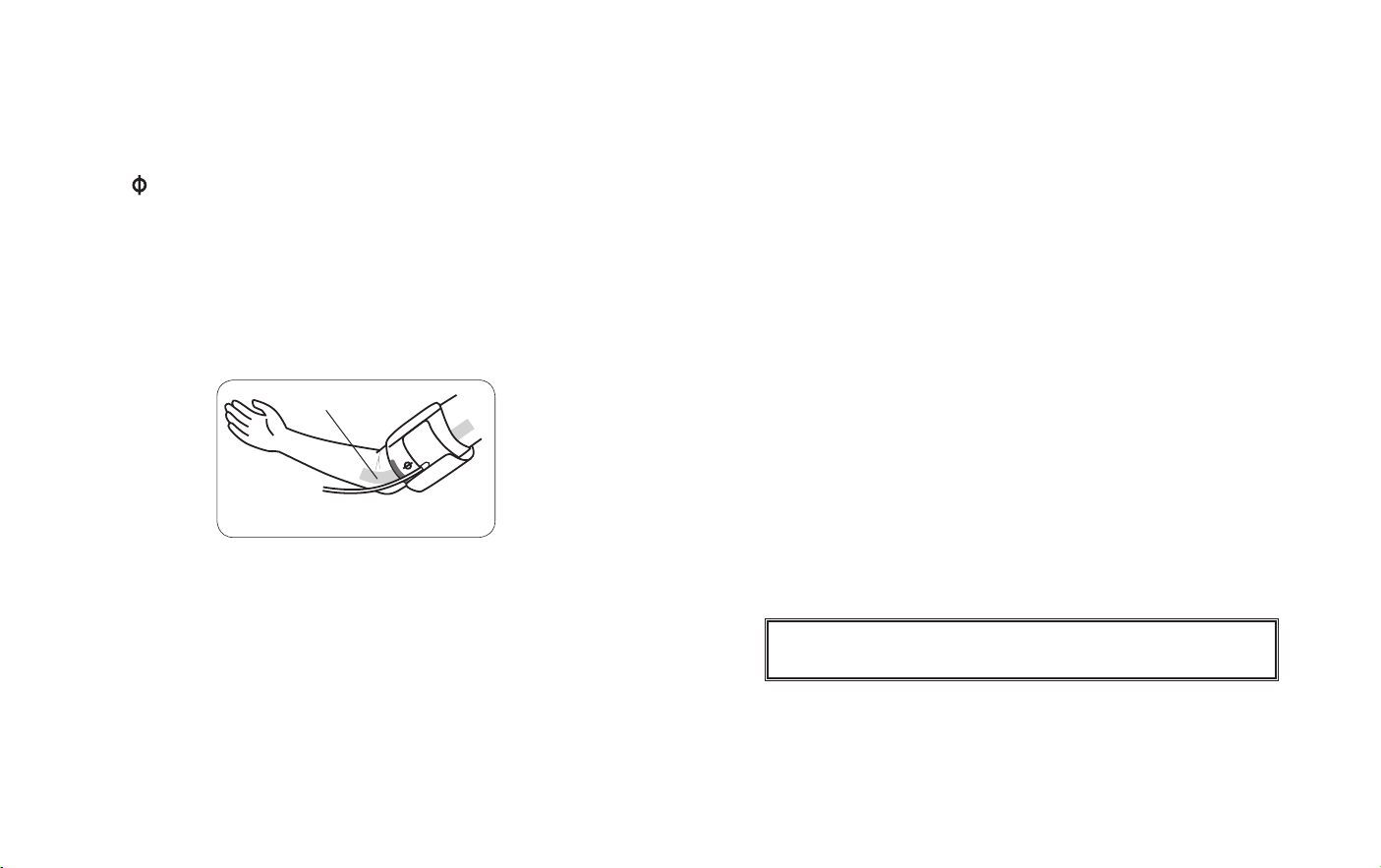

5.Positioncuffedge0.8-1.2
inches(2-3cm)aboveelbow.
6.Centertubeovermiddleofarm.
7.Pulltheendofthecuffsothatittightens
evenlyaroundyourarm.Pressthehook
andloopmaterialtogethertosecure.
Allowroomfor2fingerstofitbetweenthe
cuffandyourarm.
8.Layyourarmonatable(palmupward)
sothecuffisatthesameheightasyour
heart.Makesurethetubeisnotkinked.
Main
Artery
1.Ifthecuffisnotassembled,passtheendofthe
cufffurthestawayfromthetubingthroughthemetal
D-ringinordertoformaloop.Thesmoothside
withoutthefeltmaterialshouldbeontheinsideof
thecuffloop.
2.Plugthecufftubeintotheleftsideoftheunit.
Position cuff
edge 0.6˝
–
1.0˝
(1.5
–
2.5cm)above elbow
Center tube over
middle of arm.
F
Insertplughere
ARROW MUST FALL
WITHIN YELLOW BAND
D-ring
Endofcuff
FeltMaterial
ontheoutside
ofcuff

17 18
MEASUREMENT PROCEDURE
Important Notes:
•Bloodpressurechangeswitheveryheartbeatandis
inconstantfluctuationthroughouttheday.
•Bloodpressuremeasurementcanbeaffectedbythe
positionoftheuser,hisorherphysiologiccondition
andotherfactors.Forgreatestaccuracy,wait1
hourafterexercising,bathing,eating,drinking
beverageswithalcoholorcaffeine,orsmokingto
measurebloodpressure.
•Beforemeasurement,itissuggestedthatyousit
quietlyfor15minutesasmeasurementstaken
duringarelaxedstatewillhavegreateraccuracy.
Youshouldnotbephysicallytiredorexhausted
whiletakingameasurement.
•Duringthemeasurement,donottalkormoveyour
armorhandmuscles.
•Seepage23foradditionalnotesregardingyour
bloodpressuremeasurement.
Ifyouareusingthisbloodpressuremonitorforthefirst
time,pleaseremovetheprotectivefilmfromthescreen.
Note:
Ifitisnotpossibletofitthecufftoyourleftarm,it
canalsobeplacedonyourrightarm.However,all
measurementsshouldbemadeusingthesamearm.
Touseontherightarm,youmustpositiontheartery
symbol“”overthemainartery.Locatethemainarteryby
pressingwithtwofingersapproximately1”(2cm)above
thebendofyourelbowontheinsideofyourrightarm.
Identifywherethepulsecanbefeltthestrongest.Thisis
yourmainartery.
MainArtery

19 20
3. Whenthemeasurementiscompleted,thecuffwill
deflateentirely.Systolicpressure,diastolicpressureand
pulsewillbeshownsimultaneouslyontheLCDscreen.
The measurement is then automatically stored into
memory.
Note:
1.Thismonitorautomaticallyturnsoffapproximately1
minuteafterlastoperation.Youmayalsopressthe
START/STOP button toturntheunitoff.
2.Tointerruptthemeasurement,youmaypressthe
START/STOP button (recommended),“MEM”, or
Date/Time Set buttons. Thecuffwilldeflate
immediatelyafterabuttonispressed.
1.Withthecuffwrappedaroundyourarm,presstheSTART/
STOP button.Donotinflatethecuffunlessitiswrapped
aroundyourarm.Alldigitswilllightuptocheckthedisplay
functions.Thecheckingprocedurewillbecompletedafter
about3seconds.The( )arrowwillappearmomentarily
andthenthedisplaywillshowa“00”.Themonitoris
“Ready to Measure” atthispoint.
2.Usingthehandofthearmthatdoesnothavethecuffon
it(thiswillbeyourrighthandifwearingthecuffonyour
leftarm),squeezetheinflationbulbandcontinuepumping
untilthepressurereadingonthedisplayreaches140
mmHg.Thecuffwillthenbeginslowlydeflatingaspartof
themeasurementprocess.
Ifthepressureinthecuffisnotenough,anupwardarrow
( )willappear,directingyoutocontinuepumping.Itis
recommendedthatyoupumpuntilthedownwardarrow
( )appears.

21 22
1.Pressthe“MEM” buttonto
accessthememory.
2.The monitor will first
display the calculated
average applied to the last 3
memories.
3.Everynewpressofthe“MEM”
buttonwillrecallaprevious
reading.Thelatestreadingwill
berecalledfirst.
RECALLING VALUES FROM MEMORY
CLEARING VALUES FROM MEMORY
Pressandholdthedate & time set buttons( )at
thesametimewhileinmemorymodeandthedatawill
beerasedautomatically.
RISK CATEGORY INDEX
ThismonitorcomesequippedwithaRiskCategory
Indexthatautomaticallycompareseachreading
todefinedlevelsestablishedbytheU.S.National
InstituteofHealth’s(NIH)NationalHeartLungand
BloodInstituteasdescribedearlierinthismanual,
andprovidesahelpfulcueifyourreadingfallsinto
oneofthestagesthatcouldpotentiallyindicate
increasedrisk.Nocueisgivenifthereadingfalls
inthenormalrangeasdefinedbyNIH.Please
notethatcuesprovidedbythismonitorareonly
intendedtoassistyouinusingthistable.Thetable
andcuesareonlyprovidedforconveniencetohelp
youunderstandyournon-invasivebloodpressure
readingasitrelatestotheNIHinformation.Theyare
notasubstituteforamedicalexaminationbyyour
physician.Itisimportantforyoutoconsultwithyour
physicianregularly.Yourphysicianwilltellyouyour
normalbloodpressurerangeaswellasthepointat
whichyoumayactuallybeconsideredtobeatrisk.
(No Symbol)
and

23 24
• This device may have difficulty determining the
proper blood pressure for users with irregular
heartbeat, diabetes, poor circulation of blood,
kidney problems, or for users who have suffered a
stroke.
CARE, MAINTENANCE & CLEANING
1.Cleanthebloodpressuremonitorbodyandcuff
carefullywithaslightlydamp,softcloth.Donotpress.
Donotwashcufforusechemicalcleaneronit.Never
usethinner,alcoholorpetrol(gasoline)ascleaner.
2.Leakybatteriescandamagetheunit.Remove
thebatterieswhentheunitwillnotbeusedfora
longtime.
3.Iftheunitisstorednearfreezing,allowittoacclimate
toroomtemperaturebeforeuse.
4.Thisbloodpressuremonitorisnotfieldserviceable.
Youshouldnotuseanytooltoopenthedevice
norshouldyouattempttoadjustanythinginside
thedevice.Ifyouhaveanyproblemswiththis
device,pleasecontactHoMedicsConsumer
Relations(contactinformationcanbefoundonthe
warrantypage).
5.Donotimmersetheunitinwaterasthiswillresultin
damagetotheunit.
IMPORTANT NOTES REGARDING YOUR BLOOD
PRESSURE MEASUREMENT
• Takeyourreadinginacomfortableenvironment
asmeasurementscanbeaffectedbyhotorcold
temperatures.Takeyourbloodpressureatnormal
bodytemperature.
• Donotmoveortalkduringmeasurementasthiscan
elevatereadings.
• Donotmoveorcrosslegsduringmeasurement.Keep
feetflatonfloor.
•Donottouchcufformonitorduringmeasurement
procedure.
• Itissuggestedthatyoutakeyourmeasurementsat
thesametimeeachdayandusethesamearmfor
consistency.
• Usersshouldwaitaminimumof5minutesbefore
takingadditionalmeasurements.Moretimemaybe
necessarydependinguponyourphysiology.
• The measurement results that users receive are for
reference only. If users have any blood pressure
concerns, please consult a physician.
• Once inflation reaches 300 mmHg, the unit will
deflate automatically for safety reasons.

25 26
POTENTIAL FOR ELECTROMAGNETIC INTERFERENCE
Toavoidinaccurateresultscausedbyelectromagnetic
interferencebetweenelectricalandelectronic
equipments,donotusethedevicenearacellphoneor
microwaveoven.
ThisdevicecomplieswithPart15oftheFCCRules.
Operationissubjecttothefollowingtwoconditions:(1)
thisdevicemaynotcauseharmfulinterference,and(2)
thisdevicemustacceptanyinterferencereceived,includinginterference
thatmaycauseundesiredoperation.
NOTE:ThemanufacturerisnotresponsibleforanyradioorTV
interferencecausedbyunauthorizedmodificationstothisequipment.
Suchmodificationscouldvoidtheuserauthoritytooperatethe
equipment.
NOTE:Thisequipmenthasbeentestedandfoundtocomplywith
thelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCC
Rules.Theselimitsaredesignedtoprovidereasonableprotection
againstharmfulinterferenceinaresidentialinstallation.Thisequipment
generates,usesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycause
harmfulinterferencetoradiocommunications.However,thereisno
guaranteethatinterferencewillnotoccurinaparticularinstallation.If
thisequipmentdoescauseharmfulinterferencetoradioortelevision
reception,whichcanbedeterminedbyturningtheequipmentoffandon,
theuserisencouragedtotrytocorrecttheinterferencebyoneormore
ofthefollowingmeasures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connecttheequipmentintoanoutletonacircuitdifferentfromthat
towhichthereceiverisconnected.
•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
6.Donotsubjectthemonitorandcufftoextreme
temperatures,humidity,moisture,anddirectsunlight.
Protectfromdust.
7.Donotfoldthecuffandtubingtightly.
8.Donotdisassemblethemonitororcuff.Ifinneedof
repair,refertothewarrantysectionofthismanual.
9.Donotsubjectthemonitortoextremeshocks(donot
droponfloor).
10.Donotinflatethecuffunlesswrappedaroundyour
arm.
11.Donotwrapthecuffaroundbodypartsotherthan
yourarm.
12.Donotdroporinsertanyobjectintoanyopeningor
hose.
13.Toavoidaccidentalstrangulation,keepthisproduct
awayfromchildren.Donotdrapetubearoundneck.
14.Thismonitormaynotmeetitsperformance
specificationsifstoredorusedoutsideofthese
temperatureandhumidityranges:
 •StorageEnvironment•OperatingEnvironment
Temperature:
50°F~104°F(10°C~40°C)
Humidity:
15%~90%RH
Temperature:
-4°F~158°F(-20°C~70°C)
Humidity:
lessthan90%RH

27 28
Power Source: Four1.5VDC(AA)batteries
Measurement
Method: Oscillometric
Measurement Range: Pressure:40~280millimetersmercury(mmHg)
Pulse:40~199beats/minute
Accuracy: Pressure:±3mmHg
Pulse:±5%ofreading
Pressure Sensor: Semi-conductor
Inflation: ManualInflation
Deflation: AutomaticPressurereleasevalve
Memory Capacity: 60memories
Auto-shut-off: 1minuteafterlastbuttonoperation
Operation
Environment:
Temperature:50°F~104°F(10°C~40°C)
Humidity:15%–90%R.H.
Storage Environment: Temperature:-4°F~158°F(-20°C~70°C)
Humidity:Lessthan90%R.H.
Weight: .43lbs/193grams(withoutbatteries)
Arm Circumference: Standardsizeadultarmcuff:
9”–13”(23–33cm)
Dimensions: 5”(L)x4.1”(W)x2.7”(H)
126mm(L)x105mm(W)x68mm(H)
InternallyPoweredequipment
TypeBFEquipment
IPx0-Nospecialprotectionagainstthe
ingressofwater
Notsuitableforuseinpresenceofflammable
anestheticmixturewithair,oxygenor
nitrousoxide.
Continuousoperationwithshort-timeloading.
SPECIFICATIONS
Note: Thesespecificationsaresubjecttochangewithoutnotice.
TROUBLESHOOTING
Ifanyabnormalityarisesduringuse,pleasecheckthefollowingpoints
Note:Iftheunitstilldoesnotwork,contactHoMedicsConsumer
Relations.Undernocircumstanceshouldyoudisassembleor
attempttorepairtheunitbyyourself.Contactinformationfor
HoMedicsConsumerRelationsDepartmentcanbefoundon
thewarrantypage.
SYMPTOMS POSSIBLE
CAUSES CORRECTION
Unitdoesnotturn
onwhentheSTART/
STOP
buttonispushed.
Batterieshave
run down.
Replacethemwith
fournewAAalkaline
batteries.
Batterypolarities
havebeenpositioned
incorrectly.
Re-insertthebatteries
inthecorrect
positions.
EEmeasurement
errorsymbolshown
ondisplayorthe
bloodpressure
valueisdisplayed
excessivelylow
(or high).
Cuffhasbeenplaced
incorrectly.
Wrapthecuffproperly
sothatitispositioned
correctly.
Didyoutalkormove
duringmeasurement?
Measureagain.
Keep armsteady
duringmeasurement.
Shakingofthearm
withthecuffon.
E1errorsymbol
shownondisplay
Aircircuitabnormality.
Cufftubemaynotbe
pluggedintomonitor
correctly.
Checkcuffconnection.
Measureagain.
E2errorsymbol
shownondisplay
Inflationpressure
exceeding300mmHg.
Turntheunitoff,then
measureagain.
E3errorsymbol
shownondisplay
Errordetermining
measurementdata.
Measureagain.

Monitor de Presión Sanguínea
de Inflado Manual
AHBPS-060
For service or repair,
do not return this unit
to the retailer. Contact
HoMedics Consumer
Relations at:
Mail:
HoMedics, Inc.
Service Center
Dept. 168
3000 Pontiac Trail
Commerce Township, MI
48390
Email:
cservice@
homedics.com
Phone:
1-800-466-3342
Business Hours:
8:30am-5pm ET
Monday-Friday
HoMedics, Inc.
3000 Pontiac Trail,
Commerce Township, MI
48390
Printed in China
®
Distributed by
©2008-2010 HoMedics, Inc. and its affiliated companies, all rights reserved. HoMedics is a
registered trademark of HoMedics, Inc. and its affiliated companies. All rights reserved.
IB-AHBPS060B
LIMITED FIVE YEAR WARRANTY
HoMedics sells its products with the intent that they are free of defects in manufacture and
workmanship for a period of five years from the date of original purchase, except as noted
below. HoMedics warrants that its products will be free of defects in material and work-
manship under normal use and service. This blood pressure monitor meets the simulated
measurement cycles test requirement per EN1060-3, part 8.10. This warranty extends only to
consumers and does not extend to Retailers.
To obtain warranty service on your HoMedics product, mail the product and your dated sales receipt
(as proof of purchase), postpaid, to the following address:
HoMedics Consumer Relations
Service Center Dept. 168
3000 Pontiac Trail
Commerce Township, MI 48390
No COD’s will be accepted.
HoMedics does not authorize anyone, including, but not limited to, Retailers, the subsequent con-
sumer purchaser of the product from a Retailer or remote purchasers, to obligate HoMedics in any
way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or
abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper
installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of
power; dropped product; malfunction or damage of an operating part from failure to provide manufac-
turer’s recommended maintenance; transportation damage; theft; neglect; vandalism; or environmen-
tal conditions; loss of use during the period the product is at a repair facility or otherwise awaiting
parts or repair; or any other conditions whatsoever that are beyond the control of HoMedics.
This warranty is effective only if the product is purchased and operated in the country in which the
product is purchased. A product that requires modifications or adoption to enable it to operate in any
other country than the country for which it was designed, manufactured, approved and/or authorized,
or repair of products damaged by these modifications is not covered under this warranty.
THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE
SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE
COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL
HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. IN NO
EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY
PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE
WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS
ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN
LIEU OF REPAIR OR REPLACEMENT.
This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed
products, including but not limited to sale of such products on Internet auction sites and/or sales of
such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately
cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or
modified, without the prior express and written consent of HoMedics.
This warranty provides you with specific legal rights. You may have additional rights which may vary
from country to country. Because of individual country regulations, some of the above limitations and
exclusions may not apply to you.
For more information regarding our product line in the USA, please visit: www.homedics.com

31 32
Cuidado, mantenimiento y limpieza........................ 52
Potencial de interferencia con electromagnética .. 54
Diagnóstico y resolución de problemas................. 55
Especificaciones....................................................... 56
Garantía limitada por cinco años ............................ 57
ÍNDICE
INFORMACIÓN INICIAL:
Avisos importantes del producto
e instrucciones de seguridad.................................. 33
Sobre la presión sanguínea..................................... 35
¿Qué es la presión sanguínea?
¿Por qué medir la presión sanguínea?
Estándar de presión sanguínea .............................. 35
Cómo funciona este monitor de presión
sanguínea.................................................................. 37
INFORMACIÓN DE USO:
Nombre/Función de cada pieza............................... 38
Explicaciones de la pantalla .................................... 39
Instalación de las pilas ............................................ 41
Procedimiento de configuración
de fecha y hora ......................................................... 42
Uso del brazalete...................................................... 43
Procedimiento de medición..................................... 46
Índice de Categoría de Riesgo................................ 49
Cómo recuperar los valores de la memoria........... 50
Cómo borrar los valores de la memoria................. 50
Notas importantes con respecto a las
mediciones de presión sanguínea .......................... 51

33 34
AVISOSIMPORTANTESDELPRODUCTO
EINSTRUCCIONESDESEGURIDAD
Cuandoutilicesumonitordepresiónsanguínea,debeseguirsiempre
lasprecaucionesbásicas.Sírvaseleeryseguirtodaslasinstruccionesy
advertenciasantesdeutilizaresteproducto.Guardeestasinstrucciones
parareferenciafutura.
• Observequeésteesunproductodomésticodecuidadode la salud
únicamenteynoestádiseñadoparaservircomosustitutodelos
consejosdeunmédiconiprofesionalmédico.
• Noutiliceestedispositivoparaeldiagnósticonitratamiento
de ningúnproblemadesaludnienfermedad.Losresultadosde
mediciónsondereferenciaúnicamente.Consulteaunprofesional
delcuidadodelasaludparaconocerlainterpretacióndelas
medicionesdelapresión.Póngaseencontactoconsumédicosi
tieneunproblemamédicoo sospechaquelotiene.Nocambiesus
medicinassinelconsejodesumédicooprofesionaldelasalud.
• Eltamañoadecuadodelbrazaleteesfundamentalparaobtener
medicionesprecisas.Paraasegurarsedequeusala tallacorrecta
delbrazalete,sigalasinstruccionesdeestemanualylasqueestán
impresasenelbrazalete.
• Estedispositivopuedetenerdificultadparadeterminarlacorrecta
presiónsanguíneaparalaspersonasconlatidosirregulares,
diabetes,malacirculación,trastornosrenalesousuariosquehan
sufridounaapoplejía.
• Lapantalladepulsonoesadecuadaparaverificarlafrecuenciade
losmarcapasos.
• Interferenciaelectromagnética:eldispositivocontiene
componenteselectrónicossensibles.Eviteloscamposeléctricos
oelectromagnéticosfuertescercanosaldispositivo(porejemplo,
teléfonoscelulares,hornosdemicroondas).Éstospuedencausarla
imposibilidadtemporaldemedirconprecisión.
• Utiliceelmonitordepresiónsanguíneaúnicamenteparaelusopara
elcualfuediseñado.
• Nocoloqueelbrazaleteenotrapartedesucuerpoquenoseael
brazo.
• Noaptoparaserusadoporoconpersonasmenoresde18años.
• SolousepilasalcalinasAAde1.5Vcomofuentedeenergía.
Lasmedicionesdelapresiónsanguíneaquesedeterminencon
estedispositivosonequivalentesalasobtenidasporunobservador
capacitadoqueuseelmétododeauscultaciónconbrazalete/
estetoscopio,dentrodeloslímitesprescritosporelEstándar
nacionaldelosEE.UU.,Esfigmomanómetro manual, electrónico o
automatizado.

35 36
SOBRELAPRESIÓNSANGUÍNEA
¿Qué es la presión sanguínea?
Lapresiónsanguíneaeslapresiónqueseejerceenlasparedesde
laarteriacuandolasangrefluyeporlasarterias.Lapresiónmedida
cuandoelcorazónsecontraeysalelasangreeslapresiónsanguínea
sistólica(lamayor).Lapresiónmedidacuandoelcorazónsedilatay
entralasangresellamapresiónsanguíneadiastólica(lamenor).
¿Por qué medir la presión sanguínea?
Entrelosvariosproblemasdesaluddehoy,losasociadosconla
hipertensiónsonmuycomunes.Lahipertensiónserelacionademanera
peligrosaconlasenfermedadescardiovasculares.Por lo tanto,controlar
lapresiónsanguíneaesimportanteparaidentificaralaspersonasen
riesgo.
ESTÁNDARDEPRESIÓNSANGUÍNEA
Latablaincluidaenlasiguientepáginacontienenivelesdefinidosde
hipertensión,disponiblesenformapúblicaenelNationalHeartLung
andBloodInstitutedelosNationalInstitutesofHealthdelosEE.UU.
(http://www.nhlbi.nih.gov/health/dci/Diseases/Hbp/HBP_WhatIs.html).
Losusuariospuedencompararsuspropiaslecturasdepresión
sanguíneaconestosnivelesdefinidosestablecidosparadeterminarsi
esposiblequecorranunmayorriesgo.
Estatablaseaplicaalamayoríadelosadultosmayoresde18años.
Lapresiónsanguíneatiendeasubirybajar,inclusoenpersonasque
normalmentenotienenlecturasaltas.Sisusresultadospermanecen
porencimadelrango“normal”lamayoríadeltiempo,esposibleque
corraunriesgomayorydeberíaconsultarasumédico.
Sibienunopuedeencontrarfácilmenteenestatablaendóndeestásu
propialecturadelapresiónsanguínea,estemonitorvieneequipado
conunÍndicedecategoríaderiesgoquecomparaautomáticamente
cadalecturaaestosnivelesdefinidosybrindaunaguíaútilsisulectura
quedadentrodeunadelasetapasqueposiblementepodríanindicar
unmayorriesgo.Vealapágina49paraobtenermásinformación.
Notequelasguíasqueproporcionaestemonitorestándestinadas
únicamenteparaasistirloenelusodeestatabla.Latablaylasguías
seproporcionanúnicamenteporpracticidad,paraayudarleaentender
sulecturanoinvasivadepresiónarterialsegúnserelacionaconla
informacióndelosNIH.Nosonunsustitutodeunexamenmédico
realizadoporsumédico.Esimportantequeconsulteconsumédico
regularmente.Sumédicoledirásurangonormaldepresiónsanguínea
ademásdelpuntoenelqueustedpuedeserconsideradorealmenteen
riesgo.
Categoría Sistólica(mmHg) Diastólica(mmHg)
Normal menorque120 Y menorque80
Prehipertensión 120-139 O80-89
Hipertensión
Etapa1 140-159 O90-99
Etapa2 160omayor O100omayor

37 38
Botonesdedefiniciónde fecha/hora
Tapade
las pilas
(parte
inferior de
la unidad)
Botónde
recuperarmemoria
BotóndeSTART/STOP
(COMENZAR/DETENER)
Pantalla
LCD
CÓMOFUNCIONAESTEMONITOR
DEPRESIÓNSANGUÍNEA
Estemonitordigitaldepresiónsanguíneadeinfladomanual
proporcionarápidayfácilmentelecturasdepresiónsistólica,presión
diastólicaypulso.Unavezinfladoelbrazalete,el monitordetermina
supresiónsanguíneaanalizandolasoscilacionesdedesupresión.
Cuandolamediciónestécompleta,eldispositivodesinflaelbrazalete
ymuestralaslecturasdepresiónsistólica,presióndiastólicaypulso.
Elmonitorencuentraautomáticamenteendóndeseencuentransus
resultadosenlatabladelInstitutoNacionaldelCorazón,losPulmones
ylaSangredelosNIHybrindaunaguíasisulecturaentraenunade
lasetapasquepodríaindicarunmayorriesgo.Vealapágina49para
obtenermásinformación.
NOMBRE/FUNCIÓN DE CADA PIEZA
Brazalete
Tubodel
brazalete
Bulbodeinflado
