Caribe C8 User manual
Owner's Manual
Inflatable Boats
DINGHIES LINE
C8 – C8X – C9 – C9X – C10 – C10X
LIGHT LINE
L8 – L9 – L10 – L11
RUNABOUT LINE
C12 – C13 – C14
ROWERS LINE
C25 – C27 – C32 – I27 - I32
DL LINE
DL11 – DL12 – DL13 – DL15 – DL17 – DL20 – DL25
CL LINE
CL13 – CL14
UB LINE
UB12 B/SC – UB13 B/SC – UB15 B/SC – UB17 B/SC
UB19 B/SC – UB20 B/SC – UB24 SC
1/18
CONTENTS
Information……………...…....1
Certification……....…….........2
Light Line…………...………...3
Dinghies Line………..…….…4
Accesories……....…….….….5
Use and Performance…..…..6
Towing - Lifting…….…....…...6
Inflate and Maintenance…….7
Runabout Line…………….....8
CL Line...……....…….............9
Internal Distribution…...……..10
DL Line………..…….……......11,12,13
UB Line……....…….….…......14,15,16
Rowers Line...............…..…..17
Minor Repairs...............….....18
With this manual you will receive the
garantee certificate with the terms and
conditions under which defects in your
boat will be repaired. Please familiarize
yourself with the warranty and follow the
instructions regarding the proper operation
and maintenance. Lack of attention to
these instructions can void the warranty.
WARRANTY:
"PLEASE KEEP THIS MANUAL IN A SECURE PLACE,AND HAND
IT OVER TO THE NEW OWNER WHEN YOU SELL THE CRAFT"
BOAT MODEL:________________ CATEGORY: C TYPE OF CRAFT: INFLATABLE RIB
MANUFACTURER: CARIBE NAUTICA
ADDRESS: 1ª CALLE LA INDUSTRIA, EDF.CARIBE-CARACAS-VENEZUELA
FAX: 58212-251.62.22 EMAIL: CARIBENAUTICA1@HOTMAIL.COM
DISTRIBUTOR NAME:____________________________________________________________
____________________________________________________________________________________
ADDRESS:
_______________________________________________________________________________________________
HIN No. VE-CND__I__I__I__I__I__I__I__I__I DATE: / /INVOICE No.__________________
"This manual has been compiled to help you to operate
your craft with safety and pleasure. It contains details of
the craft,the equipment supplied or fitted,its systems,and
information on its operation and maintenance.Please read
it carefully,and familiarize yourself with the craft before
using it".
If this is your first craft,or you are changing to a type of craft
you are not familiar with,for your own comfort and safety,
please ensure that you obtain handling and operating
experience before assuming command of the craft. Your
dealer or national sailing federation or yacht club will be
pleased to advise you of local sea schools, or competent
instructors.
2/18
•Application of council directive (s) 94/25/EC. / AMENDED 2003 / 44 / EC
•Design category: C
•C inshore: craft designed for voyages in coastal waters,large bays,estuaries,lakes and rivers,where conditions up to and including
wind force 6 (beaufort scale) and significant wave heights up to inluding 2 meters (6,56 ft) may be experienced.
•Manufacturer's Name: Caribe Náutica, C.A.
•Manufacturer's Address: 1ra. Calle la industria Edf. Caribe Zona Industrial Palo Verde. Caracas-Venezuela.
I,the undersigned,hereby declare that the equipment specified
above are conforms to the above Directive(s) Standard(s).
•Importer / Dealer Name: ____________________________________________
•Importer / Dealer Address: __________________________________________
•Certifying Body:
international Marine Certification Institute.
Tréves Centre,Rue de Tréves 45,1040 Brussels,Belgium.
Phone: +32.2/238-7892. Fax: +32.2/238-7700
Web: www.imci:org Bruno D'Addezio-President-Caribe Náutica, C.A.
CONFORMITY
CONFORMITY
CARIBE-003
CARIBE-002
CARIBE-001
CARIBE-013
CARIBE-014
CARIBE-015
CARIBE-025
CARIBE-012
CARIBE-011
C-8 - C-8X
C-9 - C-9X
C-10 C-10 X
L-8
L-9
L-10
L-11
C-12-T12
C-13-T13
ISO-6185-3
ISO-6185-3
ISO-6185-3
ISO-6185-3
ISO-6185-3
ISO-6185-3
ISO-6185-3
ISO-6185-3
ISO-6185-3
RIB
RIB
RIB
RIB
RIB
RIB
RIB
RIB
RIB
CARIBE-010
CARIBE-024
C-14-T14
DL-11
ISO-6185-3
ISO-6185-3
RIB
RIB
CARIBE-023
CARIBE-022
CARIBE-021
CARIBE-027
CARIBE-026
CARIBE-029
CARIBE-020CL-13 ISO-6185-3 RIB
CARIBE-019CL-14 ISO-6185-3 RIB
CARIBE-021UB-15 B/SC ISO-6185-3 RIB
CARIBE-027UB-17 B/SC ISO-6185-3 RIB
CARIBE-017UB-19 B/SC ISO-6185-3 RIB
CARIBE-026UB-20 B/SC ISO-6185-3 RIB
UB-12 B/SC ISO-6185-3 RIBCARIBE-023
UB-13 B/SC ISO-6185-3 RIBCARIBE-022
UB-24 B/SC ISO-6185-3 RIBCARIBE-028
C25 ISO-6185-3 RIBCARIBE-004
C27-I27 ISO-6185-3 RIBCARIBE-005
C32-I32 ISO-6185-3 RIBCARIBE-006
DL-12
DL-13
DL-15
DL-17
DL-20
DL-25
ISO-6185-3
ISO-6185-3
ISO-6185-3
ISO-6185-3
ISO-6185-3
ISO-6185-3
RIB
RIB
RIB
RIB
RIB
RIB
3/18
STANDARD ACCESORIES
2 OARS •FOOT PUMP •REPAIR KIT
ROWING SEAT •DOCUMENT POCKET
WARNING:
plugs are secured into the valves
Before launching the Boat, make sure all
PREPARE YOUR BOAT:
Please follow these steps to prepare your boat to
navigate:
1) Inflate the tubes (page 7).
3) Installation of the seat (page 5).
4) Placing the drain plug.
2) Installation of the oars (page 5).
LIGHT LINE
L8 L9 L10 L11
O.A. ( A )
LENGTH
O.A. ( B )
BEAM
MAX
ENGINE
ENGINE
SHAFT
MAX LOAD
CAPACITY
MAX No.
PERSONS
APPROX
WEIGHT B.
2,51 mt
8'3"
1,64 mt
5'5"
8 KW
10HP
SHORT
(15”)
448 Kg
987 Lbs
4
42 Kg
93 Lbs
2,86 mt
9'1"
1,64 mt
5'5"
11 KW
15HP
SHORT
(15”)
520 Kg
1146 Lbs
4
45 Kg
100Lbs
3,10 mt
10'3"
1,64 mt
5'5"
15 KW
20HP
SHORT
(15”)
577 Kg
1272 Lbs
4
52 Kg
115 Lbs
3,38 mt
11'1"
1,70 mt
5'7"
15 KW
20HP
SHORT
(15”)
647 Kg
1426 Lbs
5
62 Kg
136 Lbs
Drain Plug
B
Lift
“U” Ring
Oar Lock
tube O mt 0,44
0,44 0,44 0,44
Transom Fuel
Line Exit
Bow Tank Strap
A
Rowing Seat
mt
DINGHIES LINE
1)
2)
4)
5)
í 1
5/18
STEPS TO INSTALL THE OARS
1) Mount the pin in the oar, making sure that be on the same side of the blade
2) With the blade towards the interior of the boat introduce the pin in the oar lock
and rotate the oar to the stern side.
3) Verify that the pin has hooked on and does not come out of the oar lock.
4) Put the paddle of the oar in the blade rest and tighten the telescopic regulator.
ACCESORIES:
Rowing Seat
Document Pocket
Line Retainer
This cut
to the blade-side
Pin
Oar Lock
6/18
USE AND PERFORMANCE
CAUTION:
Portable tanks must be removed from
the boat when fueling.
TRANSOM:
The high of the transom it determines
the long of motor shaft that your
boat need, see specs of each model.
MOTOR:
Use the indicate shaft. Do not exceed the
maximum power recomended.
PLANING:
BOAT DON`T PLANE EASY:
CAUSES:
•The motor shaft is too far from the transom.This can be corrected
by positioning the shaft bolt in a hole closer to the transom
•Incorrect distribution of the weights. In this case displace the
weights towards the bow.
TOWING-LIFTING:
TOWING:
WARNING:
•Never tow a bow with people on board
•Use a tow line that is rated at rated at
least 4 time the gross weight of the boat
being towed.
CAUTION:
The molded rubber handles must never
be used for towing.
LIFTING:
WARNING:
Do not hoist the boat with people
on board.
Fig. 1
Fig. 2
For towin, use the “U” Ring at the bow. The boat should be towed for short
distances and at not more than 4 knots. If you need to tow the boat frequently,
we recommend installing two additional tow rings at bow.
4 or 3 rings(at stern and at bow) that could be used to lift the boat. The boat
must be lifted in such a way that the lifting lines should work perpendicular
with the boat (see fig. 1) and not with horizontal components such as in fig. 2
In order to achieve maximum performance the boat should reach its planing
conditions. Planing occurs when the boat assumes in navigation a position parallel
to the water surface. If the weight of payload and persons aboard is well
distributed,planing should be reached while increasing the speed after the start. It
is normal to have a slight lift at bow at the start, to correct move at start,the loads
forward.
WARNING:
Do not exceed the maximum engine power
rating stated on the certification plate
attached to your boat.
ok
7/18
GENERAL:
To maintain the good appearance of your Caribe boat,we recommend washing
it periodically with a mild soap and water and drying it with a soft cloth.
INFLATABLE PARTS:
Some persistant stains can be removed by a stain remover product that should
not contain solvents.
FIBERGLASS PARTS:
In addition to washing with soap and water we recommend protecting
them with a special wax for gel-coat at least twice a year.
AIR VALVES:
Periodically check that there is no dirt or sand that could obstruct a total seal
CONDESATION VALVE:
Periodically check to verify that the condesation valve has the "O" ring
on and that there is no dirt or sand in the threads of the valve.
WARNING:
Use as few cleaning agents as
possible,do not discharge waste
agents into the water.
CAUTION:
Do not cover the boat with a canvas
until completely dry,as this could damage
the fabric of the tubes due to mildew and
water stains.
VALVE:
Remove the cap.
Put The valve in close position.The valve is in close position when the internal
poppet is out.
a) Caribe valve: If the poppet is in,just press it.
b) Other valve: if the poppet is in press and twist it to get it out
PUMP:
The pump has an adapter at the terminal of the hose, insert the hose with the
locking adapter to the valve and turn to lock.
INFLATE:
Inflating sequence: first the rear chambers,then the one at bow.Replace the
cap on the valves.
PRESSURE:
Working pressure: 0.2 bar(The pressure gauge is not included with the boat ).
A practical method to estimate the pressure of the tubes:
If you can not depress the tube more than 1 cm(1/2") with the pressure of
your finger.
DEFLATION:
To deflate the air chamber open the valve by pressing and twisting the
poppet or just by pressing it according to the model of the valve.
WARNING:
Never use a high pressure pump to inflate your
boat because it could damage the valve or the tube
TO INFLATE THE TUBES: MAINTENANCE:
8/18
RUNABOUT LINE
STANDARD ACCESORIES
2 PADLE * PUMP * REPAIR KIT * SEAT
CONSOLE SEAT :
Please follow these steps to prepare your boat
to navigate :
1) Inflate the tubes (page 7)
2) Placing the drain plug (this page)
3) Tighten the condensation valve (this page)
PREPARE YOUR BOAT:
WARNING:
plugs are secured into the valves
Before launching the Boat, make sure all
Drain Plug
Condensation valve
B
C12/T12 C13/T13 C14/T14
O.A (A) 3,50 mt 4,00 mt 4,20 mt
LENGTH 11'6'' 13'3'' 14'
O.A (B) 1,67 mt 1,77 mt 2,00 mt
BEAM 5'6'' 5'9'' 6'6''
MAX 26 KW
38KW 38KW
ENGINE 35HP 50HP 50HP
ENGINE
SHAFT
SHORT
( 15”)
LONG
( 20”)
LONG
(20”)
MAX LOAD 658 KG 940 KG 1280 KG
CAPACITY 1450 LBS 2072 LBS 2667 LBS
MAX No.
PERSONS 5 6 8
APROX 85 KG 125 KG 130 KG
TUBE O mt
0,47 0,47 0,51
WEIGHT B. 187 LBS 275 LBS 286 LBS
A
9/18 * See under deck distribution in pag 10.
CL LINE
O.A. ( A )
LENGTH
4,00 mt
13'3"
4,30 mt
14'1"
O.A. ( B )
BEAM
1,90 mt
6'3"
1,90 mt
6'3"
MAX
ENGINE
38 KW
50HP
52 KW
70HP
ENGINE
SHAFT LONG (20") LONG (20")
MAX LOAD
CAPACITY
940 Kg
2072 Lbs
1040 Kg
2292 Lbs
MAX No.
PERSONS
APPROX
WEIGHT B.
APROX
FUEL
CAPACITY
TUBE O mt
APROX
WATER
CAPACITY
174 Kg
468 Lbs
188 Kg
506 Lbs
STANDARD ACCESORIES
•PADLE •PUMP •REPAIR KIT
WARNING:
Before launching the boat, make sure that the
drainplugs are secured into the valves.
PREPARE YOUR BOAT:
Please follow these steps to prepare your boat to navigate:
1) Inflate the tubes (page 7).
2)Placing the drain plug (this page).
CL13 CL14
60 LTS
16 GAL
20 LTS
5,3 GAL
20 LTS
5,3 GAL
70 LTS
18,6 GAL
0,51
6 6
0,51
Drain Plug
Ladder storage
Ice Box
Shower
Nav. Light Fuel Tank Fuel Fill
A
B
10/18
INTERNAL DISTRIBUTION
DL 13-15 CL13-14DL 11-12
DISTRIBUTION UNDER DECK
Bilge
pump
Baery
sender
Inspecon
plate
Fuel line
Fuel tank
Water
tank
Water
pump
Water fill
Port
light
Fuel fill
Water
pump
Bilge
pump
Baery
sender
Inspecon
plate
Fuel line
Water fill
Fuel tank
Water tank
Port
light
Fuel fill
Bilge
pump
Baery
sender
Inspecon
plate
Fuel line
Fuel tank
Water
tank
Water
pump
Ladder
box
Ice box
Port
light
11/18
DL LINE
STANDARD ACCESORIES
•PADLE •PUMP •REPAIR KIT PREPARE YOUR BOAT:
Please follow these steps to prepare your boat to navigate:
1) Inflate the tubes (page 7).
2) Placing the drain plug (this page).
WARNING:
Before launching the boat, make sure that the
drain plug is in place
Drain Plug
DL11 DL12 DL13 DL15
O.A. ( A )
LENGTH
3,37 m
11'1"
3,70 mt
12'2"
4,00 mt
13'3"
4,60 mt
15'2"
O.A. ( B )
BEAM
1,73 mt
5'7"
1,77 mt
5'9"
1,82 mt
6'
1,96 mt
6'7"
MAX
ENGINE
31KW 38KW 53 KW 68 KW
40 HP 50 HP 70 HP 90 HP
ENGINE
SHAFT
LONG
(20”)
LONG
( 20”)
LONG
( 20”)
LONG
( 20”)
MAX LOAD
CAPACITY
562 Kg
1238 Lbs
723 Kg
1593 Lbs
827 Kg
1823 Lbs
907 Kg
1999 Lbs
MAX No.
PERSONS 5 5 6 8
APPROX
WEIGHT B.
185 Kg
408 Lbs
197 Kg
434 Lbs
310 Kg
683 Lbs
288 Kg
634 Lbs
APROX FUEL
CAPACITY
TUBE O mt
APROX
WATER
CAPACITY
50 LTS
13,3 GAL
50 LTS
13,3 GAL
60 LTS
16 GAL
90 LTS
24 GAL
0,44
25 LTS
6,6 GAL
25 LTS
6,6 GAL
35 LTS
9,3 GAL
40 LTS
10,6 GAL
0,44 0,49 0,49
B
A
A
DL13
NAV
LIGHTS
B
DL15
DL13
DL11-12
A
ANCHOR STORAGENAV LIGHTSSHOWERSTERN LIGHT
ICE BOX
12/18
DL 17 - DL20
DL 17
DL 20
DL 17 / DL 20
STANDARD ACCESORIES
•PADLE •PUMP •REPAIR KIT
WARNING:
the drain plug is in place.
Before launching the Boat, make sure that 1) Inflate the tubes (page 7).
2) Placing the drain plug (this page).
PREPARE YOUR BOAT:
Please follow these steps to prepare your boat to
navigate:
Drain Plug
DL 17-20
Fuel fill
Water
pump
Bilge
pump
Baeries
sender
Inspecon
plate
Fuel line
Water fill
Fuel tank
Water tank
A
B
A
A
ANCHOR
STORAGEFUEL FILLFUEL TANKNAV LIGTHS
SHOWER
BILGE
PUMP
STERN LIGHT
ANCHOR LIGHT
STORAGE
SHOWER
SKY BAR BASE
WATER FILL
LADDER
ICE BOX
DL17 DL20
O.A. ( A )
LENGTH
O.A. ( B )
BEAM
MAX
ENGINE
ENGINE
SHAFT
MAX LOAD
CAPACITY
MAX No.
PERSONS
6,05 mt
20'
2,48 mt
8'2"
131 KW
175 HP
LONG
( 20”)
12
APPROX
APROX
FUEL
CAPACITY
APROX
WATER
CAPACITY
TUBE O mt
WEIGHT B.
5,10 mt
16'9"
2,48 mt
8'2"
112 KW
150 HP
LONG
( 20’)
1385 Kg
3053 Lbs
1492 Kg
3289 Lbs
10
0,61 0,61
150 LTS
40 GAL
150 LTS
40 GAL
40 LTS
10,6 GAL
40 LTS
10,6 GAL
420 Kg
926 Lbs
500 Kg
1100 Lbs
DL25

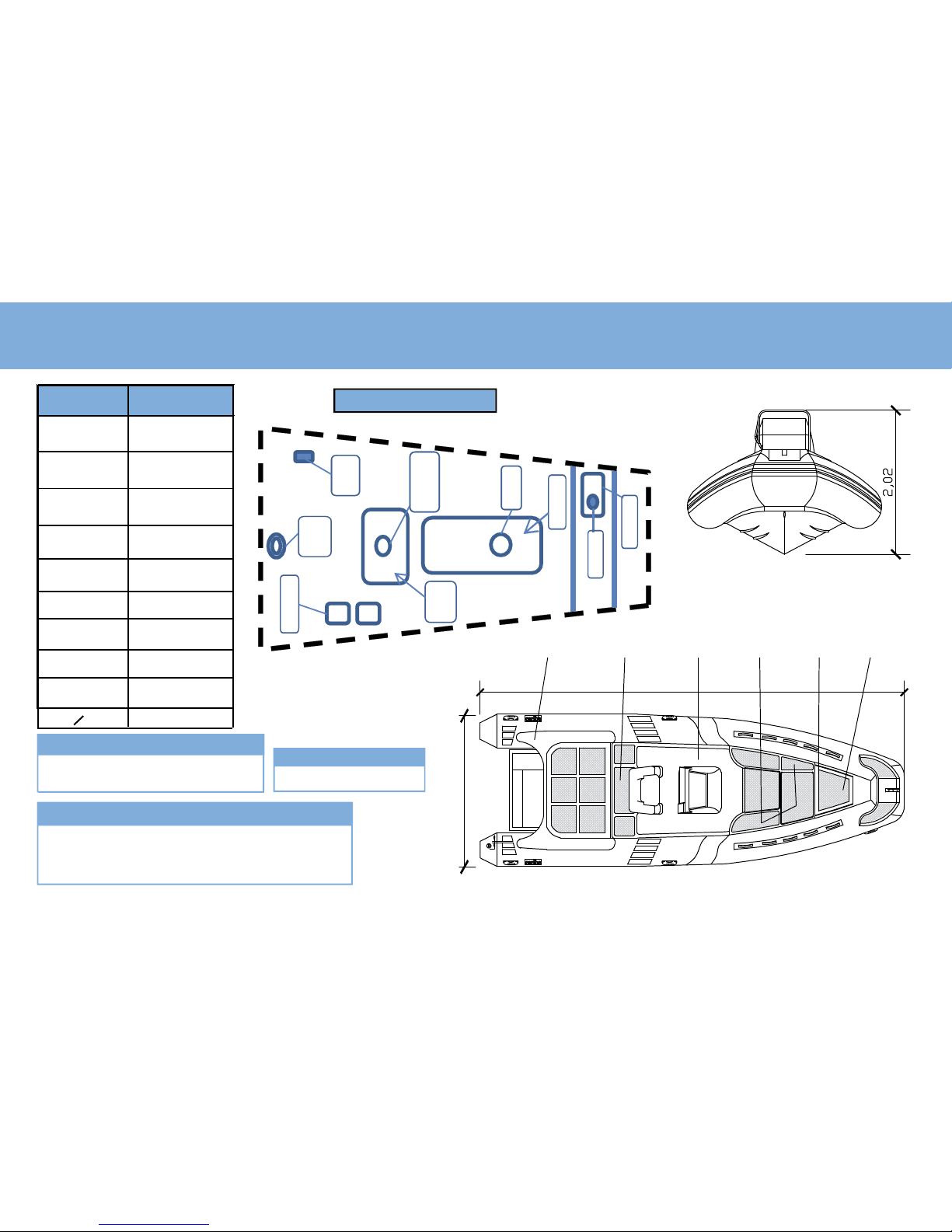

DISTRIBUTION UNDER DECK
STANDARD ACCESORIES
*PADLE *PUMP *REPAIR KIT
WARNING :
Before launching the boat,make sure that
the drainplugs are secured into the valves
Please follow these steps to prepare your boat to navigate:
1) Inflate the tubes (page 7)
2) Placing the drain plug.
PREPARE YOUR BOAT:
DL25
O.A (A) 7,62 mt
LENGTH 25'4''
O.A (B) 2,73 mt
BEAM 9'1''
MAX 225 KW
ENGINE 300 HP
ENGINE XL-25” (1 ENG.)
SHAFT L-20” (2 ENG.)
MAX LOAD 2300 KG
CAPACITY 5066 LBS
MAX No.
PERSONS 16
APROX FUEL 400 LTS
CAPACITY 106,6 GAL
APROX WATER 50 LTS
CAPACITY 13,3 GAL
TUBE O mt 0,57
Fuel fill
Bilge
pump
Baeries
sender
Inspecon
plate
Fuel line
Fuel tank
Water
tank
Water
pump
DL 25
B
A
ANCHOR
STORAGEFUEL FILL
OPTIONAL
SUNDECKWATER FILLICE BOXSTERN LIGTHS
13/18
APPROX
WEIGHT B.
1100 Kg
2425 Lbs
14/18
STANDARD ACCESORIES
•PADLE •PUMP •REPAIR KIT
PREPARE YOUR BOAT:
Please follow these steps to prepare your boat:
1) Inflate the tubes (page 6).
2) Placing the drain plug.
WARNING:
Before launching the boat, make sure that the
drain plug is in place
UB 17 - UB19 - UB20
Basic
Seat/console
O.A. ( A )
LENGTH
O.A. ( B )
BEAM
MAX
ENGINE
ENGINE
SHAFT
MAX LOAD
CAPACITY
MAX No.
PERSONS
APPROX
WEIGHT B.
(B)
APPROX
WEIGHT B.
(SC)
APROX
FUEL
CAPACITY
TUBE O mt
UB 17B
UB 17SC
5,70 mt
17'
2,43 mt
8'
112 KW
150HP
LONG
( 20”)
1385 Kg
3053 Lbs
10
355 Kg
782 Lbs
375 Kg
825 Lbs
UB 19B
UB 19SC
5,85 mt
19'
2,54 mt
8'3"
112 KW
150HP
LONG
( 20”)
1600 Kg
3527 Lbs
10
465 Kg
1027 Lbs
485 Kg
1068 Lbs
UB 20B
UB 20SC
6,05 mt
20'
2,43 mt
8'
131 KW
175HP
LONG
( 20”)
1492 Kg
3289 Lbs
12
400 Kg
881 Lbs
420 Kg
925 Lbs
150 LTS
40 GAL
110 LTS
30 GAL
150 LTS
40 GAL
0,61 0,62 0,61
Drain Plug
B
Fuel fill
Bilge
pump
sender
Fuel line
Fuel tank
SC
CONSOLE
SEAT SC OPTIONS
DISTRIBUTION UNDER DECK
3,72
A
ANCHOR
STORAGE
FUEL FILL
FUEL TANK
BILGE
PUMP
UB 12 - UB 13 - UB 15
Drain Plug
SC
CONSOLE
SEAT SC OPTIONS
Please follow these steps to prepare your boat to navigate:
1) Inflate the tubes (page 7)
2) Placing the drain plug.(this page)
PREPARE YOUR BOAT:
the drain plugs are secured into the valves
WARNING :
Before launching the boat,make sure that STANDARD ACCESORIES
*PADLE *PUMP *REPAIR KIT
Bas i c UB 12B UB 13B UB 15B
Sea t/Console UB 12SC UB 13SC UB 15SC
O.A (A)
3,63 mt
4,00 mt 4,55 mt
LENGTH
12'
13'3'' 15'
O.A (B)
1,67 mt
1,82 mt 1,97 mt
BEAM
5'6''
6' 6'6''
MAX 31 KW 38 KW 52,3 KW
ENGINE 40 HP 50 HP 70 HP
ENGINE
SHAFT
LONG
( 20”)
LONG
( 20”)
LONG
( 20”)
MAX LOAD 723 KG 827 KG 907 KG
CAPACITY 1593 LBS 1823 LBS 2000 LBS
MAX No.
PERSONS 5 6 8
APROX 160 KG 185 KG 205 KG
(B) 352 LBS 407 LBS 451 LBS
APROX 174 KG 200 KG 220 KG
WEIGHT B.
WEIGHT B.(SC) 383 LBS 440 LBS 484 LBS
APROX GAS 50 LTS 55 LTS 90 LTS
CAPACITY 13 GAL 14 GAL 24 GAL
tube O mt
0,44 0,44 0,49
Fuel fill
Bilge
pump
sender
Fuel line
Fuel tank
DISTRIBUTION UNDER DECK
DISTRIBUTION UNDER DECK
ANCHOR
STORAGEFUEL FILL
STORAGE
SEAT
B
A
15/18
UB 24
Fuel fill
Bilge
pump
sender
Fuel line
Fuel tank
UB 24
1) Infla te the tubes (page 7)
2) Pla ci ng the dra i n plug.(this page )
PREPARE YOUR BOAT:
STANDARD ACCESORIES
*PADLE *PUMP *REPAIR KIT
the drainplugs are secured into the valves
WARNING :
Before launching the boat,make sure that
UB 24 SC
UB24SC
O.A (A) 7,33 mt
LENGTH 24'05''
O.A (B) 2,73 mt
BEAM 9'
MAX
225KW
ENGINE 300 HP
ENGINE
SHAFT XL -25”
MAX LOAD 2200 KG
CAPACITY 4850 LBS
MAX No.
PERSONS 16
APROX GAS 300 LTS
CAPACITY 79 GAL
0,57
tube O mt
WEIGHT B
APROX 368 KG
1472 LBS
( B )
Drain Plug
FUEL FILL
FUEL TANK
BILGE PUMP
16/18
A
DISTRIBUTION UNDER DECK
ROWERS LINE
C25
O.A(A)
LENGTH
2,51mt
8´3”
2,86mt
9´1”
3,10mt
10´3”
1,64mt
5´5”
1,64mt
5´5”
1,64mt
5´5”
6kw
8HP
448 KG
987 LBS
42 KG
93 LBS
52 KG
115 LBS
58 KG
128 LBS
4 4 4
520 KG
1146 LBS
577 KG
1272 LBS
11 kw
15 HP
15 kw
20 HP
SHORT
( 15”)
SHORT
( 15”)
SHORT
( 15”)
O.A(B)
BEAM
MAX
ENGINE
ENGINE
SHAFT
MAX LOAD
CAPACITY
MAX N°
PERSONS
APROX
WEIGHT B.
I27/C27 I32/C32
0,44 0,44 0,44
TUBE O mt
B
Oar Lock
Lift
“U” Ring
Rowing Seat
A
B
Drain Plug
STANDARD ACCESORIES
2 OARS* FOOT PUMP* REPAIR KIT
ROWING SEAT* DOCUMENT POCKET
PREPARE YOUR BOAT:
Please fallow these stepsto prepare your boat
at navigate:
1) Inflate the tubes (page 7)
2) Installation of the oars (page 5)
3) Installation of the seat (page 5 )
4) Placing the drain plug
WARNING
Before launchig the boat, make sure that
the drain plugs are secured into the valves
C25 I27 - I32
17/18
MINOR REPAIRS
MINOR REPAIRS
PROCEDURE:
Each caribe boat is equipped with a repair kit fot minor repairs or emergency, that consist of: a tube of glue, a set of patches and a piece of sandpaper
1) Locate the leak by spraying soapy water and watching for air bubbles
2) Selec the appropriate patch, present it against the puncture and mark with a pencil arround the edge of the patch ( do not use a pen) . ( Fig. 1)
3) Put masking tape on the lines marked. ( Fig. 2 )
4) Sand the marked area and clean the dust. ( Fig. 2 )
5) Apply a thin and uniform layer of glue on the patch and on the markedarea.Wait approximately 10 minutes for the glue to dry apply the glue again. ( Fig.3 )
6) Let the glue dry again and stick the patch on the area that is being repaired. ( Fig. 4 )
7) In Order to take out the air trapped between the patch and the tube, rub the patch
with a round object, such as a screw driver handle, rub from the center to the edge of
the patch while applying a strong pressure, ( Fig.5 )
8) Allow to dry for 48 hours.
For major repairs contact an authorized Caribe Dealer
18/18
Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5
APPLICABLE TERMS
All Caribe inflatable boats, parts,and accessories are warranted under conditions of normal handling and use for a period of one year from the date of purchase against structural defects in
material and workmanship. Ordinary wear and tear shall not be considered a defect in workmanship or material.
In addition, from the date of purchase, the hypalon-neoprene fabric is warranted for a period of five years against flaws affecting the use of the boat (such as porosity, delamination and
cracking) when employed under conditions of normal use. Stains, which in the majority of cases are the result of inadequate maintenance, do not affect the use of the boat and are therefore
not covered under warranty. Caribe Nautica will repair, or, at their option,replace the boat affected by any of the flaws described above.
After the assessment of a warranty claim. Caribe Naútica may choose to replace a boat with the same model, if available or a comparable product. The warranted boat must be returned in a
condition of normal wear and tear together with all its standard accessories. To the contrary, charges may be applied on the final claim agreement.
Application of the guarantee
To be able to apply the foreseen guarantee the page one of this manual must be completed with all details, with the stamp of the dealer and the possession of the original invoice.
NON-COVERAGE
This warranty does not cover:
* Damages or defects caused by alterations to the product or any of its parts.
* Repairs made or accessories installed by unauthorized service centers or repairmen.
* Damages or defects caused by negligence, accidents, abuse, and improper usage of the product, its parts and accessories.
* Engines and drives carry, the warranty as provided by the manufacturer of that particular accessory or equipment.
* If is installed a bigger engine of the recommended one
CARIBE LIABILITY
Caribe’s liability concerning any claim related to the sale or use of Caribe boats, parts, attachments and accessories is limited to the Caribe sale price of the boat or of the part to which that
claim is related. Caribe shall not on any account be liable for incidental or consequential damages in connection with the use of Caribe boats, parts or accessories. Some states do not allow
the exclusion or limitation of incidental or consequential damages.This warranty applies to the original owner only.
CLAIM PROCEDURE
All claims must be submitted within thirty days after occurrence of the problem. The owner must notify, in writing, the dealer from whom the boat was originally purchased. Photographs
illustrating all damages together with the proof of purchase must be submitted to verify the claim. The dealer will then work together with Local Importer to analyze and resolve the warranty
problem. If the owner is unable to contact the original dealer, he or she should notify the Local Importer and the owner will be advised how to proceed. All transportation costs related to a
claim are at the owner’s expense.
For all claims that require arbitration, it is understood that proceedings relevant to those claims will be conducted in the resident territory of the Local Importer.
This manual suits for next models
32
Table of contents
Popular Boat manuals by other brands
Pro-Line Boats
Pro-Line Boats 2950 Walkaround owner's manual
Cobalt Digital Inc
Cobalt Digital Inc 272 owner's manual
Sevylor
Sevylor Fish Hunter Series instructions
MasterCraft
MasterCraft 2014 X14v owner's manual
Columbia
Columbia Coronado 25 Owenrs manual
Baja
Baja Sportfish Tournament Edition 230 owner's manual
