Meridian 490 Pilothouse User manual

Date of Purchase: _________________________________________
Port Engine Serial Number: _________________________________
Starboard Engine Serial Number: ____________________________
Hull Identification Number:__________________________________
Hull Identification Number
•The Hull Identifica-
tion Number (HIN) is
located on the star-
board aft corner of the
hull.
•Record the HIN (and
the engine serial num-
bers) in the space pro-
vided above.
•Please refer to the
HIN for any corre-
spondence or orders.
© 2006 Meridian Technical Publications. All rights reserved.
No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical,
photocopying, recording or otherwise, without prior written permission of Meridian.
Printed in the United States of America.
General Notes
The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the
preparation of this document to assure its accuracy, Meridian assumes no liability resulting from errors or omissions in this document, or from
the use of information contained herein.
Due to our commitment to product improvement, Meridian reserves the right to make changes in the product design, specifications, and equip-
ment at any time without notice or obligation. Illustrations and/or photos may show optional equipment.
All Meridian products meet or exceed USCG (United States Coast Guard) and/or NMMA (National Marine Manufacturer’s Association) con-
struction standards. Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the manufactur-
ing process by destroying ozone in the upper atmosphere.
Proprietary Rights
This document discloses subject matter in which Meridian has proprietary rights. The information and design disclosed herein were originated
by and are the property of Meridian. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose
the document or any part thereof, any information contained therein, or to construct boats or any item from it, except by written permission
from or written agreement with Meridian. This document is to be returned upon request to Meridian.
HIN LOCATION
Part Number
1882669

CONTENTS
Chapter 1: Welcome Aboard!
Dimensions & Tank Capacities 1
Dealer Service 1
Warranty Information 1
Boating Experience 2
Qualified Maintenance 2
Structural Limitations 2
Engine & Accessory Guidelines & Literature 3
Propellers 3
Safety Standards 4
Special Care for Moored Yachts 5

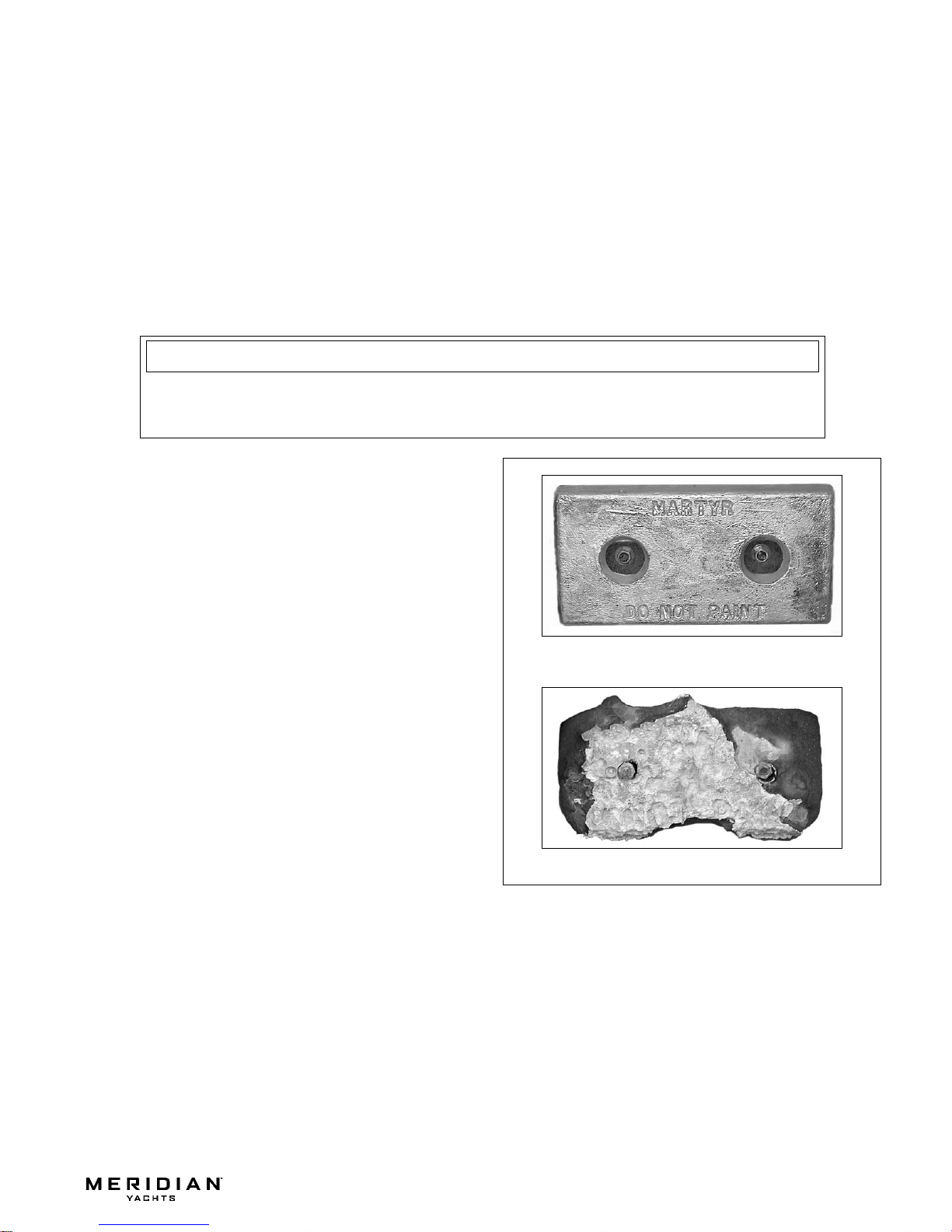

Sacrificial Anodes (Zincs) 5
Yacht Lifting 6
Carbon Monoxide (CO) 7
CO Facts 7
Factors that Increase the Effects of CO Poisoning 7
Where & How CO Can Accumulate 8
How To Protect Yourself & Others From CO 8
CO Checklists 9
CO Monitors 10
More Information 10
Chapter 2: Locations
Exterior Views 11

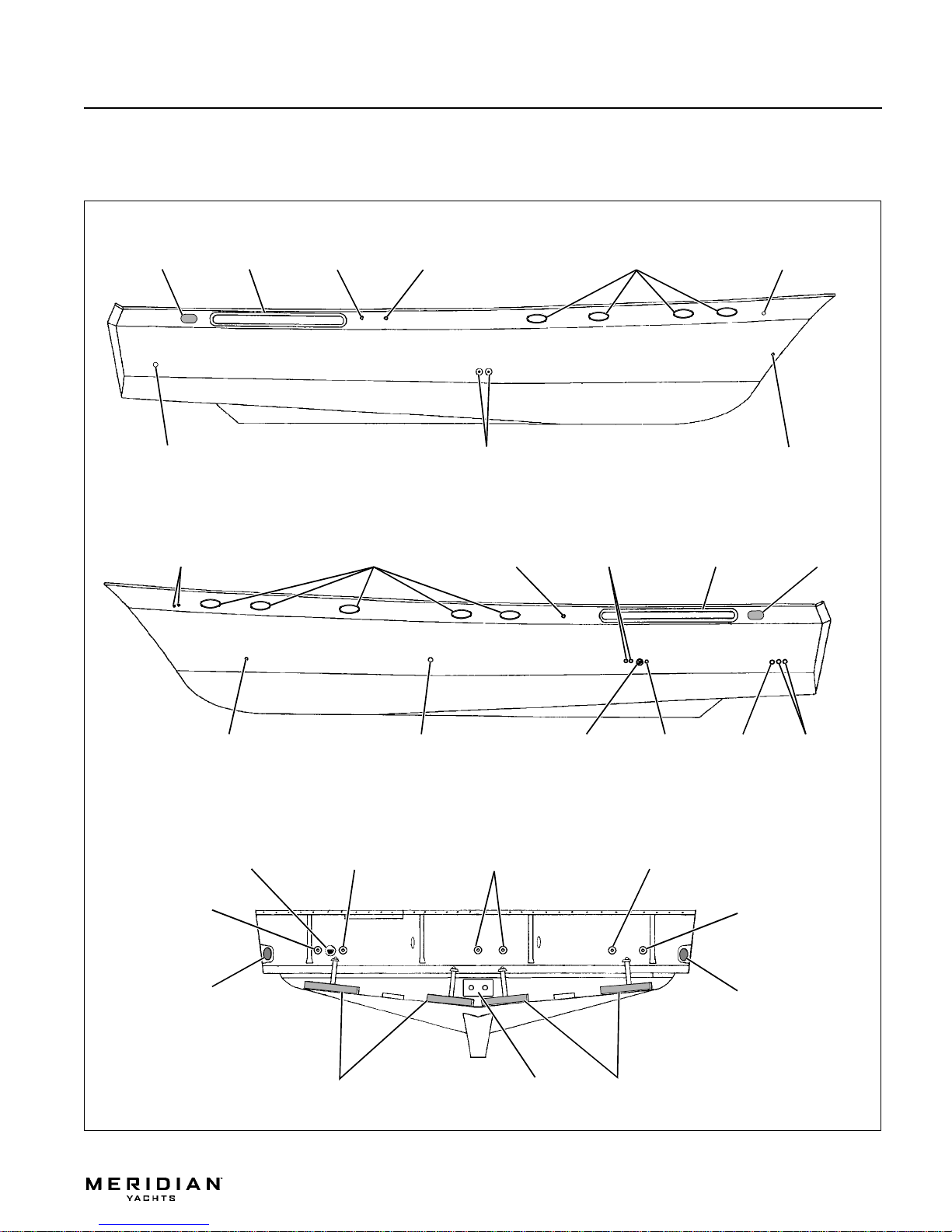

Hull Views 11
Forward Deck View 12

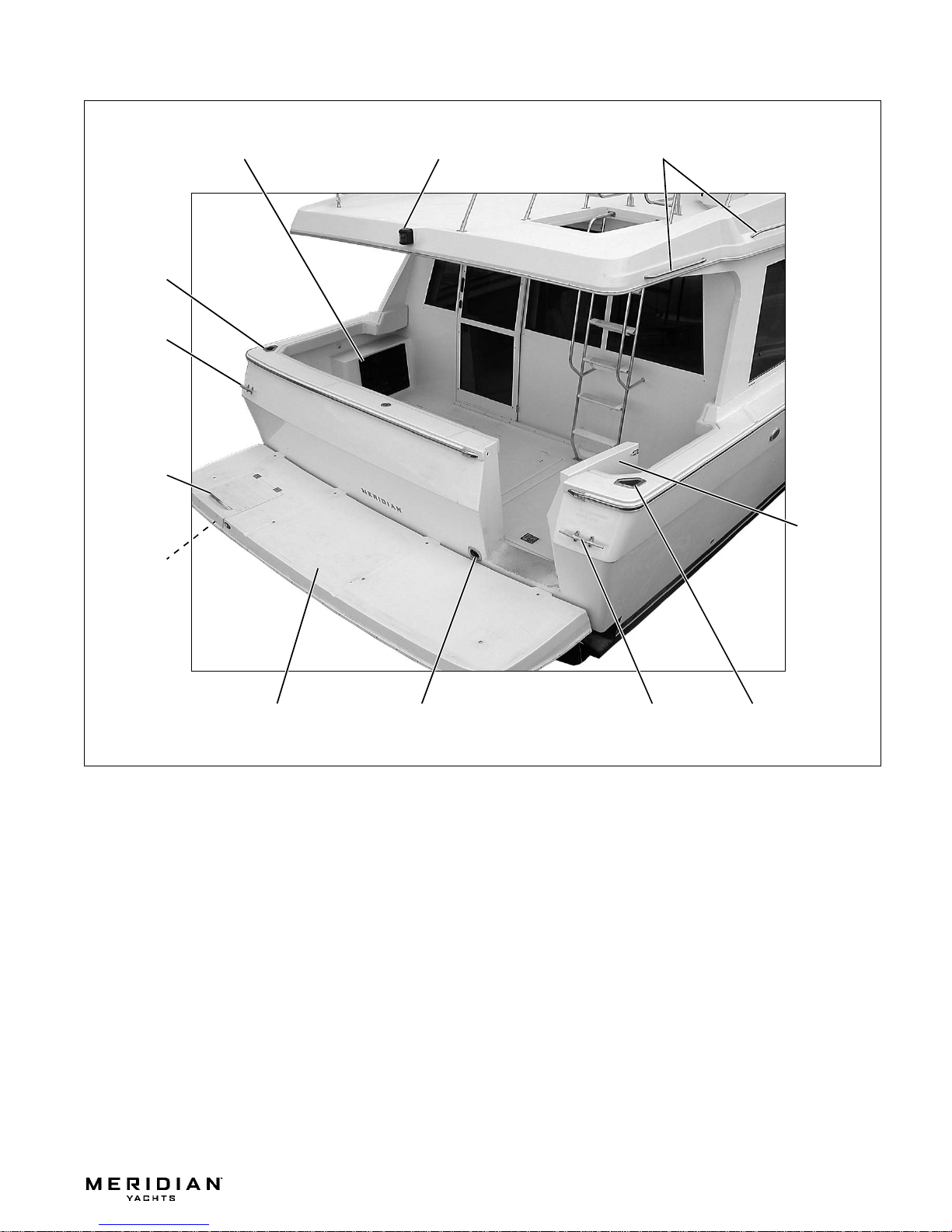

Aft Deck View 13
Helm Views 14

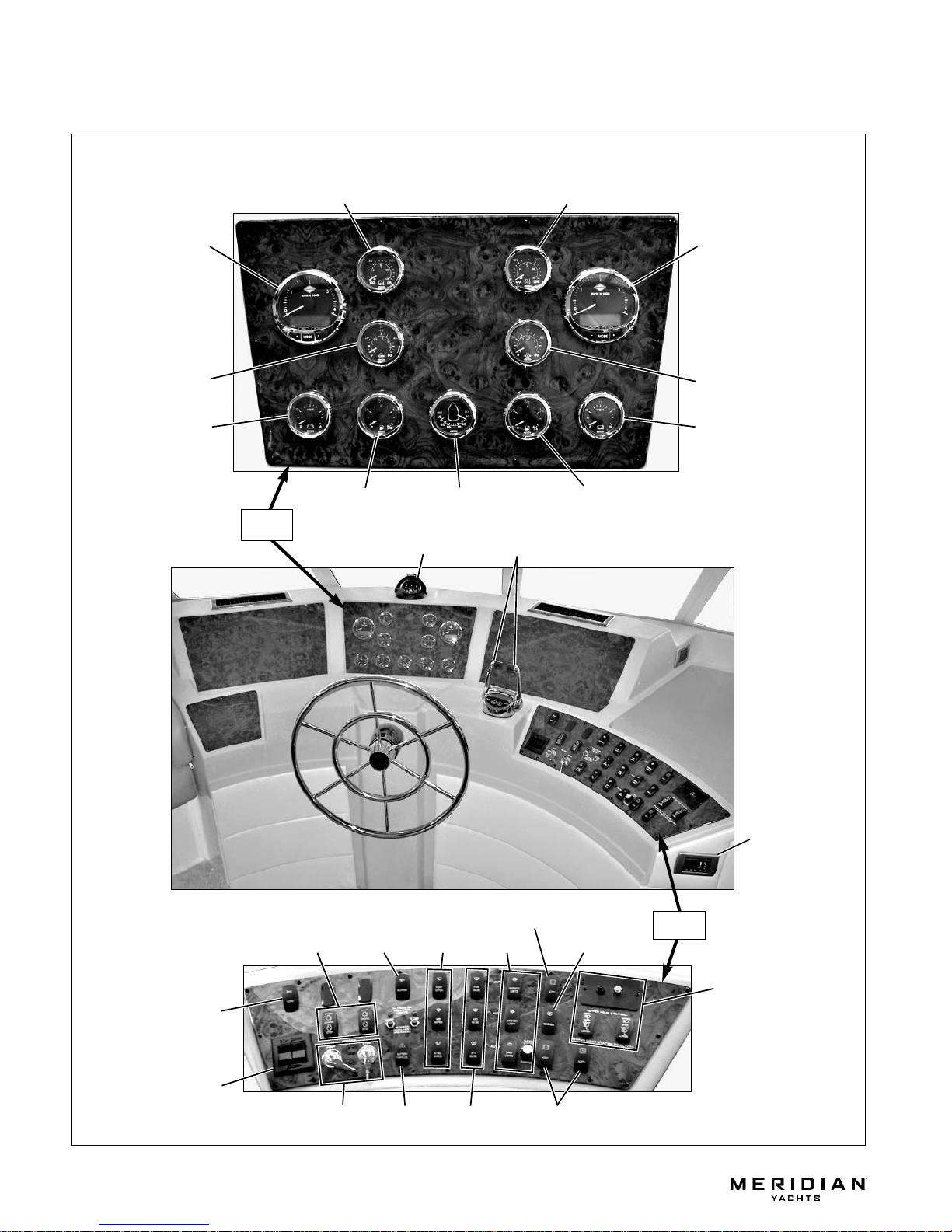

Pilothouse Helm Station 14
Command Bridge Helm Station 15
Component Locations 16
Chapter 3: Propulsion & Related Systems
Engines 34
Engine Cooling System 34
Exhaust System 35
Bilge Blower Systems 36
Fuel System 37
Fuel Fills & Vents 38
Fuel Filter/Water Separators 38
Shaft-Transmission Alignment 38
Shaft Log Packless Sealing System 38
Chapter 4: Controls & Gauges
Hydraulic Steering System 39
Rudder Stuffing Gland 39
Shift/Throttle Controls 39
Compass 39
Engine Synchronization (If Equipped) 40
Trim Tabs 40
Gauges 40
Cleaning the Gauges 40
Gauge Fogging 40
Radio Transmission Interference 40
Twin Engine Readings 40
Fuel Gauges 40

Chapter 6: Plumbing
Bilge Pumps 41
Bilge Pump Testing 42
Autofloat Switches 42
Seawater Systems 43
Seacocks 43
Seawater Strainers 43
Seawater Washdown 44
Freshwater System 45
City Water Inlet 46
Freshwater System Winterization 47
Water Heater 48
Winterizing the Water Heater 49
Preparing the Water Heater for Use
After Yacht Storage 50
Drain Systems 51
Deck Drains 51
Gray Water Drain System 51
Sump Pump Drain System 51
Sump Box Cleaning 51
Sump System Winterization 51
Autofloat Switch 52
Marine Heads & Holding Tank 53
Vacuum Flush Head System 53
Macerator 53
Chapter 7: Deck Equipment
Cleats 54
Windlass 54
Radar Wing 54
Davit 55
Important Davit Operation Guidelines 56
Dinghy Launching & Retrieving 56
Davit & Dinghy Storage 58
Davit Maintenance Guidelines 59
Canvas & Vinyl Tops & Enclosures 60
Canvas Care 61
Clear Vinyl Care 62
Chapter 8: Appliances &
Entertainment Systems
Refrigerator 63
Range/Oven 63
Audio & Visual Equipment 64
Dockside Television &
Telephone Inlet 64
Chapter 9: Lights
Care & Maintenance 65
Interior & Exterior Lights 65
Navigation Lights 65
Spotlight 65
Chapter 10: Air Conditioning & Heating
Air Conditioner (If Equipped) 66
Electric Heaters 67
Chapter 11: Electrical Systems
12-Volt DC System 69
Batteries 69
Battery Switches 69
Emergency Battery Parallel Switch 70
Fuses & Circuit Breakers 70
12-Volt DC Accessory Outlet 71
Alternators 71
Battery Charger 71
110-Volt AC System 72
Shore Power 73
Connecting to Shore Power 74
Generator 75
Important Records 76
Float Plan 77

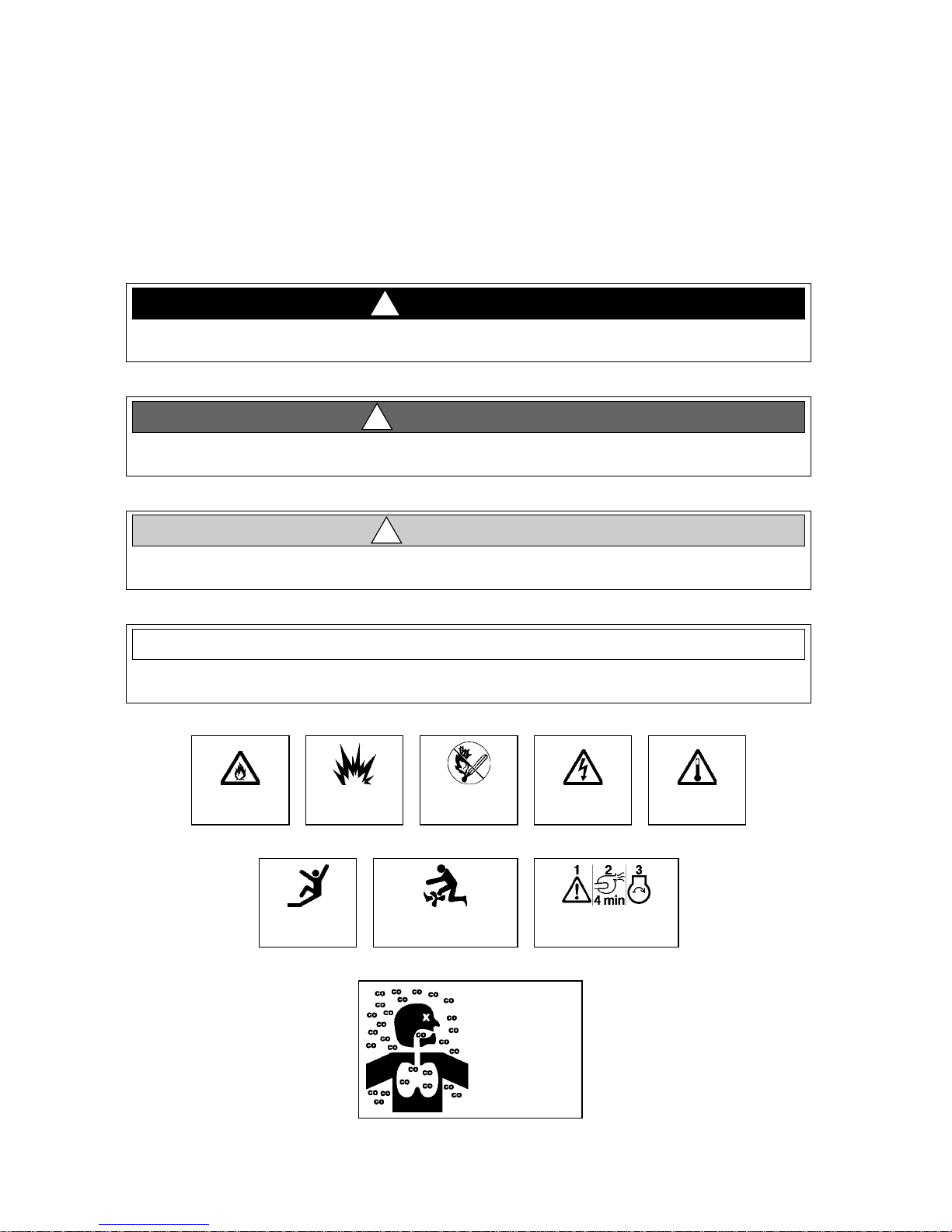

Hazard Boxes & Symbols
The hazard boxes and symbols shown below are used throughout this supplement to call attention to potentially dan-
gerous situations which could lead to either personal injury or product damage. Read all warnings carefully and fol-
low all safety instructions.
This box alerts you to immediate hazards which WILL cause severe personal injury or death if
the warning is ignored.
DANGER!
!
This box alerts you to hazards or unsafe practices which COULD result in severe personal
injury or death if the warning is ignored.
WARNING!
!
This box alerts you to hazards or unsafe practices which COULD result in minor personal
injury or cause product or property damage if the warning is ignored.
CAUTION
!
This box calls attention to installation, operation or maintenance information, which is impor-
tant to proper operation but is not hazard related.
NOTICE
EXPLOSION
HAZARD! NO OPEN FLAME! HOT HAZARD!
ROTATING
PROPELLER HAZARD!
FALLING
HAZARD!
ELECTRICAL
HAZARD!
CO POISONING
HAZARD!
FIRE
HAZARD!
RUN BILGE BLOWERS
FOR 4 MINUTES!

1
490 Pilothouse •Owner’s Manual
Chapter 1: Welcome Aboard!
•This Owner’s Manual provides specific information about your yacht that is not covered in the Cruiser & Yacht
Owner’s Manual Supplement.
•The Cruiser & Yacht Owner’s Manual Supplement contains general information about safe operating practices,
general boating regulations, and general maintenance techniques. Information that is more specific to your partic-
ular yacht is found in this Owner’s Manual.
•Before using your yacht, study this Owner’s Manual, the Cruiser & Yacht Owner’s Manual Supplement, and all
engine and accessory literature carefully. If similar instructions are found in more than one manual, always refer to
the specific manufacturer’s manual (such as the engine manual) for the most complete and accurate information.
•Keep this Owner’s Manual and the Cruiser & Yacht Owner’s Manual Supplement on your yacht in a secure, yet
readily available place.
Dimensions & Tank Capacities
Dealer Service
•Your dealer is your key to service.
•Ask your dealer to explain all systems before taking delivery of your yacht.
•Contact your dealer if you have any questions or problems with your new yacht.
•If your dealer cannot help, call our customer service hotline: [phone] or send us a FAX: [phone].
•Buy replacement parts from any authorized Meridian dealer.
•You can access on-line parts catalogs, links to vendor websites, and other helpful features by logging on
to www.meridianyachtparts.com.
Warranty Information
•Meridian offers a Limited Warranty on each new Meridian purchased through an authorized Meridian dealer.
•A copy of the Limited Warranty was included in your owner’s packet.
•If you did not get a copy of the Limited Warranty, please contact your Meridian dealer or call 360-403-2198 for
a copy.
Overall
Length Length Rigged Bridge Clearance Beam Draft (Hull) Draft (Maximum) Fuel Capacity Freshwater Capacity Holding Tank Capacity
47' 4" 54' 0" 18' 2" 14' 11" 2' 11" 3' 4" 444 Gallons 200 Gallons 48 Gallons

Chapter 1: Welcome Aboard! 490 Pilothouse •Owner’s Manual
2
Boating Experience
If this is your first yacht or if you are changing to a type of yacht you are not familiar with, for your own comfort and
safety, get handling and operating experience before assuming command of your yacht.
Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary.
For more course information, including dates and locations of upcoming classes, contact the organizations directly:
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
•In Canada, for the CPS courses call 1-888-CPS-BOAT.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
Outside the United States, your Meridian dealer, national sailing federation, or local boat club can advise you of local
sea schools or competent instructors.
Qualified Maintenance
•Failure to maintain your yacht’s systems (listed in the warning above) as designed could violate the laws in your
jurisdiction and could expose you and other people to the danger of bodily injury or accidental death.
•Follow the instructions in this Owner’s Manual, the Cruiser & Yacht Owner’s Manual Supplement, the engine
owner’s manual, and all accessory literature.
Structural Limitations
The bow platform, swim platform, and command bridge are designed to be lightweight for proper yacht balance. The
load limit for these structures is 30 pounds per square foot, evenly distributed.
CONTROL HAZARD!
An experienced operator MUST be in control of your yacht at ALL times. Do NOT operate
your yacht while under the influence of alcohol or drugs.
WARNING!
!
To maintain the safety of your yacht, allow ONLY trained personnel to do work on, or change,
in any way, the:
•Steering system
•Propulsion system
•Engine control system
•Fuel system
•Environmental control system
•Electrical system
•Navigation system
WARNING!
!

490 Pilothouse •Owner’s Manual Chapter 1: Welcome Aboard!
3
Engine & Accessory Guidelines & Literature
•Your yacht’s engines and accessories were selected to provide optimum performance and service.
•Installing different engines or adding accessories may affect your yacht’s running trim.
•If you choose to install different engines or add accessories that may affect your yacht’s running trim, have a
trained marine technician do a safety inspection and handling test before using your yacht again.
•The enginesand accessories on your yacht have their own manuals. Read these manuals before using the engines
and accessories.
Unless noted otherwise, all engine and accessory literature referred to in this Owner’s Manual is included in your
owner’s packet.
While the topics listed below may be included in this Owner’s Manual and in the Cruiser & Yacht Owner’s Manual
Supplement, always refer to the engine manual first for specific information on these important subjects:
Propellers
•Keep the propellers in good repair and at the correct pitch for your particular situation.
•A slightly bent or nicked propeller will adversely affect the performance of your yacht.
BEFORE starting or working on your engine(s), read the engine manual.
NOTICE
BEFORE using the accessories on your yacht, read the accessory manuals.
NOTICE
BEFORE storing your yacht, refer to your engine and accessory manuals for storage/
winterization instructions.
NOTICE
Certain modifications to your yacht WILL result in cancellation of your warranty protection.
ALWAYS check with your dealer BEFORE making any modifications to your yacht.
NOTICE
•Engine Break-in Procedure
•Engine Starting and Stopping
•Gear Shifting
•Fuel and Oil Recommendations
•Engine Maintenance
•Engine Storage/Winterization
ENGINE DAMAGE HAZARD!
The factory standard propellers may not be the best for your particular yacht and load condi-
tions. Refer to the engine manual for engine RPM ratings. The engines should reach, but NOT
exceed the full rated RPM when full-throttle is applied.
Immediately contact your local Meridian dealer if:
•The engines cannot reach the full rated RPM when full-throttle is applied, or;
•The engines exceed the full rated RPM when full-throttle is applied.
CAUTION
!

Chapter 1: Welcome Aboard! 490 Pilothouse •Owner’s Manual
4
Safety Standards
•Your yacht’s mechanical and electrical systems were designed to meet safety standards in effect at the time it
was built.
•Some of these standards were mandated by law, and all of them were designed to insure your safety and the safety
of other people, vessels and property.
Read this Owner’s Manual, the Cruiser & Yacht Owner’s Manual Supplement, and all accessory instructions for
important safety standards and hazard information.
FALLING and ROTATING PROPELLER HAZARD!
•NEVER allow anyone to ride on parts of your yacht NOT designed for
such use.
•Sitting on seat backs, lounging on the forward deck, bow riding, gun-
wale riding or occupying the transom platform while underway is especially hazardous and
WILL cause personal injury or death.
DANGER!
!
FALLING, ROTATING PROPELLER and CARBON
MONOXIDE POISONING HAZARD!
•NEVER allow anyone to occupy, or hang from, the
back deck or swim platform while the engines
are running.
•Teak surfing, dragging, or water skiing within 20 feet
of a moving watercraft can be fatal.
DANGER!
!
DANGER
PERSONAL SAFETY HAZARD!
•ALWAYS secure the anchor and other loose objects BEFORE getting underway.
•The anchor and other items that areNOT properly secured can come loose when your yacht
is moving and cause personal injury or death.
DANGER!
!
A wide variety of components used on this vessel contain or emit chemicals known to the State
of California to cause cancer and birth defects and other reproductive harm.
Examples Include:
•Engine and generator exhaust
•Engine and generator fuel, and other liquids such as coolants and oil, especially used
motor oil
•Cooking fuels
•Cleaners, paints, and substances used for vessel repair
•Waste materials that result from wear of vessel components
•Lead from battery terminals and from other sources such as ballast or fishing sinkers
To Avoid Harm:
•Keep away from engine, generator, and cooking fuel exhaust fumes.
•Wash exposed skin thoroughly with soap and water after handling the substances above.
WARNING!
!

490 Pilothouse •Owner’s Manual Chapter 1: Welcome Aboard!
5
Special Care for Moored Yachts
•Whether moored in saltwater or freshwater, your yacht will collect marine growth on its hull bottom.
•This will detract from your yacht’s beauty, greatly affect its performance, and may damage the gel coat.
•There are two methods of slowing marine growth:
1. Periodically haul your yacht out of the water and scrub the hull bottom with a bristle brush and a solution of soap
and water.
2. Occasionally reapply the anti-fouling paint on your hull bottom. How often your hull needs new anti-fouling
paint depends on many factors. Ask your selling dealer or local marina for advice.
Sacrificial Anodes (Zincs)
Your yacht features sacrificial anodes (zincs) to protect
underwater metal parts from excessive deterioration. Check
the zincs regularly and replace them if they have deterio-
rated more than 70%.
There are many factors that affect the rate at which the zincs
deteriorate, including:
•Water temperature
•Salinity
•Water pollution
•Stray electrical current
Stray electrical current from your yacht, another boat, or the
dock may cause complete deterioration of the zincs in just a
few weeks. If there is rapid zinc deterioration, measure the
electrolytic corrosion around your yacht with a corrosion
test meter.
•Do NOT paint between the zinc and the metal surface it contacts and do NOT paint over
the zincs.
•If the zincs are not bonded correctly, they will NOT provide protection.
NOTICE
NEW SACRIFICIAL ANODE
DETERIORATED SACRIFICIAL ANODE

Chapter 1: Welcome Aboard! 490 Pilothouse •Owner’s Manual
6
Yacht Lifting
•Always follow the lift equipment’s instructions and requirements.
•When lifting your yacht, always position the lifting slings at the port and starboard lifting sling label positions, as
shown in the illustration.
PERSONAL INJURY and/or PRODUCT or PROPERTY DAMAGE HAZARD!
•Lifting slings can slip on the hull, which could cause serious injury or death.
•Reduce the risk of sling slippage by ALWAYS securing the lifting slings together
BEFORE lifting.
WARNING!
!
PERSONAL INJURY and/or PRODUCT or PROPERTY DAMAGE HAZARD!
NEVER lift your yacht using the cleats.
WARNING!
!
PERSONAL INJURY and/or PRODUCT or PROPERTY DAMAGE HAZARD!
•Water in the bilge can shift and change the balance of the load.
•If water is present in the bilge, pump the water out of the bilge areas BEFORE lifting
your yacht.
WARNING!
!
PRODUCT or PROPERTY DAMAGE HAZARD!
•When lifting any boat, ALWAYS use a spreader bar.
•The spreader bar MUST be equal to the width of the boat at each lifting point.
•Make sure your yacht remains level during lifting. Engines can be damaged by water inges-
tion if the stern is lifted higher than the bow.
CAUTION
!

490 Pilothouse •Owner’s Manual Chapter 1: Welcome Aboard!
7
Carbon Monoxide (CO)
CO Facts
•CO poisoning causes a significant number of boating deaths each year.
•Called the "silent killer", CO is an extremely toxic, colorless, odorless and tasteless gas.
•CO can harm or even kill you inside or outside your yacht.
•CO can affect you whether you’re underway, moored, or anchored.
•CO symptoms are similar to seasickness or alcohol intoxication.
•CO can make you sick in seconds. In high enough concentrations, even a few breaths can be fatal.
•Breathing CO blocks the ability of your blood to carry oxygen.
•The effects are cumulative. Even low levels of exposure can result in injury or death.
Factors that Increase the Effects of CO Poisoning
•Age
•Smokers or people exposed to high concentrations of cigarette smoke
•Consumption of alcohol
•Lung disorders
•Heart problems
•Pregnancy
•Carbon monoxide gas (CO) is colorless, odorless, tasteless, and extremely
dangerous.
•ALL engines, generators, and fuel burning appliances produce CO as
exhaust.
•Prolonged exposure to low concentrations or very quick exposure to high
concentrations WILL cause BRAIN DAMAGE or DEATH.
•Teak surfing, dragging, or water skiing within 20 feet of a moving water-
craft can be fatal.
DANGER!
!

Chapter 1: Welcome Aboard! 490 Pilothouse •Owner’s Manual
8
Where & How CO Can Accumulate
Stationary conditions that increase CO accumulations include:
To correct stationary situations A and/or B:
•Close all windows, portlights and hatches.
•If possible, move your yacht away from source of CO.
Running conditions that increase CO accumulations include:
To correct running situations C and/or D:
•Trim bow down.
•Open windows and canvas.
•When possible, run yacht so that prevailing winds help dissipate exhaust.
How To Protect Yourself & Others From CO
•Know where and how CO may accumulate in and around your yacht (see above).
•Always maintain fresh air circulation throughout your yacht.
•Know where your engine and generator exhaust outlets are located and keep everyone away from these areas.
•Never sit on, or hang onto, the back deck or swim platform while the engines or generator are running.
•Never enter the areas under swim platforms where exhaust outlets are located.
•Although CO can be present without the smell of exhaust fumes, if exhaust fumes are detected on your yacht, take
immediate action to dissipate these fumes.
•Treat symptoms of seasickness as possible CO poisoning. Get the person into fresh air immediately. Seek medical
attention—unless you’re sure it’s not CO.
•Maintain the CO monitors inside your yacht. NEVER ignore any alarm. Replace monitors as recommended by the
monitor manufacturer.
•Follow the checklists provided on the next page.
•Get a Vessel Safety Check.
For information about free VESSEL SAFETY CHECKS, visit www.vesselsafetycheck.org or contact your local U.S.
Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
A. Using engine,
generator, or
other fuel
burningdevice
when yacht is
moored in a
confined
space. B. Mooring too close toanother boat that is using its
engine, generator, or other fuel burning device.
C. Running yacht with trim angle of bow too high. D. Running yacht without through ventilation
(station wagon effect).

490 Pilothouse •Owner’s Manual Chapter 1: Welcome Aboard!
9
CO Checklists
Trip Checklist
❏Educate all passengers about the symptoms of CO poisoning and where CO may accumulate.
❏When docked, or rafted with another boat, be aware of exhaust emissions from the other boats.
❏Make sure you know where the exhaust outlets are located on your yacht.
❏Confirm that water flows from the exhaust outlets when the engines and generator are started.
❏Listen for any change in exhaust sound, which could mean an exhaust component failure.
❏Test the operation of each CO monitor by pressing the test button.
Monthly Checklist
❏Make sure all exhaust clamps are in place and secure.
❏Look for exhaust leaking from exhaust system components. Signs include rust and/or black streaking, water
leaks, or corroded or cracked fittings.
❏Inspect rubber exhaust hoses for burned, cracked, or deteriorated sections. All rubber hoses should be pliable and
free of kinks.
Annual Checklist
Have a Trained Marine Technician:
❏Replace exhaust hoses if cracking, charring, or deterioration is found.
❏Ensure that your engines and generators are properly tuned, and well maintained.
❏Inspect each water pump impeller and the water pump housing. Replace if worn. Make sure cooling systems are
in working condition.
❏Inspect all metallic exhaust components for cracking, rusting, leaking, or loosening. Make sure they check the
cylinder head gasket, exhaust manifold, water injection elbow, and the threaded adapter nipple between the
manifold and the elbow.
❏Clean, inspect, and confirm proper operation of the generator cooling water anti-siphon valve (if equipped).

Chapter 1: Welcome Aboard! 490 Pilothouse •Owner’s Manual
10
CO Monitors
•NEVER disconnect the CO monitors.
•Read the manufacturer’s instructions for your CO monitors. If you did not get the manufacturer’s instructions,
call [phone] and they will be mailed to you.
More Information
For more information about preventing carbon monoxide poisoning on recreational boats and other boating safety
tips, contact:
For information about free VESSEL SAFETY CHECKS, visit www.vesselsafetycheck.org or contact your local U.S.
Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
CARBON MONOXIDE POISONING HAZARD!
•The house battery switch MUST be in the On position for the CO monitors
to work.
•If your yacht will be unattended for an extended period of time, turn Off the
house battery switch or the CO monitors WILL drain the house battery.
•IMMEDIATELY turn the house battery switch back On when you reboard
your yacht.
DANGER!
!
U
nited States Coast Guard
O
ffice of Boating Safety (G-OPB-3)
2
100 Second Street SW
W
ashington, DC 20593
w
ww.uscgboating.org
1
-800-368-5647
National Marine Manufacturers
Association (NMMA)
200 East Randolph Drive
Suite 5100
Chicago, IL 60601-9301
www.nmma.org
312-946-6200
American Boat & Yacht Council
,
Inc. (ABYC)
613 Third Street
Suite 10
Annapolis, MD 21403
www.abycinc.org
410-990-4460

11
490 Pilothouse •Owner’s Manual
Chapter 2: Locations
Exterior Views
Hull Views
TRIM TABS
TRANSOM
SACRIFICIAL
ZINC ANODE
PLATE
STARBOARD HULLSIDE
PORT HULLSIDE
PORTLIGHTS
PORTLIGHTS
ENGINE ROOM
BLOWER VENT
ENGINE ROOM
BLOWER VENT
FRESHWATER
TANK VENTS PORT FUEL
TANK VENT
STARBOARD FUEL
TANK VENT
HOLDING
TANK VENT
ROPE
LOCKER DRAIN
ANCHOR LOCKER
DRAIN
DECK
DRAIN
AIR CONDITIONER
DRAIN (IF EQUIPPED) GALLEY SINK
DRAIN WATER
HEATER DRAIN DECK
DRAIN AFT BILGE PUMPS DRAINS
PORT ENGINE
EXHAUST
GENERATOR
EXHAUST
PORT COCKPIT
DRAIN
STARBOARD
ENGINE EXHAUST
STARBOARD
COCKPIT DRAIN
STARBOARD COCKPIT
HATCH DRAIN
PORT COCKPIT
HATCH DRAIN CENTER COCKPIT HATCH DRAINS
WASHER/DRYER DRAIN
AIR CONDITIONER
DRAINS (IF EQUIPPED)
VENTILATION
LOUVER
VENTILATION
LOUVER
TRIM TABS
MULTI-PORT THRU-HULL DRAINS:
MID BILGE PUMPS, FORWARD BILGE
PUMPS, SUMP PUMP, AFT HEAD SHOWER

Chapter 2: Locations 490 Pilothouse •Owner’s Manual
12
Forward Deck View
BOW HATCHES
WINDLASS
FOOT CONTROLS
CLEAT
CLEAT
BOW
NAVIGATION LIGHTS
ANCHOR WINDLASS
SPOTLIGHT
WINDSHIELD WIPERS
ALL-ROUND LIGHT
BOW
PLATFORM
DECK RAIL DECK RAIL
BOW RAIL
ANCHOR LOCKER
HORN
BOW HATCHES

490 Pilothouse •Owner’s Manual Chapter 2: Locations
13
Aft Deck View
CLEAT
BOARDING
LADDER
CITY WATER
INLET
CLEAT
GRAB RAILSNAVIGATION LIGHT
STERN
SWIM
PLATFORM
STORAGE HATCH
COCKPIT
GRAB RAIL
TRANSOM
DOOR
HAWSE PIPE
HAWSE
PIPE

Chapter 2: Locations 490 Pilothouse •Owner’s Manual
14
Helm Views
Pilothouse Helm Station
VARY DEPENDING ON ENGINE AND ACCESSORY OPTIONS.
NOTE: TYPICAL HELM LAYOUTS SHOWN. ACTUAL LAYOUTS MAY
PORT
PORT ENGINE
PORT ENGINE STARBOARD ENGINE
STARBOARD
STARBOARD ENGINE
STARBOARD ENGINEPORT ENGINE
STARBOARD ENGINE
COMPASS SHIFT/THROTTLE CONTROL
SPOTLIGHT
CONTROL
AIR CONDITIONER
CONTROL
(IF EQUIPPED)
RUDDER
PANEL
TRIM TABS
HORN
IGNITION
ENGINE
PREHEAT BILGE
BLOWER WIPERS
BATTERY
PARALLEL BILGE PUMPS
LIGHTS WASHER
WINDSHIELD
ACCESSORY
ACCESSORY
REFERENCE
PORT ENGINE TEMPERATURETEMPERATURE
TACHOMETER
OIL PRESSURE
VOLTMETER
FUEL TANK
FUEL TANK
VOLTMETER
OIL PRESSURE
TACHOMETER
GAUGE
PANEL
SWITCH
PANEL
