Caroma CARE ARMREST User manual

Right Hand Arm Assembly with Toilet Roll Holder
Fig. 1
Button Removal
Fig. 2
CARE ARMREST
TOILET ROLL INSTALLATION INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE INSTALLATION
1. Toilet roll holder comes fitted to the right hand side, however can be swapped to the left hand
side if required.
2. Unclip button with small flat bladed screwdriver. Remove button and springs. Remove two (2)
phillips head screws.
Page 1 of 2
Press here
to remove button
Screw
Spring
Screw
Button

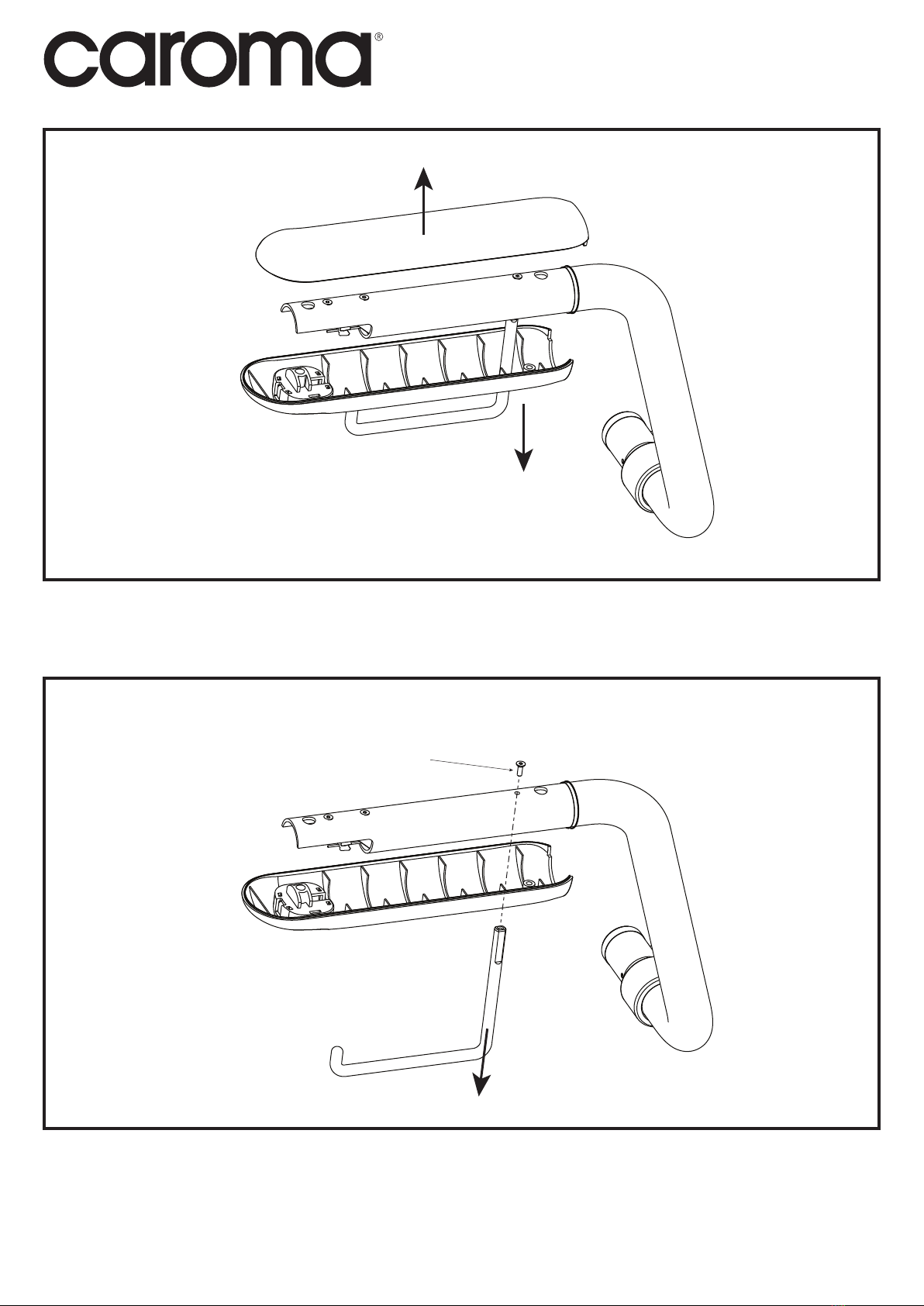

Handle Cover Removal
Fig. 3
Toilet Roll Holder Removal
Fig. 4
CARE ARMREST
TOILET ROLL INSTALLATION INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE INSTALLATION
3. Slide lower handle down toilet roll holder. Remove top handle.
4. Remove M4 phillips head screw and slide out toilet roll holder.
5. To change to left hand side, remove left hand handle and reverse installation instructions.
Page 2 of 2
M4 screw
Date of Issue: 17.01.2013
Issue No: 1
