Carp Design Wave Craft S User manual
User Manual of the Intelligent Remote Control Baitboat
Please read this user manual thoroughly and follow the instructions of the user manual. It’s hoped that this product will bring you
extraordinary harvest and fun.
1.Bait boat’s Main Functions：
1) Full digital duplex two-way wireless remote control.
) The remote control handset with LCD can display the working status of boat.
3) Both the boat and remote control handset are equipped with electronic compass,which could make boat sail automatically.

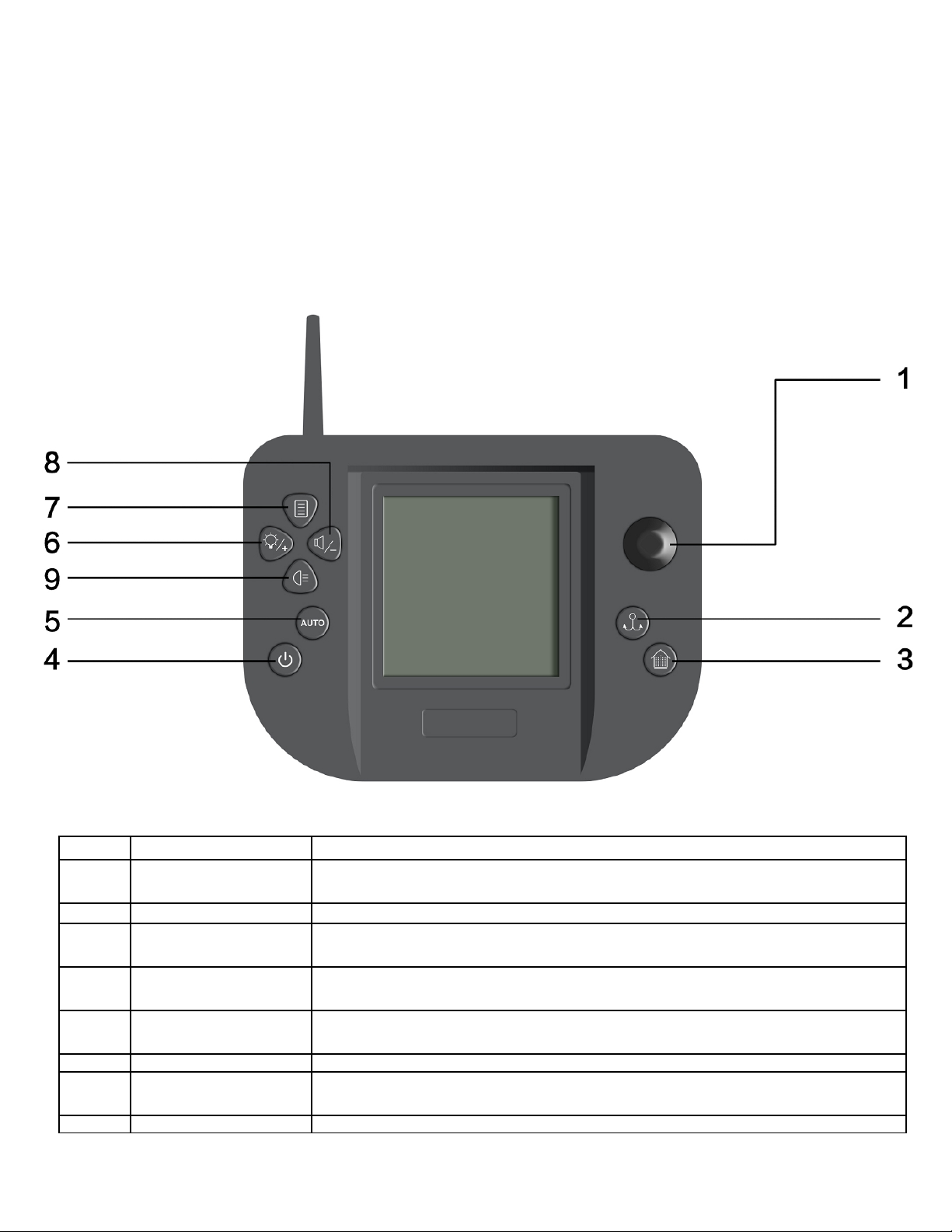

2.Name and Operation of the Buttons on the Remote Control Handset:
NO. Name of Buttons Operation of the Buttons
1Rocker（Joystick）Move the joystick to control the boat sailing manually(You can also move joystick in “AUTO” mode to
adjust the boat sailing direction)
/3 Bait hopper/Hook button Press any of the two buttons to open the bait hopper
4 Power switch button/
Menu item confirmation
1. Press and hold the button for 3 seconds to switch on/off the remote control handset
2.Press the button to confirm menu items
5 Automatic sailing button
(AUTO)
Press the button to make boat sail automatically
6 LCD backlight button/
Items adjusting button
Press the button to switch on/off the RC LCD backlight;this button can also be used to choose channel
of pairing and adjust motor rotate speed
7 Menu button Press the button to choose the menu items that you need
8 Voice on-off button/
Items adjusting button
Press the button to turn on/off the voice or audible alarm ;this button can also be used to choose
channel of pairing and adjust motor rotate speed
9 Boat lamp button Switch on/off the boat front/back lamp
3. isplay of the LC on the Remote Control Handset:
1) Operation interface:
No. Name of Icons Functions
1 Signal Display the strength of signal between the boat and the remote control handset
Boat battery level
Indicate the power status of the boat batteries. When the power is running low, there will be an
audible alarm
3
Battery level of remote control
handset
Indicate the power status of the remote control handset. When the power is running low, there will
be an audible alarm
4 Front/back lamps of the boat
Show the front/back lamps through the icons. When the lamps are on, the icon will turn white from
black, and when the hopper is opened or the hook is released, the lamps will flash with audible
alarms
5 Bait hopper open indication When the icon of the bait hopper turns white from black, it indicates that the hopper opens
6 Boat battery type Lithium battery(Li)
7
RC handset working time/Menu
indication
Show the RC handset working time since switch on/When enter
into the hidden menu it shows English symbols or numbers
8 Sailing direction indication Indicates the sailing direction of the boat, and the arrow indicates the bow of the boat
)Press menu button to enter into the menu ,you need to operate the following menu items:
Menu Optio
ns
Menu Display Icon Menu Operations
RC compass
calibration
Press menu button,when the LCD shows the RC compass calibration picture,press
power switch button to confirm the calibration.Then move the RC handset in a shape of
“8” to conduct calibration.Please press the menu button to enter into the next menu
operation interface if finished calibration
Boat compass
calibration
When the LCD shows the boat compass calibration picture,please drive the boat to
open waters,and press power switch button to confirm the calibration,then boat will
conduct automatic calibration itself in the water.Please press the menu button to
enter into the next menu operation if finished calibration
Communication
pairing
When the LCD shows signal icon and number of the channel,press“+”or “-”button to
choose one channel,then press power switch button to enter into pairing mode,then
switch on the boat until the boat lamps flashing.When pairing is successful,the RC
handset screen will show“Good”,then press the menu button to go back to main
interface
3)Hidden menu:Press and hold on the menu button for 3 seconds to enter into the hidden menu(Remark:The
hidden menu only used for joystick calibration and adjusting motor speed,we have already set well these two
settings before products leave factory.So please don’t go into the hidden menu if you don’t need to calibrate
the joystick and adjust the motor speed)
Menu Options Menu Display Icon Menu Operations
Calibrate the
Joystick
central point
CE
CE 05
The joystick calibration interface on the LCD shows “CE”,
press power switch button to confirm,then the LCD shows
“CE 05”,it means countdown 5 seconds,this moment
please don’t move the joystick,when the countdown
is finished,please press the power switch button to confirm
Calibrate the
joystick
maximal value
CP
CP 0
After the central point calibration,it will go into maximal
value calibration ,and the LCD shows “CP”,press power
switch button to confirm,then the LCD shows “CP 0”,
it means countdown 0 seconds,this moment please move
the joystick in a whole circle to calibrate the joystick, after
you finish the calibration please press the menu button to
enter into the motor speed adjusting interface
Adjust the
rotate speed
of motors
99 99 Motor speed adjusting interface on the LCD shows “99 99”,press“+”or “-”button to
adjust the motor rotate speed,the flashing numbers on which side means adjusting the
motor on which side,press power switch menu to confirm the adjusting, after each
motor finished adjusting please press the menu button go back to main interface
4.Charger
The charger has LED charging indicators. A red light indicates battery is being charged, and after the charging is completed, the
red light will turn green to indicate battery is fully charged.
A) Charge the boat battery :Please insert the charger’s plug into the boat power socket to charge the boat battery.
B) Charge the RC handset battery:Please insert the charging plug of the charger into the charging USB socket of the remote
control handset to charge the RC handset battery.
C)Cautions for Battery use：
* Before use, the boat batteries and remote-control handset batteries need to be charged to full capacity, and the initial charge time should be no
less than 8 hours.
* Please charge the boat battery in time after the battery power is run out,because empty battery power will easily damage the battery.
* For long-term storage, the batteries should be charged once every -3 months.
* If the bait boat will not be used for a long period of time, please disconnect & take out the batteries from the boat.
* Please do not put the battery in direct sunlight or near an open source of fire
* Please keep all batteries and charging equipment out of reach of children
*Please open the boat battery cover when you charge the boat battery to expel the gas in the battery during charging.
5. Safety Precautions and Notices
* The antenna is a conductor for electromagnetic waves and lightning, and it will very easily attract the fresh flashing
and thunder, so please do not use the bait boat during stormy conditions.
* It’s dangerous to use the remote-control handset where explosives are used. Please avoid using the boat in these
locations.
* As the electronic compass is easily affected by external environment, please avoid using it under high-voltage cables
as well as in any areas surround by a strong magnetic field or in areas of mining.
* The angle between the antenna of the remote control handset and the ground should be greater than 45 degrees.
Please ensure the antenna of the remote control handset is kept at a high position, to ensure the maximal signal
between the boat and the remote control handset.
* Do not try to dismantle the boat or the remote-control handset by yourself for any reason. For any repairs required,
please contact your supplier to arrange for an authorized repair. The Company will not be responsible for the loss
caused by unauthorized dismantles.
* Please ensure the solenoid switch of the bait hopper is clean, and please clear the sands, mud or any other dirt
attached to the solenoid switch and the metal plate so as to keep the switch functional.
6.Main performance index：
Performance A
Hull Size 53*30* 0CM
Hull Type Single hull
Bait Hopper Quantity 1
Hopper Load Capacity 1KG
RC Distance 400M
Turning Radius Turing on the spot
Frequency 433MHZ/868MHZ/ .4GHZ
Sailing Speed 70M/Minute
RC Releasing bait / hook ◎
Manual / Automatic Sailing ◎
Boat Front and Back Lamps ◎
Boat Power Switch on Lights flashing
Boat Battery Boat Sailing Time
Lithium Battery(11.1V/5AH) 1-1.5 Hours
7． Product Standard Configuration and Packing List:
NO. Name Specification Quantity
1 Boat 1set
Remote-control Handset 1set
3 Charger for Boat Battery Indoor charging of the boat batteries 1pc
4 Charger for RC Handset Battery Indoor charging of the handset
battery 1pc
6 Boat lithium battery 11.1V/5AH 1pc
7 RC handset lithium battery 3.7V/1000MAH 1pc
