Carrier 50EN Manual

INSTALLATION, OPERATION AND
MAINTENANCE INSTRUCTIONS
50EN/EH
Nominal cooling capacity 21,2 - 85,2 kW
Nominal heating capacity 21,7 - 88,7 kW
50 Hz
Translation of the original document 80046, 10.2016
Packaged rooftop cooling only / heat pumps
and separated gas module option

Packaged rooftop units
2
Contents
1. Introduction .......................................................................................................................................................................................................3
2. Operation limits .................................................................................................................................................................................................3
3. Technical characteristics (EN-14511-2013)......................................................................................................................................................4
4. Safety advice.....................................................................................................................................................................................................6
5. Unit identification...............................................................................................................................................................................................6
6. Possible types of assemblies............................................................................................................................................................................7
7. Transport and handling .....................................................................................................................................................................................8
Transport...........................................................................................................................................................................................................8
Discharging of the unit ......................................................................................................................................................................................8
Weight overview (kg).........................................................................................................................................................................................9
Centre of gravity coordinates (mm)...................................................................................................................................................................9
8. Location and assembling ................................................................................................................................................................................10
Choice of location............................................................................................................................................................................................10
Anchorage for antivibrators.............................................................................................................................................................................11
Minimum free space for commissioning and maintenance operations ...........................................................................................................12
Sound Level ....................................................................................................................................................................................................13
9. Checking before commissioning .....................................................................................................................................................................14
Electrical connections .....................................................................................................................................................................................14
Connection of probes by the client..................................................................................................................................................................15
Checks in the axial fans ..................................................................................................................................................................................17
Checks in the EC plug-fans.............................................................................................................................................................................18
Checks in the centrifugal fans (optional).........................................................................................................................................................18
Air ducts connections ......................................................................................................................................................................................19
Condensate drain connection .........................................................................................................................................................................19
10. Safety elements ..............................................................................................................................................................................................20
11. Opcional equipment.........................................................................................................................................................................................22
Filters ..............................................................................................................................................................................................................22
Hot water coil ..................................................................................................................................................................................................22
Electrical heaters.............................................................................................................................................................................................23
Gas burner ......................................................................................................................................................................................................24
Pre-assembly roofcurbs ..................................................................................................................................................................................24
Hood cover......................................................................................................................................................................................................25
Stop-drop ........................................................................................................................................................................................................25
12. Commissioning................................................................................................................................................................................................26
Checks prior to commissioning .......................................................................................................................................................................26
Possible problems at commissioning..............................................................................................................................................................27
Operational checks .........................................................................................................................................................................................27
13. Maintenance....................................................................................................................................................................................................27
General recommendations..............................................................................................................................................................................27
Access to components ....................................................................................................................................................................................28
14. Control and analysis of breakdowns................................................................................................................................................................33

Packaged rooftop units
3
1. INTRODUCTION
2. OPERATION LIMITS
With a condensation pressure control operating down to -10ºC.
When the outdoor temperature is usually below 5ºC WB it is
recommended installing a support element.
Inlet air conditions Cooling Heating
Indoor coil
Minimum 13ºC WB 10ºC
Maximum 24ºC WB 27ºC
Outdoor coil
Minimum 12ºC -12ºC WB 
Maximum 48ºC 15ºC WB
The 50EN/EH cooling units and heat pumps are autonomous air-air
units of horizontal design, rooftop type.
• 50EN series: Autonomous air-air cooling units with a compact
horizontal rooftop construction.
• 50EH series: Autonomous reversible air-air heat pump units with
a compact horizontal rooftop construction.
Packaged unit “all in one” with all components installed inside the unit.
The unit is connected directly to an air distribution ductwork without
using indoor units, a network of pipes, cables... and, therefore, without
the service space necessary for the connection of these components.
This design reduces the cost of installation, facilitates a quick
connection and ensures reliable operation.
The range of capacities of these units allows the air conditioning of
medium and large surface areas used for business or industry.
A vast number of options provide a solution to many operating
requirements, such a:
- Free-cooling.
- Air renewal.
- Air quality control (CO2).
- Different levels of air filtration.
- Active recovery of the extracted air energy.
- Back-up heating by means of electrical heaters, hot water coil and/
or gas burner.
- Heat pump adapted to extremely cold weather conditions.
These units are equipped with electronic axial fans in the outdoor
circuit, electronic plug-fans in the indoor circuit, air coils, hermetic scroll
compressors and electronic control with microprocessor, components
optimised for the R-410A refrigerant.
After manufacturing, all units are charged with refrigerant and
are tested at the factory, verifying the correct operation of all their
components within the operating range for which they are intended.
The units comply with European Directives: Machinery 2006/42/EC -
EMC 2014/30/EU - LVD 2014/35/EU - PED 2014/68/EC (Category 2)
- RoHS 2011/65/EU - Eco-design 2009/125/CE - Eco-labelling 2010/30/
EU; and with Harmonised Standard: EN 378-2:2012.
Those in charge of the installation, commissioning, operation and
maintenance of the unit must know the instructions contained in this
brochure and the specific technical characteristics of the installation site.

Packaged rooftop units
4
3. TECHNICAL CHARACTERISTICS (EN-14511-2013)
50EN/EH 90HEE 90T 120HEE 120T 160HEE 160T 180HEE 180T
Cooling
capacities
Cooling capacity (kW) 21,2 23,1 25,2 30,1 33,4 38,1 42,5 46,3
Power input (kW) 7,1 8,2 8,4 10,7 11,1 13,6 14,1 16,5
EER performance 3,01 2,81 3,01 2,81 3,01 2,81 3,01 2,81
Heating
capacities
Heating capacity (kW) 21,7 24,0 25,7 31,1 34,5 39,3 42,8 46,7
Power input (kW) 6,4 7,5 7,5 9,7 10,1 12,2 12,5 14,6
COP performance 3,41 3,21 3,41 3,21 3,41 3,21 3,41 3,21
Outdoor
circuit
fan
Nominal air flow (m3/h) 8000 13000 17000
Available static pressure (mm.w.c) 4
Type Electronic axial fan
Number / Diameter (mm) 1 / 630 1 / 800
Motor output (kW) 0,9 2,2
Power input in COOLING (kW) 0,5 0,5 1,5 1,5 1,4 1,4 1,6 1,6
Power input in HEATING (kW) 0,7 0,7 2,2 2,2 1,9 1,9 2,3 2,3
Speed (r.p.m.) 1000 980
Indoor
circuit
supply
fan
Nominal air flow (m3/h) 4000 6000 8700 9000
Available static pressure (mm.w.c) 12 12 12 15 15 15 15 15
Type Electronic plug-fan
Number / Diameter (mm) 1 / 500 2 / 500
Motor output (kW) 2,68 2 x 2,68
Power input (kW) 0,5 0,5 0,9 1,0 1,4 1,4 1,6 1,6
Speed (r.p.m.) 1700 2 / 1700
Compressor
Type Scroll
Number of compressors 2
Number of stages 2
Number of circuits 1
Oil type Copeland 3MAF 32cST, Danfoss POE 160SZ, ICI Emkarate RL 32CF, Mobil EAL Artic 22CC
Volume of oil (l) 3,1 3,1 3,1 3,1 3,1 3,1 3,1 5,3
Electrical
characteristics
Mains voltage 400 V / III ph / 50 Hz (±10%)
Power supply 3 wires + ground
Maximum
absorbed
current
Compressors (A) 12,0 13,6 13,6 20,8 25,9 31,7 31,7 25,4
Outdoor fans (A) 2,0 2,0 3,4 3,4 3,4 3,4 3,4 3,4
Indoor fans (A) 4,2 4,2 4,2 4,2 8,4 8,4 8,4 8,4
Control (A) 0,9 0,9 0,9 0,9 0,9 0,9 0,9 0,9
Total (A) 19,1 20,7 22,1 29,3 38,6 44,4 44,4 38,1
Refrigerant
Type R-410A
Global warming potential (GWP) 2.088
Charge (kg) 6,0 6,0 7,5 7,5 8,5 8,5 10,0 10,0
Environment impact (tCO2eq) 12,5 12,5 15,7 15,7 17,7 17,7 20,9 20,9
Dimensions
Length (mm) 2400 2400
Width (mm) 1400 1400
Height (mm) 1497 1548 1675
Weight (kg) 595 595 616 616 694 694 734 734
Condensate outlet Ø 1 1/4” adaptor
Cooling capacity calculated in accordance with the EN-14511-2013 standard given for indoor temperature conditions 27ºC, 19ºC WB and 35ºC outdoor temperature.
Heating capacity calculated in accordance with the EN-14511-2013 standard given for indoor temperature conditions 20ºC and 6ºC WB outdoor temperature.
Total power input by compressors and motorised fans under nominal conditions, calculated in accordance with the EN-14511-2013 standard.
Climatic warming potential of a kilogram of fluorinated greenhouse gas in relation to a kilogram of carbon dioxide over a period of 100 years.

Packaged rooftop units
5
3. TECHNICAL CHARACTERISTICS (EN-14511-2013)
Cooling capacity calculated in accordance with the EN-14511-2013 standard given for indoor temperature conditions 27ºC, 19ºC WB and 35ºC outdoor temperature.
Heating capacity calculated in accordance with the EN-14511-2013 standard given for indoor temperature conditions 20ºC and 6ºC WB outdoor temperature.
Total power input by compressors and motorised fans under nominal conditions, calculated in accordance with the EN-14511-2013 standard.
Climatic warming potential of a kilogram of fluorinated greenhouse gas in relation to a kilogram of carbon dioxide over a period of 100 years.
50EN/EH 200HEE 240HEE 240T 320HEE 320T 360HEE 360T
Cooling
capacities
Cooling capacity (kW) 52,7 58,5 61,3 71,3 74,6 79,9 85,2
Power input (kW) 17,5 19,4 21,8 23,7 26,5 26,5 30,3
EER performance 3,01 3,01 2,81 3,01 2,81 3,01 2,81
Heating
capacities
Heating capacity (kW) 55,6 62,5 66,1 74,4 78,7 86,0 88,7
Power input (kW) 16,3 18,3 20,6 21,8 24,5 25,2 27,6
COP performance 3,41 3,41 3,21 3,41 3,21 3,41 3,21
Outdoor
circuit
fan
Nominal air flow (m3/h) 30000
Available static pressure (mm.w.c) 4
Type Electronic axial fan
Number / Diameter (mm) 2 / 800
Motor output (kW) 2 x 2,2
Power input in COOLING (kW) 2,2 2,2 2,2 2,5 2,5 2,5 2,5
Power input in HEATING (kW) 3,1 3,1 3,1 3,2 3,2 3,2 3,2
Speed (r.p.m.) 2 / 980
Indoor
circuit
supply
fan
Nominal air flow (m3/h) 10000 12000 14300 15900
Available static pressure (mm.w.c) 20 20 20 20 25 25 25
Type Electronic plug-fan
Number / Diameter (mm) 2 / 500
Motor output (kW) 2 x 2,68
Power input (kW) 1,7 2,2 2,2 3,0 3,3 3,7 3,7
Speed (r.p.m.) 2 / 1700
Compressor
Type Scroll
Number of compressors 4
Number of stages 4
Number of circuits 2
Oil type Copeland 3MAF 32cST, Danfoss POE 160SZ, ICI Emkarate RL 32CF, Mobil EAL Artic 22CC
Volume of oil (l) 6,3 6,3 6,3 6,3 6,3 6,3 8,5
Electrical
characteristics
Mains voltage 400 V / III ph / 50 Hz (±10%)
Power supply 3 wires + ground
Maximum
absorbed
current
Compressors (A) 36,1 41,6 48,3 55,0 59,2 63,4 62,3
Outdoor fans (A) 6,8 6,8 6,8 6,8 6,8 6,8 6,8
Indoor fans (A) 8,4 8,4 8,4 8,4 8,4 8,4 8,4
Control (A) 1,8 1,8 1,8 1,8 1,8 1,8 1,8
Total (A) 53,1 58,6 65,3 72,0 76,2 80,4 79,3
Refrigerant
Type R-410A
Global warming potential (GWP) 2.088
Charge (kg) 11,5 11,5 11,5 15,0 15,0 17,0 17,0
Environment impact (tCO2eq) 24,0 24,0 24,0 31,3 31,3 35,5 35,5
Dimensions
Length (mm) 2750 2750
Width (mm) 2115 2115
Height (mm) 1705 2005
Weight (kg) 1071 1071 1071 1104 1104 1210 1210
Condensate outlet Ø 1 1/4” adaptor

Packaged rooftop units
6
4. SAFETY ADVICE
Natural or propane gas leaks (optional burner):
- Do not operate electric switches or other objects which could cause
sparks.
- Improve the ventilation if located in a closed area.
V-220005
V-220004
- Close the gas supply valve.
- Ensure that there is no one in the vicinity of the leak and request the
intervention of installation staff.
To avoid any risk of accident during installation, commissioning or
maintenance, it is obligatory to take into consideration the following
specifications for the units: refrigerated circuits under pressure, refrigerant
presence, electrical voltage presence and implantation place.
Because of all of this, only qualified and experienced personnel can
perform maintenance tasks or unit repairs.
It is required to follow the recommendations and instructions
in the maintenance brochures, the labels, and the specific
instructions.
It is necessary to comply with the norms and regulations in
effect. It is recommended to consult the competent authorities
regarding the applicable regulations for users of units or
components under pressure. The characteristics of these units
or components are included on the plates of characteristics
or in the regulatory documentation provided with the product.
The compressor and line surfaces can reach temperatures
above 100ºC causing burns to the body. In the same fashion,
under certain conditions these surfaces can reach very cold
temperatures that can cause freezing risks.
Use safety goggles and gloves on the job. Be careful with
sharp parts or elements in the unit.
Caution: Before intervening in the unit, verify that the main
power to the unit is cut off. An electric shock can cause
personal damage.
Note: In order to recycle these units follow the stipulations
of Directive 2012/19/EU on Waste electrical and electronic
equipment (WEEE).
These units work with refrigerant gas R-410A.
In case of a leak:
- Toxicity: According to ASHRAE 34, R-410A belongs to the A1/A1 group,
i.e. with high safety both in the mix and also in the case of a leak.
- Although it is not toxic, in case of a leak to atmospheric pressure the
liquid phase evaporates. The resulting vapours are heavier than air
and can displace the technician local air. In case of an accidental
discharge in a closed enclosure, fans must be used to eliminate said
vapours.
- Although the R-410A is not flammable, when in contact with a flame
o hot spot it can decompose in fluorhydric acid HF and fluophosgene
COF2highly toxic and corrosive.
- To detect leaks, an electronic leak detector, an ultraviolet lamp or
soapy water must be used . Flame detectors do not help.
Important: Immediately repair any refrigerant leak, using
a recovery unit specific for R-410A that avoids a possible
mixture of refrigerants and/or oils.
Refrigerant leaks:
A periodical check must be performed for refrigerant gas leaks as
per Regulation (EC) Nº517/2014 over certain greenhouse effect
fluoride gases. Please, consult the frequency of checks in chapter
of “Maintenance”.
Components of the R-410A R-32 R-125
Chemical formula CH2F2 CHF2CF3
Weight ratio 50% 50%
Unitary global warming potential (GWP) 675 3.500
Global warming potential (GWP) 2.088
Note: The serial number must be used in all correspondence
regarding the unit.

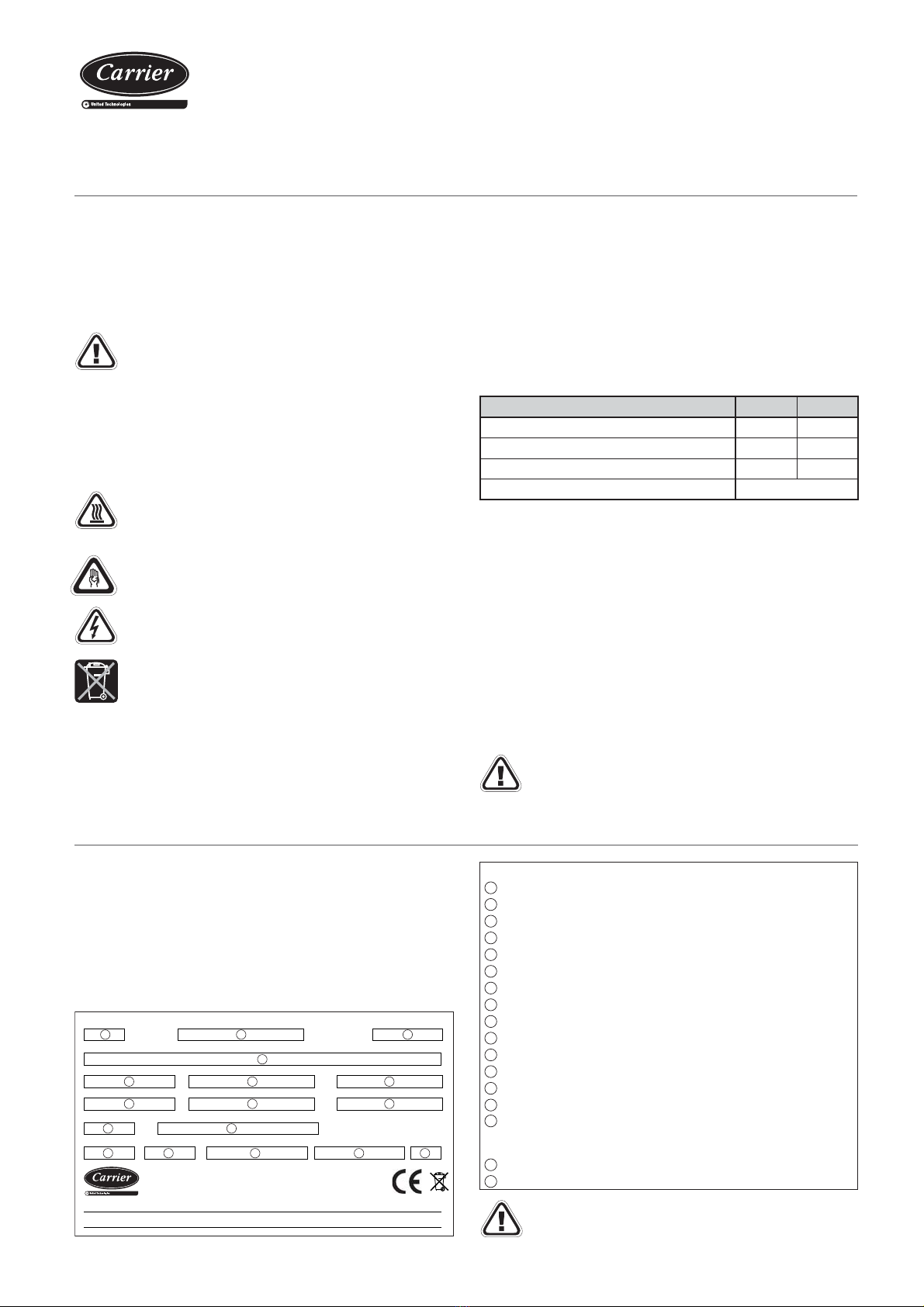

All units bear, legibly and indelibly, a data plate located in a prime space,
as appears in the attached image: Check that this plate matches the
correct model.
5. UNIT IDENTIFICATION
Check the condition of the equipment upon delivery.
Check that the details on the label, the packing and the data plate match
the order. If equipment has been damaged, or there is a shortfall in
delivery, notify accordingly.
Ref\Reference No Serie\serial Nbr.Año\An.Year
Producto\Product\Produit
Ref. Produit\Item Nbr
Max.Intensidad\Intensité\CurrentKit Elec.Tension\Voltage
Refrig.KG (Fábrica\Factory\Usine)/Co2 Teq.Refrigerant
NoBoPeso\Poids\WeightPSmax(AP\HP) Temp. Max./ IPPSmax(BP\LP)
Fabricante\Fabricant\Manufacturer:
Compañía Industrial de Aplicaciones Térmicas, S.A.
P. Ind. Llanos de Jarata s/n. 14550 Montilla-SPAIN
Contient des gaz à effet de serre fluorés \ Contains fluorinated greenhouse gases regulated by the Kyoto protocol
Contiene gases fluorados de efecto invernadero regulados por el protocolo de Kyoto
1
16
2 3
4
5 6 7
8 9 10
11 12
13 14 15 17
CARRIER SCS
Route de Thil
01122 Montluel-FRANCE
Legend
1Year of manufacture
2Commercial product name
3Serial number
4Description of the product
5Purchase order number
6Sales order number
7Work order number
8Power supply
9Power output of the auxiliary electrical heaters kit (optional) (kW)
10 Maximum absorbed current under full load (A) ( including the electrical kit)
11 Type of refrigerant
12 Refrigerant content (kg) and Environment impact (CO2Teq.)
13 Maximum service pressure in the high pressure side (R-410A = 42 bar)
14 Maximum service pressure in the low pressure side (R-410A = 24 bar)
15 Maximum operating temperature (refer to “Opration limits”)
Maximum shipment and storage temperature: +50ºC
Electrical protection rating: IP54
16 Operation weight (kg) (empty weight + fluid + refrigerant)
17 Notified Body number for surveillance of the Pressure Equipment Directive

Packaged rooftop units
7
6. POSSIBLE TYPES OF ASSEMBLIES
I
M011
R
IM012
R
R
I
M001
R
IM002
R
M000
I
R
I
M010
I
M021 R
R
M020
I
IM022 R
Assemblies with mixing box and free-cooling
N
MS00
RI R
I
MS01
N
R
IMS02
N
I
MS10
R
N
I
MS11
R
N
IMS12
R
N
R
N
MS20
I
I
MS21 R
N
IMS22 R
N
ME00
RI
N
E
ME01
I
R
N
E
ME02
R
N
E
I
Standard assembly
- M0 assembly: Change of supply and/or return air position in the
indoor circuit.
- MC1 assemblies: Return EC plug-fan or centrifugal fan in top box
(mixing box of 3 dampers).
- MC0 assemblies: Lower return EC plug-fan (mixing box of 3
dampers).
- MA assemblies: Axial return fan and air extraction (mixing box of 3
dampers).
R
N
E
MA00
I
MA01
R
I
N
E
MA02
R
N
E
I
R
N
E
MC00
I
MC02
R
N
E
I
MC01
R
I
N
E
N
E
MC10
R
I
MC11
N
E
R
I
- MS assemblies: Fresh air intake with damper, interlocked with return
damper (mixing box of 2 dampers).
- MRC0 assemblies: Lower return EC plug-fan (mixing box of 3
dampers) + cooling recovery circuit.
R
N
E
MRC00
I
MRC01
R
I
N
E
MRC02
R
N
E
I
- MRC1 assemblies: Return EC plug-fan or centrifugal fan in top box
(mixing box of 3 dampers) + cooling recovery circuit.
N
E
MRC10
R
I
MRC11
N
E
R
I
I = Air supply
R = Air return
N = Fresh air inlet
E = Air extraction
Legend
Mwxy
Type of assembly
Air return (0 : standard, 1 : optional, 2 : optional)
Air supply (0 : standard, 1 : optional, 2 : optional)
Assembly
Configuration options (depending on the indoor air circulation)
- ME assemblies: Axial air extraction fan (mixing box of 3 dampers).

Packaged rooftop units
8

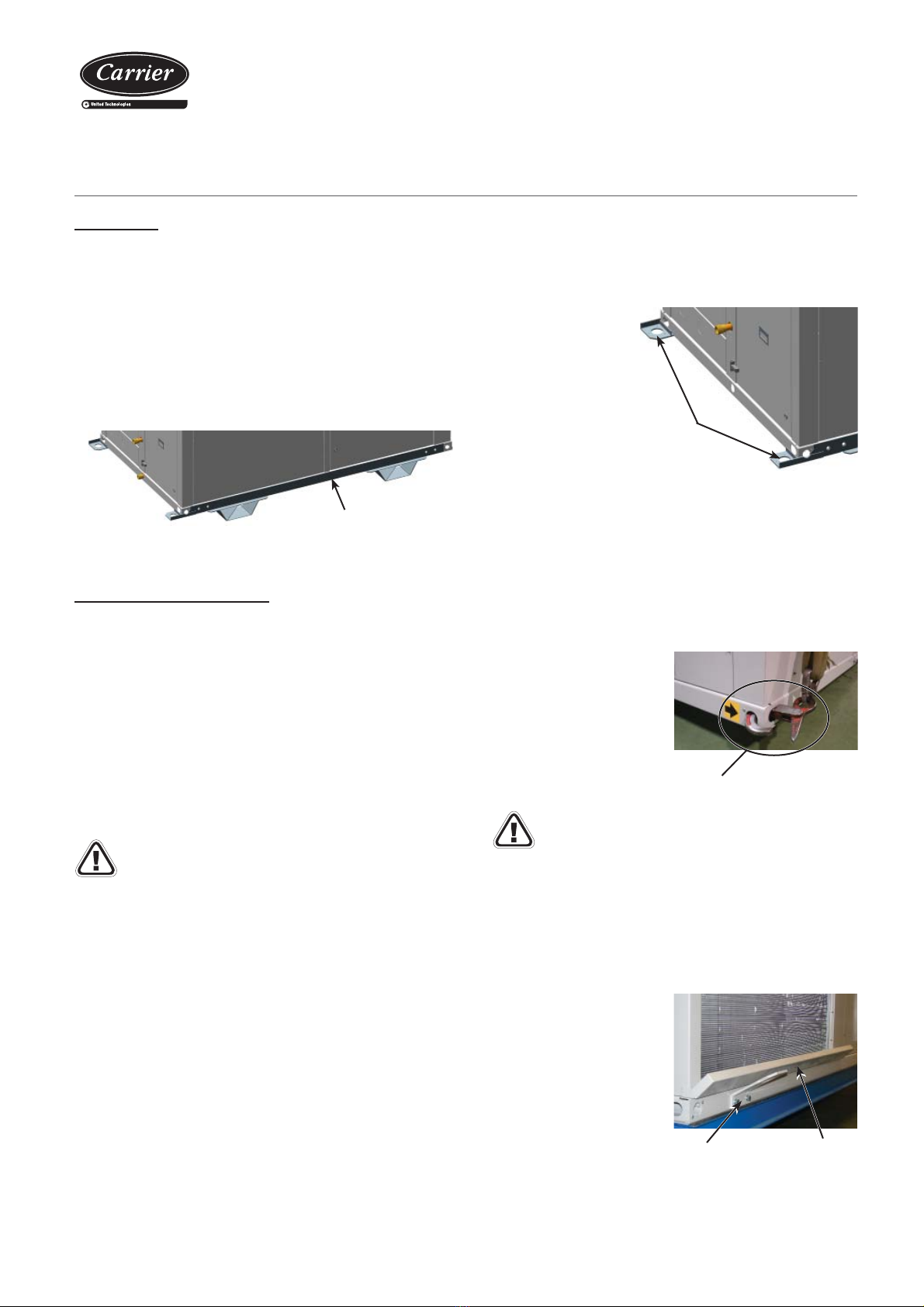

After the placing of the unit, it is recommended to remove the grips
as well as the skids, if applicable, as they can be a hindrance for
maintenance. Put the grips back in case of unit transport. Each grip
is fixed to the crossbar using two M10 screws (hex. key 17).
Unit with condensates pan from the outdoor circuit:
With the outdoor circuit
condensates pan option, the
units include grips as the lifting
system. Check that the grips
are perfectly screwed in before
attaching the slings.
Do not raise any of the units by points outside of those
specified here. In particular, do not raise them by the
traction points of the skids.
The unit must be lifted and fixed with care and without inclination
(maximum inclination 15º), since it could harm its operation.
Note: please see the weight and the gravity centre coordinates of
each model stated in the following page.
Skid
Gripping
points
Grip Pan
7. TRANSPORT AND HANDLING
Transport
The unit must be handled with care to avoid transport damage. Thus
we recommend:
- Do not dispose of the pallet or the packaging materials until the unit
is in its final location.
- For transport in a container, one must be selected that has an easy
load and unload to the installation location. Optionally, the unit may
have skids that allow the units to be slid over the floor so that the
container would be easily removable. These skids make transport
pallets unnecessary.
Discharging of the unit
The unit can be discharged using a crane with a rocker arm and cloth
slings by using a forklift truck if it is done on the side of the transport
box. If the unit has transport skids at the same height of the transport
box, the unit can be discharged simply by pulling on the skids at the
points set out for them.
When using any of the three above methods, it is always mandatory
to grasp the unit by the points intended for that purpose, as described
in this chapter.
Any handling of the unit by other means or by gripping points different
from those described here may be dangerous for both the unit and
the personnel who are carrying out the discharging or transport work.
Always check the weight of the set and verify that the
discharging method used is approved for handling that weight.
- Discharge via forklift truck:
The unit is designed to be transported safely by using a forklift truck.
The forks of the forklift truck must come in on the side of the unit,
ensuring that the centre of gravity of the unit remains within the forks,
because a misbalance in the transport may cause the unit to turn
over and fall from the forklift truck.
Note: please see the weight and the gravity centre coordinates of
each model stated in the following page.
The recommended length for the forks will be bigger than the unit
width, so that the entire weight-bearing structure of the unit can
be supported on the forklift truck. This also prevents the possible
introduction of the truck’s fork into functional parts of the unit that
may cause damage to the unit.
The standards and recommendations of the forklift truck must also
be respected with regards to the maximum load, inclination of the
fork carriage, elevation of the load for transport, and, in particular,
the maximum speed.
Make sure that the unit is
protected from contact with the
hooks to prevent damage to
the housing.
- Discharge via crane:
A rocker arm, as well as approved cloth slings, both suitable for the
dimensions and weight of the unit, must be used in order to carry
out the work safely and without causing damage to the units or to
workers.
These slings will be hooked to
the two mounting holes located
on each crossbar.
- Discharging to the same plane using skids (optional):
This method will be used only when it is possible to place the
transport box (trailer, maritime container, etc.) at the same height
as the discharging platform (for example, a dock).
Once the unit is discharged, it must be freed from the skids so that
the inserts available for the silent-blocks can be accessed. Each
skid is fixed to the crossbar using four M10 screws (hex. key 17).
To do so, each skid
will be gripped by the
points indicated in the
image so that it can be
pulled from the unit to be
extracted from the box.
Mounting hole detail

Packaged rooftop units
9
Centre of gravity coordinates (mm)
50EN/EH
M0 assembly MS assembly MA assembly ME assembly
X
(mm) Y (mm) Z (mm) X (mm) Y (mm) Z (mm) X (mm) Y (mm) Z (mm) X (mm) Y (mm) Z (mm)
90HEE / 90T 1064 708 580 1128 766 592 1111 723 575 1111 723 575
120HEE / 120T 1090 696 632 1227 640 640 1137 711 626 1137 711 626
160HEE / 160T 1097 702 695 1158 761 708 1144 717 690 1144 717 690
180HEE / 180T 1093 687 696 1151 740 710 1140 702 691 1140 702 691
200HEE 1264 1018 701 1309 1066 698 1335 1039 693 1335 1039 693
240HEE / 240T 1264 1018 701 1309 1066 698 1335 1039 693 1335 1039 693
320HEE / 320T 1208 1012 644 1251 1059 640 1278 1036 634 1278 1036 634
360HEE / 360T 1231 1017 785 1268 1056 786 1301 1039 777 1301 1039 777
50EN/EH
MC0 assembly MRC0 assembly MC1 assembly MRC1 assembly
X
(mm) Y (mm) Z (mm) X (mm) Y (mm) Z (mm) X (mm) Y (mm) Z (mm) X (mm) Y (mm) Z (mm)
90HEE / 90T 1111 722 574 1155 811 538 1134 841 706 1316 704 922
120HEE / 120T 1137 710 625 1156 796 562 1158 826 755 1305 684 950
160HEE / 160T 1144 716 689 1339 860 668 1166 832 821 1410 851 865
180HEE / 180T 1140 701 689 1423 848 699 1160 820 819 1466 838 897
200HEE 1335 1035 687 1349 977 650 1331 1154 823 1345 1082 874
240HEE / 240T 1335 1035 687 1349 977 650 1331 1154 823 1345 1082 874
320HEE / 320T 1278 1031 629 1289 976 593 1277 1144 767 1287 1077 814
360HEE / 360T 1301 1034 771 1317 986 750 1297 1145 775 1314 1085 836
Electrical heaters 12 kW 18 kW 27 kW 36 kW 45 kW
Weight of module (kg) 11 15 19 24 29
Centrifugal fans 0,75 kW 1,1 kW 1,5 kW 2,2 kW 3 kW 4 kW 5,5 kW 7,5 kW 11 kW
Weight of motor (kg) 10 13 16 21 24 27 40 48 75
Weight supplement from the main options (kg)
50EN/EH 90HEE
90T
120HEE
120T
160HEE
160T
180HEE
180T
200HEE 240HEE
240T
320HEE
320T
360HEE
360T
Pre-assembly roofcurb 189 189 189 189 250 250 250 250
Burner
module
PCH034 195 195 195 195 -- -- -- --
PCH045 -- -- -- -- 253 253 -- --
PCH065 -- -- -- -- 267 267 267 267
PCH080 -- -- -- -- 293 293 293 293
Water coil (empty) 11 11 15 15 35 35 35 42
Supply centrifugal fan -51 -46 -62 -62 -50 -50 -47 -47
Return centrifugal fan MC1 / MRC1 -33 -25 -11 -11 -35 -35 -26 -16
Insulation M0 50mm
M0 135 135 145 145 195 195 195 222
MA / ME
MC0 / MRC0 102 102 109 109 155 155 155 175
MC1 / MRC1 140 140 151 151 209 209 209 240
MS 118 118 127 127 175 175 175 198
Burner 26 26 26 26 55 55 55 55
Single compressor (not in tandem) -21 -15 -10 -22 -32 -32 -22 -31
Weight overview (kg)
50EN/EH 90HEE
90T
120HEE
120T
160HEE
160T
180HEE
180T
200HEE 240HEE
240T
320HEE
320T
360HEE
360T
M0 assembly (standard) 595 616 694 734 1071 1071 1104 1210
MS assembly 625 646 728 768 1120 1120 1153 1258
MA / ME assemblies 738 761 838 878 1274 1274 1307 1445
MC0 assembly 725 748 825 865 1252 1252 1285 1423
MRC0 assembly 775 798 915 955 1312 1312 1345 1503
MC1 assembly 771 809 885 925 1339 1339 1374 1497
MRC1 assembly 818 844 989 1023 1398 1398 1422 1578
Models 90 to 180
Models 200 to 360

Packaged rooftop units
10
Regulation
system
Important: All of the necessary information for the installation of these
roofcurbs is available in the specific instruction brochure on roofcurbs,
(supplied with the roofcurb).
Choice of location
When choosing the location, whatever may be the selected fashion, the
following precautions have to be taken into consideration:
- It is mandatory to comply with norm UNE-EN 378-3 on Safety
and Environmental Requirements. Part 3: “In situ” installation and
protection to people.
- It is necessary to check that the structure supports the unit’s weigh
(please see the weight in the table in the “Weight summary” section).
- The area where the unit will be located must be perfectly accessible
for cleaning and maintenance operations (check minimum free space
for maintenance). Leave enough space for air circulation around the
unit.
8. LOCATION AND ASSEMBLING
- Since the unit is designed to work outdoors, some specific installation
norms must be followed:
• The unit will be located on the roof of the premises. If it is foreseen
that it will work more on heating than on cooling, it is preferable to
direct the coil towards the sun. If little work on heating is foreseen,
choose North direction.
• Avoid placing obstacles in the air supply or return. No obstacle
may impede the air aspiration into the coils. Do not fix the outdoor
coil side in the predominant wind direction.
• Do not install the unit in a closed enclosure or in conditions that
originate air recirculation.
• The chosen location must not flood and must be above the average
height the snow reaches in that region.
Foresee appropriate damping devices in these fixings to
ensure that noise and vibration transmission is avoided (refer
to the section “Anchorage for antivibrators”).
Antivibrators assembly (silent-blocks)
Although the installer is the one who must decide on a case-by-case
basis the best way to place the unit in the ultimate location, always in
observation of the handling standards that have been described, below
is a proposed assembly sequence that may facilitate the operation,
keeping in mind that the sequence performed in the installation shall
be the one most suitable to the solution chosen for each particular
case based on the existence (or lack thereof) of brick frames, type of
silent-blocks used, etc.
Preparation of the ground
It is necessary to ensure that the surface where the unit is going to
be installed in completely flat. Any defect in the preparation of the unit
support surface translates into stresses on the structure, which may
result in its deformation.
These units can be installed on the floor or on a brick frame or steel
profile. Based on the fixing solution defined in the installation project,
it will be necessary to plan the placement in the base of threaded
rods in the expectation that the unit supports can be fixed later on. To
do so, it is recommended that a template be made with the heights
corresponding to the fixings.
In the event of assembling directly on silent-blocks to the ground, it is
recommended that a template of the unit’s footprint with the anchoring
points of the silent-blocks be made, as described in the previous section.
With the help of the crane or the forklift truck, the unit will be raised to
a sufficient height that the silent-blocks can be screwed into its base.
The 4 silent-blocks of the corners must remain oblique and the interiors
perpendicular to the unit.
M12 metric threads have been provided for their placement in the
supports indicated in the following section “Anchorage for antivibrators”.
A hex key 19 or Allen wrench 10 will be used for this operation based
on the type of screw used.
This image shows how the
silent-block option that can
be supplied for this unit is
fixed to the unit.
Preassembly roofcurb (optional)
Optionally, standardised pre-assembly roofcurb made of galvanised
steel panelling with polyester paint and thermally insulated with
adjustable heights can be supplied.

Packaged rooftop units
11
R6 R5 R4
R3 R2 R1
AA
B
M12
C
Anchorage for antivibrators
50EN/EH
Distances (mm)
A B C
90 to 180 1.090 1.317 88
200 to 360 1.265 2.033 88
Support reactions for the various assemblies (kg)
50EN/EH
M0 Assembly MS Assembly MA Assembly ME Assembly
R1 R2 R3 R4 R5 R6 R1 R2 R3 R4 R5 R6 R1 R2 R3 R4 R5 R6 R1 R2 R3 R4 R5 R6
90HEE / 90T 60 144 97 58 141 95 81 160 102 61 139 81 85 181 115 77 173 107 85 181 115 77 173 107
120HEE / 120T 64 147 95 65 148 96 78 145 70 98 165 90 90 184 112 86 180 108 90 184 112 86 180 108
160HEE / 160T 74 167 107 74 166 106 99 186 113 77 163 91 102 204 123 95 197 116 102 204 123 95 197 116
180HEE / 180T 75 173 111 80 178 116 99 192 116 84 176 101 103 211 127 102 210 126 103 211 127 102 210 126
200HEE 109 250 156 123 264 170 133 270 162 130 267 159 152 301 172 160 309 180 152 301 172 160 309 180
240HEE / 240T 109 250 156 123 264 170 133 270 162 130 267 159 152 301 172 160 309 180 152 301 172 160 309 180
320HEE / 320T 99 256 172 116 273 188 122 277 179 122 276 178 141 309 191 150 318 200 141 309 191 150 318 200
360HEE / 360T 115 282 184 131 298 200 137 301 190 138 302 191 163 342 205 171 351 214 163 342 205 171 351 214
50EN/EH
MC0 Assembly MRC0 Assembly MC1 Assembly MRC1 Assembly
R1 R2 R3 R4 R5 R6 R1 R2 R3 R4 R5 R6 R1 R2 R3 R4 R5 R6 R1 R2 R3 R4 R5 R6
90HEE / 90T 84 178 113 76 170 105 115 207 131 71 164 87 116 212 140 61 157 85 129 197 86 127 195 84
120HEE / 120T 88 181 110 85 177 106 115 211 131 76 172 93 123 220 139 72 168 87 127 199 86 134 206 93
160HEE / 160T 100 201 121 93 194 115 185 256 127 111 182 53 138 242 152 79 182 93 214 275 119 139 199 43
180HEE / 180T 101 207 125 101 207 124 209 265 111 137 193 40 140 250 157 84 194 101 231 281 107 160 209 35
200HEE 149 295 168 158 305 178 147 297 160 181 332 195 184 342 207 142 300 165 179 341 196 168 329 185
240HEE / 240T 149 295 168 158 305 178 147 297 160 181 332 195 184 342 207 142 300 165 179 341 196 168 329 185
320HEE / 320T 137 302 186 148 313 198 134 304 180 170 340 216 172 349 225 133 310 186 165 345 214 156 336 205
360HEE / 360T 159 335 201 170 346 212 161 342 195 196 378 231 193 380 239 150 337 197 194 385 232 179 371 217

Packaged rooftop units
12
1,5m
1,5m
Minimum free space for commissioning and maintenance operations
50EN/EH - 90HEE, 90T, 120HEE, 120T, 160HEE, 160T, 180HEE and 180T
50EN/EH - 200HEE, 240HEE, 240T, 320HEE, 320T, 360HEE and 360T

Packaged rooftop units
13
Sound Level
The 50EN/EH units are designed to work with a low acoustic level.
In any case, the following must be taken into account for the design of the installation:
- the outdoor environment for acoustic radiation,
- the type of building for the noise transmitted by air,
- the solid elements for the transmission of vibrations.
To reduce transmission through solid surfaces to the maximum, it is very advisable to install shock absorbers between the ground or structure
and the unit frame. If necessary, a study must be commissioned to an acoustic technician.
Sound power level (LW)
Standard unit
Unit with return plug-fan in top box MC1 (optional)
Unit with return plug-fan in top box and MRC1 cooling recovery circuit (optional)
Note: The sound power spectrums can be consulted in the technical brochure for the 50EN/EH series.
Sound pressure level (LP)
Measurement conditions: in a clear field, measured at a distance of 5 metres, directivity 2 and at 1.5 metres from the ground.
Standard unit
Unit with return plug-fan in top box MC1 (optional)
Unit with return plug-fan in top box and MRC1 cooling recovery circuit (optional)
Note: The sound pressure level depends on the installation conditions and, as such, is only indicated as a guide. Values obtained according to
the ISO 3744 standard.
50EN/EH 90HEE
90T
120HEE
120T
160HEE
160T
180HEE
180T
200HEE 240HEE
240T
320HEE
320T
360HEE
360T
Total dB(A) 73,0 82,0 86,0 87,0 87,0 87,0 87,0 88,0
50EN/EH 90HEE
90T
120HEE
120T
160HEE
160T
180HEE
180T
200HEE 240HEE
240T
320HEE
320T
360HEE
360T
Total dB(A) 74,0 83,0 87,0 88,0 88,0 88,0 88,0 89,0
50EN/EH 90HEE
90T
120HEE
120T
160HEE
160T
180HEE
180T
200HEE 240HEE
240T
320HEE
320T
360HEE
360T
Total dB(A) 75,0 84,0 88,0 89,0 89,0 89,0 89,0 90,0
50EN/EH 90HEE
90T
120HEE
120T
160HEE
160T
180HEE
180T
200HEE 240HEE
240T
320HEE
320T
360HEE
360T
Total dB(A) 48,4 57,4 61,4 62,4 62,1 62,1 62,1 63,0
50EN/EH 90HEE
90T
120HEE
120T
160HEE
160T
180HEE
180T
200HEE 240HEE
240T
320HEE
320T
360HEE
360T
Total dB(A) 46,4 55,4 59,4 60,4 60,1 60,1 60,1 61,0
50EN/EH 90HEE
90T
120HEE
120T
160HEE
160T
180HEE
180T
200HEE 240HEE
240T
320HEE
320T
360HEE
360T
Total dB(A) 47,4 56,4 60,4 61,4 61,1 61,1 61,1 62,0

Packaged rooftop units
14
In this case, it´s posible to install the TCO terminal on the electric panel.
It’s necessary that the terminal uses the same power supply that the control
board.
Up to four RS485 ambient probes can be connected in series on the field-bus
of the control board.
1
2
3
4
5
6
8
9
7

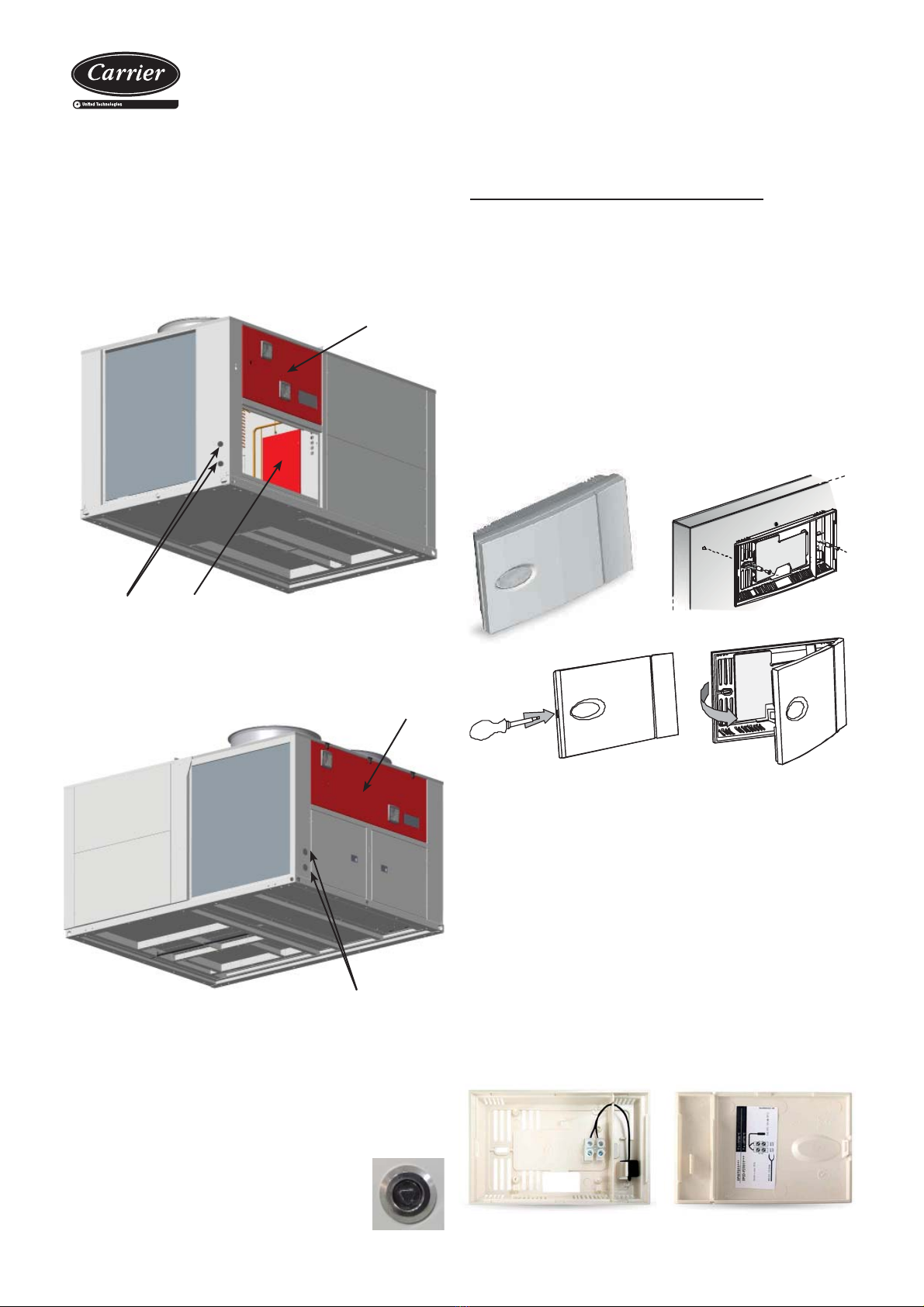

TCO user terminal (optional):
This terminal can be installed on the electric
panel, instead of pGD1 terminal. In this
case, the remote connection of the pGD1
terminal is posible.
9. CHECKING BEFORE COMMISSIONING
Electrical connections
Note: Under no circumstance should the unit be started without having read the brochure completely.
Installation norms
To perform the electric installation of the unit (cable glands , conductor
section and their calculations, protections, etc.), refer to the information
provided in this document (see the technical characteristic table), the
electrical scheme included with the unit and norms in effect that regulate
the installation of air conditioning units and electrical receivers.
The electric power supply of the unit must be sized in accordance with
the maximum power input by the unit taking into account all the options
it features (if necessary, refer to the technical brochure).
Verify that electrical power corresponds to the one on the data plate
and that the voltage remains constant.
Check that the electrical connections are correct and tight
(an electrical diagram is included with each unit, along with
its legend).
Note: All connections in the site are the responsibility of
the installer. These connections are always made as per
the current regulation.
To prevent electrical shocks, make all electrical connections
before energizing the unit. Check that the automatic switch is
closed. Omitting this can cause personal damage. Make the
ground connection before any other electrical connection.
V-220004
V-220005
The installer must fix line protection elements according to
the effective legislation.
CARRIERrtc electronic control
The CARRIERrtc control is basically composed of a μPC MEDIUM
control plate, a pGD1 graphical terminal, a TCO user terminal (optional),
and sensors.
Please refer to this control brochure to obtain more detailed information
about its operation.
pGD1 terminal:
This terminal, installed in the
electric panel of the machine,
allows for:
- The initial programming of the
unit.
- The modification of the operating parameters.
- Stopping/starting the unit.
- The selection of the operating mode.
- Setting the setpoints.
- The on-screen view of the controlled variables and the values
measured by the sensors.
- The on-screen view of the description of the active alarms and the
alarms log.
Optionally, these units can change the electronic control to CARRIERrtc
basic (models 90 to 180) or CARRIERrtc medium (all models). This
control is fitted with the TCO terminal as standard, and the pGD1 terminal
as an option. Consult the technical brochure.
Note: for more detailed information on these controls, please refer to
their brochures.
CARRIERrtc connection chart
Nb. 50EN/EH 90 to 360
1 Main power supply 400 III (±10%) 3 wires + ground
2
Remote connection of pGD1
terminal (by default it’s installed
on the electric panel) 
telephone cable 6 wires
standard (RJ12 connector)
3Connection of TCO user terminal
on the electric panel (optional) 
2 wires for power supply 230V + 1
shielded cable for communication
type AGW20 / 22 (1 braided pair +
drainwire + shielding)
4 Remote off/on (optional) 2 wires
5 Main failure signal (optional) 2 wires
6Circulation pump signal for HWC
(antifreeze sec.) (opt.) 1 wire
7 NTC ambient probe (std) 2 wires
8 RS485 ambient probe (opt.) 5 wires 
9 Air quality probe (opt.) 3 wires

Packaged rooftop units
15
The connection of the ambient probe, NTC (standard) or RS485
(optional), as well as the air quality probe (optional) must be performed
on site by the client.
These probes are supplied inside the main electric panel of the 50EN/
EH unit.
Please refer to the electrical scheme and the CARRIERrtc control
brochure, included with the 50EN/EH unit.
Connection of probes by the client
Connection of the ambient probe
- Open the case using a flathead screwdriver in the slot, paying extra
care not to damage the electronic parts.
- Fasten the rear of the sensor case to the panel or the wall (for
fastening the case, use the screws supplied with the fastening
kit, paying attention to use the proper spacers, to not damage the
sensor’s electronics).
- This probe must be fixed to the panel or the wall of the room to be
conditioned, at ca. 1.5 m height.
- The electrical connection must be carried out depending on the unit
setting:
• NTC (B3 - connector J3) : with 2 x 1,5 mm2 section cable, within
a maximum distance of 30 metres.
• RS485 (connector J10): with AWG20 section cable, single braided
pair preferably shielded with drain wire + Power supply 24 Vac (2
wires).
- Close the sensor with the top cover by pressing lightly.
Inside view, bottom shell Inside view, top shell
Position of the electric panel in the units
- Models 90 to 180 include two fully wired electric panels:
• a main panel to which there is an electrical power supply,
• an auxiliary panel in which the optional elements of the indoor
circuit are connected.
Note: Models 200 to 360 have a 230 Vac plug in the electric panel.
Main panel
Auxiliary
panel
Inputs for
power supply
Main panel
Electric power supply inputs
Note: the access panel to the electric panel is fitted with quarter-turn
latches (models 90 to 180) or hinges + quarter-turn latches (models
200 to 360). These latches of stainless steel have triangular insert 8
mm. The closing mode is described in the chapter of “Maintenance”.
- Closing mode
• First rotate 90º (anti-clockwise): closing brings
the latch to the locked position. The door cannot
be opened.
- Models 200 to 360 only include the main panel.

Packaged rooftop units
16
Connection of the air quality probe
Mounting instructions
2
1
1410J02
33
5
4
click!
7
6
No. 2
Setting and electric connections
This probe is configured by analogue output 4…20 mA and digital output
N.O. with IAQ setpoint of 60% (posible activation of extraction system).
In the B10 analogue input (connector J18), it is posible to connect the
output X1 for controlling the CO2 (ppm) or the output X2 for controlling
the IAQ (%).
Recommended cable section : 1,5 mm2.
Factory
settings
6
5
4
0…10 V
3
2
1
0
O
DIP-
Switches
= left position
= right position
6
5
4
3
2
1
1 2 3 4 5 6 7 8 9
IAQ 40 45 50 55 60 65 70 75 80
%IAQ
IAQ
CO2
IAQ
- This probe must be fixed to the interior wall of the room to be
conditioned, at ca. 1.5 m height in the room and at least 50 cm from
the next wall.
- It should never be mounted:
• On outside walls.
• In niches or behind curtains.
• Above or near heat sources or shelves.
• On walls covering heat sources such as a chimney.
• In the radiation range of heat sources and lighting bodies e.g.
spotlights.
• In areas exposed to direct solar radiation.

Packaged rooftop units
17
Connection of the outdoor humidity probe Location of the sensors on the machine
Note: If the unit needs the outdoor humidity probe (used with enthalpic
or thermoenthalpic free-cooling), this one will be connected in B5 in the
place of the ambient probe. In this case it is necessary to use a RS485
ambient temperature probe connected on the Field-bus.
Reversing
valve
(heat pump)
Outdoor fan
Compressor
Low pressureHigh pressure
B3
Supply air probe
Outdoor temperature probe
B2
B7
Pressure transducer
in the outdoor coil
B1
Return air probe
B4
Mixing
probe
Discharge T
klixon switch
Fresh air
Extraction air
B5
Ambient air probe
B10
Air quality probe (opt.)
Outdoor coil
Indoor coil
Indoor fan
The outlet probe (B3) and the mixing probe (B4) can be replaced by
RS485 enthalpic probes for calculation of the cooling and heating
capacities (optional).
The outdoor humidity probe (optional), necessary for the enthalpic
free-cooling, is factory-installed on the hood of the fresh air intake.
The cable is sent rolled up and attached to the interior of the hood.
The position of the
terminal box depends on
the assembly selected for
the unit.
The installer only has to
insert the cable through
the cable gland for wiring
it in the PVC box located
inside the unit, next to the
servomotor.
Checks in the axial fans
- Before commissioning, check the blade rotation direction and that
the axis turns without strokes nor vibrations.
- Once running, check the operation conditions: pressures, flows and
consumptions.
- With (standard) electronic fans, check that they adapt their rotational
speed based on the condensation or evaporation pressure.

Packaged rooftop units
18

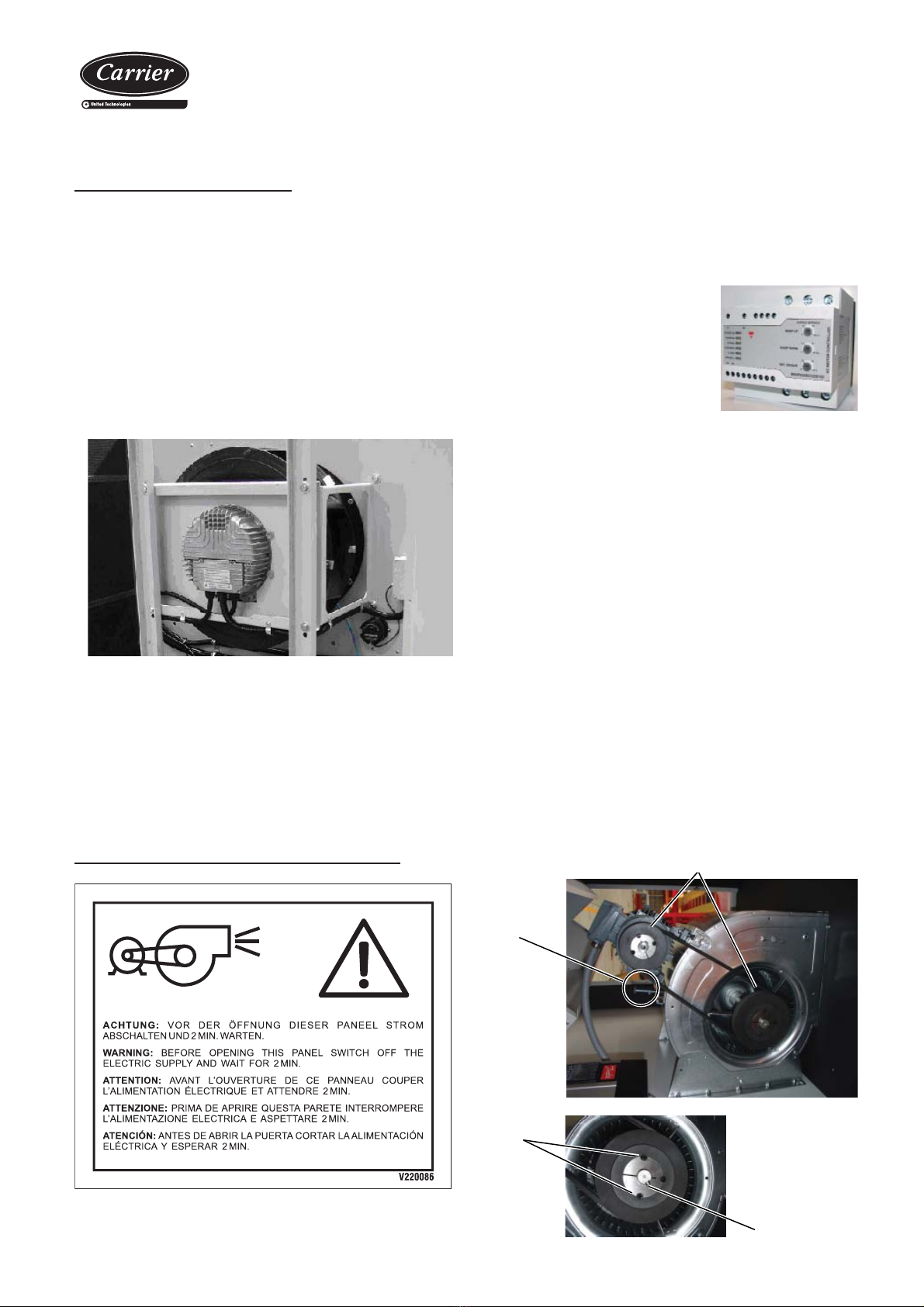

Checks in the centrifugal fans (optional)
• Soft starter (optional):
Soft starter of the supply and/or
return centrifugal fans (optionals)
which prolongs the set time mainly
aimed at installations with fabric
ducts.
Pulleys must stay on the same plane
Tensor
screw
Pulley
screws
Taper pin
- Before commissioning, check the blade rotation direction and that
the axis turns without strokes nor vibrations.
- Once running, check the operation conditions: pressures, flows and
consumptions.
- The overlapping of characteristic curves of the fan and the room is
very important, so that the flows and pressures provided to the duct
network are as required.
Note: the access panel to the supply fan(s) is fitted with quarter-turn
latches (models 90 to 180) or hinges + quarter-turn latches (models
200 to 360). These latches of stainless steel have triangular insert 8
mm. The closing mode is described in the chapter of “Maintenance”.
Important: in models 90 to 180 with MC0x and MRC0x assemblies
there is no space to install the flow control pressostat with return fan.
In this case, the flow control is performed through a potentiometer
installed on the electric panel.
Checks in the EC plug-fans
- Before commissioning, check the blade rotation direction and that
the axis turns without strokes nor vibrations.
- Once running, check the operation conditions: pressures, flows and
consumptions.
- The coupling of characteristic curves of the fan and the room is
very important, so that the flows and pressures provided to the duct
network are as required.
- The variable-speed plug-fans, both supply and return, have a flow
control pressostat. This pressostat comes from the factory adjusted
to the indicated flow. However, the flow for different conditions can
be readjusted on site from the pGD1 terminal (please refer to the
CARRIERrtc control brochure).
Pulley and belt calibration
If the unit has centrifugal motorfans in supply and/or return from the
indoor circuit, they are coupled through pulleys and belts. In these fans,
the following must be taken into consideration:
- The pulleys must be on the same plane, so it is important to check
them with the help of a ruler or a laser aligner.
- In case they are not aligned, remove the pulley screws, and after
removing the taper pin, the set of pulley and taper can be slided over
the axis (this action can be performed both in the motor as well as
in the fan).
- After fixing the pulleys on the same plane, the belt tension is made
by tightening the tensor screw.
- The belt tension must be checked after 24 hours of motor operation.
Attention: Before performing these operations, it is necessary to verify
that the unit is disconnected from mains.
Note: the access panel to the supply fan(s) is fitted with quarter-turn
latches (models 90 to 180) or hinges + quarter-turn latches (models
200 to 360). These latches of stainless steel have triangular insert 8
mm. The closing mode is described in the chapter of “Maintenance”.

Packaged rooftop units
19
With outdoor temperatures which are lower than 0ºC the
necessary precautions must be taken to prevent the water in
the drain ducts from freezing.
CONNECT SIPHON
METTRE SIPHON
PONER SIFON
V220014
Indoor circuit condensate
drain pan
Outdoor circuit condensate
drain pan (optional)
In units where the outdoor condensates pan is optional, the outdoor
circuit drain (junction 1” M) is independent from the indoor circuit drain.
Do not connect both drains.
Outdoor circuit
pans (optional)
Condensate drain connection
All models are equipped with a condensate drain pan in the indoor circuit,
with a bronze, gas threaded 1 1/4” M drain junction.
Check the connection tightness.
Siphon installation norms
- Check that the condensate outlet is not clogged.
- All water drain tubes must be provided with a siphon to avoid bad
smell and water spills.
Perform the assembly as per the scheme of the attached starting
diagram:
Pan in overpressure:
• It is installed to avoid the access through the drain piping of bad
smells.
Pan in underpressure:
Besides the previous application, water must be sucked from the pan:
• For the correct siphon design, the “A” height must be at least twice
that of the underpressure (mm.w.c) where the condensate pan is
placed.
• The drain piping must be slightly sloped to ease circulation towards
the drain.
• The original diameter of the piping must be respected. No reduction
can be made.
A
Condensates pan
in depression
A
Siphon drain
Slight slope
5/1000
To drainage
Some options have their own pan with independent drain junction,
gas threaded:
- Cooling recovery circuit: 3/4” M in bronze.
- Gas burner: consult in the specific instruction brochure of burners
(supplied with the burner).
The air supply and return ducts must be calculated in accordance with
the nominal flow and the unit’s available pressure (refer to the technical
characteristics table). The duct calculation and design must be made
by qualified technical personnel.
It is advisable to take into consideration the following recommendations:
- Curves in the fan supply outlet(s) must be avoided. It is recommendable
to have a straight section of duct measuring approximately 1 metre. If
it is not possible, they must be as smooth as possible, using indoor
deflectors when the duct is of large dimensions.
- When making the ducts, direction sharp changes must be avoided
since they can generate occasional pressure drops, which affect
the available pressure and the flow. The location of discharge
and aspiration grilles must be studied carefully to avoid the air
recirculation and the transmission and generation of noises to the
interior.
- Consideration should be given to the need to install filters on the
return ducts, taking into account any particles in suspension existing
which could settle inside the machine (e.g. textile fibres).
- Flexible connections must be made between the ducts and the unit
that avoid the noise and vibration transmission.
- No matter the type of ducts used, they must be isolated and not be
composed of materials that propagate fire nor expel toxic gases in the
event of a fire. The internal surfaces must be smooth and should not
pollute the air that circulates within them. In any case, the effective
legislation about this issue must be respected.
Air ducts connections

Packaged rooftop units
20

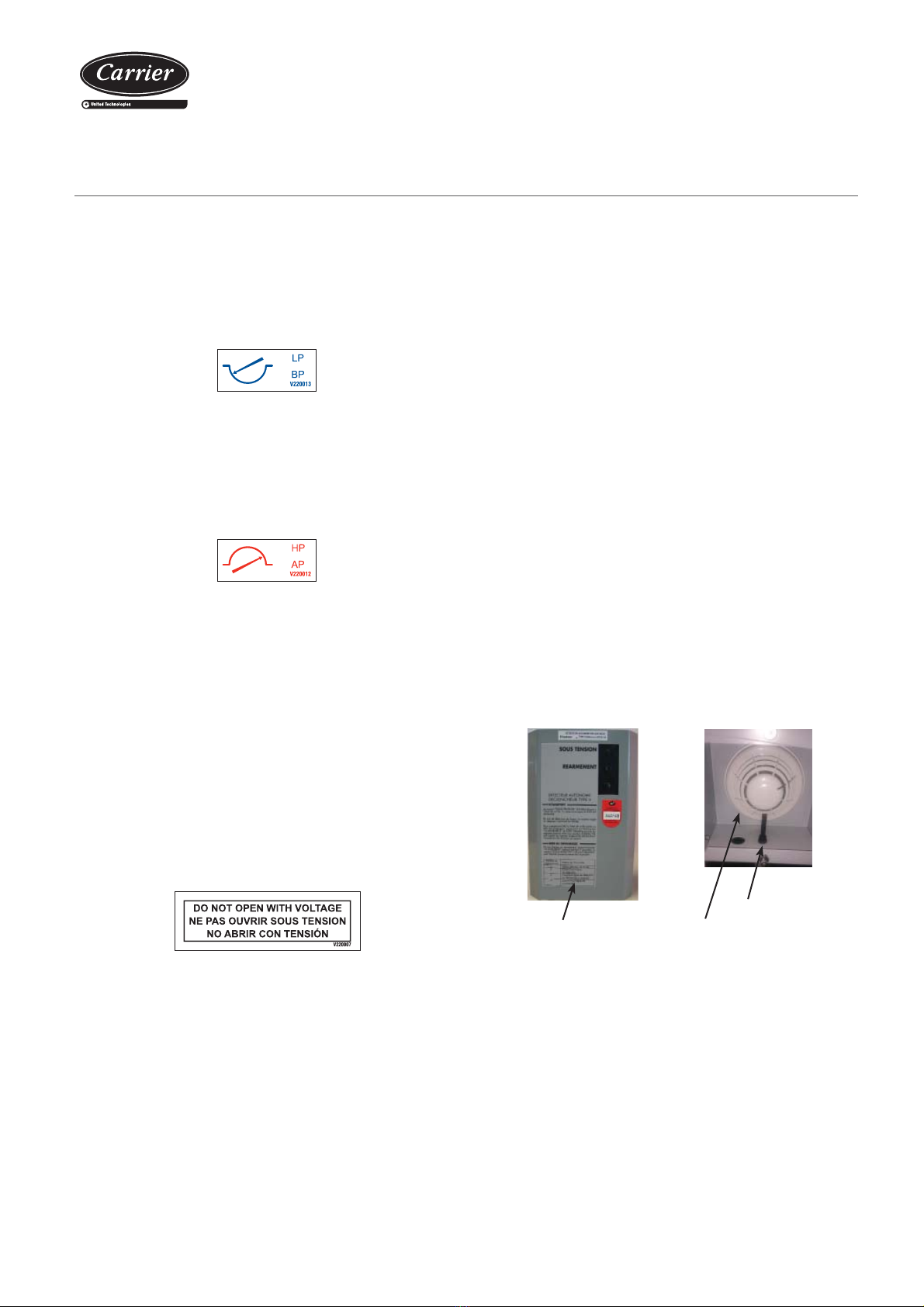

10. SAFETY ELEMENTS
Automatic switch in the control circuit
Magnetothermal switch that protects the operation circuit against
continuous surges as well as against high currents of short duration
(short circuits).
Condensation and evaporation pressure control
This safety device, integrated in the control, enables managing the
outdoor fan(s) when the units are working in cooling mode with low
outdoor temperatures (condensation control) or in heating mode with
high outdoor temperatures (evaporation control). This aids the unit’s
operation in all the seasons.
In the case of EC electronic fans, such as those that are found in these
units by default, speed control will be proportional based on the average
pressure measured by the pressure transducer(s) in the outdoor coil(s).
Defrost control
This safety device is intended to eliminate ice which could accumulate in
the outdoor coil when the unit is working in the heating cycle. Defrosting
is carried out by the control depending on the value measured by the
sensor(s) on the outdoor coil(s) and the time set between defrosting
operations.
Smoke detector (optional)
In accordance with standard NF S 61-961, this smoke detection station
uses a LED to indicate the installation status, and if the probe detects the
presence of smoke in the installation, it stops the operation of the unit.
The station is installed in the factory in the auxiliary electric panel
(except in models 200 to 360 which do not include this panel).
Control of air flow
- The supply plug-fans (standard) adapt their speed to the average
flow measured by the differential pressure sensor and the value set
as a setpoint in the electronic control.
- For those units with centrifugal supply fans (optional), a differential
pressostat can be incorporated in order to measure the variation in
air flow. This pressostat allows the detection of fan belt breakages,
since the fan relay only detects operating faults that have arisen in
the motor. This pressostat is installed in the factory in the auxiliary
electric panel (except in models 200 to 360 which do not include
this panel). This safety device is mandatory for units with electrical
heaters and with gas burners if the unit does not have the supply
plug-fans.
Main door switch
By using a mechanical device, it impedes access to the electric panel
when the unit is with voltage.
Anti-fire safety
The electronic control can activate an anti-fire safety device that
detains the unit when the return air surpasses a temperature of 60°C
(by default).
It cannot return to operation until the temperature has dropped to
below 40ºC.
Smoke detecting station Smoke detecting probe
Air inlet tube
High pressure pressostat
Connected to the compressor discharge, it will stop its operation when
the pressure at that point reaches the setpoint. It disconnects at 42 bar
and it is automatically reactivated.
Low pressure pressostat
When connected to the compressor suction, it will stop its operation
when the pressure at that point goes down below the tare value (caused
by obstructions in the circuit, excessive dirt in the filters, fan stop or ice
formation in the evaporator).
This pressostat disconnects at 2 bar and is automatically reactivated.
Magnetothermals for line protection
They are located at the beginning of the power lines for the compressors
and motor fan(s) to protect them.
Safety at the compressor
Temperature probe for the discharge from the compressor to protect
the unit with discharge temperatures greater than 135ºC.
