YOU WILL LOVE THIS THERMOSTAT.
You have the ComforttProgrammable thermostat. This unique device’s
state−of−the−art technology makes it easier than ever for you to keep your home
comfortable.
Designed to be as smart – and smart−looking – as any of the other electronics in
your home, your new thermostat offers programming options to fit your lifestyle –
not anybody else’s. Let this manual show you how easy it is to enjoy the newest
experience in home comfort.
Designed and Assembled in the U.S.A.

2
TABLE OF CONTENTS
BUTTON IDENTIFICATION 4........................................
ON−SCREEN INDICATORS 6........................................
QUICK START
Setting the time and day 8...........................................
Setting the temperatures for heating and cooling 9........................
Changing the temperature 11........................................
Understanding Touch ‘N’ Gotfeature 12..............................
PROGRAMMING THE THERMOSTAT
Programming the Touch ‘N’ Go feature 13..............................
Setting the home temperature 16....................................
Setting the away temperature 17....................................
Setting the sleep temperature 18.....................................
Changing the temperature time periods 19...............................
Assigning time periods to temperatures 25..............................
OPERATING THE THERMOSTAT
Using Touch ‘N’ Go buttons 29.......................................
To make a temporary change 29.....................................
To hold it at home, away or sleep 30.................................
Using the thermostat to turn the heating and cooling system off 31............
Using the fan 32...................................................
Using emergency heat (heat pump systems only) 33.......................
Changing the batteries 34...........................................
ADVANCED PROGRAMMING OPTIONS
Advanced programming display codes chart 37..........................
Changing from Fahrenheit to Celsius 38................................

3
TABLE OF CONTENTS
Turning off the continuous backlighting 39..............................
Keypad lockout 41................................................
Unlocking the keypad 42..........................................
Changing from programmable to nonprogrammable 43....................
Changing the number of programming periods 45.........................
SPECIAL FEATURES
Auto changeover 46................................................
Smart Recovery 46.................................................
WHAT IF . . .
The battery icon is displayed 47.......................................
“Aux heat on” is displayed (heat pump systems only) 47...................
“Em heat” is displayed (heat pump systems only) 47......................
There is a power outage 48..........................................
You get a system error message 48....................................
COMMON TERMS AND WHERE TO FIND THEM
Auto changeover 49................................................
Auxiliary heat (heat pump systems only) 49.............................
backlighting 49...................................................
Emergency heat (heat pump systems only) 50............................
Hold 50.........................................................
Mode 50.........................................................
Override 50......................................................
Smart Recovery 50.................................................
Temporary hold 51.................................................
Time period 51....................................................
Touch ‘N’ Go 51..................................................
WARRANTY 53....................................................

4
BUTTON IDENTIFICATION
actual temp
temporory
hold
fan
mode
set
schedule set clock
period start time d/h/mdays
done
run
hold
push and hold to set
o
Em
heat
aux
heat
on
all days
weekdays
weekends
fan
auto
fan
on
AM
PM
F
C
home away sleep
cool
on
2
start
at
c
b
d
e
a
f
g
h
i
j
k
l
m

5
BUTTON IDENTIFICATION
a. FAN Selects whether the fan operates continuously (on) or
only when needed for heating or cooling (auto)
b. RUN/HOLD Holds the currently selected temperature or runs the
scheduled program
c. MODE Selects whether thermostat is set for heating,
cooling, emergency heat (heat pump system only),
auto (heat and cool as needed), or off
d. UP Increases the temperature or adjusts the screen
selection up when setting advanced programming
features
e. DOWN Decreases the temperature or adjusts the screen
selection down when setting advanced programming
features
f. DONE Saves settings when completing a set−up or
programming step
g. SLEEP Activates heating and cooling settings for the sleep
program period
h. AWAY Activates heating and cooling settings for the away
program period
i. HOME Activates heating and cooling settings for the home
program period
j. D/H/M SET CLOCK Activates clock set mode
k. START TIME Activates the programming menu, displaying the
four period start times
l. PERIOD Activates the programming menu, displaying the
four programming time periods
m. DAYS Activates the programming menu, displaying three
options – all days, weekdays and weekends

6
ON−SCREEN INDICATORS
actual temp
temporory
hold
o
Em
heat
aux
heat
on
all days
weekdays
weekends
fan
auto
fan
on
AM
PM
F
C
cool
on2
start
at
6
5
4
3
2
1
7
8
9
10
11
12
13
19 14 15 16 17 18

7
ON−SCREEN INDICATORS
1. Clock
2. Fan mode – on or auto
3. Selected heating set point; “on” indicates system is in heating mode
4. System is in auxiliary (supplemental) mode
5. Current temperature
6. Thermostat mode is either off or using emergency heat
7. Fahrenheit
8. Keypad is locked (no padlock means unlocked)
9. Celsius
10. Battery strength indicator
11. Selected cooling set point; “on” indicates system is in cooling mode
12. Second stage of cooling is active for 2 speed thermostat models
13. Day of the week for programming mode
14. System is using sleep settings
15. AM or PM indicator for current time
16. System is using away settings
17. System is in hold
18. System is in temporary hold
19. System is using home settings

8
QUICK START
Setting the time and day
You must set the time and day before you can use any of the thermostat’s
programming features.
1. Open the door.
2. Press the d/h/m button. It’s on the lower right, under the
display screen. The day of the week will flash on the dis-
play.
3. Press the up or down button, located to the right of the
display, to change the day. Stop on the correct day.
4. Press the d/h/m button again and the hour will flash on
the display.
5. Press the up or down button to change the hour. Stop on
the correct number.
6. Press the d/h/m button again and minutes will flash on the display.
7. Press the up or down button to change the minutes. Stop on the correct
minute.
8. Press the done button or close the door.

9
QUICK START
Setting the temperatures for heating and cooling
Your thermostat is installed with pre−set heating and cooling temperature settings.
You can use these or change them so your home is as warm or as cool as you’d like
it to be. These steps will hold the temperature where you set it. For the temperature
to change automatically according to your lifestyle needs – whether you’re home,
away or asleep – you’ll need to follow the Touch ‘N’ Go instructions on pages 13 –
19.
1. Open the door.
2. Press the up or down button located on the right side of
the display. You will see the preset temperature settings
for heating and cooling. The word heat will flash.
3. Press the up or down button to change the heat setting.
Stop on the correct setting.
4. Press the hold/run button.

10
QUICK START
5. Press the mode button located on the left side of the dis-
play once. You will see the preset temperature setting for
cooling appear on the right side of the display.
6. Press the up or down button. The word cool will flash.
7. Continue pressing the up or down button to change the
cool setting. Stop at the desired cooling setting.
8. Press the hold/run button located on the left side of the
display. This holds the thermostat at that setting.
9. Press the done button.
10. Close the door.

11
QUICK START
Changing the temperature
There are times when you want to change the temperature.
Here’s how.
1. Open the door.
2. Press the up or down buttons on the right side until you
reach the desired temperature setting. This creates a “tem-
porary hold” until the next pre−set time period. You will
see temporary hold on the display. (To switch from the
cooling temperature to the heating temperature – or vice
versa – press the mode button on the left until the word
heat or cool is flashing.)
3. To maintain that temperature setting so it doesn’t change
during the next pre−set time period, press the hold/run
button on the left side. The display will show hold. The
temperature will stay at the setting you selected until you
release the hold.
4. To return the temperature to the pre−set level for that time
period, press hold/run. This releases the hold and the tem-
perature will return to its programmed level.
5. Close the door.

12
QUICK START
Understanding Touch ‘N’ Go feature
The unique Touch ‘N’ Go feature on your thermostat is a revolutionary tool that lets
you use a simpler programming option – literally, touch and go – to help you get
the maximum comfort control from the entire comfort system.
With the touch of one Touch `N' Go button – home, away or sleep – you can
tell your thermostat where you’ll be. To keep the home at that comfort level
indefinitely, you add one more button – hold/run – and you’re set. It’s the ideal
choice for somebody whose schedule varies from day to day or doesn’t fit into the
two or four predictable time periods allowed by the thermostat.
At the same time, these three comfort options – home, away and sleep – are
connected to the thermostat’s full−level programming power so that you get the
home comfort you desire exactly when you want it.
The three Touch `N' Go buttons are preset at the factory for typical heating and
cooling temperature settings and assigned to specific time periods. You can change
these temperature settings and the hours you want to use them easily. Learn how to
do that and discover how useful this device is as you read through this manual.

13
PROGRAMMING THE THERMOSTAT
Programming the Touch ‘N’ Go feature
The Touch ‘N’ Go feature on your thermostat involves the home, away and sleep
buttons immediately under the display. They are used for two programming
options. One is more sophisticated than the other.
The simpler programming option requires you to either accept the preset
temperature settings for when you are home, away or asleep, or to set your own
Touch ‘N’ Go heating and cooling temperature settings. Either way, your home,
away and sleep settings are automatically linked to one of four time periods that are
also preset (and changeable) on the thermostat.
You can override those preset time periods and their relationship to your home,
away and sleep buttons by pressing one of those three buttons at any time. This
will let you create a “temporary hold” at that comfort level until the next
programming period.
You can also hold the thermostat at your home, away or sleep temperatures by
pressing one of those three buttons and then pressing the hold button.
This approach is popular with people who don’t follow the same routine every day.
And while you need to remember to push one of those three buttons when you
leave, come home, or go to bed, doing that is easier for some than manually
re−setting the temperature several times a day.

14
PROGRAMMING THE THERMOSTAT
The more sophisticated programming option works well with people who tend to
follow a more predictable routine and who also want to get the most from this
thermostat’s potential. For both programming options, you must set−up your Touch
‘N’ Go heating and cooling temperatures in order to use the thermostat’s expanded
programming options.
Here are the temperature settings that are pre−programmed for your home, away
and sleep periods.
Touch `N' Go Option Heat Cool
Home 68 74
Away 60 85
Sleep 66 78

15
PROGRAMMING THE THERMOSTAT
Use this blank grid to determine how warm or cool you want your home to be when
you’re home, away or asleep. You’ll assign time periods to those temperatures later.
Touch `N' Go Option Heat Cool
Home
Away
Sleep

16
PROGRAMMING THE THERMOSTAT

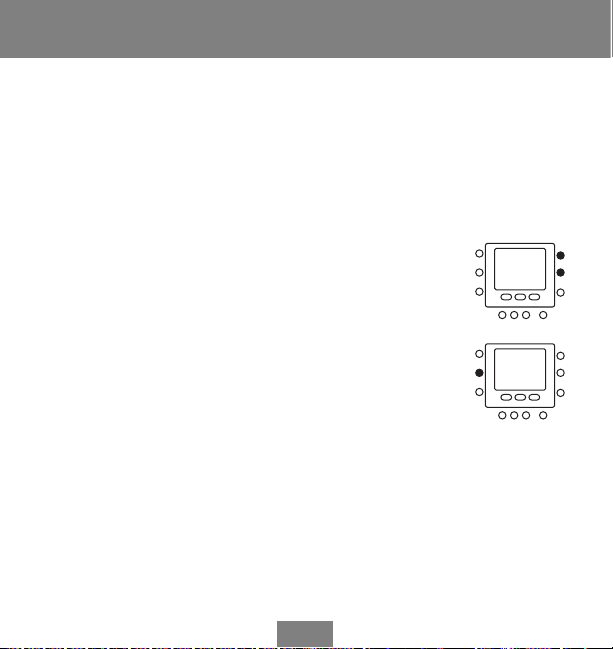

Setting the home temperature
1. Open the door.
2. Press the home button located under the display on the
left. You will see a triangle icon (B) above the home but-
ton. This icon will always tell you whether you’re in the
home, away or sleep setting.
3. You will see the heating and cooling temperatures that
were set at the factory. To use these, just close the door.
4. To change the factory settings press the home button. You
will see the word heat flashing on the screen.
5. Press the up or down button until you reach the desired
temperature setting.
6. Press and hold the home button for about three seconds.
The set temperature will flash, indicating that it saved
your settings.
7. To change the cooling temperature setting, press the
mode button repeatedly until you see the word cool flash-
ing on the screen.
8. Press the up or down button on the right side of the dis-
play until you reach the desired temperature setting.
9. Press and hold the home button for about three seconds. The set temperat-
ure will flash, indicating that it saved your settings.

17
PROGRAMMING THE THERMOSTAT

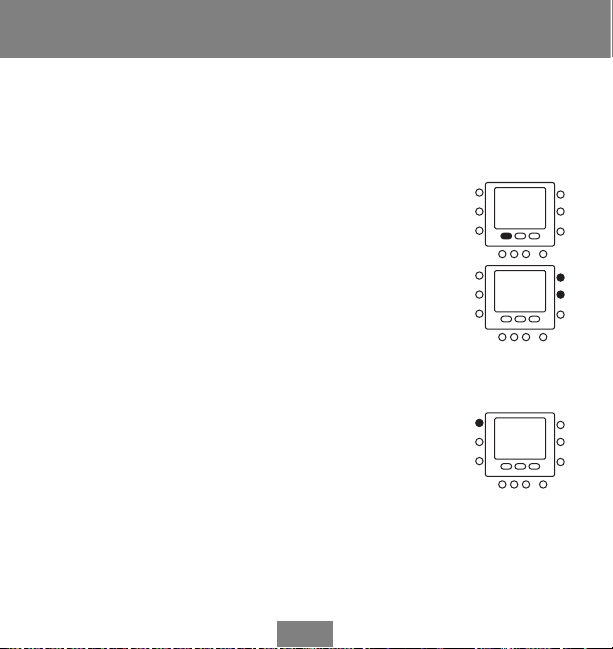

Setting the away temperature
1. Press the away button located under the display in the cen-
ter. You will see a triangle icon (B) above the away but-
ton.
2. You will see the heating and cooling temperatures that
were set at the factory. To use these, just close the door.
3. To change the factory settings, press the away button. You
will see the word heat flashing on the screen.
4. Press the up or down button on the right side of the dis-
play until you reach the correct temperature setting.
5. Press and hold the away button for about three seconds.
The set temperature will flash, indicating that it saved your
settings.
6. To change the cooling temperature setting, press the mode
button until you will see the word cool flashing on the
screen.
7. Press the up or down button until you reach the desired temperature set-
ting.
8. Press and hold the away button for about three seconds. The set temperat-
ure will flash, indicating that it saved your settings.

18
PROGRAMMING THE THERMOSTAT

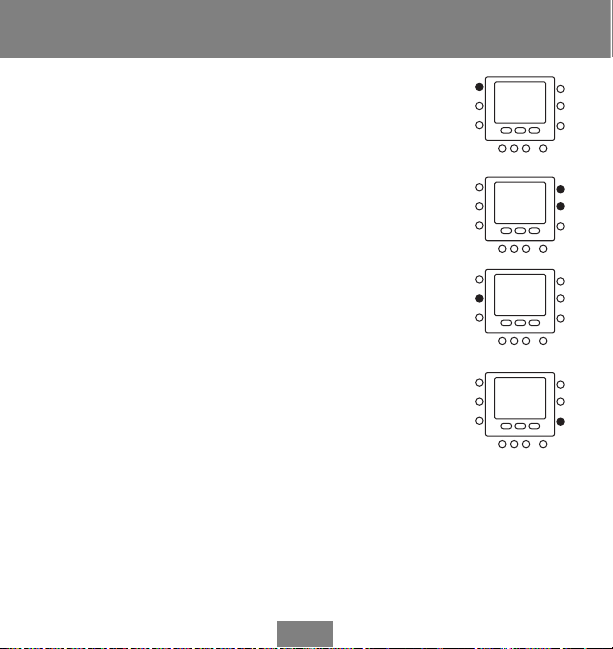

Setting the sleep temperature
1. Press the sleep button located under the display in the
center. You will see a triangle icon (B) above the sleep
button.
2. You will see the heating and cooling temperatures that were
set at the factory. To use these, just close the door.
3. To change the factory settings, press the sleep button. You
will see the word heat flashing on the screen.
4. Press the up or down button on the right side of the dis-
play until you reach the desired temperature setting.
5. Press and hold the sleep button for about three seconds.
The set temperature will flash, indicating that it saved your
settings.
6. To change the cooling temperature setting, press the mode
button until you see the word cool flashing on the screen.
