OWNER'S MANUAL
P/N P474-1010
Programmable
Digital Thermostat
1 For All
Use with most Air Conditioning & Heating Systems including: 1 or 2 Stage
Electric Cooling & Gas Heating, Heat Pump, Electric or Hydronic Heat.
Residential
Meets California Title 24
TOTALINE
Replacement Components Division Carrier Corporation 04/01
Dual Setpoint
Single Day Programmable
4 Time periods
Very Easy to Program
Easy To Read Display
Thermoglow Backlight
No Batteries Required
Auto Changeover
Locking Keypad
TOTALINE
AUTO COOL
74
HEAT
72
72

Table Of Contents
FRONT PANEL
DISPLAY
QUICK START Set the clock and go
BASIC OPERATION
PROGRAMMING 4 Time Periods
ADVANCED SETUP
ABOUT ADVANCED OPERATION
WARRANTY
Page 1
CAUTION
Follow Installation Instructions before proceeding.
SET THERMOSTAT TO MODE “OFF” PRIOR TO
CHANGING SETTINGS IN SETUP OR RESTORING
FACTORY DEFAULTS.
P/N P474-1010
2
3
4
5
7
10
14
17
Replacement Components Division Carrier Corporation 04/01

Front Panel
Page 2
Liquid Crystal Display
with Thermoglow
Up/Down Buttons
Mode Button
Fan Button
Heat or Cool Indicator
Heat = Red, Cool = Green
1
2
3
4
5
AUTO COOL
74
HEAT
72
72
5
1
2
3
4
TOTALINE

Display
Fan On
AUTO
OFF
COOL
88
HEAT
88
88
2
3
1
1
3
1
1
Mode Indicators
Selects the operation mode of the equipment.
HEAT - indicates the heat mode.
COOL - indicates the air conditioning mode.
AUTO - indicates the system will automatically
changeover between heat and cool modes
as the temperature varies.
AUTO - auto blinks to indicate the stored
program is enabled to run. When program
mode is entered the letters (pr)blink for two
seconds on the screen.
OFF - indicates the entire system is turned off.
Page 6.
Room Temperature Display
Indicates the current room temperature.
Desired Set Temperature
Indicates desired room temperature(s). Page 7.
Page 3
1
2
3
4
Fan Operation Indication
Fan On - indicates constant, continuous fan
operation.
When Fan On is not lit - indicates the fan will
only operate when necessary to heat or
to cool. Page 7.
4

Page 4
During Setup & Programming:
Pressing the Mode button
selects different flashing items.
(Represented in dark black)
Pressing the Up and Down
buttons will modify the flashing
selection.
Press the Mode button.
While holding the Mode,
press the Fan button
for 2 seconds to enter Setup
screens.
Press both Mode and
Fan buttons as
above to return to
normal operation.
Quick Start Set the Clock and Go
The thermostat is preprogrammed from the
factory to operate 1 or 2 Stage equipment* without
the need for further programming. To optimize the
installation of this thermostat follow the instructions
in the Advanced Setup section.
* The thermostat is not preprogrammed from the
factory to operate electric heat or heat pump systems.
To control these systems, follow the steps in the
Advanced Setup section, pages 12 & 13.
buttons.
To adjust the
clock use
Press
FAN
FAN
MODE
MODE
MODE
a
00
i2
Hours
Minutes
am/pm

The HEAT setting indicates the
temperature the room has to
reach before the furnace will
turn on to heat the room.
The COOL setting indicates the
temperature the room has to
reach before the air conditioner
will turn on to cool the room.
OFF indicates both heating
and air conditioning
systems are turned off.
AUTO will automatically select
heat or cool based on room
temperature demand.
AUTO - auto blinks to indicate the
stored program is enabled to run.
When program mode is entered
the letters (pr)blink for two
seconds on the screen.
Select Mode
Basic Operation
Page 5
MODE
MODE
MODE
MODE
HEAT
74
72
COOL
72
72
AUTO COOL
74
HEAT
72
72
OFF
72
AUTO COOL
74
HEAT
72
72

Page 6
buttons.
In any mode, adjust the
desired Set Temperature
with
Pressing the Up or Down buttons in Auto mode will adjust both the heat and cool
set temperatures simultaneously.
Pressing the Up or Down buttons in Heat or Cool modes will adjust only the
heat or cool set temperature.
Select Desired Temperature
Basic Operation
Fan
Operation
Fan On indicates constant fan operation.
This feature is active even if the thermostat
is set to Off.
Press
FAN
AUTO COOL
74
HEAT
72
72
Fan On
AUTO COOL
74
HEAT
72
72

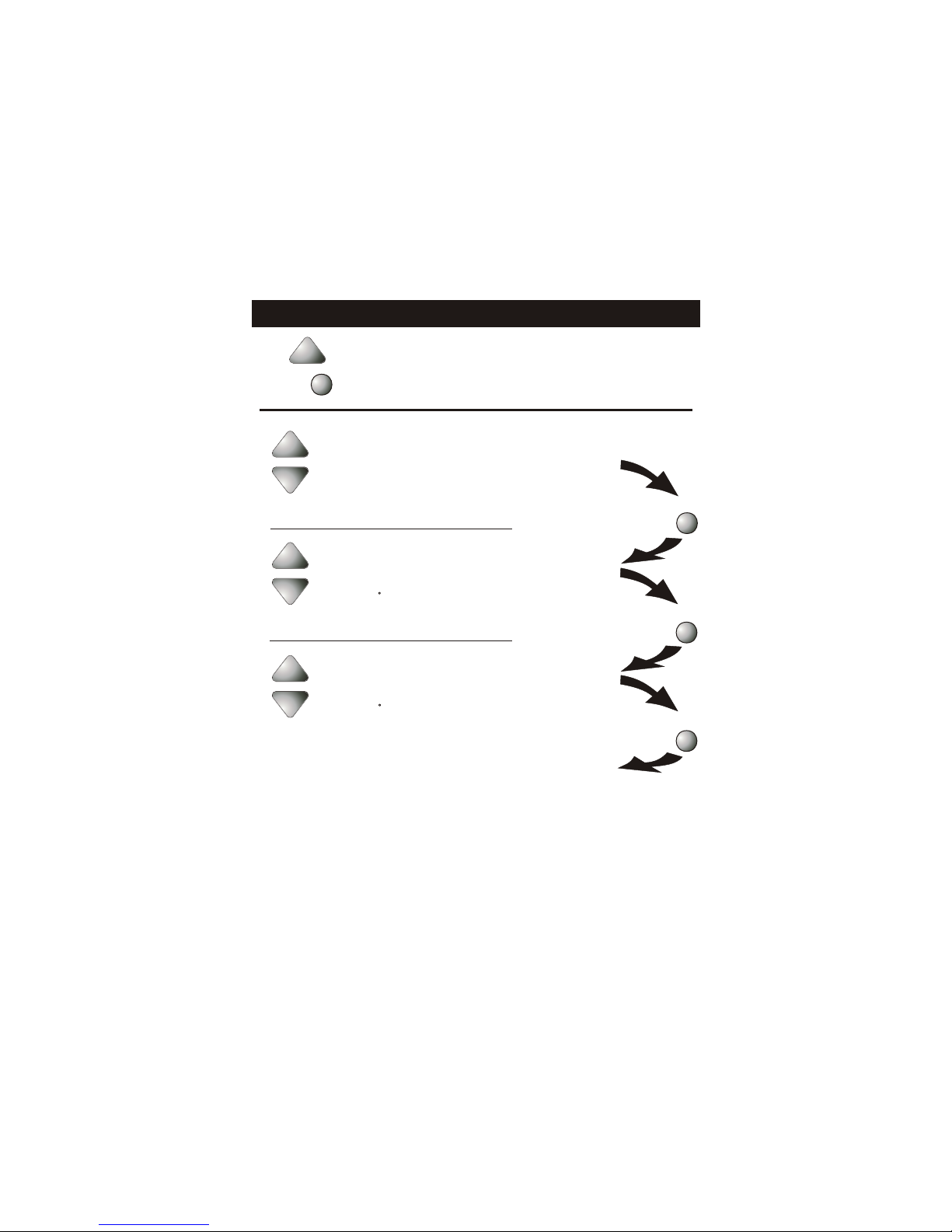

Programming 4 Time periods
Page 7
Press
Press
Press
Press the Mode button. While holding the Mode,
press the Up button for 2 seconds to enter
time period programming.
Continued
Adjust the start time for the
first time period.
Adjust the cooling setpoint
for the first time period.
(35 - 99 )
Adjust the heating setpoint
for the first time period.
(35 - 99 )
MODE
MODE
MODE
MODE
a
30
7
COOL
74
i
COOL
74
HEAT
72
i

Page 8
MODE
Programming 4 Time Periods
Press
Press
Press
Press
Press
Continued
Adjust the start time for
the second time period.
Adjust the cooling setpoint
for the second time period.
(35 - 99)
Adjust the heating setpoint
for the second time period.
(35 - 99)
Adjust the start time for
the third time period.
Adjust the cooling setpoint
for third time period.
(35 - 99)
MODE
MODE
MODE
MODE
a
30
i0
COOL
75
2
AUTO COOL
75
HEAT
73
2
p
30
5
COOL
75
3

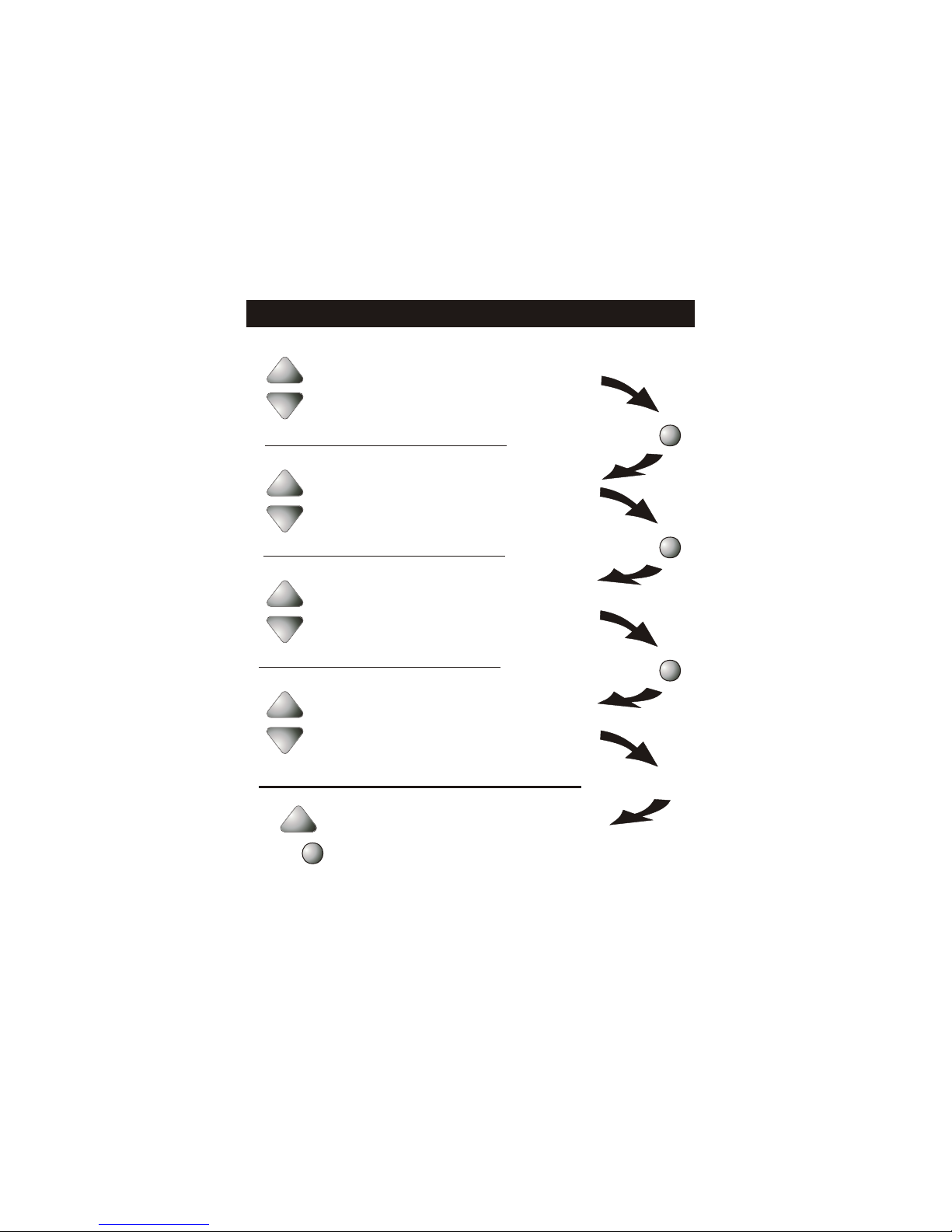

Programming 4 Time Periods
Page 9
Press
Press
Press
Adjust the heating setpoint
for the third time period.
(35 - 99)
Adjust the start time
for the fourth time period.
Adjust the cooling setpoint
for the fourth time period.
(35 - 99)
MODE
MODE
MODE
Adjust the heating setpoint
for fourth.
(35 - 99)
Press the Mode button. While holding the Mode,
press the Up button for 2 seconds to exit
time period programming.
MODE
To Exit Programming
COOL
75
HEAT
73
3
p
30
i i
COOL
78
4
COOL
78
HEAT
70
4

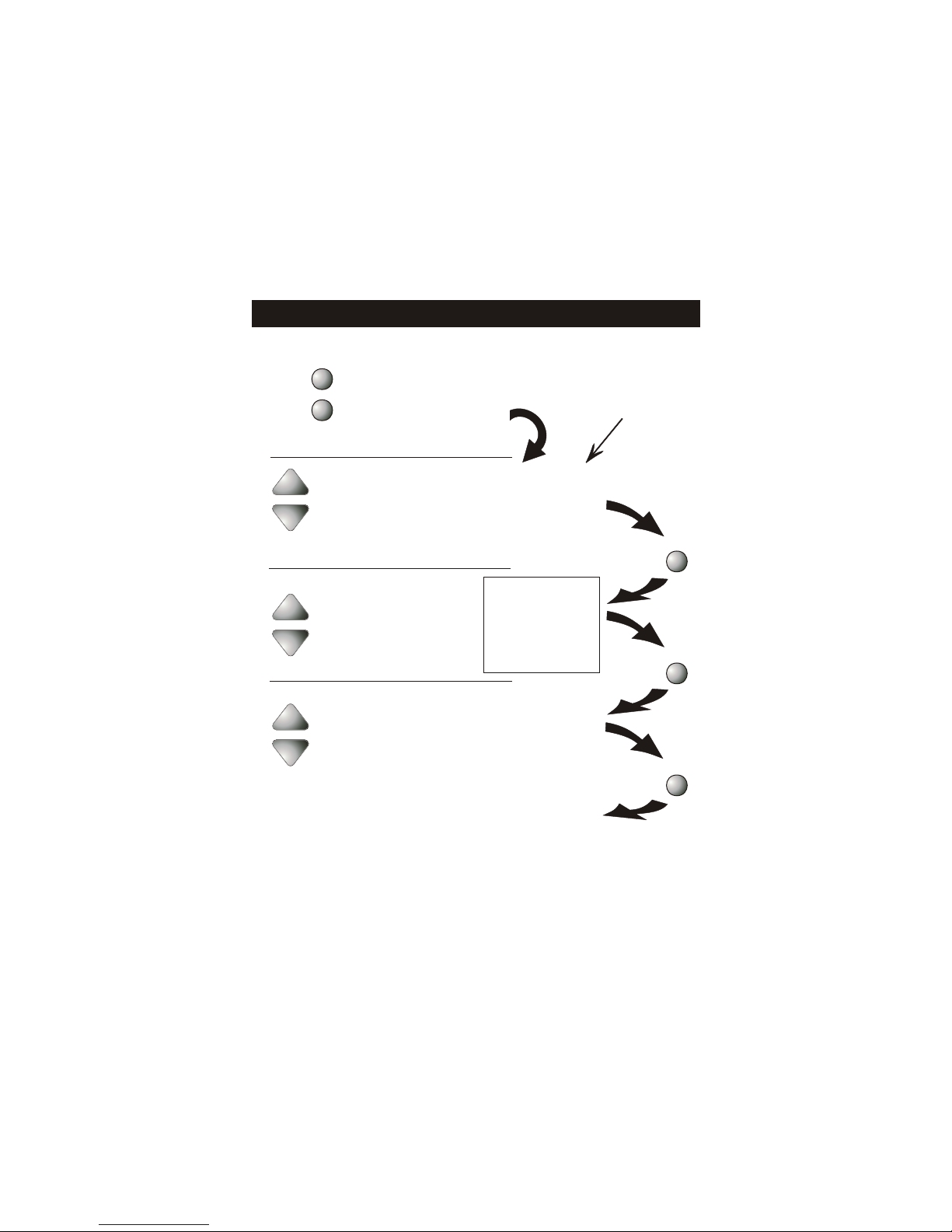

Advanced Setup
Page 10
Press
Press
Press
Continued
Press the Mode button.
While holding the Mode,
press the Fan button
for 5 seconds to enter Setup
screens.
NOTE: Each step # is located at
the top right corner of the
display for easy reference.
Tip: To change hours quickly, press and
hold the Fan button in and press
the up or down buttons.
FAN
MODE
Adjust the time of day
clock.
MODE
MODE
MODE
Select Programmable On
or Off. (Step 3 only appears
if display mode is set to 2
in step 2)
On
Off
a
00
i2
On
3
pr
2
85
2
Select Display Mode:
2 for dual setpoint
1 for single setpoint.
2
1

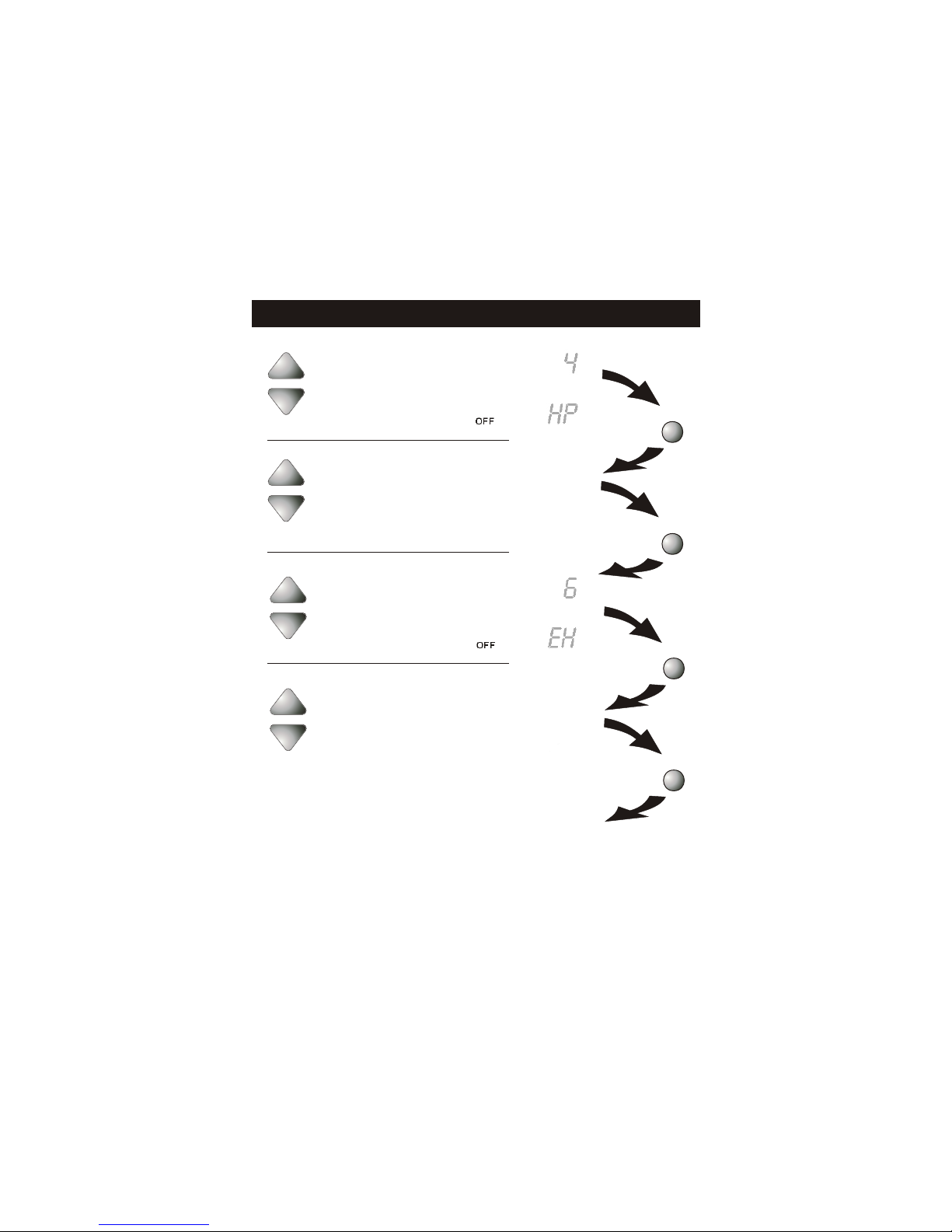

Advanced Setup
Page 11
Continued
Press
Press
Select Electric Heat On
or Off. (Step 6 only
appears if heat pump is
off in step 4)
Adjust the deadband
from 1 - 6 degrees.
MODE
MODE
OFF
6
eh
7
2
88
Press
Press
MODE
MODE
Select residential Heat Pump,
ON or OFF.
On
Off OFF
4
hp
5
0
Select the reversing
valve polarity for
Heat Pump, O or B.
(Step 5 only appears if
heat pump is on in step 4)
B
O

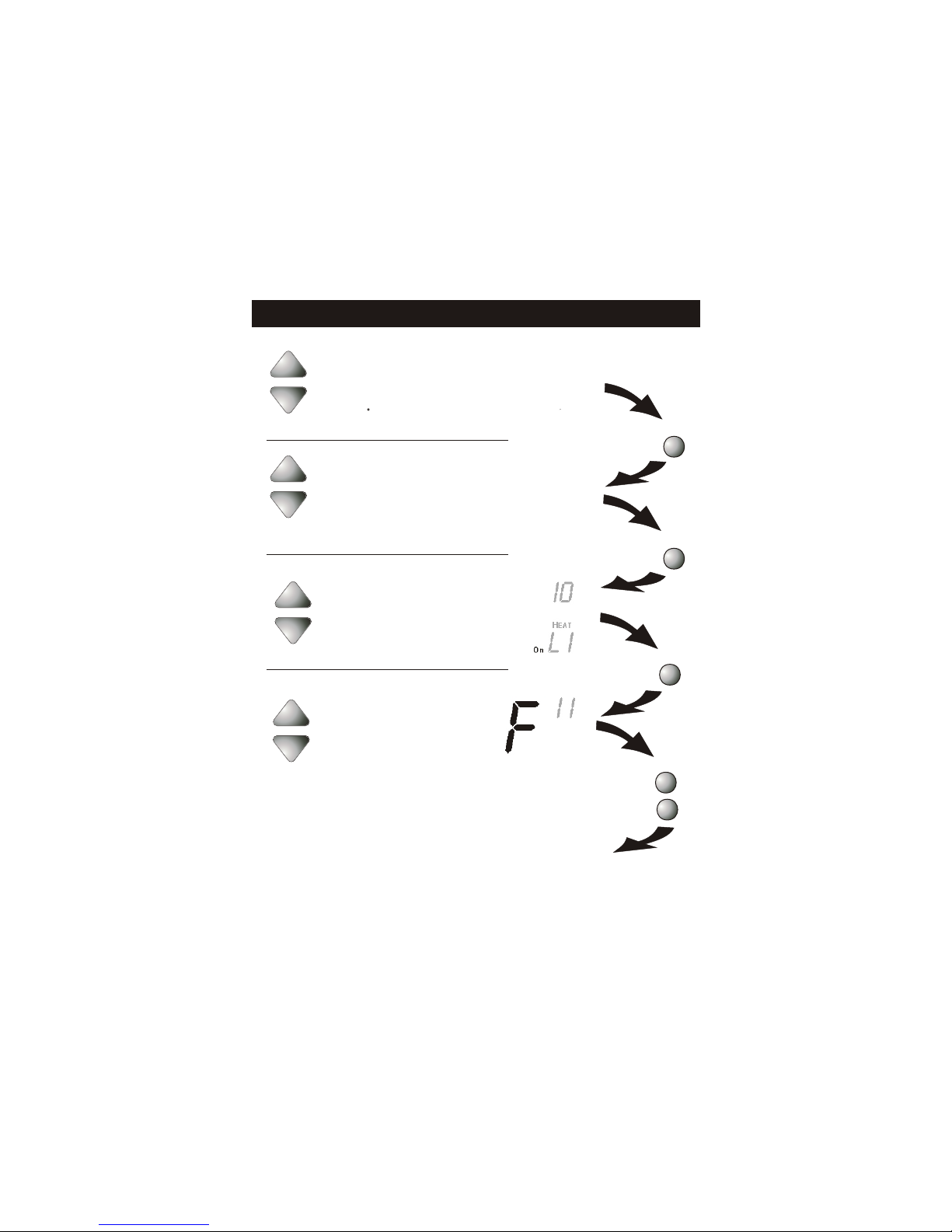

Advanced Setup
Page 12
Press
Select the display back-
light always On, or Off
after 8 seconds.
On
Off
MODE
On
i0
HEAT
l i
Press the Mode button.
While holding the Mode, press the Fan
button for 2 seconds to leave the Setup
screens. If no buttons are pressed, the
display will leave the setup screens after
30 seconds.
Press
Select thermostat
operation in degrees
Fahrenheit or Centigrade.
C
F
MODE
FAN
i i
f
Press
Press
Adjust the minimum
difference between
cooling & heating
setpoints.
(0 - 6 )
MODE
MODE
COOL
8
HEAT
2
9
cy
6
8f
Select the cycles per
hour limit.
d=cycles per hour
limit defeated.
d1=d + defeat 5 min.
Compressor lockout.
(d, d1, 2 - 6)

Advanced Setup
Page 13
Step # Description Range Factory Default
1 Time of day clock set 24 hour 12:00 Am
2 Display Type Dual (2) or Single (1) 1-2 2
3 Programmable On or Off Off / On On
4 Heat Pump Off / On Off
5 Reversing Valve polarity O / B O
6 Electric Heat Off / On Off
7 Deadband or Temperature swing 1 - 6 2
8 Forced minimum difference heat/cool 0 - 6 2
9 Cycles per hour d, d1, 2 - 6 6
10
11
Thermoglow backlight Off / On On
Fahrenheit or Centigrade F / C F
Advanced Setup Table

About Advanced Features & Operation
Page 14
2 STAGE OPERATION - The 2nd Stage of heat or cool is
turned on when (1) the 1st Stage has been on for a
minimum of two minutes, and (2) the temperature spread
from the setpoint is equal to or greater than: the setpoint
plus the deadband, plus 2 degrees.
Heat
Setpoint
Cool
Setpoint
Dead
Band
Dead
Band
2 degrees 2 degrees
1st Stage
turn on
2nd Stage
turn on
1st Stage
turn on
2nd Stage
turn on
Heating Cooling
MINIMUM HEAT/COOL SETPOINT DIFFERENCE - The Heat
and Cool setpoints will not be allowed to come any closer
to each other than the value set in Advanced Setup step
# 8, on page 7. This minimum difference is enforced
during Auto changeover operation.
and Program On
EMERGENCY HEAT - Is a feature available to Heat Pump
installations. To turn on Emergency Heat press in the
Fan button. While holding the Fan button press
the Up button for 2 seconds. The Cool setpoint display
will read ‘EH’.
During Emergency Heat the thermostat will turn
on the fan and the 2nd stage of heat, when there is a
demand for heat, locking out the 1st stage compressor.
Exiting Emergency Heat is the same as entering. During
Emergency Heat only OFF and HEAT are available.
Press for
Emergency Heat
Fan
EH
HEAT
72
72

About Advanced Features & Operation
Page 15
ELECTRIC HEAT - Selecting Electric Heat on, page 7,
step 6, will cause the thermostat to turn on the fan
any time there is a heat demand. Since all
control the fan, this feature should be off
is only electric.
immediately
gas furnaces
unless the heater
KEYPAD LOCK - To prevent unauthorized use of the thermostat,
the front panel buttons may be disabled. To disable, or
‘lock’ the keypad, press and hold in the Mode button.
While holding the Mode button in, press the Up and Down
buttons in together.
Press all 3 for
Keypad Lockout
To unlock the buttons, again press and hold the Mode
button. While holding the Mode button in, press the Up
and Down buttons in together.
MODE
AUTO COOL
74
HEAT
72
72

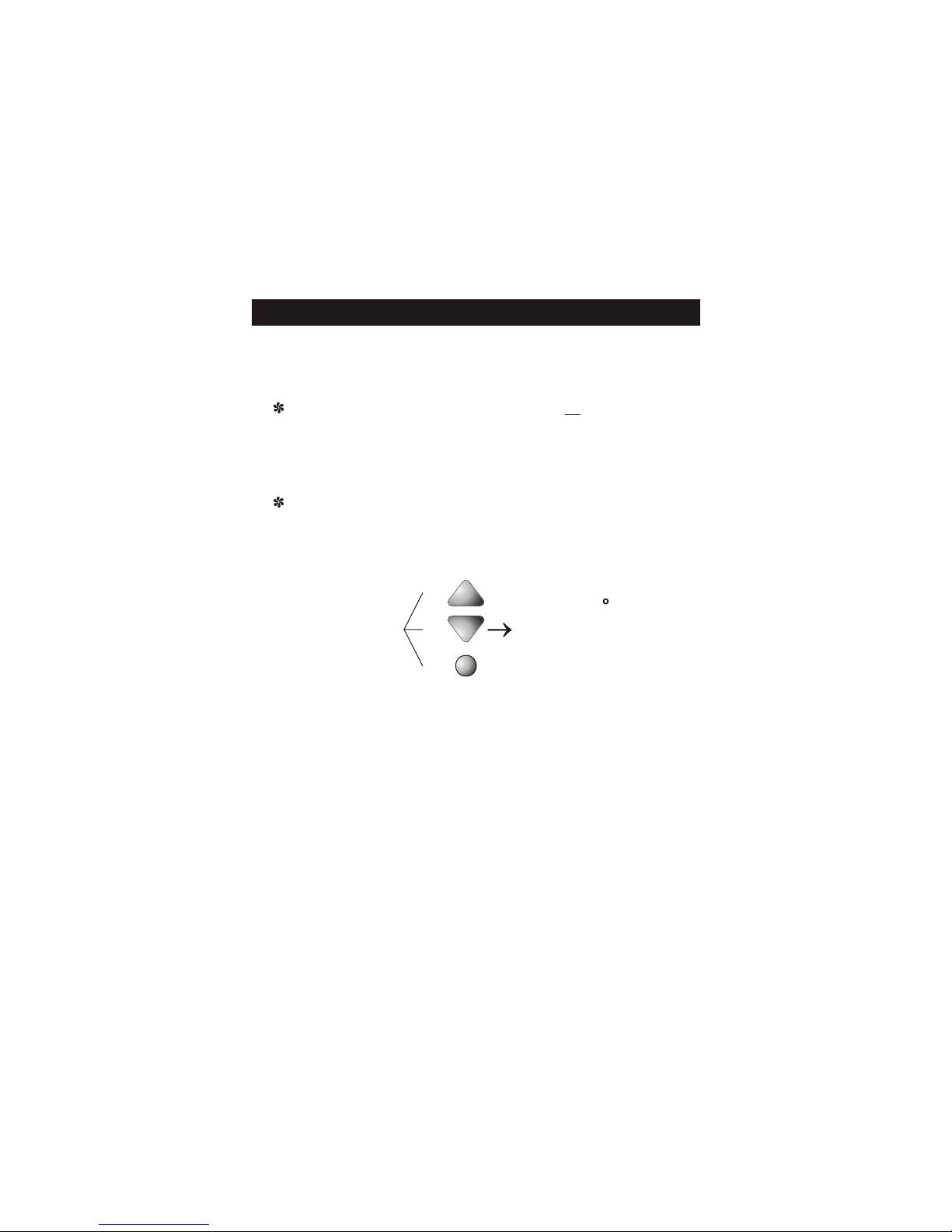

About Advanced Features & Operation
Page 16
DUAL SETPOINT BEHAVIOR - The adjustable setpoint range
is: 35 - 99 degrees in Fahrenheit and 7 - 35 degrees in
Centigrade. When in the modes Heat or Cool, this
adjustable range is unhampered.
When adjusting any Auto mode, including programming
Occupied and Unoccupied periods, the 1050 will not
allow the Heat setpoint to get closer to the Cool setpoint
than the value programmed as the minimum difference in
step 7, page 13.
When entering the Auto mode from Cool, the Heat and
Cool setpoints will remain spread apart by the amount
that they were adjusted, prior to entering Auto.
For example: If the Cool setpoint was set to 80 while
in the Cool mode and the Heat setpoint was adjusted to
70 while in the Heat mode, upon entering the Auto mode
the Heat and Cool setpoints would be 80 and 70. Both
setpoints would then move up and down together, (in this
example spread by 10 degrees), by pressing the up or
down buttons.
To move the Heat and Cool setpoints closer together,
enter the Cool or Heat mode by pressing the Mode button,
then adjust the setpoint(s) closer together. Heat is limited
to how close it can come to Cool by step 7, page 13.
FACTORY DEFAULTS - If, for any reason it is desirable to
return all stored settings back to the factory default
settings, press the Mode button. While holding the Mode
button in, press the Down button for 5 sec. All icons will
appear. Press and hold in the Fan button until Fd
appears. This resets all factory settings. To calibrate
room temperature, press the Mode button once more.
At this point use the Up and Down buttons to calibrate
room temperature, if needed. Press the Mode button to
return to normal operation. NOTE CAUTION ON PAGE 1.

Warranty
Page 17
One-Year Warranty - This Product is warranted to be free from defects in material and
workmanship. If it appears within one year from the date of original installation, whether or not
actual use begins on that date, that the product does not meet this warranty, a new or
remanufactured part, at the manufacturer’s sole option, to replace any defective part will be
provided without charge for the part itself; PROVIDED the defective part is returned to the
distributor through a qualified servicing dealer.
THIS WARRANTY DOES NOT INCLUDE LABOR OR OTHER COSTS incurred for diagnosing,
repairing, removing, installing, shipping, servicing or handling of either defective parts or
replacement parts. Such costs may be covered by a separate warranty provided by the installer.
THIS WARRANTY APPLIES ONLY TO PRODUCTS IN THEIR ORIGINAL INSTALLATION
LOCATION AND BECOMES VOID UPON REINSTALLATION.
LIMITATIONS OF WARRANTIES – ALL IMPLIED WARRANTIES (INCLUDING IMPLIED
WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY) ARE
HEREBY LIMITED IN DURATION TOT THE PERIOD FOR WHICH THE LIMITED WARRANTY
IS GIVEN. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE MAY NOT APPLY TO YOU. THE EXPRESSED
WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MANY NOT BE ALTERED,
ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON
WHATSOEVER.
ALL WORK UNDER THE TERMS OF THIS WARRANTY SHALL BE PERFORMED DURING
NORMAL WORKING HOURS. AL REPLACEMENT PARTS, WHETHER NEW OR
REMANUFACTURED, ASSUME AS THEIR WARRANTY PERIOD ONLY THE REMAINING
TIME PERIOD OF THIS WARRANTY.
THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR:
1. Normal maintenance as outlined in the installation and servicing instructions or owners
manual including filter cleaning and/or replacement and lubrication.
2. Damage or repairs required as a consequence of faulty installation, misapplication, abuse,
improper servicing, unauthorized alteration or improper operation.
3. Failure to start due to voltage conditions, blown fuses, open circuit breakers or other
damages due to the inadequacy or interruption of electrical service.
4. Damage as a result of floods, winds, fires, lightning, accidents, corrosive environments or
other conditions beyond the control of the Manufacturer.
5. Parts not supplied or designated by the Manufacturer, or damages resulting from their use.
6. Manufacturer products installed outside the continental U.S.A., Alaska, Hawaii, and
Canada.
7. Electricity or fuel costs or increases in electricity or fuel costs from any reason whatsoever
including additional or unusual use of supplemental electric heat.
8. ANY SPECIAL INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL
DAMAGE OF ANY NATURE WHATSOEVER. Some states do not allow the exclusion of
incidental or consequential damages, so the above may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which may vary
form state to state.
Form: OG-P474-04
Catalog: 53P4-743
P/N 88-330
