Carrier Infinity SYSTXCCITW01 User manual

Owner's Manual
NOTE: Read the entire instruction manual before starting the installation.
US Patents: Carrier (°_U.S. Pat No. 7.243.004. Carrier @ U.S. Pat No. 7.775.452.
pointSET TM U.S. Pat No. 7.415.102

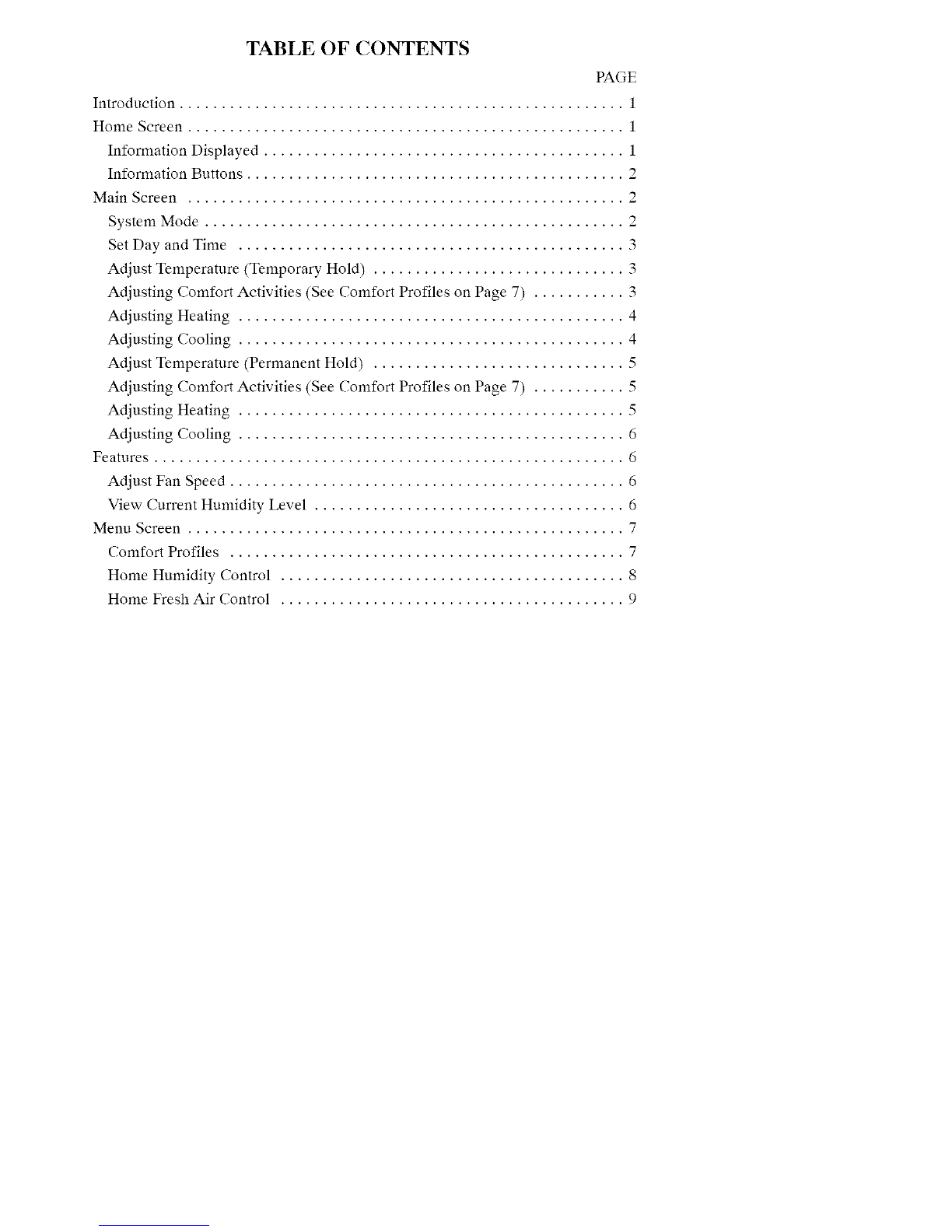

TABLE OF CONTENTS
PAGE
Introduction ..................................................... 1
Home Screen .................................................... 1
Information Displayed ........................................... 1
Information Buttons ............................................. 2
Main Screen .................................................... 2
System Mode .................................................. 2
Set Day and Time .............................................. 3
Adjust Temperature (Temporary Hold) .............................. 3
Adjusting Comfort Activities (See Comfort Profiles on Page 7) ........... 3
Adjusting Heating .............................................. 4
Adjusting Cooling .............................................. 4
Adjust Temperature (Permanent Hold) .............................. 5
Adjusting Comfort Activities (See Comfort Profiles on Page 7) ........... 5
Adjusting Heating .............................................. 5
Adjusting Cooling .............................................. 6
Features ........................................................ 6
Adjust Fan Speed ............................................... 6
View Current Humidity Level ..................................... 6
Menu Screen .................................................... 7
Comfort Profiles ............................................... 7
Home Humidity Control ......................................... 8
Home Fresh Air Control ......................................... 9

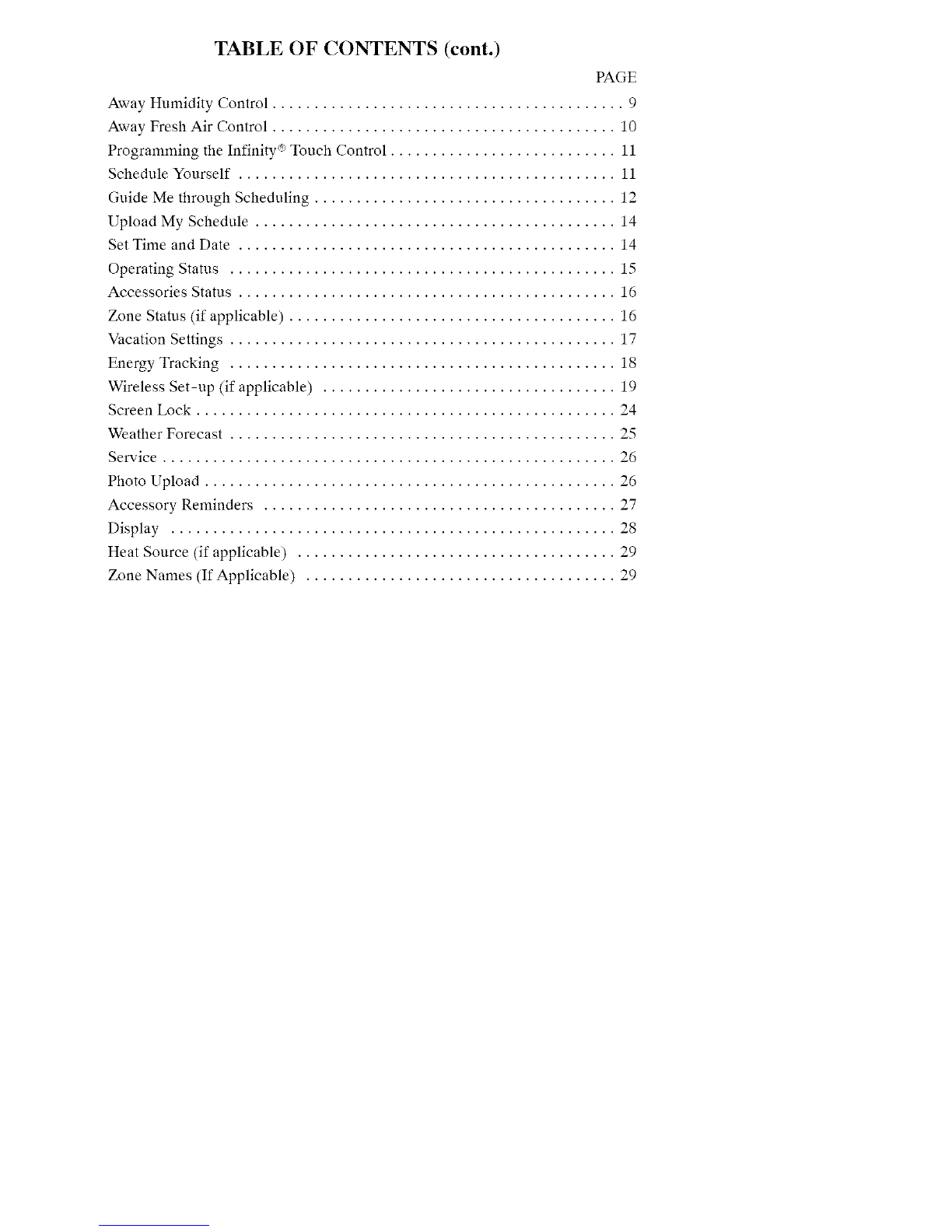

TABLE OF CONTENTS (cont.)
PAGE
Away Humidity Control .......................................... 9
Away Fresh Air Control ......................................... 10
Programming the Infinity (_Touch Control ........................... 11
Schedule Yourself ............................................. 11
Guide Me through Scheduling .................................... 12
Upload My Schedule ........................................... 14
Set Time and Date ............................................. 14
Operating Status .............................................. 15
Accessories Status ............................................. 16
Zone Status (if applicable) ....................................... 16
Vacation Settings .............................................. 17
Energy Tracking .............................................. 18
Wireless Set-up (if applicable) ................................... 19
Screen Lock .................................................. 24
Weather Forecast .............................................. 25
Service ...................................................... 26
Photo Upload ................................................. 26
Accessory Reminders .......................................... 27
Display ..................................................... 28
Heat Source (if applicable) ...................................... 29
Zone Names (If Applicable) ..................................... 29

INTRODUCTION
CONGRATULATIONS! Your decision to choose the Infinity(n) Touch Control puts
you in a select group of homeowners who understand the value of precise comfort
control and appreciate the simplicity of an easy-to-use, intuitive, control.
Your new Infinity Touch Control offers high quality" comfort technology. Please
take a few moments to carefully read through this manual. Next set up a comfort
profile and schedule that makes sense for your lifestyle: then relax and enjoy the
new comfort of your home!
HOME SCREEN
Information Displayed
The information displayed on the home screen will appear when there has been no
interaction with the Infinity Touch Control for at least one minute. The basic
information displayed on the Home Screen consists of the current date and time, the
room temperature (zone temperature if applicable), the outdoor temperature, and
current weather condition.
If you have uploaded a photo to the control (see page 26), it will act as your home
screen until an interaction has occurred.
A12102

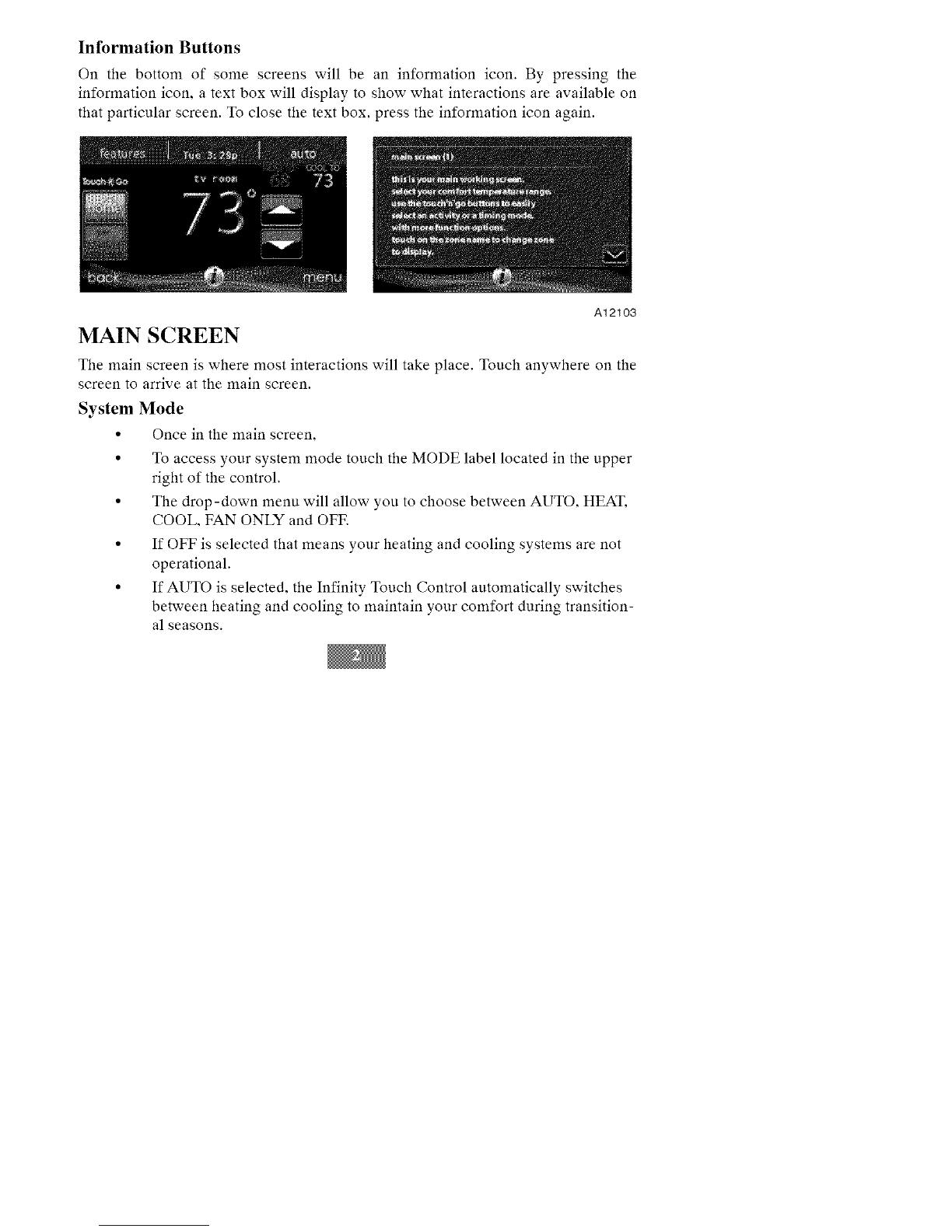

Information Buttons
On the bottom of some screens will be an information icon. By pressing the
information icon, a text box will display to show what interactions are available on
that particular screen. To close the text box, press the information icon again.
A12103
MAIN SCREEN
The main screen is where most interactions will take place. Touch anywhere on the
screen to arrive at the main screen.
System Mode
• Once in the main screen,
• To access your system mode touch the MODE label located in the upper
right of the control.
• The drop-down menu will allow you to choose between AUTO, HEAT,
COOL, FAN ONLY and OFE
• If OFF is selected that means your heating and cooling systems are not
operational.
• If AUTO is selected, the Infinity" Touch Control automatically switches
between heating and cooling to maintain your comfort during transition-
al seasons.

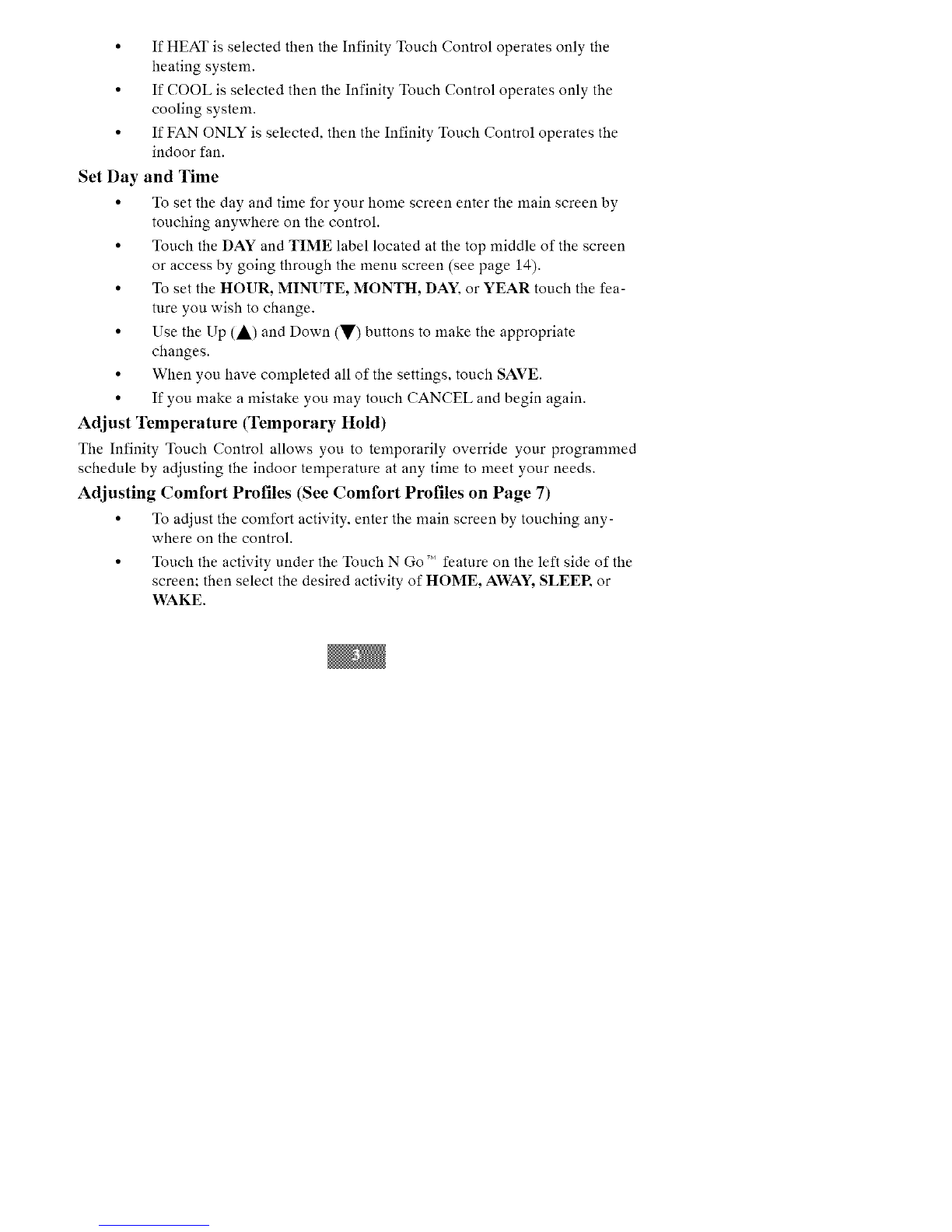

• IfHEATisselectedthentheInfinityTouchControloperatesonlythe
heatingsystem.
• IfCOOLisselectedthentheInfinityTouchControloperatesonlythe
coolingsystem.
• IfFANONLYisselected,thentheInfinityTouchControloperatesthe
indoorfan.
SetDay and Time
• To set the day and time for your home screen enter the main screen by
touching anywhere on the control.
• Touch the DAY and TIME label located at the top middle of the screen
or access by going through the menu screen (see page 14).
• To set the HOUR, MINUTE, MONTH, DAY, or YEAR touch the fea-
ture you wish to change.
• Use the Up (hi) and Down (V) buttons to make the appropriate
changes.
• When you have completed all of the settings, touch SAVE.
• If you make a mistake you may touch CANCEL and begin again.
Adjust Temperature (Temporary Hold)
The Infinity" Touch Control allows you to temporarily override your programmed
schedule by adjusting the indoor temperature at any time to meet your needs.
Adjusting Comfort Profiles (See Comfort Profiles on Page 7)
• To adjust the comfort activity, enter the main screen by touching any-
where on the control.
• Touch the activity under the Touch N Go " feature on the left side of the
screen: then select the desired activity of HOME, AWAY, SLEEP, or
WAKE.

• Use the Up (A) and Down (V) buttons to change the time to temporar-
ily hold the desired temperature in 15 minute increments.
• When the correct time interval is displayed, touch DONE.
• To return to the scheduled program, touch HOLD UNTIL and then
select PER SCHEDULE.

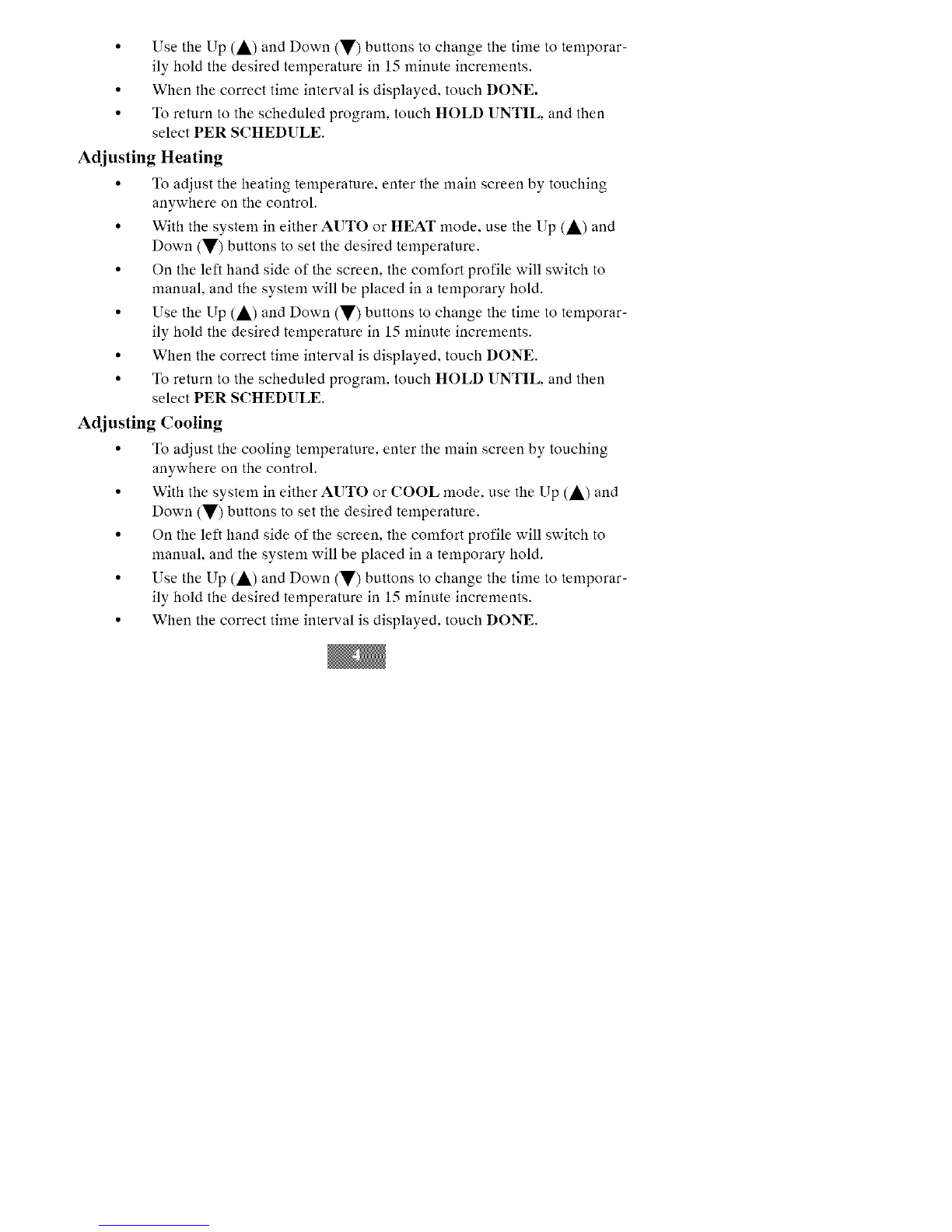

Adjusting Heating
• To adjust the heating temperature, enter the main screen by touching
anywhere on the control.
• With the system in either AUTO or HEAT mode, use the Up (A) and
Down (V) buttons to set the desired temperature.
• On the left hand side of the screen, the comfort profile will switch to
manual, and the system will be placed in a temporary hold.
• Use the Up (_) and Down (_) buttons to change the time to temporar-
ily hold the desired temperature in 15 minute increments.
• When the correct time interval is displayed, touch DONE.
• To return to the scheduled program, touch HOLD UNTIL and then
select PER SCHEDULE.
Adjusting Cooling
• To adjust the cooling temperature, enter the main screen by touching
anywhere on the control.
• With the system in either AUTO or COOL mode, use the Up (_) and
Down (V) buttons to set the desired temperature.
• On the left hand side of the screen, the comfort profile will switch to
manual, and the system will be placed in a temporary hold.
• Use the Up (_) and Down (_) buttons to change the time to temporar-
ily hold the desired temperature in 15 minute increments.
•When the correct time interval is displayed, touch DONE.

* To return to the scheduled program, touch HOLD UNTIL and then
select PER SCHEDULE.
Adjust Temperature (Permanent Hold)
The Infinity" Touch Control allows you to permanently override your programmed
schedule by adjusting the indoor temperature at any time to meet your needs.
Adjusting Comfort Profiles (See Comfort Profiles on Page 7)
* To adjust the comfort activity, enter the main screen by touching any-
where on the control.
, Touch the activity under the Touch N Go " feature on the left side of the
screen: then select the desired activity of HOME, AWAY, SLEEP, or
WAKE.
, Touch the HOLD UNTIL button, then touch HOLD.
, To return to the scheduled program touch HOLD. and then touch PER
SCHEDULE.
Adjusting Heating
, To adjust the heating temperature, enter the main screen by touching
anywhere on the control.
, With the system in either AUTO or HEAT mode. use the Up (A) and
Down (V) buttons to set the desired temperature.
* On the left hand side of the screen, the comfort profile will switch to
MANUAL
* Touch the HOLD UNTIL button, then touch HOLD.
, To return to the scheduled program, touch HOLD. and then touch PER
SCHEDULE.

Adjusting Cooling
• To adjust the cooling temperature, enter the main screen by touching
anywhere on the control.
• With the system in either AUTO or COOL mode, use the Up (A) and
Down (V) buttons to set the desired temperature.
• On the left hand side of the screen, the comfort profile will switch to
MANUAL
•Touch the HOLD UNTIL button, then touch HOLD.
• To return to the scheduled program, touch HOLD, and then touch PER
SCHEDULE.
FEATURES
Adjust Fan Speed
The Features function of Infinity Touch Control allows you to adjust the fan speed
during continuous fan operation.
• To adjust the fan speed, enter the main screen by touching anywhere on
the control.
• Touch FEATURES on the top left of the screen.
• A drop down menu will appear. Touch FAN selection.
• Use the Up (&) and Down (_r) buttons to set the fan to OFF, LOW,
MEDIUM or HIGH, then touch DONE.
View Current Humidity Level
The Features function of Infinity" Touch Control allows you to view the current
humidity level within the conditioned space.
• Enter the main screen by touching anywhere on the control.
• Touch FEATURES on the top left of the screen.

• Inthedropdownmenuyouwillseeyourmeasuredhumiditylevels
withintheconditionedspace.

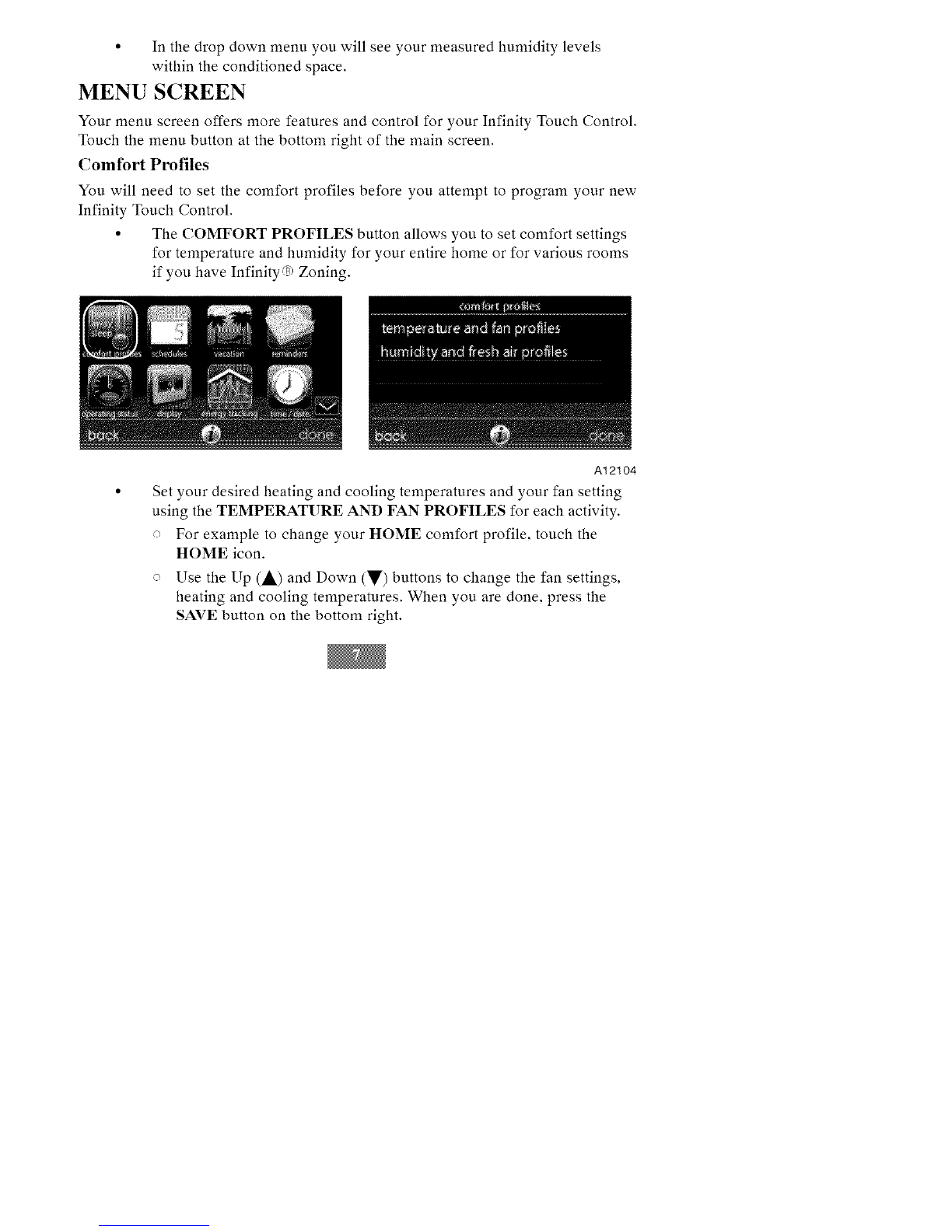

MENU SCREEN
Your menu screen offers more features and control for your Infinity Touch Control.
Touch the menu button at the bottom right of the main screen.
Comfort Profiles
You will need to set the comfort profiles before you attempt to program your new
Infinity Touch Control.
• The COMFORT PROFILES button allows you to set comfort settings
for temperature and humidity for your entire home or for various rooms
if you have Infinity(n_ Zoning.
A12104
Set your desired heating and cooling temperatures and your fan setting
using the TEMPERATURE AND FAN PROFILES for each activity.
c; For example to change your HOME comfort profile, touch the
HOME icon.
c; Use the Up (A) and Down (V) buttons to change the fan settings,
heating and cooling temperatures. When you are done, press the
SAVE button on the bottom right.

c,_DothesamethingtochangetheWAKEandSLEEPprofiles.
c,_TheAWAYprofileprovidesanextrafeaturecalledSmartSetback.
ItallowstheInfinity_)Systemtodynamicallydeterminetheaway
temperatureautomaticallytosavethemostamountofmoney,yet
reachyourcomfortsettingswhenyoureturnhome.
c,_UsetheUp(ik)andDown(V)buttonstochangethefansettings
andtemperaturesettings.Thetemperaturesettingsaretherangein
whichyouchoosetokeepyourhomeconditionedwhileyouare
away.TheSmartSetbackfunctionwillmaintainyourtemperature
withinthisrange.
*Set your desired humidity and fresh air (if applicable) using the HU-
MIDITY AND FRESH AIR PROFILES for each activity.
Home Comfort Profile Humidity Control
* Touch WHEN AT HOME to set your humidity settings while the home
is occupied to enjoy superior comfort.
* If you have a humidifier installed for your system, touch HEATING
HUMIDITY to set the desired humidity level within the home.
c,_ You will have the option to choose to USE HUMIDIFIER TO
HUMIDIFY and USE VENTILATOR TO DEHUMIDIFY. Select
YES or NO to the options that apply to your system.
c,_ If you choose YES for either, next touch the SET HUMIDITY
button.
c,_ You will have the option of choosing between WINDOW PRO-
TECT or MANUAL
c,_ Choosing MANUAL allows you to set the humidity" level between
5-45%. Use the Up (A) and Down (V) buttons to set the desired
humidity level.

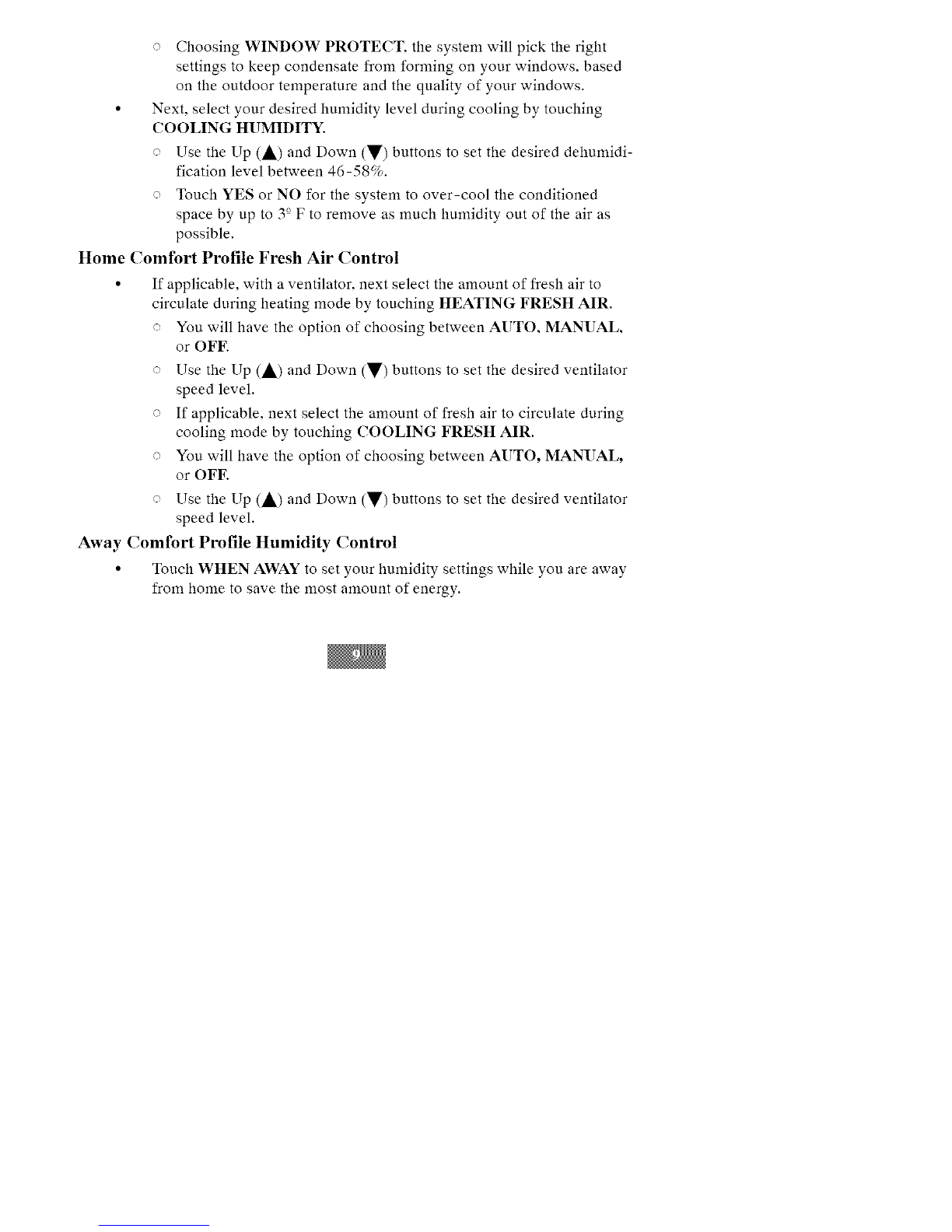

c;ChoosingWINDOWPROTECT,thesystemwillpicktheright
settingstokeepcondensatefromformingonyourwindows,based
ontheoutdoortemperatureandthequalityofyourwindows.
* Next,selectyourdesiredhumiditylevelduringcoolingbytouching
COOLINGHUMIDITY.
c;UsetheUp(A)andDown(V)buttonstosetthedesireddehumidi-
ficationlevelbetween46-58%.
c; Touch YES or NO for the system to over-cool the conditioned
space by up to 3° F to remove as much humidity out of the air as
possible.
Home Comfort Profile Fresh Air Control
* If applicable, with a ventilator, next select the amount of fresh air to
circulate during heating mode by touching HEATING FRESH AIR.
c; You will have the option of choosing between AUTO, MANUAL
or OFE
c; Use the Up (A) and Down (V) buttons to set the desired ventilator
speed level.
c; If applicable, next select the amount of fresh air to circulate during
cooling mode by touching COOLING FRESH AIR.
c; You will have the option of choosing between AUTO, MANUAL
or OFE
c; Use the Up (_) and Down (V) buttons to set the desired ventilator
speed level.
Away Comfort Profile Humidity Control
° Touch WHEN AWAY to set your humidity settings while you are away
from home to save the most amount of energy.

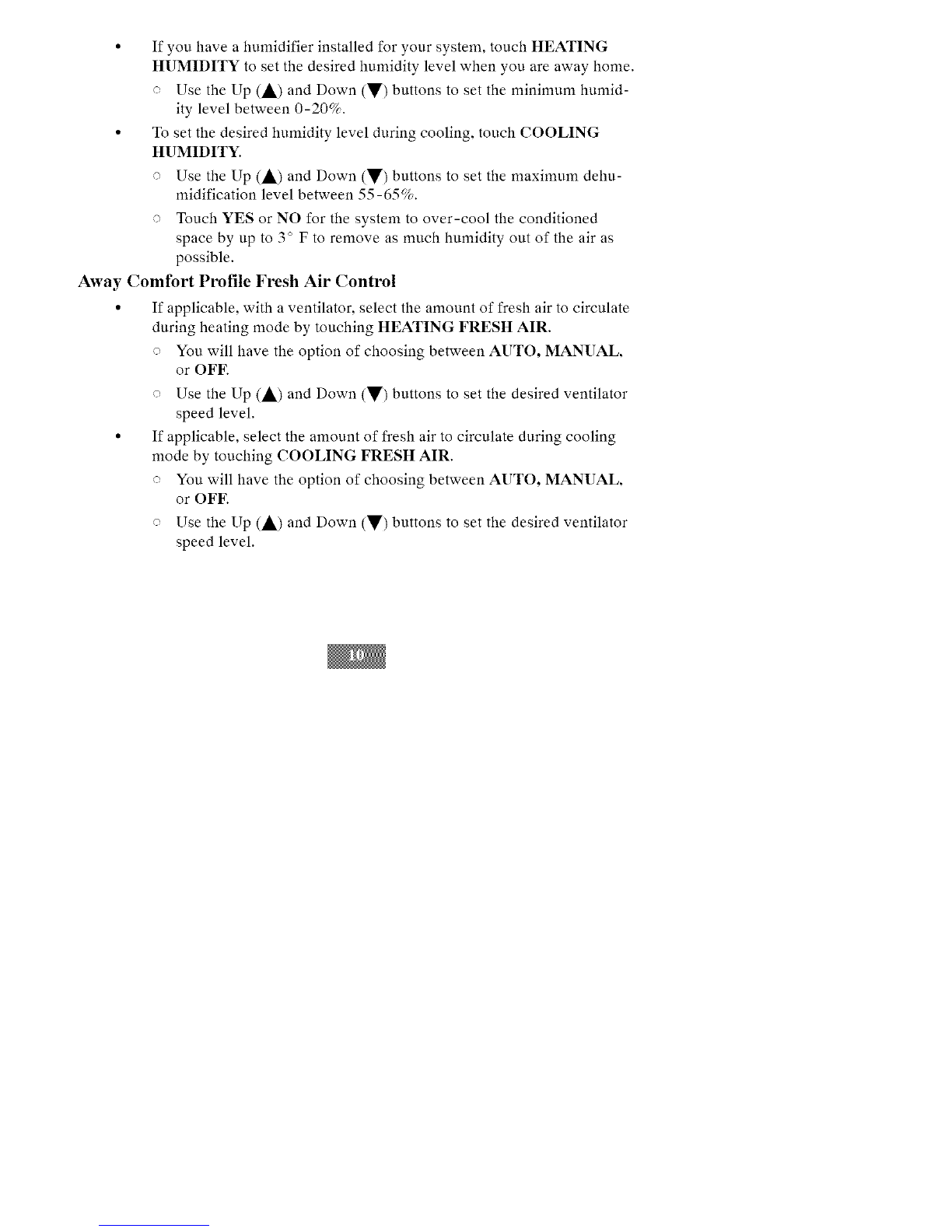

* Ifyouhaveahumidifierinstalledforyoursystem,touchHEATING
HUMIDITY to set the desired humidity" level when you are away home.
c; Use the Up (A) and Down (V) buttons to set the minimum humid-
ity level between 0-20%.
* To set the desired humidity level during cooling, touch COOLING
HUMIDITY.
c; Use the Up (A) and Down (V) buttons to set the maximum dehu-
midification level between 55-65%.
c; Touch YES or NO for the system to over-cool the conditioned
space by up to 3 ° F to remove as much humidity out of the air as
possible.
Away Comfort Profile Fresh Air Control
* If applicable, with a ventilator, select the amount of fresh air to circulate
during heating mode by touching HEATING FRESH AIR.
c; You will have the option of choosing between AUTO, MANUAL,
or OFE
c; Use the Up (A) and Down (V) buttons to set the desired ventilator
speed level.
* If applicable, select the amount of fresh air to circulate during cooling
mode by touching COOLING FRESH AIR.
c; You will have the option of choosing between AUTO, MANUAL,
or OFE
c; Use the Up (A) and Down (V) buttons to set the desired ventilator
speed level.

Programming the Infinity Touch Control
Touching the SCHEDULES icon provides three options. You may select to be
guided though the process, choose to handle the scheduling yourself or upload your
schedule from a USB drive.
Schedule Yourself
A12105
To set a specific day use the Left (_1) and Right (_,) buttons beside the
day names.
c; If you wish to copy this schedule to other days, touch COPY above
the day.
c; Select the days you wish to have the same schedule, then touch
COPY.
To select the time the activity starts, touch the TIME icons. Use the Up
(&) and Down (V) buttons to set the desired start time.
If you want to delete a time period, touch the TIME icon. then touch
DELETE.
To change the desired activity touch the ACTIVITY icon then select the
desired activity (WAKE, HOME, AWAY or SLEEP buttons).When
finished touch SAVE.

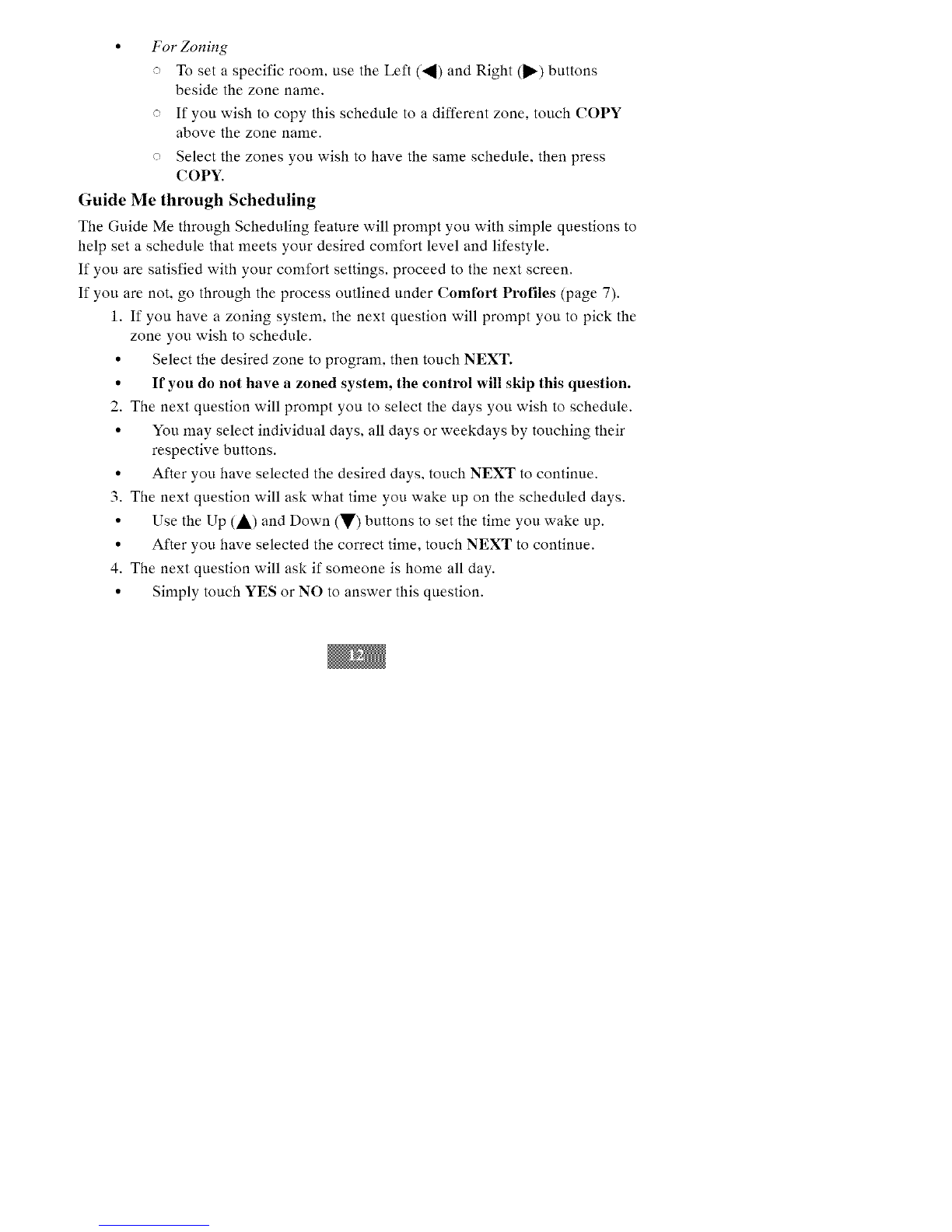

°For Zoning
c_ To set a specific room. use the Left (,_) and Right (liD,) buttons
beside the zone name.
c_ If you wish to copy this schedule to a different zone. touch COPY
above the zone name.
c_ Select the zones you wish to have the same schedule, then press
COPY.
Guide Me through Scheduling
The Guide Me through Scheduling feature will prompt you with simple questions to
help set a schedule that meets your desired comfort level and lifestyle.
If you are satisfied with your comfort settings, proceed to the next screen.
If you are not, go through the process outlined under Comfort Profiles (page 7).
1. If you have a zoning system, the next question will prompt you to pick the
zone you wish to schedule.
•Select the desired zone to program, then touch NEXT.
•If you do not have azoned system, the control will skip this question.
2. The next question will prompt you to select the days you wish to schedule.
•You may select individual days, all days or weekdays by touching their
respective buttons.
•After you have selected the desired days, touch NEXT to continue.
3. The next question will ask what time you wake up on the scheduled days.
•Use the Up (&) and Down (V) buttons to set the time you wake up.
•After you have selected the correct time, touch NEXT to continue.
4. The next question will ask if someone is home all day.
•Simply touch YES or NO to answer this question.

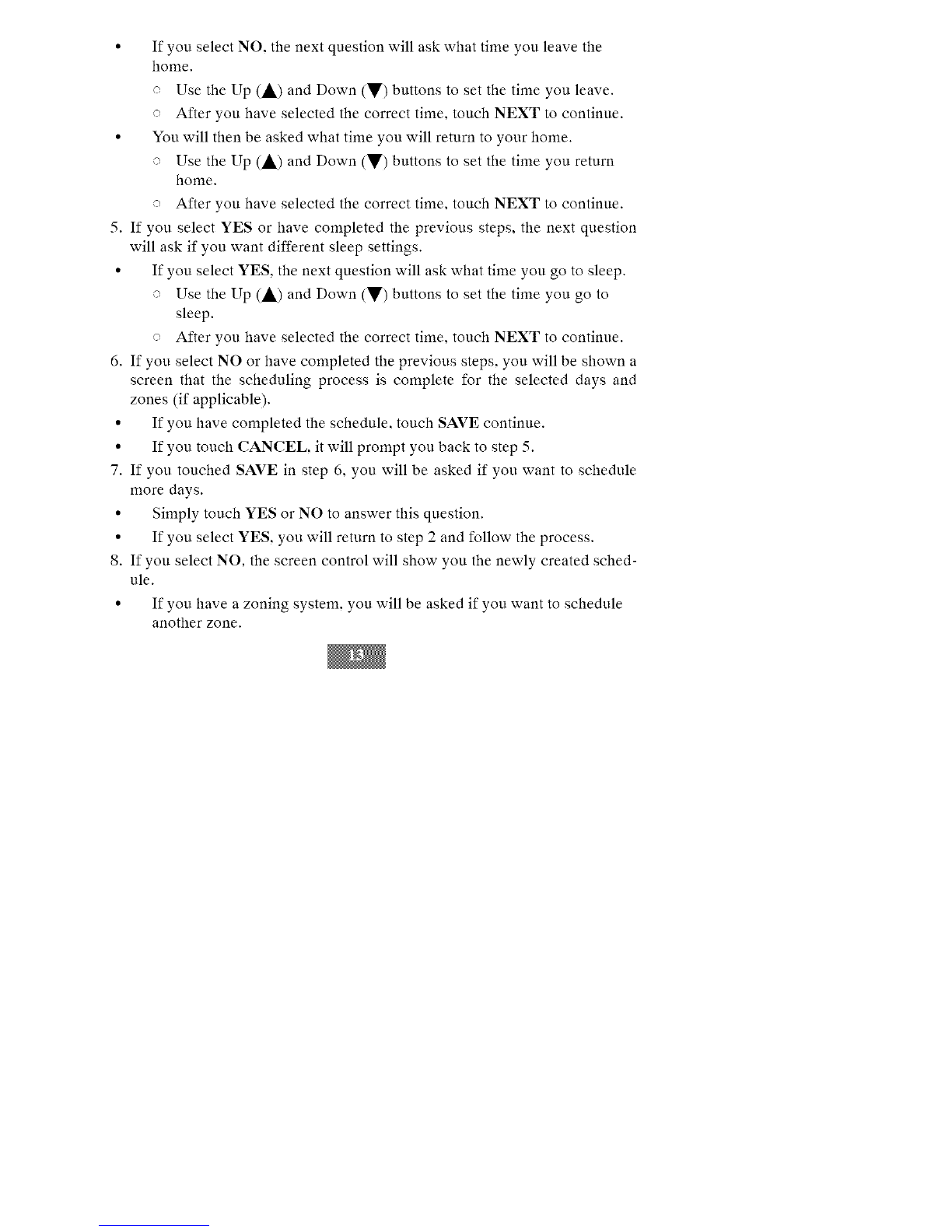

* IfyouselectNO.thenextquestionwillaskwhattimeyouleavethe
home.
c;UsetheUp(A)andDown(V)buttonstosetthetimeyouleave.
c;Afteryouhaveselectedthecorrecttime.touchNEXTtocontinue.
. Youwillthenbeaskedwhattimeyouwillreturntoyourhome.
c;UsetheUp(A)andDown(V)buttonstosetthetimeyoureturn
home.
c;Afteryouhaveselectedthecorrecttime.touchNEXTtocontinue.
5.IfyouselectYESorhavecompletedtheprevioussteps,thenextquestion
willaskifyouwantdifferentsleepsettings.
. IfyouselectYES, the next question will ask what time you go to sleep.
c; Use the Up (_) and Down (V) buttons to set the time you go to
sleep.
c; After you have selected the correct time. touch NEXT to continue.
6. If you select NO or have completed the previous steps, you will be shown a
screen that the scheduling process is complete for the selected days and
zones (if applicable).
* If you have completed the schedule, touch SAVE continue.
* If you touch CANCEL. it will prompt you back to step 5.
7. If you touched SAVE in step 6, you will be asked if you want to schedule
more days.
* Simply touch YES or NO to answer this question.
. If you select YES, you will return to step 2 and follow the process.
8. If you select NO. the screen control will show you the newly created sched-
ule.
* If you have a zoning system, you will be asked if you want to schedule
another zone.

c,_IfyouselectYES,youwillreturntostep2andfollowtheprocess.
c,_IfyouselectNO,youwillseethenewlycreatedschedule.

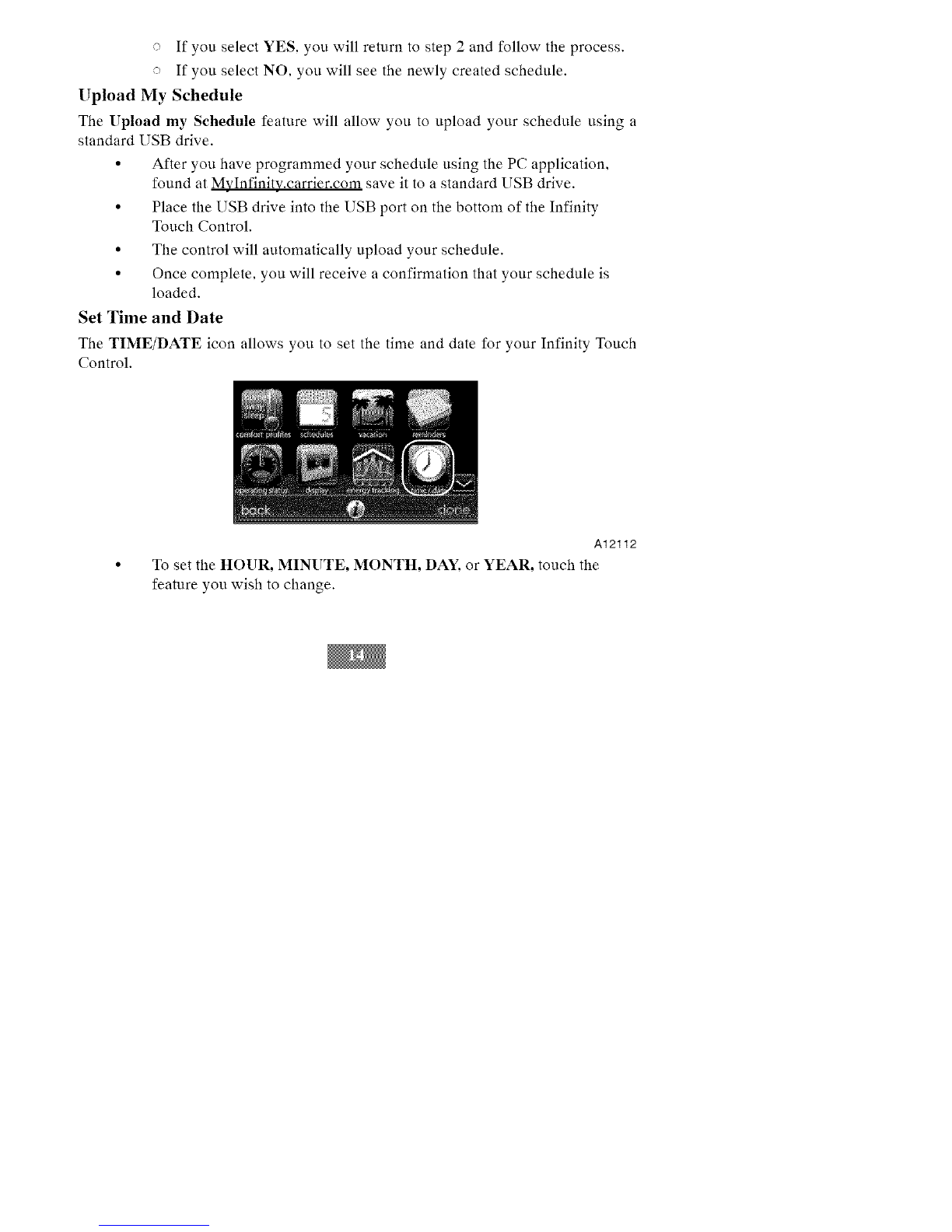

Upload My Schedule
The Upload my Schedule feature will allow you to upload your schedule using a
standard USB drive.
• After you have programmed your schedule using the PC application,
found at MyInfinity.carrier.com save it to a standard USB drive.
• Place the USB drive into the USB port on the bottom of the Infinity
Touch Control.
• The control will automatically upload your schedule.
• Once complete, you will receive a confirmation that your schedule is
loaded.
Set Time and Date
The TIME/DATE icon allows you to set the time and date for your Infinity Touch
Control.
A12112
• To set the HOUR, MINUTE, MONTH, DAY. or YEAR, touch the
feature you wish to change.

• Use the Up (&) and Down (V) buttons to make the appropriate
changes.
• When you have completed all of the settings touch SAVE.
• If you make a mistake you may touch CANCEL and begin again.
A12106
Operating Status
The operating status menu gives a quick look at the status of your Infinity(n)
Heating and Cooling System.
A12173

Within the operating status, you can view which function is operating, and what
stage the heating or cooling equipment is in. When you are finished looking at the
operating status, press the DONE button to return to the previous menu.
Accessories Status
Within the accessory status, you can view how much of each accessory has been
consumed, and reset the counter for each accessory.
•To reset the counter for your installed accessory, touch the RESET but-
ton, then press SAVE.
• To return to the previous menu, press CANCEL.
A12108

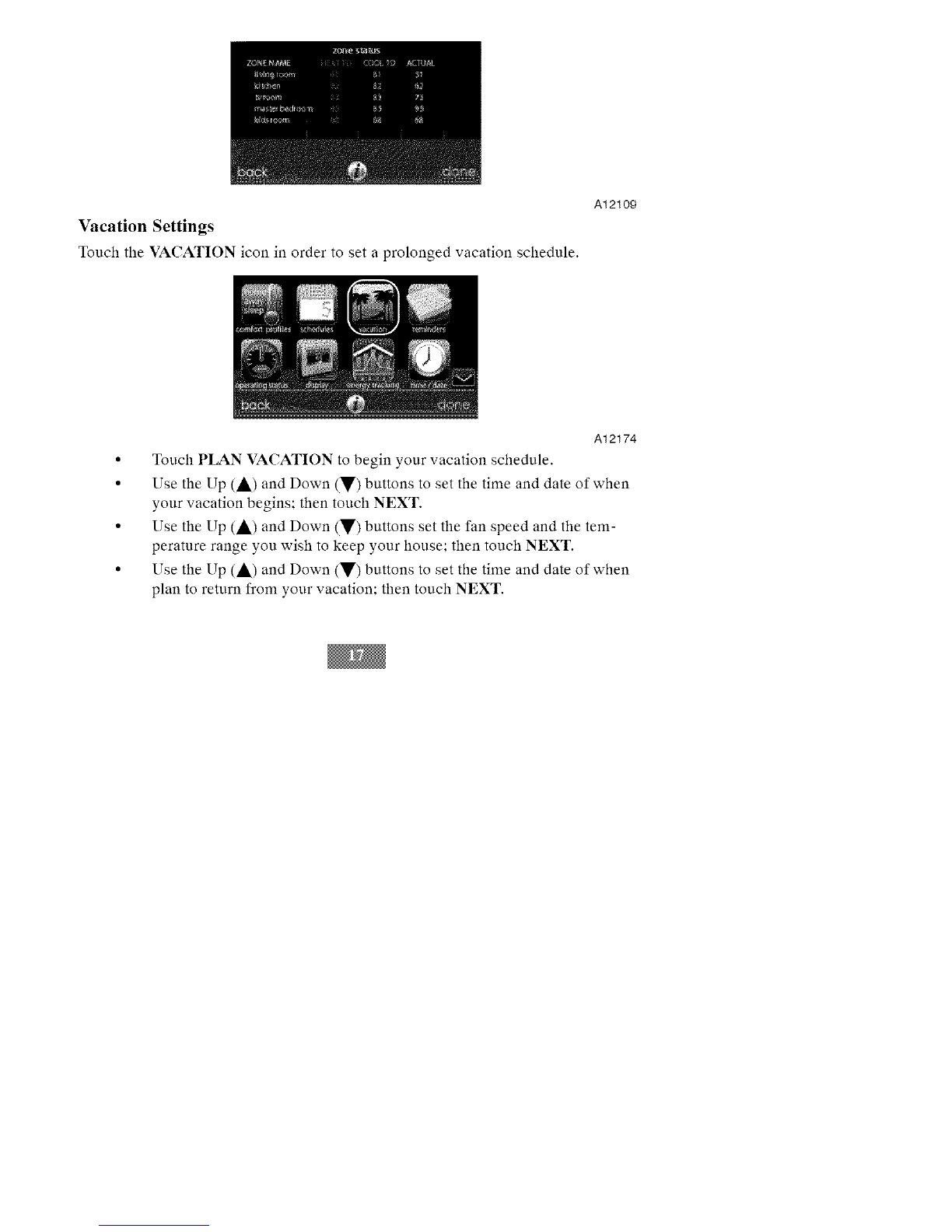

Zone Status (if applicable)
Zone status allows you to take a quick look at the actual temperatures, and
temperature set points for each zone in your system.
• When you are done looking at your zone status, press DONE.
The system will indicate which mode is running by showing an arrow, which points
to either the heating or cooling set point.
If the system is preparing for the next program period, an indicator will be
displayed to show that the system is moving the temperature toward the next
programmed set point.

A12109
Vacation Settings
Touch the VACATION icon in order to set aprolonged vacation schedule,
A12174
" Touch PLAN VACATION to begin your vacation schedule.
• Use the Up (A) and Down (V) buttons to set the time and date of when
your vacation begins: then touch NEXT.
• Use the Up (&) and Down (_r) buttons set the fan speed and the tem-
perature range you wish to keep your house: then touch NEXT.
• Use the Up (&) and Down (_r) buttons to set the time and date of when
plan to return from your vacation: then touch NEXT.
