CARRON ECO 5KW SE User manual

INSTALLATION AND OPERATION MANUAL
MODEL : CARRON ECO 5KW SE
Document –Version 3
Dated 16th March 2021
Eco
Design
Ready
Wood
burning
with
Multifuel
option
High
Efficiency Cleanburn
Modern
Design
External
Air Supply
Page 1 of 10

IMPORTANT INFORMATION
BEFORE LIGHTING THE APPLIANCE, PLEASE READ THESE INSTRUCTIONS
THROUGHLY.
Installation of this appliance must either be
completed by a registered HETAS installer or
inspected by local authority building control
if carried out by a non-registered installer.
A list of HETAS registered installers is
available at www.hetas.co.uk
The installation of this appliance must
comply with current building
regulations/local regulations including
those referring to national and European
standards.
This appliance has been designed for
intermittent operation.
Regularly clean and inspect the appliance
to ensure the airways are free from
obstruction.
The chimney must be swept annually.
Take care when manoeuvring the appliance
as it is very heavy. Mechanical aids should
be used whenever possible.
If the appliance becomes damaged, do not
continue to use until repaired.
Only genuine Carron spare parts must be
used. Failure to do so may result in damage
to the appliance/property and the warranty
will be invalid.
Unless authorised by Carron, this appliance
must not be modified in anyway.
Do not use this appliance as an incinerator.
The appliance must not be installed in a
room with an extractor fan operating.
The Clean Air Act 1993 and Smoke Control Areas
Under the Clean Air Act local authorities may declare
the whole or part of the district of the authority to
be a smoke control area. It is an offence to emit
smoke from a chimney of a building, from a furnace
or from any fixed boiler if located in a designated
smoke control area. It is also an offence to acquire an
"unauthorised fuel" for use within a smoke control
area unless it is used in an "exempt" appliance
("exempted" from the controls which generally apply
in the smoke control area).
In England appliances are exempted by publication
on a list by the Secretary of State in accordance with
changes made to sections 20 and 21 of the Clean Air
Act 1993 by section 15 of the Deregulation Act 2015.
In Scotland appliances are exempted by publication
on a list by Scottish Ministers under section 50 of the
Regulatory Reform (Scotland) Act 2014. Similarly, In
Northern Ireland appliances are exempted by
publication on a list by the Department of
Agriculture, Environment and Rural Affairs under
Section 16 of the Environmental Better regulation
Act (Northern Ireland) 2016. In Wales appliances are
exempted by regulations made by Welsh Ministers.
Further information on the requirements of the
Clean Air Act can be found here:
https://www.gov.uk/smoke-control-area-rules Your
local authority is responsible for implementing the
Clean Air Act 1993 including designation and
supervision of smoke control areas and you can
contact them for details of Clean Air Act
requirements. The Carron Eco 5kW SE stove has been
recommended as suitable for use in smoke control
areas when burning wood logs. The Carron Eco 5kW
SE stove must be fitted with a permanent stop to
prevent closure of the secondary air control slide
plate beyond 33mm open and the tertiary air control
slide plate beyond 51mm open.
Carron Eco 5kw - SE Page 2 of 10

150mm
Carron Eco 5kw - SE
INSTALLATION INSTRUCTIONS
600mm
400mm
Combustible Material
Combustible Material
Combustible Material

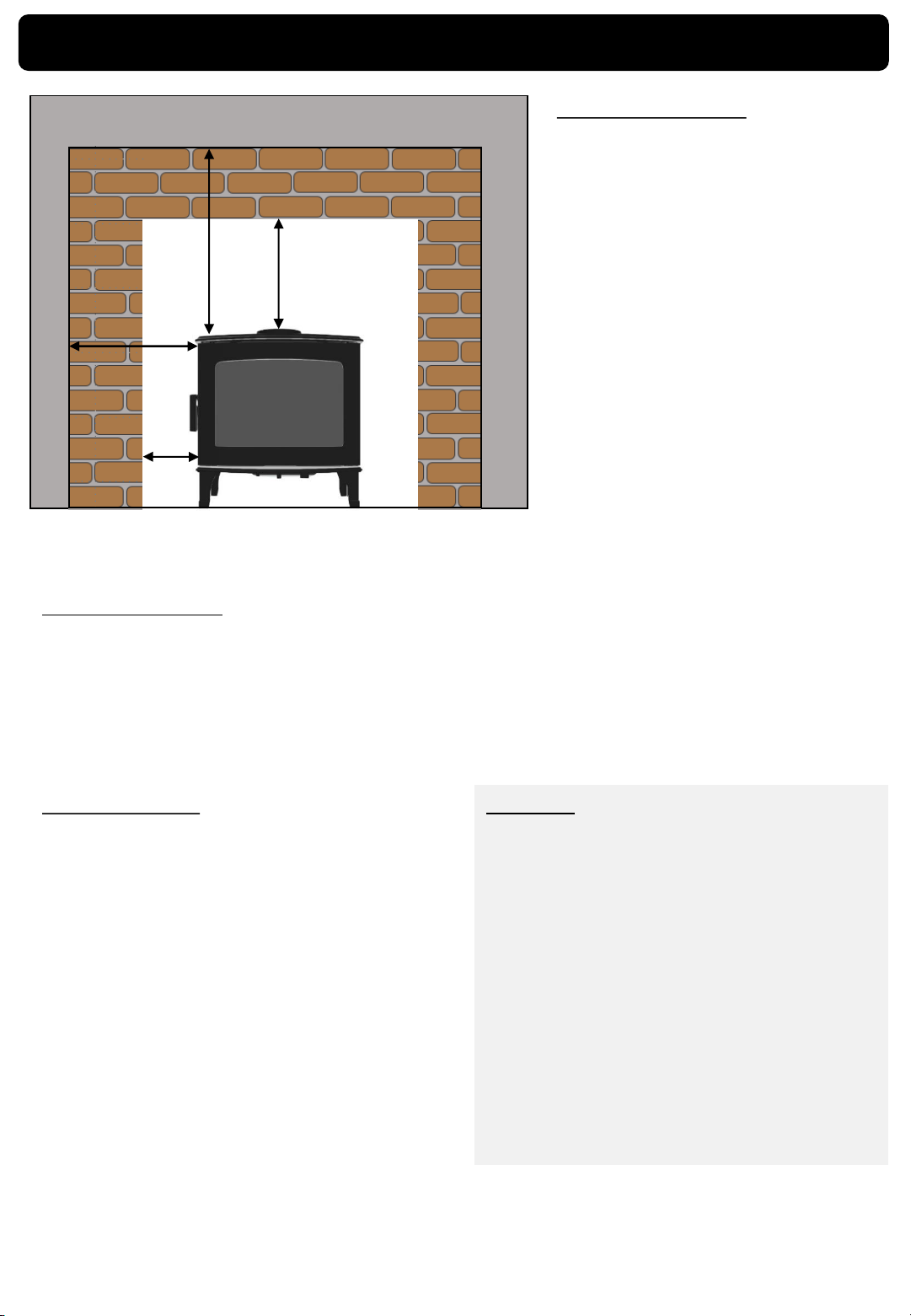

Installation Clearances
Minimum clearance to
combustibles
Above the appliance - 600mm
Each Side of the appliance –400mm
Rear of the appliance –350mm
Minimum clearance to
non-combustibles
Above the appliance - 300mm
Each Side of the appliance –150mm
Rear of the appliance –150mm
150mm
300mm
Failure to adhere to these clearance will invalidate the warranty
and could damage your appliance/property.
Hearth Requirements
Place the stove on a solid non-combustible hearth extending 300mm at the front of the stove,
150mm either side of the stove and 50mm at the rear. The hearth must have a thickness of at least
12mm. The maximum hearth temperature attained during testing was 44°C (Refer to document J of
the UK Building Regulations). Ensure that the floor has sufficient load bearing capacity. Fit a load
bearing plate if necessary.
Flue Requirements
To ensure that your chimney meets the required
specifications it must: -
be at least 5 metres high - have no bends
sharper than 45 degrees
be swept clear of any obstructions by a
qualified chimney sweep
terminate at least 1 metre above any roof
ridge
have an internal cross-section of between
0.018m2 and 0.14m2
be free from sources of leakage
be connected only to the one appliance i.e.
not a shared flue system
be well insulated, or have a wall thickness of
at least 100mm
CO Alarms
In accordance with building regulations, a
Carbon Monoxide Alarm, conforming to BS EN
50292:2002 must be fitted in the same room
whenever a new or replacement wood/solid
fuel or biomass appliance is installed in a
dwelling.
The alarm must be installed in accordance with
the alarm manufacturers instructions and is
not to be considered as an alternative to the
appliance being installed correctly and
subsequent regular maintenance of the
appliance and associated flue system.
Non-Combustible Material
Non-Combustible Material
Non-Combustible Material
Page 3 of 10

Carron Eco 5kw - SE
OPERATING INSTRUCTIONS
Recommended Fuels (without multi-fuel conversion installed)
Hardwood logs: such as ash, oak and beech which have been cut for at least 12 months with a
maximum moisture content of 20% and stored under shelter.
Maximum log length: 300mm length with a maximum depth of 125mm.
Recommended Fuels (with multi-fuel conversion installed)
Smokeless Mineral Fuel: Such as Maxibrite which is approved for use in smoke control areas.
Prohibited Fuels
Green wood: i.e. wood which is less than 12 months old with a moisture content of above 20%
Recovered wood: i.e. pallets, fencing panel, railway sleepers etc. These will have been
impregnated with wood preservatives which can cause issues with the flue and possibly overheat
the appliance.
Liquid fuels.
Peat based Fuels
Household waste: Burning this can produce harmful fumes.
Petroleum based coke: This burns with an extremely high heat which can cause damage to the
appliance.
Caution - The stove and flue pipe will become extremely hot during use; take care especially when
children or the infirm are present. Do not store flammable materials near to the stove. Any
combustible furnishings must be at least 800mm away.
Initial Firing of the appliance
Wood likes to burn on a flat base with air flowing over the top and minimal air underneath. The air
controls on this stove allow you to completely cut off the primary air under the fire whilst leaving the
secondary/tertiary air open for burn control.
Please note that the first fire you light in your stove should be small and operated with the all air
inlets set as low as possible –the air control should be set in pushed back position to achieve this.
During this initial firing it is normal to experience fumes and a light haze from the appliance as the
paint cures during which you must ensure the room is well ventilated.
Air Controls
The air controls for the appliance are located underneath the stove at front. When pulled forward
they are in the fully open position and when pushed back are fully closed. The function of each
control is as follow (from left to right as you look at the appliance)
Left - Tertiary Air (for the air supply above the firebed)
Centre –Primary (for the air supply under the grate when using multi fuel conversion kit)
Right –Secondary (for the air supply above the stove door glass)
Page 4 of 10

Carron Eco 5kw - SE
OPERATING INSTRUCTIONS
Normal Operation (after initial firing) –wood burning
To establish clean burning, it is important to get the appliance hot as quickly as possible. This can be
achieved with the following ignition regime:-
I. Set the air control to the maximum setting by pulling the air controls forward.
II. Light a double-handful of kindling with a couple of firelighters, with the door 5-10mm open.
After 3 minutes a hot fuel bed will have been established, then add two small sized logs (each
about half the size of a "standard" 9 inch log).
III. Let these burn well for another 3 minutes , with the door still open 5-10mm.
Normal Operation (after initial firing) –Mineral Smokeless (Solid Fuel)
I. Set the air control to the maximum setting by pulling the air controls forward.
II. Light a double-handful of kindling with a couple of firelighters, with the door 5-10mm open.
After 3 minutes a hot fuel bed will have been established, at this point the mineral fuel can be
added to the fuel bed.
Refuelling of the appliance at nominal output would be approximately every 4 hours. It is important
to ensure that the fuel bed does not exceed the height of the fire bars at the front and does not
exceed a 30 –degree incline from front to back. Ensure you refuel onto a bed of hot embers to
achieve the best burn. When using solid mineral fuels, we suggest you keep the secondary air control
in the closed position, so it can burn at maximum efficiency. At this time the primary air controls can
adjust the burn rate of the appliance.
Refuelling your stove - in order to maintain clean burning, after refuelling air control needs to be
open for 5 minutes afterwards.
Refuelling on to a low fire bed
If there is insufficient burning material in the fire bed to light a new fuel charge, excessive smoke
emission can occur. Refuelling must be carried out onto a sufficient quantity of glowing embers and
ash that the new fuel charge will ignite in a reasonable period. If there are too few embers in the fire
bed, add suitable kindling to prevent excessive smoke
Over Firing
Do not run the stove with the air control fully open for prolonged periods. This may result in over
firing and cause damage to the appliance invalidating your warranty
Do not leave the stove unattended during lighting. After the ignition procedure is complete, the
stove must not be operated with the door open
Page 5 of 10

Carron Eco 5kw - SE
OPERATING INSTRUCTIONS AND WARRANTY
Fuel overloading
The maximum amount of fuel specified in this manual should not be exceeded, overloading can cause
excess smoke.
Operation with door left open
Operation with the door open can cause excess smoke. The appliance must not be operated with the
appliance door left open except as directed in the instructions.
Dampers left open
Operation with the air controls or appliance dampers open can cause excess smoke. The appliance
must not be operated with air controls, appliance dampers or door left open except as directed in the
instructions. Ash Removal - Ashes can remain hot for a long period after the fire has extinguished,
care must be take when disposing of these and ensuring they are completely cooled.
Wood Burning - Wood burns most efficiently on a bed of ashes allowing you to get the best results
from your wood burning stove. However, the ash, should not be allowed to build up excessively (no
more the 25mm in depth) on the stove base. When the appliance is cool, the ash should be swept
from the appliance taking care not to damage the lining of the stove. Sharp pointed pokers must not
be used.
Mineral fuels –The ash pan must be emptied frequently to prevent the ash tray overfilling and
restricting the airflow and preventing a good burn. The ash must not build up to the point it contacts
with the underside of the grate as this will cause distortion and significantly reduce the life of the solid
fuel grate.
Chimney Fire
In the unlikely event of a chimney fire,
If safe to do so, ensure the stove door is closed
If safe to do so, close the air control.
Evacuate the property immediately and call the fire brigade.
Do not attempt to extinguish your stove.
Do not use the appliance until the chimney/flue has been inspected by a qualified person and any
faults found have been rectified.
Persistent fume emission should not occur if the product is properly installed and operated. However,
should this happen, take immediate action as follows:-
Ventilate the room
Extinguish the fire
Check the chimney/flue for blockages and clean if required
Seek expert advice if necessary.
Page 6 of 10

Carron Eco 5kw - SE
MAINTENANCE INSTRUCTIONS
Maintenance
Maintaining your appliance will help ensure you have many years of trouble-free use. Regular checks
of the following items is recommended: -
NOTE ALL MAINTENANCE TO BE CARRIED OUT WHEN THE APPLIANCE IS COLD
Removal of top firebrick and clear any soot build up.
Check condition of the firebricks, if these have just have hairline fractures they do not require
replacement. They will need to be replaced if larger cracks develop exposing the appliance body or
the fire brick material begins to crumble.
Using a suitable stove glass cleaner, remove any discolouration from the appliance glass.
Inspection of the rope seal on both the appliance door and the door glass to ensure this has not
deteriorated or moved.
Flue to be swept annually by a competent person, if in doubt contact a professional chimney sweep.
If the appliance has not had regular use, the appliance and flue system should be checked to ensure
it is free from blockages prior to use.
Do not use abrasive cleaners on the stove glass as you can damage the specialist coating.
‘Crazing’ in the coating of the glass can take place if incorrect fuels are used, if this occurs replace
the glass.

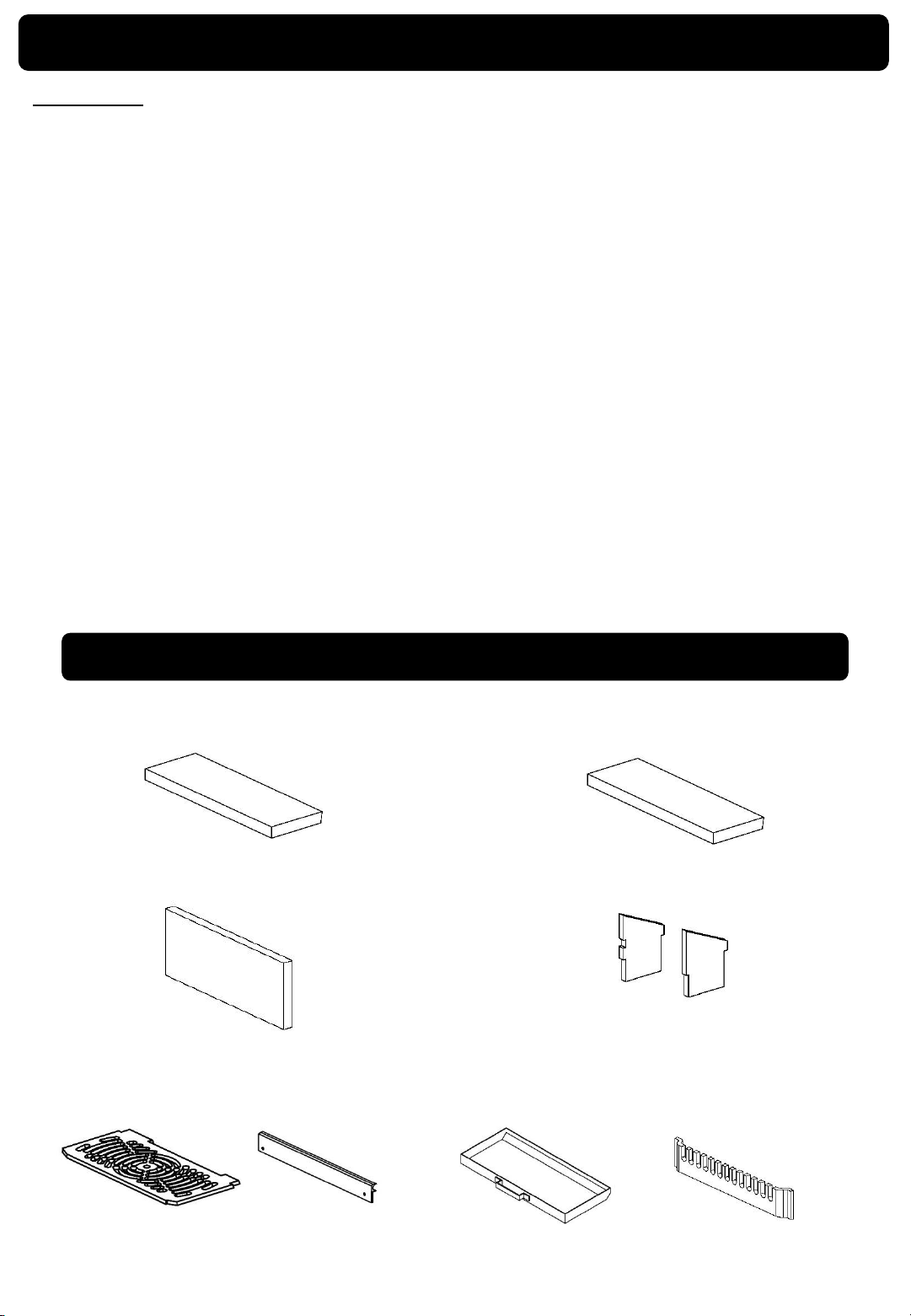

BHC821 - Bottom firebrick
BHC822 –Back firebrick BHC823 –Side firebricks x 2
BHC825
Front fire bar
SPARES
BHC826
Grate
BHC820 –Top firebrick
BHC824
Ashpan
BHC828
Door bar
Page 7 of 10

Carron Eco 5kw - SE
SPECIFICATIONS
Carron Eco 5kw –SE
Fuel Wood Mineral Fuel
Flue Diameter 125mm (5”)
Flue Location Top
Nominal Output 5kw
Total Efficiency 78.6% 75.5%
Mean flue gas temperature 309°C 347°C
Flue Draft Required 12Pa
Flue Mass Gas Flow 4.0g/s 4.1g/s
Mean CO emission (at 13 % O2)0.11% 0.08%
Maximum Hearth Temperature 44oC
Maximum Log Size 300mm Length 125mm
Width N/A
Construction Cast Iron
Page 8 of 10

Carron Eco 5kw MF
Parameter
A19/10-1 A19/10-2 A19/10-3 Mean
Test Duration
h0.78 0.75 0.75 0.76
Total Efficiency
%78.0 78.6 79.3 78.6
Nominal heat output
kW 5.0 5.2 5.2 5.1
Mean CO2 emission
%10.8 11.2 12.2 11.4
Mean CO emission
%0.10 0.17 0.22 0.16
Mean CO emission (at 13 % O
2)%0.07 0.12 0.14 0.11
Mean flue gas temperature
ºC 308 305 313 309
Flue gas mass flow
g/s 4.1 4.1 3.7 4.0
Mean
CnHm(at 13 % O2) Nmg/m343 78 66 62
Mean NOx (at 13 % O
2) Nmg/m3130 131 136 132
Dust (at 13 % O
2) Nmg/m312 14 22 16
Maxibrite Results, 1.0 hour refuels
Parameter
A20/70-1 A20/70-1 Mean
Test Duration
h1.0 1.0 1.0
Total Efficiency
%75.4 75.5 75.5
Nominal heat output
kW 5.0 5.0 5.0
Mean CO2 emission
%10.6 10.5 10.6
Mean CO emission
%0.11 0.10 0.11
Mean CO emission (at 13 % O
2)%0.08 0.08 0.08
Mean flue gas temperature
ºC 349 344 347
Flue gas mass flow
g/s 4.0 4.1 4.1
Mean
CnHm(at 13 % O2) Nmg/m318 16 17
Mean NOx (at 13 % O
2) Nmg/m3123 129 126
Dust (at 13 % O
2) Nmg/m3910 10
Temperature Safety Test –Distances to Combustible Materials.
(Note: Single wall flue configuration used during test).
Back Wall: 350 mm
Side Wall: 400 mm
Hearth under stove: 43.5oC
Hearth 225mm in front: 116oC
Hearth 300mm in front: 100oC
Hearth 400mm in front: 67oC
31/01/19
Carron Eco 5kW –Performance Test Results
All efficiencies in table are Net values
Wood Results, 0.75 hour refuels
Page 9 of 10
