Cartft CTFPND-11 User manual

MANUAL
CTFPND-11

1. Safety Precautions:
1.1 Device
1.2 Environment
2. Product Overview:
2.1 Package components
2.2 Front / Left / Right / Top / Bottom / Rear
3. Getting Started:
3.1 Inserting SIM card & TF card
3.2 Mounting the RAM and cradle
3.3 Locking device and Unlocking device
3.4 Cradle cable pin assignment
3.5 Turning on the device
3.6 Charging the device
4. Android turtorials
4.1 Start screen
4.2 Home screen
4.3 Status bar
4.4 APP screen
4.5 Switching between apps
4.6 Viewing two apps at once
4.7 Closing active apps
4.8 Turning on the device
5. Connecting to networks
5.1 Connecting to a Wi-Fi network
5.2 Connecting to a mobile network
5.3 Sharing a mobile connection
5.4 Disconnecting from a network
6. Using the Card slots
6.1 Insering SIM Card
6.2 Removing SIM card
6.3 Inserting TF card
6.4 Removing TF card
7. Customer services
8. Specication
9. Safety & regulatory compliance
Content

Safety Precautions
Device
The tablet and the battery should not be thrown into the re and not used in areas where
the temperature exceeds the specied values. This can lead to the outbreak of a re or cause
the battery to explode. In addition, this will result in a leak occurring and the functionality
will be signicantly reduced or the tablet cannot no longer be used. If you are charging the battery
or when using the tablet, and you realize, that the temperature of the case is unusual high, because
the battery has overheated, quit please the applications.
Do not charge the battery continuous for more than 24hours.
Should this precautions be disregarded, there is no guarantee.
Please charge and discharge the device as one cycle at room temperature
when devices are stored for half year or above.
Do not attempt to repair, customize, or disassemble the device without the appropriate knowledge
and pre-cautions may lead to dangerous situations with chance on damaging the product.
Do not use in extreme conditions such as high and low temperatures, high humidity or
moist environments and around magnetic elds.
Avoid long-time exposure to sunlight. Only use by the manufacturer permitted accessories to
avoid damages to the product with possibly warranty loss.
Environment
The tablet is for the outdoor area designed. It is waterproof, dustproof and shockproof.
- The device can be used for up to 30minutes in 1.m deep lying water.
- You can do it in dirty and dusty environments.
- Ambient temperatures are from -10oC to 60oC possible.
- The impact resistance was with a drop height of 1.0m tested.

USB Cable
Screws:
4 nos.
4 nos.
1 no.
Locking Keys
SIM Card Tape
TF Card Tape
RAM mount CableNFC card
Product Overview
Package components

Product Overview

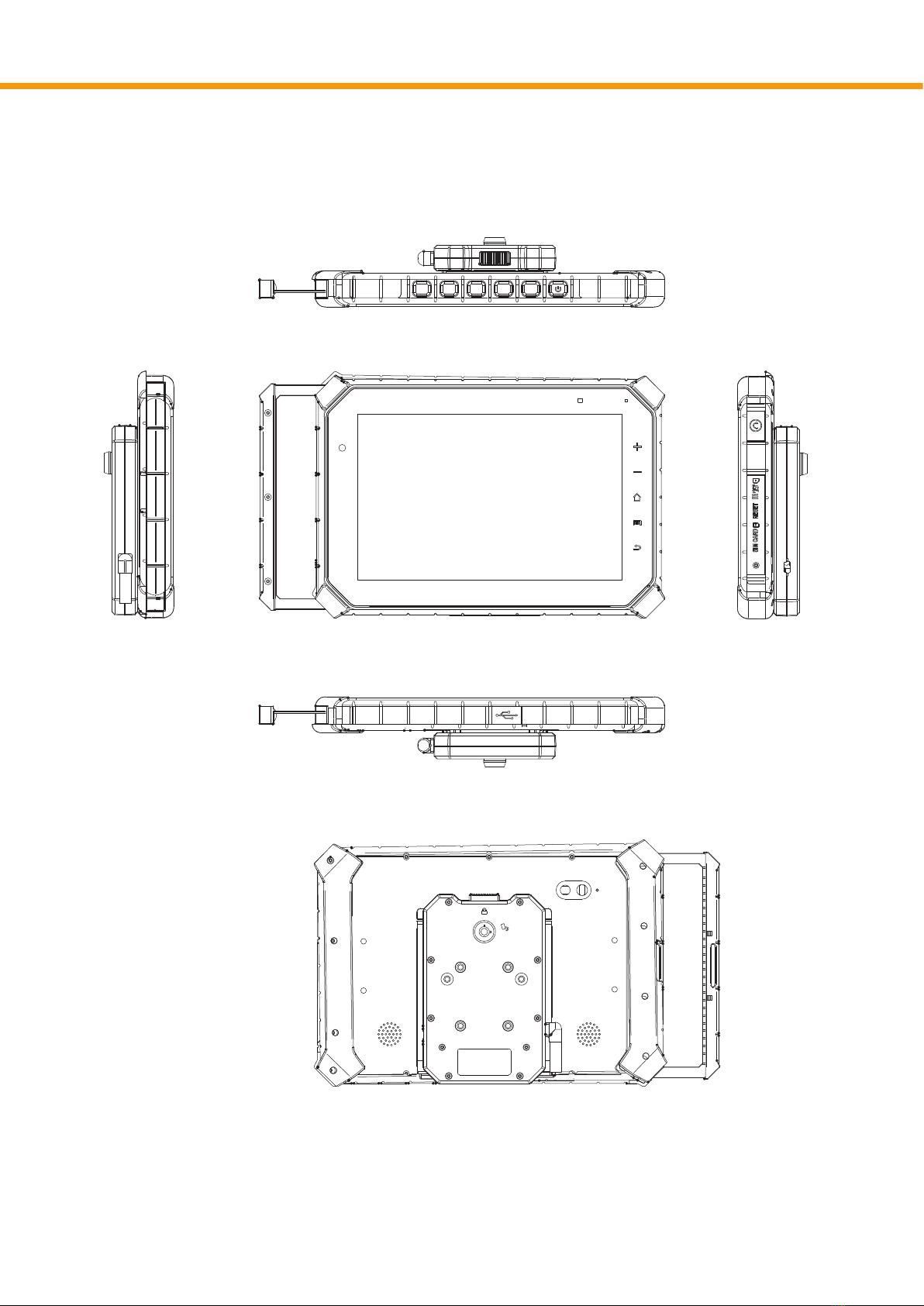

Front / Left / Right / Top / Bottom / Rear
Front View Right ViewLeft View
Bottom View
Rear View
Top View

Getting started
Inserting SIM card & TF card
TF/SIM card
• Insert the SIM card with the gold contacts facing up.
• Insert the TF card with gold contacts facing up.
• Push the card in the direction of the arrow as shown in the gure.
• For easier removing the SIM card/ TF card from the inside card slot,
please assist with the SIM card/ TF card tape as shown in the gure.
• SIM card/TF card cover can be locked by screws in preventing from loss or steal.

Getting started

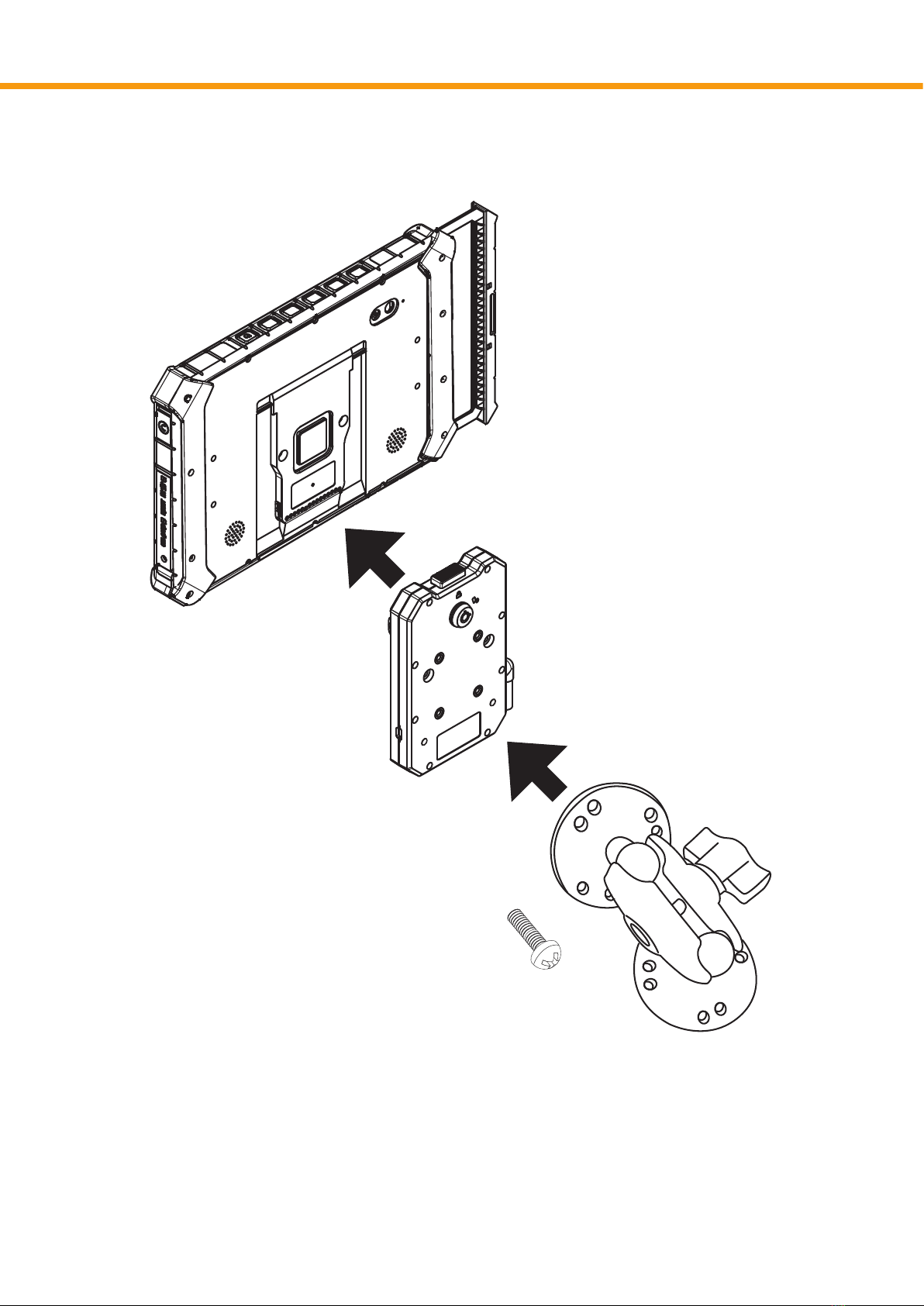

Mounting the RAM and Cradle
Cradle
Main Unit
RAM Mount
Step 1
Step 2
Scews
X 4nos.

Getting started

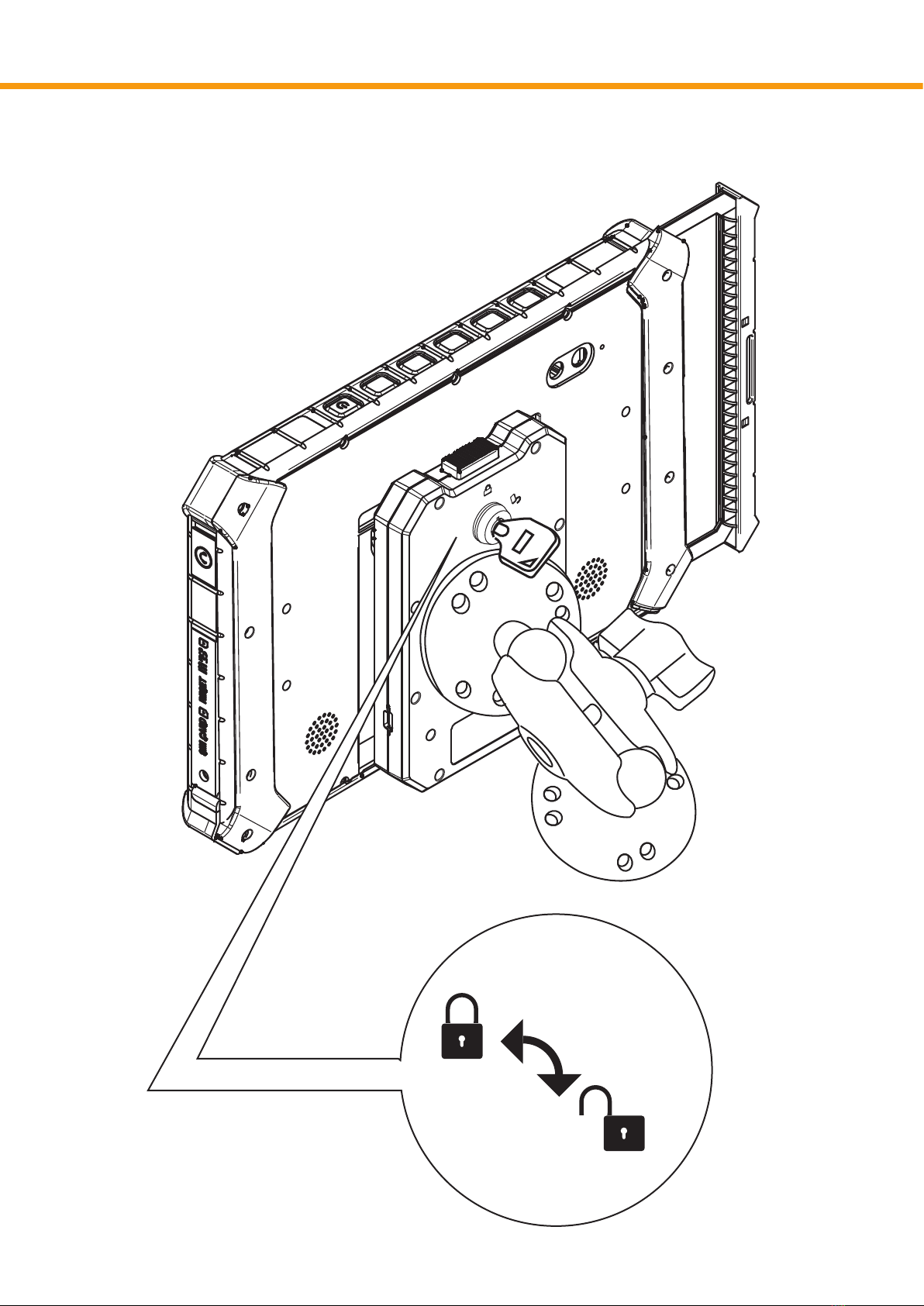

Locking Device & Unlocking device
Step 2
Step 1
Insert the key

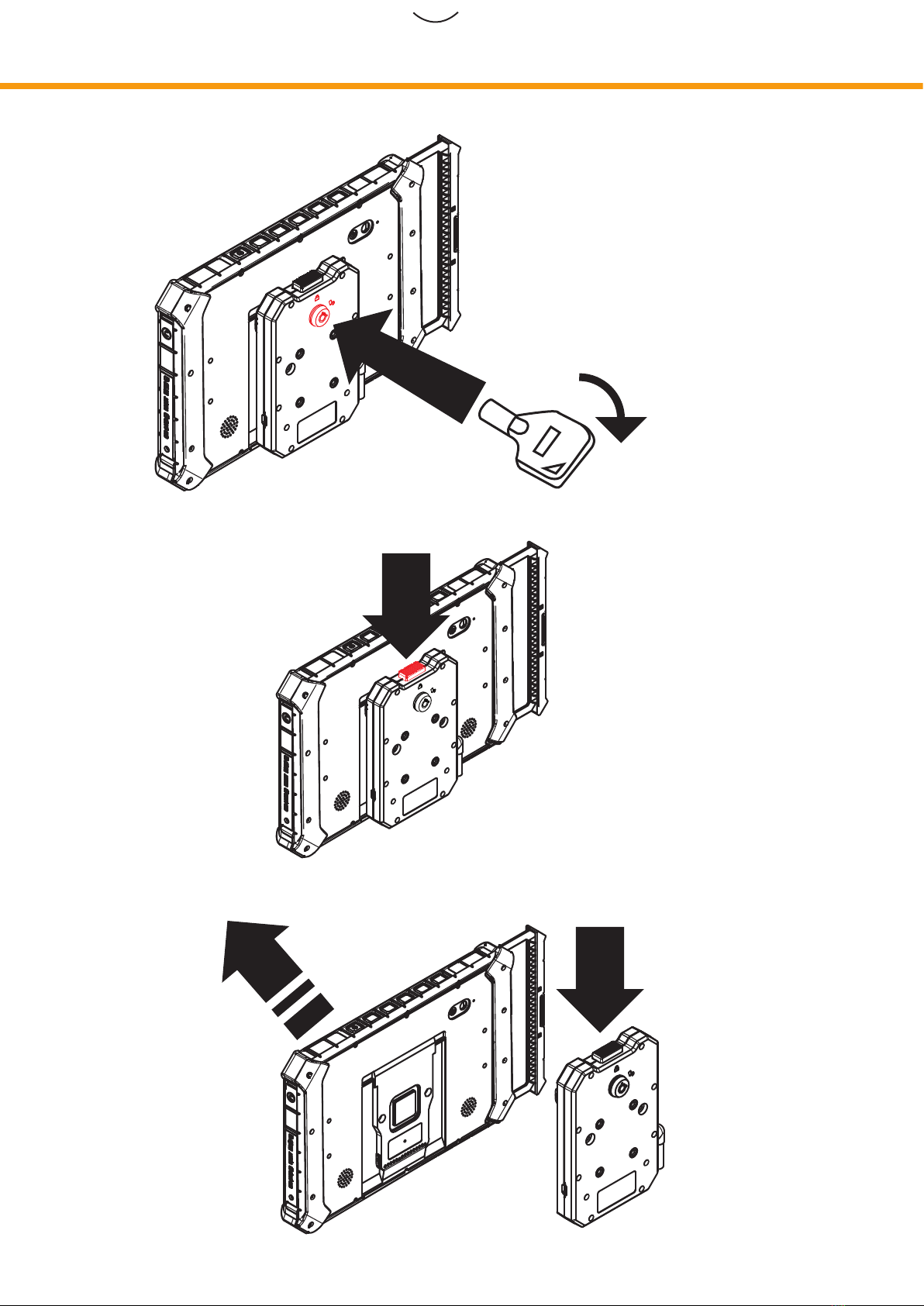

Remove device from cradle
1. Insert the key, rotate the key clockwisely to unlock cradle.
2. Press and hold the release button on the cradle.
3. Separated apart between main unit and cradle.
Insert the key
Rotate the key
clockwisely
Press
&
Hold
Press
&
Hold
Forward
to separate

Turning On Device
Press Power button to turn on the device.
Power Button
Interface
Getting started
Cradle cable pin assignment
There are RJ45 and video input interfaces.

Charging Device
PLEASE CHARGE AND DISCHARGE THE DEVICE AS ONE CYCLE AT ROOM TEMPERATATURE
WHEN DEVICES ARE STORED FOR HALF YEAR OR ABOVE.
Notice & Warning
Getting started

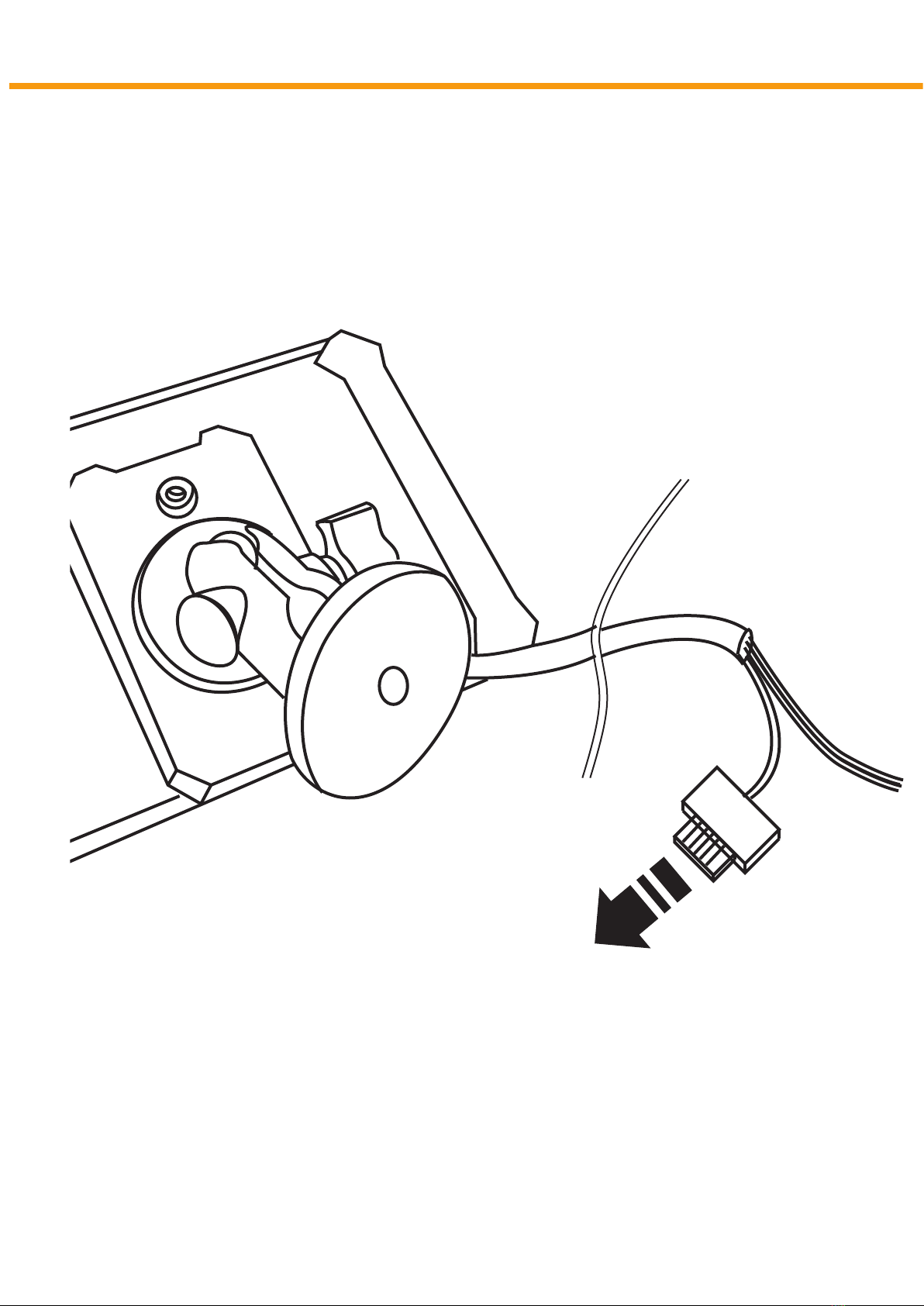

Plug into vehicle power supply

Home Screen
Android Tutorial

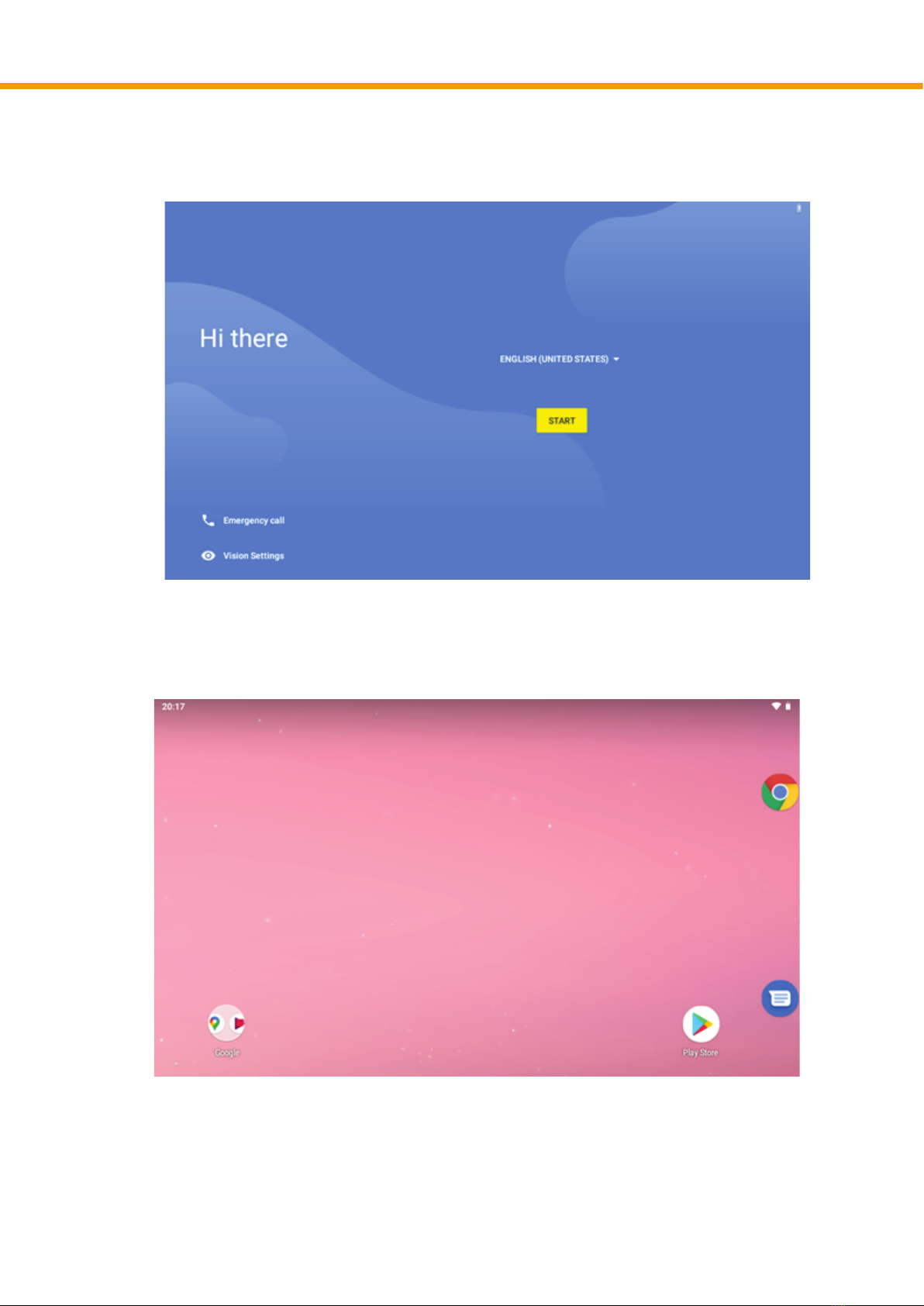

Start Screen

APP Screen
Android Tutorial
Status Bar
The status bar shows your tablet’s status and notications
The notication panel is your center for new events:
like new e-mail, voicemail, updates, and more.
Drag down to display notications. Touch a notication to respond.

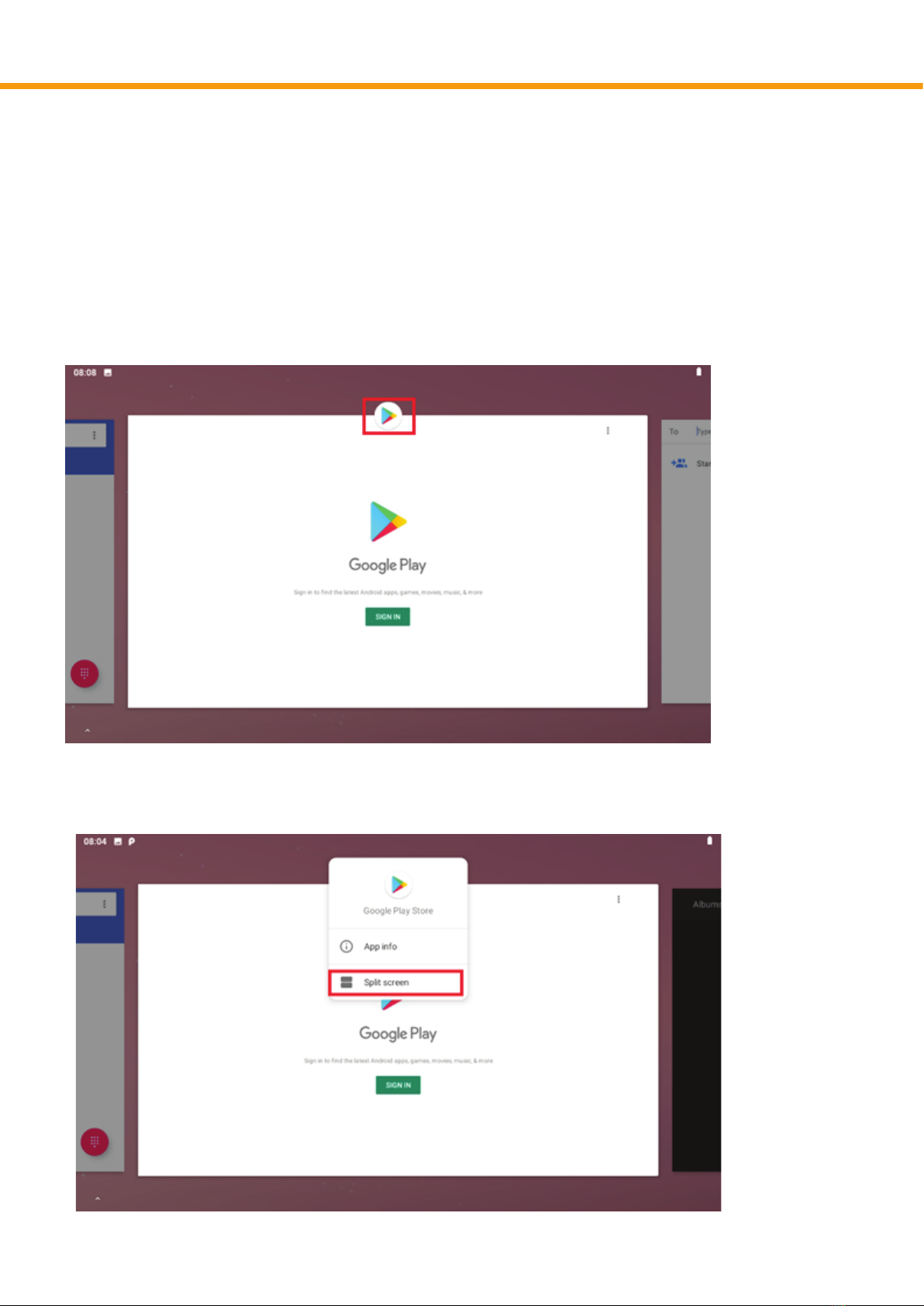

Split screen:
1. Press the recent key to the right of the touch screen
to display the recent applications history.
2. Press and hold the icon on top of the application
you want to split screen.
Switching between home screen and app screen.
Slide your ngers up from the bottom of the home screen.
3. Click Split screen.
Android Tutorial

4. Select second app displayed at the same time.
5. When the second app appears, drag it to the left or right side
of the screen.
6. Release the app. You can press and drag the dividing line
in the center to resize the apps.
Android Tutorial

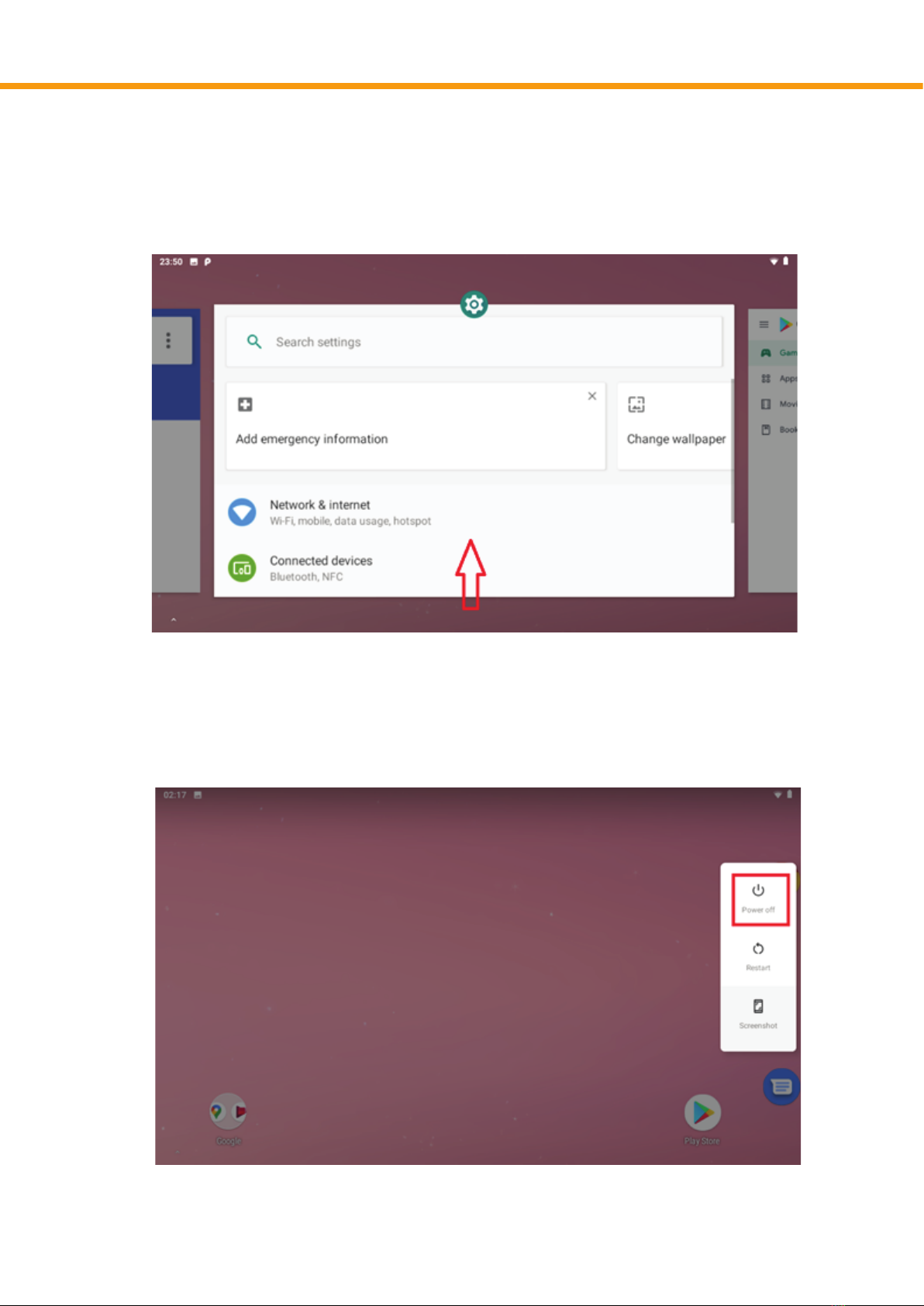

Close active Apps:
1. Press the recent key to the right of the touch screen
2. Slide your ngers up from the bottom of
the application you want to close
Android Tutorial
Turning of the device:
1. Press and hold the power button for about three seconds
to choose power o.

Connecting to Networks
CONNECTING TO Wi-Fi NETWORK:
1. Tap Settings icon to open settings menu.
2 . In the Settings menu, tap Network & internet.
3 . Tap the Wi-Fi toggle to enable Wi-Fi connections.
4. When the list of Wi-Fi networks appears, tap an available network.
5. Tap Connect.
6. Type in the password to connect to the network.
After you connect to a Wi-Fi network, the device will automatically
connecting to mobile network whenever it is within range.
CONNECTING TO MOBILE NETWORK:
1. Insert a SIM card
2. In the Settings menu, tap Network & internet
3. Tap Mobile network
4. Enable Mobile data
5. It will show the 4G icon on the status bar if the 4G network
is connected.
Sharing a mobile connection, to share a connection to a mobile
network with other devices, follow these steps:
1. Tap settings to open setting menu.
2. Tap Hotspot & tethering.
3. Tap Wi-Fi hotspot and tap the toggle switch to turn
on network sharing.
4. Specify the name of the network and the password.
5. On the other device, locate the network and enter the password
to log in.
DISCONNECTING FROM A NETWORK:
1. Tap settings to open setting menu.
2. Tap Hotspot & tethering.
3. Tap Wi-Fi hotspot and tap the toggle switch to turn o network sharing.

Inserting SIM card
Using Card Slots
SIM Card Puller
SIM
Stick Area
Step 1 :
Stick
Step 2 :
Peer the cover
Step 3 :
Insert
Remove : SIM Card Puller helps to insert SIM Card easily.

Removing SIM card
Using Card Slots
Step 1 :
Peer the cover
Step 2 :
Pull to remove
Remove : SIM Card Puller helps to pull-out SIM Card easily.

Using Card Slots
Inserting TF card
SIM Card Puller
TF card
Stick Area
Step 1 :
Stick
Step 2 :
Peer the cover
Step 3 :
Insert
Remove : TF Card Puller helps to insert TF Card easily.
