Cary Audio Design CINEMA 6 User manual

HDCD
, High Definition Compatible Digital
and Pacific Microsonics are either registered trademarks or
trademarks of Pacific Microsonics, Inc. in the United States and /or other countries.
HDCD system manufactured under license from Pacific Microsonics, Inc.
This product is covered by one or more of the following :
United States
Australia
Other patents pending.
Country Patent No.
5,479,168 5,638,074 5,640,161 5,808,574
669,114
CINEMA 6
192 kHz / 24 Bit
Surround Sound Processor Preamplifier
NOTE:
Before installing your new surround sound processor, please read this manual carefully, as it
will inform you of the specifications, proper installation procedures and operation procedures.
Also included in this manual are guidelines on how to properly service and care for your new
surround sound processor. Thank you for buying a Cary Audio Design CINEMA 6 surround
sound processor.
5,838,274 5,854,600 5,864,311 5,872,531
Digital to Analog Converter

Read All Instructions: All the safety and operating instructions of your Cary Audio equipment should be
read before power is applied to the equipment.
Retain Owner's Manual: These safety and operating instructions should be retained for future reference.
Heed Warning: All warnings on the unit and in the operating instructions should be adhered to,
Follow Instructions: All operating and use instructions should be followed.
Cleaning: Unplug the unit from the wall outlet before cleaning. The unit should be cleaned only as recommended
by the manufacturer.
Attachments:
Do not use attachments not recommended by the unit manufacturer as they may cause hazards.
Water and Moisture:Do not use the unit near water-for example, near a bath tub, wash bowl, kitchen sink, or
laundry tub; in a wet basement; or near a swimming pool.
Accessories: Do not place the unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing
serious injury to a child or adult, and serious damage to Any mounting of the unit should follow the
manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer
Ventilation: Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the unit and
to protect it from overheating, and these openings must not be blocked or covered. The openings should never be
blocked by placing the unit on a bed, sofa, rug, or other similar surface. The unit should not be placed in a built-in
installation such as a bookcase or rack unless proper ventilation is provided. There should be free space of at least
6 inches (16cm) and an opening behind the unit,
Grounding or Polarization:The unit may be equipped with a polarized alternating current line plug (a plug having one
blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you cannot
insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact a licensed electrician to
replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
Power Sources: The unit should be operated only from the type of power source indicated on the marking label. If you
are not sure of the type of power supplied to your home, consult your unit dealer or local power company.
Power-Cord Protection: Power-supply cords should be routed so that they are unlikely to be walked on or pinched
by items placed upon or against them, paying particular attention to cords where they enter a plug, or a convenience
receptacle, and the point where they exit from the unit.
Outdoor Antenna Grounding: If an outside antenna or cable system is connected to the unit, be sure the antenna or
cable system is grounded so as to provide some protection against voltage surges and built-up static charges.Article 810
of the National Electrical Code, ANSI/NFPA70, provides information regarding proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an Antenna-discharge unit, size of grounding conductors,
location of antenna-dischargeunit, connection to grounding electrodes, and requirements for the grounding electrode,
Lightning: For added protection for the unit during a lightning storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent
damage to the unit due to lightning and power -line surges.
Power Lines: An outside antenna system should not be located in the vicinity of overhead power lines or other
electric light or power circuits
,or where it can fall into suchpower lines or circuits. When installing an outside antenna
system, take extreme care to keep from touching such power lines or circuits as contact with them might be fatal.
Overloading: Do not Overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk
of fire or electric shock.
Object and Liquid Entry: Never push objects of any kind into the unit through openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the unit.
Servicing: Do not attempt to service the unit yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
Replacement Parts: When replacement parts are required,be sure the service technician has used replacement
parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
Safety Check: Upon completion of any service or repairs to the unit, ask the service technician to perform safety checks
to determine that the unit is in proper operation condition.
CAUTION: To reduce the risk of electric shock, do not remove the
cover No user service-able parts inside. Refer to qualified personnel.
WARNING: To reduce the risk of fire or electric shock, do not expose
this appliance to rain or moisture.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the products enclosure, that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user of the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Notice Important Safety Information
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19..
20.
1.

Wall or Ceiling Mounting:
The unit should be mounted to a wall or ceiling only as recommended by the manufacturer.
Heat: The unit should be situated away from heat sources such as radiators, heat registers, stoves, or other units
(including amplifiers) that produce heat.
Important Safety Note
Before connecting a new component such as the Cinema 6 to your audio or home theater system it is always good practice to make
certain that all components are turned off, and preferably unplugged from their AC power source. Many modern electronics
products feature automatic turn-on circuits that may be activated during an installation, causing the potential for damage to
electronic components and/or speakers. Such damage is not covered by product warranties and Cary Audio Specifically
disclaims responsibility for any such damage.
Power Cord
The removable power cord that is shipped with the Cinema 6 is specifically designed to be used with this product. DO NOT use
any other power cord, as that may reduce the unit's, performance and possibly create a safety hazard. In particular,DO NOT use
standard IEC type power cords designed for computers and other business equipment products, as they have a three prong plug that
is not meant for use with the Cinema 6. Should the power cord require replacement, use an identical type, or contact CaryAudio for service.
AC Fuse
The fuse is located inside the chassis and is not user-service-able. If power does not come on, contact your authorized service station.
Wiring
Cables that run inside of walls should have the appropriate markings to indicate compliance with, and listing by the UL, CSA
or other standards required by the UL, CSA, NEC or your local building code. Questions about cables inside of walls should be
referred to a qualified custom installer, or a licensed electrician or low-voltage contractor.
Do Not Open The Cabinet
There are no user serviceable components inside this product. Opening the cabinet may present a shock hazard, and any
modification to the product will void your guarantee. If water or any metal object, such as a paper clip, coin or a staple, accidentally falls
inside the unit, disconnect it from theAC power source immediately and contact Cary Audio for further instructions.
Recording Copyright
Recording of copyrighted material for other than personal use is illegal without permission of the copyright holder.
Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to article 820-40 of the NEC, ANSI/NFPA 70, which
provides guidelines for proper grounding and, in particular,specifies that the cable ground shall be connected to the grounding system of
the building, as close to the point of cable entry as practical.
FCC Information for User
CAUTION: ANY changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Outdoor Antenna Installation
Safe Antenna and Cable Connection
If an outside antenna or cable system is connected to the equipment,
be sure the antenna or cable system is grounded so as to provide
some protection against built up static charges and voltage surges,
Section 810 of the national Electrical Code, ANSI/NFPA70 (in
Canada, part 1 of the Canadian Electrical Code) provides information
with respect to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit, connection
to grounding electrodes and requirements for the grounding electrode.
Keep Antenna Clear of High
Voltage Power Lines or
Circuits
An outside antenna system should be located well away from power lines, electric light or power circuits and where it will never
come into contact with these power sources if it should happen to fall. When installing an outside antenna, extreme care should be
taken to avoid touching power lines, circuits or other power sources as this could be fatal. Because of the hazards involved,
antenna installation should be left to a professional.
Notice Important Safety Information
21.
22.

Specifications
The following section describes the CINEMA 6 Surround Sound Processor basic specifications. The specifications are subject to
change or improvement without notice or obligation.
Audio Inputs and Output
Audio Inputs 5 stereo pairs and two 7.1-channel analog input
Digital Audio Inputs 4 coaxial (RCA), 4 Toslink
Sample Rates 44.1, 48, 88.2, 96 or 192 kHz
Accepts 16-24 bits PCM audio, Dolby Digital, Dolby Digital EX, dts and dts-ES
Main Audio Outputs 7.1 RCA, L/R, Center, LFE(Subwoofer), Side L/R, Rear L/R
Zone 2 Audio Outputs 1 RCA stereo pair
Performance Data
Analog-to-Digital Conversion 24-bit, 96 kHz(ADVANCED SEGMENT)
Digital-to-Analog Conversion 24-bit, 44.1 to 192 kHz(ADVANCED SEGMENT) operating in each channel
Frequency Response 10 Hz to 20 kHz, +0.1dB/-0.25dB, -0.75dB at 40 kHz, referenced to1 kHz
THD + Noise Below 0.003% at 1 kHz, maximum output level
Dynamic Range 110 dB minimum, 125 typical, 22 kHz bandwidth
Signal-to-Noise Ratio 110 dB minimum, 125 typical, 22 kHz bandwidth
Input Sensitivity 200 mV rms (2 Vrms for maximum output level) at 0dB input gain
Input Impedance 100 k ohm in parallel with 150 pFd
Output Level 150 mV rms typical, 10 Vrms maximum, full-scale input signal and volume at +16dB
Output Impedance 100 ohm in parallel with 150 pFd
Video Inputs and Outputs
Video Inputs 4 composite (RCA), 4 S-video, and 3 component video
Video Outputs 2 composite (RCA, 2 monitor), 2 S-video (2 monitor)
Zone 2 Video Outputs 1 composite (RCA),1 S-video
Performance (Composite & S-video)
NTSC M, PAL, and SECAM compatible
Switching Active
Output Level 1.0Volt peak-to-peak
Impedance 75 ohm
Input Return Loss >40dB
Differential Gain <0.5%
Differential Phase <0.5
Bandwidth >25 MHz (OSD)
K Factor <0.3%
Gain 0.15dB
Signal/Noise Ratio >70dB
Frequency Response 10 Hz to 10 Mhz +0.1/-0.3dB
Performance (Component Video)
3-Channel (Y, Pr, Pb), format-independent
Switching Passive
Impedance 75 ohms
Bandwidth >300 MHz
Insertion Loss <3 dB
Others Specifiations
Trigger Outputs 3 power on/off triggers, +12 VDC, 0.25 amps each,
RS-232 Serial Input/Output 9-pin D-sub connectors for system control
Power Requirements 120 VAC or 220 VAC 50-60 Hz, 45 W
(4)

Dolby Pro Logic IIx is fully compatible with Dolby Surround Pro Logic technology and can optimally
decode the thousands of commercially available Dolby Surround encoded video cassettes and
television programs with enhanced depth and spatiality. It can also process any high-quality
stereo or Advanced Resolution 5.1-channel music content into a seamless 6.1- or 7.1-channel listening experience.
Manufactured under license from Dolby Laboratories. Logic", and the double-D symbol are trademarks of Dolby Laboratories.
The Cinema 6 incorporates the latest generation of digital surround sound decoding technology such as Dolby Digital EX,
Dolby Digital, DTS ES (Discrete 6.1 and Matrix6.1), DTS Neo:6 (Cinema, Music), Dolby Pro-Logic II (Movie , Music , Matrix , Emulation
Dolby Pro-Logic IIx (Movie, Music , Matrix , Emulation and Virtual), In addition, has focused on the future.
By 2 sets of 7.1 inputs and communication port, the Cinema 6 is tomorrow's technology, today!
The Cinema 6 incorporates the most advanced Digital Signal Processing circuitry, along with a 192 kHz/24 bit D/A converter
in each of the 8 channels. Independent power supply circuits are incorporated for the FL display, audio and video sections for
maximum separation, clarity and dynamic range. Together with hand-selected customized components, all elements work in
harmony to recreate the emotion, exactly as the artist had intended.
The Cinema 6 is designed and engineered with extensive feedback from custom installation experts,dealers and consumers.
It features multi-room/multisource,DC Triggers, an RS-232C communication port, an extensive analog and digital inputs /outputs.
With 8 digital Inputs, DVD AUDIO & SACD MultiChannel (7.1 channel) direct inputs and OSD output versatilityis taken to a stunning new
level. Furthermore, the Cinema 6 can output the information through the S-video and composite video outputs.
Dolby Digital EX, Dolby Digital,
DTS ES (Discrete 6.1, Matrix6.1, Neo 96/24) DTS 96/24,
Dolby Pro LogicII(Movie,Music, Matrix, Emulation, Virtual)
Dolby Pro Logic IIx (Movie, Music, Matrix, Emulation, Virtual)
192 kHz/24 bit Crystal DAC for all 8Channels
RS-232C Terminal for System Control
Auto Input Signal Detection
DC Trigger Output
"Dolby", "Pro
and Virtual), Cary Audio
Description
Dolby Digital identifies the use of Dolby Digital audio coding for such consumer formats as DVD
and DTV. As with film sound, Dolby Digital can provide up to five full-range channels for left,
center, and right screen channels, independent left and right surround channels, and a sixth ( ".1")
channel for low-frequency effects.
Dolby Surround Pro Logic
II is an improved matrix decoding technology that provides better spatiality
and directionality on Dolby Surround program material; provides a convincing three-dimensional
soundfield on conventional stereo music recordings; and is ideally suited to bring the
surround experience to automotive sound. While conventional surround programming is fully
compatible with Dolby Surround Pro Logic
II
decoders, soundtracks will be able to be encoded
specifically to take full advantage of Pro Logic
II
playback, including separate left and right
surround channels. (Such material is also compatible with conventional Pro Logic decoders.)
Dolby Digital EX creates six full-bandwidth output channels from 5.1-channel sources. This is done
using a matrix decoder that derives three surround channels from the two in the original recording.
For best results, Dolby Digital EX should be used with movies soundtracks recorded with Dolby Digital Surround EX.
About Dolby Pro Logic IIx
Dolby Pro LogicIIx technology delivers a natural and immersing 7.1-channel listening experience to
the home theater environment. A product of Dolby's expertise in surround sound and matrix
decoding technologies, Dolby Pro LogicIIxisacomplete surround sound solution that maximizes
the entertainment experience from stereo as well as 5.1-channel encoded sources.
array of both
Including analog direct an RS-232C
On Screen Display
(5)

Neo:6 offers a music mode to expand stereoor matrix recordings into the five- or six-
channel layout, in a way which does not diminish the subtlety and integrity of the original stereo recording.
DTS-ES Extended Surround is a new multichannel digital signal format developed by Digital Theater
Systems Inc. While offering high compatibility with the conventional DTS Digital Surround format,
DTS-ES Extended Surround greatly improves the 360-degree surround impression and space
expression thanks to further expanded surround signals. This format has been used professionally
in movie theaters since 1999. In addition to the 5.1 surround channels (FL, FR, C,
SL, SR and LFE), DTS-ES Extended Surround also offers the SB (Surround Back) channel for
surround playback with a total of 6.1 channels.
DTS-ES Extended Surround includes two signal formats with different surround signal recording
methods, as DTS-ES Discrete 6.1 and DTS-ES Matrix 6.1.
"DTS"," DTS-ES Extended Surround"and "Neo:6
are trademarks of Digital Theater Systems, Inc.
DTS 96/24 offers the following:
1. Sound quality transparent to the original 96/24 master.
2. Full backward compatibility with all existing decoders. (Existing decoders will output a 48 kHz signal)
3. No new player required: DTS 96/24 can be carried on DVD-video, or in the video zone of
DVD-audio, accessible to all DVD players.
4. 96/24 5.1-channel sound with full-quality full- motion video, for music programs and motion
picture soundtracks on DVD-video.
DTS was introduced in 1994 to provide 5.1Channels of discrete digital audio into home theater systems.
DTS brings you premium quality discrete multichannel digital sound to both movies and music.
DTS is a multichannel sound system designed to create full range digital sound reproduction.
ThenocompromiseDTSdigitalprocesssetsthestandard of quality for cinema sound by delivering
an exact copy of the studio master recordings toneighborhood and home theaters.
Now, every moviegoer can hear the sound exactly as the moviemaker intended.
DTS can be enjoyed in the home for either movies or music on of DVD'S, LD'S, and CD'S.
"DTS"and" DTS Digital Surround"are registered trademarks of Digital Theater Systems, Inc.
The advantages of discrete multichannel systems over matrix are well known.
But even in homes equipped for discrete multichannel, there remains a need for high-quality
matrix decoding. This is because of the large library of matrix surround motion pictures available
on disc and on VHS Hi Fi tape; and analog Stereo television broadcasts.
The typical matrix decoder of today derives a center channel and a mono surround channel from
two-channel matrix stereo material. It is better than a simple matrix in that it includes steering logic to
improve separation, but because of its mono, band-limited surround it can be disappointing to
users accustomed to discrete multichannel sound.
Neo:6 offers several important improvements as follow, Neo:6 provides up to six full-band channels of
matrix decoding from stereo matrix material. Users with 6.1 and 5.1 systems will derive six
and five separate channels, respectively, corresponding to the standard home-theater speaker layouts.
Neo:6 technology allows various sound elements within a channel or channels to be
steered separately, and in a way which follows naturally from the original presentation.
Description
(6)

HDCD
2.0 HDCD 2.0
SURROUND MODE VFD DISPLAY AUTO
DETECT
KEY FORMAT
Input source signal Input
Chnls Listening surround mode Output
Chnls Key mode
LPCM
LPCM 96kHz/24
LPCM 192kHz/24
LPCM 44.1kHz/16
LPCM
LPCM
LPCM
LPCM
LPCM
LPCM
LPCM
LPCM
LPCM
LPCM
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
LPCM 96kHz
LPCM
LPCM 192kHz
LPCM 2FS (88.2kHz/24)
LPCM PL II Emulation
LPCM PL II Virtual
LPCM PL II Music
LPCM PL II Movie
LPCM PL II Matrix
LPCM PL IIx Emulation
LPCM PL IIx Virtual
LPCM PL IIx Music
LPCM PL IIx Movie
LPCM PL IIx Matrix
2.0
2.0
2.0
2.0
5.0
5.0
5.0
5.0
5.0
7.0
7.0
7.0
7.0
7.0
Up Sample/2XF
PLIIx + Sur. Mode
PLIIx + Sur. Mode
PLIIx + Sur. Mode
PLIIx + Sur. Mode
PLIIx + Sur. Mode
2x PLIIx + Sur. Mode
2x PLIIx + Sur. Mode
2x PLIIx + Sur. Mode
2x PLIIx + Sur. Mode
2x PLIIx + Sur. Mode
DOLBY DIGITAL
DOLBY DIGITAL
DOLBY DIGITAL
DOLBY DIGITAL
DOLBY DIGITAL
DOLBY DIGITAL
DOLBY DIGITAL
DOLBY DIGITAL
DOLBY DIGITAL
DOLBY DIGITAL
DOLBY DIGITAL
DOLBY DIGITAL
DOLBY DIGITAL
DOLBY DIGITAL
DOLBY DIGITAL
DOLBY DIGITAL
DOLBY DIGITAL
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
5.1
5.1
5.1
5.1
5.1
5.1
DOLBY PL II Emulation
DOLBY PL II Virtual
DOLBY PL II Music
DOLBY PL II Movie
DOLBY PL II
DOLBY PL IIx Emulation
DOLBY PL IIx Virtual
DOLBY PL IIx Music
DOLBY PL IIx Movie
DOLBY PL IIx Matrix
DOLBY PL IIx Emulation
DOLBY PL IIx Virtual
DOLBY PL IIx Music
DOLBY PL IIx Movie
DOLBY PL IIx Matrix
DOLBY DIGITAL 2.0
DOLBY DIGITAL 3/2.1
Matrix
PLIIx + Sur. Mode
PLIIx + Sur. Mode
PLIIx + Sur. Mode
PLIIx + Sur. Mode
PLIIx + Sur. Mode
PLIIx + Sur. Mode
PLIIx + Sur. Mode
PLIIx + Sur. Mode
PLIIx + Sur. Mode
PLIIx + Sur. Mode
2x PLIIx + Sur. Mode
2x PLIIx + Sur. Mode
2x PLIIx + Sur. Mode
2x PLIIx + Sur. Mode
2x PLIIx + Sur. Mode
5.0
5.0
5.0
5.0
5.0
7.0
7.0
7.0
7.0
7.0
2.0
5.1
7.1
7.1
7.1
7.1
7.1
DOLBY EX
LPCM
LPCM
DTS
DTS-ES Discrete
DTS-ES Matrix
DTS
DTS 96/24
Mp3
DOLBY EX
DOLBY EX
DOLBY EX
6.1
6.1
2.0
2.0
5.1
6.1
6.1
5.1
5.1
2.0
6.1
6.1
6.1
DOLBY DIGITAL EX ONDOLBY EX
DOLBY DIGITAL EX ON
DTS Neo 96/24 Movie
DTS Neo 96/24 Music
DTS
DTS-ES Discrete
DTS-ES Matrix
DTS-ES
DTS 96/24
LPCM
DOLBY EX AUTO
DOLBY EX ON
DOLBY EX OFF
6.1
6.1
5.0
5.0
5.1
6.1
6.1
7.1
5.1
2.0
6.1
7.1
5.1
CES7.1-ES on
Neo:6
Neo:6
CES7.1
CES7.1-EX-AUTO
CES7.1-EX-ON
CES7.1-EX-OFF
44.1kHz
Relationship between input source and listening mode
(7)

POWER BASS
SUR.
MODE
.
STEREO
Cinema-6
192kHz/24 bit D/A Converter
Surround Sound Processor
AUTO
DETECT LEVEL
SPEAKER
PRO
LOGIC IIx
MASTER VOLUME
INPUT SELECTOR
SAMPLE-RATE
CONVERTER
VIDEO AUDIO AUDIO
DIRECT CES7.1 NEO:6
LISTENING MODE
TREBLE
AUDIO ADJUST
INPUT SELECTOR PRO LOGIC
12
1
12
345678910 11 13 14 15
16
17
18
Front Panel
1POWER button and STANDBY indicator light.
When this button is pressed once, the unit turns ON and the display illuminates. When pressed again, the unit turns OFF
and the STANDBY indicator light illuminates.
2AUTO DETECT button
Press this button to Auto select the Digital Audio input sources and Video input sources.
3VIDEO button 18 INPUT SELECTOR knob
Press this button to manually select the Video input source, and use the INPUT SELECTOR knob to change Video input source.
4AUDIO button 18 INPUT SELECTOR knob
Press this button to manually select the Audio input source and use the INPUT SELECTOR knob to change Audio input source.
5AUDIO DIRECT button
Press this button to select the signal from the analog input in use directly to the volume control, bypassing all digital processing.
6SAMPLE-RATE CONVERTER button
Press this button to select normal or 2x D/A Sample Rate for PCM audio.
7STEREO button
Press this button to provide conventional 2 channel signals to the Left and Right front speakers only.
8PRO LOGIC IIx button
Press this button to select the Pro Logic II decoding or Pro Logic IIx decoding.
9SUR. MODE button
Press this button to select the surround sound mode.
10 CES 7.1 button
Press this button to select either DOLBY EX AUTO, DOLBY EX ON or DOLBY EX OFF mode.
11 NEO:6 button
Press this button to select the NEO:6 mode ON or OFF.
12 SPEAKER button 16 MASTER Volume Knob
Press this button to select the speaker size for adjustment, turn the MASTER VOLUME to adjust a selected item.
13 LEVEL button 16 MASTER Volume Knob
Press this button to select the BALANCE LEVEL for adjustment, turn the MASTER VOLUME to adjust a selected item.
14 BASS button 16 MASTER Volume Knob
Press this button to select the BASS for adjustment , turn the MASTER VOLUME knob to change the setting.
15 TREBLE button 16 MASTER Volume Knob
Press this button to select the TREBLE for adjustment, turn the MASTER VOLUME knob to change the setting.
16 MASTER Volume Knob
Adjusts the overall sound level, turning the control clockwise will increase the overall sound level.
17 INFRARED receiving sensor window
This window receives infrared signals for the remote control.
18 INPUT SELECTOR Knob
These are used to select the input sources. The video function selector, such as DVD, CD, TV and D-VCR, selects video and
audio simultaneously.
Audio function sources such as DVD, CD, TV, D-VCR and TUNER may be selected in conjunction with a Video source.
This feature (Sound Injection) combines a sound from one source with a picture from another. Choose the video source first, and
then choose a different audio source to activate this function.
(8)

12
12
34567
8
9
10
11
13
14
15

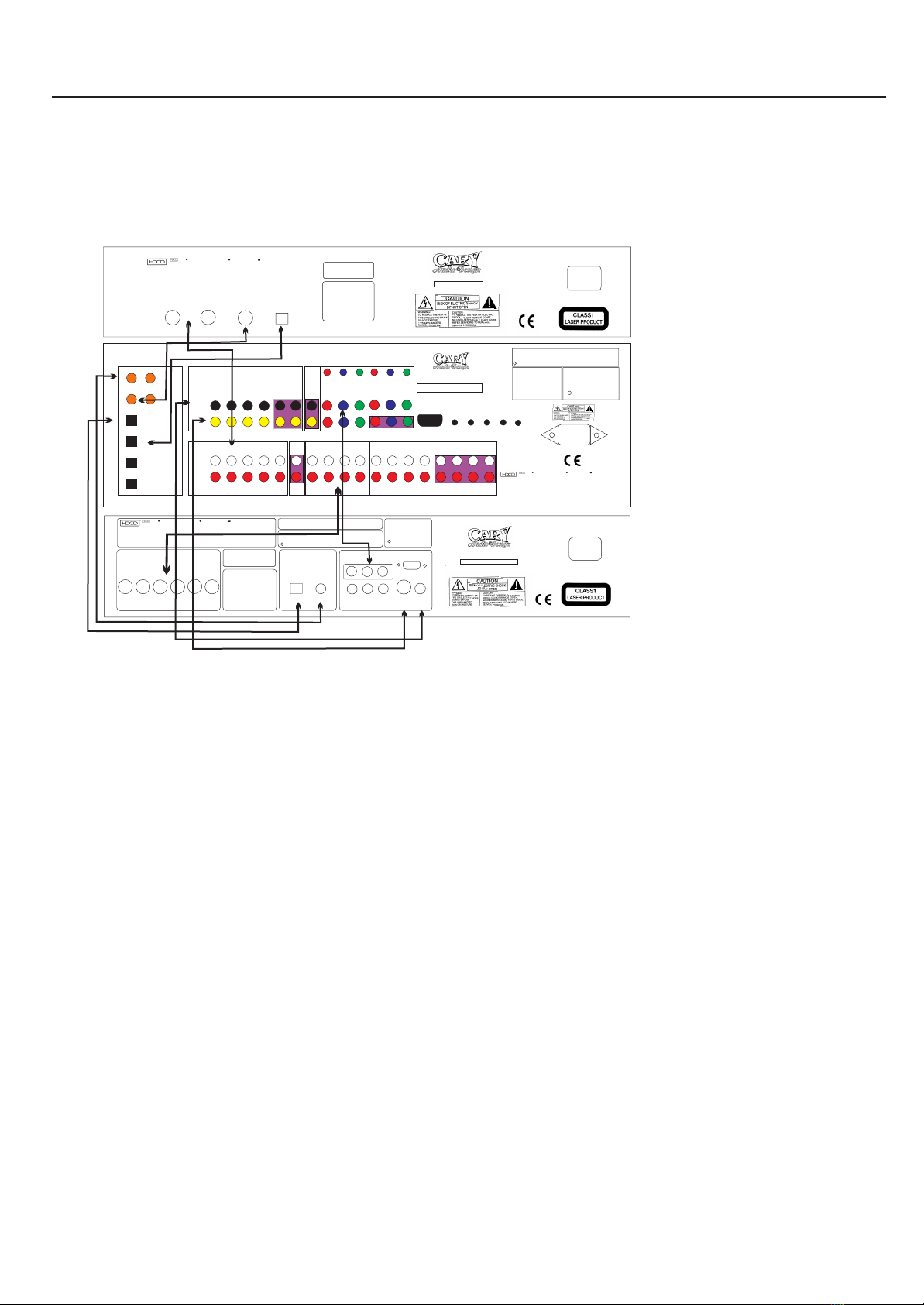

Rear Panel
DVD
TV
CD
D-VCR
CD
DVD
S-VIDEO
COMPOSITE
VIDEO
LEFT
RIGHT
ANALOG AUDIO INPUT
DIGITAL INPUTS S-VIDEO & COMPOSITE VIDEO
DVD
DVD
CD
CD
TV
TV TUNER
MONITOR
1 OUTPUT 2
COMPONENT VIDEO
DVD
CD
TV
ANALOG 7.1 INPUT A ANALOG 7.1 INPUT B 7.1 PREAMPLIFIER OUTPUT
RS 232 IR INPUT
1ZONE 2
TRIGGERS
123
RRBBGG
ZONE 2
VIDEO
OUT
ZONE 2
AUDIO
OUT
OSD
D-VCR SL
FL CEN SBL
FR SR SW SBR
FL SL CEN SBL
FR SR SW SBR
FL SL CEN SBL
FR SR SW SBR
HDCD
, High Definition Compatible Digital
and Pacific Microsonics are either registered trademarks or
trademarks of Pacific Microsonics, Inc. in the United States and /or other countries
.
HDCD system manufactured under license from Pacific Microsonics, Inc.
This product is covered by one or more of the following :
United States 5,479,168 5,638,074 5,640,161 5,808,574 5,838,274 5,854,600 5,864,311 5,872,531
Australia 669114
Other patents pending.
Country Patent No.
Manufactured under licensefrom Digital
Theater Systems,Inc. US Pat. Number
5,451,942, 5,956,674, 5,978,762 and
other world wide patents issued and
pending. "DTS"and "DTS Digital
Surround"are registered trademark of
Digital Theater Systems, Inc.
C 1996,2000 Digital Theater
Systems, Inc. All Rights Reserved
Manufactured under license from Doldy Laboratories."Doldy",
"Pro Logic"and the double-D symbol are trademarks of
Dolby Laboratories.Confidential Unpubished Works.
1992-1997 Dolby Laboratories,Inc.All rights reserved.
C
This device complies with part
15 of the FCC Rules.Operation
is subject to the following two
conditions:(1) This device may
not cause harmful interference,
and (2) this device must accept
any interference received,
including interference that may
cause undesired operation.
Power
Cinema 6 Surround Sound Processor
CARY AUDIO DESIGN,INC.
VIDEO
OUT
12 34
12345
D-VCR
COMPONENT VIDEO OUTPUT
1
2
3
4
TV
D-VCR S/N:
bb
Unpublished Works.
13
24 1
2
3
1DIGITAL INPUT (Digital 1-4)RCA COAXIAL, TOSLINK OPTICAL
There are 4 digital audio coaxial RCA jacks, 4 Toslink jacks. The digital inputs accept digital audio signal from a compact disc,
LD, DVD or other digital source component.
2AUDIO IN (DVD, CD, TV DVCR and TUNER) ANALOG
These are analog audio inputs. These are 5 audio input sets. (#1-#4 are linked to matching #1-#4 video inputs).
32nd ZONE AUDIO OUT
These jacks supply the analog stereo audio outputs to an extenal audio amplifier used to power the speakers in the remote zone.
4ANALOG 7.1 INPUT A
By connecting a DVD audio player, SACD multichannel player, or other component that has a multichannel outputs, you can
playback the analog audio with 5.1 channel or 7.1 channel outputs.
By connecting a DVD audio player, SACD multichannel player, or other component that has a multichannel outputs. You can
playback the analog audio with 5.1 channel or 7.1 channel outputs.
5ANALOG 7.1 INPUT B
67.1 PREAMPLIFIER OUTPUTS
Use these jacks for connection to the main five or seven channel power amplifiers.
7AC INLET CONNECTOR
Plug the supplied power cord into this AC inlet and then into the power outlet on the wall.
8DC TRIGGER OUTPUT TERMINALS
Connect a device that needs to be triggered by DC +12V. (Screen, Curtains, power strip, lights, etc...)
9IR INPUT
Use the 1 and zone 2 Ext remote jacks to connect external IR sensors. When the unit is installed behind doors or where it is not
otherwise visible to the remote, connect an optional, external sensor the 1 (Main) jack will be activated. When the cinema 6 is
turned on and should be used for connections to power amplifiers for the main room speaker. The device connected to the zone
trigger will only be activated, when the Multi-Zone system is turned on. Connect it to the amplifier used to power the speakers
in the second zone (Zone 2).
10 RS-232 PORT
The RS-232 port is used in conjunction with an external controller to control the operation of the Cinema 6 by using
an external device.(This is for custom installation use. Consult your dealer for more information.)
11 COMPONENT VIDEO OUTPUT
Use these jacks to supply component video output to an external monitor that accepts component video signal.(Best Video)
12 COMPONENT VIDEO INPUT
Use the (3) input sets to connect devices with component video outputs such as DVD, D-VCR or HDTV tuner.(Best Video)
13 ZONE 2 VIDEO OUT
These are the composite video and S-video output jacks for Zone 2 use. Use S-Video if possible for better picture quality.
Connect these jacks to optional video display devices to view the source selected by the multi-room system in a remote room.
14 MONITOR OUT
This is a monitor output and each one includes both composite video and s-video configurations. When connecting two
video monitors or TVs, be aware that the OSD interface can only be used with OSD monitor out connections.
15 S-VIDEO & COMPOSITE VIDEO INPUT
Connect the S-Video or composite video output of sources to the appropriate input jack.
(9)

POWER
INPUT VOL
A
B
7.1
7.1
P
SEL
PLAY
R
E
W
F
F
PA
USE
STOP
A
DA
U
T
O
A
U
TO
1
DVD
23
D-VCR
456
789
PLIIx
0
NEO:96/24
SUR.MODE CES 7.1
ZONE BRIGHT LATE
CD TUNER
TV
MUTE MENU
ANALOG
DIGITAL
DETECT
DECODE
TEST
STEREO
+10
EXIT
CINEMA 6
ANALOG
VIDEO AUDIO
2XF
DIRECT
Using the Remote Control
The following buttons can be used to operate the Surround Sound Processor.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1SURROUND/DATA FORMAT Buttons
Press the PLIIx, SUR. MODE, CES7.1 or NEO:96/24
button once to select a surround format.
Press the same button again to cycle through the various
processing modes available for the select format.
2ANALOG 7.1A Button
Pressing the ANALOG 7.1A button selects the analog
signals from the 'A' Multi Channel inputs on the back
panel of the Cinema 6.
Pressing the ANALOG 7.1B button selects the analog signals
from the 'B' Multi Channel inputs on the back panel of the
Cinema 6.
3INPUT Buttons
Press the button to switch the source of your Cinema 6.
Each time you press a button the remote will change to
the source selected.
4TEST Button
Starts an audio test tone for calibrating and setting
speaker balance levels.
5MUTE Button
Mutes the main volume of the Cinema 6.
6NAVIGATION and SELECT Buttons
Use the four Navigation buttons to move through menu options
shown on the Cinema 6 Display or OSD.
Use the SEL PLAY button to confirm selections made in menus.
Use the four Navigation buttons to move through menu options
shown on the Cinema 6 Display or OSD.
Use the SEL PLAY button to confirm selections made in menus.
7ANALOG Button
Press the button to switch the source of Analog input.
8DIGITAL Button
Press the button to switch the source of Digital input.
9SOURCE Buttons
Press the buttons to switch the source of your Cinema 6.
Each time a source button is pressed, the remote control changes
to the source selected.
10 2XF Button
Press the button to choose normal or 2x the D/A sample rate.
11 VIDEO Button
Press the button to manually select the video input sources.
12 ZONE Button
Press the button to switch Zone 2 output sources.
13 STEREO Button
Press this button to provide conventional 2 channel signals
to left and right front speakers only.
14 POWER Button
When this button is pressed once, the Cinema 6 power turns ON.
When pressed again, the Cinema 6 enters STANDBY.
15 VOL Buttons
Press the buttons to adjust the volume of the Cinema 6 from
-90dB to +15dB.
16 ANALOG 7.1B Button
17 EXIT Button
Press the button to exit the main menu.
18 MENU Button
Calls up the Main Menu on the Cinema 6 display and the OSD, if
active.
19 SELECT Button
20 AUTO DETECT Button
Press this button to auto select the digital audio input sources and
video input sources.
21 AUTO DECODE Button
Press this button to auto decode the surround sound mode.
22 DIRECT Button
Press this button to select the signal of analog input to use
ANALOG IN or use Analog to Digital Converter (LPCM).
23 AUDIO Button
Press this button to manually select the audio input sources.
24 LATE Button (for Dolby Digital only)
Cycles through the various night dynamic range compression modes.
25 BRIGHT Button
Press to switch the Cinema 6 display brightness levels.
(10)
