Casablanca Isotope C30G45L User manual
Isotope ®
1
42900-01 • 07/10/13 • © Casablanca Fan Company
Safety and the proper operation of your Casablanca fan both require a thorough knowledge of the product and
proper installation. Therefore, before attempting to install and operate your Casablanca fan, read this Owner’s Manual
completely and carefully. Retain this manual and other included documentation for future reference.
CAUTION: To avoid possible electrical shock, make certain that electricity is turned off at the circuit breaker or
fuse box before attempting any installation procedure.
Isotope ®Owner’s Manual
READ AND SAVE THESE INSTRUCTIONS!
CONTENTS
INTRODUCTION ...........................................................................................3
MOUNTING RECOMMENDATIONS .......................................................................... 4
FAN INSTALLATION ........................................................................................5
MOTOR HOUSING INSTALLATION ...........................................................................6
BLADE INSTALLATION ......................................................................................10
LIGHT BULB AND GLASS INSTALLATION ....................................................................11
WALL CONTROL INSTALLATION ............................................................................12
WALL CONTROL OPERATION ...............................................................................13
TROUBLESHOOTING TIPS ..................................................................................15
CARE RECOMMENDATIONS ................................................................................16
2
42900-01 • 07/10/13 • © Casablanca Fan Company
PLEASE INSPECT ALL PACKAGING PRIOR TO DISCARDING!
Your Casablanca fan was crafted with pride and care and inspected thoroughly prior to shipment.
Before you begin to assemble and install your Casablanca fan, remove all parts from the carton and
check them against the Parts Guide in this manual.
Make sure all parts are included in the box using the
Parts Guide on the following pages.
If there are missing or broken parts:
Call 1-888-227-2178 Monday through Friday, 7a.m.
to 4 p.m. Your request will be handled immediately.
Replacement parts will be sent to you via Federal
Express.
Proper Parts Handling
Do not remove light bulbs from their packaging until you
are ready to install them.
Before discarding packaging materials, be certain that all
parts have been removed.
Use a clean, dry paintbrush to remove small Styrofoam
pieces that may remain after unpacking.
Do not brush Styrofoam into wiring cavities.
The blades in each pack are matched for equal weight to
assure smooth fan operation. If more than one fan is
being installed, do not mix blades from different cartons.
When cleaning, painting, or working near your fan, be
cautious of the fan and blades.
Always turn power to the ceiling fan OFF before replacing
light bulbs or working on your fan.
Never insert anything into the path of the fan blades while
the fan is in operation.
Never install a fan over a pool or spa.
Never operate a fan that has been damaged in any way.
Install the fan according to the instructions in this
manual.
If the fan does not work:
Refer to the Troubleshooting Tips in this Owner’s Manual.
Call Technical Support at 1-888-227-2178.
Contact your local Authorized Service Center.
Our Web site at www.CasablancaFanCo.com contains
additional information on Casablanca products,
troubleshooting, and Authorized Dealer or Service
Centers. Please do not return this product to the store.
Please take a moment to locate the model number for your fan (see below) and record this information on the Warranty
page inside the front cover of your Owner’s Manual if it does not appear there already. The model number is found on
the fan identication sticker afxed to the fan under the trim ring in the location shown below:
Isotope®
HANGER TYPE
MODEL #C30G45L
Memphis, TN
C30G45L
Fan Identication Sticker
Model Number
RECORD MODEL NUMBER BEFORE INSTALLATION!
Isotope ®
3
42900-01 • 07/10/13 • © Casablanca Fan Company
Circuit Breaker
(Trip breaker for the
circuit you will be
working on)
Fuse Box
(Remove fuse for the
circuit you will be
working on)
18"
84"
70"
SAFE USE
INTRODUCTION
BEFORE YOU START
From bottom
edge of blade
to oor
From wall to
end of blade
Dimensions indicated are the minimum
allowable for proper installation.
•CAUTION: RISK OF ELECTRICAL SHOCK! Installation is to be in accordance with the National Electrical Code, ANSI/
NFPA 70-1999, and local codes. If you are unfamiliar with the wiring codes, you should use a qualied electrician.
To avoid overheating and possible damage to other equipment, do not install control to a receptacle, uorescent
light xture, motor-operated appliance, or transformer-supplied appliance.
• This fan is designed to be installed on an existing electrical outlet box. The outlet box must be UL Listed for ceiling
fan installations. If it is not, a new box must be installed.
• This ceiling fan requires a grounded electrical supply of 120 VAC, 60 Hz and a minimum 15 amp circuit. The maximum
current requirement for the fan with light xture is 1.67 amps. The fan uses about .83 amp or 100 watts. Maximum
light current is about .83 amps or 100 watts of lighting.
• Where wire nuts are employed, be sure all bare wires are within the connectors. When installing the canopy, make
sure all wires are within the canopy and that no wires are being pinched.
• WARNING: Do not bend the blade brackets when installing the brackets, balancing the blades, or cleaning the fan.
Do not insert foreign objects in between the rotating fan blades.
Unpacking
Before assembling and installing your ceiling fan, remove all parts from the shipping cartons and check them against
the parts listed in the Parts Guide. Before discarding packaging materials, be certain that all parts have been removed.
For the best performance and for your warranty to remain valid,
useonlygenuineCasablancablades,lightxtures,andaccessories.
• The blades in each pack are matched for equal weight
to assure smooth fan operation. If more than one fan
is being installed, be careful not to mix blades from
different cartons.
• Inspect the contents of your carton for possible
shipping or handling damage. If parts are missing or
damaged, call 1-888-227-2178.
• It is always a good idea to have an assistant to help
with the installation.
• When cleaning, painting, or working near your fan,
be very careful of the fan and blades. Always turn the
power OFF to the ceiling fan before working on it or
replacing lightbulbs.
• Never insert anything into the path of the fan blades
while the fan is in operation.
• Never install a fan over a pool or spa.
• Never operate a fan that has been damaged
in any way. For assistance in obtaining
service, call Casablanca Fan Company at
1-888-227-2178 or contact your local authorized
Casablanca dealer.
From wall to
center of fan
4
42900-01 • 07/10/13 • © Casablanca Fan Company

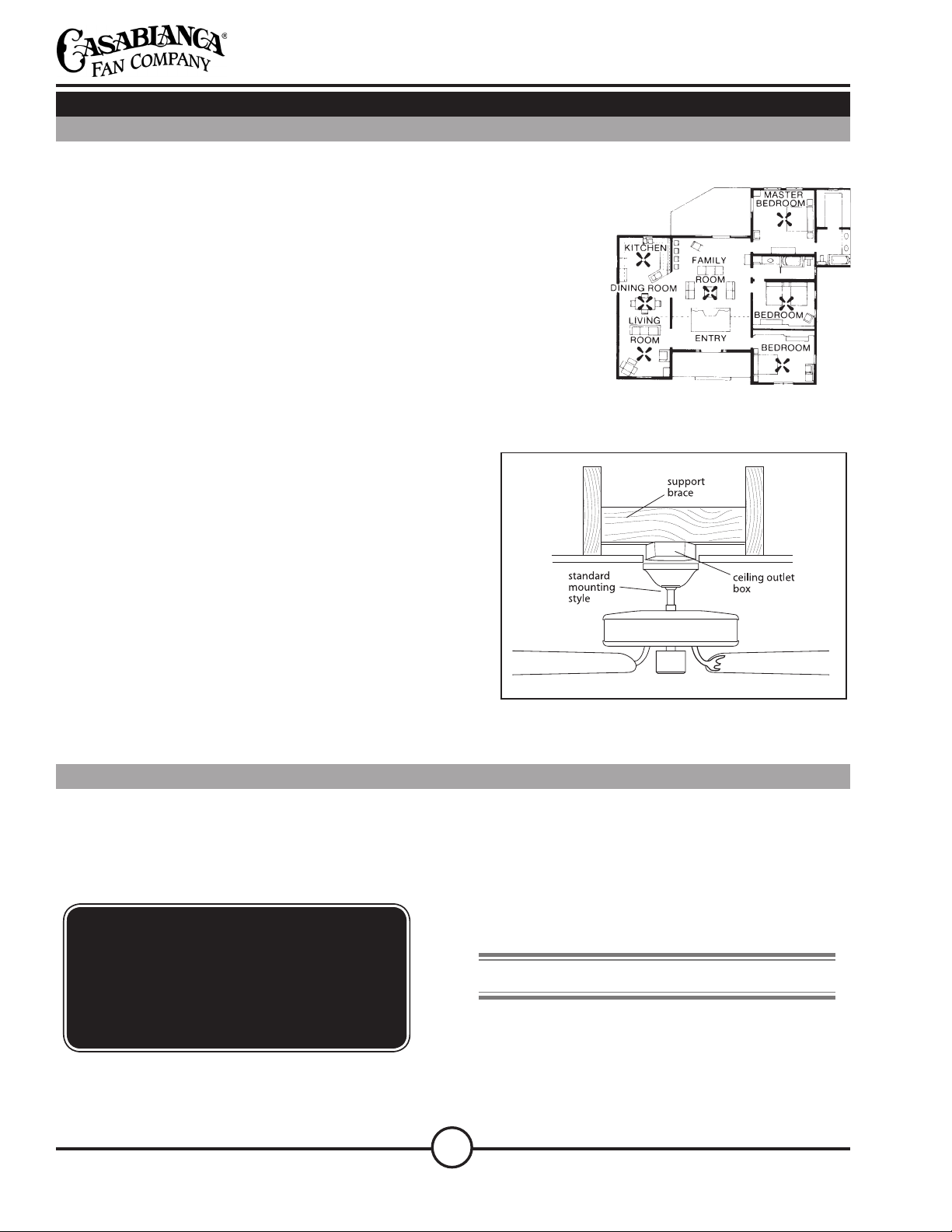

MOUNTING RECOMMENDATIONS
Before mounting your Casablanca fan, read the following helpful recommendations. The location of the fan, air
circulation, and fan size are all important factors to consider before installation.
Location
Ceiling fans have practical uses in almost every room in your home. We suggest
you follow these mounting recommendations as you decide where to install your
Casablanca fan.
• This fan is not suitable for installation on a sloped ceiling.
• For safety reasons, the fan blades must be a minimum of 7' above the oor.
• Do not locate the fan in a doorway or above a swinging door.
• In any installation, the tips of the blades must be at least 18" from the wall in order to provide sufcient clearance
for the blades.
• In bedrooms, fans work best when mounted above the foot
of the bed.
• Over pool tables, be sure to provide plenty of clearance to
avoid damage from pool cues.
• In kitchens be sure to allow for open cupboard doors to clear
the fan blades.
• Do not install a fan close to, or over, a pool or spa. High
humidity combined with corrosive gases will destroy the
nish and warp the blades.
Fan Size
Variable fan speed capability permits the use of a full-size 52"
fan even in smaller rooms. For very large rooms, two fans may
be needed.
GENERAL GUIDELINES
GETTING STARTED
Note: The weight of this fan is 28 pounds.
WARNING!
Toreducetheriskofre,electricalshock,or
personal injury, mount to outlet box marked
“Acceptable Fan Support of 31.8 kg (70
lbs.) Or less” using the mounting hardware
provided with the outlet box.
Using Existing Ceiling Fixture Outlet Box
After turning the power OFF at its source (either the
circuit breaker or fuse box), lower the old xture and
disconnect the wiring. Check the ceiling xture outlet
box to be sure it is marked “Approved for Ceiling Fan
Mounting.” If it is not, a new box must be installed.
Installing a New Ceiling Fixture Outlet Box
If you do not have an existing xture located where you
wish to place your Casablanca fan, an approved ceiling
xture outlet box must be installed and wired.
Isotope ®
5
42900-01 • 07/10/13 • © Casablanca Fan Company
FAN INSTALLATION
CEILING HARDWARE (not to scale)
CEILING MOUNTING PLATE INSTALLATION
Ceiling Mounting Plate
CAUTION:
To reduce the risk of personal injury, use
only the mounting hardware provided
with the approved outlet box to install the
crossbar mounting plate.
Note: After removing the old xture, check the outlet
box to ensure that it is supported by a joist or beam
across its upper surface. If not, a 2 x 4 stud must be
installed.
Step 1a. Carefully feed the ceiling wires through the
center hole of the ceiling mounting plate. Attach the
plate, as shown with ground wire down, to the ceiling
xture outlet box with the screws provided. Ensure that
the outlet box wires are not pinched by the washers or
between the mounting plate and the ceiling.
Step 1b. Attach the ceiling mounting plate using:
• Wood (included) screws when securing to support
structure with approved electrical outlet box. Drill
9/64" pilot holes in support structure to aid in securing
ceiling mounting plate with the included hardware.
• Machine screws (provided with the electrical outlet
box) when securing to existing ceiling fan-rated outlet
box. Make sure it is securly installed and is acceptable
for fan support of 31.8 kg (70 lbs) or less.
JOIST
CEILING
WIRING
CEILING MOUNT-
ING PLATE
GREEN GROUND
WIRE
WASHERS
Outlet Box
Screws (not included)
CEILING FAN
APPROVED
WIRING BOX
Wire Nuts (3)
Phillips
Screwdriver
3" Wood Screws (2)
Washers (2)
6
42900-01 • 07/10/13 • © Casablanca Fan Company
MOTOR HOUSING INSTALLATION
HANGING
HOLE
Figure 3
Step 2d. Use the hanging hole on the body of the fan to
hang the fan on the hook of the ceiling mounting plate.
This will help you in making the electrical connections
as shown in Figure 3 and Figure 4.
Step 2a. Unlock the canopy cover from the canopy ring
tabs to loosen and bring down to fan body as shown
in Figure 1.
Step 2b. Remove the fan mounting screws from the
fan body and set aside. You will use these later.
CEILING HARDWARE (not to scale)
Wire Nuts (3)Canopy Screws (4)
Figure 1
CANOPY
RING
Fan Body
Figure 2
CANOPY
RING
HOOK
Isotope ®
7
42900-01 • 07/10/13 • © Casablanca Fan Company

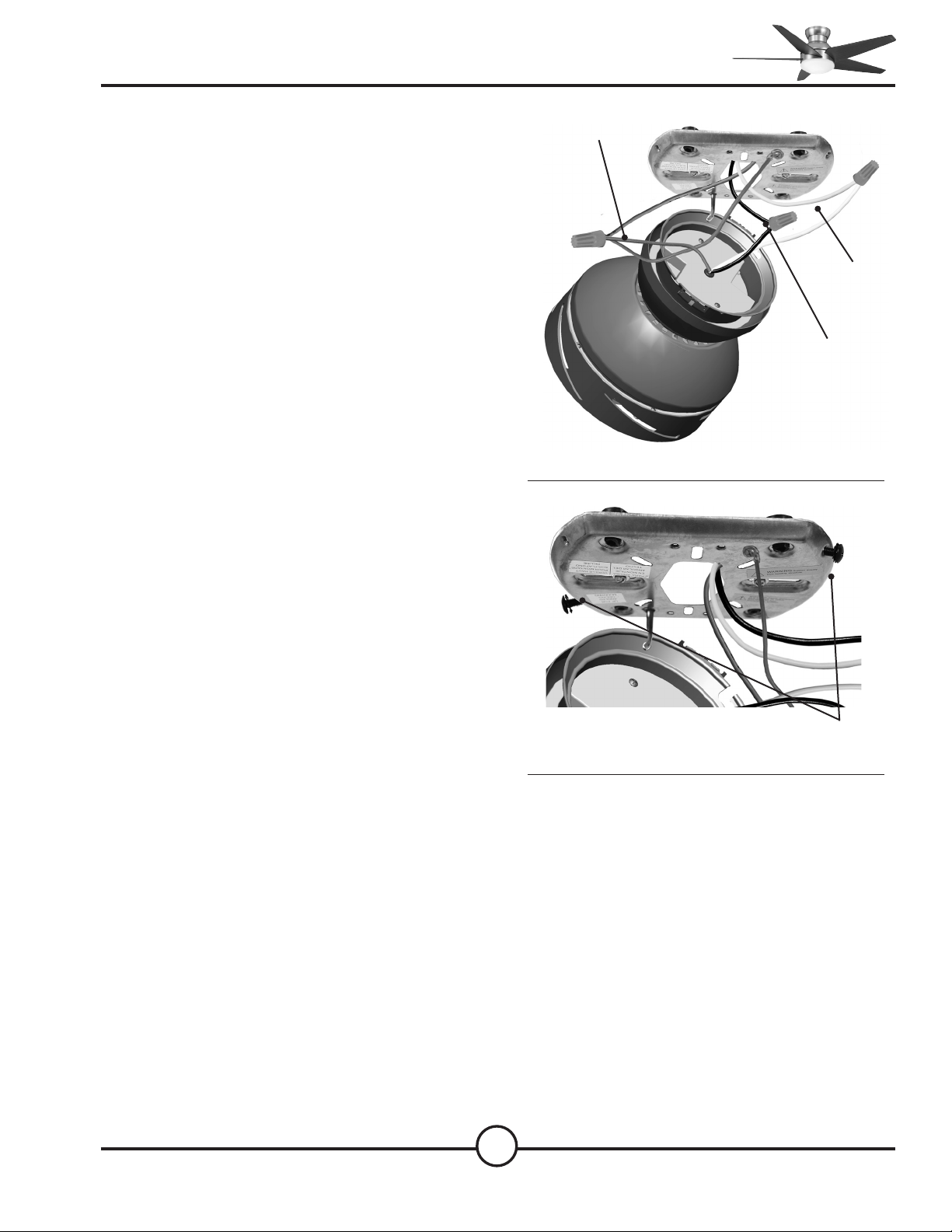

Step 2e. Attach the fan remote wires to the ceiling
bracket wiring by placing the bare end of the wires
side by side and then securing with a wire nut. Test
that the connection is secure by pulling on the wire
nut. Connect in this order:
• GREEN leads from ceiling bracket and motor to
GROUND conductor of power source. Secure with
wire nut as shown in Figure 4.
• WHITE wire from receiver to the WHITE NEUTRAL
conductor wire from the power source. Secure with
wire nut as shown in Figure 4.
• BLACK wire from receiver to the BLACK conductor
wire from the power source. Secure with wire nut
as shown in Figure 4.
GREEN GROUND
WIRES
WHITE
WIRES
BLACK
WIRES
Figure 4
Figure 5
Step 2f. After making the wire connections, the wires
should be tucked into the outlet box. The wires should
be spread apart, with the three grounded conductor
wires being placed on one side of the fan body and the
power conductor wires being placed onto the other
side of the fan body separating the connections.
CANOPY
SCREWS
Step 2g. Install two (2) of the canopy screws on the
left side of each end of the mounting plate Figure 5.
8
42900-01 • 07/10/13 • © Casablanca Fan Company
Figure 6
Step 2h. Using both hands, lift the fan body from the
hook and position the hanging slots on both sides
of the fan body, using the two fan mounting screws
located on the ceiling mounting plate. Slide the two
slots on both sides of the fan body between the head
of the screws and rotate the fan body clockwise into
the elongated slots as shown in Figure 6.
Step 2i. Install the other two canopy screws by holding
the fan body cover to the ceiling mounting plate as
shown in Figure 7 Tighten all four screws until hand
tight.
CANOPY RING
TABS
CANOPY
SCREWS
CANOPY
RING
Figure 7
Figure 8
Step 2j. Before going to the next step, locate the two
sets of canopy ring tabs that are on the top edge of the
canopy as shown in Figure 8. Now locate the two sets
of canopy tab holders found at the top of the fan body
near the ceiling as shown in Figure 9.
CANOPY
TAB HOLDER
Figure 9
HANGING
SLOT
Isotope ®
9
42900-01 • 07/10/13 • © Casablanca Fan Company
Figure 11
Figure 10
Step 2k. To install the canopy ring you will need to lift
straight up on the canopy ring. Lock the CANOPY RING
TABS and the CANOPY TAB HOLDERS by rotating the
canopy cover clockwise as shown in Figure 10, locking
the canopy ring in to place.
CANOPY
RING
Step 2l. Check your work by making sure the canopy
cover has an even gap between the ceiling and canopy
ring as shown in Figure 11.
10
10
42900-01 • 07/10/13 • © Casablanca Fan Company

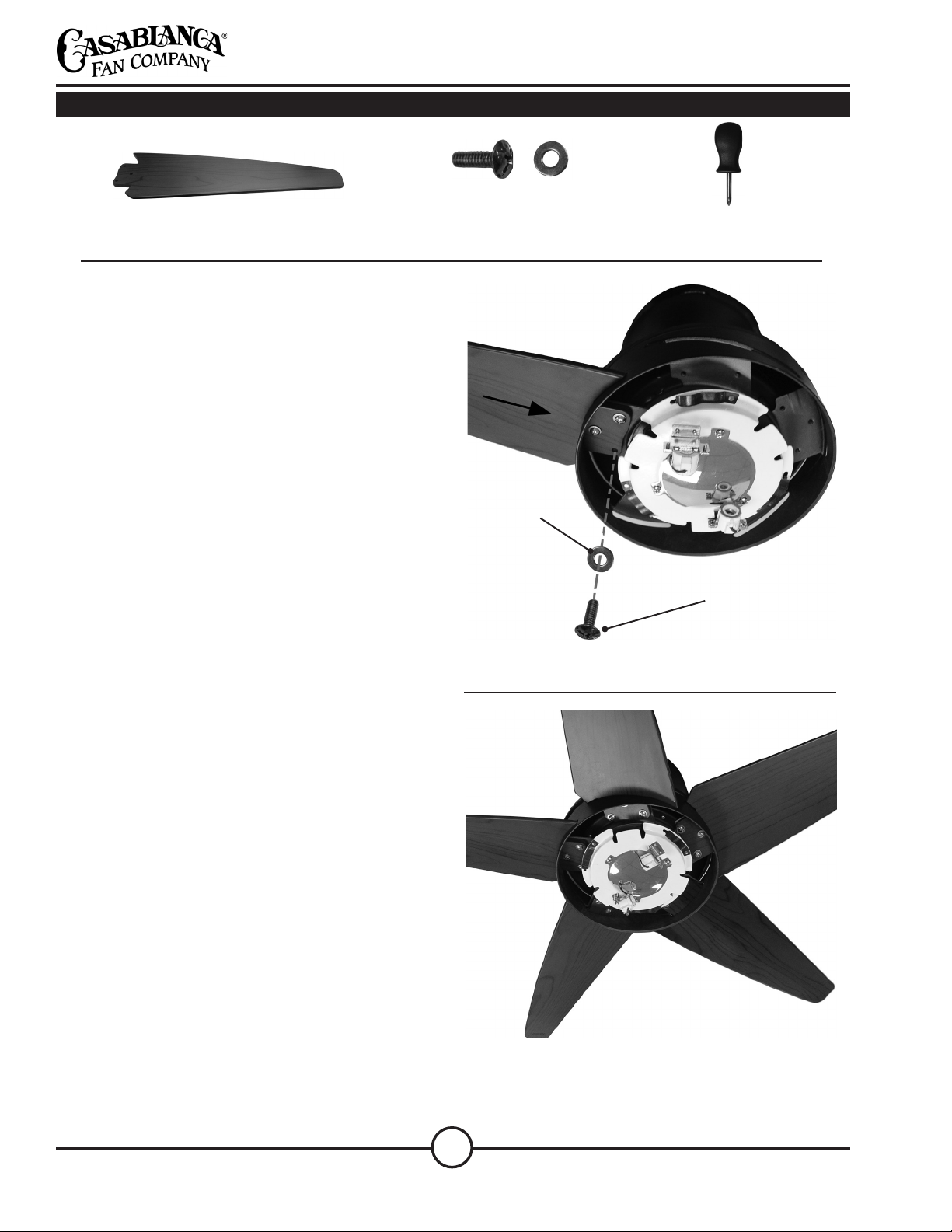

BLADE INSTALLATION
BLADE HARDWARE (not to scale)
Blades (5) Blade Screws and
Washers (16)
Blade Installation
Step 3a. Slide the end of the blade with the three
holes into the slot located on the blade ring. (The
blades will only t properly over the screws holes one
way. If the holes do not line up, remove the blade and
turn it over). Using three blade screws and washers,
attach the blade to the blade ring, as shown in Figure
12. Install three screws and washer one by one using
the provided screwdriver. Tighten securely by hand
only. Repeat until all ve blades have been installed
on to the fan as shown in Figure 13.
Phillips
Screwdriver
BLADE
WASHER
BLADE
SCREW
Figure 12
Figure 13
Isotope ®
11
42900-01 • 07/10/13 • © Casablanca Fan Company
LIGHT BULB AND GLASS INSTALLATION
Install Halogen Bulbs
Step 4. Screw the two bulbs into the light xture as
shown in Figure 14.
NOTE: When replacing the bulbs, be sure to use only
50-watt maximum.
HARDWARE (not to scale)
Glass Shade
50 -watt
Halogen Bulbs (2)
IMPORTANT! When installing a halogen bulb,
carefully cut off the end of the plastic sleeve
the bulb comes in and hold the bulb by the
plastic sleeve to screw it into the socket.
GLASS
SHADE
Figure 14
Figure 15
Glass Installation
Step 5a. Align the glass shade up with the bottom of
the fan as shown in Figure 15 and locate the three glass
holding slots. Then locate the three glass holding tabs,
located on the light xture plate.
Step 5b. Carefully lift the glass globe up inside the light
xture as far as it will go. Rotate the shade in a counter
clockwise direction as shown in Figure 16, until the
glass globe is held tightly in place by the three tabs.
GLASS
HOLDING
SLOTS
GLASS
HOLDING
TABS
Figure 16
12
12

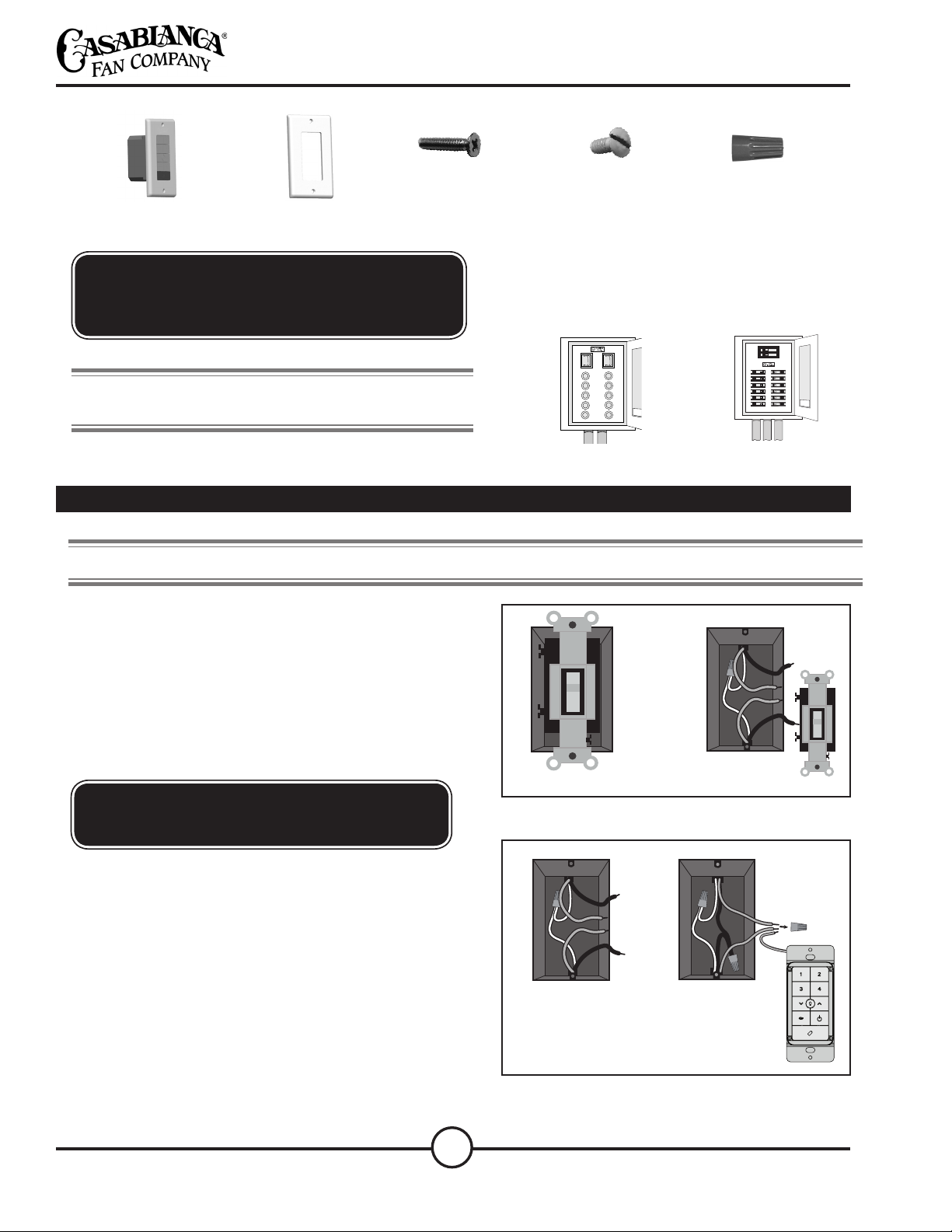

Wall Control
Cover Plate
Screws (2)
Switch Mounting
Screws (2)
(3) Wire Connector
WARNING! Ensure power is turned OFF at the
breaker or fuse panel before starting installation.
WARNING! To avoid possible electrical shock,
make certain that electricity is turned off at the
circuit breaker or fuse box before attempting any
installation or repair procedure.
CAUTION! NOT turning the power OFF at the circuit breaker or
fuse box may cause damage to the electronics within the fan.
Circuit Breaker
(Trip breaker for the
circuit you will be
working on)
Fuse Box
(Remove fuse for the
circuit you will be
working on)
Cover Plate
WALL CONTROL INSTALLATION
This controller is designed to signal the fan's
microcomputer as well as perform normal switching
operations. For this reason the following precautions
must be observed:
NOTE: Wall Control should only be installed on Casablanca 5xxxx Series Fans.
1. Use only the Casablanca wall control.
2. Do not use any additional control with your fan (for
example, dimmer, or fan speed control).
Before
Before
After
After
Figure 17
Figure 18
3. After removing the switch plate cover, remove all
wiring from the switch. Figure 17.
4. Using orange wire connectors, connect the two black
wires (ungrounded) from the outlet box. Also connect
the two green or bare wires (grounding) from the
outlet box with the grounding wire from the wall
control. Figure 18.
42900-01 • 07/10/13 • © Casablanca Fan Company
Isotope ®
13
Before
Before
After
After
Figure 19
Figure 20
Figure 22
Figure 21
Figure 23
WARNING! This device complies with Part 15
of the FCC Rules. Operation is subject to the
following conditions: (1) this device may not
cause harmful interference, and (2) this device
must accept any interference received, including
interference that may cause undesired operation.
Fan
Power
4
Lights
Down
Fan
Speed
Reverse
Battery
Holder
Fan
Power
Lights
Up
Fan
Speed
(Low)
(High)
1. Before operating the wall control, press on the
battery door to eject it. Unscrew the battery holder.
Insert the battery, found in the control hardware
bag, with the positive (+) side facing downward.
Reinstall the battery holder and reinsert the battery
door into the wall control. Figure 21.
2. The fan must be paired before it will operate. See
Pairing the Remote, page 14.
3. Quickly press the up or down arrow to turn the
lights off and on. Hold the up or down arrow to
raise or dim the light level. The reverse button
changes the direction that the blades turn. The
power button turns the fan off and on. Figure 23.
4. The reverse button on the wall control changes the
air ow pattern. In warm weather, use (a) downward
air ow pattern. In cold weather, use (b) upward air
ow pattern. Figure 23.
WALL CONTROL OPERATION
Before
Before
After
After
5. Insert the wall control into the outlet box and secure
the two screws using a Phillips head screwdriver. Figure
19.
6. Install the cover plate using a Phillips Head screwdriver
to secure the two cover plate screws. Figure 20.
42900-01 • 07/10/13 • © Casablanca Fan Company
Battery
Battery
Holder
Battery
Door
14
Learning Mode - This feature shall be initiated by cycling the power to the fan. For 3 minutes after cycling power to
the fan, the pairing operation can be performed using the wall control.
Begin by pressing both the fan power button and the (4) button for at least 3 seconds. This will send an encoded
binary bit message to a target receiver-controller. The fan will turn at the lowest speed signifying that the remote
pairing process is complete.
Your fan automatically detects what type of bulbs that are
installed each time it is powered up. PLEASE NOTE: If CFL bulbs
are detected, the dimming function will automatically be disabled.
Remember to turn off the lights before replacing bulbs.
To turn the lights off and on, press either the up or down arrow.
To adjust the light level, press and hold either the down arrow to dim the
light or the up arrow to return the light to full brightness.
LIGHTS
PAIRING THE REMOTE
SAFE-EXIT®
The Safe-Exit Program gives you about thirty seconds of light when you turn the lights off, enabling you to exit your
home before the lights go out. To enter the Safe-Exit Program:
Incandescent Lighting
1. Press the fan power button off for at least three seconds to initiate the Safe-Exit Mode.
2. The lights will ash for visual conrmation.
3. The lights will stay on 50% brightness for 20 seconds and then begin to dim. After a total of 30 seconds, the
lights will be completely off.
CFL Lighting
1. Press the fan power button off for at least three seconds to initiate the Safe-Exit Mode.
2. The lights will ash for visual conrmation.
3. The lights will stay on 100% brightness for 30 seconds. After a total of 30 seconds, the lights will be completely
off.
Figure 23
Lights
Down
Fan
Speed
Reverse
Battery
Holder
Fan
Power
Lights
Up
Fan
Speed
(Low)
(High)
NOTE: The remote must be paired before the fan will operate.
42900-01 • 07/10/13 • © Casablanca Fan Company
Isotope ®
15
Please refer to this troubleshooting guide before requesting service or contacting your dealer for assistance.
TROUBLESHOOTING TIPS
This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
1. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures: Reorient or relocate the receiving antenna, Increase the separation between the equipment and
receiver, Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the
dealer or an experienced radio/TV technician for help. Note: Any changes or modications to the transmitter or receiver not
expressly approved by Casablanca Fan Company may void one’s authority to operate this remote control.
Fan doesn't work
• Press a fan speed button (1-4).
• Check the circuit breaker to ensure the power is turned on.
• Check the wall control battery.
• Make sure that you have paired the wall control.
• Make sure the blades spin freely.
• Turn off power from the circuit breaker, then check all wire connections according to the wiring
instructions.
Excessive wobbling
• Tighten all of the blade and blade iron screws until they are snug.
• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated.
• Use the provided balancing kit and instructions to balance the fan.
Lights do not dim
• Make sure that you do not have a CFL bulb installed. The control has a feature that automatically detects CFL
bulbs and turns off dimming if a CFL bulb is installed.
Noisy Operation
• Tighten the blade and blade iron screws until they are snug.
• Check to see if any of the blades are cracked. If so, replace all of the blades.
Lights dim when turned on or do not turn on at all.
• Make sure the wattage of the light bulbs installed matches the specications on the light sockets.
42900-01 • 07/10/13 • © Casablanca Fan Company
16
42900-01 • 07/10/13 • © Casablanca Fan Company
Fan Finishes
• For cleaning, a soft brush or lint-free cloth should be used to prevent scratching the nish.
• A vacuum cleaner brush nozzle can remove heavier dust.
• Surface smudges or an accumulation of dirt and dust can be removed easily using a mild detergent and slightly dampened soft
cloth. An antistatic agent may be used, but never use abrasive cleaning agents as these will damage the nish.
Blades
• Wood-nish blades should be cleaned with a furniture polishing cloth. Occasionally, a light coat of furniture polish may be
applied for added protection and luster.
• For painted and high-gloss blades, surface smudges or an accumulation of dirt and dust can be removed easily using a mild
detergent and slightly dampened soft cloth. An antistatic agent may be used, but never use abrasive cleaning agents as these
will damage the nish.
• Warning: To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades,
or cleaning the fan. Do not insert foreign objects in betweeen rotating fan blades.
No Need for Lubrication
• Never lubricate this fan! The precision motor at the heart of your Casablanca fan features sealed bearings that are lubricated for
life.
• Do not attempt to oil the motor.
Changing Lightbulbs
• Be sure to turn the power to OFF at the wall switch or circuit breaker before changing lightbulbs.
• Replace bulbs with the same type as you removed from the light xture.
• The maximum wattage rating for this fan’s light kit is 100 watts for the light.
CARE RECOMMENDATIONS
For questions or to locate the nearest Casablanca Authorized Service Center,
call toll-free 1-888-227-2178 or visit us at www.CasablancaFanCo.com
This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
1.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful inter-
ference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
2.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures: Reorient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Connect the equip-
ment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for
help. Note: Any changes or modications to the transmitter or receiver not expressly approved by Casablanca Fan Company may void one’s authority
to operate this remote control.
Table of contents
