Kichler Lighting 300160 User manual

 2*
 2*
Kichler®Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
Instruction Manual
FerronTM
A Kichler
®
Decor
™
ceiling fan
300160
Includes our new
CoolTouch
TM
6 Speed DC Control System
Looks permanent, but goes wherever you go!
U.S. Patent Pending
HIGH
EFFICIENCY
DC
MOTOR
3171583

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualified
licensed electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. To operate the reverse function on this
fan, press the reverse button while the fan
is running.
8. WARNING: Use only with a light kit
marked "Suitable for Use in Wet
Locations".
9. Avoid placing objects in the path of the
blades.
10. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
11. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
12. After making the electrical connections,
spliced conductors should be turned
upward and pushed carefully up into the
outlet box. The wires should be spread
apart with the ground wire and white
(common) wire to one side with the black
(load) wire to the other side of the outlet
box.
13. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT
FAN TO OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS
IN THE PATH OF THE BLADES.
1
1. SAFETY RULES

2

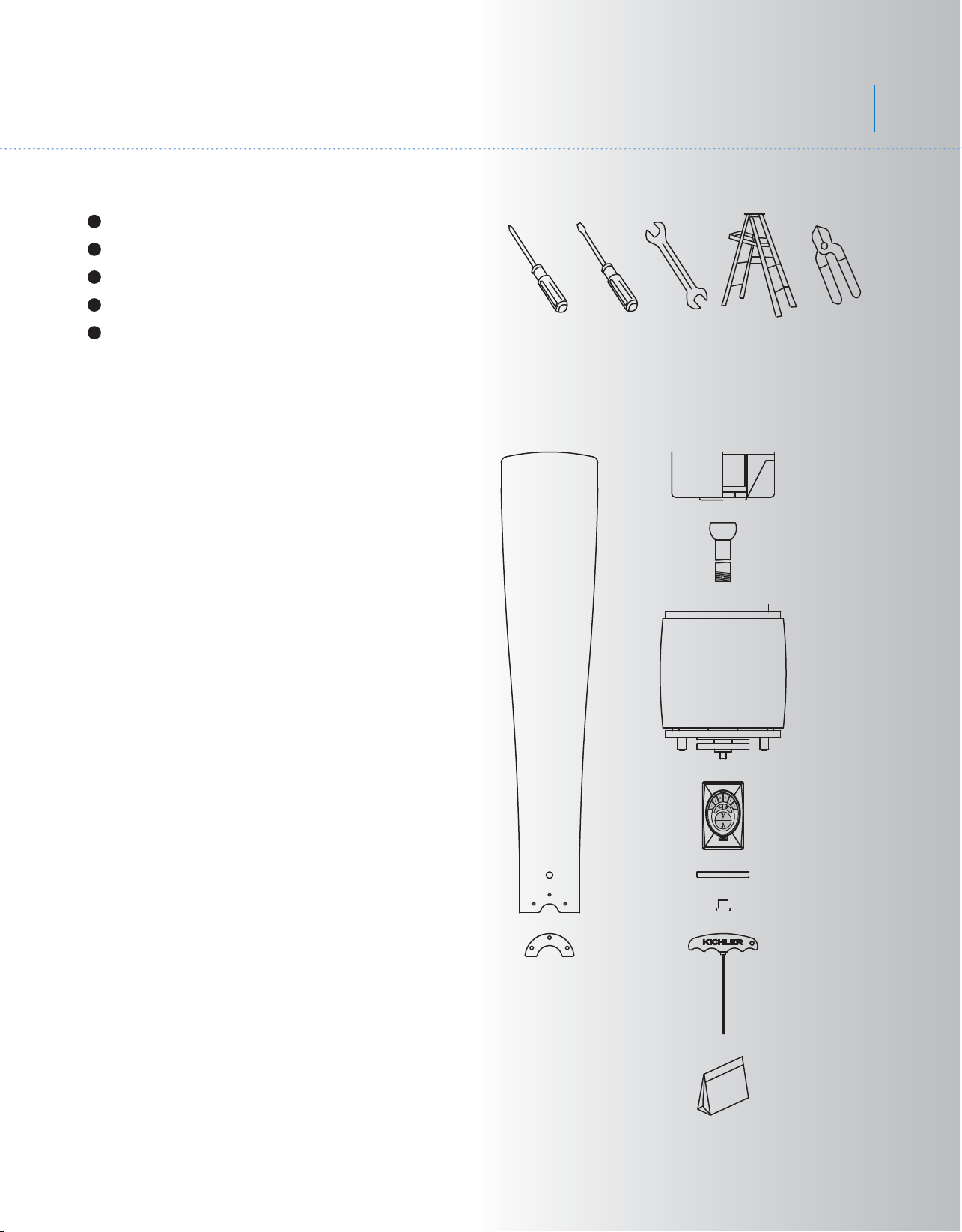

3. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
a. Fan blades (2)
b. Blade support plates (2)
c. Canopy & Ceiling mounting bracket
d. Ball/downrod assembly
e. Fan motor assembly
f. Basic Function CoolTouch™ Control
System
g. Decrotive cover
h. Decrotive nut
j. Allen wrench
j. Part bag contents
1) Mounting hardware:
star washers (2), wire nuts (3),
machine screws (2), washers (2),
screws (2)
2) Blade attachment hardware:
Allen screws (2), screws (8), fiber
washers (2)
3) Safety cable hardware:
wood screw, lock washer, flat washer
4) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
a
b
c
d
e
f
g
h
i
j
FerronTM

4. MOUNTING OPTIONS
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
ANGLED CEILING
MAXIMUM 30°ANGLE
3
If there isn't an existing ETL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
NOTE: If you are installing the ceiling fan on a
sloped (vaulted) ceiling, you may need a
longer downrod to maintain proper clearance
between the tip of the blade and the ceiling.
A minimum clearance of 12" is suggested for
optimal operation.
NOTE: Depending on the location you have
selected for installation, you may need to
purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist
hanger you purchase has been designed for
use with ceiling fans. (Fig. 4)

4
Fig. 8
Fig. 7
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
bracket
ETL Listed
outlet box
120V Wires
Washers
Ceiling mounting
bracket
Canopy
Canopy cover
Fig. 6
Fig. 5
5. HANGING THE FAN
RMEMEBER to turn off the power before you
begin installation. This is necessary for your
safety and also the proper programing of the
control system.
To properly install your ceiling fan, follow the
steps below.
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket
from the canopy by removing and saving one
of the two screws. Loosen the remaining
screw by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from
the ceiling outlet box through the center of the
ceiling mounting bracket. (Fig. 6)
Step 4. Attach the ceiling mounting bracket to
the outlet box using the screws and washers
included with the outlet box. (Fig. 6)
Step 5. Remove the coupling cover from the
motor housing by removing the two screws
from the rim of coupling cover. (Fig. 7)
Step 6. Remove the hanger ball from the
downrod assembly by loosening the set
screw, removing the cross pin and sliding the
ball off the rod. (Fig. 8)
SPECIAL NOTE: For proper Control System
Programing, it is essential that power is NOT
connected or turned on to the ceiling fan
during the installation process.
You will be instructed at the proper time to
power up the system.
Collar
Coupling cover
Screws
Cross pin
Hanger ball
Set screw
Downrod
FerronTM

5
Fig. 9
Fig. 11
Fig. 10
Registration slot
Check tab

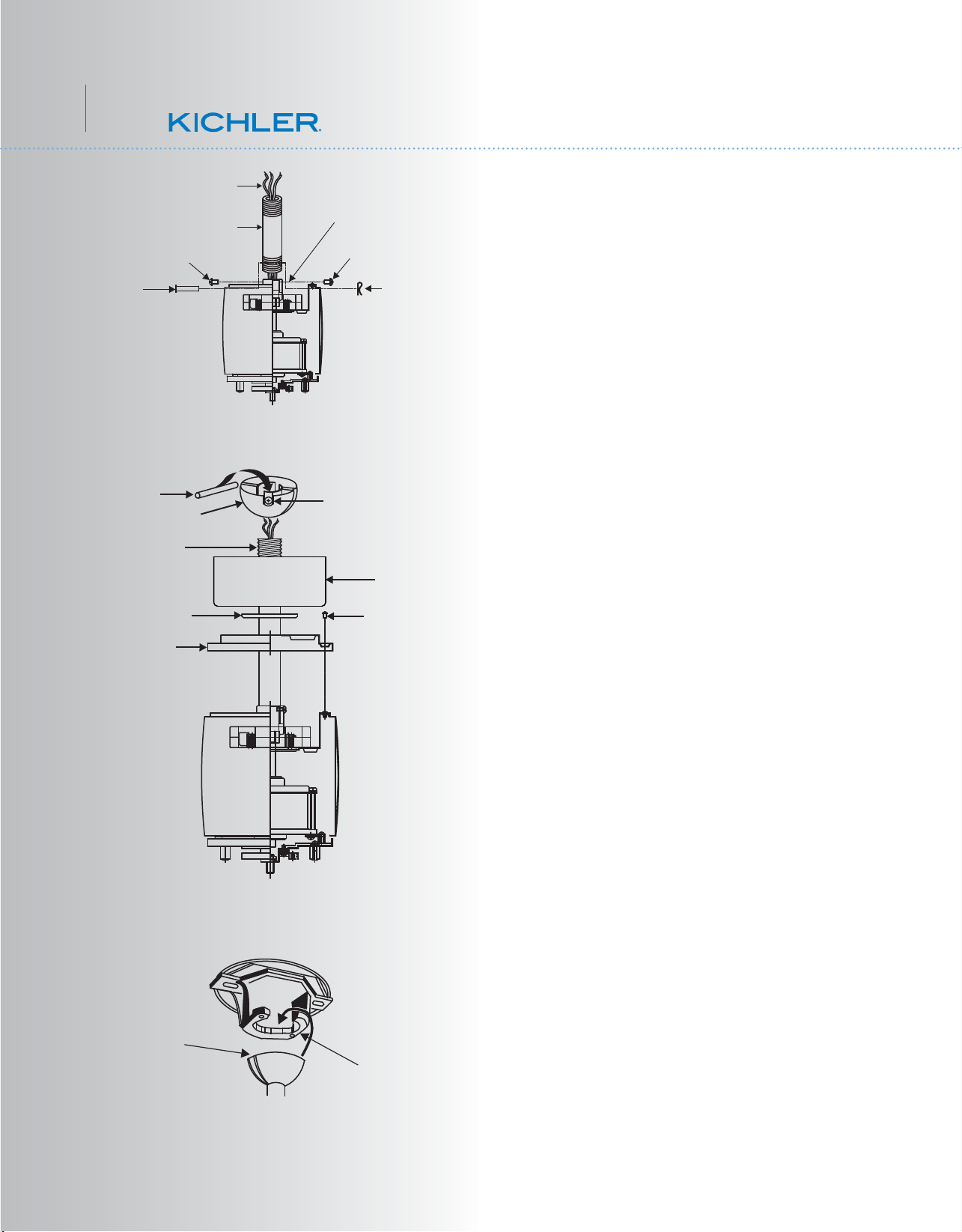

Step 7. Loosen the two set screws and
remove the hitch pin and retaining clip from
the coupling on top of the motor assembly.
(Fig. 9)
Step 8. Carefully feed the electrical lead wires
from the fan up through the downrod. Thread
the downrod into the coupling until the Hitch
pin holes are aligned.
Next, replace the hitch pin and retaining clip.
Tighten both set screws. (Fig. 9)
Step 9. Slip the coupling cover, canopy cover
and canopy onto the downrod. Secure the
coupling cover to the motor housing using the
two screws previously removed. (Fig. 10)
Thread the hanger ball onto the downrod,
insert the cross pin through the downrod and
tighten. Now tighten the set screw. (Fig. 10)
Step 10. Lift the motor assembly into position
and place the hanger ball into the ceiling
mounting bracket.
Rotate the entire assembly until the "Check
Tab" has dropped into the "Registration Slot"
and seats firmly. (Fig. 11)
The entire motor assembly should not rotate
(left or right) when seated properly.
WARNING: Failure to reattach the cross pin
and seat the "Check Tab" can cause the fan
to fall from the ceiling during operation. Take
special care to make sure this pin is
reattached.
Downrod
Canopy
Canopy cover
Coupling cover
Screws
Cross pin
Hanger ball
Set screw
Supply wires
Downrod
Hitch pin
Retaining clip
Set screws
Coupling
Set screws

6
Fig. 12
Ceiling mounting
bracket Attach
safety cable
to ceiling joist
with screw and
washer
Fig. 13
7. ELECTRICAL CONNECTIONS
6. INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help
prevent the ceiling fan from falling, please
install it as follows.
Step 1. Attach the provided wood screw and
washers to the ceiling joist next to the
mounting bracket but do not tighten. (Fig. 12)
Step 2. Adjust the length of the safety cable to
reach the screw and washers by pulling the
extra cable through the cable clamp until the
overall length is correct. Put the end of the
cable back through the cable clamp forming a
loop at the end of the cable. Tighten the cable
clamp securely. Put the loop in the end of the
safety cable over the wood screw and under
the washer. Tighten the wood screw securely.
NOTE: Although the safety support cable is
required for Canadian installations only. It's a
good idea to make the attachment with any
installation.
WARNING: To avoid possible electrical shock,
be sure you have turned off the power at the
main circuit panel.
Follow the steps below to connect the fan to
your household wiring. Use the wire
connecting nuts supplied with your fan. Secure
the connectors with electrical tape. Make sure
there are no loose wire strands or connections.
Step 1. Connect the fan supply (black) wire to
the black household supply wire as shown in
Figure 13.
Step 2. Connect the neutral fan (white) wire to
the neutral household (white) wire.
Step 3. Connect the fan ground wire (green) to
the household ground wire.
Step 4. After connecting the wires, spread
them apart so that the green and white wires
are on one side of the outlet box and the black
and blue wires are on the other side.
Step 5. Turn the connecting nuts upward and
push the wiring into the outlet box.
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
Ground (green)
(Connect to ground wire
on hanger bracket if no
house ground wire exists.)
Outlet box
Black ("AC IN L")
Black (motor)
FerronTM

7

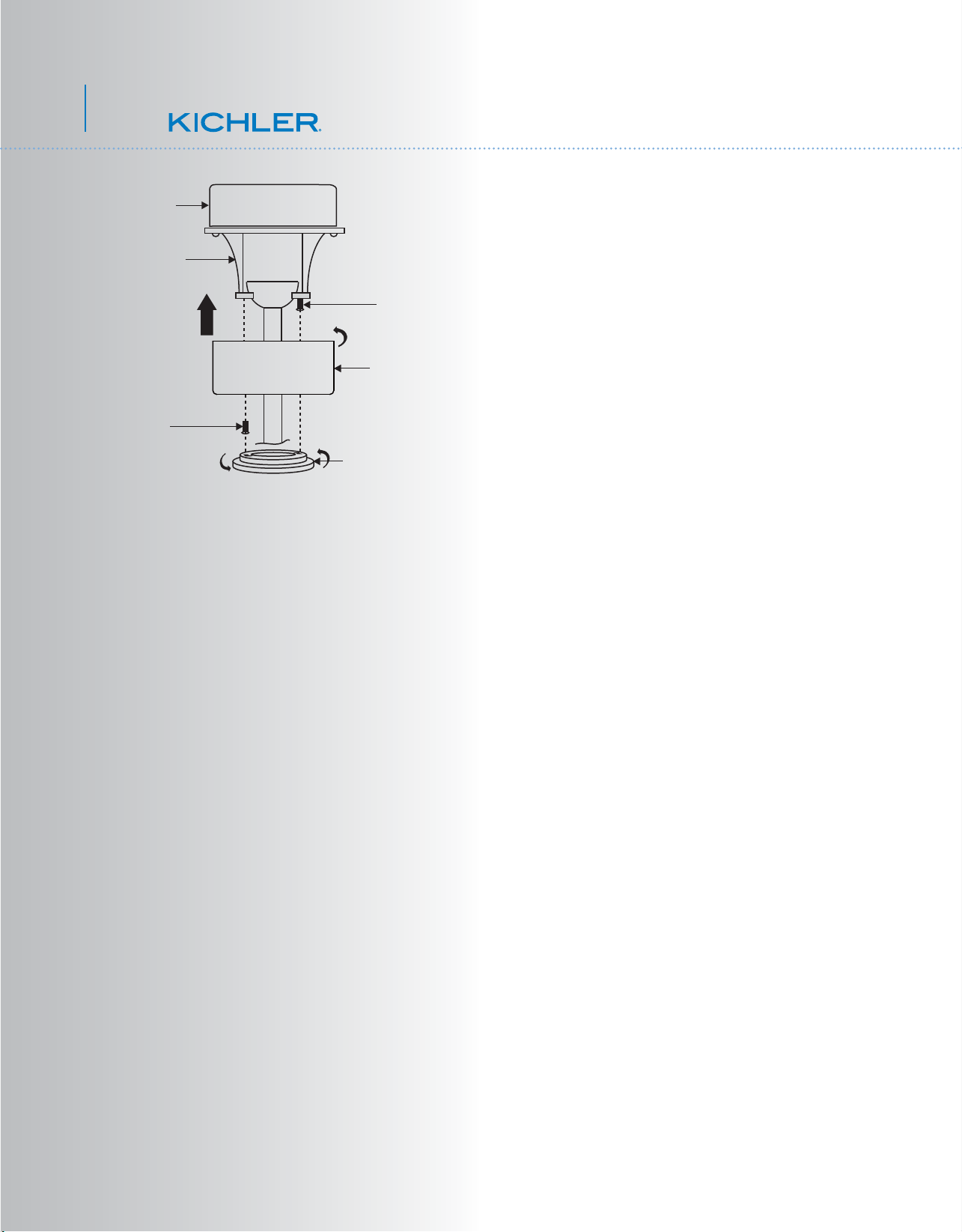

Step 1. Tuck all the connections neatly into
the ceiling outlet box.
Step 2. Slide the canopy up to the mounting
bracket and place one of the key hole slots
over the mounting screw on the mounting
bracket. Rotate the canopy until the screw
head locks in place at the narrow section of
the key hole. See figure 14.
Step 3. Align the remaining circular hole on
the canopy with the remaining hole on the
Ceiling Mounting Bracket. Insert and tighten
the mounting screw you removed earlier and
the mounting screw from Step 2 above. Now,
attach the canopy cover to the mounting
screw heads by inserting the screw heads into
the bottom side of the canopy cover and
rotating the cover clockwise.
NOTE: Adjust the canopy screws as
necessary until the canopy and canopy cover
are snug. (Fig. 14)
Warning: Make sure the "Check Tab" at the
bottom of the hanger bracket is properly
seated in the "Registration Slot" on the side of
the hanger ball before attaching the canopy to
the bracket. Failure to properly seat the
"Check Tab" could damage the electrical
wires when the ceiling fan blade direction is
changed while the fan is running.
8. FINISHING THE INSTALLATION
Fig. 14
Outlet box
Ceiling mounting
brackrt
Canopy
Screw
Canopy cover
Screws

8
Fig. 15
Fig. 16
Decorative cover
Decorative nut

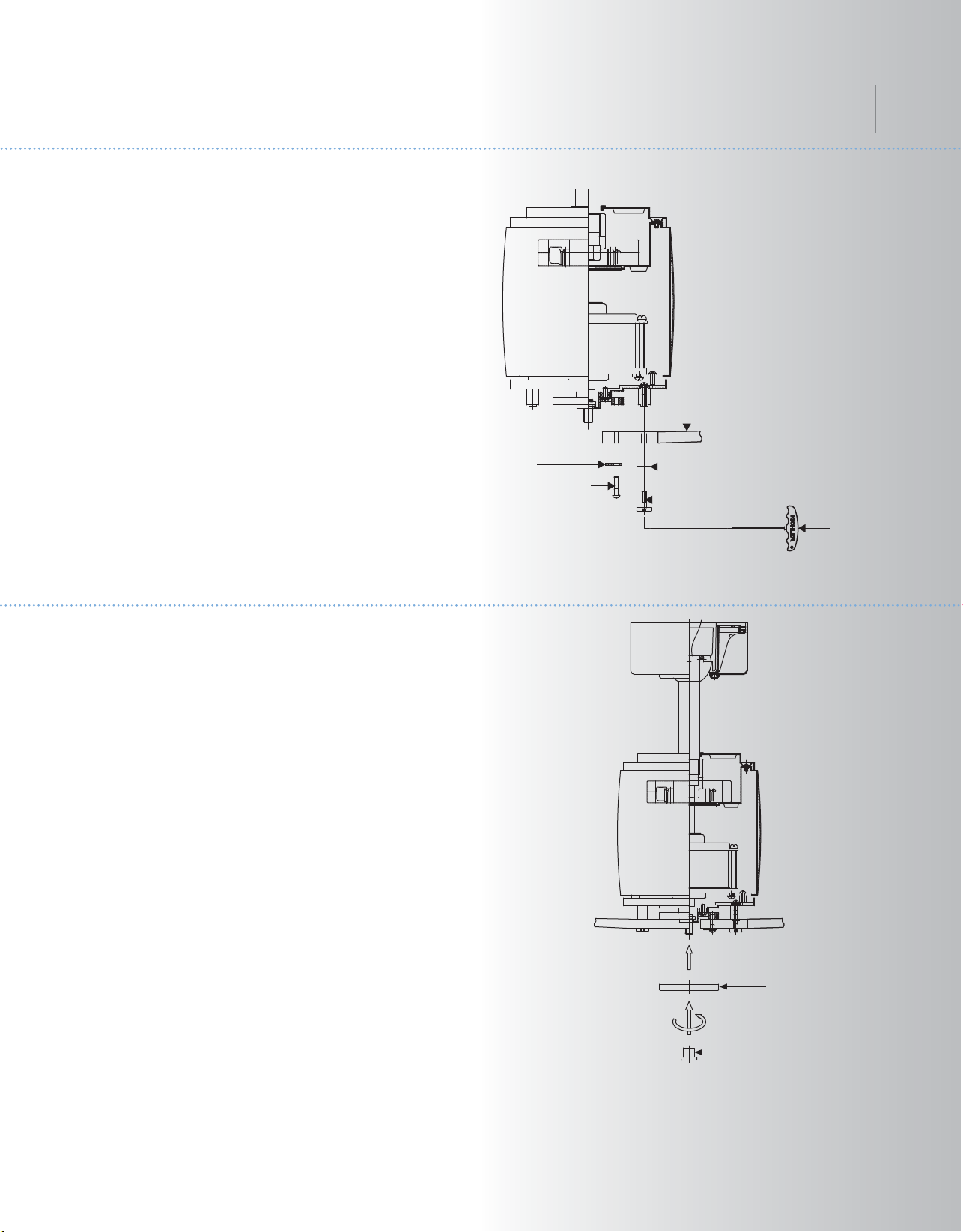

9. ATTACHING THE FAN BLADES
10. INSTALLING THE DECORATIVE
COVER AND DECORATIVE NUT
Step 1. Attach the decorative cover and
decorative nut onto the fan motor stem. DO
NOT OVER TIGHTEN. (Fig. 16)
FerronTM
Blades
Allen screws
Allen
wrench
Fiber washers
Blade
support
plate Screws
Step 1. Attach the blade to the blade bracket
using the screws, blade support plates, Allen
screws, and fiber washers provided. To
tighten the Allen screw by using the Allen
wrench provided. (Fig. 15)
Make sure the blade is straight when set on
the blade bracket. Tighten each mounting
screw and then repeat this procedure for each
blade.

9
11. CONTROL SYSTEM SET-UP
Fig. 17
Fig. 18
TM
TM
ON
1 2 3 4
D
X
ON
Dip switch
Make sure the power is completely
disconnected before you begin this
procedure.
SPECIAL NOTE:
Your new Kichler®Ceiling Fan is State of the
Art and employs a High Efficiency DC (direct
current) Motor with an advanced CoolTouch™
Remote Control System. The DC Motor uses
70% less energy than a conventional ceiling
fan AC Induction Motor. The DC motor is
“Digitally” controlled and operates differently
than conventional ceiling fans motors. Please
read this portion of the manual completely
before proceeding.
Our CoolTouch™ Control system includes an
“Automatic Frequency Selection” feature. To
set the control frequency and program the
control system, follow these steps.

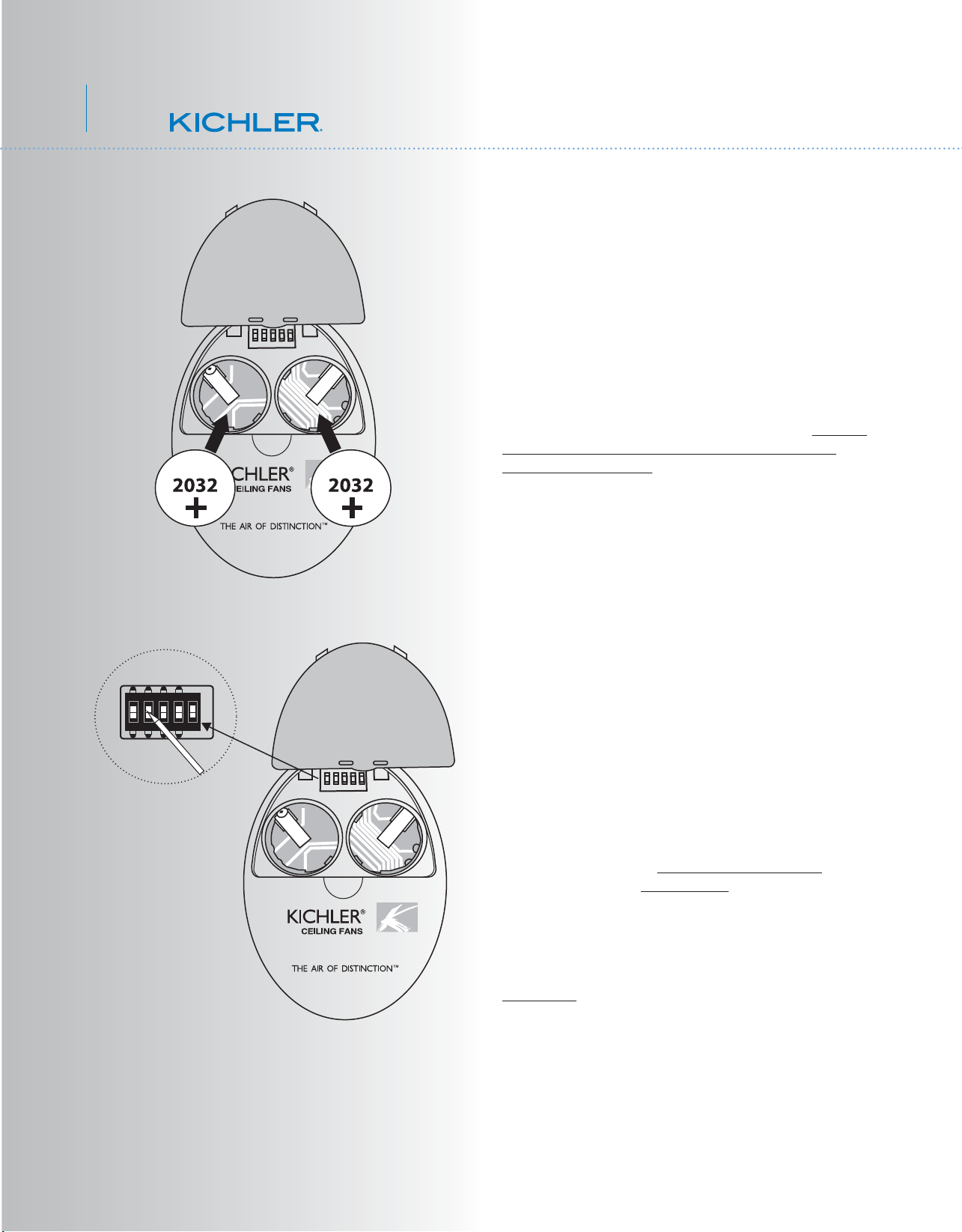

Open the back of the Transmitter (figure 18)
The Frequency Selector is a "Dip Switch
Block" inside the Battery compartment of the
Transmitter. (See figure 19) You change
frequencies by arranging the small switches
numbered 1 through 4 in an up or down
position. 16 possible frequencies or
combinations are possible.
The fifth switch, marked D and X sets the
system for operation with Incandescent or
Fluorescent Lamps. It is essential to set this
switch correctly. If your ceiling fan is equipped
with Incandescent Lamps, set this switch to
the D Position, for Fluorescent Lamps, set
the switch to the X Position. If these settings
are reversed, the lighting control system will
operate erratically and could damage your
ceiling fan.
System Programing: Read all of these steps
BEFORE proceeding. Each step must be
followed exactly to properly program the
control system.
1. You can leave the frequency switches at
the factory setting or move them to any
combination of up or down. Use a small flat
bladed screwdriver to move the switches.

10
2. Insert both batteries and make sure they
are seated correctly in each recess with the
Positive + sign facing up. Replace the battery
cover. (Figure 17)
3. Test the transmitter by pushing and
releasing ANY button briefly. A Blue Light
should illuminate under the 3-4 buttons. (Fig.
19) If not, check to make sure the batteries
are inserted and seated correctly.
Power Up and Programming:
4. Turn the power on, press and hold the
button until the ceiling fan light blinks twice
(Figure 20)
NOTE: Do not press any other button during
this procedure.
5. The transmitter just communicated with
the ceiling fan, selected the appropriate
frequency, did a self check and signaled
“complete”.
NOTE: This operation must be started
WITHIN the first 120 seconds (2 minutes) of
turning the power on. No other buttons
can be push during this time.
6. After the ceiling fan light blinks twice, press
and release the High Speed (6) Button. Let the
ceiling fan run for a minimum of 90 seconds
(1 ½ minutes). The control system will do
another self check, initialize all operational
functions and complete the programming
process (Figure 20).
7. Your CoolTouch™ Control System is now
programmed and ready for use. Please see
the following Operational Instructions.
Fig. 19
Fig. 20
Blue Light
#1 Press/hold Button
#2 Press 6 Button
FerronTM

11
12. OPERATING INSTRUCTIONS:
Figure 21
1. Buttons 1, 2, 3, 4, 5 and 6 are used to set
the blade speed as follows:
1 = Low Speed
2 = Medium Low Speed
3 = Medium Speed
4 = Medium High Speed
5 = High Speed
6 = Extra High Speed
Figure 22
2. The " " button:
This button turns the fan motor off and is also
used in the program procedure.
3. The " " and " " button:
The " " button turns the upper light ON or
OFF and also controls the brightness setting
on some models. The " " button turns the
bottom light ON or OFF and also controls the
brightness setting.
Press and hold either button to set the desired
brightness level. The next time you turn the
light on, the system will remember this setting.
Press and release either button to turn the
light ON or OFF.
Figure 23
4. The " " button is used to set the fan in
forward or reverse operation. Each time you
press this button the fan blades will reverse
direction. This button functions ONLY when
the fan blades are in motion.
OPERATIONAL NOTE: Each time you start
the blades rotating, at any speed or reverse
the direction of the blades the Control System
will do a “Self Check” to insure operational
integrity. The blades will rotate slowly a short
distance (¼ turn), pause, change directions,
rotate ¼ turn, then build up RPM'S to the
selected speed. This is a perfectly normal
procedure and insures normal operating
performance.
Fig. 21
Fig. 22
Fig. 23
Motor Off Button
Light Control Buttons
Forward/Reverse
Button
Speed Buttons

12
Fig. 24
Fig. 25
NOTE: Please remember your control system
is an RF (Radio Frequency) control system.
You may occasionally experience control
problems because of other radio frequency
interference, i.e. fan turns off, light turns off or
won't turn on, speed changes, etc. If this
should happen, just change the “Control
Frequency” by turning the power off and
repeating steps 1 through 6 under System
Programming.
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
Warm Weather Operation: Forward (counter
clockwise) A downward airflow creates a
cooling effect as shown in Fig. 24. This allows
you to set your air conditioner on a warmer
setting without affecting your general comfort.
Cool Weather Operation: Reverse (clockwise).
An upward airflow moves warm air off the
ceiling areas as shown in Fig. 25. This allows
you to set your heating unit on a cooler setting
without affecting your general comfort.
FerronTM

13
13. INSTALLING THE COOLTOUCH™
CONTROL SYSTEM WALL PLATE
14. INSTALLING THE TRANSMITTER
1. Insert the transmitter into the wall plate by
inserting the bottom of the transmitter first
and then press the top of the transmitter into
the pocket. The transmitter will fully function
from this location or you can remove the
transmitter and use as a "Hand Held" device.
(Fig. 28)
2. To remove the transmitter from the wall
plate, push the release button and the
transmitter will fall into your hand.
Select a location to install your CoolTouch™
Control System Transmitter. You can replace
an existing wall switch, or install the
transmitter on ANY flat surface.
Option 1: Install the control system using an
existing wall switch outlet box. Make sure the
electrical power is TURNED OFF at the main
panel before continuing.
Step 1. Remove the existing wall plate and the
old switch from the wall outlet box. Wire nut
the BLACK leads (hot) together and push back
inside the outlet box. (Fig. 26)
Step 2. Install the metal plate and
CoolTouch™ wall plate to the existing wall
outlet box with 4 screws provided. Then place
the two plastic plugs into the wall plate. (Fig.
27)
Option 2: Install the control system on ANY
flat surface.
Select the desired location and use the
CoolTouch™ wall plate to mark the location
for the mounting holes. Plastic wall anchors
and screws are provided for this type of
installation. After installing the wall anchors,
attached the CoolTouch™ wall plate with the
mounting screws and then insert the plastic
plugs to finish the installation.
Fig. 26
Fig. 27
Wall plate
Switch
Outlet box
Screws
Screws
Plastic plugs
CoolTouch™wall plate
Outlet box Metal plate
Release
button
Fig. 28

14
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
3. Make sure the transmitter batteries are installed properly. Positive (+) side
facing out.
4. Insure the batteries have a good charge.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are
tight. Make sure the light bulbs are not touching any other component.
6. Do not connect this fan to wall mounted variable speed control(s). They are
not compatible with ceiling fan motors or remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is positioned
for measurement. Repeat for each blade. The distance deviation should be
equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in
conjunction with any other control system EXCEPT a basic On/Off wall switch,
if desired.
15. TROUBLESHOOTING
16. SPECIFICATIONS
These are approximate measurements. They do not include data for any lamps or fixtures
attached to the ceiling fan.
11.98
kgs
N.W.
12.98
kgs
G.W.
1.97'
C.F.RPM
120
103
88
75
61
48
CFM
6785.05
5513.70
4483.51
3507.16
2847.01
2367.96
CFM/W
220.29
265.08
311.35
377.11
444.84
526.21
Fan Size
60"
120
120
120
120
120
120
Volts
0.43
0.30
0.22
0.14
0.10
0.07
Amps
30.80
20.80
14.40
9.30
6.40
4.50
WattsSpeed
Extra-High
High
Medium High
Medium
Medium Low
Low
FerronTM
