Instruction Manual

RidleyTM

A Kichler®Décor™ceiling fan

Includes our Basic Function

CoolTouch

Control System

Looks permanent, but goes wherever you go!

U.S. Patent Pending

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local electrical

codes. Electrical installation should be

performed by a qualified licensed

electrician.

3. WARNING: Suitable for use with solid-

state speed controls.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box

for mounting to the outlet box. Most outlet

boxes commonly used for the support of

lighting fixtures are not acceptable for fan

support and may need to be replaced,

consult a qualified electrician if in doubt.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only CUL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the floor.

7. Do not operate reversing switch while fan

blades are in motion. Fan must be turned

off and blades stopped before reversing

blade direction.

8. Avoid placing objects in the path of the

blades.

9. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

10. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After making the electrical connections,

spliced conductors should be turned

upward and pushed carefully up into outlet

box. The wires should be spread apart with

the ground wire and white (common) wire

to one side with the black (load) wire to the

other side of the outlet box.

12. Electrical diagrams are reference only.

Light kits that are not packed with the fan

must be CUL Listed and marked suitable

for use with the model fan you are

installing. Switches must be CUL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

FAN TO OUTLET BOX MARKED

"ACCEPTABLE FOR FAN SUPPORT".

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR AFTER

INSTALLATION. DO NOT INSERT OBJECTS

IN THE PATH OF THE BLADES.

1. SAFETY RULES

Special Notice

This appliance is equipped with a "Wattage

Limiting Device" required by the United

States Department of Energy. The device

has been installed at the factory and can not

be removed.

Installing Lamps in excess of 190 total watts

will disable the unit's light fixture. If this

should happen, you will need to reset the

lighting fixture by turning the power off to

the ceiling fan and/or light fixture,

reinstalling lamps totaling less that 190

watts and then turning the power back on.

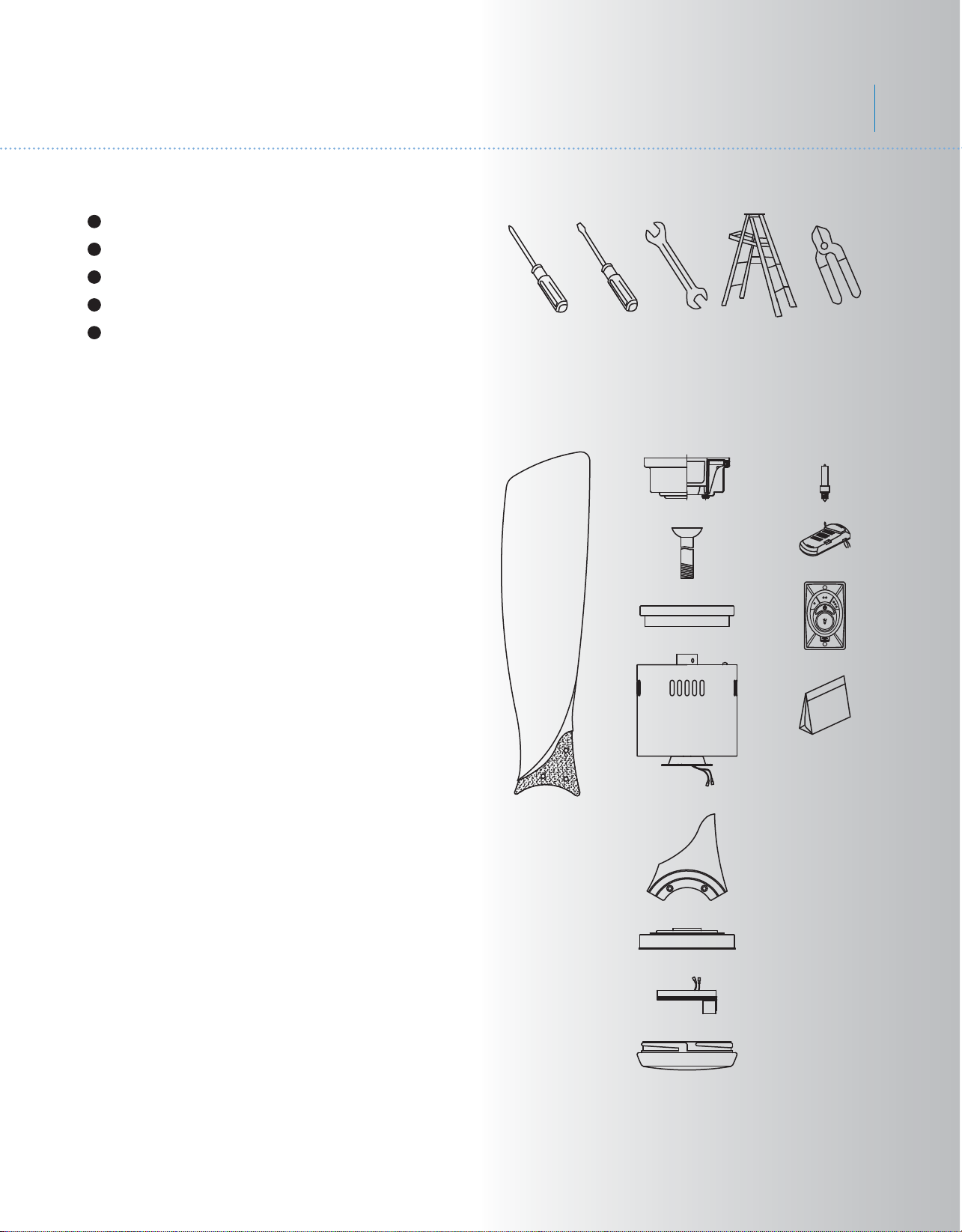

3. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

a. Fan blades (3)

b. Canopy & Ceiling mounting bracket

c. Ball/downrod assembly

d. Coupling cover

e. Fan motor assembly

f. Set of 3 blade brackets and Pre-Installed

mounting screws

g. Light plate

h. Socket plate assembly

i. Glass shade

j. 100W, E-11 JD TYPE, halogen lamp

k. CoolTouch™ Receiver

l. Basic Function CoolTouch™ Control

System

m. Part bag contents

1) Mounting hardware:

wood screws (2), flat washers (2),

star washers (2), wire nuts (3),

screws (2)

2) Blade attachment hardware:

screws (11), fiber washers (11)

3) Blade bracket attachment hardware:

screws (2)

4) Safety cable hardware:

wood screw, spring washer, flat washer

5) Balance Kit

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

2. TOOLS AND MATERIALS REQUIRED

RidleyTM

4. MOUNTING OPTIONS

If there isn't an existing UL (cUL for Canadian

Installation) listed mounting box, then read the

following instructions. Disconnect the power by

removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

Figures 1, 2 and 3 are examples of different

ways to mount the outlet box.

NOTE: If you are installing the ceiling fan on a

sloped (vaulted) ceiling, you may need a

longer downrod to maintain proper clearance

between the tip of the blade and the ceiling. A

minimum clearance of 12" is suggested for

optimal operation.

NOTE: Depending on the location you have

selected for installation, you may need to

purchase and install a "Joist Hanger" for the

support of the outlet box. Make sure the joist

hanger you purchase has been designed for

use with ceiling fans. (Fig. 4)

Outlet box

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Outlet box

Fig. 1

Fig. 3

Fig. 4

Outlet box

Fig. 2

ANGLED CEILING

MAXIMUM 20°ANGLE

Fig. 7

Fig. 8

Mounting screws

(supplied with

electrical box)

Hook

Ceiling

mounting

bracket

UL Listed

outlet box

120V Wires

Washers

Fig. 6

5. HANGING THE FAN

Supply wires

Downrod

Hitch pin Retaining

clip

Set screwSet screw

Coupling

REMEMBER to turn off the power before you

begin.

To properly install your ceiling fan, follow the

steps below.

Step 1. Remove the decorative canopy bottom

cover from the canopy by turning the cover

counterclockwise. (Fig. 5)

Step 2. Remove the ceiling mounting bracket

from the canopy by removing (and save) one

of the two screws. Loosen the remaining

screw by a half turn. (Fig. 5)

Step 3. Pass the 120 volt supply wires from

the ceiling outlet box through the center of the

ceiling mounting bracket. (Fig.6)

Step 4. Attach the ceiling mounting bracket to

the outlet box using the screws and washers

included with the outlet box. (Fig. 6)

Step 5. Remove the hanger ball from the

downrod assembly by loosening the set screw,

removing the cross pin and sliding the ball off

the rod. (Fig.7)

Step 6. Loosen the two set screws and

remove the hitch pin and retaining clip from

the coupling on top of the motor assembly.

(Fig. 8)

Step 7. Carefully feed the electrical lead wires

from the fan up through the downrod. Thread

the downrod into the coupling until the Hitch

pin holes are aligned.

Next, replace the hitch pin and retaining clip.

Tighten both set screws. (Fig. 8)

Fig. 5

Ceiling mounting

bracket

Canopy

cover

Cross pin

Hanger ball Set screw

Downrod

RidleyTM

Fig. 9

Fig. 10

Registration slot

Check tab

Step 8. Slip the coupling cover, canopy cover

and canopy onto the downrod.

Thread the hanger ball onto the downrod,

insert the cross pin through the downrod and

tighten. Now tighten the set screw. (Fig. 9)

Step 9. Lift the motor assembly into position

and place the hanger ball into the ceiling

mounting bracket.

Rotate the entire assembly until the "Check

Tab" has dropped into the "Registration Slot"

and seats firmly. (Fig. 10)

The entire motor assembly should not rotate

(left or right) when seated properly.

WARNING: Failure to reattach the cross pin

and seat the "Check Tab" can cause the fan to

fall from the ceiling during operation. Take

special care to make sure this pin is

reattached.

Canopy

Canopy cover

Coupling cover

Coupling

Downrod

Cross pin

Hanger ball

Fig. 11

Ceiling mounting

bracket Attach

safety cable

to ceiling joist

with screw and

washer

7. ELECTRICAL CONNECTIONS

Fig. 12

Fig. 13

Receiver

Ceiling Mounting

Bracket

WARNING: To avoid possible electrical shock,

be sure you have turned off the power at the

main circuit panel.

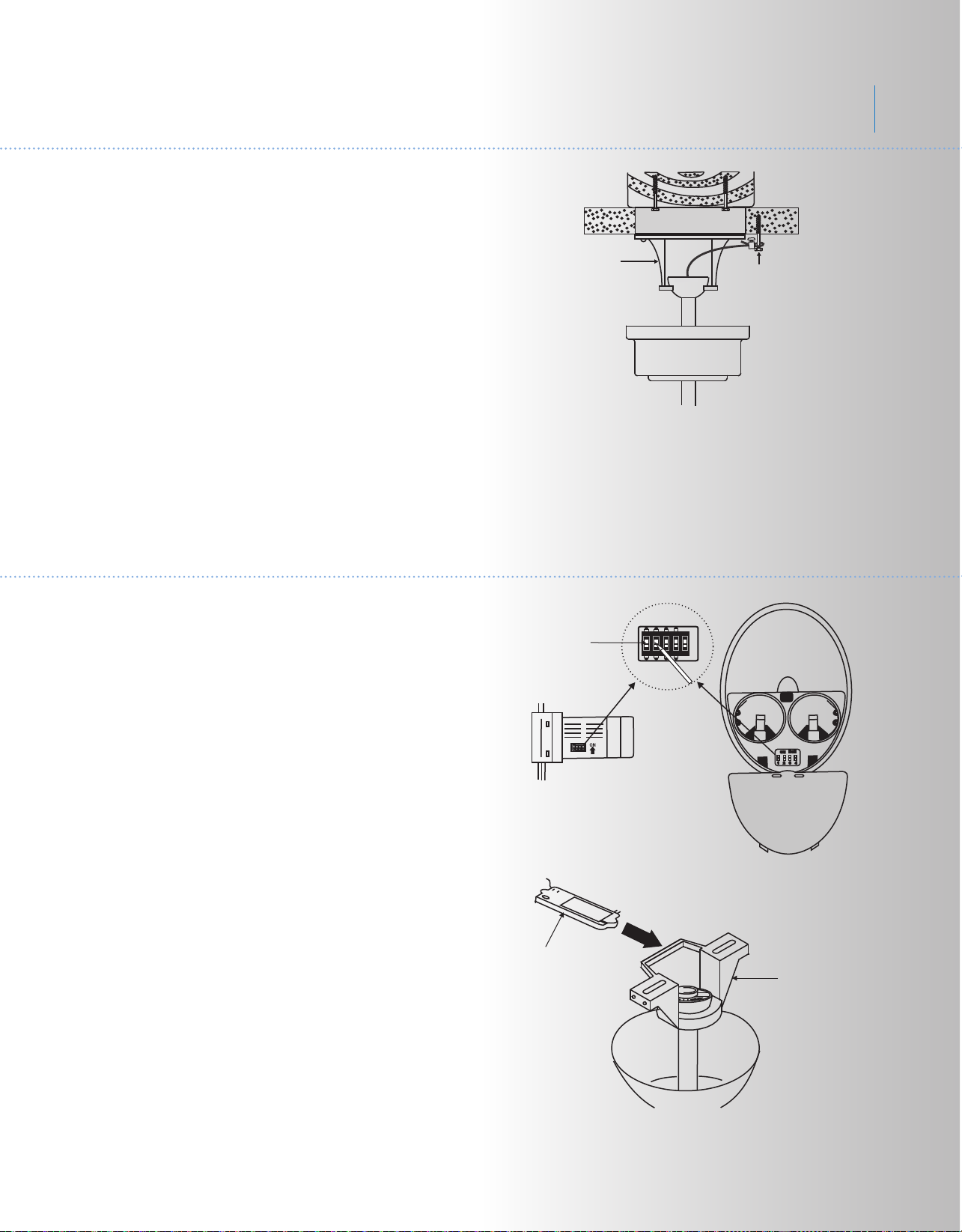

NOTE: In the Transmiter, Set Dip Switch #5 on

the X position. This disables the dimming

function because your ceiling utilizes CFL lamps

that can NOT be dimmed. (Fig.12)

NOTE: The CoolTouch™ Control System is

equipped with 16 possible frequency

combinations to prevent interference from or with

other remote control units. The frequency

switches on your receiver and transmitter have

been preset at the factory. Please recheck to

make sure the switches on transmitter and

receiver are set to the same position, any

combination of settings will operate the fan as

long as the transmitter and receiver are set to

the same position. (Fig. 12)

Step 1. Insert the receiver into the ceiling

mounting bracket with the flat side of the receiver

facing the ceiling. (Fig. 13) For best

performance, make sure the Black Antenna, on

the end of the receiver, remains extended and

not tangled with any of the electrical wires.

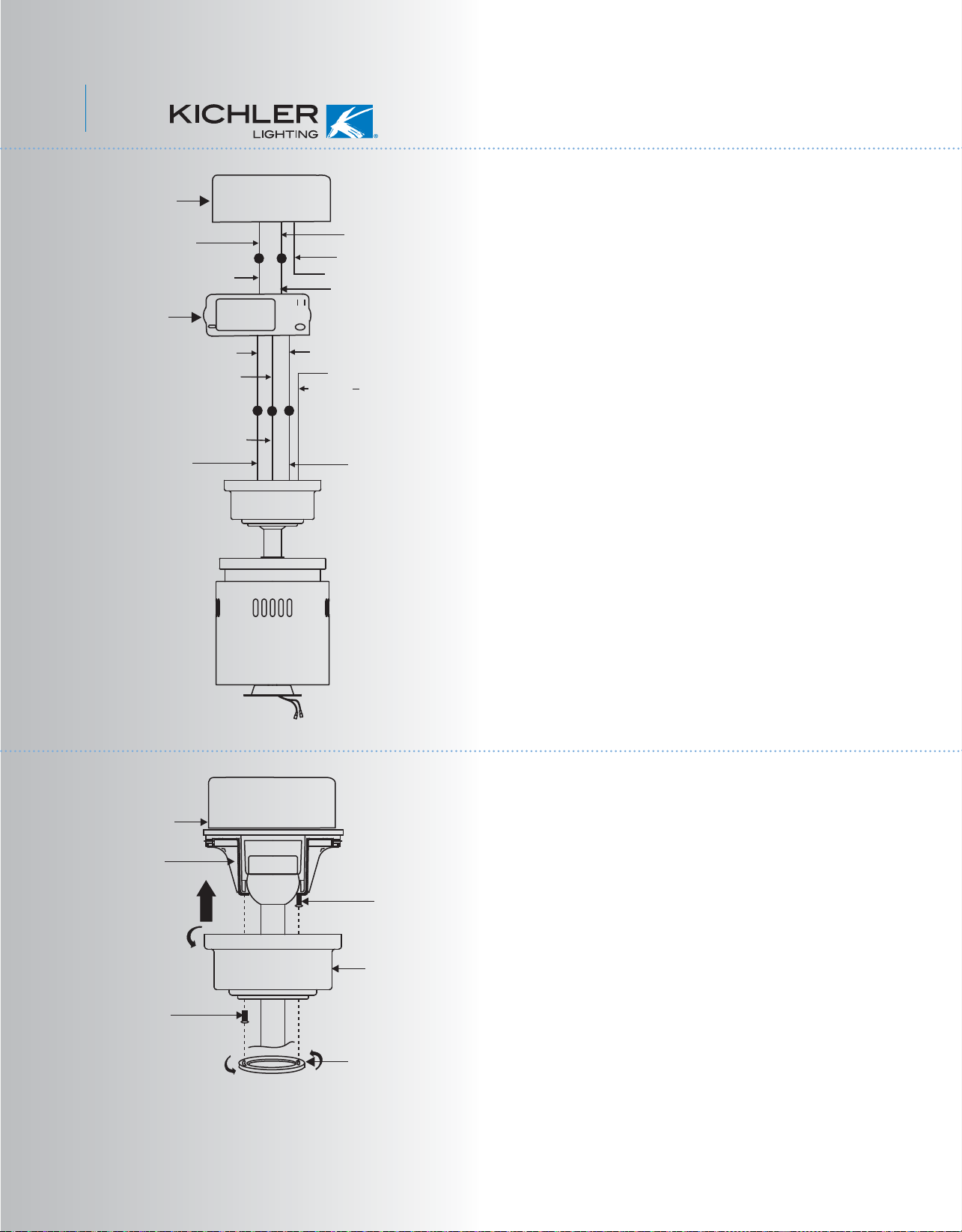

Step 2. Motor to Receiver Electrical

Connections: (Fig. 14) Connect the black wire

from the fan to the black wire marked "TO

MOTOR L" on the receiver.

6. INSTALLATION OF SAFETY SUPPORT

(required for Canadian installation ONLY)

A safety support cable is provided to help

prevent the ceiling fan from falling, please install

it as follows.

Step 1. Attach the provided wood screw and

washers to the ceiling joist next to the mounting

bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable to

reach the screw and washers by pulling the

extra cable through the cable clamp until the

overall length is correct, put the end of the

cable back through the cable clamp, forming a

loop at the end of the cable. Tighten the cable

clamp securely. Now, put the loop in the end of

the safety cable over the wood screw and under

the washer. Tighten the wood screw securely.

NOTE: Although the safety support cable is

required for Canadian installations only. It's a

good idea to make the attachment with any

installation.

RidleyTM

Dip switch

1 2 3 4

Fig. 14

Fig. 15

Step 1. Tuck all the connections neatly into

the ceiling outlet box.

Step 2. Slide the canopy up to the mounting

bracket and place one of the key hole slots

over the mounting screw on the mounting

bracket. Rotate the canopy until the screw

head locks in place at the narrow section of

the key hole. See figure 15.

Step 3. Align the remaining circular hole on

the canopy with the remaining hole on the

Ceiling Mounting Bracket. Insert and tighten

the mounting screw you removed earlier and

the mounting screw from Step 2 above. Now,

attach the canopy cover to the mounting screw

heads by inserting the screw heads into the

bottom side of the canopy cover and rotating

the cover clockwise.

NOTE: Adjust the canopy screws as

necessary until the canopy and canopy cover

are snug. (Fig. 15)

Connect the white wire from the fan to the

white wire marked "TO MOTOR N" from the

receiver. Connect the blue wire from the fan to

the blue wire marked "FOR LIGHT" from the

receiver. Secure all the wire connections with

the plastic wire nuts provided.

Step 3. (Fig. 14) Receiver to House Supply

Wires Electrical Connections: Connect the

black (hot) wire from the ceiling to the black

wire marked "AC in L" from the receiver.

Connect the white(neutral) wire from the

ceiling to the white wire marked "AC in N" from

the Receiver. Secure the wire connections

with the plastic wire nuts provided.

Step 4. (Fig. 14) If your outlet box has a

ground wire (green or bare copper) connect it

to the fan ground wires; otherwise connect the

hanging bracket ground wire to the mounting

bracket. Secure the wire connection with a

plastic nut provided. After connecting the

wires, spread them apart so that the green

and white wires are on one side of the outlet

box and black and blue wires are on the other

side. Carefully tuck the wire connections up

into the outlet box.

Note: Fan must be installed at a maximum

distance of 30 feet from the CoolTouch™

Remote Transmitter for optimal signal

transmission between the transmitter and the

fan's receiving unit.

8. FINISHING THE INSTALLATION

Outlet box

Ceiling

mounting

bracket

Canopy

Canopy cover

Screws

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

White ("to motor N")

Ground

(green) (Connect to

ground wire on

hanger bracket

if no house

ground wire

exists.)

Outlet box

Black (hot)

Black ("AC IN L")

Black ("to motor L")

Receiver

Blue (for light)

Black (motor)

Fig. 16

10. INSTALLING THE LIGHT PLATE

Step 1. Loosen the two screws on the

mounting ring attached to the motor shaft and

"remove" and save the third screw. (Fig. 17)

Step 2. Place the key hole slots on the light

plate over the two screws previously loosened

on the mounting ring.

Turn the light plate until is locks in place at the

narrow section of the key hole slots.

Tighten both key hole screws and replace the

third screw previously removed and tighten

securely.

Fig. 17

Light plate

Screws

Mounting ring

Blades

Screws

Blade brackets

Fiber

washers

Screws

9. ATTACHING THE FAN BLADES

Step 1. Attach a blade to a blade bracket using

the screws and fiber washers provided.

(Fig.16)

Make sure the blade is straight when set on

the blade bracket. Tighten each mounting

screw and then repeat this procedure for each

blade.

Step 2. Attach each blade assembly to the

motor using the "Pre-Installed" mounting

screws in the blade bracket. (Fig 16)

RidleyTM

Fig. 18

Fig. 19

Step 1. Install the 100 Watt halogen lamp.

(provided).

Step 2. Raise the glass shade against the light

fixture and turn clockwise until snug, DO NOT

OVERTIGHTEN. (Fig. 19)

12. INSTALLING THE LAMP AND

GLASS SHADE

Screws

Lamp

Light plate

Socket plate

Wire connectors

Glass

shade

11. INSTALLING THE SOCKET PLATE

NOTE: Before continuing installation, confirm

that the power is still turned off at the main

circuit breaker or by removing the correct fuse.

Turning the power off using a wall switch is not

sufficient to prevent electrical shock.

Step 1. Loosen the two mounting screws on

the inside of the light plate then remove and

save the third screw.

Hold the socket plate close to the light plate

and connect the white wires from the socket

plate assembly and the fan by pushing the

connectors together. Follow the same

procedure with the black wire connectors.

(Fig. 18)

Step 2. Tuck the connections neatly into the

light plate. Place the key holes on the socket

plate assembly over the 2 screws previously

loosened from the light plate, turn the socket

plate assembly until it locks in place at the

narrow section of the key holes. Secure by

tightening all three screws. (Fig. 18)

Socket plate

Fig. 20

Fig. 21

Fig. 22

14. OPERATING INSTRUCTIONS

Remove the battery compartment cover on the

back of the CoolTouch™ Transmitter and insert

both batteries provided. Make sure the + sign is

facing up.

Take care during this procedure NOT TO move the

frequency dip switches inside this compartment.

The settings MUST remain the same as the

settings on the receiver for proper communication

with the control system.

It's a good idea to remove these batteries if your

fan is not used for extend periods of time,

(months).

NOTE: Make sure Dip Switch #5 is set to the X

position. This disables the dimming function. You

light fixture utilizes CFL lamps that can NOT be

dimmed.

13. INSTALLING THE BATTERIES

RidleyTM

Slide switch

Restore power to ceiling fan and test for

proper operation.

A. , , and buttons:

These three buttons are used to set the

fan speed as follows:

= High speed

= Medium speed

= Low speed

B. button:

This button turns the fan off.

C. The " " button: turns the light fixture

On/Off or controls dimming. Press and

release for On or Off, Press and HOLD

for full range dimming.

NOTE: As stated above, the light dimming

function on this control is operated by holding

down the light button and releasing it at the

desired brightness level.

This control system is NOT designed to

"Reverse" the rotation of the blades. To set

the fan blades in reverse, the reverse slide

switch is located on the top of the Motor

Housing. See Fig. 22

1 2 3 4

Code Switch

Fig. 23

Fig. 24

Speed settings for warm or cool weather

depend on factors such as the room size.

Ceiling height, number of fans and so on.

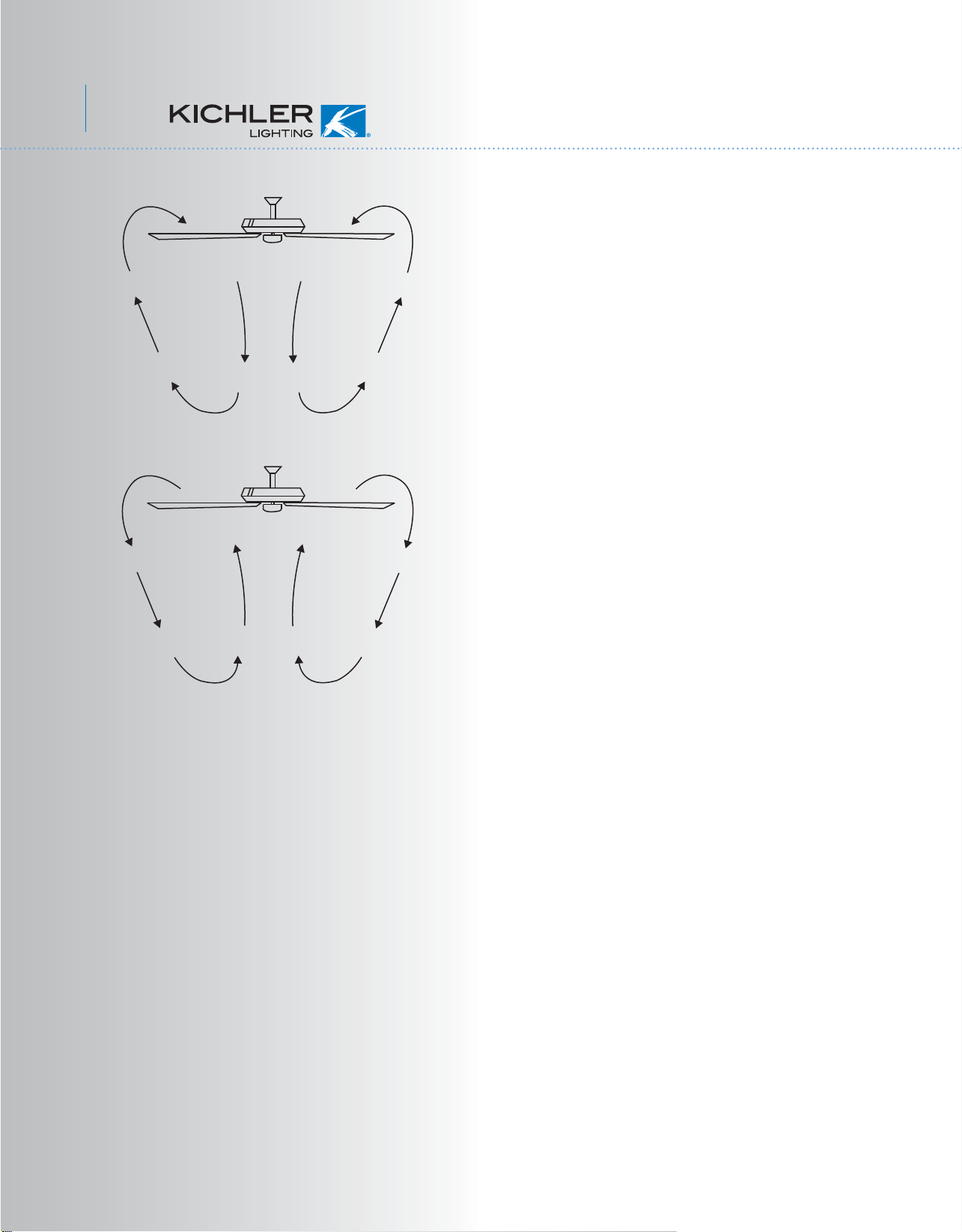

Warm Weather Operation: Forward (counter

clockwise) A downward airflow creates a

cooling effect as shown in Fig. 23. This allows

you to set your air conditioner on a warmer

setting without affecting your general comfort.

Cool Weather Operation: Reverse

(clockwise). An upward airflow moves warm

air off the ceiling areas as shown in Fig. 24.

This allows you to set your heating unit on a

cooler setting without affecting your general

comfort.

Fig. 25

Fig. 26

15. INSTALLING THE COOLTOUCH™

CONTROL SYSTEM WALL PLATE

16. INSTALLING THE TRANSMITTER

1. Insert the transmitter into the wall plate by

inserting the bottom of the transmitter first and

then press the top of the transmitter into the

pocket. The transmitter will fully function from

this location or you can remove the transmitter

and use as a "Hand Held" device.

2. To remove the transmitter from the wall

plate, push the release button and the

transmitter will fall into your hand.

Wall plate

Switch

Outlet box

Release

button

Fig. 27

Screws

Plastic plugs

CoolTouch™wall plate

Outlet box Metal plate

Select a location to install your CoolTouch™

Control System Transmitter. You can replace

an existing wall switch or, install the

transmitter on ANY flat surface.

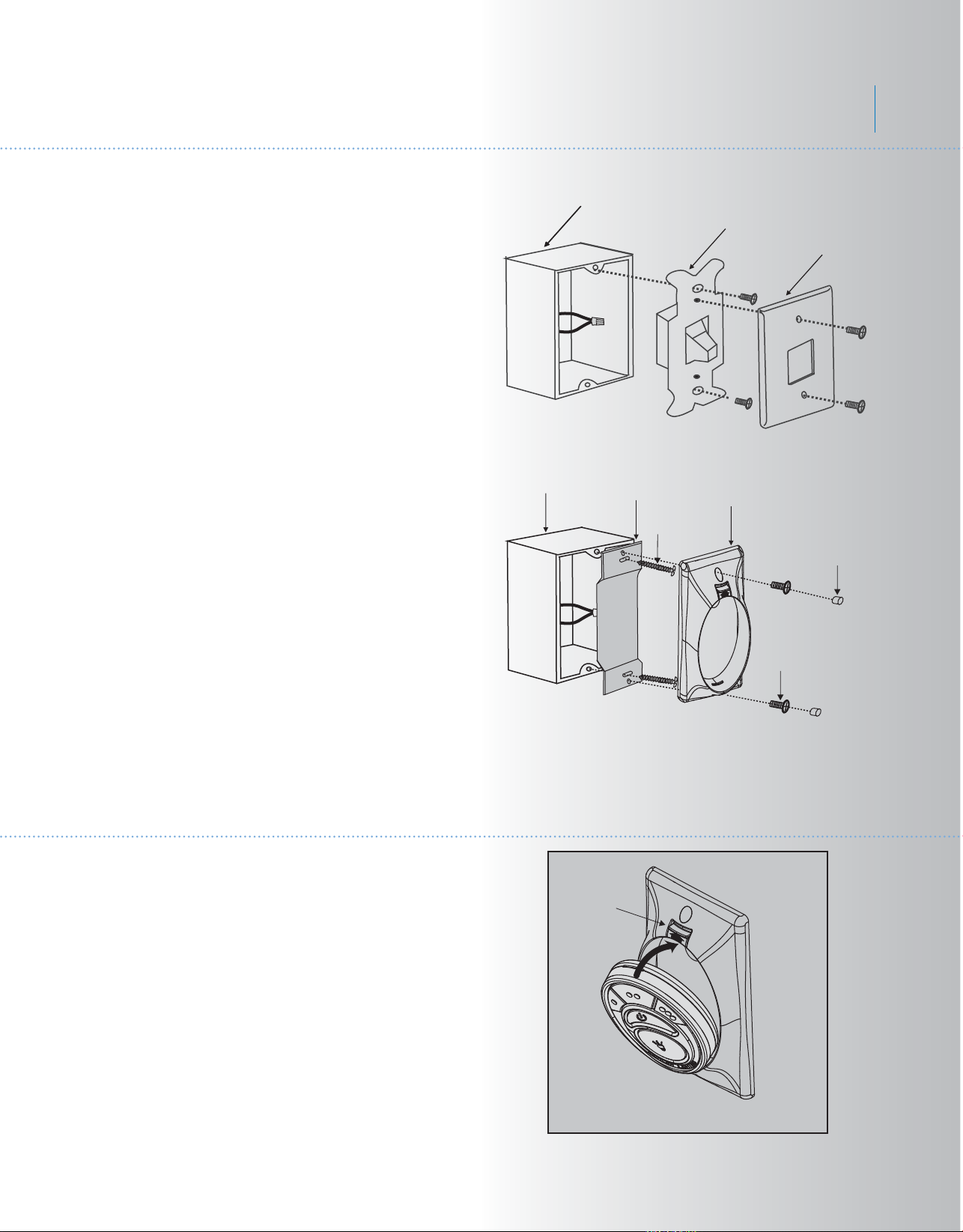

Option 1: Install the control system using an

existing wall switch outlet box.

Make sure the electrical power is TURNED

OFF at the main panel before continuing.

Step 1. Remove the existing wall plate and the

old switch from the wall outlet box. Wire nut

the BLACK leads (hot) together and push back

inside the outlet box. (Fig. 25)

Step 2. Install the metal plate and CoolTouch™

wall plate to the existing wall outlet box with 4

screws provided. Then place the two plastic

plugs into the wall plate. (Fig. 26)

Option 2: Install the control system on ANY

flat surface.

Select the desired location and use the

CoolTouch™ wall plate to mark the location

for the mounting holes. Use the dry wall

anchors and/or screws provided and finish the

installation.

RidleyTM

18. SPECIFICATIONS

These are approximate measurements. They do not include data for any lamps or fixtures attached

to the ceiling fan.

Problem

Fan will not start.

Fan sounds noisy.

Fan wobble.

Remote control

malfunction.

Solution

1. Check circuit fuses or breakers.

2. Check all electrical connections to insure proper contact. CAUTION: Make

sure the main power is OFF when checking any electrical connection.

3. Make sure the transmitter batteries are installed properly. Positive (+) side

facing out.

4. Insure the batteries have a good charge.

1. Make sure all motor housing screws are snug.

2. Make sure the screws that attach the fan blade brackets to the motor are tight.

3. Make sure wire nut connections are not rubbing against each other or the

interior wall of the switch housing. CAUTION: Make sure main power is off.

4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan

disappear during this time.

5. If using an optional light kit, make sure the screws securing the glassware

are tight. Make sure the light bulbs are not touching any other component.

6. Do not connect this fan to wall mounted variable speed control(s). they are

not compatible with ceiling fan motors or remote controls.

7. Make sure the upper canopy is a short distance from the ceiling. It should not

touch the ceiling.

1. Check that all blade and blade arm screws are secure.

2. Most fan wobbling problems are caused when blade levels are unequal.

Check this level by selecting a point on the ceiling above the tip of one of the

blades. Measure this distance. Rotate the fan until the next blade is positioned

for measurement. Repeat for each blade. The distance deviation should be

equal within 1/8".

3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.

4. If the blade wobble is still noticeable, interchanging two adjacent (side by

side) blades can redistribute the weight and possibly result in smoother

operation.

1. Ceiling Fans with remote control systems CAN NOT be operated in

conjunction with any other control system EXCEPT a basic On/Off wall switch,

if desired.

2. Make sure the frequency dip switches in the transmitter and receiver have

identical settings.

3. Make sure the Black Antenna on the receiver is NOT tangled with any other

electrical wires and is extended around the inside of the ceiling canopy.

17. TROUBLESHOOTING

1.62'

7.86

kgs

8.71

kgs

0.46

0.38

0.26

198

138

4909

3278

1769

118

172

RPM CFM CFM/W N.W. G.W. C.F.

120

Fan Size

52"

Speed Volts

Amps Watts

Low

Medium

High

Table of contents

Other Kichler Lighting Ceiling Fan manuals

Kichler Lighting

Kichler Lighting 300160 User manual

Popular Ceiling Fan manuals by other brands

Emerson

Emerson CF776BS00 owner's manual

Kichler Lighting Ridley User manual

Popular Ceiling Fan manuals by other brands
