Monte Carlo Fan Company 5VYR56XXD-L Series User manual

Owner’s
Manual
Ceiling Fan Installation Instructions
For 5VYR56XXD-L Series Fans
READ AND SAVE THESE INSTRUCTIONS
Total fan weight
with lights

Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards
(ANSI/NFPA 70-1999), including fire-rated construction.
Use this unit only in the manner intended by the manufacurer. If you have any questions contact the manufacturer.
After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding con-
ductor on one side of the outlet box and ungrounded conductor on the other side of the outlet box.
Before you begin installing the fan, Switch power off at Service panel and lock service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
Be cautious! read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7
feet from the floor to the trailing edge of the blade.
WARNING – Risk of fire, electric shock, or personal injury. The fan in this box may be either directly supported from a structural fram-
ing member of a building and/or may be mounted to an outlet box marked acceptable for fan support of 31.8 kg. (70 lbs.) or less.
Most outlet boxes commonly used for the support of luminaires may not be acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
Do not bend blade holders during installation to motor, balancing or during cleaning. Do not insert foreign object between rotating
blades.
Attach the mounting bracket using only the hardware supplied with the outlet box.
To reduce the risk of fire or electric shock, do not use this fan with any solid state fan speed control device, or variable speed control.
If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application.
NEVER place a switch where it can be reached from a tub or shower.
The combustion airflow needed for safe operation of fuel-burning equipment may be affected by this unit’s operation. Follow the heat-
ing equipment manufacturer’s guideline safety standards such as those published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
Before servicing or cleaning unit, Switch power off at Service panel and lock service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
Installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING: READ AND SAVE THESE INSTRUCTIONS
SAFETY TIPS
TOOLS REQUIRED
Phillips Screwdriver Wire Cutters Pliers Step Ladder
Before you begin installing the fan, Switch
power off at Service panel and lock service dis-
connecting means to prevent power from being
switched on accidentally. When the service dis-
connecting means cannot be locked, securely
fasten a prominent warning device, such as a
tag, to the service panel.
Warning-Risk of fire, electric shock, or personal
injury. The fan in this box may be either directly sup-
ported from a structural framing member of a build-
ing and/or may be mounted to an outlet box marked
acceptable for fan support of 31.8 kg(70lbs) or less.
Most outlet boxes commonly used for the support of
luminaires may not be acceptable for fan support and
may need to be replaced. Consult a qualified electri-
cian if in doubt.
12
Remove Safety bar from mounting
bracket by loosing screws, sliding bar
to side, and lifting it off the 2 screws.
3
OUTLET BOX METHOD
Secure mounting plate directly to a joist from
the buliding structure via the two knock out
holes on the outlet box. Use only the appropri-
ate wood screws and washers included with
your fan. Caution: Wood screws must go
through into the building joist.
5
Outlet box
Mounting
Plate
Wood
Screws
BUILDING STRUCTURE METHOD
Remove the 6screws attaching the Mounting
neck to the mounting plate. Retain the 6
screws for re-assembly.
4
Install the mounting Plate to approved fan
brace and box combination use only the hard-
ware provided with the fan brace and box.
6FAN BRACE AND BOX METHOD

Tighen set screws and lock nuts to
secure downrod in place.
Loosen 2 set screws with lock nuts in
yoke till you can not feel them on
inside of yoke.
Install canopy and yoke cover over
downrod and then thread lead wires
and safety cable through as shown.
Remove keeper from pin and then
pin from yoke and save.
12
13 14
16
Lift mounting neck to mounting Plate
and align screws.
7
Secure mounting neck to the mount-
ing plate with 6screws to become
a complete mounting bracket.
8
Insert downrod into yoke on top of
the Fan Body. Align the hole in the
Downrod with the hole in the Yoke.
Insert the Pin through the Yoke and
Downrod until the point appears on
the other side. Install the Keeper
Pin
15
Loosen 3 thumb screws with key
hole slots.
9
Place the key hole slots over the 3
screws on fan body and twist upper
cover in direction of arrow.
10
Tighten all 3 thumb screws securely.
11
Hang assembled fan from the mounting brack-
et installed to ceiling in previous step. Make
sure the fan is hanging straight. Rotate fan
until the tab on the Mounting bracket engages
the slot on the Downrod Ball. This must be
done to prevent the fan body from rotating
when the blades are in motion.
17
Set dip switches on the Remote Transmitter and
Remote Receiver to the same settings. This must be
done so the units will communcate properly. If you
have other fans you can set to control from one
transmitter by setting both receivers the same as the
transmitter. If you have more than one fan with
remote. You can set the dip switches to different
positiosns to have seperate control.
Remote Transmitter Dip swtiches
Remote Receiver Dip switches
18

Attach blades to blade arms with
screws and washers supplied. Repeat
for all 5 blades.
30
Re-install safety bar removed in step
3 by placing safety bar on screws,
sliding into place, and tightening the
2 screws.
20
Make wire connections to power source using
wire nuts provided. Make sure that no filiments
are outside of the wire nut. After making the
wire connections, the wires should be spread
apart with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and ungrounded conductor on
the other side of the outlet box.
23
Install 4 x 25 watt candelabra bulbs.
26
Install assembled ornate glass cover
and glass to fan body by twisting in
direction of arrow to hold in place.
28
Tighten all 3 screws securely loos-
ened in step 25.
29
Loosen 2 screws with key hole slots
and remove 1 screw.
25
Place glass into ornate glass cover.
27
Install remote receiver by sliding into
opening in the Mounting bracket. Make
sure that the dip switches on the
Transmitter and the Receiver are set to
the same position.
21
Fan and light kit combinations over 70 lbs, in
both flush and downrod mode the safety cable
must be installed into the house structure
beams using the 3” lag screws,washers, and
lock washers. provided. Make sure that when
the safety cable is fully extended the lead wires
are longer than the cable and no stress is
placed on the lead wires.
19 Safety cable installation
Safety Cable
Lag Screw
safety
cable
3” lag
screw
lock
washer
washer
white
black
Make wiring connections as indicated above.
White from fan to white from remote marked
N. Orange from fan to Orange from remote
marked Light/up. Blue from fan to blue from
remote marked down light. Black from fan to
Black from remote marked L. White from
house to white from remote marked AC N .
Black from house to Black from remote
marked AC L. Connect all green ground wires
to Ground wire from House.
orange
blue
Green
white
black
House
Fan
22
Loosen one and remove one preassem-
bled screw from mounting bracket. Save
screw. Lift canopy up, aligning its keyhole
slot with the preassembled screw on
mounting bracket and twist clockwise to
lock in place. Re-install the removed
screw and tighten all screws securely.
24

Install 3 x 40 watt candelabra bulbs.
Bulbs included.
WARNING: Over lamping the fan will
result in the fan lights shutting down
until the proper wattage of bulbs are
installed. Reset the lights by turning off
the wall switch, breaker,or by remote.
Replace bulbs with the correct wattage
bulbs, turn the power on.
40
Install ornate lower cover and glass
onto light kit.
41
Install center plug by turning in
direction of arrow till tight.
42
Install blade and blade holder
assembly to fan motor using the pre-
installed screws,washers and motor
pads. Repeat this process 4 more
times until all blades are installed to
the fan.
31
Loosen 2 screws and remove 1
screw.
33
Install center plug by turning in
direction of arrow.
35
Place over the 2 screws and twist in
direction of arrow to hold in place.
Replace screw removed and tighen
all 3 screws securely.
34
Loosen 2 screws with key slots and
remove 1 screw without key slot.
Place upper cover light kit over 2
screws and twist in direction of arrow
to hold in place. Replace screw
removed and tighten all 3 securely.
36
Plug white wire from fan to white
wire from light kit. Then plug black
wire from fan to black wire from light
kit.
38
Loosen 2 screws and remove 1 screw
from light pan. Save screw for later
use.
37
Attach light fixture by aligning keyhole
slots on light fixture with screws on light
pan and twist clockwise till lock. Re-install
the screw removed in step 37. Tighten all
screws securely.
39
If not using light kit go to step 33.
If using light kit go to step 36.
32
At this point
you need to
decide if you
are using the
light kit or not.

Place face plate over battery compartment and
buttons. Place remote over 2 pins on front
cover. Attach cover of remote by placing over 4
pins and snaping into place.
44 HAND HELD INSTALL
Install wall control unit to outlet box
using machine screws provided.
45
Attach front cover to wall control
with screws provided. Snap battery
cover in place.
46
WALL MOUNT INSTALL
Remove cover by snaping off from top or bot-
tom. Remove battery cover. Install 12V battery
into wall remote. Duracell MN21 / Eveready A23
/ GP 23A all 12V.Attach cover of remote by plac-
ing over buttons and snap the battery cover in
place.
43

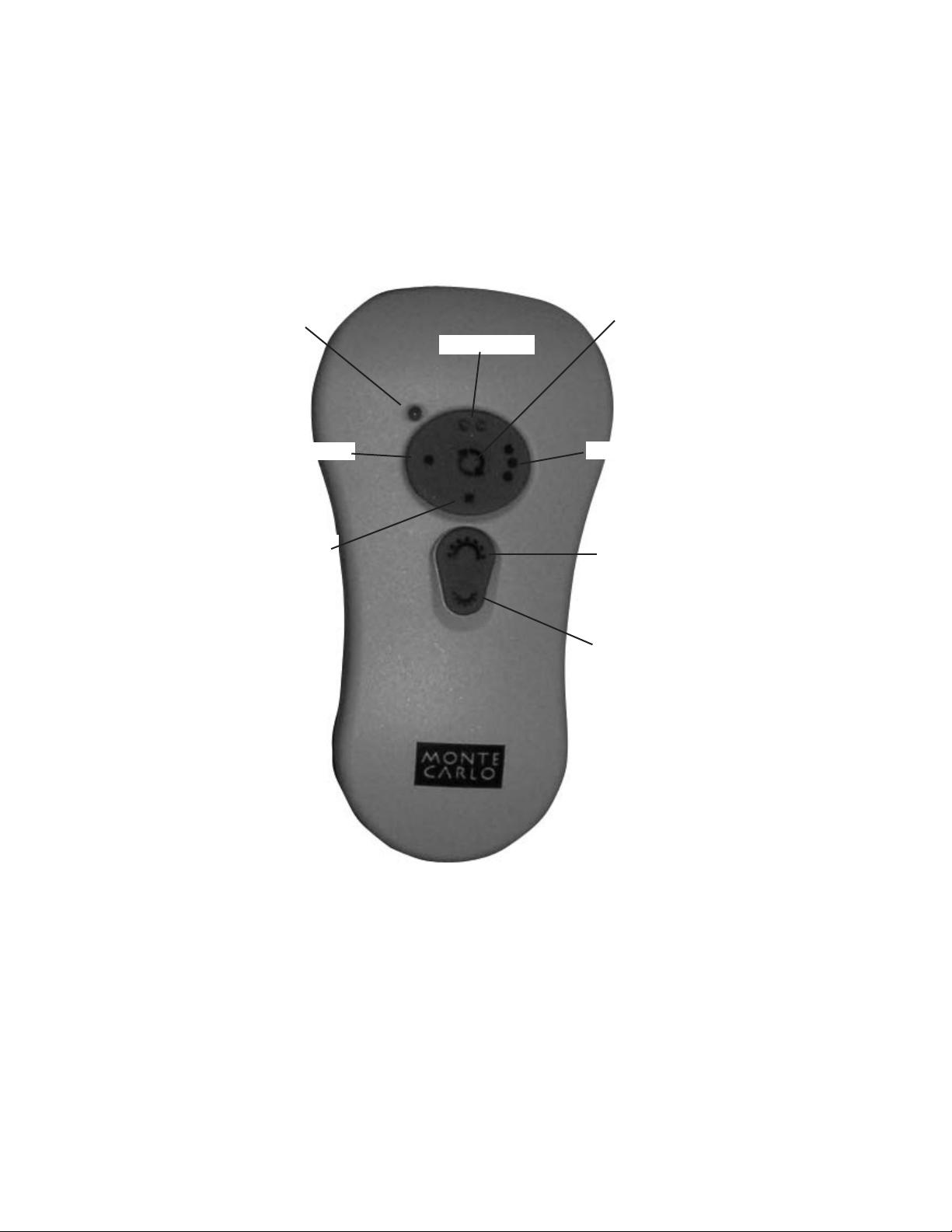

Remote Control Transmitter Features:
FAN SPEED Depress “l dot” for low speed, “2 dots” for medium or “3 dots” for
high. To turn fan off press square”.
LIGHT DIMMER To turn light on, press light dimmer once quickly. To turn off
press once quickly while light is on. To dim light hold down button “light dimmer”.
The light will cycle from bright to dim to bright until button is released. Light will
maintain last setting if turned off.
FORWARD/REVERSE Depress rev button allow a few seconds for remote to
change rotation direction with fan running.
HIGH SPEED
MEDIUM SPEED
LOW SPEED
FAN OFF SETTING
(Turns fan off only)
FAN REVERSE
(Press once to
change direction of
the fan)Fanmust be
running to reverse.
UPLIGHT ON/OFF SET-
TING AND DIMMER
(Press and hold to dim
light infinitively)
LED LIGHT
DOWNLIGHT ON/OFF
SETTING AND DIMMER
(Press and hold to dim
light infinitively)

1.Check main and branch circuit fuses or circuit breakers.
2.Check line wire connections to fan and switch wire connections in switch housing.
3.Check to make sure the dip switches from the transmitter and receiver are set on the
same frequency.
CAUTION: Make sure main power is turned off.
1.Check to make sure all screws in motor housing are snug (not over tightened).
2.Check to make sure the screws which attach the fan blade holder to the motor are tight.
3.Check to make sure wire nut connectors in switch housing are not rattling against each
other or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before entering switch housing.
4.Some fan motors are sensitive to signals from Solid State variable speed controls.
DO NOT USE a Solid State variable speed control.
5.Allow "break-in" period of 24 hours. Most noises associated with a new fan will disappear
after this period.
1.Make sure that the ridge of the canopy engages the notch in the downrod ball.
2.Check that all blades are screwed firmly into blade holders.
3.Check that all blade holders are tightened securely to motor.
4.Make sure that canopy and mounting bracket are tightened securely to ceiling junction
box and junction box is mounted firmly to ceiling joist.
5.Most fan wobble problems are caused when blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of one of the blades. Measure the distance
from blade to ceiling. Keeping measure within 1/8", rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. If all blade levels are not equal, you
can adjust blade levels by the following procedure. To adjust a blade tip down, insert a
washer (not supplied) between the blade and blade holder at the screw closest to the motor.
To adjust a blade tip up, insert washer (not supplied) between the blade and blade holder at
the two screws farthest from the motor. Reverse the position of the washer if blades mount
from top of blade.
6.If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1.Check blue wire from fan to make sure it is connected to hot wire from house.
2.Check for loose or disconnected wires in fan switch housing.
3.Check for loose or disconnected wires in light kit.
4.Check for faulty light bulbs.
WARNING: Over lamping the fan will result in the fan lights shutting
down until the proper wattage of bulbs are installed.
Reset the lights by turning off the wall switch, breaker,or by remote. Replace
bulbs with the correct wattage bulbs, turn the power on.
CAUTION: Make sure main power is turned off before entering switch housing.
2. If fan sounds noisy:
1. If fan does not start:
3. If fan wobbles:
4. If light does not work:
Trouble Shooting
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation,
or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults,
please check this Trouble Shooting Chart. If a problem cannot be remedied, or you are experiencing difficulty
in installation, please call our Customer Service Center at the number printed on your parts list insert sheet.
Warning: Before servicing or cleaning unit, Switch power off at Service panel and lock service dis-
connecting means to prevent power from being switched on accidentally. When the service dis-
connecting means cannot be locked, securely fasten a prominent warning device, such as a tag,
to the service panel.
Suggested Remedy
Trouble
Customer Service Center:
301 West Washington St.
Riverside, NJ 08075
1-800-519-4092
www.montecarlofans.com
