CASAINC HOUSELUX TRIM 23 Owner's manual

IMPORTANT INSTRUCTIONS & OPERATING MANUAL
HOUSELUX TRIM 28(EF28T)
HOUSELUX TRIM 23(EF23T)
HOUSELUX TRIM 30(EF30T)
HOUSELUX TRIM 33W(EF33WT)
WARNING
Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Fail to do so could
result in fire, electric shock, or serious personal injury.
CAUTION Keep this owner’s manual for future reference. If you sell or give away this
product,make sure this manual accompanies this product.
NO VENTING REQUIRED
120V AC; 60 Hz; 1500 Watts
HOUSELUX TRIM 33(EF33T)
HOUSELUX TRIM 26(EF26T)

CONTENTS
Important Safety Information ……………………………………………………....................................... 3
Preparation …………………………………………………………………………………………….….…... 5
Product Dimension …………………………………………………………………………………….……. 6
Assembly ……………………………………………………………………………………………….……... 7
Battery Information ………………………………………………………………………………………..… 7
Operation ……………………………………………………………………………………...………………. 8
Control Panel ………………………………………………………………………...………………… 9
Remote Control …………………………………………………………………………………...….. 10
Care and Maintenance ………………………………………………………………………………….…. 11
Schematic Diagram ………………………………………………………………………………………... 12
FAQ – Frequently Asked Questions ……………………………………………..……………………… 13
Troubleshooting Guide ………………………………………………………...………………………….. 14
Limited Warranty …………………………………………………………………………………………… 15
Customer Service ………………………………………………………...………………………………… 15

IMPORTANT SAFETY INFORMATION!
WARNING
Read all instructions before installing or using this heater!
This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces.
Keep combustible materials,such as furniture, pillows, bedding, papers, clothes, and curtains
at least 3 feet (0.9m) from the front of the heater, and keep them away from the sides and rear.
Extreme caution is necessary when any heater is used near children or invalids and
whenever the heater is left operating and unattended.
DO NOT o perate any heater after it malfunctions. Disconnect power at service panel and have heater
DO NOT use outdoors
To prevent a possible fire, DO NOT block air intakes or exhaust in any manner.
A heater has hot and arcing or sparking parts inside. DO NOT use it in areas where
gasoline, paint, or flammable liquids are used or stored.
Use this heater only as described in this manual.Any other usage not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.
inspected by a reputable electrician before reusing.
To disconnect heater, turn controls to off, and turn off power to heater circuit at main disconnect
panel (or operate internal disconnect switch if provided).
Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may
cause an electric shock or fire, or damage the heater.
This heater may include an audible or visual alarm to warn that parts of the heater are getting
excessively hot. If the alarm sounds (or illuminates), immediately turn the heater off and inspect
for any objects on or adjacent to the heater that may have blocked the airflow or otherwise caused
high temperatures to have occurred. DO NOT OPERATE THE HEATER WITH THE ALARM
SOUNDING (OR ILLUMINATING).
“SAVE THESE INSTRUCTIONS”

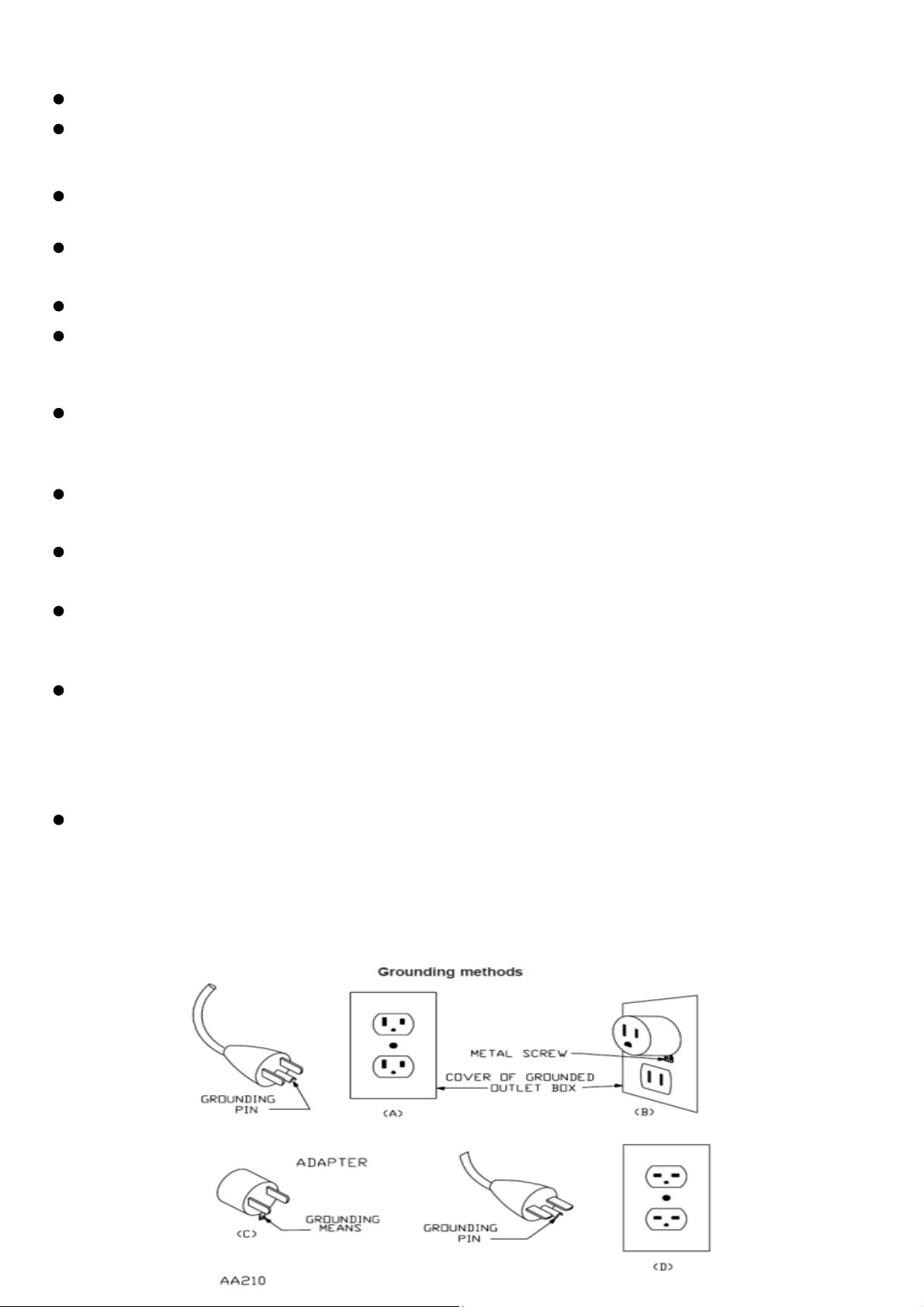

This heater is for use on 120 volts. The cord has a plug as shown below Figure. An adapter as shown
at C is available for connecting three-blade grounding-type plugs to two-slot receptacles. The green
grounding lug extending from the adapter must be connected to a permanent ground such as a properly
grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is available.

Ce radiateur est utilisé sur 120 volts. Le cordon a une fiche comme indiqué ci-dessous. Un adaptateur
comme indiqué sur C est disponible pour connecter les bouchons de type de mise à la terre à trois lames
aux réceptacles à deux plans. La patte de mise à la terre verte s'étendant de l'adaptateur doit être liée à
un sol permanent comme une boîte de sortie correctement mise à la terre. L'adaptateur ne doit pas être
utilisé si un réceptacle mis à trois places est disponible.
Instructions importantes
Lisez toutes les instructions avant d'installer ou d'utiliser ce radiateur.
Ce radiateur est chaud lorsqu'il est utilisé. Pour éviter les brûlures, ne laissez pas la peau nue toucher
les surfaces chaudes. Gardez les matériaux combustibles, tels que les meubles, les oreillers, la literie,
les papiers, les vêtements, etc. et les rideaux à au moins 0,9 m de l'avant du radiateur et éloignez-les
des côtés et de l'arrière.
Une extrême prudence est nécessaire lorsqu'un radiateur est utilisé par ou près des enfants ou des
invalides et chaque fois que le radiateur est laissé en fonctionnement et sans surveillance.
Ne faites pas fonctionner de radiateur après les dysfonctionnements. Débranchez l'alimentation au
panneau de service et faites inspecter le radiateur par un électricien réputé avant de réutiliser.
N'utilisez pas à l'extérieur.
Pour déconnecter le radiateur, tourner les commandes vers OFF et désactiver l'alimentation sur le
circuit du chauffage au panneau de déconnexion principale (ou faire fonctionner l'interrupteur de
déconnexion interne s'il est fourni).
Ne pas insérer ou permettre aux objets étrangers de pénétrer dans une ventilation ou une ouverture
d'échappement car cela peut provoquer un choc électrique ou un incendie, ou endommager le
radiateur.
Pour éviter un éventuel incendie, ne bloquez pas les apports d'air ou ne vous échappez en aucune
façon.
Un radiateur a des pièces chaudes et arc ou étincelles à l'intérieur. Ne l'utilisez pas dans les zones
où l'essence, la peinture ou les vapeurs ou liquides inflammables sont utilisés ou stockés.
Utilisez ce radiateur uniquement comme décrit dans ce manuel. Toute autre utilisation non
recommandée par le fabricant peut provoquer un incendie, un choc électrique ou une blessure aux
personnes
Ce radiateur peut inclure une alarme audible ou visuelle pour avertir que les parties du radiateur
deviennent excessivement chaudes. Si l'alarme sonne (ou illumine), éteignez immédiatement le
radiateur et inspectez tous les objets ou adjacents au radiateur qui pourrait avoir bloqué le flux d'air
ou autrement provoqué des températures. Ne faites pas fonctionner le radiateur avec le sondage
d'alarme (ou illuminant).
«Enregistrez ces instructions»

PREPARATION
DO NOT use this Electric Fireplace if any part has been under water. Immediately call a
qualified service technician to inspect and to replace any part of the electrical system if
necessary. Keep plastic wrapping away from children.
Unpacking the Electric Fireplace. Remove all parts and hardware from the carton and place them on a
clean, soft, dry surface. Check the parts list to make sure nothing is missing. Dispose of packaging
materials properly. Please recycle whenever possible. Keep the original packaging for future transport
and/or storage.
Firebox X 1 pc Owner’s Manual ×1 pc
Remote Handset ×cp1

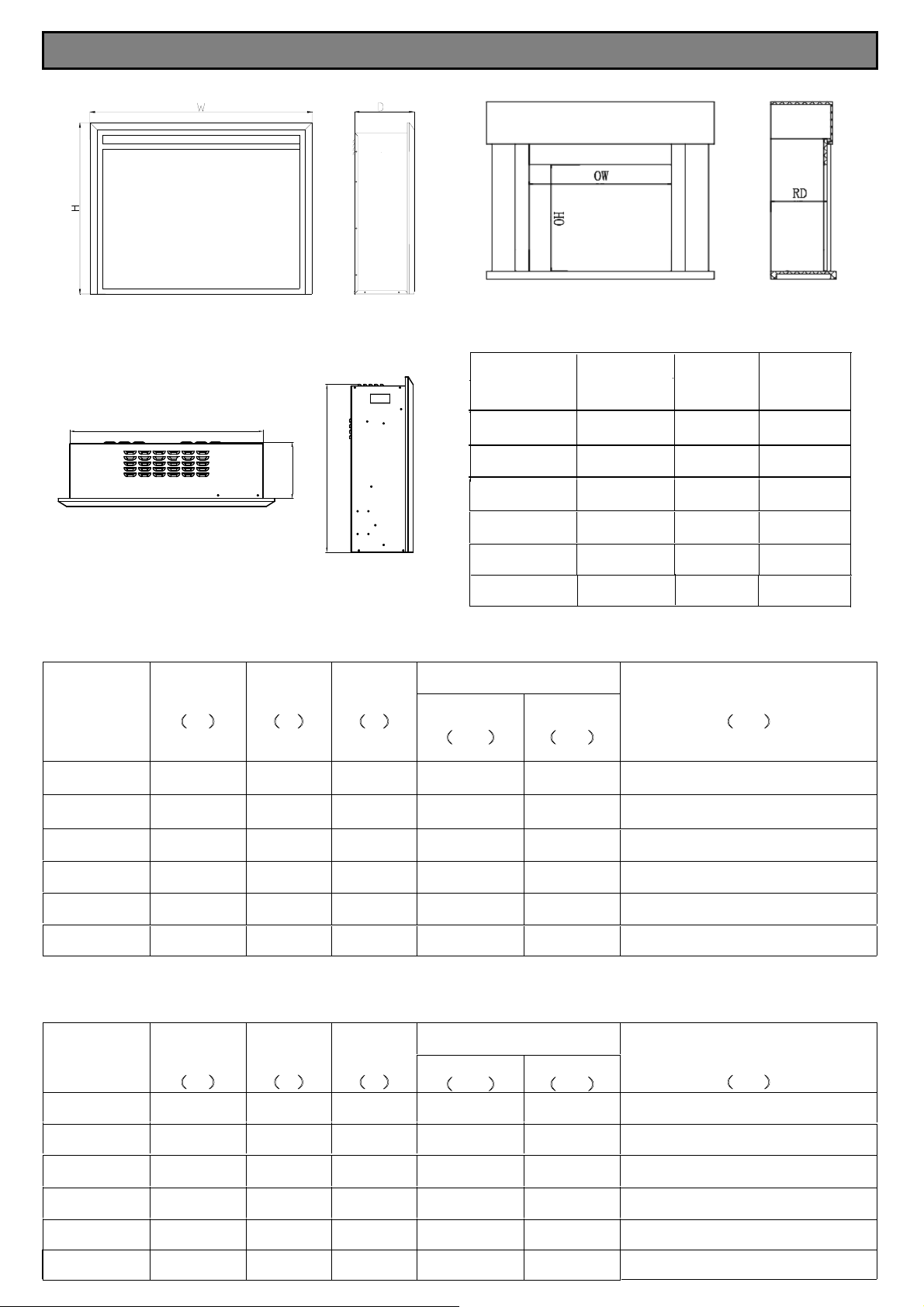

PRODUCT DIMENSIONS
Fireplace Insert
Fireplace Mantel
Units:mm
Model
Width
（W）
Height
（H）
Depth
（D）
Advise mantel opening size
（RD）
Width
（OW）
Height
（OH）
EF28T 775
644
729
628 224.6
699-701 603-605
566-568
650-652
506-508
516-518
21
21
5-220
EF23T 531
539
224.6
224.6
5-220
215-220
EF30T 838 628 224.6
762-764 603-605 215-220
EF33T 905 694 224.6 828-830 671-673 215-220
Units:inch
Model
Width
（W）
Height
（H）
Depth
（D） （RD）
Width
（OW）
Height
（OH）
EF28T 30.5 24.7 8.84 27.5-27.6 23.7-23.8 8.5-8.7
EF23T 25.4 20.9 8.84 22.3-22.4 19.9-20.0 8.5-8.7
EF26T 28.7 21.2 8.84 25.6-25.7 20.3-20.4 8.5-8.7
EF30T 33.0 24.7 8.84 30.0-30.1 23.7-23.8 8.5-8.7
EF33T 35.6 27.3 8.84 32.6-32.7 26.4-26.5 8.5-8.7
IW
ID
IH
Fireplace Insert Size
Advise mantel minimum depth
Advise mantel opening size Advise mantel minimum depth
Model Insert Width
（IW）（IH） （ID）
EF28T 27.11
23.43 7.70
EF26T
EF23T
25.30 19.92
19.61
7.70
7.70
EF30T 23.43
EF33WT
Insert Height Insert Depth
Units:inch
29.59 7.70
7.70 32.23 19.61
EF33T
32.23 26.02
7.70
EF33WT 905 531 224.6 828-830 508-510 215-220
EF33WT 35.6 20.9 8.84 32.6-32.7 20.0-20.1 8.5-8.7
EF26T
21.95

ASSEMBLY
ALWAYS unplug this fireplace heater before assembly or cleaning, or before relocating.
Failure to do so could result in electric shock, fire, or personal injury.
KEEP drapery and other furnishings at least 3ft /0.9m from the front and sides of the
electric fireplace.
AFTER installation, ensure that there is ≥0.004 ㎡ventilation area between inside and
outside of fireplace mantel.
Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a
location ensure that the general instructions are followed. For best results, install out of direct sunlight.
Power supply service must be either completed or placed within the electric fireplace prior to finishing to
avoid reconstruction.
When moving the insert into mantel, Do not let bottom of insert touch the mantel to avoid the scratch.
BATTERY REPLACEMENT
NOTE: The remote control not include the batteries.
NOTE: Do not mix old and new batteries.
Do not mix alkaine,standard(carbon zinc),or rechargeable(nicad,nimh,ect.)batteries.

OPERATION
Read and understand this entire owner’s manual, including all safety information, before
plugging in or using this product. Fail to do so could result in e lectric shock, fire,
serious injury, or death.
Power
Make sure the Power Switch, located on the control panel, is in the OFF position. Plug the power cord
into a 110~120 Volt 15 Amp outlet (see IMPORTANT SAFETY INFORMATION on Pages 3 and 4).
Make sure the outlet is in good condition and that the plug is not loose. NEVER exceed the maximum
amperage for the circuit. DO NOT plug other appliances into the same circuit.
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe
temperature, the heater will automatically turn OFF. To reset:
1. Unplug the power cord from the outlet.
2. Turn the Power Switch on the CONTROL PANEL to OFF. Wait at least 5 minutes.
3. Inspect the fireplace to make sure no vents are blocked, or clogged with dust or lint. If they are,
use a vacuum to clean the vent areas.
4. With the Power Switch in the OFF position, plug the power cord back into the outlet.
5. If it switches off again, UNPLUG THE HEATER RIGHT AWAY! Have the outlets, wiring, and
breaker box inspected by a professional. Make necessary repairs before using the heater.
Heater Rating
Maximum heat output: 1500W (5000BTU); Maximum heating area: 400 square feet.
Operation
Review the IMPORTANT SAFETY INFORMATION on Pages 3 and 4 before operating.
NOTICE:
When the heater is first turned on, a slight odor may be present. This is normal
and should not occur again unless the heater is not used for a long period of
time.
Open a door on the top right side
for operation all functions

Control Panel
Located on the right and top side panel of the fireplace.
NOITCNUFEMANNOTTUB
POWER
SWITCH
Turn on the main power supply. A long “beep” sound will be heard
when the switch is turned on On Position “I”.
Note: The remote control will lost the memory for function settings
when the switch is turned on Off Position “0”.
FLAME
The flame will be cycled L1 – L2 – L3 – L4 – L5-Flame Off.
L1 is the less flame,L5 is the biggest flame.
HEATER
The heater will be cycled Low – High – Heater Off. You will see the
screen light illuminates on right of the flame board.The indicator light
goes out within 5s.
Low: (LO)
High: (HI)
Note:
1. Fireplace can be used without heater.
2. Whether the heating is working depends on whether the settled
temperature by thermostat is higher than the environment
temperature.
3. The Fan works anterior to the heater about 10s, and turns off later
than the heater about 10s.
Log Speaker
The log speaker can make the real log burning effect.
Press first time to turn on the log speaker,
Press second time to turn off the log speaker.
TOP LIGHT
There are three colors for option.
Press the first time for orange color,
Press the second time for the blue color,
Press the third time for the purple color.
TIMER This fireplace is equipped with a timer ranging from 1hr to 9hrs(1H,2H
...9H,Off shown on the LCD display),touch the button once for every
1hr increase.

Remote Control
NOTICE:
Control panel Power Switch must be ON to use remote control.
Aim the remote control at the remote receiver. Make sure you hear a beep each
time you press the button! If not, the fireplace will not respond to the signal.
Power ON/OFF
Heater setting
FlameFlame
Log Speaker
Timer
Top light
NOTICE: Operation for all functions are same as the buttons on the fireplace.

CARE AND MAINTENANCE
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
Cleaning
NEVER immerse in water or spray with water. Doing so could result in electric shock,
fire, or personal injury.
Metal:
Buff using a soft cloth, slightly dampened with a citrus oil-based product.
DO NOT use brass polish or household cleaners as these products will damage the metal trim.
Glass:
Use a good quality glass cleaner and dry thoroughly with a paper towel or lint-free cloth.
NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Plastic:
Wipe gently with a slightly damp cloth and a mild solution of dish soap and warm water.
NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Vents:
Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
Clean the exterior of the fireplace with a slightly damp cloth or duster.
Maintenance
Risk of electric shock! DO NOT OPEN! No user-serviceable parts inside!
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
Electrical and Moving Parts:
The fan motors are lubricated at the factory and will not require lubrication.
Electrical components are integrated in the fireplace and are not serviceable by the consumer.
Storage:
Store heater in a clean dry place when not in use.
Replacement parts:
Use only replacement parts supplied by the manufacturer. Use of any other parts, or modifying
the fireplace in any way, will void all warranties.
No internal parts are replaceable or serviceable.
WARNING! No other servicing should be performed by the consumer. Do not attempt to
service the unit by yourself.

SCHEMATIC DIAGRAM
N
L
IN AC
N
AC L
HOT 1 HOT2
M M
FAN S WING LED+ LED-
Log speaker
Temperature receiver
Heating element
Wind motor
Flame motor
LED light
Thermal cut device Power switch

FAQ - FREQUENTLY ASKED QUESTIONS
Why does the fan blow before the heat comes on, and after the heater is turned off?
Heat and cool gradually. The fan blows when the heater is first turned on, and the heat is still
heating up. After the heater turns off, the fan will continue to blow air for 10 seconds. This allows
the fireplace to cool slowly, and helps prevent overheating.
What does the fireplace beep? Can I turn the beeping off?
The beeps indicate that the signal from the control panel, or remote control, has been received
by the fireplace. The beeping cannot be turned off.
Why doesn’t the fireplace function change when remote control setting changes?
The fireplace function will only change if there is a beep after pressing the button. If you do not
hear a beep, try again. If you hear a beep, the fireplace function will change to match the remote
control setting.
Why does the remote control not work, or only work sometimes?
Check to make sure the batteries are good. If necessary, change to new batteries. If the remote
control is not aimed properly, if you are too far away, or if you are too far off to the side, the
signal may not reach the fireplace. Get closer, aim at the upper top corner of the screen (where
the red heat indicator light is located), and try again.
How do I change from high heat to low heater?
The heater is controlled by the heater button on the control panel, or the heater buttons on the
remote control.
Is the thermostat setting accurate?
The temperature within a room can vary. Room size, fireplace location, air flow, sunlight, wall
type (interior vs. exterior), insulation, etc. all affect temperature. The fireplace setting may not
match your home thermostat exactly. This is normal. Try different thermostat setting on your
fireplace until you find one that is right for you.

TROUBLESHOOTING GUIDE
NOITULOSMELBORP
There is no power to the
fireplace, or it does not turn on.
1. Make sure the power cord is plugged into a functioning and
properly grounded 15 Amp 120V AC electrical outlet.
2. Make sure the Power Switch on the control panel is ON.
3. If the unit had been working, but then turned off by itself, the
temperature limiting control may need to be reset. See page 8
for instructions.
4. Check for damage to the power cord or plug. If damaged, DO
NOT USE.
The control panel functions do
not work.
1. Make sure the Power Switch on the control panel is turned on.
If it is OFF, the functions will not work.
2. If the Power Switch is ON, and the functions do not work, please
e-mail us at [email protected]
The FLAME button doesn’t
work.
1. Make sure the Power Switch on the control panel is ON.
2. If the Power Switch is ON, and the functions do not work,
please e-mail us at
[email protected]
The heater does not work. 1. Make sure the Power Switch on the control panel turned on.
2. Control Panel: Press the heater button on the control panel to
override the thermostat at any time.
3. Remote control: Make sure the thermostat is not set too low. If
the thermostat is set lower than room temperature, the heater
will not turn on.
4. If none of these solutions work, please e-mail us at
[email protected]
The heater does not blow hot
air when it turns on and off.
This is normal. The fans blow cool air while the heater gradually
heat up. The fans blow after the heater turn off to cool the heater
and prevent overheating.
The remote control does not
work.
1. Make sure the battery is properly installed.
2. Make sure the Power Switch on the control panel is turned on.
The remote control will not work unless the POWER
SWITCH on the control panel is turned on.
3. Aim the remote control at the receiver.
4. Remove objects that may be in the way. Items between the
remote control and the remote control receiver will block the
signal.
5. Don’t press the remote control buttons too quickly. Give the unit
time to respond to your commands.
The thermostat does not work. 1. Make sure the heater is turned on. The thermostat will not
work unless the heater is turned on.
2. Make sure the thermostat is not set too low. If the thermostat is
set lower than room temperature, the heater will turn on.

LIMITED WARRANTY
This warrants to the original purchaser that this product is free from defects in material and workmanship
as of the date of purchase and that it will, under normal use and proper care, remain one year
from the date of purchase. Missing or initially defective parts will be replaced free of charge during the
period of this limited warranty. If parts are unavailable, comparable replacement of refund will be given.
The original dated sales receipt is required for all warranty claims. This warranty does not cover
damage which has occurred during transport from the point of purchase to the consumer’s home. This
warranty does not cover glass, light bulbs, batteries, transportation, labor, or other issues not associated
with the manufacture of the product.
This product is for residential use only. Any and all commercial use of this product voids all
warranties, and absolves the manufacturer from all liability.
Read and understand all assembly and operating instructions, and all safety information and warnings,
before use. The following will void this warranty: Damage caused by tampering, modifying, or
altering the fireplace insert in any manner; Damage due to incorrect assembly, improper care, misuse, or
abuse; Damage from being used with the wrong power source; Water damage; Damage caused from
this insert being used outdoors; Damage caused by using for excessive periods of time; Damage
caused by the insert being used in a commercial application; Damage from use as a primary heat
source;Other misuse or abuse not specifically listed herein.
This product is not intended to be used as a primary heat source. It is for supplemental heating
purposes only.
Model:Houselux Trim 23,Houselux Trim 26,Houselux Trim 28,Houselux Trim30,Houselux Trim
33,Houselux Trim 33W
Power supply:120V-60Hz
Power consumption: 1500W
Protection class: I
Light bulb: LED
Website: www.casainc.com
Contact Phone Number: 888-257-3857
Service Contact : [email protected]
