CASAL P220 User manual

INSTRUCTION MANUAL
Features
Introduction
Connections
Operation
Thank you for purchasing CRC P220 Power
supply ,For your safety please read this manual
carefully before using this product.
Out put: DC 18V X 12.5A
Max: 220W
Input: AC90 ~ 120V or 180 ~ 245V
N.Weight : 645g
Size:169X90X48mm
Caution: Make all other connections before you connect the power supply to
standard AC power.
1. Turn the sleeves of the red and black binding output posts
counterclockwise to expose the wire hole.
★
★
2. Insert the device's positive wire (usually red) into the red binding post's
wire hole, then tighten the binding post's sleeve to secure the wire in place.
3. Insert the device's negative wire (usually black) into the black binding
post's wire hole, then tightening the binding post's sleeve to secure the wire
in place.
4. If you are using the banana plugs connection, insert the plugs into the
terminal's jack.
Warnings: To avoid damage to both the power supply and the device:
Follow the correct polarity when connecting the power supply and the
device.
Do not let the ends of the positive and negative wires touch each other.
AC Power input socket
Cooling Fan
Power Switch
Voltage switch
DC Output
To use the power supply after you connect the device to it, set POWER to turn it on
with the power switch.
Please check all connections and confirm the wall AC outlet has power before you
switch on the power supply.
If the outlet has power, set POWER to OFF, reduce the load (by using a device
that does not require more than 30 amps), then set POWER to ON. Your power
supply's overload protection circuit automatically shuts down the power supply
when it is overload and resets by turning POWER to OFF.
Caution: Place your power supply in a well ventilated open and cool area. Do not
block the openings at the fan suction on the side and the discharge openings on the
other side.
Caution: To reduce the risk of energy hazard, be careful not to short the output
terminal during operation. Remove the output connections after use.
Caution: Your power supply might cause TV or radio interference even when it is
operating properly. To determine whether your power supply is causing the
interference, turn off your power supply. If the interference goes away, your power
supply is causing it.
Try to eliminate the interference by:
★Moving your power supply away from the receiver.
★Contacting a qualified service technician for help.
★Connecting your power supply to an outlet that is on a different electrical circuit
from the receiver.

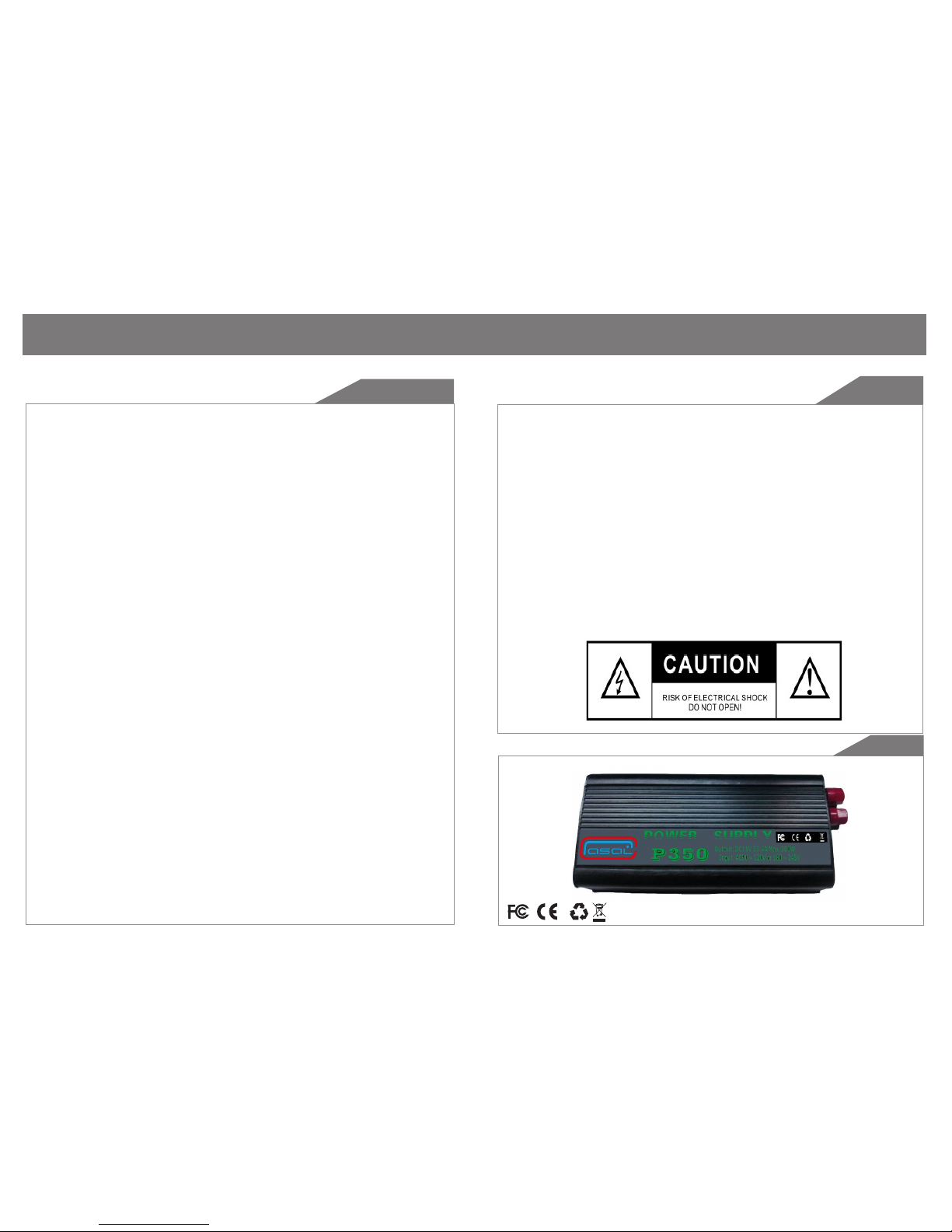

CASAL POWER SUPPLY P220

IMPORTANT SAFETY
INSTRUCTION MANUAL
Related item
Warning
★
★
★
★
★
★
★
★
★
★
★
Danger: To reduce the risk of fire or electric shock, carefully follow these
ins tru ction s. Thi s man ual c ontai ns im porta nt sa fety and ope rat ing
instructions for this power supply. Before you use the power supply, read
all the instructions and cautionary markings in this manual, on the power
supply, and on the product that you will connect to the power supply, to reduce
the risk of injury:
Do not use the power supply near water (for example, a bathtub,
washbowl, kitchen sink, laundry tub, wet basement, or swimming pool).
Do not place the power supply on an unstable cart, stand or table. If
the power supply falls, it could injure a person or cause serious damage
to the power supply.
Do not overload power outlets or extension cords. An overload can result
in fire or electric shock.
Do not disassemble this unit; take it to a qualified service technician
when service or repair is required. improper reassembly may result in a
risk of electric shock or fire.
Do not use an attachment not recommended, this could result in a risk of
fire , electric shock, or injury to persons.
Never push any object into the slot in the power supply. It could touch
dangerous voltage points or short out parts resulting in a fire or electrical
shock.
Caution: To reduce the risk of damage: Do not operate the power supply if
it has been dropped or damaged in any way. Take it to a qualified service
technician for repair.
The power supply should be operated only from a standard AC outlet that
provides AC90 ~ 120V or 180 ~ 245V, 50/60 Hz. If you are not sure of the
type of power supplied to your home, consult your local power company.
To protect the power supply during a lightning storm or when it is left
unattended and unused for long periods of time, unplug it from the AC
outlet. This will prevent damage to the power supply from lightning and
power surges.
Unplug the power supply from the outlet before attempting any
maintenance or cleaning. Do not use liquid or aerosol cleaners. Use a
damp cloth for cleaning and then wipe it dry immediately.
If your power supply does not operate normally, in particular if any unusual
sounds or smells come from it, unplug it immediately and contact a qualified
service technician for repair.
CASAL POWER SUPPLY P220
★This appliance is not intended for use by persons
(including children)with reduced physical, sensory
or mental capabilities, or lack of experience and
k n o w l e d g e , u n l e s s t h e y h a v e b e e n g i v e n
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
★Children should be supervised to ensure that they
do not play with the appliance. WARNING: If the
surface is cracked, switch off the appliance to avoid
the possibility of electric shock.
★For indoor use only.
CASAL TECHNOLOGY CO.,LTD ( www.casal-rc.com )
