Cascade TEK SVO-5-T-1P User manual

Turbo Vacuum Oven SVO-5-T-1P
Installation and Operation Manual

2 | Page
This oven requires permanent connect wiring (also known as hardwiring) to a power supply.
Warning:This product contains chemicals, including triglycidyl isocyanurate, known to the State of
California to cause cancer as well as birth defects or other reproductive harm. For more information,
go to www.P65Warnings.ca.gov.
¡Advertencia! Este producto contiene sustancias químicas, incluido el triglicidil isocianurato, que el
estado de California sabe que causa cáncer, así como defectos de nacimiento u otros daños
reproductivos. Para obtener más información, visite www.P65Warnings.ca.gov.
Avertissement!Ce produit peut vous exposer à des produits chimiques, dont l'isocyanurate de
triglycidyle, reconnu par l'État de Californie pour provoquer le cancer, des anomalies congénitales
ou d'autres problèmes de reproduction. Pour plus d'informations, visitez le site
www.P65Warnings.ca.gov

3| Page
Turbo Vacuum Oven 220 – 240 Voltage
Part Number (Manual): 4861846
Revision: July 13, 2021
Cascade TEK Part ID Number:
Model Name SVO-5-T-1P
Part ID CTVTY522-H
The Part ID denotes the build type of the model. The manufacturer periodically releases
new build types incorporating new features and refinements of existing ones.
This unit is built for Cascade TEK by Sheldon Manufacturing, INC, an
ISO9001-certified manufacturer.

4 | Page
TABLE OF CONTENTS
INTRODUCTION .........................................................................................................................................................7
Read this Manual.................................................................................................................................................................... 7
Safety Considerations and Requirements ...................................................................................................................... 7
Contacting Assistance ..........................................................................................................................................................8
Manufacturing Warranty ......................................................................................................................................................8
Engineering Improvements..................................................................................................................................................8
Vacuum Pumps .......................................................................................................................................................................9
Compressed Air Supply Required .....................................................................................................................................9
Liquid Nitrogen...................................................................................................................................................................... 10
Gasket Chemical Vulnerabilities...................................................................................................................................... 10
RECEIVING YOUR OVEN .........................................................................................................................................11
Inspect the Shipment............................................................................................................................................................ 11

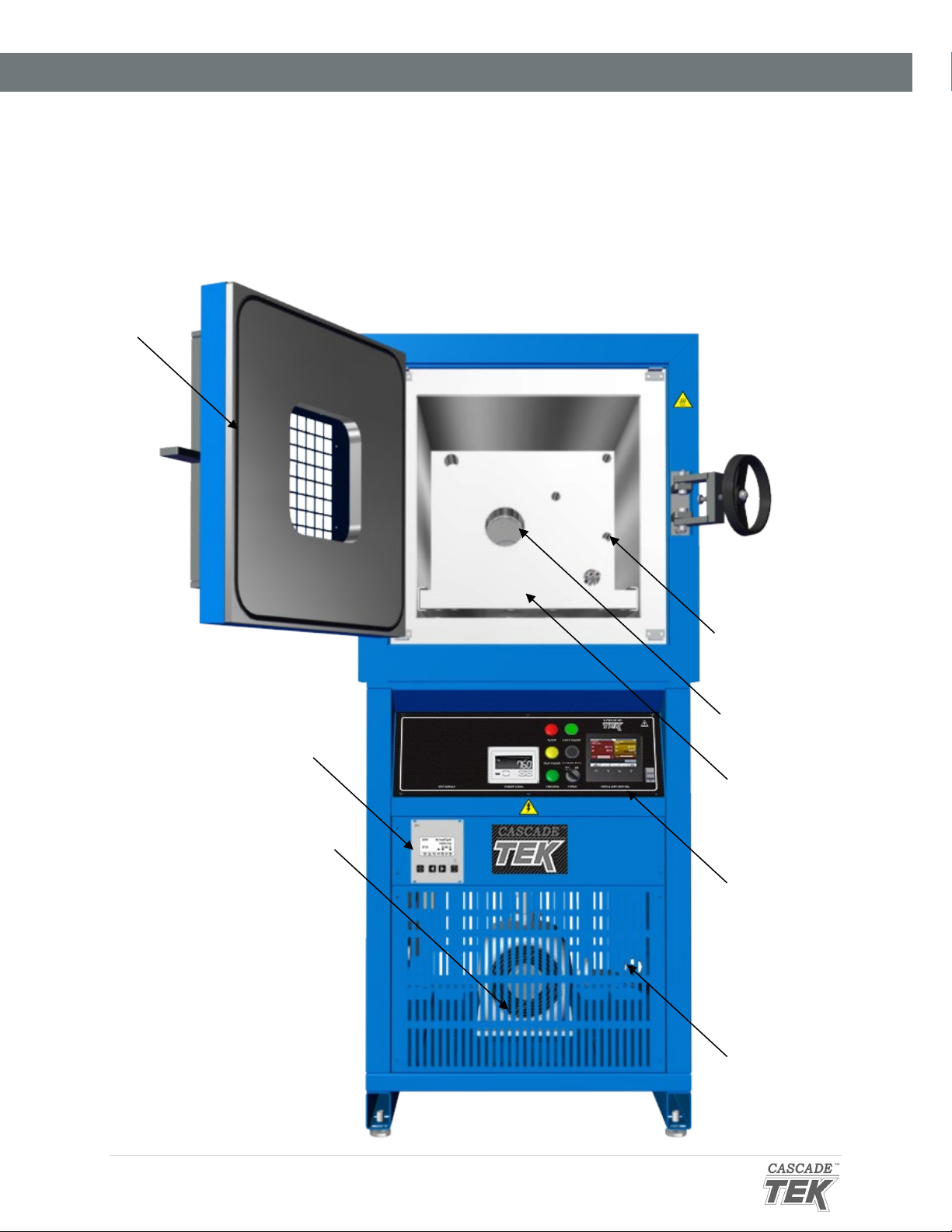

Orientation Images .............................................................................................................................................................. 12
Dimension Visuals................................................................................................................................................................ 14
Record Data Plate Information......................................................................................................................................... 15
INSTALLATION ......................................................................................................................................................... 17
Hardwire Requirement.........................................................................................................................................................17
Installation Procedures Checklist .....................................................................................................................................17
Required Ambient Conditions........................................................................................................................................... 18
Required Clearances........................................................................................................................................................... 18
Power Source Requirements ............................................................................................................................................ 19
Lifting and Handling ........................................................................................................................................................... 20
Leveling.................................................................................................................................................................................. 20
Install the Oven .................................................................................................................................................................... 20
Remove the Platen Shipping Blocks............................................................................................................................... 21
Disengage the Roughing Pump Locks.......................................................................................................................... 22
Installation Cleaning........................................................................................................................................................... 23
Connect Gas Supplies and GN2Exhaust...................................................................................................................... 24
Vent the Roughing Pump Exhaust.................................................................................................................................. 25
Verify the Oven Chamber is Empty................................................................................................................................ 26
Hardwire the Oven to Its Power Supply........................................................................................................................ 26
GRAPHIC SYMBOLS ............................................................................................................................................... 27
CONTROL OVERVIEW ............................................................................................................................................ 29
OPERATION.............................................................................................................................................................. 35
Operating Precautions and Hazards............................................................................................................................. 35
Theory of Operation ........................................................................................................................................................... 40
Put the Oven into Operation ............................................................................................................................................ 43
Logging In and Out ............................................................................................................................................................. 44
File Export and Import........................................................................................................................................................ 45
Set the Temperature Cutoff Limits ................................................................................................................................. 46
Latch the Oven Chamber Door........................................................................................................................................47
Pump Down the Oven Chamber..................................................................................................................................... 48
End the Pump Down Process........................................................................................................................................... 49
Backfill the Chamber.......................................................................................................................................................... 49
Connect to the Liquid Nitrogen Supply......................................................................................................................... 50
Setting Constant Temperature Setpoints...................................................................................................................... 51
Heating Profiles ................................................................................................................................................................... 52
Temperature Limit Cutoff Active ..................................................................................................................................... 53
Data Ports.............................................................................................................................................................................. 55
Oven Cooldown Times ...................................................................................................................................................... 55
OPERATOR MAINTENANCE.................................................................................................................................. 57
Cleaning..................................................................................................................................................................................57
Maintaining Atmospheric Integrity ................................................................................................................................. 58

5| Page
Gaskets .................................................................................................................................................................................. 58
Electrical Components....................................................................................................................................................... 58
Storage................................................................................................................................................................................... 58
UNIT SPECIFICATIONS .......................................................................................................................................... 59
Weight..................................................................................................................................................................................... 59
Dimensions............................................................................................................................................................................ 59
Capacity ................................................................................................................................................................................. 59
Vacuum ..................................................................................................................................................................................60
Temperature Performance ............................................................................................................................................... 60
Power...................................................................................................................................................................................... 60
REPLACEMENT PARTS LIST...................................................................................................................................61

6 | Page
TABLE OF CONTENTS

7| Page
INTRODUCTION
Thank you for purchasing a Cascade TEK oven. We know you have many choices in today’s
competitive marketplace when it comes to constant temperature equipment. We appreciate you
choosing ours. We stand behind our products and will be here if you need us.
READ THIS MANUAL
Failure to follow the guidelines and instructions in this user manual may create a protection
impairment by disabling or interfering with the unit safety features. This can result in injury or death.
Before using the unit, read the manual in its entirety to understand how to install, operate, and
maintain the unit in a safe manner. Ensure all operators are given appropriate training before the unit
begins service.
Keep this manual available for use by all operators.
SAFETY CONSIDERATIONS AND REQUIREMENTS
Follow basic safety precautions, including all national laws, regulations, and local ordinances in your
area regarding the use of this unit. If you have any questions about local requirements, please
contact the appropriate agencies.
SOPs
Because of the range of potential applications, this unit can be used for, the operator or their
supervisors must draw up a site-specific standard operating procedure (SOP) covering each
application and associated safety guidelines. This SOP must be written and available to all operators
in a language they understand.
Intended Applications and Locations
SVO vacuum ovens are engineered for drying, curing, and baking applications under vacuum in
professional, industrial, and educational environments. The ovens are not intended for use at
hazardous or household locations.
Power
Your unit and its recommended accessories are designed and tested to meet strict safety
requirements.
•Always hardwire the unit power feed to a protective earth-grounded electrical source that
conforms to national and local electrical codes. If the unit is not grounded properly, parts
such as knobs and controls can conduct electricity and cause serious injury.
•Position the unit so operators can quickly and easily disconnect or uncouple the power feed
in the event of an emergency.
•Avoid damaging the power feed. Do not bend it excessively, step on it, or place heavy
objects on it. A damaged power feed can easily become a shock or fire hazard. Never use a
power feed if it has been damaged or altered in any way.
•Use only approved accessories. Do not modify system components. Any alterations or
modifications to your oven not explicitly authorized by the manufacturer can be dangerous
and are not covered by the manufacturing defect warranty.

8 | Page
INTRODUCTION
CONTACTING ASSISTANCE
Phone hours for Customer Support are 6 am through 4:30 pm Pacific Coast Time (west coast of the
United States, UTC -8), Monday through Friday. Please have the following information ready when
calling or emailing Customer Support: the model number, serial number,part number, and part ID
(see page 15).
[e-mail]
1-888-835-9250
1-971-371-4096
FAX: [phone]
Manufacturing and Customer Support
Cascade TEK Solutions, LLC
PO Box 625
300 N 26th Ave
Cornelius, OR 97113
USA
MANUFACTURING WARRANTY
For information on your warranty and online warranty registration please visit:
https://www.cascadetek.com/warranty/
ENGINEERING IMPROVEMENTS
Cascade TEK continually improves all its products. As a result, engineering changes and
improvements are made from time to time. Therefore, some changes, modifications, and
improvements may not be covered in this manual. If your unit’s operating characteristics or
appearance differs from those described in this manual, please contact your Cascade TEK dealer or
customer service representative for assistance.

9| Page
INTRODUCTION
VACUUM PUMPS
The turbopump on the back of the oven operates in conjunction with a roughing pump in the oven
pump cabinet. Both pumps are installed at the factory and come plumbed to the oven vacuum
system.
Refer to the pump manufacturer manuals shipped with the oven for specifications and compatibility
with applications. Consult the pump manuals for operating requirements and maintenance or
diagnostic issues pertaining directly to the pumps.
Shipping Locks: The roughing pump comes with built-in shipping locks to prevent damage during
transit. See page 22 for instructions on disengaging the locks prior to putting the oven into
operation.
COMPRESSED AIR SUPPLY REQUIRED
Compressed air provides the mechanical pressure required to operate the automated vacuum and
gas backfill vent valves. The oven chamber cannot be pumped down or backfilled without a
compressed air supply.
Use ¼ inch OD (outside dimension) tubing to connect the supply to the ¼ inch push fitting on the back,
left side of the oven, labeled Air 70 PSI.
The oven requires 70 psi of air pressure delivered at the port to function. Never exceed 80 psi.
Building
Pneumatic
Supply

10 | Page
INTRODUCTION
LIQUID NITROGEN
The oven requires a supply of liquid nitrogen to chill the platen. LN2 is pulsed or flushed through the
platen and expelled as gas nitrogen from the oven through an exhaust port located on the back of
the oven.
Venting from Workspace Required
Gas nitrogen (GN2) expelled from the oven must be vented away from the workspace area to prevent
nitrogen from displacing oxygen in the room.
Supply Quality
The oven requires high-purity LN2 4.8 at low pressure. The supply must deliver 24 – 50 psi of
pressure at the oven LN2in port(s). Platen chilling performance will vary based on the LN2 connection
configuration.
Usage
Usage rates are dependent on the temperature the platen will be chilled to and the duration and
number of chilling phases. The use of well-insulated transfer lines will reduce LN2usage and improve
platen chilling performance.
Potential Hazards
See the Nitrogen Precautions on page 38 for liquid and gas nitrogen hazards information.
GASKET CHEMICAL VULNERABILITIES
The oven comes with a Viton® gasket built into the oven door. The gasket must seal against the un-
nicked contact surface on the oven body in order for the oven chamber to hold vacuum.
The gasket is a low wear, long-duration component and typically replaced only during scheduled
services on the oven. However, the gasket is attacked by ketones, low molecular weight esters, and
compounds containing nitros. Exposing the gasket to these may damage its integrity and require an
early replacement. The gasket is a consumable component and is not covered under the
manufacturer warranty.

11 | Page
RECEIVING YOUR OVEN
INSPECT THE SHIPMENT
Safe delivery becomes the responsibility of the carrier when a unit leaves the factory. Damage
sustained during transit is not covered by the manufacturing defect warranty.
When you receive your unit, inspect it for concealed loss or damage to its interior and exterior. If you
find any damage to the unit, follow the carrier’s procedure for claiming damage or loss. Save the
shipping carton until you are certain that the unit and its accessories function properly.
1. Carefully inspect the shipping carton for damage.
2. Report any damage to the carrier service that delivered the unit.
3. If the carton is not damaged, open the carton and remove the contents.
4. Inspect the unit for signs of damage. See the orientation depiction on the next page as a reference.
5. The unit should come with an Installation and Operation Manual, a profile programming manual,
an operator manual for the vacuum display, and a manufacturer vacuum pump manual for
each vacuum pump.
6. Verify the correct number of accessory items has been included.
7. Carefully check all packaging for accessories before discarding.
Included Accessories:
SVO-5-T-1P Leveling Feet
4

12 | Page
RECEIVING
ORIENTATION IMAGES
Oven Chamber Door
SVO
-5-T-1P
Door Hasp
Door Latch
Control Panel
Electronics Cabinet
Turbopump Monitor
Roughing Pump
(In the Cabinet)
Platen
Turbopump Port
Door Gasket
KF-25 Access Port

13 | Page
RECEIVING
Back of Oven
Backfill Intake
Port 3/8” (9.5 mm)
Hardwire Power Feed
(Shipping Cover Pictured)
Auxiliary Chamber
Port (KF-25)
Compressed Air Port ¼”
(6.35 mm) Push Fitting
Vacuum Exhaust Tubing
(standard pump units)
Foreline
Roughing Vacuum Valve
Turbopump
Foreline Gauge
LN
2
Connection, 1/2”
(12.7 mm) flare, male in
port
Backfill Valve
GN
2
exhaust port
3/8” (9.5 mm)

14 | Page
RECEIVING
DIMENSION VISUALS
SVO-5-T-1P
Platen Width: 17.5 inches (444 mm)
Platen Depth:23.0
inches (584 mm)
Width: 28.8 inches (732 mm)
Depth: 51.9 inches (1318 mm)
Chamber Height: 18.0 inches (457 mm)
Chamber Width: 18.0 inches
(457 mm)
Chamber Depth: 26.0 inches (660 mm)
Platen
Height: 69.2 inches (1758 mm)
Exterior
Interior

15 | Page
RECEIVING
RECORD DATA PLATE INFORMATION
Record the unit model number, serial number, part number, and part ID below for future reference.
Customer Support needs this information to provide accurate help during support calls and emails.
•The data plate is located on the back, left side of the oven, above the compressed air inlet
port.
MODEL NO:
SERIAL NO:
PART NO:
PART ID:

16 | Page
RECEIVING

17 | Page
INSTALLATION
HARDWIRE REQUIREMENT
The oven requires permanent connect wiring (commonly known as hardwiring). Wiring to the power
source must be performed by a qualified electrical technician. All other installation steps may be
performed by the operator.
INSTALLATION PROCEDURES CHECKLIST
For installing the unit in a new workspace location.
Pre-Installation
Verify compressed air and any required liquid nitrogen supplies are
available and can be connected to the oven. See pages 9, 10, 24, and 50.
Check that the required ambient conditions for the unit are met, page 18.
Check that the spacing clearance requirements are met, page 18.
•Unit dimensions may be found on page 59.
Check that a suitable permanent connect power supply is present, page 19.
Install the oven in a suitable location
Review the lifting and handling instructions, page 20.
Install the unit leveling feet, page 20.
Install the oven in its workspace location, page 20.
Set up the oven for use
Remove and disengage the shipping blocks and locks, pages 21and 22.
Clean the chamber, page 23.
Connect the oven to its pressurized air supply source and GN2venting,
along with any optional backfill gas supply, page 24.
Connect the oven vacuum pump exhaust to a ventilation system to
remove outgassed byproducts from the workspace area, page 25.
Verify the chamber is empty and clean, page 26.
Hardwire the oven to its power supply, page 26.

18 | Page
INSTALLATION
REQUIRED AMBIENT CONDITIONS
These units are built for use indoors, at room temperatures between 15°C and 35°C (59°F and 95°F), at
no greater than 80% Relative Humidity (at 25°C / 77°F). The ambient temperature should not change by
2°C (3.6°F) or more during operation.
Operating outside these conditions may affect the oven temperature performance.
When selecting a location to install the unit, consider all environmental conditions that can adversely
impact its temperature performance. These include:
•Proximity to other ovens, autoclaves, and any device that produces significant radiant heat
•Heating and cooling vents or other sources of fast-moving air currents
•High-traffic areas
•Direct sunlight
REQUIRED CLEARANCES
These clearances are required to provide airflows sufficient for ventilation and cooling.
6 inches (152 mm) of clearance is required on the sides.
12 inches (305 mm) of headspace clearance is required between the top of the unit and any
overhead partitions.
Do not place objects on top of the oven.
Vacuum, backfill, and access ports are located on the back of the oven. Leave sufficient clearance
for operators to safely access these ports.
Turbo Pump
Gas In Ports
6” (152 mm)
12” (305
)
12” (305 mm)
12” (305 mm)
6” (152 mm)
Door Swing
24.8 in (630 mm)
Leave a 130° arc for the door swing. This
allows large sample trays to be removed from
the chamber without damaging the door seal
or metal sealing surfaces of the door.

19 | Page
INSTALLATION
POWER SOURCE REQUIREMENTS
When selecting a location for the oven, verify each of the following requirements is satisfied:
Power Source: The power source must match the voltage and amperage requirements listed on the
unit data plate.
•The unit is intended for 50/60 Hz applications at the following amperage:
Model AC Voltage Amperage
SVO-5-T-1P 220 – 240 40
•The power source must be protective earth grounded and single phase.
•The power source must conform to all national and local electrical codes.
•The unit may be damaged if the supplied voltage varies by more than 10% from the data
plate rating.
•A dedicated separate circuit for the oven is recommended to prevent possible loss of
product due to overloading or failure of other equipment on the same circuit.
Switch or circuit-breaker: A wall switch or circuit-breaker must be used in the building installation to
protect against overcurrent conditions.
•The recommended circuit-breaker for the wall power source for the SVO-5-T-1P is 50 amps.
Power Feed Disconnect: The oven must be positioned so that all operators have access to the
power feed disconnect in case of emergencies.
•The disconnect must be near the equipment and within easy reach of the operator.
•The disconnect must be marked as the disconnecting device for the equipment.
Internal Circuit Breakers: The oven comes equipped with multiple internal circuit breakers.
Resetting these is a service-level procedure. The cause of the overcurrent conditions that tripped
the breakers must be identified and repaired prior to resetting.

20 | Page
INSTALLATION
LIFTING AND HANDLING
The oven is heavy. Use appropriate lifting devices that are sufficiently rated for these loads. Follow
these guidelines when lifting the oven:
•Lift the oven only from its bottom surface.
•Doors, handles, and knobs are not adequate for lifting or stabilization.
•Restrain the oven completely while lifting or transporting so it cannot tip.
•Remove all moving parts, such as shelves and trays, and lock doors in the closed position
during transfers to prevent shifting and damage.
LEVELING
Install the 4 leveling feet in the corner holes in the bottom of the unit. The unit must be level and
stable for safe operation.
Note: To prevent damage when moving the unit, turn all 4 leveling feet so that the leg of each foot
sits inside the unit.
INSTALL THE OVEN
Install the unit in a workspace location that meets the criteria discussed in the previous entries of the
Installation section.
•Do not connect the oven to its power source at this time.
