Casella HB3341-01 User manual

1
“DUST DETECTIVE”
Static Air Sampling Enclosure
For Microdust pro
User Manual
HB3341-01
COPYRIGHT
The copyright in this document which contains proprietary information is vested in CASELLA CEL Limited.
The contents of this document must not be used for purposes other than for which it has been supplied or
reproduced or disclosed wholly or in part without the prior written permission of the author.

2
TABLE OF CONTENTS
WARNINGS !...................................................................................................................... 3
DUST DETECTIVE - STATIC AIR SAMPLING ENCLOSURE UNIT ............................... 3
Introduction ......................................................................................................................... 3
System Overview................................................................................................................. 4
Power Supply....................................................................................................................... 4
Run Times ............................................................................................................................ 5
USING THE DUST DETECTIVE SAS UNIT...................................................................... 5
Installation ........................................................................................................................... 5
PUF Filter Adaptor............................................................................................................... 5
Storage of PUF Filters......................................................................................................... 5
Inserting / Removing PUF Filters....................................................................................... 5
Collection Filter Cassette ................................................................................................... 5
Powering up and using the system................................................................................... 6
Checking the Instrument’s Zero ........................................................................................ 6
Checking Probe Span ......................................................................................................... 6
Sampling Pump ................................................................................................................... 6
Starting a Sample Run........................................................................................................ 6
SERVICE ............................................................................................................................ 7
Enclosure Specification...................................................................................................... 8
Apex Pump Specification ................................................................................................... 8
Additional Apex Features................................................................................................... 8
PUF / FILTER SPARES ..................................................................................................... 8
ORDERING INFORMATION .............................................................................................. 8
Figure 1 - Components and controls for dust detective. 9
Figure 2 - External view of Dust Detective. 9

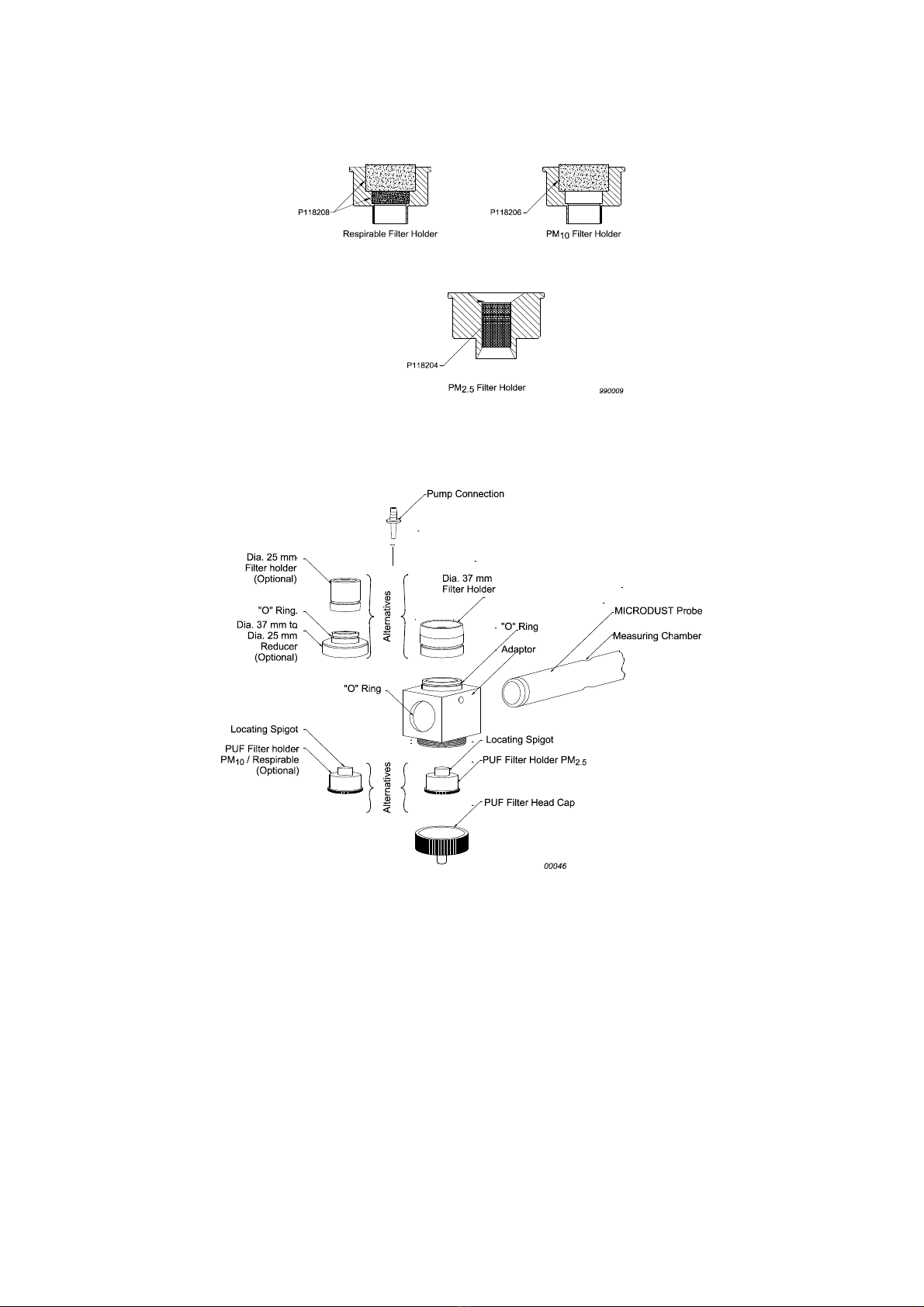

Figure 3 - PUF Filter configurations. 10
Figure 4 - Adaptor and Filter configurations. 10

3
WARNINGS !
The Microdust pro and associated Static Sampling Unit is non- intrinsically
safe and MUST NOT be used within a hazardous area.
DISPOSAL OF BATTERIES: Batteries and battery packs must never be
disposed of by placing in a fire or incinerator, nor must they be punctured,
crushed or otherwise mutilated or opened up in any way. Disposal must be
in accordance to local environmental legislation.
Ensure the Apex and Microdust pro are held firmly by the Velcro straps
provided, otherwise damage to the instruments could occur.
All optical measurement systems are sensitive to the presence of moisture
droplets both in the air and bonded to particulate matter. To prevent
possible measurement errors, the system should not be used in conditions
of high humidity, rainfall or condensation.
Dust Detective - Static Air Sampling Enclosure Unit
Introduction
With increased awareness of environmental pollution from fine particulate in the workplace and
increasing enforcement of COSHH and environmental legislation, the demand for more area and
perimeter monitoring on a short to medium term basis is on the increase. This need for real-time
particulate information is a requirement in general industry, when looking at Total Suspended
Particulate (TSP), and at inhalable and respirable dust levels as a health issue.
CASELLA CEL have introduced the “Dust Detective” Static Air Sampling (SAS) enclosure for
exactly this application. This accessory provides a simple solution to short to medium term fixed
area monitoring with the Microdust pro and Apex sampling pumps and is designed specifically for
use in indoor applications, but some short term outdoor perimeter samples can be undertaken
with the unit.
When monitoring perimeter dust conditions, the system should not be used under conditions of
high humidity, condensation, rain or fog. The APM 950 is a mains powered device better suited
for this application. (Contact sales department for further details).
The IP65 case is designed to accommodate a standard Microdust pro as well as an Apex or Apex
Lite air sampling pump which provides a precise inlet flow rate.
The Dust Detective SAS Unit has been designed as an accessory for existing Microdust pro
users as well as for potential customers looking for a complete system when supplied complete
as the Dust Detective.
( In this format , the enclosure also doubles as the equipment carry case for the Microdust Pro.)

4
The complete system would require the purchase of the static air sampling enclosure ( Part
number 176170D ), plus the following additional items:-
Microdust Pro,
Apex Standard or Pro Sampling Pump with charger or Apex Lite Sampling pump
Apex starter kit or suitable Flow Meter Kit
Pre weighed GFA filters. (See ordering Information section 7)
The key component to this accessory is the sampling inlet which utilises PUF size-selective filter
techniques. Size-selective filters were originally developed for operation in the Conical Inhalable
Sampler (CIS) as detailed within the Health and Safety Executive publication MDHS 14/3. The
foam filter specifications and dimensions determine the desired aerosol size selection
characteristics and eliminate particle sizes greater than PM
10,
PM
2.5
or Respirable (4 mm) as
appropriate. The larger particles become trapped and collect within the foam matrix, whilst all
particles below these “cut-off points” pass through the PUF filters and enter the measurement
chamber, where the real time mass concentration is established.
After passing through the Microdust pro, particulate matter is deposited on a 25 or 37mm filter
which may be used for gravimetric or chemical analysis.
Remember however, although the Dust Detective system has been designed to monitor
particulate fraction concentrations in a variety of environments, it does have some operating
limitations. The instrument is not designed to operate continuously out of doors for long periods
over 19 hours.
Due to the light scattering principle used within the instrument, any moisture which individual
particles attract at periods of high humidity or temperatures approaching “dewpoint” will be “seen”
by the instrument as larger particles. This biases results towards greater concentrations. Also,
during these periods, any air being drawn through the instrument which is high in humidity may
condense on the optics and distort the light beam, producing spurious results.
Any application requiring this type of monitoring regime, will need a particulate monitor with
internal heater, to drive off any water vapour within the incoming air stream, thus eliminating
erroneous readings. The Casella Ambient Particulate Monitor (APM950) is considered the best
tool for this job and can run continuously and unattended for months at a time. Please contact
CASELLA CEL or your distributor for more information.
System Overview
The internal configuration of the Dust Detective is shown in Figure 1. The system incorporates an
Apex sampling pump to draw the sample air through the inlet pipe at a user selected flow rate.
PUF filters are designed to operate at a flow rate of 3.5 L/min. The inlet head is designed to
prevent the ingress of insects and other large foreign objects. A dust cap is provided to seal the
inlet port on the case lid whenever the inlet tube is removed for transit purposes.
Size selection of the sample stream is performed by passing the sample through a PUF foam
filter appropriate to the chosen sampling strategy, (PM
10,
PM
2.5
or Respirable). PUF filter adaptors
are described in Figures 3 and 4. A nozzle on the mounting block is a push fit into the inlet fitting
on the case lid.
Power Supply
The Microdust Pro is powered via either internal rechargeable NiMh cells (2.1Ah) or via AA sized
dry cells. This allows the unit to run for typically 19 hours.
The Apex Lite pumps are powered via 4 x AA Alkaline cells. Other Apex (Standard and pro)
pumps use rechargeable NiMh cells.(1.7Ah) and must be fully charged before use.

5
Run Times
Apex Standard > 20 hours, Apex I.S > 12 hours, Apex Lite > 24hours (@ 3.5L/min via GFA
filters). Microdust Pro with NiMH batteries typically 19 hours. Alkaline cells > 13 hours. (All run
times may be reduced at low temperatures).
Using the Dust Detective SAS Unit
Installation
Cutouts are provided in the foam for the Microdust Pro and Apex sampling units. Ensure both
units are fully charged up or have new AA cells if required before insertion.
Note: Ensure the Apex and Microdust pro are held firmly by the Velcro straps provided,
otherwise damage to the instruments could occur.
Connect the Apex pump to the sampling spigot (X).
Connect the Microdust probe into the Adaptor Block and correctly align such that the locating
spigot on the PUF Filter Holder locks into the Probe Measuring Chamber. When locked correctly
into position, the complete assembly is prevented from rotating or moving laterally on the probe.
(see figure 4). The body of the probe will be located into the retaining clip.
PUF Filter Adaptor
For size-selective monitoring applications, it is necessary to load the appropriate foam filter(s) into
the inlet adapter. If TSP (Total Suspended Particulate) monitoring is required, then no foams
should be fitted within the inlet assembly.
The type of foam filter loaded into the adapter determines the size of particulate matter being
monitored by the Microdust pro and collected on the filter. Although the PUF foam inserts have
been designed as size-selective filters to capture particles larger than a specified mean
aerodynamic size, it is also possible to weigh the PUF inserts before and after measurement to
establish both the total suspended particulate (TSP) value and the desired size fraction.
Storage of PUF Filters
The PUF filters should be kept in a clean and preferably air-conditioned environment.
Inserting / Removing PUF Filters
The PUF filters should be carefully inserted or removed from their respective cassettes using
clean tweezers and plastic gloves. Avoid subjecting the filters to physical damage, creasing or
folding.
Filters should be loaded into the relevant housing as shown in Figure 3,4.
Collection Filter Cassette
A Filter Cassette is provided to accommodate a 37 or 25mm filter. The desired filter type (typically
of the GFA type) should be conditioned and pre-weighed (if required) before being loaded into the
cassette. Always handle filters with care to prevent contamination or physical damage.

6
Powering up and using the system
Checking the Instrument’s Zero
Check the zero calibration for the Microdust Pro before every use. This can be achieved either as
described in the Microdust Pro handbook, utilising the purge air bellows connected to the probe
purge points. Alternatively to calibrate in situ, remove the inlet cowl, and connect the in-line air
filter to the inlet tube, start the Apex pump. With clean air in the probe, the display should be
zeroed.
Checking Probe Span
The span of the Microdust pro should be checked in accordance with the relevant User Manual.
The span can also be checked by inserting the calibration filter and checking the reading. If
required, adjust the span control according to the User Manual.
Sampling Pump
The Dust Detective enclosure is designed to use the Apex range of personal samplers. This
allows the user to take a standard personal sampling pump, charge the unit up and install inside
the enclosure. The pumps are designed to provide a flow rate capability of up to 4.0 L/min whilst
using a 37 mm GFA filter head (at up to 25 cm H
2
0 pressure drop). Automatic flow control
circuitry is used to maintain a stable sample flow rate over varying pressure drop conditions.
To switch the pump on, press the enter key on the pump. When running a real time flow meter
symbol will appear on the display and a green flashing light will be visible at the top of the pump.
To switch the pump off, press and hold the enter key and the pump will countdown to off.
PUF filters are designed to operate at a flow rate of 3.5 L/min.
Check the performance and calibrate the Apex sampling pump according to the manual and
adjust the flow rate to 3.5 L/min.
If the pump is unable to maintain the selected flow rate due to excessive pressure drop or an inlet
blockage, the red LED will begin to flash and the warning tone will bleep rapidly.
Starting a Sample Run
1. Remove the protective dust cap and fit the sample inlet tube/head to the case (see
fig 2).
2. Insert the PUF filter foam(s) and in line sample filter (if required) (see figure 3,4).
3. Switch the Microdust pro and Apex pump on. Confirm zero using the in-line filter
connected to the sample inlet.
4. Check that the Apex flow rate is set to 3.5L/min.
5. Locate unit in required location. Start pump and Microdust data logger according to
their respective user manuals.

7
SERVICE
It is recommended that the unit is serviced annually, more frequently when used in high dust
areas.
CASELLA CEL’s in house service department offers a comprehensive range of repair and
calibration services, designed to effect a fast and efficient back-up for all our products. The
service department is operated under the scope of our BSI registration for products manufactured
by us. We will however, undertake the repair of other manufacturers’ equipment.
For further information please contact CASELLA CEL’s Service Department at our Bedford
premises. We will be happy to provide quotations for individual repairs or provide annual
maintenance under contract.
We recommend factory service by technicians trained and equipped to repair your
instrumentation. Should you wish factory repair assistance, send your equipment in a package
equivalent to the original packaging.
Insure to full value and ship pre-paid. Include a letter giving full details with your packing list.
Send to:
CASELLA CEL LIMITED (Service Department)
Regent House
Wolseley Road
Kempston
Bedford
MK42 7JY
If purchased outside the United Kingdom, please return to your distributor.

8
TECHNICAL INFORMATION
Enclosure Specification
Operating temperature range: +5 to +40
o
C in the absence of condensation
Storage temperature range: -25 to +55
o
C
Humidity range: 30 to 90% RH provided there is no condensation
Storage humidity range: 0 to 90% RH in the absence of condensation
Size: 410 x 330 x 175 mm
Weight: 7 kg without probe
Apex Pump Specification
Flow range 0.8 to 4.0 L/min
Flow control accuracy ±5% for selected flow
Operating temperature 0 to +45
o
C
Dimensions 135 x 75 x 43 mm
Additional Apex Features
¤Elapsed time display
¤Real Flow Rate indication
¤Automatic flow fault indicator and shutdown
¤Low battery warning indicator and bleeper
¤Low battery shut down.
PUF / Filter Spares
Foam filter - PM
2.5
(pk of 10) P118204
Foam filter - PM
10
(pk of 10) P118206
Foam filter - Respirable (pk of 10) P118208
Pre weighed filters (25mm GFA) P117000
Pre weighed filters (37mm GFA) P117001
Ordering Information
Dust Detective Unit Complete 176171A
Static Air Sampling Enclosure 176170D
Microdust Pro Kit (0-2500mg/m
3
) 176000A
Apex Standard Rechargeable Pump 182000B
Apex Charger 182052B
Apex Lite (Dry cell version) 182170B
Apex starter kit P104104

9
Spare
Batteries
Probe
Retaining
Clip
Inlet
Head
MDP Span
Calibrator ON/OFF
Button
Figure 1: Components and controls for Dust Detective.
Accessory
Pouch
Filter
Adapter
Filter
Conette
Probe
ON/OFF
Button
Inlet
Tube
'Zero' Purge
Hand Bellows
Sampling
Spigot (x)
Apex
Unit
PM 2.5
Adaptor
Microdust
Unit
Figure 1 - Components and controls for dust detective.
Figure 2 - External view of Dust Detective.

10
Figure 3 - PUF Filter configurations.
Figure 4 - Adaptor and Filter configurations.
ALTERATION WITOUT NOTICE
The contents of this manual are subject to change without notice

Thank you for reading this data sheet.
For pricing or for further information, please contact us at our UK Office, using the details
below.
UK Office
Keison Products,
P.O. Box 2124, Chelmsford, Essex, CM1 3UP, Engl nd.
Tel: [phone]
F x: [phone]
Em il: s [email protected].uk
Please note - Product designs and specifications are sub ect to change without notice. The user is responsible for determining the
suitability of this product.
