Operation Guide 5015
1
MO0712-EA
About This Manual
•Depending on the model of your watch, display text
appears either as dark figures on a light background, or
light figures on a dark background. All sample displays
in this manual are shown using dark figures on a light
background.
•Button operations are indicated using the letters shown
in the illustration.
•Most of the display examples in this manual show only
the digital display, without the analog hands.
•Each section of this manual provides you with the
information you need to perform operations in each
mode. Further details and technical information can be
found in the “Reference” section.
▲
▲
Stopwatch Mode
Countdown Timer Mode
Alarm Mode
Timekeeping Mode
Press C.
▲
World Time Mode
Hand Setting Mode
General Guide
•Press Cto change from mode to mode.
•In any mode (except when a setting screen is on the display), press Bto illuminate
the face of the watch.
▲ ▲
▲
Radio-controlled Atomic Timekeeping
This watch receives a time calibration signal and updates
its time setting accordingly.
•Supported time calibration signals: Germany
(Mainflingen), England (Anthorn), United States (Fort
Collins), Japan.
Current Time Setting
This watch adjusts its time setting automatically in
accordance with a time calibration signal.You also can
perform a manual procedure to set the time and date,
when necessary.
•The first thing you should do after purchasing this watch
is to specify your Home City (the city where you
normally will use the watch). For more information, see
“To specify your Home City”.
Day
Month Second
Day of week
•When using the watch outside the areas covered by the time signal transmitters, you
will have to adjust the current time setting manually as required. See “Timekeeping”
for more information about manual time settings.
•The U.S. time calibration signal can be picked up by the watch while in North
America. The term “North America” in this manual refers to the area that consists of
Canada, the continental United States, and Mexico.
•The analog time of this watch is synchronized with the digital time. Because of this,
the analog time setting is adjusted automatically whenever you change the digital
setting. See “Analog Timekeeping” for more information.
To specify your Home City
1. In the Timekeeping Mode, hold down Auntil the city
code starts to flash. This is the setting screen.
2. Press D(east) to scroll through the city codes until the
one you want to use as your Home City is displayed.
•Time calibration signal reception is supported when
any one of the city codes shown in the table below is
selected as your Home City.
German/U.K. Signal Japan Signal U.S. Signal
City
Code
LIS
LON
MAD
PAR
ROM
BER
STO
City
Name
Lisbon
London
Madrid
Paris
Rome
Berlin
Stockholm
City
Code
ATH
MOW
City
Name
Athens
Moscow
City
Code
HNL
ANC
YVR
LAX
YEA
DEN
MEX
City
Name
Honolulu
Anchorage
Vancouver
Los Angeles
Edmonton
Denver
Mexico City
City
Code
YWG
CHI
MIA
YTO
NYC
YHZ
YYT
City
Name
Winnipeg
Chicago
Miami
Toronto
New York
Halifax
St. Johns
City
Code
HKG
BJS
TPE
SEL
TYO
City
Name
Hong Kong
Beijing
Taipei
Seoul
Tokyo
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
City code
3. Press Ato exit the setting screen.
Important!
•Normally, your watch should show the correct time as soon as you select your Home
City code. If it does not, it should adjust automatically after the next auto receive
operation (in the middle of the night).You also can perform manual receive or you
can set the time manually.
•The watch will receive the time calibration signal automatically from the applicable
transmitter (in the middle of the night) and update its settings accordingly. For
information about the relationship between city codes and transmitters, see “Home
City Codes and Transmitters”.
•Under factory default settings, auto receive is turned off for all of the following city
codes: MOW (Moscow), HKG (Hong Kong), BJS (Beijing), and HNL (Honolulu). For
details about turning on auto receive for these city codes, see “To turn auto receive
on and off”.
•You can disable time signal reception, if you want. See “To turn auto receive on and
off” for more information.
•See the maps under “Approximate Reception Ranges” for information about the
reception ranges of the watch.
•If you are in an area that does not use Daylight Saving Time (summertime), turn off
the DST setting.
Time Calibration Signal Reception
There are two different methods you can use to receive the time calibration signal:
auto receive and manual receive.
•Auto Receive
With auto receive, the watch receives the time calibration signal automatically up to
six times a day. When any auto receive is successful, the remaining auto receive
operations are not performed. For more information, see “About Auto Receive”.
•Manual Receive
Manual receive lets you start a time calibration receive operation with the press of a
button. For more information, see “To perform manual receive”.
Important!
•When getting ready to receive the time calibration signal, position the watch as
shown in the nearby illustration, with its 12 o’clock side facing towards a window.
This watch is designed to receive a time calibration signal late at night. Because of
this, you should place the watch near a window as shown in the illustration when you
take it off at night. Make sure there are no metal objects nearby.
12 o’clock
or
•Make sure the watch is facing the right way.
•Proper signal reception can be difficult or even impossible under the conditions
described below.
•Signal reception normally is better at night than during the day.
•Time calibration signal reception takes from two to seven minutes, but in some
cases it can take as long as 14 minutes. Take care that you do not perform any
button operations or move the watch during this time.
Inside or
among
buildings
Inside a
vehicle
Near
household
appliances,
office
equipment,
or a mobile
phone
Near a
construction
site, airport,
or other
sources of
electrical
noise
Near high-
tension
power lines
Among or
behind
mountains
•The time calibration signal the watch will attempt to pick up depends on its current
Home City code setting as shown below. If you use the watch in Japan or Europe
(each of which has two different transmitter locations), it will try to receive the time
calibration signal from one of the transmitters in your current location. If it cannot
receive the signal, it will then try to receive the time calibration signal from the other
transmitter.
Home City Codes and Transmitters
Home City Code
LIS, LON,
MAD, PAR, ROM, BER,
STO, ATH, MOW*
HKG*, BJS*, TPE,
SEL, TYO
HNL*, ANC*,YVR,
LAX, YEA, DEN, MEX,
YWG, CHI, MIA,YTO,
NYC,YHZ, YYT
Frequency
60.0 kHz
77.5 kHz
40.0 kHz
60.0 kHz
60.0 kHz
Transmitter
Anthorn (England)
Mainflingen (Germany)
Fukushima (Japan)
Fukuoka/Saga (Japan)
Fort Collins, Colorado
(the United States)

Operation Guide 5015
2
* The areas covered by the MOW, HKG, BJS, HNL, and ANC city codes are quite
far from the time calibration signal transmitters, and so certain conditions may
cause problems with signal reception.

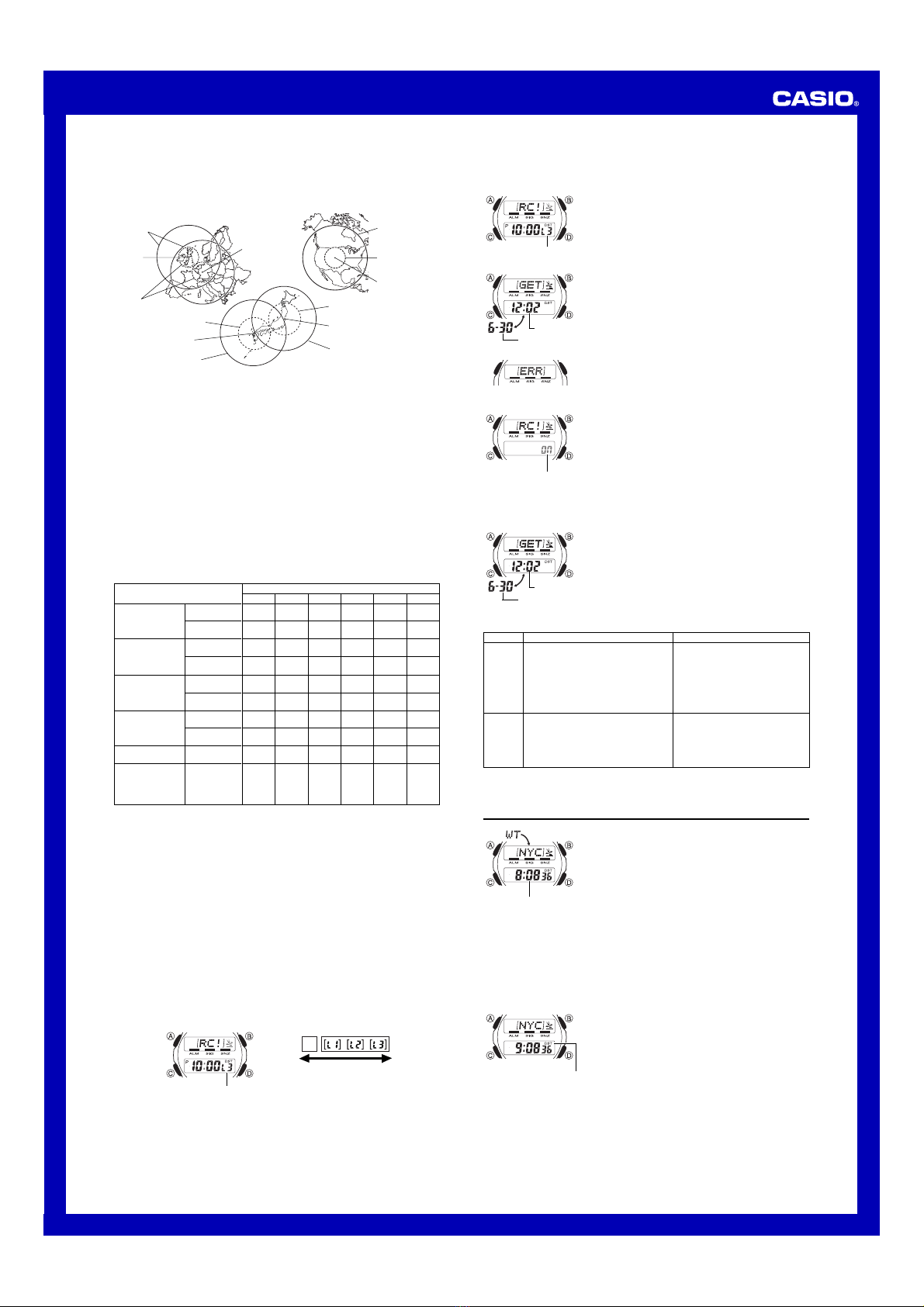

Approximate Reception Ranges
Anthorn
Mainflingen
500 kilometers
Fort Collins
600 miles
(1,000 kilometers)
Fukuoka/Saga
500 kilometers Fukushima
500 kilometers
U.K. and German Signals
U.S. Signal
Japan Signal
1,500 kilometers 2,000 miles
(3,000 kilometers)
1,000 kilometers
1,000 kilometers
•Signal reception may not be possible at the distances noted below during certain
times of the year or day. Radio interference may also cause problems with reception.
Mainflingen (Germany) or Anthorn (England) transmitters: 500 kilometers (310
miles)
Fort Collins (United States) transmitter: 600 miles (1,000 kilometers)
Fukushima or Fukuoka/Saga (Japan) transmitters: 500 kilometers (310 miles)
•Even when the watch is within the reception range of the transmitter, signal
reception will be impossible if the signal is blocked by mountains or other geological
formations between the watch and signal source.
•Signal reception is affected by weather, atmospheric conditions, and seasonal
changes.
•See the information under “Signal Reception Troubleshooting” if you experience
problems with time calibration signal reception.
Your Home City Auto Receive Start Times
123456
LIS, LON
MAD, PAR, ROM,
BER, STO
Standard Time
Daylight
Saving Time
Standard Time
Daylight
Saving Time
1:00 am
2:00 am
2:00 am
3:00 am
2:00 am
3:00 am
3:00 am
4:00 am
3:00 am
4:00 am
4:00 am
5:00 am
4:00 am
5:00 am
5:00 am
Midnight
next day
5:00 am
Midnight
next day
Midnight
next day
1:00 am
next day
Midnight
next day
1:00 am
next day
1:00 am
next day
2:00 am
next day
About Auto Receive
The watch receives the time calibration signal automatically up to six times a day.
When any auto receive is successful, the remaining auto receive operations are not
performed. The reception schedule (calibration times) depends on your currently
selected Home City, and whether standard time or Daylight Saving Time is selected
for your Home City.
•The display of the watch is blank while an auto receive operation is in progress.
ATH
MOW
HKG, BJS, TPE,
SEL, TYO
HNL, ANC, YVR,
LAX,YEA, DEN,
MEX,YWG, CHI,
MIA,YTO, NYC,
YHZ, YYT
Standard Time
Daylight
Saving Time
Standard Time
Daylight
Saving Time
Standard Time
Standard Time
Daylight
Saving Time
3:00 am
4:00 am
4:00 am
5:00 am
Midnight
Midnight
4:00 am
5:00 am
5:00 am
Midnight
next day
1:00 am
1:00 am
5:00 am
Midnight
next day
Midnight
next day
1:00 am
next day
2:00 am
2:00 am
Midnight
next day
1:00 am
next day
1:00 am
next day
2:00 am
next day
3:00 am
3:00 am
1:00 am
next day
2:00 am
next day
2:00 am
next day
3:00 am
next day
4:00 am
4:00 am
2:00 am
next day
3:00 am
next day
3:00 am
next day
4:00 am
next day
5:00 am
5:00 am
Note
•When a calibration time is reached, the watch will receive the calibration signal only
if it is in either the Timekeeping Mode or World Time Mode. Reception is not
performed if a calibration time is reached while you are configuring settings.
•Auto receive of the calibration signal is designed to be performed early in the
morning, while you sleep (provided that the Timekeeping Mode time is set correctly).
Before going to bed for the night, remove the watch from your wrist, and put it in a
location where it can receive the signal easily.
•The watch receives the calibration signal for two to seven minutes every day when
the time in the Timekeeping Mode reaches each of the calibration times. Avoid
performing any button operation within seven minutes before or after any one of the
calibration times. Doing so can interfere with correct calibration.
•Remember that reception of the calibration signal depends on the current time in the
Timekeeping Mode.The receive operation will be performed whenever the display
shows any one of the calibration times, regardless of whether or not the displayed
time actually is the correct time.
•Calibration signal reception is disabled while a countdown timer operation is
in progress.
About the Receiving Indicator
The receiving indicator shows the strength of the calibration signal being received. For
best reception, be sure to keep the watch in a location where signal strength is
strongest.
•Use the receiving indicator as a guide for checking signal strength and for finding the
best location for the watch during signal receive operations.
•Even in an area where signal strength is strong, it takes about 10 seconds for signal
reception to stabilize enough for the receiving indicator to indicate signal strength.
Weak
(Level 0)
Strong
(Level 3)
Receiving indicator
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
To perform manual receive
1. Enter the Timekeeping Mode.
2. Place the watch on a stable surface so its 12 o’clock
side is facing towards a window.
3. Hold down Dfor about two seconds until the Receiving
Indicator appears on the display.
•Time calibration signal reception takes from two to 14
minutes. Take care that you do not perform any button
operations or move the watch during this time.
•If the receive operation is successful, the reception date
and time appear on the display, along with the GET
indicator.
The watch will enter the Timekeeping Mode if you press
Dor if you do not perform any button operation for
about one or two minutes.
Receiving indicator
Receiving
Receive successful
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
Receive time
Receive date
•If the current reception fails, the display will show the
ERR indicator.
The watch will enter the Timekeeping Mode without
changing the time setting if you press Dor if you do not
perform any button operation for about one or two
minutes.
Receive failed
To turn auto receive on and off
1. In the Timekeeping Mode, press Dto display the Last
Signal screen.
2. Hold down Auntil the current auto receive setting (ON
or OF) starts to flash. This is the setting screen.
•Note that the setting screen will not appear if the
currently selected Home City is one that does not
support time calibration reception.
3. Press Dto toggle auto receive on (ON) and off (OF).
4. Press Ato exit the setting screen.
•For information about city codes that support signal
receive, see “To specify your Home City”.
On/Off status
l
l
l
l
l
l
l
l
l
l
l
l
l
l
To check the latest signal reception results
In the Timekeeping Mode, press Dto display the Last
Signal screen.
•When receive is successful, the display will show the
time and date that receive was successful. - - : - -
indicates that none of the reception operations were
successful.
•To return to the Timekeeping Mode, press D.
Receive time
Receive date
Problem
Cannot
perform
manual
receive.
The time
setting is
incorrect
following
signal
reception.
Probable Cause
•The watch is not in the Timekeeping
Mode.
•Your current Home City is not one of the
following:
LIS, LON, MAD, PAR, ROM, BER, STO,
ATH, MOW, HKG, BJS, TPE, SEL, TYO,
HNL, ANC,YVR, LAX, YEA, DEN, MEX,
YWG, CHI, MIA,YTO, NYC, YHZ, or YYT
•If the time is one hour off, the DST
setting may be incorrect.
•The Home City code setting is not
correct for the area where you are using
the watch.
•The home position of the hands is off.
What you should do
•Enter the Timekeeping Mode and
try again.
•Select LIS, LON, MAD, PAR, ROM,
BER, STO, ATH, MOW, HKG, BJS,
TPE, SEL, TYO, HNL, ANC,YVR,
LAX,YEA, DEN, MEX,YWG, CHI,
MIA, YTO, NYC, YHZ, or YYT as
your Home City.
•Change the DST setting to Auto
DST.
•Select the correct Home City code.
•Enter the Hand Setting Mode and
adjust the home position.
Signal Reception Troubleshooting
Check the following points whenever you experience problems with signal reception.
•For further information, see “Important!” under “Time Calibration Signal Reception”
and “Radio-controlled Atomic Timekeeping Precautions”.
World Time
The World Time Mode digitally displays the current time in
48 cities (29 time zones) around the world.
•If the current time shown for a city is wrong, check your
Home City time settings and make the necessary
changes.
•The watch will perform a signal reception even if it is in
the World Time Mode when a calibration time is
reached. If this happens, the World Time Mode time
settings will be adjusted in accordance with the
Timekeeping Mode’s Home City time.
•All of the operations in this section are performed in the
World Time Mode, which you enter by pressing C.
Current time in
selected city
To view the time in another city
While in the World Time Mode, press Dto scroll through the city codes (time zones)
to the east.
•For full information on city codes, see the “City Code Table”.
To toggle a city code time between Standard Time and Daylight Saving Time
1. In the World Time Mode, use Dto display the city code
(time zone) whose Standard Time/Daylight Saving Time
setting you want to change.
2. Hold down Ato toggle Daylight Saving Time (DST
indicator displayed) and Standard Time (DST indicator
not displayed).
•Note that you cannot use the World Time Mode to
change the DST setting of the Home City code you
currently have selected in the Timekeeping Mode. See
“To change the Daylight Saving Time (summer time)
setting” for information about turning the Home City
code DST setting on and off.
DST indicator
•The DST indicator will appear on the display whenever you display a city code for
which Daylight Saving Time is turned on.
•Note that the DST/Standard Time setting affects only the currently displayed city
code. Other city codes are not affected.

Operation Guide 5015
3
Alarms
The Alarm Mode gives you a choice of four one-time
alarms and one snooze alarm.
Also use the Alarm Mode to turn the Hourly Time Signal
(SIG) on and off.
•There are five alarms numbered AL1 through AL4,
and SNZ. You can configure SNZ as a snooze
alarm only. Alarms AL1 through AL4 can be used
as one-time alarms only.
•Alarm settings (and Hourly Time Signal settings) are
available in the Alarm Mode, which you enter by
pressing C.
Alarm time
Alarm number
To set an alarm time
1. In the Alarm Mode, use Dto scroll through the alarm
screens until the one whose time you want to set is
displayed.
AL1 AL2 AL3
SIGSNZ AL4
2. After you select an alarm, hold down Auntil the hour
setting of the alarm time starts to flash, which indicates
the setting screen.
•This operation automatically turns on the alarm.
3. Use Cto move the flashing in the sequence shown
below to select other settings.
MinutesHour
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
Alarm on indicator
Snooze indicator
4. While a setting is flashing, use Dand Bto change it.
•While the hour or minute setting is flashing, use D(+) and B(–) to change it.
5. Press Ato exit the setting screen.
•When setting the alarm time using the 12-hour format, take care to set the time
correctly as a.m. (no indicator) or p.m. (Pindicator).
Alarm Operation
The alarm tone sounds at the preset time for 10 seconds, regardless of the mode the
watch is in. In the case of the snooze alarm, the alarm operation is performed a total
of seven times, every five minutes, or until you turn the alarm off.
•Pressing any button stops the alarm tone operation.
•If any alarm operation (one-time alarm, snooze) occurs while a signal receive
operation is in progress, the receive operation will be canceled.
•Displaying the Timekeeping Mode setting screen during a 5-minute interval between
snooze alarms will stop the current snooze alarm operation (but snooze alarm will
remain as the alarm type setting).
•The snooze indicator (SNZ) flashes during the 5-minute intervals between alarms.
•The alarm on indicator (ALM) and snooze indicator (SNZ) are displayed in all modes.
•In all modes, the alarm on indicator is shown for any alarm that is currently turned on.
To test the alarm
In the Alarm Mode, hold down Dto sound the alarm.
To turn an alarm on and off
1. In the Alarm Mode, use Dto scroll through the alarm
screens until the one whose time you want to set is
displayed.
2. Press Ato toggle it on (ON) and off (OF).
On/Off status
Alarm on indicator
l
l
l
l
l
l
l
l
l
l
l
l
l
l
To turn the Hourly Time Signal on and off
1. In the Alarm Mode, use Dto scroll through the alarm
screens until the Hourly Time Signal screen (SIG) is
displayed.
2. Press Ato toggle it on (ON) and off (OF).
•The Hourly Time Signal on indicator is displayed in all
modes when the Hourly Time Signal is turned on.
l
l
l
l
l
l
l
l
l
l
l
l
l
l
Hourly time signal
on indicator
On/Off status
Stopwatch
The stopwatch lets you measure elapsed time, split times,
and two finishes.
•The display range of the stopwatch is 59 minutes, 59.99
seconds.
•The stopwatch continues to run, restarting from zero
after it reaches its limit, until you stop it.
•Exiting the Stopwatch Mode while a split time is frozen
on the display clears the split time and returns to
elapsed time measurement.
•The stopwatch measurement operation continues even
if you exit the Stopwatch Mode.
•All of the operations in this section are performed in the
Stopwatch Mode, which you enter by pressing C.
1/100 secondMinutes
Seconds
D
Start Stop
Elapsed Time
➤
Re-start Clear
D➤
Stop
D➤D➤A
Split Time
D
Start Split
(SPL displayed)
➤
Split release Clear
A➤
Stop
A➤D➤A
Two Finishes
D
Start Split
➤
Stop Clear
A➤
Split release
D➤A➤A
First runner
finishes.
Display time of
first runner.
Second runner
finishes.
Display time of
second runner.
To measure times with the stopwatch
Countdown Timer
The countdown timer can be set within a range of 1 minute
to 24 hours. An alarm sounds when the countdown
reaches zero.
•Calibration signal reception (both auto and manual) is
disabled while a countdown timer operation is in
progress.
•All of the operations in this section are performed in the
Countdown Timer Mode, which you enter by pressing
C.
Minutes
Seconds
To set the countdown start time
1. While the countdown start time is on the display in the Countdown Timer Mode,
hold down Auntil the current countdown start time starts to flash, which indicates
the setting screen.
•If the countdown start time is not displayed, use the procedure under “To use the
countdown timer” to display it.
2. Press Cto move the flashing between the hour and minute settings.
3. While a setting is flashing, use D(+) and B(–) to change it.
•To set the starting value of the countdown time to 24 hours, set 0:00.
4. Press Ato exit the setting screen.
To use the countdown timer
Press Dwhile in the Countdown Timer Mode to start the countdown timer.
•When the end of the countdown is reached, the alarm will sound for 10 seconds or
until you stop it by pressing any button. The countdown time will be reset
automatically to its starting value after the alarm stops.
•Press Dwhile a countdown operation is in progress to pause it. Press Dagain to
resume the countdown.
•To stop a countdown operation completely, first pause it (by pressing D), and then
press A. This returns the countdown time to its starting value.
Timekeeping
Use the Timekeeping Mode to set and view the current time and date. This section
also explains how to set the current date and time manually.
•When setting the time, you also can configure settings for the day of the week
language and the 12/24-hour format.
•All of the operations in this section are performed in the Timekeeping Mode, which
you can enter by pressing C.
•In the Timekeeping Mode, you can press Ato toggle the display contents as shown
below.
Press A.
Month
Day of week
Day
PM indicator
Second Hour Minutes
Day of week
▲
▲
•Pressing Din the Timekeeping Mode will display the Last Signal screen.
Press D.
Last Signal Screen
Day
Month Second
Day of week
Receive time
Receive date
▲
▲
Setting the Digital Time and Date Manually
Make sure you select your Home City code before you change the current time and
date settings. World Time Mode times are all displayed in accordance with the
Timekeeping Mode settings. Because of this, World Time Mode times will not be
correct if you do not select the proper Home City code before setting the time and
date in the Timekeeping Mode.
To set the current digital time and date manually
1. In the Timekeeping Mode, hold down Auntil the city
code starts to flash, which indicates the setting screen.
2. Press Cto move the flashing in the sequence shown
below to select other settings.
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
City code
Seconds Hour
12/24-Hour
Format
Minutes
Year
DST
Day Month
City Code
Language
•The currently selected language indicator flashes on the display while the
Language (setting) is selected in the above sequence.
3. When the setting you want to change is flashing, use Band Dto change it as
described below.
To do this:
Change the city code
Cycle between Daylight Saving Time
(ON), Standard Time (OFF), and
Auto DST (AUTO)
Toggle between 12-hour (12H) and
24-hour (24H) timekeeping
Do this:
Press D(east) and B(west).
Press D.
Press D.
Screen:
Reset the seconds to 00
Change the hour or minutes
Change the year
Change the month or day
Change the day of the week
language
Press D.
Use D(+) and B(–) to
change the setting.
Use Band Dto change the
setting.
