Casio 5594 User manual

Contents
Before Getting Started...
Watch Face and Display Indicators
Navigating Between Modes
Mode Overview
Shifting the Hands
Viewing the Face in the Dark
Useful Features
Time Adjustment
Using Watch Operations to Adjust the Time
Setting
Using the Watch in a Medical Facility or
Aircraft
Using Mobile Link with a Mobile
Phone
Getting Ready
Auto Time Adjustment
Mode Customization
Customizing the Timekeeping Mode Screen
Viewing Step Count Data
Recording Your Current Location (Location
Memory)
Checking the Distance and Bearing to a
Location Memory Point (Location Indicator)
Auto Altitude Calibration
Recording Waypoints and Their Altitudes
(Mission Log)
Configuring World Time Settings
Adjusting Hand Alignment
Phone Finder
Configuring Watch Settings
Changing the Home City Summer Time Setting
MA1906-EB © 2019 CASIO COMPUTER CO., LTD.
Connection
Connecting with a Phone
Canceling a Connection with a Phone
Using the Watch in a Medical Facility or
Aircraft
Unpairing
If you purchase another phone
Digital Compass
Taking a Compass Reading
Calibrating the Compass
Calibrating Compass Readings
Setting Up for True North Readings
(Magnetic Declination Calibration)
Magnetic North and True North
Digital Compass Reading Precautions
Altitude Measurement
Checking the Current Altitude
Calibrating Altitude Readings (Offset)
Checking the Altitude Differential from a
Reference Point
Setting the Auto Measurement Interval
Recording Altitude Readings
Specifying the Altitude Measurement Unit
Altitude Reading Precautions
Barometric Pressure
Measurement
Checking the Current Barometric Pressure
Checking Changes in Barometric Pressure
Over Time
Checking the Change in Barometric Pressure
between Two Readings
Barometric Pressure Change Indications
Calibrating Barometric Pressure Readings
(Offset)
Specifying the Barometric Pressure Unit
Barometric Pressure Reading Precautions
Temperature Measurement
Checking the Current Temperature
Calibrating Temperature Readings (Offset)
Specifying the Temperature Unit
Temperature Reading Precautions
Viewing Altitude Records
Viewing Saved Data
Deleting a Particular Record
Deleting All Records
Sunrise and Sunset Times
Looking Up Today’s Sunrise and Sunset
Times
Looking Up Sunrise and Sunset Times by
Specifying a Day
Stopwatch
Measuring Elapsed Time
Measuring a Split Time
Timer
Setting the Timer Start Time
Using the Timer
Alarms and Hourly Time Signal
Configuring Alarm Settings
Configuring the Hourly Time Signal Setting
Turning Off an Alarm or the Hourly Time Signal
World Time
Checking World Time
World Time City Setting
Swapping Your Home City Time and World
Time
Selecting UTC (Universal Coordinated Time)
as Your World Time City
Operation Guide 5594
1

Pedometer
Counting Steps
Causes of Incorrect Step Count
Hand Alignment Adjustment
Adjusting Hand Alignment
Other Settings
Enabling the Button Operation Tone
Reflecting Altitude Differential in Activity
Measurements
Returning the Watch to Its Factory Default
Settings
International Travel
Other Information
City Table
Summer Time Table
Supported Phones
Specifications
Mobile Link Precautions
Copyrights and Registered Copyrights
Troubleshooting
Operation Guide 5594
2

Before Getting
Started...
This section provides an overview of the watch
and introduces convenient ways it can be
used.
Important!
●This watch is not a special-purpose
measuring instrument. Measurement
function readings are intended for
general reference only.
●Whenever using the Digital Compass
of this watch for serious trekking,
mountain climbing, or other activities,
be sure to always take along another
compass to confirm readings. If the
readings produced by the Digital
Compass of this watch are different
from those of the other compass,
perform figure 8 calibration or 2-point
calibration of the watch compass to
ensure better accuracy.
ーCompass readings and calibration
will not be possible if the watch is in
the vicinity of a permanent magnet
(magnetic accessory, etc.), metal
objects, high-voltage wires, aerial
wires, or electrical household
appliances (TV, computer,
cellphone, etc.)
lDigital Compass
●The watch’s Altimeter Mode calculates
and displays relative altitude based on
barometric pressure readings
produced by its pressure sensor.
Because of this, altitude values
displayed by the watch may be
different from your actual elevation
and/or sea level elevation indicated for
the area where you are located.
Regular calibration in accordance with
the local altitude (elevation)
indications is recommended.
lAltitude Measurement
Note
●The illustrations included in this
operation guide have been created to
facilitate explanation. An illustration
may differ somewhat from the item it
represents.

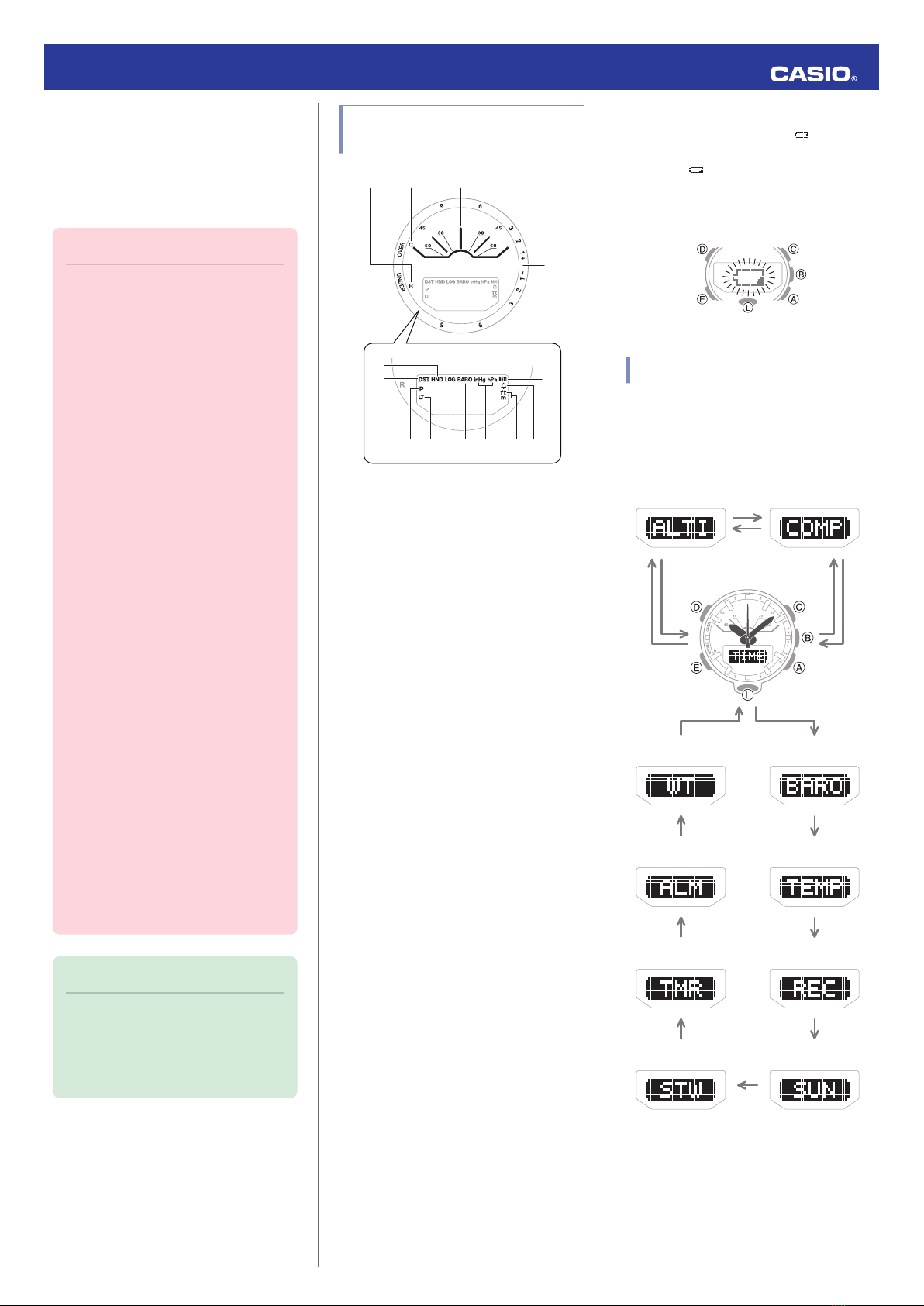

Watch Face and Display
Indicators
④
⑥
③
⑧⑨⑩⑪⑫ ⑬⑭
⑦
②①
⑤
AThe second hand points to [R] when the
watch is standing by for connection with a
phone.
BThe second hand points to [C] when the
watch is connected with a phone.
CWith 12 o’clock as the reference point, the
second hand indicates either north
(compass reading) or the approximate
angle differential from your current
location to a destination (Location
Indicator).
DThe second hand indicates altitude/
barometric pressure differential.
EFlashes while the watch’s hands are
shifted for easier reading.
FDisplayed when the indicated time is
summer time.
GDisplayed when an alarm is turned on.
HDisplayed during p.m. times while 12-hour
timekeeping is being used.
IDisplayed while Auto Light is enabled.
JDisplayed while Mission Log is enabled.
KDisplayed while barometric pressure
trend information is enabled.
LShows the barometric pressure
measurement unit.
MShows the altitude and distance
measurement unit.
NAppears when the hourly time signal is on.
●Battery Replacement
When battery power goes low, will start to
flash and some functions will become
disabled. If continues to flash, replace the
battery.
Request battery replacement from a CASIO
service center or your original retailer.
Navigating Between Modes
Your watch has the modes shown below.
●To return to the Timekeeping Mode from
any other mode, hold down (E) for at least
two seconds.
E
E
E
E
EE
EAEC
E
E
E
A
C
Altitude Record Recall
Mode
Thermometer Mode
Barometer Mode
Digital Compass ModeAltimeter Mode
Sunrise/Sunset Mode
Stopwatch Mode
Timer Mode
World Time Mode
Timekeeping Mode
Alarm Mode
Use the buttons in the illustration above to
navigate between modes.
Operation Guide 5594
3

Note
●You can use G-SHOCK Connected to
change the arrangement of modes, or
to delete or add modes.
lMode Customization
●To perform operations with G-SHOCK
Connected, you first need to pair the
watch with the phone where the app is
installed.
lC Pair the watch with a phone.
Mode Overview
●Timekeeping Mode
This mode shows the current time and date.
You can also configure settings to show a
barometric pressure graph, World Time, step
count, and/or sunrise and sunset times.
You can navigate between display screens by
pressing (D).
D
D
D
D
Day of the week, month, day
Hour, minute, second
Barometric pressure
graph, month, day
Step count
Barometric
pressure graph
Daily step
count
One
second
later
Note
●You can use G-SHOCK Connected to
add the items below to the display.
You can also remove items from the
display and rearrange their display
locations.
ーYear, month, day
ーBarometric pressure graph
ーWorld Time hour and minute
ーHome City sunrise and sunset times
lCustomizing the Timekeeping
Mode Screen
●To perform operations with G-SHOCK
Connected, you first need to pair the
watch with the phone where the app is
installed.
lC Pair the watch with a phone.
Connecting with a Paired Phone to Adjust
the Watch’s Time
Press (B).
lTriggering Immediate Time Adjustment
Searching for a Paired Phone
Hold down (B) for about 5 seconds.
lPhone Finder
●Digital Compass Mode
Use this mode to take direction and bearing
angle readings.
lDigital Compass
③
①
②
D
Remeasure
Display screen
navigation
Objective
ANorth indication
BBearing at 12 o’clock
CBearing angle at 12 o’clock
●Altimeter Mode
Use this mode to take an altitude reading for
your current location.
lAltitude Measurement
①
② ③
Remeasure
Display screen
navigation
AAltitude differential/current time seconds
BAltitude graph
CAltitude
●Barometer Mode
Use this mode to take barometric pressure
readings at your current location.
lBarometric Pressure Measurement
①
② ③
Remeasure
Display screen
navigation
ABarometric pressure differential/current
time seconds
BBarometric pressure graph
CBarometric pressure
●Thermometer Mode
Use this mode to take temperature readings
at your current location.
lTemperature Measurement
①
Remeasure
ATemperature
Operation Guide 5594
4

●Altitude Record Recall Mode
Use this mode to view altitude records.
lViewing Altitude Records
①
Data search
Data search
ANumber of the record displayed last time
the Altitude Record Recall Mode was
used
●Sunrise/Sunset Mode
Use this mode to check the sunrise and sunset
times for your Home City.
lSunrise and Sunset Times
⑤
③②
①
④
Date search
Date search
AYear, month, day
BSunrise time
CSunrise indicator
DSunset time
ESunset indicator
●Stopwatch Mode
Use this mode to measure elapsed time.
lStopwatch
②①
③Start/Stop
Split/reset
AStopwatch minutes
BStopwatch seconds
CStopwatch: 1/100 second
●Timer Mode
Use this mode to countdown from a desired
start time.
lTimer
②①
③Start/Stop
Reset
ATimer hours
BTimer minutes
CTimer seconds
●Alarm Mode
The watch will beep when an alarm time is
reached.
lAlarms and Hourly Time Signal
When the last screen was an alarm screen
②
②
③
①
Select alarm/
hourly time signal
Select alarm/
hourly time signal
On/off
When the last screen was the hourly time
signal screen
④
Select alarm/
hourly time signal
Select alarm/
hourly time signal
On/off
AAlarm number
BAlarm enabled/disabled
CAlarm hour/minute
DHourly time signal enable/disable
●World Time Mode
This mode shows the current time in 38 cities
and UTC (Coordinated Universal Time) time.
lWorld Time
①
③
②
Select cityShow current city
Select city
AHome City time
BWorld Time City
CWorld Time City current time
Shifting the Hands
Hand shift moves the hands out of the way for
easy viewing of display information.
1. While holding down (L), press (E).
This will shift the analog hands to allow
easy viewing of display information.
2. To return the hands to their normal
timekeeping positions, hold down (L) as
you press (E) again, or press (E) to change
to another mode.
Note
●The hands will resume normal
timekeeping automatically if you
change modes or if you leave the
watch with its hands shifted and do not
perform any operation for about one
hour.
Operation Guide 5594
5

Viewing the Face in the Dark
The face of the watch can be illuminated for
viewing in the dark.
●To illuminate the face manually
Pressing (L) turns on illumination.
●Illumination will turn off automatically if an
alarm starts to sound.
●To illuminate the face when Auto Light
is enabled
If Auto Light is enabled, the face illumination
will turn on automatically whenever the watch
is positioned at an angle of 40 degrees or
more.
40
degrees
or more
Important!
●Auto Light may not operate properly
when the watch is at a horizontal angle
of 15 degrees or greater from
horizontal as shown in the illustration
below.
●Electro-static charge or magnetism
can interfere with proper auto light
operation. If this happens, try lowering
your arm and then angle it towards
your face again.
●When moving the watch you may note
a slight rattling sound. This is due to
operation of the auto light switch,
which determines the current
orientation of the watch. It does not
indicate malfunction.
Note
●Auto Light is disabled when any one of
the conditions below exists.
ーAlarm, timer alert, or other beeper
sounding
ーHand movement operation is in
progress
ーWatch in the Compass Mode
●Configuring the Auto Light Setting
Holding down (L) for at least three seconds in
the Timekeeping Mode toggles Auto Light
between enabled and disabled.
●[LT] is displayed while Auto Light is
enabled.
●If you do not disable it manually, Auto Light
remains enabled for approximately six
hours. After that, it becomes disabled
automatically.
On
●Specifying the Illumination Duration
You can select either 1.5 seconds or three
seconds as the illumination duration.
1. Enter the Timekeeping Mode.
lNavigating Between Modes
2. Hold down (D) for at least two seconds.
Release the button when the name of the
currently selected Home City appears on
the display.
Home City
3. Press (E) three times so [LT] is displayed.
4. Press (A) to toggle between the two
illumination duration settings.
[1]: 1.5-second illumination
[3]: 3-second illumination
5. Press (D) twice to exit the setting screen.
Useful Features
Pairing the watch with your phone makes a
number of the watch’s features easier to use.
Auto time adjustment
lAuto Time Adjustment
12:30
Selection of More Than 300 World Time
cities
lConfiguring World Time Settings
Data transfer to a phone
lViewing Step Count Data
Operation Guide 5594
6

Use your phone to check the distance and
bearing to a point in Location Memory
lChecking the Distance and Bearing to a
Location Memory Point (Location Indicator)
Use your phone to record route waypoints
and their altitudes
lRecording Waypoints and Their Altitudes
(Mission Log)
In addition, a number of other watch settings
can be configured using your phone.
To transfer data to a watch and to
configure settings, you first need to pair
the watch with your phone.
lGetting Ready
●Your phone needs to have the CASIO “G-
SHOCK Connected” app installed to pair
with the watch.
Time Adjustment
Your watch can connect with a phone to obtain
information that it uses to adjust its date and
time setting.
Important!
●Disable Auto Time Adjustment when
you are on an aircraft or in any other
location where radio signals may
cause problems.
lUsing G-SHOCK Connected to
Configure Settings
lUsing Watch Operations to
Configure Settings
Referring to the information below, configure
the time setting in accordance with the method
that suits your own lifestyle.
Do you use a phone?
Time adjustment by connecting with your
phone is recommended.
lAuto Time Adjustment
12:30
If your phone cannot connect with the
watch
You can adjust time settings by
performing operations on the watch.
lUsing Watch Operations to Adjust the
Time Setting
Using Watch Operations to
Adjust the Time Setting
If your watch cannot connect with a phone for
some reason, you can use watch operations
to adjust date and time settings.
●Setting a Home Time City
Use the procedure in this section to select a
city to use as your Home City. If you are in an
area that observes summer time, you can also
enable or disable summer time.
Note
●The initial factory default summer time
setting for all cities is [AUTO]. In many
cases, the [AUTO] setting lets you use
the watch without switching between
summer time and standard time.
1. Enter the Timekeeping Mode.
lNavigating Between Modes
2. Hold down (D) for at least two seconds.
Release the button when the name of the
currently selected Home City appears on
the display.
Home City
3. Use (A) and (C) to change the Home City.
●For details refer to the information
below.
lCity Table
4. Press (E).
5. Use (A) to select a summer time setting.
Each press of (A) cycles through available
settings in the sequence shown below.
●[AUTO]
The watch switches between standard
time and summer time automatically.
●[OFF]
The watch always indicates standard
time.
●[ON]
The watch always indicates summer
time.
6. Press (D) twice to exit the setting screen.
Operation Guide 5594
7

●Setting the Time/Date
1. Enter the Timekeeping Mode.
lNavigating Between Modes
2. Hold down (D) for at least two seconds.
Release the button when the name of the
currently selected Home City appears on
the display.
Home City
3. Press (D).
This causes the seconds to flash.
4. Keep pressing (E) until the setting item
you want to change is selected.
●Each press of (E) moves to the next
setting item in the sequence shown
below.
Day
Month
Ye a r
Minutes
Hours
Seconds
5. Configure the date and time settings.
●To reset the seconds to 00: Press (A). 1
is added to the minutes when the
current count is between 30 and 59
seconds.
●Use (C) and (A) to change the other
settings.
6. Repeat steps 4 and 5 to configure time
and date settings.
7. Press (D) to exit the setting screen.
●Switching between 12-hour and 24-
hour Timekeeping
You can specify either 12-hour format or 24-
hour format for the time display.
1. Enter the Timekeeping Mode.
lNavigating Between Modes
2. Hold down (D) for at least two seconds.
Release the button when the name of the
currently selected Home City appears on
the display.
Home City
3. Press (E) four times.
This causes [12H] or [24H] to flash on the
display.
4. Press (A) to toggle the setting between
[12H] (12-hour timekeeping) or [24H] (24-
hour timekeeping).
24-hour timekeeping12-hour timekeeping
5. Press (D) twice to exit the setting screen.
Using the Watch in a Medical
Facility or Aircraft
Whenever you are in a hospital, on an aircraft,
or in any other location where connection with
a phone may cause problems, you can
perform the procedure below to disable auto
time adjustment. To re-enable auto time
adjustment, perform the same operation
again.
1. Enter the Timekeeping Mode.
lNavigating Between Modes
2. Hold down (D) for at least two seconds.
Release the button when the name of the
currently selected Home City appears on
the display.
Home City
3. Press (E) five times.
This displays [RCV].
4. Press (A) to select the auto time
adjustment setting you want.
[OFF]: Auto time adjustment disabled.
[ON]: Auto time adjustment enabled.
5. Press (D) twice to exit the setting screen.
Note
●If the watch is paired with a phone, G-
SHOCK Connected can be used to
disable auto time adjustment.
lUsing G-SHOCK Connected to
Disable Auto Time Adjustment
Operation Guide 5594
8

Using Mobile Link with
a Mobile Phone
While there is a Bluetooth connection
between the watch and phone, the watch time
setting is adjusted automatically. You can also
change the watch’s other settings.
Note
●This function is available only while G-
SHOCK Connected is running on the
phone.
●This section describes watch and
phone operations.
X : Watch operation
Y : Phone operation
Getting Ready
To use your watch in combination with a
phone, you first need to pair them. Perform the
steps below to pair the watch with a phone.
●A Install the required app on your
phone.
In Google Play or the App Store, search for the
CASIO “G-SHOCK Connected” app and
install it on your phone.
●B Configure Bluetooth settings.
Enable the phone’s Bluetooth.
Note
●For details about setting procedures,
see your phone documentation.
●C Pair the watch with a phone.
Before you can use the watch in combination
with a phone, you first need to pair them.
1. Move the phone to be paired with close to
(within one meter of) the watch.
2. Y Tap the “G-SHOCK Connected” icon.
3. Y Perform the operation shown on the
screen of the phone to be paired with.
●If a pairing prompt message appears,
perform the operation shown on the
phone screen.
●After pairing starts, the second hand will
move to [R]. When pairing is complete,
the second hand will move to [C].
●If pairing fails for some reason, the
watch will return to the state in step 1 of
this procedure. Perform the pairing
procedure again from the beginning.
Note
●The first time you start up G-SHOCK
Connected, a message will appear on
your phone asking if you want to
enable location information
acquisition. Configure settings to allow
background use of location
information.
Auto Time Adjustment
The watch will connect with a phone at preset
times each day and adjust its time settings.
●Using Auto Adjust
Your watch adjusts its time setting four times
a day according to a preset schedule. If you
leave your watch in the Timekeeping Mode, it
will perform the adjustment operation
automatically as you go about your daily life,
without any operation required by you.
12:30
Important!
●The watch may not be able to perform
auto time adjustment under the
conditions described below.
ーWhile the watch is too far away from
its paired phone
ーWhile communication is not possible
due to radio interference, etc.
ーWhile the phone is updating its
system
ーWhile G-SHOCK Connected is not
running on the phone
Note
●If the watch does not indicate the
correct time even if it is able to connect
with a phone, adjust the hand and day
indicator alignment.
lAdjusting Hand Alignment
●If there is a World Time City specified
with G-SHOCK Connected, its time will
also be adjusted automatically.
●The watch will connect with the phone
and perform auto time adjustment at
around 12:30 a.m., 6:30 a.m., 12:30
p.m. and 6:30 p.m. The connection is
automatically terminated after auto
time adjustment is complete.
Operation Guide 5594
9

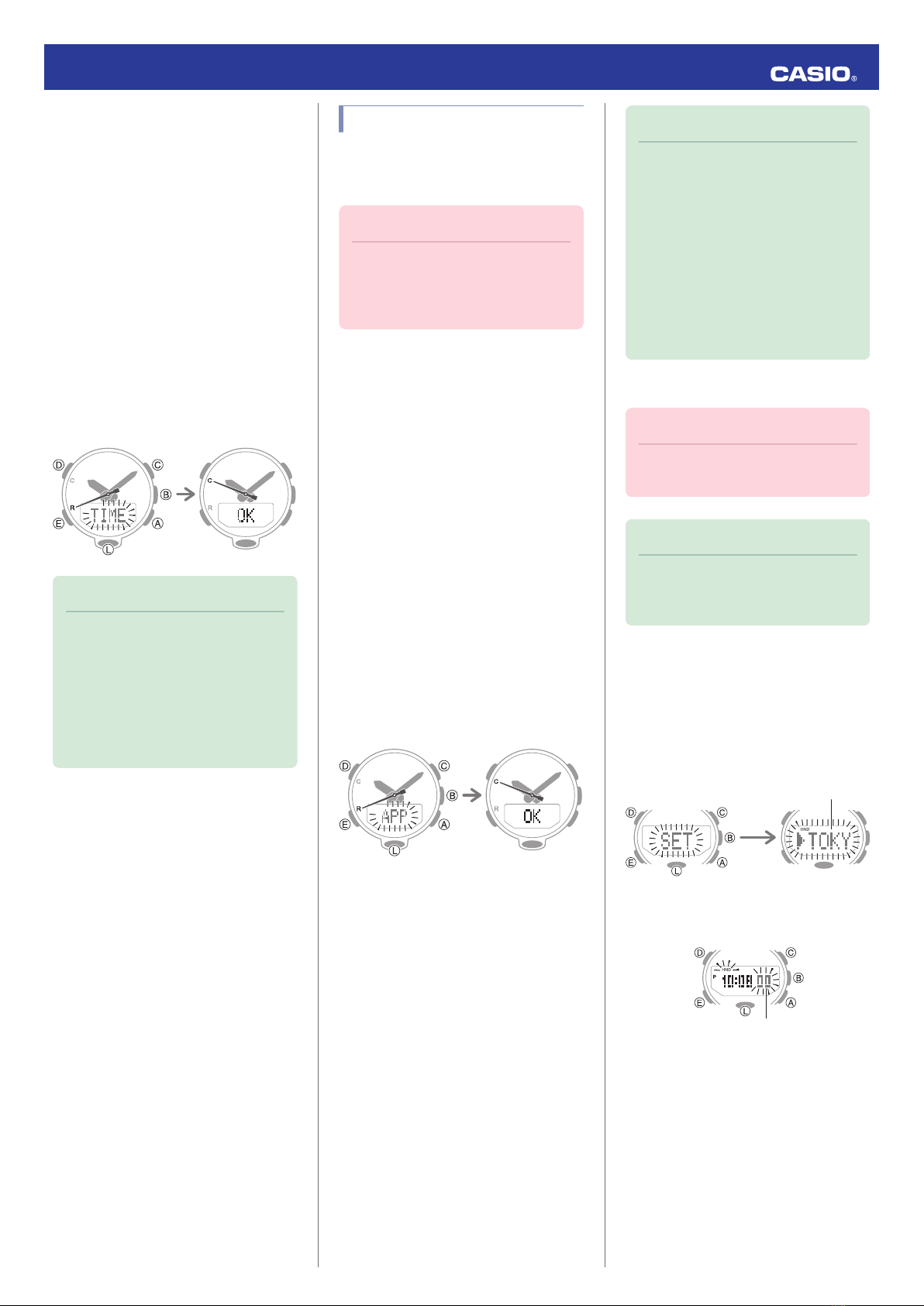

●Triggering Immediate Time Adjustment
The watch’s time setting will be adjusted
automatically whenever you establish a
connection between the watch and a phone.
Whenever you want to adjust the watch’s time
setting based on your phone's time, perform
the procedure below to connect with a phone.
1. Move the phone close to (within one meter
of) the watch.
2. X Press (B).
[TIME] flashes to indicate that the watch
has started the connection operation.
When a connection is established
between the watch and phone, [OK] will
appear, time information will be acquired,
and then the watch’s time setting will be
adjusted.
Trying to connect Following time
adjustment
Note
●You can perform the above operation
for time adjustment from any watch
mode.
●The connection is terminated
automatically after time adjustment is
complete.
●If time adjustment fails for some
reason, [ERR] will appear.
Mode Customization
You can use G-SHOCK Connected to
customize modes by rearranging them on the
screen, and by deleting or adding modes.
Important!
●You cannot perform mode
customization operations on the
watch. Use G-SHOCK Connected to
configure settings.
The modes below can be rearranged or
deleted.
●Barometer Mode
●Thermometer Mode
●Altitude Record Recall Mode
●Sunrise/Sunset Mode
●Stopwatch Mode
●Timer Mode
●Alarm Mode
●World Time Mode
1. Y Tap the “G-SHOCK Connected” icon.
2. X Hold down (B) for at least two seconds
until the second hand points to [R] twice.
When a connection is established
between the watch and phone, [APP] will
change to [OK], and the second hand will
move from [R] to [C].
Trying to connect Connection
successful
3. Y Perform the operations shown on the
phone screen to configure mode settings.
Note
●Increasing or decreasing the number
of modes may change mode functions
and/or settings.
●Even if you remove the Barometer
Mode, you can still display the
barometric pressure graph on the
Timekeeping Mode screen.
●Even if you remove the Sunrise/Sunset
Mode, you can still display sunrise and
sunset times on the Timekeeping
Mode screen.
●To initialize Mode Customization
Important!
●Initializing Mode Customization also
initializes watch settings.
Note
●Mode Customization cannot be
initialized while Mission Log is
enabled.
1. X Enter the Timekeeping Mode.
lNavigating Between Modes
2. X Hold down (D) for at least two seconds.
Release the button when the name of the
currently selected Home City appears on
the display.
Home City
3. X Press (D).
This causes the seconds to flash.
Seconds
4. X Hold down (C) for at least five seconds.
Release it when [RESET] stops flashing.
This initializes Mode Customization.
5. X Press (D) to exit the setting screen.
Operation Guide 5594
10
