Cast Tec ALBERG 7 User manual


Page1
EGTL03AVersion1.4(21/12/2012)


ALBERG 7
Multi-fuel stove




Installation and operating Instructions
Manufactured to EN13240:2001



Page2
EGTL03AVersion1.4(21/12/2012)
TheCleanAirAct1993andSmokeControlAreas

UndertheCleanAirActlocalauthoritiesmaydeclarethewholeorpartofthedistrictofthe
authoritytobeasmokecontrolarea.Itisanoffencetoemitsmokefromachimneyofa
building,fromafurnaceorfromanyfixedboileriflocatedinadesignatedsmokecontrol
area.Itisalsoanoffencetoacquirean"unauthorisedfuel"forusewithinasmokecontrol
areaunlessitisusedinan"exempt"appliance("exempted"fromthecontrolswhich
generallyapplyinthesmokecontrolarea).

TheSecretaryofStateforEnvironment,FoodandRuralAffairshaspowersundertheActto
authorisesmokelessfuelsorexemptappliancesforuseinsmokecontrolareasinEngland.In
ScotlandandWalesthispowerrestswithMinistersinthedevolvedadministrationsforthose
countries.Separatelegislation,theCleanAir(NorthernIreland)Order1981,appliesin
NorthernIreland.Thereforeitisarequirementthatfuelsburntorobtainedforuseinsmoke
controlareashavebeen"authorised"inRegulationsandthatappliancesusedtoburnsolid
fuelinthoseareas(otherthan"authorised"fuels)havebeenexemptedbyanOrdermade
andsignedbytheSecretaryofStateorMinisterinthedevolvedadministrations.
FurtherinformationontherequirementsoftheCleanAirActcanbefoundhere:
http://smokecontrol.defra.gov.uk/
YourlocalauthorityisresponsibleforimplementingtheCleanAirAct1993including
designationandsupervisionofsmokecontrolareasandyoucancontactthemfordetailsof
CleanAirActrequirements



Page3
EGTL03AVersion1.4(21/12/2012)
Contents
Pre‐installationchecks

Installationintroductionwithtechnicaldata

1.0Technicaldata

2.0Installationintroduction
2.1Unpackingthestove
2.2Installingthestove
2.3 Stoveplacement/clearancerequirements
2.4 Thechimney
2.5 Pipeconnections
2.6 Connectingtoamasonrychimney
2.7 Connectingtoasteelchimney
2.8 Draftconditions

3.0UserManual
3.1 Choiceoffuel
3.2 Use
3.2.1 Usewithwood
3.2.2 Usewithsolidfuel
3.2.3 AshRemoval
3.3 Maintenance
3.3.1 Cleaningglass
3.3.2 Externalsurfacecleaning
3.3.3 Gaskets
3.4 Operationalproblems–troubleshooting




Page4
EGTL03AVersion1.4(21/12/2012)
Installationofafireplacemustbeaccordingtolocalcodesandregulationsineach
country.Alllocalregulations,includingthosewhichrefertonationalandEuropean
standards,mustbeobservedwheninstallingtheproduct.

Bothaninstallationmanualwithtechnicaldataandamanualongeneraluseand
maintenanceareenclosedwiththeproduct.Theinstallationcanonlybeusedafter
ithasbeeninspectedbyaqualifiedinspector.

Installationintroductionwithtechnicaldata

1.0 Technicaldata
Material:Castiron
Finish:High‐temp.resistancepaint
Fuel:Multi‐fuelLoglength,max.:30CM
Flueoutlet:Topandrear
FluepipeInternaldimensions:125mmdiameter/113cm2crosssection
Approximateweight:89kgs
Dimensions,distancesetc.:figure2

TechnicaldataaccordingtoEN13240
Nominalheatoutput:7kW
Fluegasmassflow:5.1g/sec
Recommendedchimneydraught:12Pa
Efficiency:Wood‐80.6%@7.7kW
COemission(13%O₂):Wood‐0,09%
Fluegastemperature:Wood‐266°C
Operationalmode:Intermittent
Intermittentcombustioninthiscontextmeansnormaluseofthefireplace,i.e.fuelis
addedassoonasthefuelhasburntdowntoembers.Onallourproductsthereisa
labelindicatingasuitableamountofembers.




Page5
EGTL03AVersion1.4(21/12/2012)

2.0Installation


2.1Unpackingthestove
Afterremovingtheouterpackaging,removethecombustionchamberfromthe
palletandplaceitgentlyonitsback.Thecardboardpackagingcanbeplaced
underneathtopreventmarring.Removethelegpackfromthestoveandbolteach
legsecurelytotheundersideofthebaseonthecombustionchamber,usingthe
boltsprovided(foundinsidethestove).Werecommendthattwopeopleperform
theassemblyandinstallationprocedure.The Door Handle can be found inside the
top of the stove through the top flue opening.


2.2Installingthisstove
ThestoveandchimneyinstallationsMUSTcomplytoallcurrentNationalandLocal
BuildingRegulations;yourapproveddealeroryourlocalbuildingcontrolofficercan
adviseregardingthis.Ultimately,itisyouandyourinstallerwhoisresponsiblethat
theinstallationcomplies

2.3Stoveplacement/clearancerequirements
Woodenfloorprotection
Theproductcanbeplaceddirectlyonawoodenfloorthatiscoveredbyametalplateor
othersuitable,non‐inflammablematerial.Therecommendedminimumthicknessis
5mm.
Anyflooringmadeofcombustiblematerial,suchaslinoleum,carpets,etc.mustbe
removedfromunderthefloorplate.

Requirementsforprotectingcombustibleflooringinfrontoffireplace:Thefloorplate
mustbeinaccordancewithnationallawsandregulations.See(figure2).Contactyour
localbuildingauthorityregardingrestrictionsandinstallationrequirements.

Wallsprotection

Distancetowallmadeofcombustiblematerialsee(figure2)

Thefireplaceisauthorisedforusewiththedistancestothewallofflammablematerial
asshownin(figure2)

Aheatshieldforthebackcanbeorderedandmounteddependingonthepositionofthe
fireplaceandthedesireddistancetocombustiblematerials.Seefig.2.



Page6
EGTL03AVersion1.4(21/12/2012)

Distancetowallscoveredbyafirewallsee(figure2)

FirewallrequirementThefirewallmustbeatleast100mmthickandbemadeofbrick,
concrete‐stoneorlightconcrete.Othermaterialsandstructureswithsatisfactory
documentationmayalsobeused.

Ceilingprotection
Theremustbeaminimumdistanceof1200mmtoacombustibleceilingabovethe
fireplace.

Clearancestofurnitureandsoftfurnishings

Werecommendthatthestovebeinstalled800mmfromfurniture.Serious
considerationshouldalsobegiventopositioningofanyfurniturethatcouldbe
adverselyaffectedbyheat.Theclearancestocombustiblematerialsinfrontofthestove
shouldbeaminimumof800mm.
Whenlit,awood‐burningstovegetshotandthereforeadequateprotectionmustbe
provided,particularlyinsituationswherethereisasafetyrisktochildrenortheinfirm.A
suitablesafetyguardaroundthestoveshouldbeconsidered.





Page7
EGTL03AVersion1.4(21/12/2012)





Page8
EGTL03AVersion1.4(21/12/2012)

2.4Thechimney

Thisproductmustneverconnecttoanysharedchimney.

Anefficientmodernstoveplacesheavydemandsonthechimney,andyoushouldhave
thechimneyregularlysweptandinspectedbyyourapprovedchimneysweep.
Thecross‐sectionalareaofthechimney(atitsnarrowestpoint)mustcomplywith
NationalandLocalBuildingRegulations.Generally,theareaneededforawood‐burning
stoveinstallationshouldmeasureatleast113cm
2
(125mmdiameter).
Anover‐sizedchimneyisgenerallyhardtokeepwarmandresultsinpoordraft.Incases
wherethereisanoversizedmasonrychimney,itisrecommendedthatthechimneybe
linedusinganappropriatechimneyliningsystemwiththecorrectinternaldiameter.
Withrespecttothechimneytermination,allchimneysshouldterminateinaccordance
withnationalandLocalBuildingRegulations.
NotethatNationalandLocalRegulationsalsoapplywithregardtotheplacementof
chimneysandfluesinconnectionwiththatchedroofs.
Thechimneyorfluesystemmustbeequippedwithaccessdoorsforinspectionand
cleaning.Thesizeofthecleaningdoorinthechimneymustatleastequaltothatofthe
cross‐sectionalareaofthechimney.Intheeventthatachimneyfireoccursresulting
fromfaultyoperationorprolongeduseofdampwoodfuel,closetheairvents
completelyandcontactyourlocalfiredepartmentimmediately.

2.5Pipeconnections
Thestovemustbeinstalledwitha125mmdiameterfluepipe.Thismustbeanapproved
thickness.Theflueoutletforthisproductisinsidetheburnchamberduring
transportation.Youcanchoosebetweenatoporrearoutletforthefluepipe.

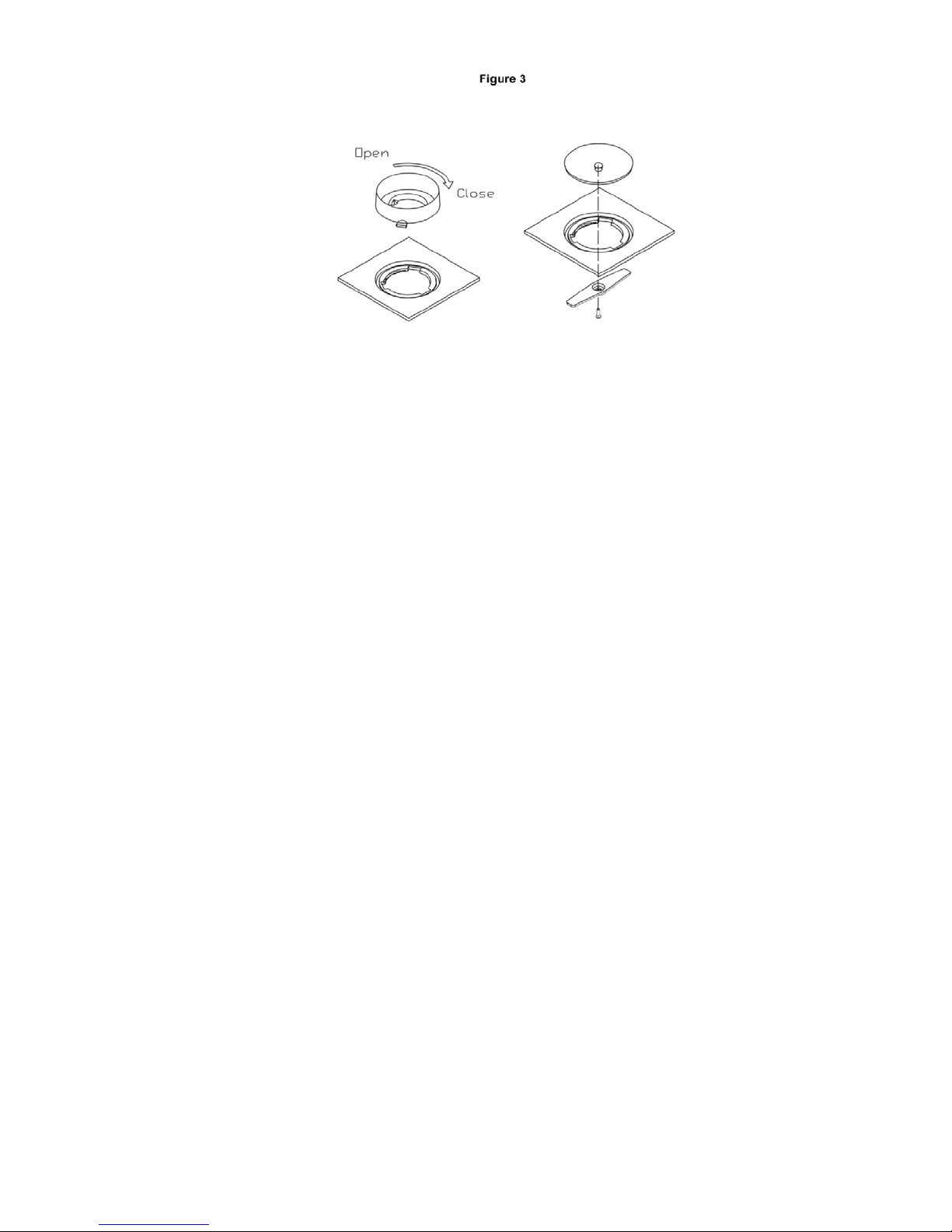

Fluepipesareplaceddirectlyontotheproductflueoutlet.Therearethreelipsonthe
fluecollarTheseareusedtofastenthefluecollarintothebodyofthestovebytwisting
clockwiseseeFigure3.Theunusedoutletmustbesealedwiththeplateandscrewed
firmlyintoplace..
Note!Itisimportantthatthejointsarecompletelysealed.Airleakageetc.mayleadto
malfunction.




Page9
EGTL03AVersion1.4(21/12/2012)

2.6Connectingtoamasonrychimney

Awallsleeveshouldbebrickedsecurelyintothewallofthechimneyattheappropriate
heightandthestovepipeinsertedcentrally.Thepipemustnotextendintotheactual
chimneyopening,butrathermustreachonlytotheinsideofthechimneyaperture.The
gapbetweenthestovepipeandsleevemustbesealedusingglassfibrepackingrope.


2.7Connectingtoasteelchimney

Ifyourinstallationinvolvestakingthechimneystraightupandthroughtheceiling,you
mustcomplywithNational,LocalBuildingRegulationsorfluemanufacturer’s
instructionsconcerningclearancestocombustiblematerialssuchaswalls,floorjoists
andceilings.Thejointbetweenthestovefluecollarandthestovepipemustalsobe
sealedusingtheglassfibreropeprovided.

Itisimportantthattheinsulatedfluesystemisproperlysupportedbothatceilinglevel
andatrooflevel.THESTOVEMUSTNOTBEARTHEWEIGHTOFTHECHIMNEYSYSTEM
(Seechimneymanufacturer’sinstructions).Excessiveweightonthestovewillinhibit
expansionandcouldleadtodamageofthestovetop.

Intheeventthatachimneyfireoccursresultingfromfaultyoperationorprolonged
useofdampwoodfuel,closetheairventscompletelyandcontactyourlocalfire
departmentimmediately.




Page10
EGTL03AVersion1.4(21/12/2012)


CAUTION:

Cleaningprocedure:
Discussthiswithchimneysweeporqualifiedinstallerpriortoorduringthestove
installation.

Chimneydraft:
Ifthechimneydraftisnaturallypooritisbettertoinstallthefluefromthetopofthe
stovesoastominimiseanyinternalresistanceofthefluegases.Avoidhavinganymore
than2bendsinthefluesystemandlimitthelengthoftheoffsetbetweenbends.

Freshairsupply:
Awood‐burningstoverequiresairforcombustionandthereforeyoumayneedtoinstall
additionalventilationtotheroom(ATTENTION:don’tuseanyextractorfansorany
similardeviceinthesameroomwiththisproduct.Itcouldmakethedrafttooweak),
especiallysoinwellinsulatedhouses.

Iftheairsupplyisinadequatethechimneydraftmaybetooweak,withthepossible
resultthatthestovewillnotburnproperly;smokespillagemayalsooccurduringthe
refuelingprocess.Onapositivenote,aproperlyinstalledwood‐burnerwillgiveeventhe
mostefficienthousesapleasantandnaturalventilation.



2.8Draftconditions

Ifsmokespillageoccurswhenthefiredoorisopened,itisprobablyduetopoorchimney
draft.Thistypeofstoverequiresatleast12paofchimneydrafttoachievesatisfactory
combustionandsmokespillageprevention.However,incaseswherethestovedooris
openedtoovigorouslyyoucouldexpectthatslightsmokespillagemayoccur.Ifyouhave
anydoubts,youmaywanttohaveyourinstallermeasurethedraftinthechimney.

Draftconditions
Thechimney’sdraftistheresultingeffectwithinthefluecausedbythedifferencein
temperaturewithintheflueandthecoolertemperatureoutside.Otherfactorsthatcan
influencethelevelofdraftincludethelengthoftheflue,insulationofthechimney,
adverseweatherconditionsortallbuildingsortreesnearbytheflueterminal.

Poordraftoccurswhen:
Theatmospherictemperaturedifferenceistoolow,e.g.apoorlyinsulated
chimney.Ifthechimneyisexcessivelycool,itmayhelpto‘prime’thefluebefore
thefireislit.Justplaceascrewed‐upsheetofnewspaperinthefluewaysofthe
stoveandignite.
