CASTLE Serenity User manual

GAS/OIL
RATIO
50:1
P/N: 28651
ECN: 11694
REV1: 06/01/2017
© 2017 Ardisam Inc.
All Rights Reserved.
Get parts online at
www.CastleStoves.com
Operator's Manual
Serenity

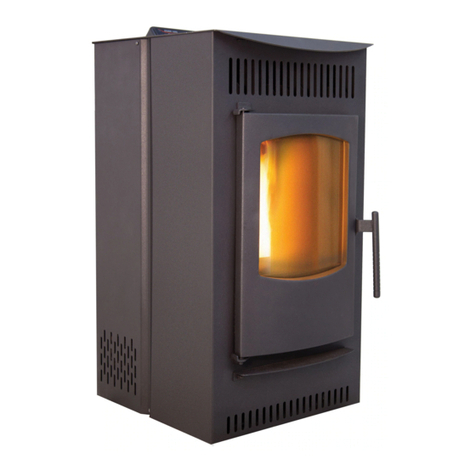

Pellet Stove
ENGLISHFRANÇAIS
CAUTION
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS
AND INSTALLATION INSPECTION REQUIREMENTS FOR YOUR AREA.
ATTENTION
CONSULTER LES SERVICES DU BÂTIMENT OU D’INCENDIE LOCAUX
CONCERNANT LES RESTRICTIONS ET LES EXIGENCES D’INSPECTION
D’INSTALLATION EN VIGUEUR.
CAUTION
DO NOT DISCARD MANUAL!
IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS
INCLUDED.
SAVE THESE INSTRUCTIONS AND
LEAVE THIS MANUAL WITH ANY
PERSON RESPONSIBLE FOR USE AND
OPERATION.
ATTENTION NE PAS JETER!
IMPORTANTES INSTRUCTIONS
D’UTILISATION ET D’ENTRETIEN
INCLUSES.
CONSERVEZ CES INSTRUCTIONS
ET LAISSEZ CE MANUEL À TOUTE
PERSONNE RESPONSABLE
DE L’UTILISATION ET DU
FONCTIONNEMENT.
WARNING
PLEASE READ THIS ENTIRE
MANUAL BEFORE INSTALLATION
AND USE OF THIS PELLET
FUEL-BURNING ROOM HEATER.
FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT
IN PROPERTY DAMAGE, BODILY
INJURY OR EVEN DEATH.
AVERTISSEMENT
VEUILLEZ LIRE CE MANUEL EN
ENTIER AVANT D’INSTALLER
ET D’UTILISER CET APPAREIL
DE CHAUFFAGE AUTONOME À
GRANULES, AFIN D’ÉCARTER LES
RISQUES DE DÉGÂTS MATÉRIELS,
DE BLESSURES CORPORELLES,
VOIRE DE MORT.

Check for parts online at www.castlestoves.com or call 800-345-6007 M-F 8-5
36
Operator's Manual
Serenity Pellet Stove
ILLUSTRATED PARTS BREAKDOWN
6
6
6
5
5
5
36
7,24
24, 34
32
24
7,21
7
12
12
7,21
7,21
4
6
7
7
7
7,24
5
4
4
44
28
29

37
Check for parts online at www.castlestoves.com or call 800-345-6007 M-F 8-5
Operator's Manual
Serenity Pellet Stove
ENGLISH
ILLUSTRATED PARTS BREAKDOWN
2
2
2,23
9
9
9
11
11
11
11
11
11
31

Check for parts online at www.castlestoves.com or call 800-345-6007 M-F 8-5
38
Operator's Manual
Serenity Pellet Stove
ILLUSTRATED PARTS BREAKDOWN
33
8
37
25
27
27 26 13
20
16
35

39
Check for parts online at www.castlestoves.com or call 800-345-6007 M-F 8-5
Operator's Manual
Serenity Pellet Stove
ENGLISH
ILLUSTRATED PARTS BREAKDOWN
14
14
14
14
14
14
14
14
14
14
3
22
14
14
14, 30
14

Check for parts online at www.castlestoves.com or call 800-345-6007 M-F 8-5
40
Operator's Manual
Serenity Pellet Stove
ILLUSTRATED PARTS BREAKDOWN
10 10
10
10
17
1
15
15
15
15
18
19
10

41
Check for parts online at www.castlestoves.com or call 800-345-6007 M-F 8-5
Operator's Manual
Serenity Pellet Stove
ENGLISH
ILLUSTRATED PARTS BREAKDOWN
ITEM # PART # DESCRIPTION QTY.
1 12225 GASKET AUGER HOUSING HPS FEED SYSTEM 1
2 720110 EXHAUST BLOWER 1
3 16135 ASH PAN WELDMENT 1
4 16278 PANEL RIGHT REPLACEMENT KIT 1
5 16279 PANEL LEFT REPLACEMENT KIT 1
6 16280 PANEL BACK REPLACEMENT KIT 1
7 16281 TOP AND HOPPER WELDMENT LID
REPLACEMENT KIT
1
8 720238 VACUUM SWITCH 1
9 720103 52C SENSOR REPLACEMENT 1
10 16284 KIT HOPPER ASSEMBLY REPLACEMENT 1
11 21565 ROOM BLOWER REPLACEMENT KIT 1
12 720055 HOPPER LID SWITCH 1
13 720106 SENSOR TEMPERATURE 92 DEG C 1
14 720204 DOOR ASSEMBLY REPLACEMENT KIT 1
15 720107 AUGER MOTOR HPS & SERENITY 1
16 720216 ADJUSTABLE FOOT 4
17 720219 WELDMENT AUGER FEED SYSTEM 1
18 720220 BEARING LOWER AUGER 1
19 720221 BEARING UPPER AUGER 1
20 720227 POWER SUPPLY SWITCH REPLACEMENT KIT 1
21 720229 HOPPER HANDLE REPLACEMENT 1
22 720235 FIREPOT WELDMENT 1
23 18522 EXHAUST MOTOR GASKET KIT 1
24 720298 CONTROL HEAD REPLACEMENT KIT 1
25 720304 INTERFACE MODULE REPLACEMENT KIT 1
26 720307 IGNITER REPLACEMENT KIT 1
27 720308 COLLAR IGNITER RETAINER REPLACEMENT KIT 1
28 13512 LEAD, PIGTAIL, 30C ROOM SENSOR 1
29 28663 BRACKET, MOUNTING 30C ROOM SENSOR 1
30 720242 GLASS HPS10 & SERENITY 1
31 11090 PIGTAIL LEAD 52 FOR 10IC SERENITY 1
32 11721 REMOTE CONTROL 1
33 12283 TUBE VACUUM SWITCH PORT 1
34 12429 BRACKET CONTROLLER 1
35 11392 PIGTAIL LEAD VACUUM SWITCH 1
36 23063 COMPLETE WIRING HARNESS SERENITY 1
37 28662 VACUUM SWITCH 0.05 WC 1

Check for parts online at www.castlestoves.com or call 800-345-6007 M-F 8-5
42
Operator's Manual
Serenity Pellet Stove
120V~
6A
FUSES
Electrical Plug
Controller
Igniter Auger Motor Room Blower
M
1~ M 1~
M
1~
Exhaust Blower
RD WH
RD WH
RD WH
BL
MICRO-SWITCH
THERMODISC
52C PROOF OF FIRE
THERMOCOUPLE
30C ROOM TEMP
92C OVERTEMP
#5 #4 #3 #2 #1
P
VACUUM / PRESSURE
SWITCH
AUGER
CAPACITOR
ELECTRICAL POWER IGNITER AUGER MOTOR ROOM BLOWER EXHAUST BLOWER
L
N
RD WH RD WH
WIRING DIAGRAM
