CasualWay 2434589 User manual

8'x5' Roof Style Grill Gazebo
Instruction Manual
SKU: 2434589

Safety Information
Care and Maintenance
WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT
FABRIC. This Tent is Made With Fabric That Meets CPAI-84 Specification For Flame
Resistance. It is Not Fire Proof. The Fabric Will Burn If Left In Continuous Contact With
Any Flame Source. The application of any foreign substance to the tent fabric may
render the flame-resistant properties ineffective.
Always read and follow the instructions before use.
When assembling and using this product, basic safety precautions must always be
followed to reduce risk of personal injury and damage to the product or surroundings.
Be sure to keep all children and pets away from assembly area.
Some parts contain sharp edges. Wear protective gloves when handling these items.
It is recommended that, for safety issues, at least 2 people assemble the gazebo. You
must schedule enough time to complete the assembly. You can not leave the unit
unattended if it is not fully assembled, even if it is already anchored to the ground.
You should begin the assembly no less than 6 feet from any fixed obstruction such as
fences, a garage, a house, overhanging branches, electrical wires or laundry lines.
You must assemble your unit on level ground or platform.The unit must be anchored to
either wood, stone tiles or concrete using appropriate screws for that flooring, or
anchored into the earth or grass with proper camp nails or anchors. Failure to do so may
risk blowing away by wind.
Check that all screws are tight before and during usage.
Do not place any type of heat conductor under, or within 5 feet of, the unit including, but
not limited to a barbeque or space heater.
The gazebo is designed to provide shade only. Do not use this gazebo in strong wind
and rain. Wind and rain can damage the gazebo and could result in injury to you and
others.
Hand wash canopy with a mild solution of soap and water, rinse completely. Do not use
bleach or solvents.
Inspect frame periodically to ensure all bolts and nuts are tight.
Your gazebo has been created for three seasons however the roof will not resist to cold
and heavy and/or continuous snow accumulation. The frame may be left up year-round
however you MUST remove the roof canopy during winter. For areas where there is severe
cold during winter it is recommended that you remove the Roof Canopy, Mosquito Netting
(and Curtain if you have purchased it) and store them safely in a dry area throughout these
conditions.
The unit must always remain anchored properly to the floor or ground using the appropriate
screws to enjoy safe usage of the gazebo.
Check periodically that all screws are tight to maintain the solidity of the structure.
Do not put any Mosquito Netting (and Curtain) in any washing machine or dryer.
1

Extra Reminder:This gazebo has been created as a non-permanent
structure. It is designed for sun shade and is not a shelter against adverse
weather conditions. Do not use this gazebo in storms, hurricanes,
typhoons, strong wind, and rain. Be aware that the water may sit and pool
at the fabric canopy top after rain and may cause severe damage to the
gazebo. Please take a minute to lose and remove the roof canopy at least
before the weather!
Secure the frame Keep away from
heat sources and
open �lames.
Do not use during
severe weather
conditions.
Do not use in
windy conditions
This is a shade structure, not intended to use in
rain, very windy or other severe weather condi-
tions. The structure may collapse due to water
pooling on canopy or strong wind blow. The
canopy top must be loosed and/or removed to
avoid weather damage.

2
Pre-Assembly

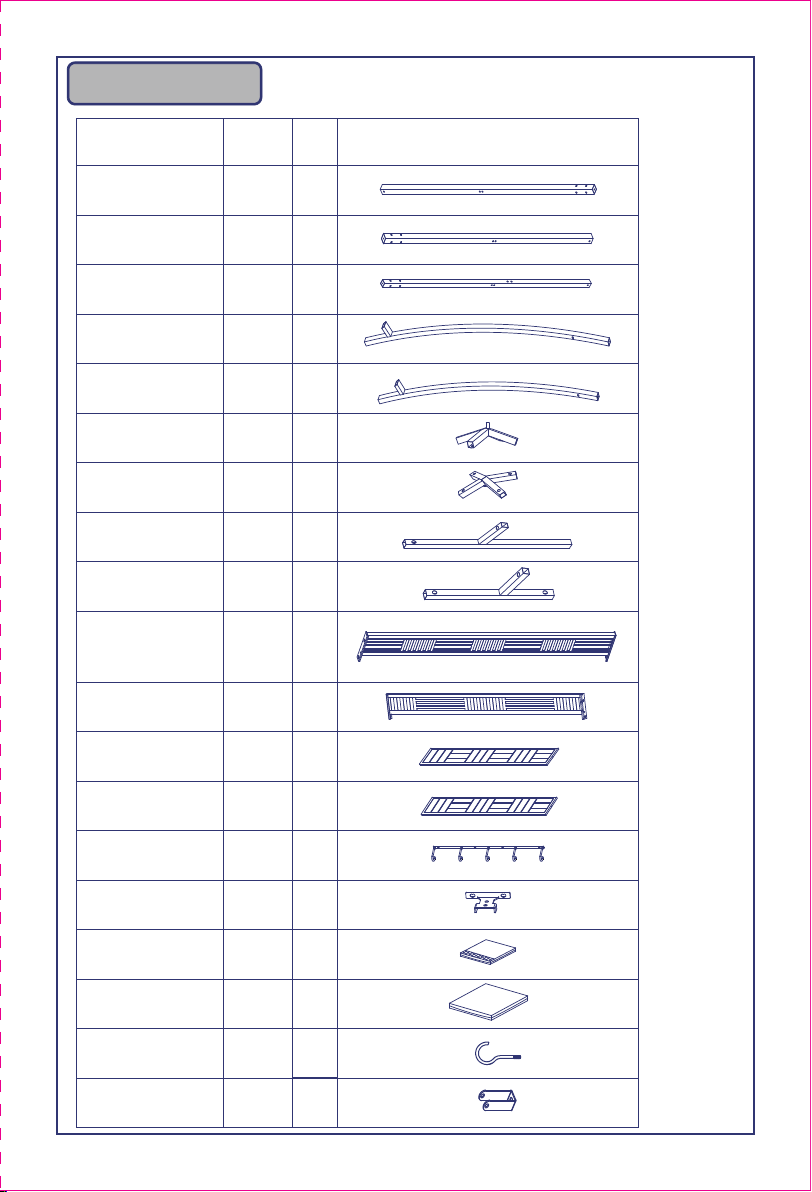

Description Part
Number Qty Part Image
Right Post A1 2
Left Post A2 1
Left Post with
Opener Hole A3 1
Long Big Roof tube B1 3
Short Big Roof tube B2 1
Vent top connector C1 1
Roof Rib connector C2 1
Long Vent tube D1 3
Short Vent tube D2 1
Long Screen E 2
Short Screen F 2
Shelf G1
Shelf G2
Utility hooks
Shelf Connector
Vent Cover
Main canopy
G1 1
G2 1
H 1
I 4
J 1
1
1
4
K
Central Hook L
“U” connector M
Part List

3
Pre-Assembly (continued)
Pistol Drill Hammer Ladder 2 people
4
Feet Cover N
4
Feet O
1
Opener P
1
Decorative Ball Q
2
Adjustable
eave tube R
Description Part
Number Qty Part Image
Hardware Pack
Description Part
Number Qty Part Image
Bolt (M6*15) AA 48
Gasket BB 56
Bolt (M6*35) CC 4
Hexagon Nut DD 4
Cross large
flat head bolt
(M6*15)
EE 2
Peg Stake FF 8
Wrench 1
Allen Key Z2
Z 1
1
Note: The gazebo needs to be installed in cooperation with two
people. The following tools are not included and needed for
assembly:

4
Assembly
20X20X
4X
4X
2X
1X
1X
4X
2X
F
M
N
O
NO
A1
BB AA
A2
A3
F
F
M
M
F
M
M
M
BB
AA
BB AA
BB
BB
AA
AA
A2
A1
A1
A3
STEP 1
1-1: Attach the Short Screen (F) to the Post (A1, A2, A3) with the Bolt (AA) and
Gasket (BB).
1-2: Let Feet Cover (N) go through post (A1, A2, A3). Then attach Feet (O) to the
bottom of post with the Bolt (AA) and Gasket (BB).
1-3: Attach the U shape connector (M) to the top of Post (A1, A2, A3) with the Bolt
(AA) and Gasket (BB).

5
Assembly (continued)
2X
8X8X
BB
AA
A2
A1
A1 A3
BB
E
E
E
AA
STEP 2

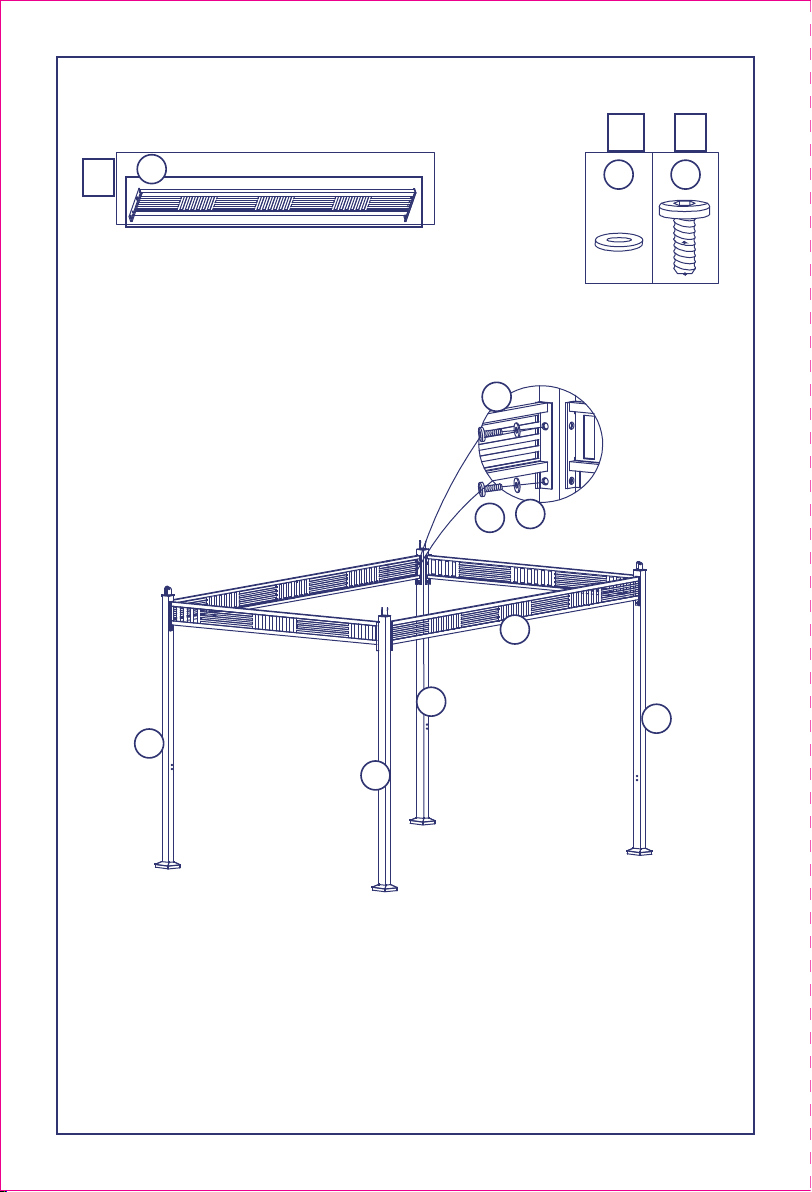

2-1: Attach the long screen (E) to the Post (A1, A2, A3) with the Bolt (AA) and Gasket
(BB)

6
Assembly (continued)
1X
1X
1X
1X
3X
L
L
R
R
RB1
B2
C2
B1
B1
B1
B1 B1
B2
B2
B1
B2C2
C2
STEP 3
3-1: Attach the Long Big Roof tube (B1) and Short Big Roof tube (B2) to Roof Rib
connector (C2), fix Hook (L) to the central of Roof Rib connector (C2). Attach the
Adjustable eave tube (R) to the Short Big Roof tube (B2)

STEP 4
4-1: Insert the Big Roof tube (B1, B2) into the U shape part (M) on top of Post (A1,
A2, A3), then use bolt (CC), Gasket (BB) and Hexagon Nut (DD) to keep Big Roof
tube (B1, B2) stable on the Post (A1, A2, A3).
4-2: Put the main canopy (K) on the top the roof tube (don’t fix it before further
instruction).
7
Assembly (continued)
4X
8X
4X
K
DD BB
K
K
BB BB CC
DD
CC

STEP 5
5-1: Insert the Long Vent tube (D1) and Short Vent tube (D2) to the Vent top
connector (C1). Attach the Adjustable eave tube to the Short Vent tube (D2). Then
attach the vent tubes to roof.
5-2: Extend the Vent Cover (J) onto the Vent top by fixing the Vent Cover at four
corners of top. Attach the Decorative Ball on the top of Vent.
5-3: Fix the main canopy (K) at four corners of top.
8
Assembly (continued)
1X
3X
1X
1 X 1X
R
J D1
D2
R
J
D1
D1
C1
D1
D2
D1
B1
C1

STEP 6

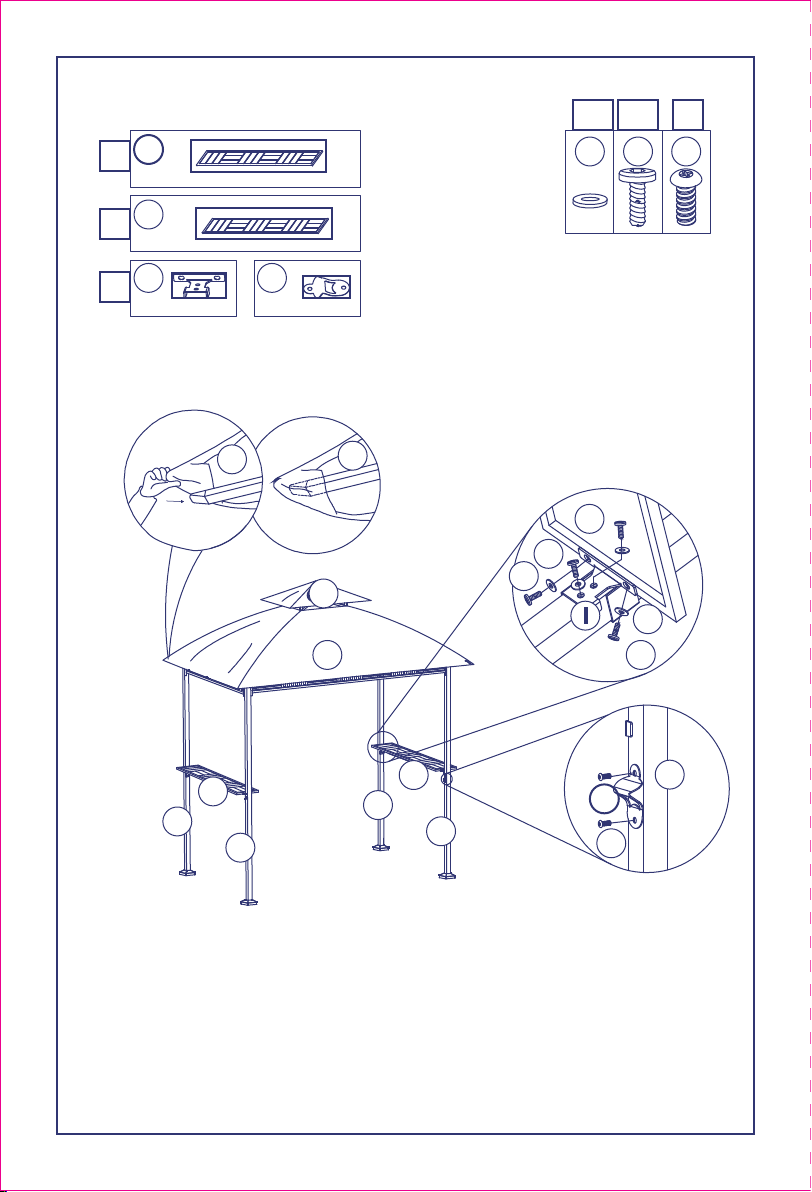

6-1: Attach the Shelf Connector (I) with the Post (A1, A2, A3) with the Bolt (AA) and
Gasket (BB).
6-2: Insert the Shelf (G1, G2) into the Post (A1, A2, A3), then attach them tightly with
the Bolt (AA) and Gasket (BB).
6-3: Attach the Bottle Opener (P) on Post with Opener Hole (A3) with Cross large
flat head bolt (M6*15) (EE).
9
Assembly (continued)
1X
1X
4X
2X
16X
16X
IP
KK
K
J
I
P
BB
G1
G2
G2
BB
BB
AA
AA
EE
A3
G2
A3
A1
G1
A1
A2
AA EE

STEP 7
7-1: Then attach the Utility hooks (H) to Shelf (G2)with the Bolt (AA) and Gasket
(BB).
7-2: Fix the gazebo to the lawn by using the Peg stakes.
10
Assembly (continued)
4X
4X
8X
1X
H
H
H
N
O
FF
BB
BB
G2
G2
FF FF
G1
AA
BB
AA
AA
