Dishwasher Features.................................... ... 3
A、Water Softener...........................................
4
Attention before or after loading the Dishwasher
Baskets..........................................................9
Filtering System.............................................15
Caring for the Dishwasher...............................16
B、Loading the Salt into the Softener.................5
C、Fill the Rinse Aid Dispenser......................... 5
D、Function of Detergent .................................7
Loading the upper Basket.................................9
Loading the Lower Basket...............................10
Cutlery Basket........................................... ...11
Wash Cycle Table...........................................13
Turning on the Appliance................................14
Change the Programme.................................. 14
At the End of the Wash Cycle........................... 14
Before calling for service.................................24
Error codes...................................................25
Technical information.....................................26
Control Panel...................................................3
Water Connection...........................................23
..Please carefully read the installation instruction 18....... .
....18Aesthetic panel's dimensions and installation
Tension adjustment of the door spring 20..............
Connection of drain hoses.......................................20
Dishwasher installation steps.......................... 21
To review the section on Troubleshooting Tips
will help you to solve some common problems
by yourself .
Dear Customer,
Please carefully read this manual before using the
dishwasher, it will help youto use and maintain the
dishwasher properly.
Pass it on to any subsequent owner of the appliance.
This manual contains sections on Safety Instructions,
Operating Instructions, Installation Instructions and
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
development and updating of the product, may
make modifications without giving prior notice.
Keepit torefertoitatalaterdate.
Ifyoucannotsolvetheproblemsbyyourself,
please ask for the help of professional technicians.
Warranty Description................................27-29

1
This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of an electric shock by providing apath
ofleastresistanceofelectriccurrent.
This applianceis equipped with a cord having an
earthed plug.
The plug mustbe plugged into an appropriate outlet
that is installed in accordance with current legislation.
Keep children away from detergent andrinse aid, keep
children away from the open door of the dishwasher,
there could still be some detergent left inside.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating elementduring or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergentin your dishwasher.
During installation, the power supply cord must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
Do not place any heavy objects on or stand on the
doorwhen it is open. The appliance could tip
forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2) Warning: Knives and other utensils with
sharp points must be loaded in the basket
with their points down or placed in a
horizontal position.
When using your dishwasher, you should
prevent plastic items from coming into contact
with the heating element.(This instruction is only
applicable to machines with a visual heating
element.)
If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a
similarly qualified person in order toavoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed. Avoid
contactwithskinandeyesandkeepchildrenaway
from the dishwasher when the door is open.
Check that thedetergent comparmentis empty
aftercompletion of the wash cycle.
The appliance is to be connected to the water
mainsusingnewhosesets.Oldhosesetsshouldnot
be re-used.
The maximum number of place settings to be
washed is 12.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children )with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
When using your dishwasher, follow the precautions listed below:
WARNING!
The door should not be left open,
since this could increase the risk of tripping.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of watersquirtingout.
Improper connection of the earth can result in the
risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
applianceisproperlygrounded.Donotmodifythe
plug provided with the appliance; if it does not fit
the outlet, have a suitable outlet installed by a
qualified electrician.

Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene, e.g. padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel .
Packaging material could be dangerous for children!
For disposal of packaging and the appliance please go to a recycling centre.Cut
off the power supply cable and destroy the door lock mechanism to avoid the possibility
of child en trapment.
Cardboard packaging is manufactured from recycled paper and should be disposed in the
waste paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product.
For more detailed informationabout recycling of this product, please contact your local
council or your household waste disposalservice.
DISPOSAL: Do not dispose of this product as unsorted municipal waste.
WARNING!
2

To get the best performance from your dishwasher, read all
operating instructions before using it for the first time.
3
5
Power on light: Illuminates when the Power ON/OFF
button is pressed down.
1
2
3
4
ON/OFF Button: To turn on/off the power supply.
Salt and Rinse Aid Warning Light: Comes on when
the softener or dispenser needs to be refilled.
Program indicator light: When you select the washing
program, the corresponding light will display.
Program button :Press the appropriate button to select
the wash program required.
—Strong —Normal
—Economy —Rinse
—Rapid
11 12
Rear View
1
2
3
4
5
6
7
8
9
10
on
Off
Front View
Main Filter
Detergent Dispenser
Cup Shelf
Cutlery Basket
Coarse Filter
Rinse Aid Dispenser
Inlet pipe connector
Drain pipe connector
Lower Basket
Spray Arms
Upper Basket
1
Salt Container
5
6
7
8
9
10
12
11
3
2
4
DWIB60

Before using your dishwasherfor the first time:

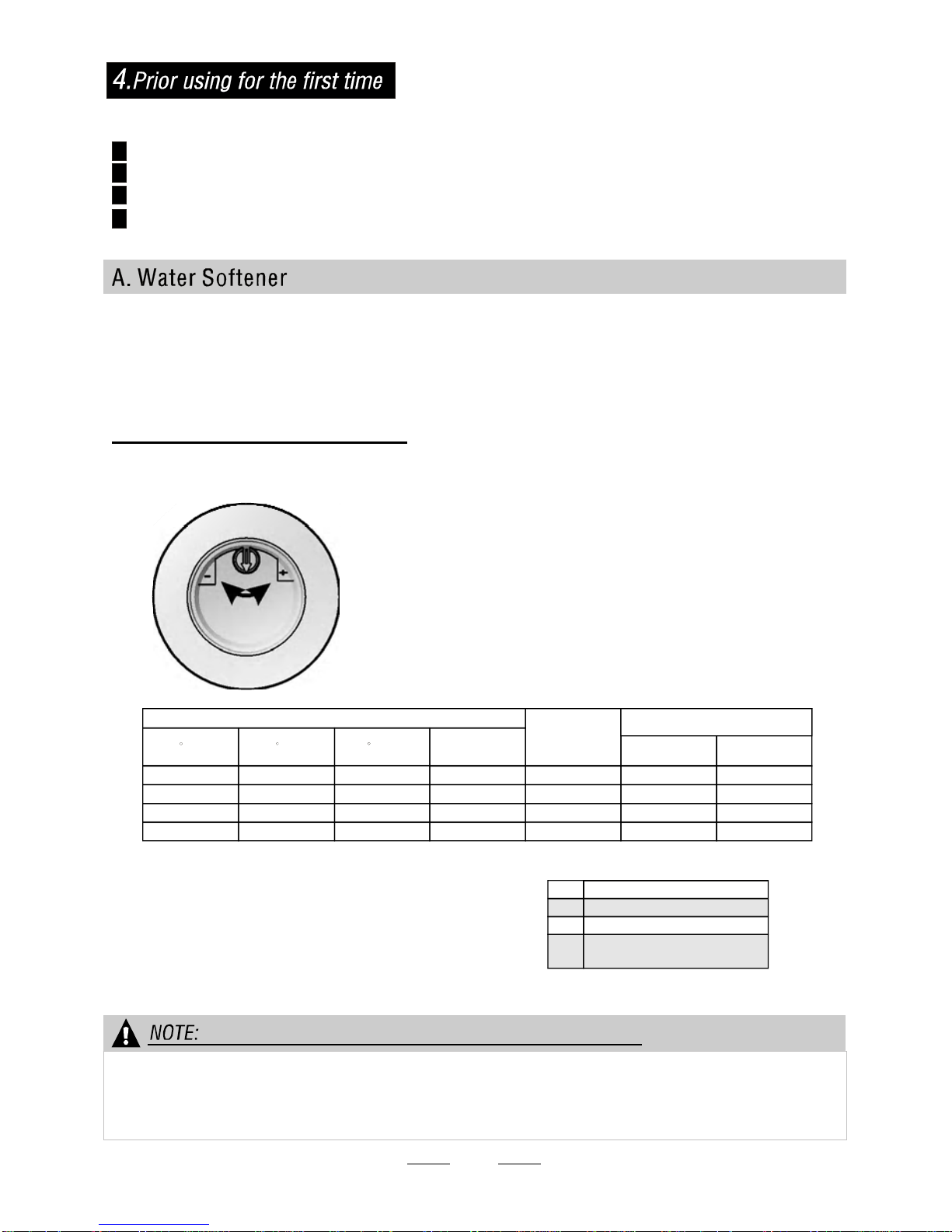

The water softener must be set manually, using the water hardness dial.
The water softener is designedto remove minerals and salts from the water, which would have
a detrimental or adverse effect on the operation of the appliance. The higher the
content of these minerals and salts, the harder your water is. The softener should be
adjusted according to the hardness of the water in your area. Your local Water Authority
can advise you on the hardness of the water in your area.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjustment in the amount of salt consu med based on the hardness of
the water used. This is intended to optimise and customise the level of salt consumption.
1. Unscrew the cap from the salt container.
2. Thereisaringonthecontainerwithanarrowonit(seefigure
to the left), if necessary, rotate the ring in the anticlockwise
direction from the "-" Setting toward the "+" sign, based on the
hardness of the water being used.
It is recommended that adjustments should be made in
accordance with the following scheme:
WATER SOFTENER
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will
formonthedishesandutensils.
The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate
lime and minerals from the water.
Contact your local water board for information on the hardness of your watersupply.
dH
mmol/l
0~140~8 0~1.4 /0/
14~398~22 1.4~3.9 -20 60
39~8022~45 3.9~8 Mid 40 25
+60 16
fH
0~10
10~28
28~56
Clarke
WA TER HARDNESS
Selector Position (cycles/1.2kgs)
Please follow the steps below for adjustment in salt consumption.
"/"
"-"
"+"
"Mid"
Note:2
Setting toward the"+" sign
Setting toward the"-" sign
Setting toward between
the "-" sign and "+" sign
No salt need added
45~60 80~107 56~75 8~11
4
If your model does not have any water softener, you may skip this section.
A. Set the water softener
B. Pour 1／2 litre of water inside the salt container and then fill with dishwasher salt
C. Fill the rinse aid dispenser
D. Fill with detergent
°Clark: British degree
°fH: French degree
°DH: German degree
Note:1
dH=1.25 Clarke=1.78 fH=0.178mmol/l
°°°
1
Salt consumption
(gram/cycle)

It is normal for a small amount of water to come out of the salt container.
1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how well the salt dissolves, the salt warning light may still beoneventhoughthe
salt container is filled.
If there is no salt warning light in the control panel (for some models),you canestimatewhen tofill
the salt into the softener by the cycles that the dishwasher has run.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.
Always use the salt intended for use with dishwasher.

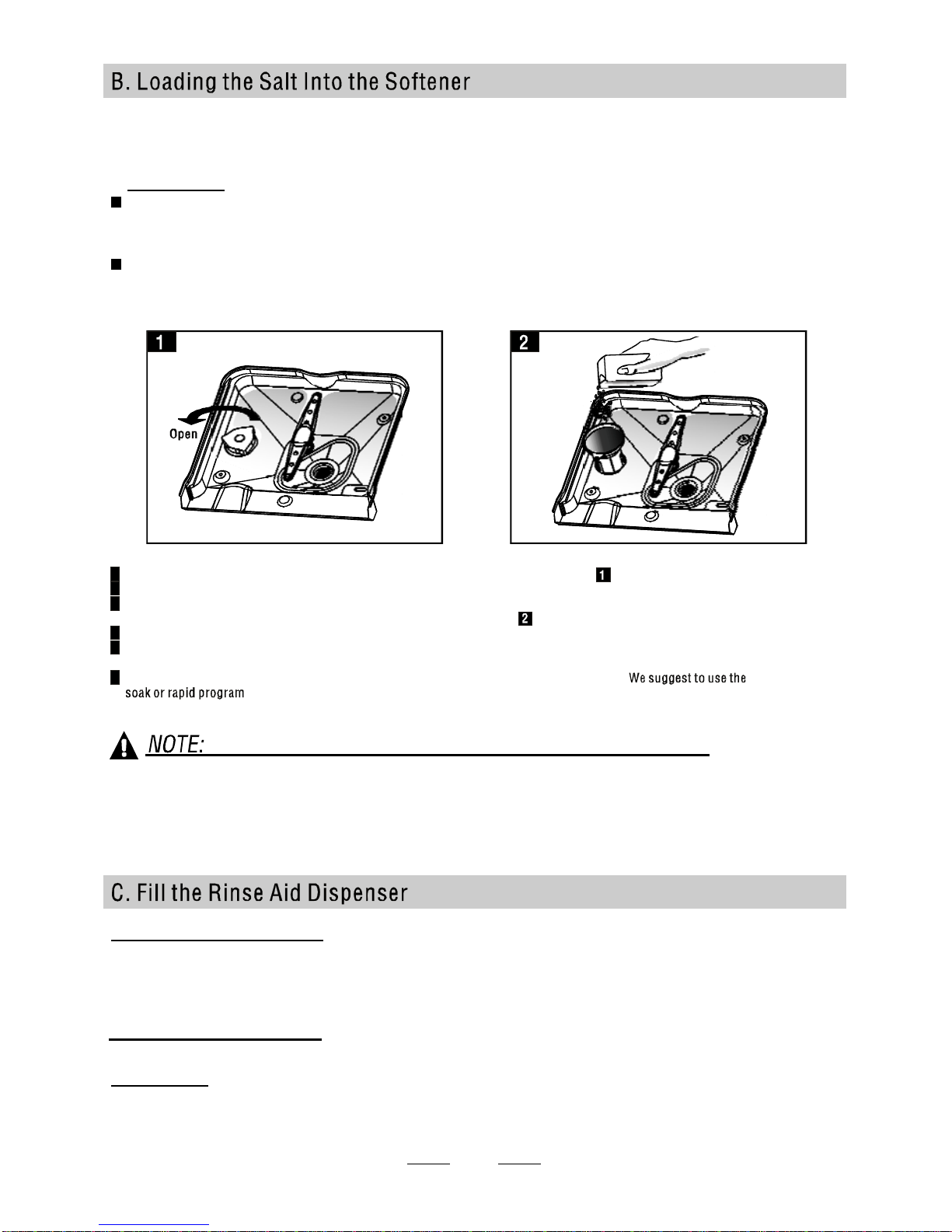

The salt container is located beneath the lower basket and should be filled as explained
in the following:
Attention!
Only use salt specifically designed for the use in dishwashers! Every othertypeof
salt not specifically designed for the use in a dishwasher, especially table salt, will
damagethewatersoftener.Incaseofdamagecausedbytheuseofunsuitable
saltthemanufacturerdoesnotgiveanywarrantynorisliableforanydamages caused.
Only fill with salt just before starting one of the complete washing programs.
This will prevent any grains of salt or salty water, which may have been spilled,
remaining on the bottom of the machine for any period of time, which may cause
corrosion.
5
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door nextto the detergentdispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aid container is about 110ml.
Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse,ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use brand ed rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage theappliance.
ARemove the lower basket and then unscrew and remove the cap from the salt container.
BBefore the first wash, fill 1lt. of water in the salt container of your machine.
CPlace the end of the funnel (supplied) into the hole and introduce about 1kg of salt.
DAfter filling the container , screw the cap tightly back clockwise.
EUsually, the salt warning light will stop being illuminated within 2-6 days after the salt container has been filled with
salt.
FImmediately after filling the salt into the salt container, a washing program should be started (
). Otherwise the filter system, pump or other important parts of the machine may be damaged
by salty water. This will not be covered by the manufacturer's guarantee.

6

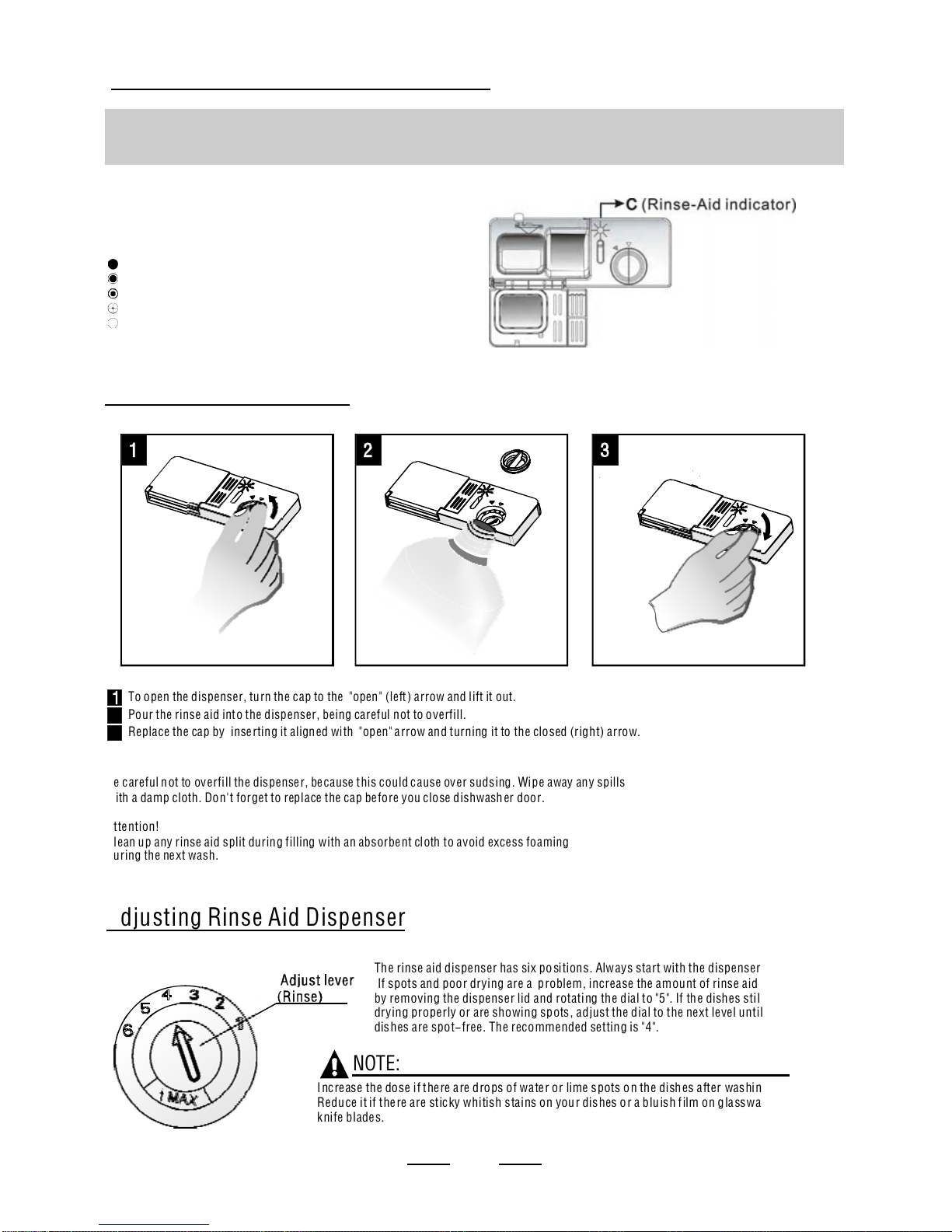

RINSE AID DISPENSER
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
Be careful not to overfill the dispenser, because this couldcause over sudsing. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid split during filling with an absorbent cloth to avoid excess foaming
during the next wash.
Adjusting Rinse Aid Dispenser
1
2
3
As the rinse aid diminishes, the size of the black dot
on the rinse aid levelindicator changes, as illustrated below.
Full
3/4full
1/2full
1 / 4 full - Should refill to eliminate spotting
Empty
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the colour of the optical level
indicator "C" located next to the cap.When the rinse-aid container is full, the whole indicator will be dark .As the rinse-aid
diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.
The rinse aid dispenser has six positions. Always start with the dispenser set on "4".
If spots and poor drying are a problem, increase the amount of rinse aid dispensed
by removing the dispenser lid and rotating the dial to "5". If the dishes still are not
drying properly or are showing spots, adjust the dial to the next level untilyour
dishes are spot-free. The recommended setting is "4".
Increasethedoseiftherearedropsofwaterorlimespotsonthedishesafterwashing.
Reduce it if there are sticky whitish stains on your dishes or a bluish film onglasswareor
knife blades.
NOTE:
When to Refill the Rinse Aid Dispenser

7
Amount of Detergent to Use
Proper Use of Detergent
Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser until you're ready to wash dishes.
Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
WARNING!
Based on their chemical composition, detergents can be split in twobasic types:
The use of“normal” washing programs in combination with concentrated detergents
reduces pollution and is good for your dishes; these wash programs are specifically matched
to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
“normal”wash programs in which concentrated detergents are used can achieve the same
results that can otherwise only be achieved using“intensive” programs.
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than a
conventional dishwasher. Generally, only one tablespoon of detergent is needed for
a normal wash load. More heavily soiled items need more detergent. Always add the
detergent just before starting the dishwasher, otherwise it could get dampandwillnot
dissolve properly.
Concentrated Detergent
Detergent Tablets

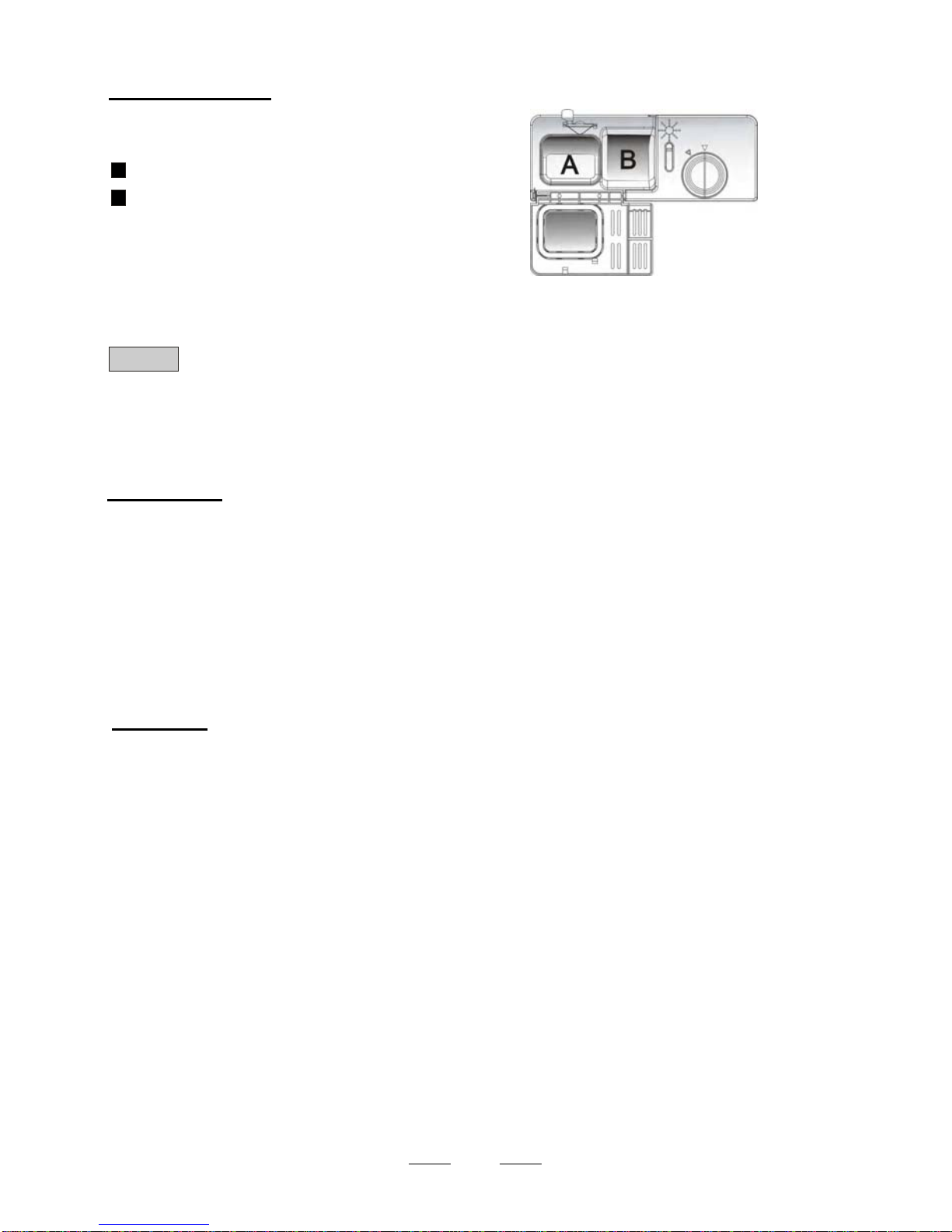

Detergent Dispenser
Alwaysaddthedetergentjustbeforestartingeachwashcycle.
Only use branded detergent aid for dishwasher.
If the lid is closed: press release button. The lidwill spring open.
conventional, alkaline detergents with caustic components
low alkaline concentrated detergents with natural enzymes
Detergents with its chemical ingredients are necessary to remove dirt and transport it outof the dishwasher.
Mostof the commercial quality detergents are suitable for this purpose.

8
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
Thelocationofmainwashcycledetergent,
“MIN”means approximately 20g of detergent.
The location of pre-wash cycle detergent,
approximately 5g of detergent
Please observe the manufacturers dosing and storage
recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional detergent dose inthe pre-wash detergent
chamber. This detergent will take effect during the pre-wash phase.
You will find information about the amount of detergent for the single programmes on the
last page. Please be aware that according to the level of soiling and the specific hardness of
water, differences are possible.
Please observe the manufacturer's recommendations on the detergent packaging.
Detergents
There are 3 sorts of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate and without chlorine
NOTE:
A
B
Fill in detergent
Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 °dH. If detergents without phosphate are usedin the case ofhardwater
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. In this case please choose a program with a higher temperature.
Attention
Keep all detergents in a safe place out of children's reach.
Always add the detergent in the dispenser just before starting the dishwasher.

9
For best performance of the dishwasher, follow these loading guidelines. Features and
appearance of baskets and cutlery baskets may vary from your model.
Attention before or after Loading the Dishwasher Baskets
Scrape off any large amounts of leftover food. Soften remnants of burnt foodinpans.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. should face downwards.
2.Curved items, or ones with recesses, should be loaded at a slant so that water can run off.
3.All utensils should be stacked securely so they do not tip over.
4.All utensils should be placed in the way that the spray arms can rotate freelyduring washing.
Very small items should not be washed in the dishwasher as they could easily falloutofthebaskets.
Removing the Dishes
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.
Loading the Upper Basket
The upper basket is designed to hold more delicate and lighter dishware suchasglasses,coffee
and tea cup and saucers, as well as plates, small bowls and shallow pans (as long as they are
not too dirty).
Position the dishes and cookware so that they do not get moved by the spray of water.
Adjusting the Upper Basket
The height of the upper basket can be adjusted in order to create more space for large utensils
both for the upper/lower basket. The height of the upper basket can be adjusted by placing the
wheels on a different rail height. Long items, serving cutlery, salad servers and knives
should be placed on the shelf so that they do not obstruct the rotation of the spray arms.
The shelf can be folded back or be removed when not required for use.
1
Cups
2
Small serving bowl
3
Large serving bowl
4
Glasses
Saucers
5
6
Dish
Dessert dishes
7
1
1
4
1
7
2
3
5
6
1
4
1
4
1

10
Loading the Lower Basket
We recommend that you place large items which are most difficult to clean into the lower basket:
pots, pans, lids, serving dishes and bowls, as shown in the figure below.
It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking
the rotation of the top spray arm.
Pots, serving bowls, etc. must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The bottom basket features collapsible racks so that larger or more pots and pans can be loaded.
For better stacking of pots and pans, the racks can be folded down as
show in the picture to the right.
8 Oval platter
10
Soup plates
Dessert dishes
7
9
Dinner plates
11
Silverware basket
1010
8
99
77
7
Collapsible racks

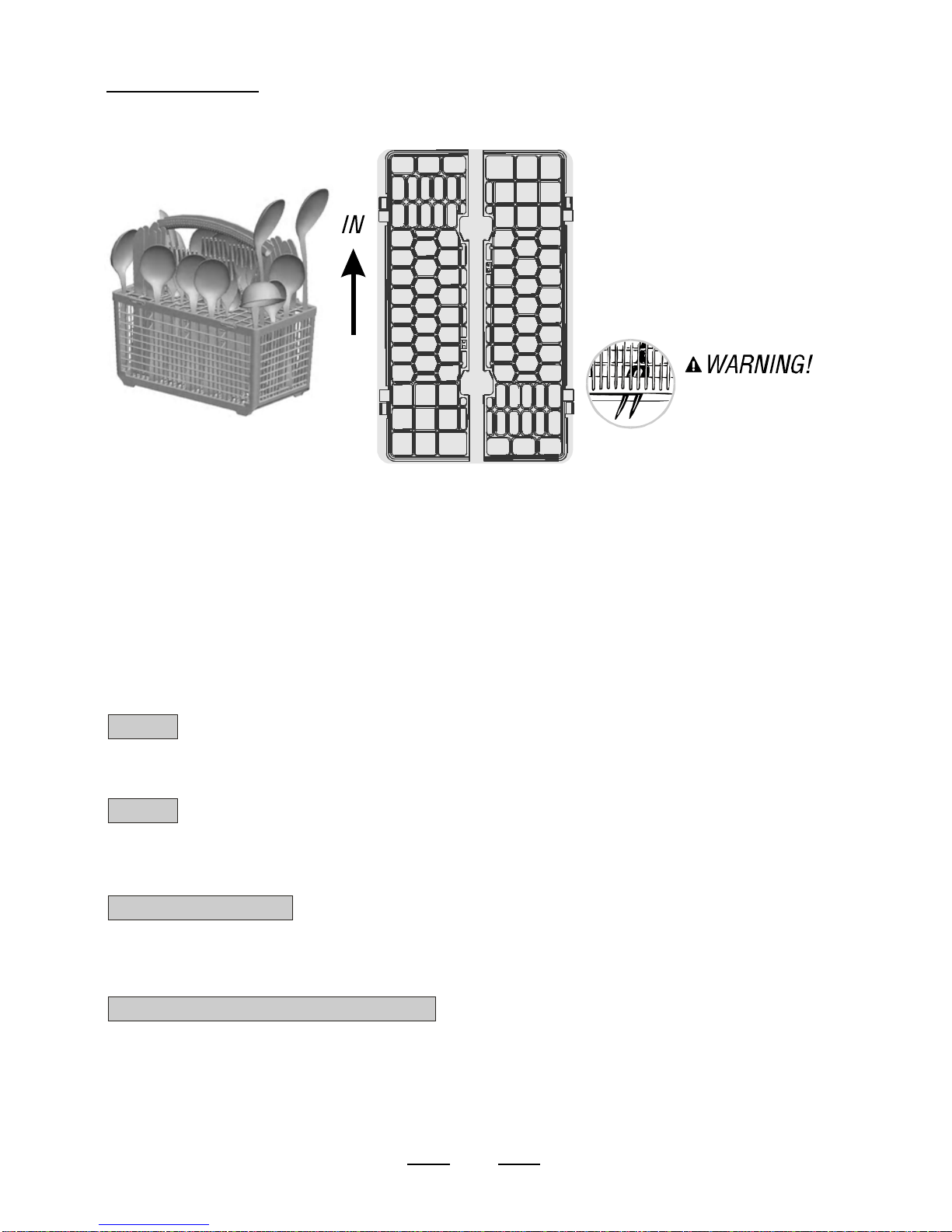

Cutlery Basket
For washing in the dishwasher the following cutlery/dishes
Cutlery with wooden, bone china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not
temperature resistant
Bonded cutlery items or dishes
Pewter or copper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Do not put in items that are dirty from cigarette ash, candle wax, lacquer or paint.
If you buy new dishes please make sure that they are suitable for dishwashers.
Some types of glasses can become
dullafteralargenumberofwashes
Silver and alumin um parts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
Please do not overload your dishwasher. Do not use dishes that are not suitable for
dishwashers. This is important for goodresults and for reasonable energy consumption.
Before loading the dishes, you should:
Remove large left-overs
Soften remnants of burnt food in pans by soaking them
Dishes and cutlery must not impede the rotation of the spray arms
Load hollow items such as cups, glasses, pans etc. with the openingdownwards so that
water cannot collect in the container or a deep base
11
NOTE:
NOTE:
Are NOT suitable Are of limited suitability
Loading cutlery and dishes
When loading the dishes and cutlery,please note:
Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the
spoons should be loaded separately into the appropriate slots, especiallylongutensilsshouldbeplacedinthe
horizontal position at the front of the upper basket as shown in the picture.
Teaspoons
4
Soup spoons
2
Forks
1
Serving forks
8
Serving spoons
6
Knives
5
3
Dessert spoons
7
Gravy ladles
Do not let any item extend
through the bottom.
2
452
5
32
3
2
1
1
1
1
1
5554
555
4
632367 3
2
3
4555
1
1
1
1
1
5
4
2
2
3
33
332
2
3
2
2
1
4
4
4
4
8
4
4
4
1

12
Di
To
T
shes and items ofcutlery must not lie inside one another, or cover each other
avoid damage to glasses, they must not touch
Load large items which are most difficult to clean into the lower rack
he upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cups
Attention!
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Damage to glassware and other dishes
Possible causes:
Type of glass or manufacturing process. Chemical composition of detergent.
Water temperature and duration of dishwasher programme.
Suggested remedy:
Use glassware or porcelain dishes that have been marked dishwasher-proof by the
manufacturer
Use a mild detergent that is described as kind to dishes If necessary, seek further
information from detergent manufacturers.
Select a programme with a low temperature.
To prevent damage, take glass and cutlery out of the dishwasher as soon as possible
after the programme has ended.

13
For the heaviest soiled loads,
such as pots,pans,casserole
dishes and dishes that have
been sitting with dried food
on them for a while.
A shorter wash for lightly
soiledloads that do not
need drying.
Fordishesthatneedtobe
rinsed and dried only.
Normal
Economy
Intensive
Rapid
Rinse
25 g.
5/25 g.
20 g.
155
150
130
30
80
1.30
1.05
1.55
0.40
1.00
16
16
22
12
8
5/25 g.
(IEC-EN 50242)
Pre-wash(50℃)
Pre-wash
Wash (65 ℃)
Rinse
Rinse
Rinse (55 ℃)
Drying
Pre-wash(50℃)
Wash (50 ℃)
Rinse
Rinse (65 ℃)
Drying
Pre-Wash
Pre-Wash
Wash(50℃)
Rins e(65℃)
Drying
Wash(40℃)
Hot Rinse
Hot Rinse
Wash(40℃)
Rins e(70℃)
Drying
For normally soiled loads,
such as pots, plates,glasses
and lightly soiled pans.
standard daily cycle.
For normally soiled loads,
such as pots, plates,glasses
and lightly soiled pans.

14
A forgotten dish can be added at any time before the detergent cup opens.
Open the door a little to stop the wash cycle.
After the spray arms stop working, you can open the door
completely.
Loa d the forgotten dishes.
Close the door, the dishwasher will start running again
after 10 seconds.
4
3
2
1
If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the
main power and water supply before calling for service.
NOTE:
It is dangerous to open the door when washing,because the hot water may scald you. Take extra care to avoid this.
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the ON/OFF button and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Turning on the Appliance
Premise: A cycle that is underway can only be modified if it
has only been running for a short time. Otherwise, the detergent
may already have been released, andthe appliance may have
already drained the wash water. If this is the case, the detergent
dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
To cancel a cycle, open the dishwasher door then press and hold the
'prog.' button for more than 3 seconds. The cycle is then cancelled
and a new cycle can be selected.
NOTE: If you open the door when washing, the machine
will pause. When you close the door, the machine will
re-start after 10 seconds.
The program lights show the state of the dishwasher:
a) All program lights off --> stand by
b) One of the program lights on --> pause
c) One of the program lights blinking --> run
Prog.
Prog.
Starting a wash cycle...
1 Pull out the lower and upper basket, load the dishes and
push them back. It is recommended that the lower basket is
loaded first, then the upper one (see the section entitled "Loading the Dishwasher " ).
2 Pour in the detergent(see the section entitled "Salt, Detergent and Rinse Aid").
3 Insert the plug into the socket. The power supply is 220-240
V AC 50 HZ, the specification of the socket is 12 A 250V AC.
Make sure that the water supply is turned on to full pressure.
Press the "prog. " button to select a desired "Wash cycle". (See
the section entitled "Wash Cycle Table" )
5 Ensure the door is properly closed.
NOTE: A click could be heard when the door is closed perfectly.
6 When the washing is over, you can shut off the switch by pressing ON/OFF button.
4 Open the door, press the ON/OFF button, and the ON/OFF light will turn on.

15
The filter prevents larger remnants of food or other objects from getting inside the pump.
Theresiduesmayblockthefilter,inthiscasetheymustberemoved.
The filter system consists of a coarse filter, a flat (main filter)
and a microfilter (fine filter).
Main filter
Food and soil particles trapped in this filter are pulverized by a
special jet on the lower spray arm and washed down the
drain.
Coarse filter
Larger items, such as pieces of bones or glass, that could clog
the drain in the coarse filter. To remove an itemcaught
caught in this filter, gently squeeze the taps on the top of this
filter and lift it out.
Fine filter
This filter holds soil and food residues in the sump area and
prevents it from being redeposited on the dishes during a cycle.
2
3
1
2
3
1
- Inspect the filters for blocking every time the dishwasher has been used.
- By unscrewing the coarse filter. you can remove the filter system. Remove anyfoodremnantsandcleanthe
filters under running water.
NOTE：
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal for thedishwasher to be wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper basket onto
the dishes in the lower one.
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from step 3 to step 1, the filter system will be installed.
1
2

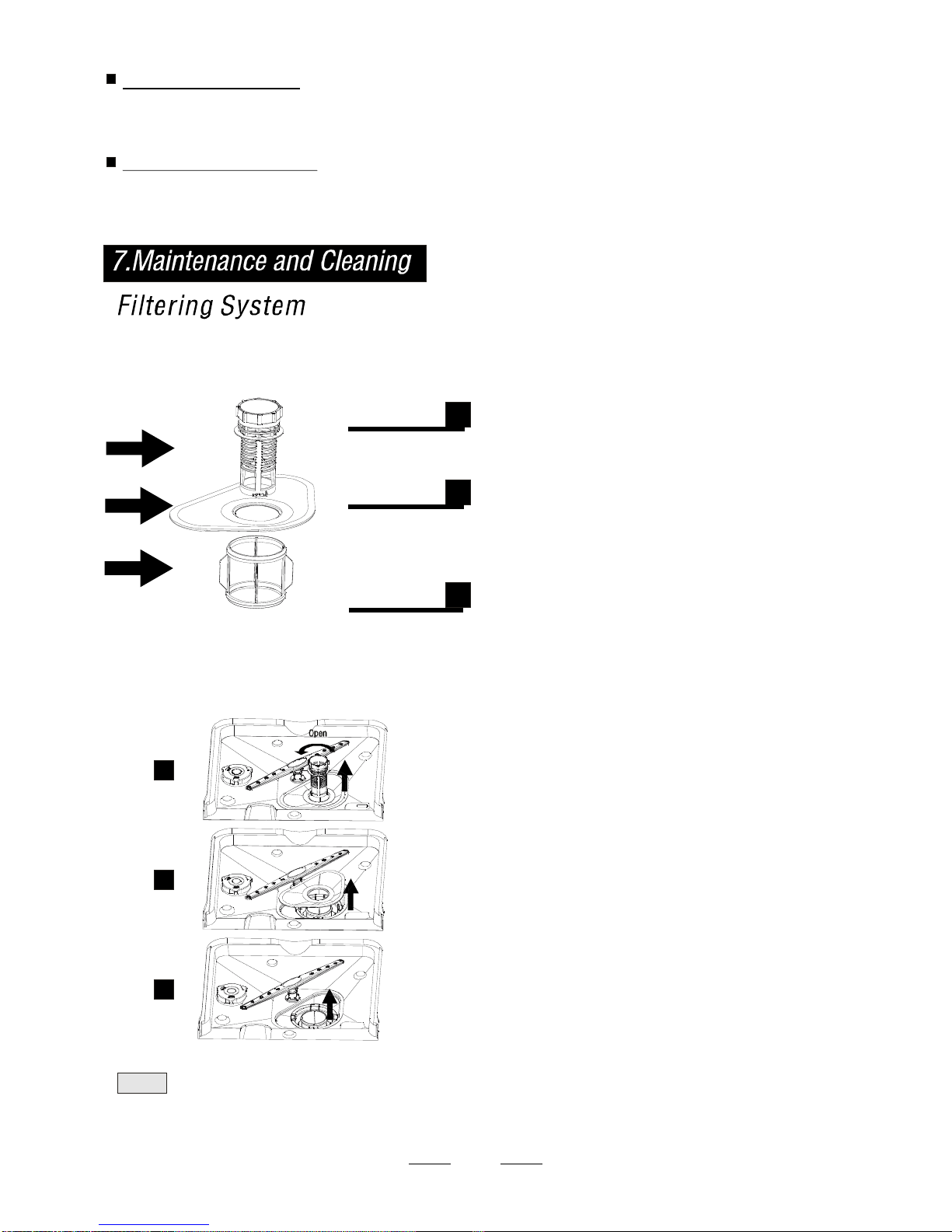

Step１：Turn the filter in anti-clockwise direction,
then lift it up
Step２：lift the main filter up
3
Step3：liftthefinefilterup

16
Cleaning the Spray Arms
Caring for the Dishwasher
Filter assembly
To clean the coarse filter and the fine filter, use a cleaning brush. Then, reassemble the filter
parts as previously shown and reinsert the entire assembly in the dishwasher, positioning
in its seat and pressing downward.
The dishwasher must never be used without the filters. Improper replacementof the filter may
reduce the performance level of the appliance and damage dishes and utensils.
For best performance and results, the filter assembly must be cleaned. The filter efficiently removes food
particles from the wash water, allowing it to be recycled during the cycle. For best performance and results,
the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles
trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water.
To remove the filter device, pull the cup handle in the upward direction. The entire filter assembly should be
cleaned once a week.
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance and
damage dishes and utensils.
The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

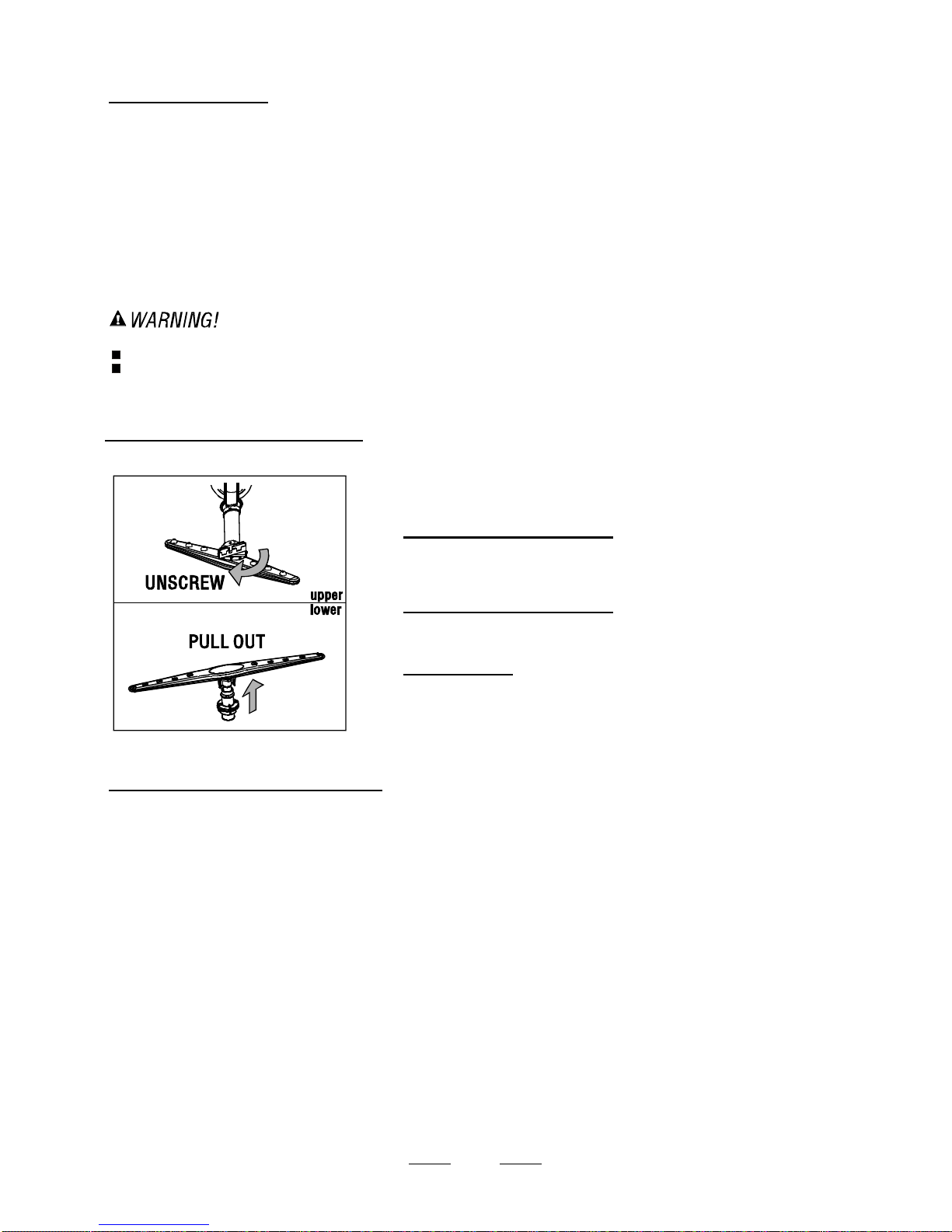

To remove the upper spray arm, screw off the nut clockwise then remove
the arm.
Remove the upper spray arm
To remove the lower spray arm, pull the spray arm upwards.
Remove the lower spray arm
Wash the arms
Wash the arms in soapy and warm water and use a soft brush to clean
the jets. Replace them after rinsing them thoroughly.

The installation of the pipes
and electrical equipments
should be done by professionals.
Electrical Shock Hazard
Disconnect electrical power before
installing dishwasher.
Failure to do so can result in death or
electrical shock.
The installation position of dishwasher should be near the existing inlet and drain hoses and
power cord.
One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of
the dishwasher.
Installation preparation
●
17
After every wash, leave the door slightly ajar
so that moisture and odours are not trapped
inside.
Before cleaning or performing maintenance, always
remove the plug from the socket. Do not run risks.
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Rather, use only a cloth and warm soapy water.
To remove spots or stains from the surface of the
interior,useaclothdampenedwithwaterandalittle
vinegar, or a cleaning product made specifically for
dishwashers.
When you go on holiday, it is recommend that yourun a
wash cycle with the dishwasher empty and then remove
the plug from the socket, turn off the water supply and
leave the door of the appliance slightly ajar. This will help
the seals to last longer and prevent odours from forming
within the appliance.
If the appliance must be moved, try to keep it in the vertical
position. If absolutely necessary, it can be positioned on
its back.
One of the factors that cause odours to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a dampsponge will prevent this
from occurring.

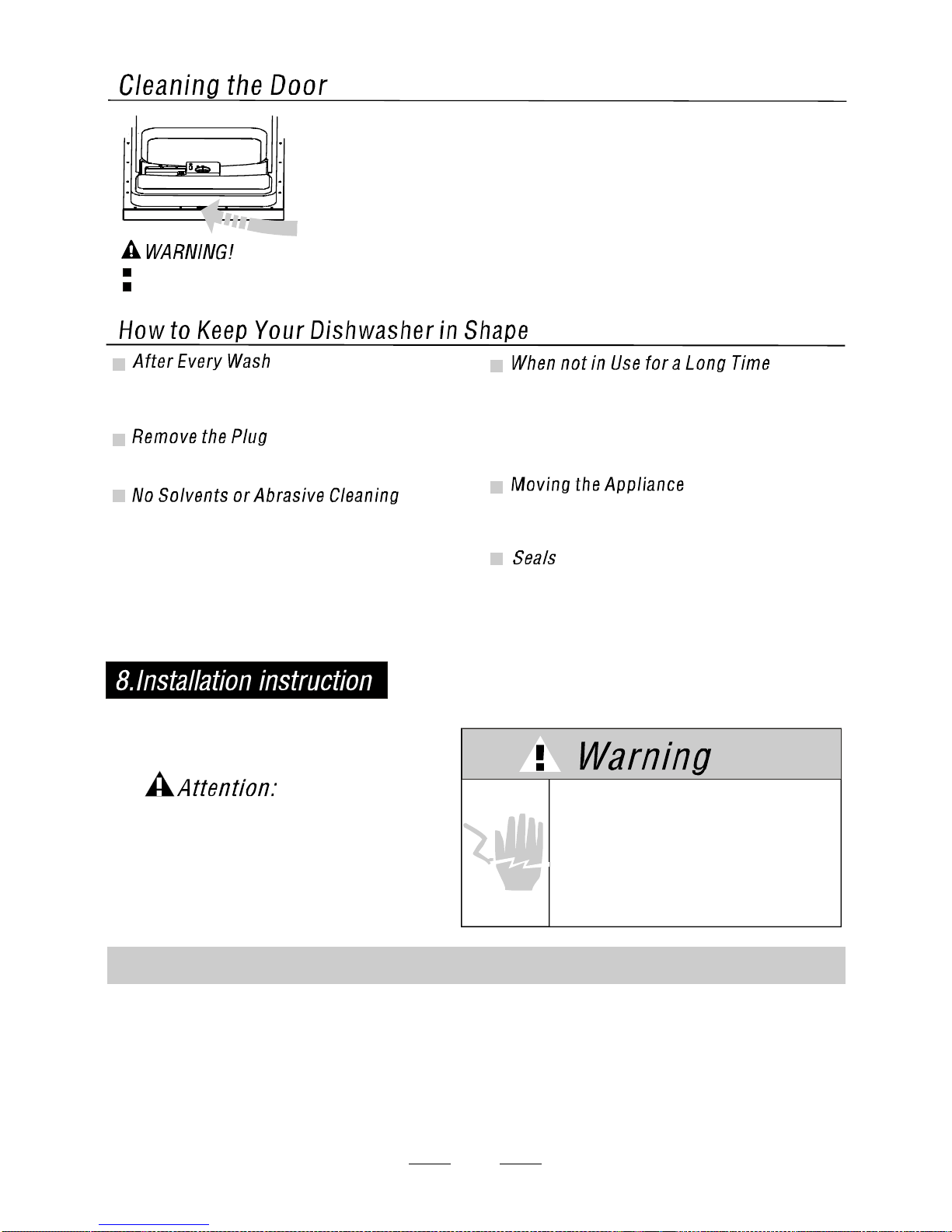

To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid penetration of water into the door lock and electrical components,donot
use a spray cleaner ofany kind.
Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
Abrasive agents or some paper towels should not be used because of the risk ofscratchingorleavingspots
on the stainless steel surface.
