Catcast HPNE9000U User manual

Catcast Technology Co., Ltd. (Chengdu)
HPNE9000U
HEVC/AVC Network Media Encoder
User Manual
(v2.1)

Catcast Technology Co., Ltd. (Chengdu)
Outline
HPNE9000U HEVC/AVC HD Network Media Encoder adopts advanced
H.265/HEVC, H.264/AVC video compression algorithm and MPEG4 AAC audio
compression algorithm. It also has excellent video performance and audio
reproducibility under ultra low bandwidth network. It can achieve perfect
presentation of 1080P60/50 HD video under 1Mbps video code rate and 30kbps audio
code rate. It supports low latency encoding technology, 1080P60 encoding delay is
less than 160ms.
In order to adapt to various complex network audio and video application
environments, HPNE9000U provides multiple streaming media protocols, such as
HLS/HTTP/RTMP/RTP/RTSP/UDP/SRT protocol (SRT is optional). This full
function device makes it ideal for point to point transmission over LAN/Internet,
Network live video broadcast, IPTV broadcast, emergency video, mobile video
broadcast, remote conference, hotel VOD, campus radio broadcast, hospital expert
consultation, etc
Key Feature
1. High reliability, embed process,low power
2. H.265/HEVC, H.264/AVC video encoding & AAC audio encoding
3. High quality @ low bit rate, 1080P60 1Mbps, under H.265/HEVC encoding
4. Ultra low latency processing, less than 160ms
5. Advanced compressing Algorithm, enhance picture quality.
Triple B-frame prediction, minimize 75% bandwidth under excellent picture quality
6. HDMI, HD/SD-SDI,CVBS video input, embeded HDMI &HD/SD-SDI audio,
analog XLR audio input
7. IP output, HLS/HTTP, RTSP/RTP, RTMP, UDP, SRT protocol (SRT is optional )
8. Support 4 streams simultaneously output, each stream has 4 push stream address to
push stream or client pull stream access
9. Support audio volume adjustment,
10. Support two-way voice intercom
11. Support 1080P, 1080I ,720P and PAL NTSC video input
12. Support downscale resolution, any down-conversion resolution input and output,
support vertical screen encoding
13. Compatible publishing stream to Adobe FMS, Wowza,RED5 media server
14. Web-NMS management

Catcast Technology Co., Ltd. (Chengdu)
Specification
Input
Video
HD/SD-SDI (BNC)
HDMI (HDCP Support)
CVBS (BNC)
720x480i/p 720x576i/p 1280x720p 1920x1080i/p
Audio
HD/SD-SDI (BNC)
HDMI
Analog R-L (XLR)
Analog R-L (3.5mm)
Video
Encoding
Maximum Video
1920x1080P@60 1280x720P@60
Pre-process
De-interlace, noise filter
Encoding Format
H.265/HEVC H.264/MPEG4-AVC
Compress
performance
1080P60 1Mbps
Encoding Delay
less than 160ms
Resolution
352x288 ~ 1920x1080 Adjustable
Frame Rate
8Hz – 60Hz Adjustable
Encoding Profile
H.265/HEVC, H.264/AVC High Profile, Main Profile,
Baseline Adjustable
Encoding Level
H.265/HEVC, H.264/AVC Level 1.0~ 4.1 Adjustable
Bit rate
100kbps ~ 20Mbps Adjustable
Bit rate mode
CBR/VBR
GOP Structure
I IP IBP IBBP IBBBP
GOP Length
Ajustable
Audio
Encoding
Sample length
24 bit
Sample Rate
32KHz 44.1KHz 48KHz
Track
Stereo Mono-L Mono-R
Compress STD
AAC
Bitrate
30Kbps ~ 384Kbps
Output
Interface
RJ45 10/100/1000Mbps
Stream Protocol
TS Over UDP/HTTP、FLV Over HTTP
RTSP/RTP,
RTMP
HLS
SRT optional
Two-way
voice
Input
3.5mm microphone input
Output
3.5mm headphone output
Management
Front Panel
7 Keys + LCD indicator
Network
Web-NMS

Catcast Technology Co., Ltd. (Chengdu)
General
Weight
3 KG
Size
1U standard
Power
AC 110V~ 220V 50/60Hz
Consumption
10W
Chapter 1: Getting Start Guide
About This Guide
This Guide gives step-by-step instructions for setting up encoders and relative Warranty, Safety,
Regulatory, and Environment Notice. Please note that the model you have purchased may appear
slightly different from those shown in the illustrations.
Step 1 Unpack the equipment package
Open the shipping carton and carefully unpack its content. Please check the following packing list
1. HPNE9000U Network Media Encoder
2. Power Cord
Step 2 Installation the equipment
For safe encoder installation and operation, it is recommended that you:
-- Visual inspect the power cord to see that it is secured fully to the AC power connector
-- Make sure that there is proper heat dissipation and adequate ventilation around the encoder
--Do not place heavy objects on the encoder
1. Connecting Cables and Power Cord
1). Connecting the Ethernet cable
2). Connecting the HDMI cable
3). Connecting the power cord
2. Power ON
Turning on the switch, and waiting about 1 minute. IF the login light becoming green, the
equipment is starting finished
Step 3 Setting the IP address by front panel
1. Pressing the Confirm/Enter button about 3 milliseconds, the LCD display will show the
setting menu.

Catcast Technology Co., Ltd. (Chengdu)
2. Selecting the “IP Address Config” menu, and pressing the Confirm/Enter button to enter
the IP address configuration sub menu.
Selecting the “Manual Set IP address” and confirm
Pressing the Confirm/Enter button entering the edit mode, and next edit the IP address
After edit finished, pressing the Confirm/Enter button to active the change
Use the same way to edit the net mask and the gateway

Catcast Technology Co., Ltd. (Chengdu)
Step 4 Setting encoder parameter by equipment web

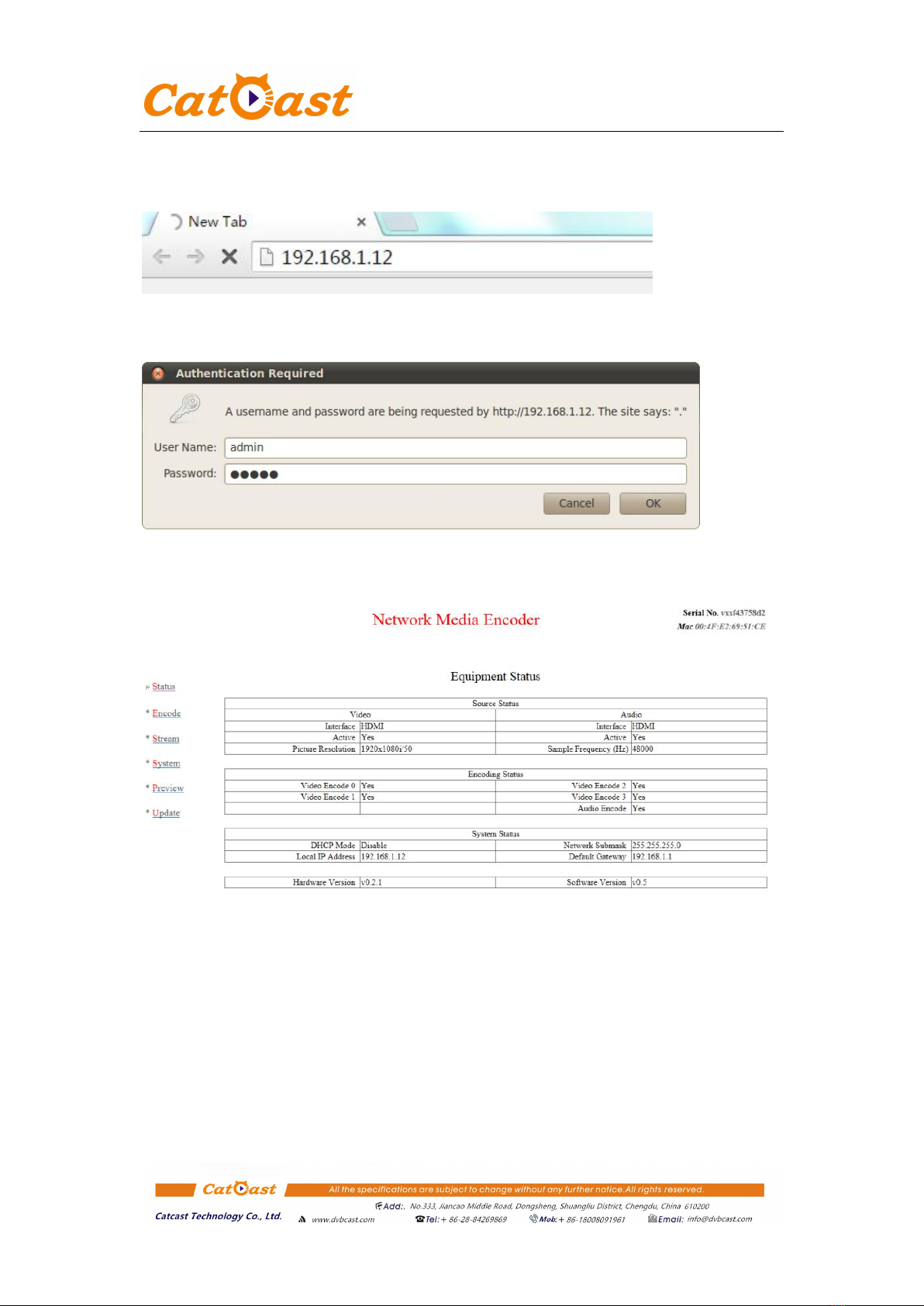

In the internet explorer address field, Input the IP address of the equipment, which last step
configured
The internet explorer will pop up a login dialog box. The user name is “admin” and the
default password is “admin”.
If username and password are both correct, the web page will be shown like following
1. Click the “Encoder” on the left bar
Select the video interface and audio interface to HDMI

Catcast Technology Co., Ltd. (Chengdu)
2. Click the Status” on the left bar, and Click the “Misc Status” on the submenu
Check the interface status. IF both video and audio interface “Active” is “Yes”, the encoder is
working normally.
Step 5 Using VLC player view the stream output from encoder

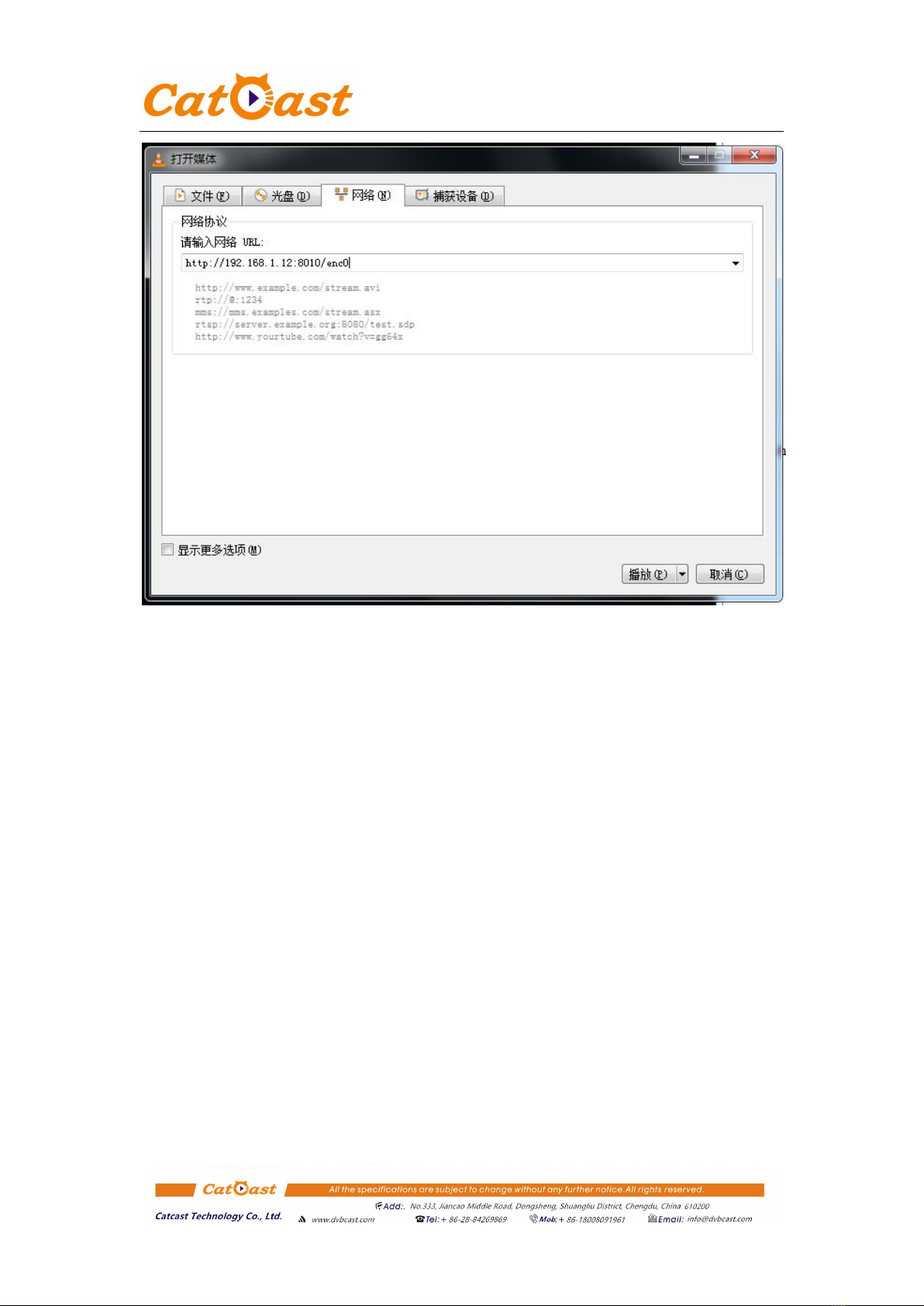

1. Open VLC player, click the “Media”on the menu bar and click the “Open Network Stream”
on the submenu
2.In the URL field, input the stream URL (for example http://192.168.1.12:8010/enc0)

Catcast Technology Co., Ltd. (Chengdu)
Now player will show the real time video which is streaming out from the encoder.

Catcast Technology Co., Ltd. (Chengdu)
Chapter 2: Equipment Structure
1. Front
1
Equipment power LED indicator
2
Equipment system login LED indicator
3
Equipment running status LED indicator
4
LCD display
5
Navigator UP button
6
Confirm/Enter button
7
Navigator LEFT button
8
Navigator DOWN button
9
Navigator RIGHT button
10
Confirm/Enter button
11
Cancel/Escape button
2. Back
1
Real time talking port
2
XL audio input port
3
XR audio input port
4
Analog audio input port（3.5mm）
5
CVBS video input port
6
SDI input port
7
HDMI input port
8
10/100/1000M Ethernet port
9
Power switch
If you want to use the Real time talking function,Please contact us.

Catcast Technology Co., Ltd. (Chengdu)
Chapter 3: Equipment Front Panel Control
The front control panel includes 3 LED indicators, 7 keys and 1 LCD display.
1. Equipment Status Shown
LED indicators and LCD display can provide much running information about the equipment.
Power LED
Always green, if equipment is powered on
Login LED
if equipment system is login, the LED become green, else red
Status LED
1. if equipment is working normally, the LED is green
2. if system is not login, the LED is red
3. if both of the audio and video input signal is not active, the LED is red.
4. if one of the audio and video input signal is active, the LED is red/green
blink
5. if both of the audio and video input signal is active, the LED is green
LCD
Display
1. Starting mode: showing welcome
2. Standby mode: showing equipment mode and more status of the
equipment, when configuration not active
3.Configuration mode: showing configuration parameter, when
configuration active
2. Equipment Configuration
LCD display and 7 keys construct a simple input/output terminal of the equipment, and users
can configure the IP address and reset the equipment parameter.
When equipment is powered on, and system is login yet, the LCD display showing as
following
If system is login and configuration is not active, the LCD will be in standby mode, which
displays equipment’s name, model and some equipment status.

Catcast Technology Co., Ltd. (Chengdu)
If the users long press the confirm/enter key about 3 seconds, the LCD display enter into the
configuration mode, and if there is not any operation about 20 seconds, the LCD display will
return to the standby mode.
there are 3 option in the primary menu:
1
IP Address State
inspect the equipment IP, net mask, gateway and dhcp mode
2
IP Address Config
configuration the equipment IP, net mask, gateway
3
Factory Default
reset the equipment to preset state, and the equipment will auto restart
IP Address State
1
DHCP
ON: IP address is auto get by DHCP; OFF: IP address is manual
configured
2
IP ADDR
IP address of the equipment
3
NETMASK
net sub mask of the equipment
4
GATEWAY
default gateway of the equipment
IP Address Config
1
Auto IP Get
Set the equipment IP automatic by DHCP. If press the confirm/enter
key, the DHCP mode is enabled.
2
Manual IP Set
Set the equipment IP, net mask, gateway by user. Press the
confirm/enter key, into the IP details submenu

Catcast Technology Co., Ltd. (Chengdu)
1
IP ADDR
Set the IP address of the equipment
2
NETMASK
Set the net sub mask of the equipment
3
GATEWAY
Set the default gateway of the equipment
-- Press the confirm/enter key into edit mode.
-- Use left and right key to move the cursor to the character which you want change.
-- Use up and down navigator key to change the value.
--Press the confirm/enter key to active the changes
Factory Default
1
Cancel
Discard reset all parameters
2
Confirm
Active the reset process, if cursor selected and press the confirm/enter key
If active the reset process, the equipment will auto restart, and all parameters will be reset to
the factory preset.

Catcast Technology Co., Ltd. (Chengdu)
Chapter 4: Equipment Web Control
For compatible reason, the following internet explorers are recommended.
1
Microsoft IE 6.0 or above
2
Google Chrome
3
Mozilla Firefox
4
Opera
Users visit the web control pages need username and password. The factory default user name
is “admin” and password is “admin”
Web control pages include several areas
In the Navigation Area, there are 6 menus.
1
Status
Provide the many of the equipment’s status and information
2
Encoder
Used to set the encoding parameters, like AV interface, bit rate, etc
3
Stream
Used to set the push stream parameters, like push protocol, targets, etc

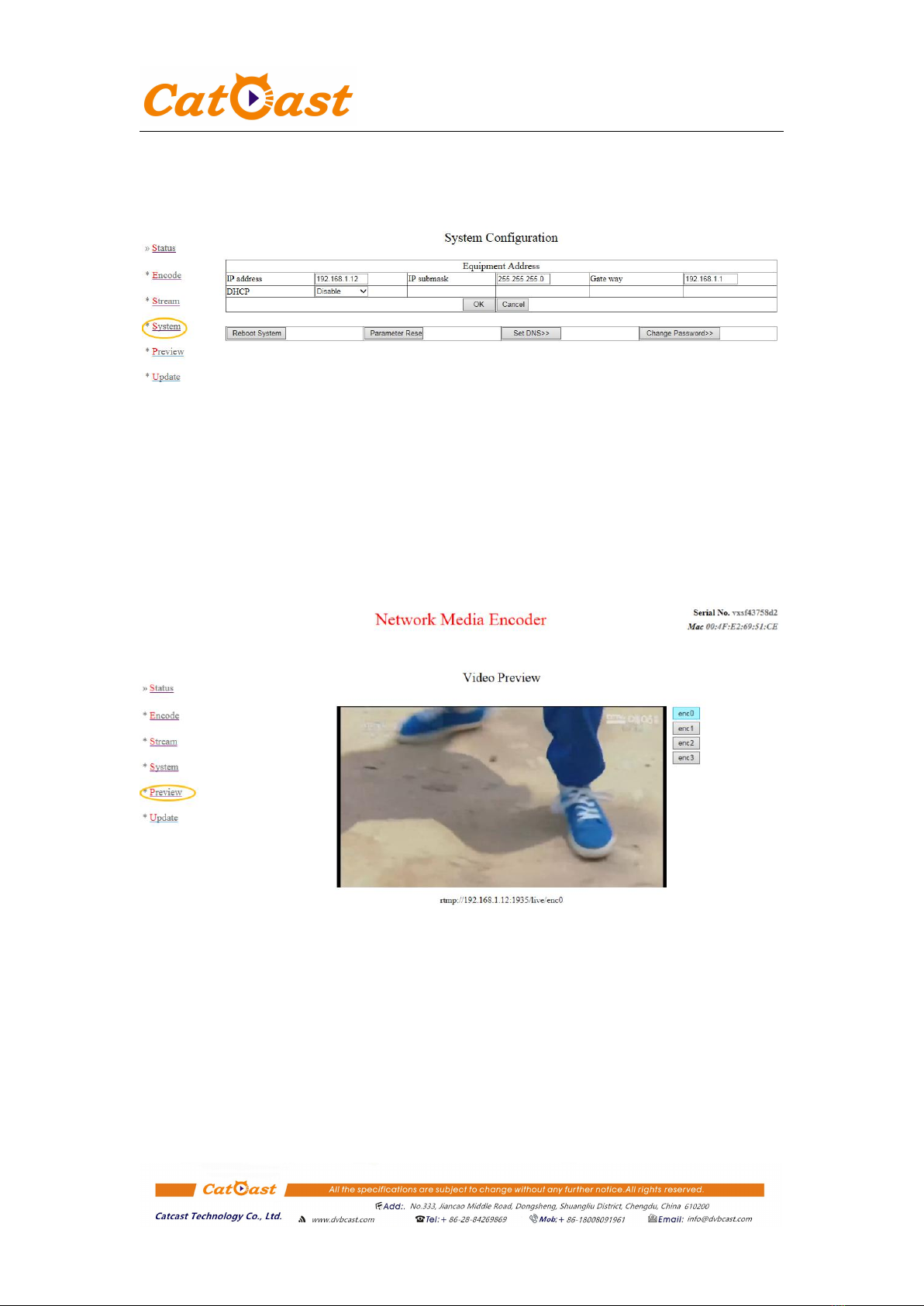

4
System
Used to set the equipments system parameter, like IP, web control
password, etc.
5
Preview
Used to preview input video
6
Update
Used to upgrade the equipment’s firmware

Catcast Technology Co., Ltd. (Chengdu)
1. Status
Status including 3 submenus, “Misc Status” “Push Status” and “Pull Status”
Misc status provides audio and video interface status,encoding status, equipment IP status,
equipment temperature.
Push status provides the push protocol (UDP, RTP, RTMP PUSH) status, connected or
disconnected
Pull status provides the pull protocols access information and client counts status. Each pull
protocol of each channel can serve maximum 4 clients.

Catcast Technology Co., Ltd. (Chengdu)

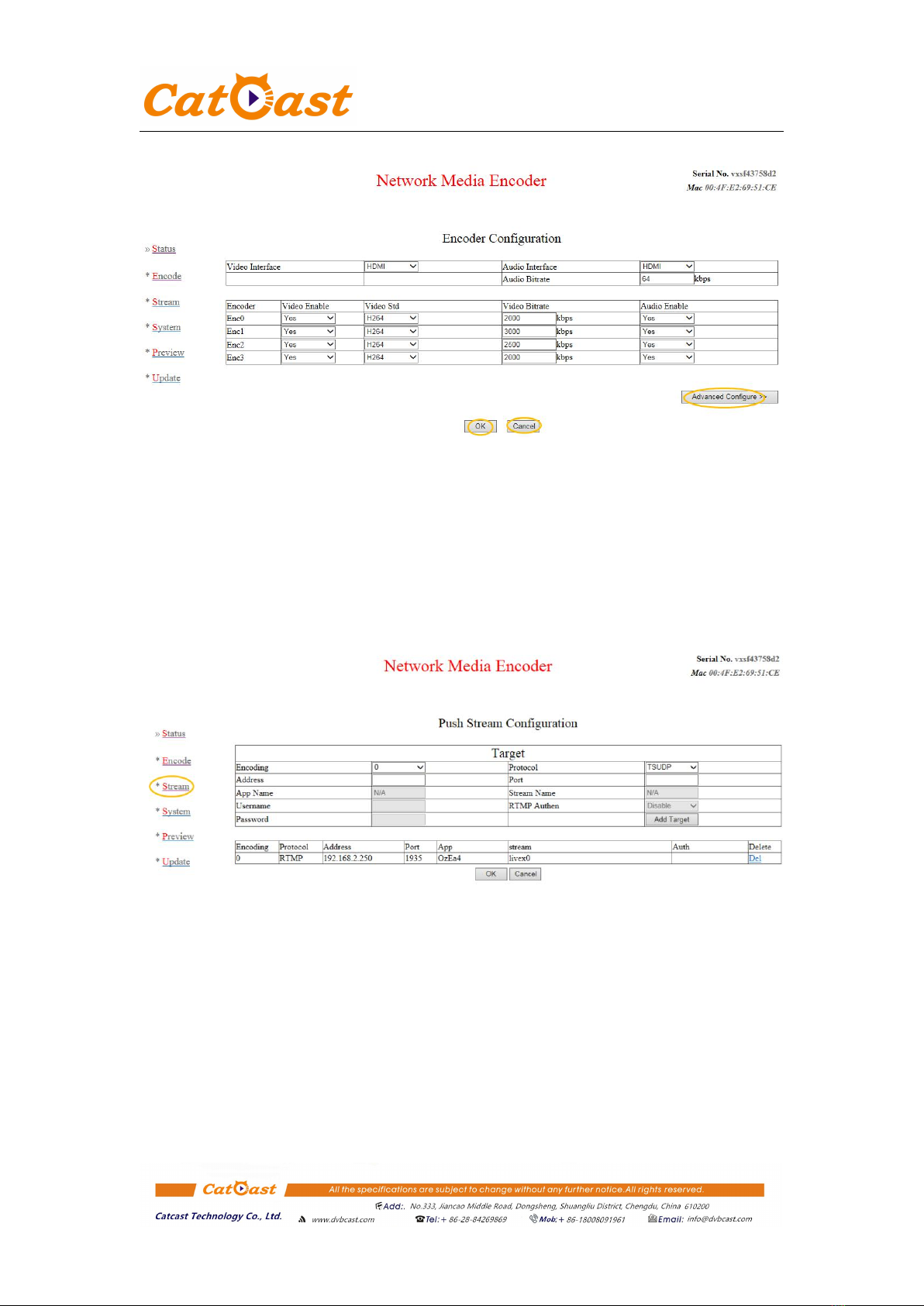

2. Encoder
There are 3 buttons on the encoder page.
-- Advanced Configure: Open or close the advanced encoding parameters.
-- OK: Active the parameter changes
-- Cancel: Discard the parameter changes
This equipment provide 4 video bitrate output,though the advanced configure buttons can set
more paraketers.
3. Stream
Add the push protocol for the stream. This equipment provide 3 push protocols (UDP TS,
RTP TS, RTMP PUSH). Select Encoding,It has 0123 four parameters, representing 4 bit
rate video stream. Each protocol can add maximum 4 targets.
--Select the Encoding Number
-- Select the protocol
-- Fill the Target IP Add, Target Port, Target Application, and Target Stream Name. (Target
Application and Stream Name is only available by RTMP)
-- Click ADD button on the right to add this target
-- Click Del on right of the added target to delete this target, if you do not need this target any
more

Catcast Technology Co., Ltd. (Chengdu)
-- Click OK to active all of the changes, or click Cancel if you want to discard the changes
4. System
In the System content, users can change the equipment IP, web control password, and reboot
equipment, reset all parameters.
reboot equipment and reset parameter will cause the equipment auto restart
5. Preview
Emit infrared code
-- Insert the IR emitter cable in to the correspond channel
-- Make sure the Study Mode filed is unchecked
-- Press the button which you want to emit
-- If success, pop out “OK”.
-- If pop out “Key is not study”, this key code is not learned, and need learn the infrared code
first
6. Update

Catcast Technology Co., Ltd. (Chengdu)
Click the “Choose” to select the firmware package which Catcast provided, and Click
“Update”.
If success, the web page will show “File upload success”, and the equipment will auto restart.
If Failed, the web page will show “File upload Failed”, and users need to double check the
firmware package just selected is from Catcast and suitable for this equipment.
