Cater-Wash CK8512 User manual

79 db
To avoid risk of accidents or
damage to the appliance, it is
essential to read these
instructions before it is
installed and used for the first
time.
197
kWh/ annum
Caterkwik Ltd
The Lakeland Catering Centre
Newlands
Ulverston
Cumbria
LA12 7QQ
01229 480001
[e-mail]
12kg Washing Machine - Instruction Manual
Model: CK8512

1
CONTENTS
SAFETY INSTRUCTIONS
Safety Instructions ..................................................
INSTALLATION
Product Description ................................................
Installation ..............................................................
OPERATIONS
Quick Start .............................................................
Before Each Wash..................................................
Detergent Dispenser .............................................
Control Panel .........................................................
Options....................................................................
Other Functions ....................................................
Programmes............................................................
Washing Programmes Table .................................
MAINTENANCE
Cleaning And Care .................................................
Trouble Shooting ...................................................
Technical Specifications .......................................
Product Fiches .......................................................
2
8
9
12
13
14
15
17
19
21
22
24
27
28
29

•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
•The new hose-sets supplied with the appliance are to be
used. Old hose-sets should not be reused.
•Before any maintenance to the device, unplug the appliance
from the mains.
Electric shock!
2
SAFETY INSTRUCTIONS
Safety Instructions
For your safety, the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in death
or serious injuries unless it’s avoided.
！Warning!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in slight
or minor injuries.
Note!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in slight
or minor injuries or damage to property and the
environment.
Caution!
！Warning!

3
•Always unplug the machine and turn off the water supply
after use. The max. inlet water pressure is 1Mpa, the min.
inlet pressure is 0.05 Mpa.
•To ensure your safety, power plug must be inserted into an
earthed three-pole socket. Check carefully and make sure
that your socket is properly and reliably earthed.
•Water and electrical devices must be connected by a
qualified technician in accordance with the manufacturer's
instructions and local safety regulations.
•Unplug the machine from the power socket before cleaning
or carrying out maintenance.
•Do not use any socket with rated current less than that of
appliance. Never pull out power plug with wet hands.
•Please remember to disconnect water and power supply
immediately after the clothes are washed.
Risk to children!
•The appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
•Children of less than 3 years old should be supervised to
ensure that they do not play with appliance.
•Animals and children may climb into the machine. Check the
machine before every operation.
•Children should be supervised that they do not play with
the appliance.
SAFETY INSTRUCTIONS

•Glass door may be very hot during the operation. Keep
children and pets far away from the machine during the
operation.
•Remove all packaging and transport bolts before using
the appliance. Otherwise, serious damage may result.
Risk of explosion!
•
•The washer is not to be used if industrial chemicals have
been used for cleaning.
Do not wash or dry articles that have been cleaned in,
washed in, soaked in, or dabbed with combustible or
explosive substances (such as wax, oil, paint, gasoline,
degreasers, dry-cleaning solvents, kerosene, etc.) This may
result in fire or explosion.
Installing the product!
4
•This appliance is for indoor use only.
•The openings must not be obstructed by carpet.
•The appliance shall not be installed in a bath room or very
wet rooms as well as in the rooms with explosive or caustic
gases.
•This appliance can only be connected to the cold water
supply.
SAFETY INSTRUCTIONS
Caution!

5
•The plug must be accessible after installation.
•The appliance shall not be installed in a humid place.
•Remove all packages and transport bolts before using the
appliance. Otherwise, serious damage may result.
Risk of damaging the appliance!
The product is only for home use and is only designed for
textiles suitable for machine washing and drying. Do not
climb up and sit on the top cover of the machine. Do not
lean against machine door.
Caution when Handling the Machine:
1.Transport bolts should be reinstalled to the machine by a
competent person.
2.The accumulated water should be drained out of the
machine.
3.Handle the machine carefully. Never hold protruded parts
on the machine while lifting. The machine door can not be
used as the handle during lifting.
4.This appliance is heavy. Transport with care.
Please do not close the door with excessive force. If it is
found difficult to close the door, please check the clothes
are not causing obstruction and are distributed well.
It is forbidden to wash carpets.
SAFETY INSTRUCTIONS
Operating the appliance!

6
•Before using the washing machine, the product should be
calibrated. (See calibration on page 12).
•Before washing clothes for the first time, you should run a
wash cycle without clothes.
•Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc. Should not be used as detergents.
Please only select the detergents suitable for machine
washing.
•Make sure all clothes pockets are emptied. Sharp and rigid
items such as coins, brooches, nails ,screws or stones etc.
may cause serious damage to this machine.
•Please check whether the water inside the drum has been
drained before opening its door. Please do not open the door
if there is any water visible.
•Be careful of scalding when the product drains hot washing
water.
•After the program is completed, please wait for two minutes
to open the door.
•Never refill the water by hand during washing.
SAFETY INSTRUCTIONS

7
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU.To prevent possible harm to the environment or
human health from uncontrolled waste disposal,recycle
it responsibly to promote the sustainable reuse of
material resources.To return your used device, please use
the collection systems or contact the retailer where the
product was purchased. They return and can take this
product for environmental safe recycling.
Packaging/Old appliance
•Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
•The final part of a wash cycle occurs without heat (cool
down cycle) to ensure that the items are left at a
temperature that ensures that the items will not be
damaged.
•Remove all objects from pockets such as lighters and
matches before using the appliance.
SAFETY INSTRUCTIONS

8
INSTALLATION
Accessories
Product Description
Transport
hole plug
Supply hose
cold water
Supply hose ho t
Drain hose
water (optional ) (optional
support
)
•The product line chart is for reference only, please refer to real
product as standard.
Note!
Drum
Control panel
Power supply cord
Detergent dispenser
Service filter
Door
Water supply hose
Top cover
Drain hose
Owner’s manual

9
INSTALLATION
The installation site must satisfy the
following criteria:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0°C
5.Keep far away from the heat sources.
Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washer dryer and remove the base packing. Make sure the small foam
triangle is removed with the bottom. If not, lay the unit down with side surface,
then remove the small foam from the unit bottom manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Please take the following steps to remove the bolts:
1.Loosen 4 bolts with a spanner and then remove them.
2.Stop the holes with transport hole plugs.
3.Keep the transport bolts safe for future use.
Remove transport bolts
•
•
Stability is important to prevent the product
from wandering!
Make sure that the product does not stand
on the power cord.
！Warning!
•Packaging material (e.g. Films, Styrofoam)
can be dangerous for children.
•There is a risk of suffocation! Keep all
packaging well away from children.
！Warning!
•You must remove the transport bolts from the rear before using the product.
•You’ll need the transport bolts again if you move the product , so make sure you keep
them in a safe place.
！Warning!
w
w
W> 20mm
Installation
Installation area

9
10
INSTALLATION
1.Check if the legs are attached to the cabinet. If not, please turn them to their
original positions tighten the nuts.
2.Loosen the lock nut turn the feet until it closely contacts with the floor.
3.Adjust the legs and lock them with a spanner, make sure the machine is steady.
Levelling the washer dryer
•The lock nuts on all four feet must be screwed tightly against the housing.
Connect Water Supply Hose
Connect the inlet pipe as indicated, there are two ways to connect the inlet pipe.
1.Connection between ordinary tap and inlet hose.
•To prevent leakage or water damage, follow the instructions in this chapter.
•Do not kink, crush, modify or sever the water inlet hose.
234 1
Raise Lower
Lock nut
foot
！Warning!
！Warning!
Loosen clamp nut
and four bolts
Tighten clamp nut Press slide bushi
insert inlet hose into
connecting base
slide bushing
2341
ng, Connection complete.
clamp nut
Tap with threads and inlet hose
2.Connection between screw tap and inlet hose.

10
11
INSTALLATION
！Warning!
Drain Hose
There are two ways to place the end of drain hose:
1.Put it into the water trough. 2.Connect it to the branch drain pipe of
the trough.
•When installing drain hose, fix it properly with a rope.
If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
•
Water
trough
Min.60cm
100cm
Max.
Trough
Hose Retainer
Bind
Max.100cm
Min.60cm
Min.60cm
Max.100cm
•If the machine has drain hose support, please install it like the following .
！！WaWarrnniinngg!!
Note!
water supply hose
water Inlet valve
Connect the other end of inlet pipe to the inlet valve at the rear of
product and fasten the pipe tightly clockwise.
•
Do not kink or protract the drain hose.
Position drain hose properly, to avoid water leakage.

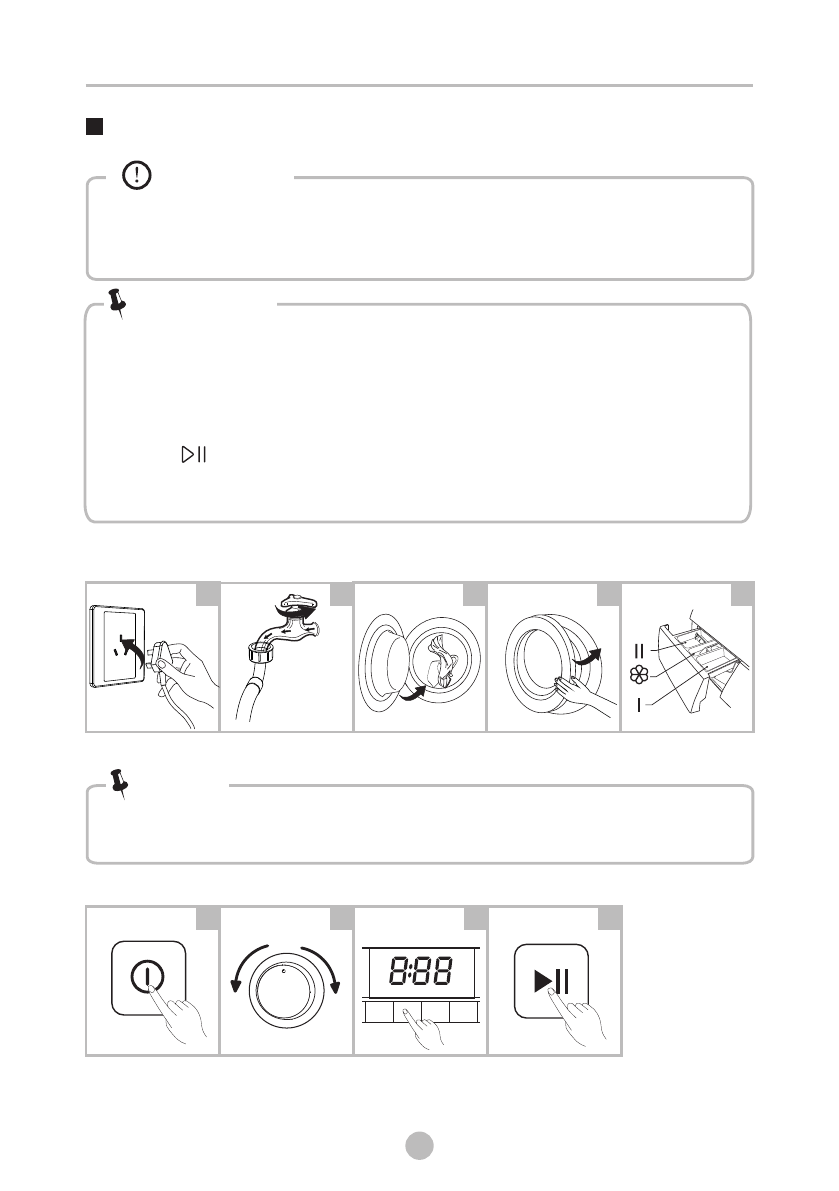

1. Before Washing
Open the tap
Load
Close the door
Plug in
Add detergent
Quick Start
•Detergent needs to be added in "case I “ if selecting pre-washing.
1 2 3 4 5
2. Washing
Power On Select Programme Select function or
default
Press
Start
1 2 3 4
Note!
Caution!
OPERATIONS
Main
wash
Prewash
Softener
It’s recommend to calibrate the machine prior to use.
1- Ensure the washing machine is empty and installed as per previous instruction.
2- Plug in;
3- Power on the machine and press “Temp.” and “Soil” at the same time within 10
seconds then display “t19”
4- Press to start the machine and wait till display shows “****”
•Before washing, please make sure it is installed properly.
•Before washing for first time, the washing machine should be operated for
one cycle without clothes in as follows.
Calibration
10
12

Knot long strings,
fasten zips or buttons.
•When washing a single item, it may easily cause balancing problems.
Therefore it is suggested to add one or two more clothes to be washed
together so that draining can be done smoothly.
•Do not wash clothes soiled with kerosene, gasoline, alcohol and other
flammable materials.
•The working condition of the washer should be(0-40)°C. If used under 0°C, the inlet
valve and draining system may be damaged. If the machine is placed under
condition of 0°C or less, then it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose are not frozen before
use.
•Please check the labels and the detergent instructions prior to use. Use non-
foaming or reduced-foaming detergent suitable for machine washing properly.
Take any items out of
the pockets
Put small clothes into
a net bag
Check the label
Before Each Washing
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
！Warning!
OPERATIONS
3.After Washing
Buzzer beep or “End” on display.
• 1.
2.
If default is selected, step 3 can be skipped.
The function button line chart is for reference only, please refer to real
product as standard.
Note!
10
13

10
14
Pull out the dispenser
Caution!
•Detergent only needs to be added in "case I “after selecting pre-washing
for machines with this function.
OPERATIONS

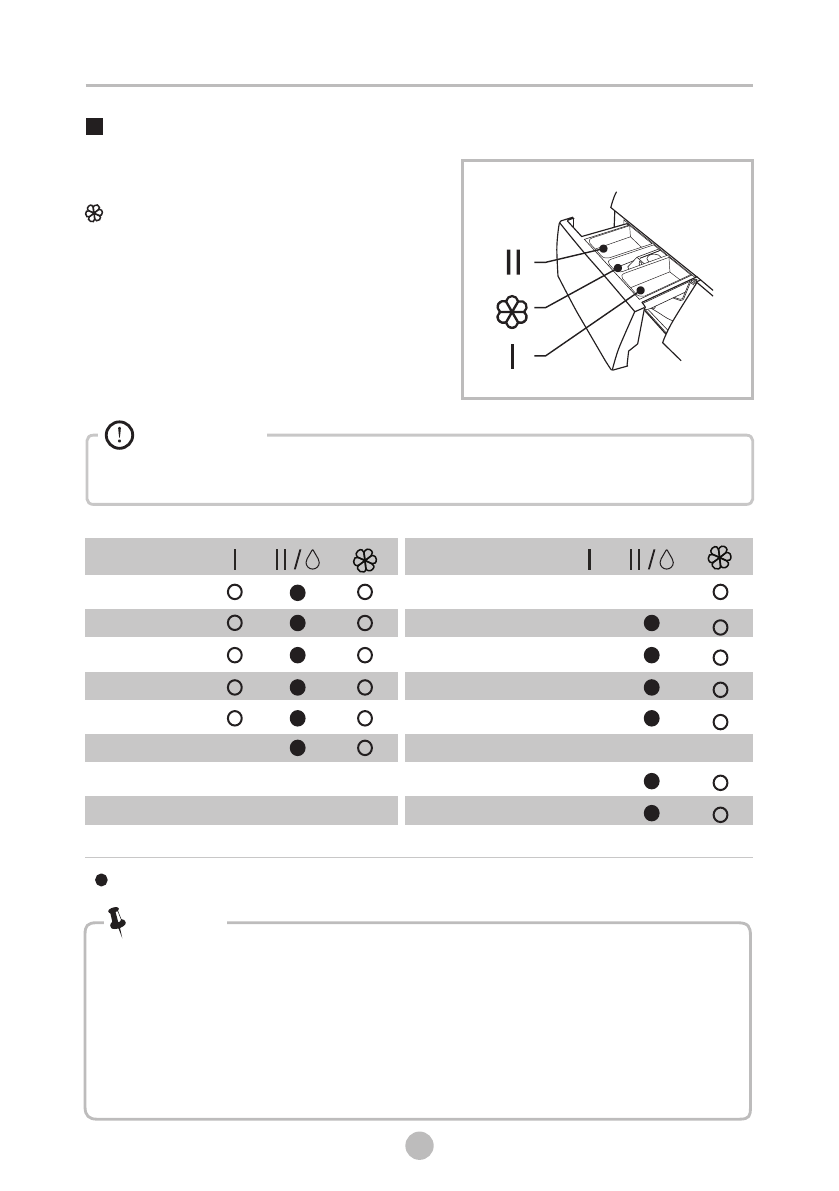

Detergent Dispenser
Pre wash detergent
Main wash detergent
Softener
II
I
•For the agglomerated detergent or additive, before they are
poured into the detergent box, it is suggested to use some
water for dilution to prevent the inlet of detergent box from
being blocked and overflowing while filling water.
•Please choose a suitable type of detergent for the various
washing temperature to get the best washing performance with
less water and energy consumption.
Note!
Programme
Cotton
Synthetic
Mix
Bed Linen
Baby Care
20℃
Drum Clean
Spin Only
○Optional
Required
Programme
Rinse & Spin
Wool
ECO 40-60
Dry Only
1h W/D
Wash and Dry
Quick 15’
Intensive

10
15
OPERATIONS
On/Off
Product is switched On/Off.
Start/Pause
Press the button to start or pause
the washing cycle.
Programmes
Available according to the laundry
type.
Option
This allows you to select an additional
function and will light when selected.
Note!
•The chart is for reference only, Please refer to real product as standard.
1
1
3
1
2
4
Display
The display shows the settings, estimated time remaining, options, and status
messages for your washer. The display will remain on through the cycle.
5
53
21
1
4
Control Panel
Model: CK8512
B
Pre Wash
D
Door Lock
A
Display
Wash Time Delay Time
Speed Error
End Temp.
AB C
G
C
Reload
E
Child Lock
D E
H IF J
F Extra Rinse
G
Speed Wash
H
Delay
I
SpaCare
J Pre Wash-Wash-Rinse-Spin

10
17
OPERATIONS
Delay
Set the Delay function:
1. Select a programme; 2.Press the Delay button to choose the time(the delaying time is
0-24 H.); 3.Press [Start/Pause] to commence the delay operation
Setting time
Delay
Choose the Programme Start
Cancel the Delay function:
Press the [Delay] button until the display shows 0H. It should be pressed before starting the
programme. If the programme has already started, switch off the programme to reset a new one.
Option
Caution!
•If there is any break in the power supply while the machine is operating,
the memory stores the selected programme and when the power is
restarted, the program will continue.
Soil
The washing time will increase or decrease when you select it.
Soil Level
Extra Rinse
The laundry will undergo an extra rinse when selected.
Pre Wash
The Prewash function can get an extra wash before main wash. You need to put detergent
into the Case (I) when selected.
Pre Wash
Extra Rinse
Speed
Wash
Speed Wash
The function can decrease the washing time.
My Cycle
To memorise your most frequently used programme.
After choosing the programme and setting the desired options, hold down [Temp.] for 3
seconds before starting the wash.The default setting is Cotton.

10
18
OPERATIONS
•Don't use the Reload function when the water level is over the
edge of the inner tub or the temperature is high.
Reload
This operation can be executed during the washing progress. When the drum is still
rolling and there is large amount of water with high temperature in the drum. The
state is unsafe and the door cannot be opened forcefully. To press
[Start/Pause] for 3 sec. to add clothes mid cycle.
1.Wait until the drum stops rotation.
2.The door lock is unlocked.
3.Close the door when the clothes are reloaded and press the [Start/Pause]
button.
Start
Press[Start/Pause]3sec.
Clothes
Reload the clothes
SpaCare function can be selected by choosing “Cotton”,“Mix“”Bed Linen” and
“Baby Care”.
You can see the steam in the drum when you operate SpaCare function. The
SpaCare cannot be used simultaneously With Pre Wash and Speed Wash.
Caution!
SpaCare SpaCare

OPERATIONS
10
19
Speed
Press the button to change the speed.
0-400-600-800-1000-1200-1400
Temp.
Press the button to set the wash temperature(Cold,20℃, 30℃, 40℃, 60℃, 90℃)
Other Functions
Programme Default Speed(rpm)
Cotton
Synthetic
Mix
Bed Linen
Baby Care
20℃
Drum Clean
Programme
Spin Only
Rinse & Spin
Wool
ECO 40-60
Intensive
Quick 15’
Default Speed(rpm)
1000
800
1000
–
800
1400
1000
600
800
1000
1400
1400
Model: CK8512
1400
1200
800

Mute the buzzer
To activate the buzzer function, press the button again for 3
seconds. The setting will be kept until the next reset.
•After Muting the buzzer function, notifications will not be heard any more.
Caution!
OPERATIONS
Press the [Speed]button for
3sec., the buzzer will mute.
Speed
Choose the Programme
•Press and hold the two buttons again to release child lock.
•The "Child Lock" will lock all buttons except the Power button and Child Lock button.
•Please release child lock before selecting program and starting washing.
When child lock is activated and program starts, child lock indicator will switch on, and
the CL and remaining time on the display are alternately displayed in 0.5s. Press the
other buttons will make child lock indicator flash for 3s. when the cycle finishes, CL and
END alternate for 10s in 0.5s, then the child lock lights flash for 3s.
Caution!
Child Lock
To avoid mis operation by children.
Press [Delay] and [SpaCare] for 3
sec. until buzzer beeps.
Delay SpaCare
10
20
