Cater-Wash CK8575 User manual

7.5kg Top Loading Washing Machine - User Manual
Model: CK8575
To avoid risk of accidents
or damage to the
appliance, it is essential to
read these instructions
before it is installed and
used for the first time.
A
62 db
185
kWh/ annum
Caterkwik Ltd
01229 480001
[e-mail]
The Lakeland Catering Centre
Newlands
Ulverston
Cumbria
LA12 7QQ
+++

Safety Instructions
Safety Instructions ....................................................................
Installation
Product Description ...............................................................
Installation .................................................................................
Operations
Quick Start ................................................................................
Before Each Wash .................................................................
Detergent Dispenser ...........................................................
Control Panel .........................................................................
Options...................................................................................
Other Functions ...................................................................
Programmes .........................................................................
Washing Programmes Table ..........................................
Maintenance
Cleaning And Care .............................................................
Trouble Shooting ...............................................................
Technical Specification ....................................................
Product Specification .......................................................
2
7
8
11
12
13
14
17
19
21
22
25
28
29
30
1
Contents

2
Safety Instructions
For your safety, the information in this manual must be followed
to minimise the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
•If the supply cord is damaged, it must be replaced by the
manufacturer, a service agent or similarly qualified persons in
order to avoid a hazard.
Danger of Electric Shock!
Safety Instructions
This indicates a potentially dangerous situation which may
result in death or serious injuries unless avoided.
！Warning!
This indicates a potentially dangerous situation which may
result in slight or minor injuries.
Note!
This indicates a potentially dangerous situation which may
result in slight or minor injuries or damage to property and
the environment.
Caution!
！Warning!

3
•The new hose-sets supplied with the appliance are to be used,
old hose-sets should not be reused.
•Before any maintenance to the device, unplug the appliance
from the mains.
•Always unplug the machine and turn off the water supply after
use.
•To ensure your safety, the power plug must be inserted into an
earthed three-pole socket. Check carefully and make sure that
your socket is properly and reliably earthed.
•Water and electrical devices must be connected by a qualified
technician in accordance with the manufacturer's instructions
and local safety regulations.
Not be used by children!
•The appliance can not be used by children and persons with
reduced physical, sensory or mental capabilities or lack of
experience and knowledge. Children shall not play with the
appliance. Cleaning and user maintenance shall not be done by
children.
•Animals and children may climb into the machine. Check the
machine before every operation.
Safety Instructions

4
•Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
•The plug must be accessible after installation.
Risk of explosion!
•Do not wash or dry articles that have been cleaned in, washed in,
soaked in, or dabbed with combustible or explosive substances
(such as wax, oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.) This may result in fire or explosion.
•This washing machine is for indoor use only.
•It is not intended to be built-in.
•The openings must not be obstructed.
•The washing machine shall not be installed in the bath room or
very wet rooms as well as in the rooms with explosive or caustic
gases.
•The washing machine has a single inlet valve and must be
connected to a cold water supply.
•Ensure the plug is accessible after installation.
Installing the product
Safety Instructions
Caution!

5
Risk of damaging appliance!
•This product is only for home use and is only designed for the
textiles suitable for machine washing.
•Do not sit on top of the washing machine.
•Do not lean against machine door.
•Cautions when moving the washing machine:
1. Transport bolts should be reinstalled to the machine by a
competent person.
2. The accumulated water shall be drained out of the machine.
3. Handle the machine carefully. Never hold each protruded part
on the machine while lifting. Machine door can not be used as
a handle during the conveyance.
4. This appliance is heavy. Transport with care.
•Please do not close the door with excessive forces. If it is found
difficult to close the door, please check if the clothes are not
trapped and are evenly distributed.
•It is not suitable for washing carpets.
Operating the appliance
•Before using the machine for the first time, you should complete
a wash without clothes.
•Do not use flammable and explosive or toxic solvents. Gasoline
and alcohol etc. Shall not be used as detergents. Please only use
the detergents suitable for machine washing.
Safety Instruction!

6
•Make sure that all pockets are emptied. Sharp and rigid items
such as coins, nails, screws or stones etc. may cause serious
damage to this machine.
•Please check whether the water inside the drum has been
drained before opening its door. Please do not open the door if
there is any water visible.
•Be careful of scalding when the product drains hot washing
water.
•Never refill the water by hand during washing.
•After the program is completed, Please wait for two minutes
before opening the door.
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU.To prevent possible harm to the environment or
human health from uncontrolled waste disposal,recycle
it responsibly to promote the sustainable reuse of
material resources.To return your used device, please use
the collection systems or contact the retailer where the
product was purchased. They return and can take this
product for environmental safe recycling.
Safe Disposal
Safety Instruction!

7
Accessories
Transport
hole plug
cold water
Supply hose
Drain hose support
•The product line chart is for reference only.
Note!
Drum
Control panel
Detergent dispenser
Service filter
Door
Drain hose
Owner’s manual
Installation
Power supply cord

8
Installation
1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Offer sufficient ventilation
4. Have an ambient temperature of above 0℃.
5. Be located away from the heat sources.
The installation should be:
Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Make sure
foam is removed with the bottom. If not, lay the unit down , then remove the
small foam from bottom of the unit manually.
Please take the following steps to remove the bolts:
1. Loosen 4 bolts with spanner and then remove them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts in a safe place for future use.
Remove transport bolts!
•Stability is important to prevent the product
from wandering!
•Make sure that the product does not stand on
the power cord.
！Warning!
•
•
Packaging material (e.g. Films, Styrofoam) can
be dangerous for children.
There is a risk of suffocation! Keep all packaging
well away from children.
！Warning!
•You must remove the transport bolts from the rearside before using the
product. You will need the transport bolts again if you move the product,
so make sure you keep them in a safe place.
！Warning!
w
w
W> 20mm
Installation
Installation area

9
9
Installation
1. Check that the legs are closely attached to the cabinet. If not, please turn them
to their original position and tighten the nuts.
2. Loosen the lock nut turn the feet until it closely contacts with the floor.
3. Adjust the legs and lock them with a spanner, make sure the machine is steady.
Levelling the washing machine
•The lock nuts on all four feet must be screwed tightly against the housing.
Connect Water Supply Hose
Connect the inlet pipe as indicated. There are two ways to connect the inlet
pipe. 1. Connection between ordinary tap and inlet hose.
•Do not kink, crush, modify or sever water inlet hose.
•Connect with cold water inlet hose.
234 1
Raise Lower
Lock nut
foot
！Warning!
！Warning!
Loosen clamp nut
and four bolts
Tighten clamp nut Press slide bushing,
insert inlet hose into
connecting base
slide bushing
2341
Connection finished
clamp nut
Tap with threads and inlet hose Special tap for washing machine
2.Connection between screw tap and inlet hose.
slide bushing

10
10
Installation
！Warning!
Drain Hose
There are two ways to place the end of drain hose:
1.Put it into the water trough. 2.Connect it to the branch drain pipe of
the trough.
•When installing the drain hose, fix it properly.
If drain hose is too long, do not force it into washing machine as it will
cause damage to the machine.
•
•
Do not kink or protract the drain hose.
Position drain hose properly to prevent leaking.
Water
trough
Min.60cm
100cm
Max.
Trough
Hose Retainer
Bind
Max.100cm
Min.60cm
Min.60cm
Max.100cm
•If the machine has drain hose support, please install it like the following.
Note!
water supply hose
water Inlet valve
Connect the other end of inlet pipe to the inlet valve at the rearside of
product and fasten the pipe tightly clockwise.
Warning
!

10
11

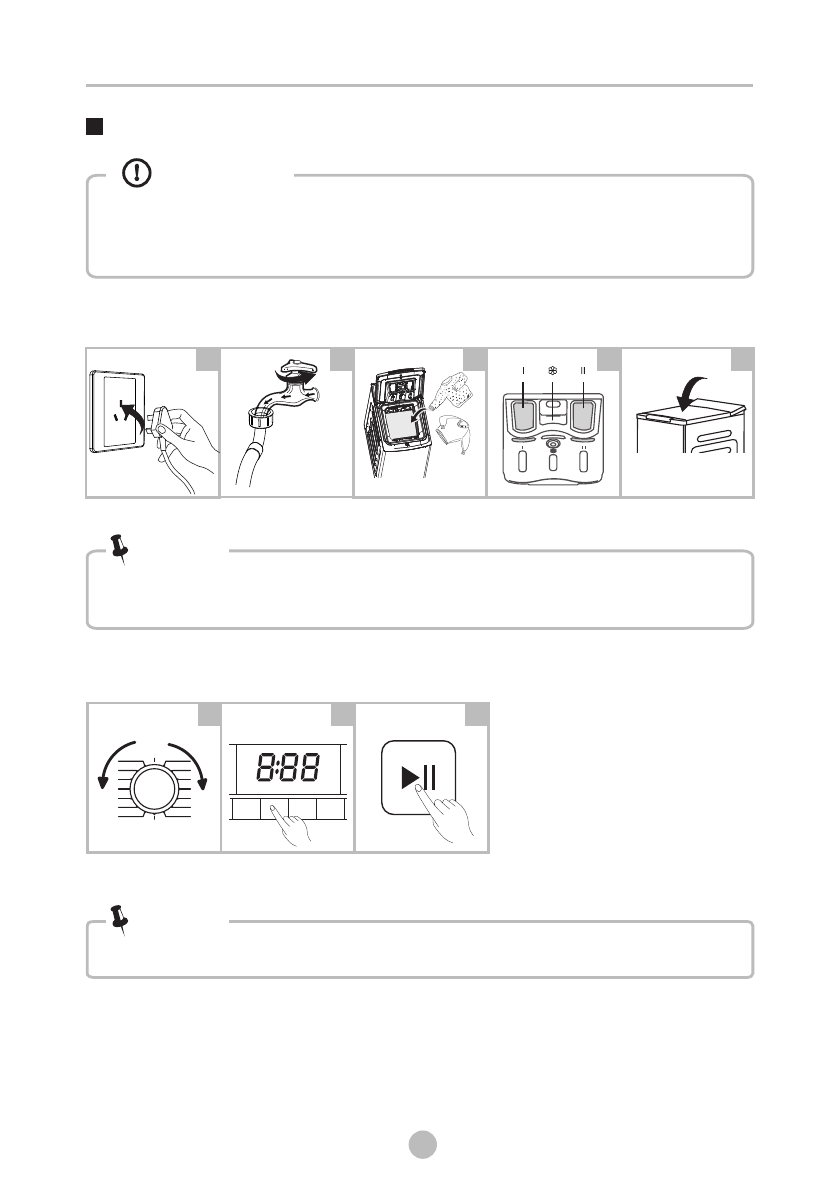

•Before washing, please make sure it is installed properly.
Before washing for the first time, complete a wash cycle without clothes.
1. Before Washing
Open tap
Load
Close drum &
machine door
Plug in
Add detergent
Quick Start
3. After Washing
“End” is displayed.
•Detergent need to be added in "case 1 “after selecting pre-washing.
1 2 3 4 5
2. Washing
Select Programme Select function
Press up
1 2 3
•If default is selected, step 2 can be skipped.
Note!
Note!
Caution!
Operation
Prewas h Softener Main wash

10
12
Knot the long strips,
zips and button
•When washing a single item, it may cause an 'unbalanced' alarm. Therefore it is
suggested to add more clothes to be washed together so that draining can be
done smoothly.
•Don’t wash clothes contaminated with kerosene, gasoline, alcohol and other
flammable materials.
•The ambient temperature should be (0-40)℃. If used under 0℃, the inlet valve
and draining system may be damaged. If the machine is placed under
condition of 0℃ or less, then it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose are not frozen
before use.
•Please check the clothing labels and the detergent instructions prior to
washing. Use non-foaming or less-foaming detergent suitable for washing
machines.
Take out the items out
of the pockets
Put small clothes
into a wash bag
Check the label
Before Each Wash
Turn easy-pilling and
long-pile fabric inside
out
Separate clothes
with different
textures
！Warning!
Operation

10
13
Programme
Cotton
Synthetic
Mix
Jeans
Sportswear
Colour Care
Baby Care
Drum Clean
○Optional Not Optional
Programme
Spin Only
Rinse & Spin
Wool
Delicate
Daily Wash 45’
Quick 15’
Cotton ECO
Detergent Dispenser
Pre wash detergent
Main wash detergent
Softener
II
I
Pull out the dispenser
•Do not use congealed detergent as it could cause the inlet of
detergent box to be blocked and overflow while filling water.
•Please choose suitable type of detergent for the various washing
temperature to achieve the best washing performance with less
water and energy consumption.
Note!
Caution!
•Detergent only needs to be added in "case I “after selecting pre-
washing for machines with this function.
Operation
Prewash Softener Main wash

On/Off
Product is switched On/Off.
Start/Pause
Press the button to start or pause
the washing cycle.
Programmes
Available according to the laundry type.
Option
This allows you to select an
additional function and will light
when selected.
Note!
•The chart is for reference only, actual product may vary.
1
1
3
1
2
4
Display
The display shows the settings, estimated time remaining, options, and status
messages for your machine. The display will remain on through the cycle.
5
10
14
5312 4

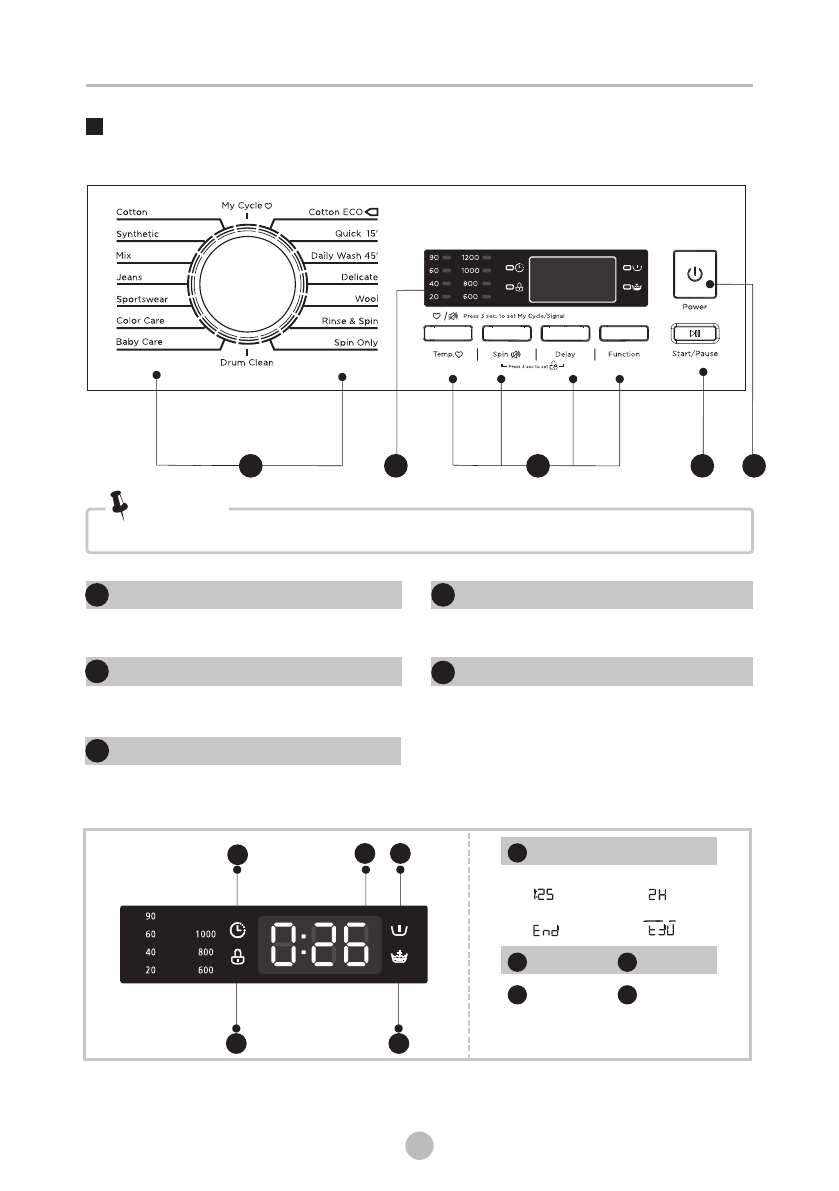

Control Panel
Operation
B
Door Lock
D
Pre Wash
Display
A
Wash Time Delay Time
End Error
A
C
C
Delay
E
Extra Rinse
1
1
B E
D

Operation
10
15
On/Off
Product is switched On/Off.
Start/Pause
Press the button to start or pause
the washing cycle.
Programmes
Available according to the laundry type.
Option
This allows you to select an
additional function and will light
when selected.
Note!
•The chart is for reference only, Please refer to real product as standard.
1
1
3
1
2
4
Display
The display shows the settings, estimated time remaining, options, and status
messages for your washer. The display will remain on through the cycle.
5
5312 41
1
Control Panel
B
Door Lock
D
Pre Wash
Display
A
Wash Time Delay Time
End Error
A
C
C
Delay
E
Extra Rinse
B E
D
1200

Operations
10
16
On/Off
Product is switched On/Off.
Start/Pause
Press the button to start or pause
the washing cycle.
Programmes
Available according to the laundry type.
Option
This allows you to select an additional
function and will light when selected.
Note!
•The chart is for reference only, Please refer to real product as standard.
1
1
3
1
2
4
Display
The display shows the settings, options for your washer. The display will remain
on through the cycle.
5
5312 41
1
Control Panel
A
B
Child Lock
C
Pre Wash
A
Door Lock
D
Extra Rinse
B D
C

Delay
Set the Delay function:
1. Select a programme; 2.Press the Delay button to choose the time
(the delay options are: 0-24 H/3H-6H-9H);
3.Press [Start/Pause] to commence the delay operation
Choose the Programme StartSetting time
Delay
Cancel the Delay function:
Press the [Delay] button until the display be 0H.It should be pressed before starting the
programme. If the programme has already started, switch off programme to reset.
Extra Rinse
The laundry will undergo an extra rinse when selected.
Option
Caution!
•If there is any break in the power supply while the machine is operating,
a special memory stores the selected programme and when the power
is restarted, the program will continue.
10
17
Operation
Pre-Wash
The Pre-wash function offers an extra wash before the main wash. It is suitable for heavily
soiled garments; You need to put detergent into the Case (I) when you select it.
Pre Wash
Extra Rinse
Programme Option Programme Option
Extra
rinse
○Means optional
Cotton
Daily Wash 45’
Quick 15’
Synthetic
Mix
Jeans
Sportswear
Baby Care
Drum Clean
Spin Only
Rinse & Spin
Colour Care
Delicate
Wool
Cotton 60
Cotton 40
Pre
wash
Pre
wash
Extra
rinse
Delay
Delay

Operations
Programme Option Programme Option
Extra
rinse
○Means optional
Cotton
Synthetic
Mix
Jeans
Sportswear
Colour Care
Baby Care
Drum Clean
Spin Only
Rinse & Spin
Wool
Delicate
Daily Wash 45’
Quick 15’
Cotton ECO
Pre
wash Pre
wash
Extra
rinse
Delay
Delay
10
18

Spin
Press the button to change the
speed. 1200: 0-600-800-1000-1200
1300: 0-600-800-1000-1300
Temp.
Press the button to regulate the temperature(Cold,20℃, 40℃,60℃,90℃)
Other Functions
10
19
Operation
Programme
Cotton
Synthetic
Mix
Jeans
Sportswear
Colour Care
Baby Care
Drum Clean
Default Speed (rpm) Programme
Spin Only
Rinse & Spin
Wool
Delicate
Daily Wash 45’
Quick 15’
Cotton ECO
Default Speed (rpm)
1200 1200
1000
1300
800
800
1300
1300
1000
800
600
800
1300
800
1000
600
800
1000
–
600
800
800
600
800
800
1000
800
800
1200
800
800
–
1200
800
Spin
Programme
Cotton
Daily Wash 45’
Quick 15’
Synthetic
Mix
Jeans
Sportswear
Baby Care
Default Speed (rpm) Programme
Drum Clean
Spin Only
Rinse & Spin
Colour Care
Delicate
Wool
Cotton 60
Cotton 40
Default Speed (rpm)
1200 1200
1200
800
800
800
800
800
1200
800
1000
800
600
800
800
600
–
800
