Congratulations! You’re now the proud owner of
the Cavalli Audio Liquid Carbon®Balanced
Transportable Headphone Amplifier!
Amplifier Break-In
Your Liquid Carbon® amplifier has been tested before leaving the factory, but has very few
hours on it. Most amplifiers need at least 150 hours of continuous use, playing music, to reach
their full sound signatures. We recommend about the same for the Liquid Carbon®.
You can, when you’re not listening, you leave the amp on continuously with your source in loop
mode for enough hours to reach the 150 hour point. It is not necessary to leave headphones
attached. In fact, we recommend that you disconnect your headphones when not listening
during this break-in period.
At this point - and not before this point –will the amplifier reach the level of performance
enabling you to accurately judge its sound quality and to determine whether it meets your
critical listening standard.
Before you judge the sound quality of the amp please follow this procedure!
Return Policy
You may return your Liquid Carbon® amplifier within 30 days of delivery. Returning the amp
within this time period will incur a 30% restocking fee.
Page 4of 15 Copyright © 2015-2016 Cavalli Audio, LLC
Important points to remember about the Cavalli
Audio Liquid Carbon®Balanced Transportable
Headphone Amplifier
The Liquid Carbon® is a lightweight, small, transportable balanced solid state Solid State
headphone amplifier. It is especially designed for handling a wide variety of headphones from
IEMs to planar magnetics.
The amp has both balanced (XLR) and single ended (RCA + 3.5mm) inputs. The input type is
selectable with a 2-position front panel pushbutton switch. The single ended input has an
internal solid state buffered phase splitter to create a balanced signal to drive the amp fully
balanced.
The amp has two gain settings to help with the wide range of headphone impedances and
sensitivities. The high gain is 3X and the low gain is 1X. The Liquid Carbon® circuit allows you to
hot switch the gain using the front panel switch.
The Liquid Carbon® has 3 outputs: 4 Pin XLR balanced, 4 Pin RSA (Kobiconn) balanced, and TRS
(standard ¼” phone plug) single ended. Note that the SE output, which comes from half of each
channel, only delivers ¼ the power of the balanced output.
The Liquid Carbon® is powered by a universal switch mode power supply (SMPS) which makes it
operational in nearly every location globally using a standard power cord suitable to the local
conditions with a standard IEC connection to the amp.
Copyright © 2015-2016 Cavalli Audio, LLC Page 5of 15
Operation
Your Liquid Carbon® amplifier operates over a wide variety of power conditions, 85-265VAC/50-
60Hz.
1) Insert the proper power cord. Be absolutely sure that your power cord has an approved
safety ground connection from the amp to the outlet.
2) The leftmost pushbutton is the power switch. Push this button in to turn on the map. All
three LEDs on the front panel should light.
3) The center pushbutton is the gain switch. Out is 1X and in is 3X. The LED indicator will be
white for 1X and red for 3X. You can hot switch the gain while listening to music.
4) The right pushbutton is the input selector. Out is balanced and in is SE. The LED indicator
will be white for balanced and red for SE. You can hot switch the input while listening to
music.
5) We recommend that you let the amp warm up for about 15-30 minutes before connecting
headphones and listening (although this is not required).
6) If there are any problems with the normal operation of your amp please contact Cavalli
Page 6of 15 Copyright © 2015-2016 Cavalli Audio, LLC
CAUTION
Please remember to turn down the volume (or power down
completely) before plugging or unplugging any sources or
headphones into or from your Liquid Carbon®.
Doing so will protect your both your hearing, and your
equipment (headphones, Liquid Carbon®, etc.).
Please note that we are not responsible for any damage to
your hearing, or damage to any equipment, due to a failure to
lower volumes or power down before plugging/unplugging
any sources or headphones.
Copyright © 2015-2016 Cavalli Audio, LLC Page 7of 15
Headphone Outputs
The Liquid Carbon® Balanced Transportable Headphone Amplifier is equipped with one 4 Pin
XLR output, one 4 Pin RSA (Kobiconn) output, and one TRS (Phone). All three output jacks are
on the front panel.
4 Pin XLR
This jack supports headphones wired with a 4 Pin fully balanced connector. This jack is
labeled above the round jack with the letters “bal”.
CAUTION: do not connect headphones with a 4 Pin XLR which has a common ground (3
wire) connection to the headphones. This will absolutely damage the amplifier and
void your warranty.
RSA (Kobiconn) Jack
This mini 4 pin balanced jack is located on the front panel to right of the TRS jack. The
jack is also labeled “bal” with a headphone symbol above.
TRS Jack
One ¼” TRS jack is located on the front panel of the amp. This jack is labeled above with
the letters “se”. Note that this output, using half of each amplifier, supplies only ¼ the
power of the balanced output.
Recommended Mode of Operation
The Liquid Carbon amplifier can run with singled ended input
and single ended output or a combination of single ended and
balanced. However, to get the best performance from this
amplifier we recommend that you operate in fully balanced
mode from input to output.
Page 8of 15 Copyright © 2015-2016 Cavalli Audio, LLC
Balanced vs Single Ended Outputs
The Liquid Carbon® is a versatile balanced amplifier in that it can receive both Balanced and SE
inputs, always working in balanced mode, and it offers both Balanced and SE outputs.
When using the Carbon, however, it is important to remember that the Carbon is designed to
perform its best using the balanced output. Balanced output will maximize the power output
you can get from the amp while minimizing the noise floor to the low noise levels available
from the amp
We recommend that, if at all possible, you use headphones terminated with balanced
connections.
The SE output on the Carbon is provided for those who cannot, for various reasons, run in
Balanced out mode. The SE output uses only half of each channel’s amplifier. In this mode the
Carbon cannot deliver as much power at any given volume setting. Also, because the SE out
doesn’t benefit from common mode type noise rejection, the noise floor from the SE output is
higher than from the Balanced output. This is normal.
To get the best from your Carbon, whether you are using planars, dynamics, or IEMs, it will
always be best to run from the Balanced outs.
Copyright © 2015-2016 Cavalli Audio, LLC Page 9of 15

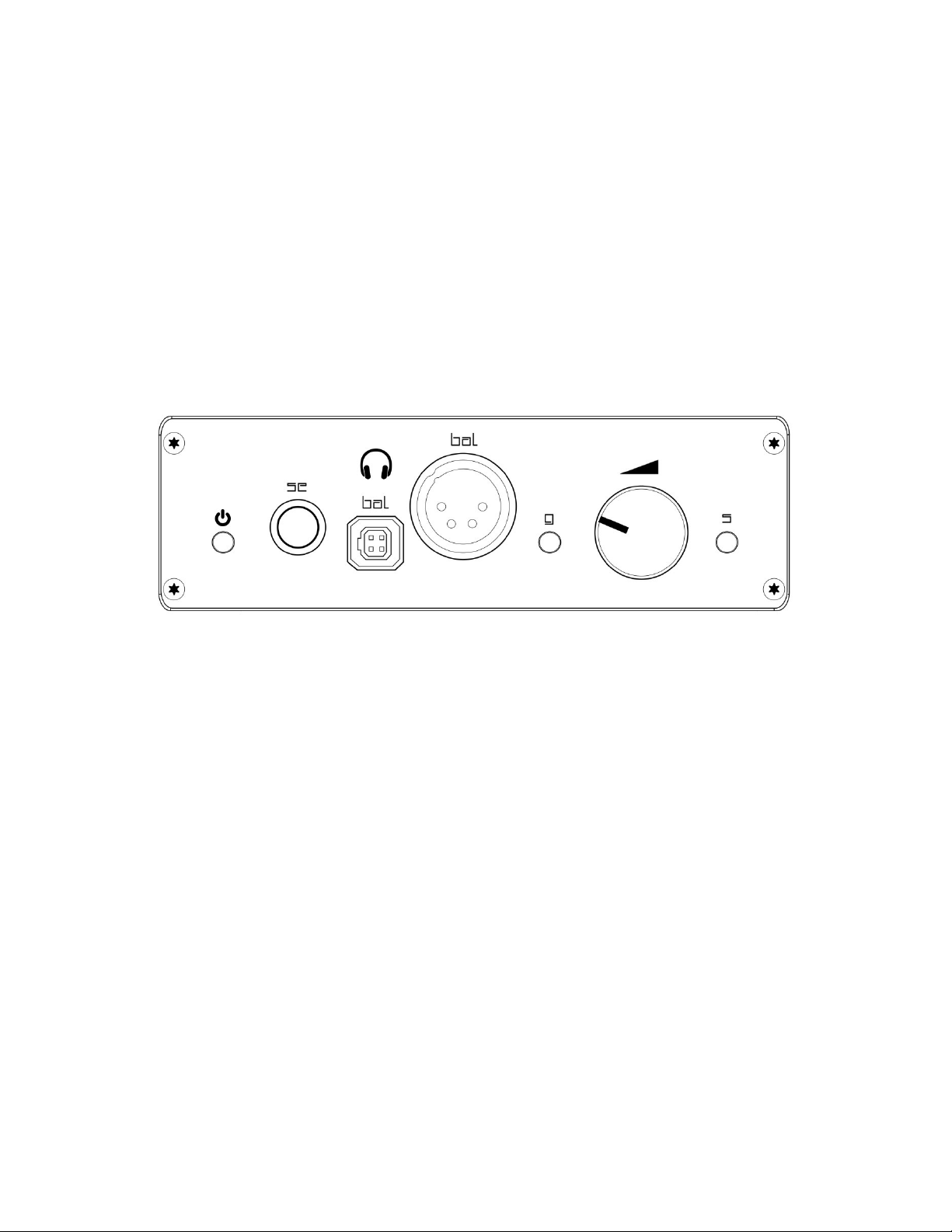

Front Panel Controls and Jacks
This diagram shows the power button at left, gain button in center, and input selector button at right.
There are two balanced outs, 4 Pin XLR and RSA. There is one SE out TRS jack.
Page 10 of 15 Copyright © 2015-2016 Cavalli Audio, LLC

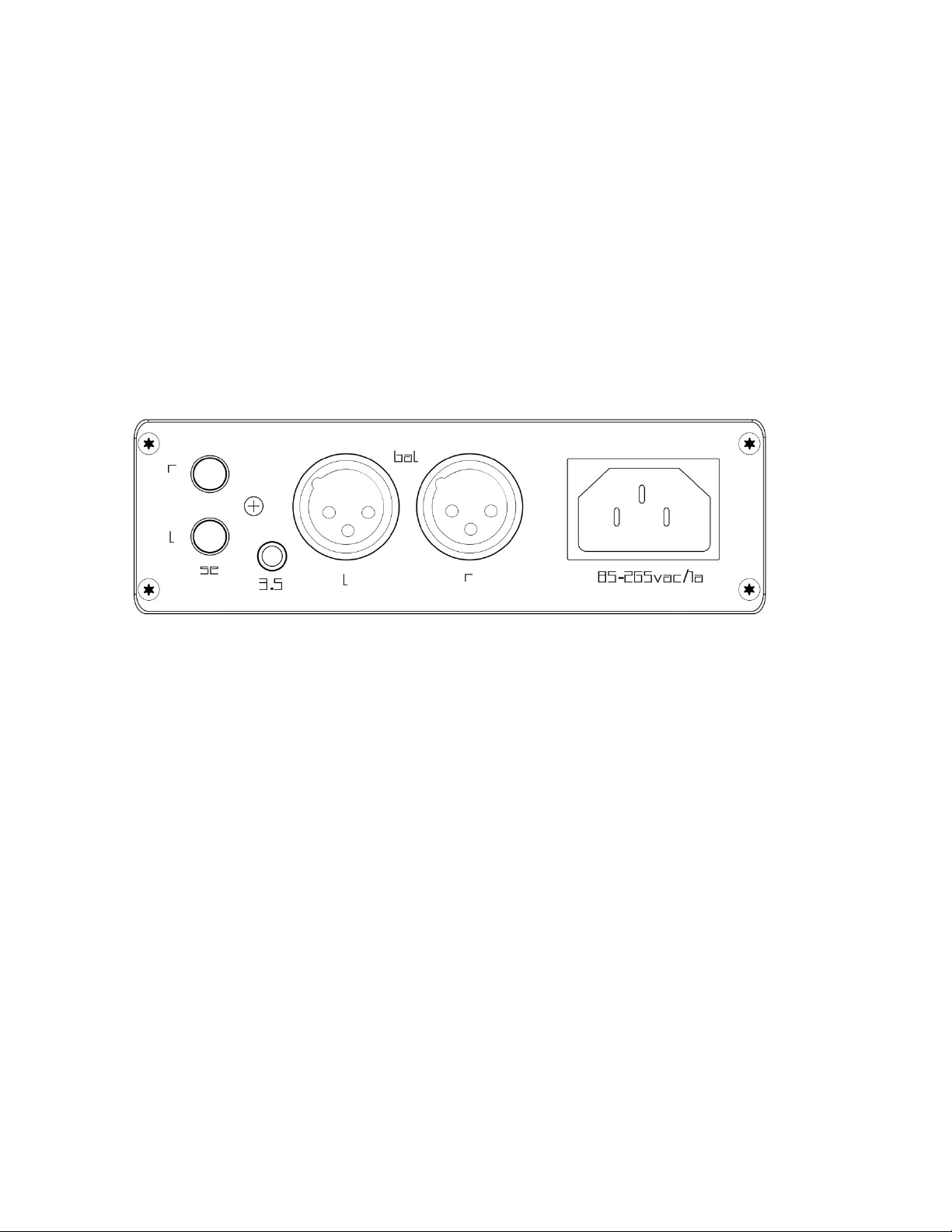

Rear Panel Jacks and Power Inlet
This diagram shows the power inlet at right. There is on set of 3 Pin XLR jacks for balanced input. There
are 2 RCA jacks and one 3.5mm TRS jack for SE input. SE input is phase split to create a balanced signal to
the amplifiers.
Copyright © 2015-2016 Cavalli Audio, LLC Page 11 of 15
Ventilation
The Liquid Carbon® dissipates about 8W of power. The Carbon is designed to run a little warm
in a small enclosure, but it still needs good ventilation. Don’t enclose it in a space with no air
flow or on top of equipment which gets hot.
What about those tweaky things like cables,
power cords, better feet and such that I’ve heard
so much about?
Everyone has an opinion on this one, and we can say without a doubt that at this level of
performance every change makes a difference. The extent to which this change is an
improvement is, of course, the subject of much debate. Such is the nature of high-performance
audio.
One of our closely-held opinions with regard to the entire matter of “What makes ‘better
sound’ better?” can be summed up in a few short words –“if the musical result of the change
MOVES YOU, then it is worth considering. If not, spend those discretionary funds obtaining
more of your favorite music!”
OK, so now comes that time when we require you to read some verbiage written in legalese. If
you understand all of it, you’re probably an attorney. If you don’t understand all of it, you’re
one of the rest of us who doesn’t like reading this any more than we like requiring that you read
it….but here it is…..
Page 12 of 15 Copyright © 2015-2016 Cavalli Audio, LLC
Warranty
This Cavalli Audio product has a 1-Year warranty for parts and labor. Warranty does not include
fully insured shipping costs to Cavalli Audio. Warranties are not transferable unless pre-
authorized in writing by Cavalli Audio. If the repair is due to customer damage or negligence,
repairs will be charged as parts and labor, which will be quoted before work is performed. For
Any modifications to this product which have not received written factory approval nullify all
claims and void the warranty. Should a modified product be returned to the factory for repair
the owner will be required to pay all necessary charges for the repair in addition to those
charges required to return the product to its original configuration.
Removal or alteration of original Cavalli Audio serial numbers voids the factory warranty.
Product with altered or missing serial numbers will be considered counterfeit product. Cavalli
Audio will not repair or in any way indemnify any counterfeit or cloned product.
Now that you’ve read all that, and we assume that you have, in fact, read the above essential
verbiage, we’re hoping and trusting that you have found reading this owner’s document to
have been both useful and entertaining; enhancing your ability to enjoy your Cavalli Audio
Liquid Carbon® headphone amplifier. Now, GET BACK TO ENJOYING YOUR MUSIC!
Standard Warranty Limitations
EXCEPT FOR THE EXPRESS WARRANTIES STATED HEREIN, CAVALLI AUDIO MAKES NO OTHER
REPRESENTATIONS OR WARRANTIES AND CAVALLI AUDIO HEREBY DISCLAIMS ALL OTHER
WARRANTIES, EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY, NON-INFRINGEMENT OF THIRD PARTY
INTELLECTUAL PROPERTY RIGHTS, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE,
SATISFACTORY QUALITY, OR ARISING FROM A COURSE OF DEALING, USAGE OR TRADE
PRACTICE. IN ADDITION, CAVALLI AUDIO DOES NOT WARRANT THAT THE PRODUCT WILL
SATISFY YOUR REQUIREMENTS, IS WITHOUT DEFECT OR ERROR, OR THAT THE OPERATION OF
THE PRODUCT WILL BE UNINTERRUPTED. BECAUSE IT MAY NOT BE POSSIBLE FOR CAVALLI
AUDIO TO KNOW THE EXACT PURPOSES FOR WHICH CUSTOMER ACQUIRED THIS PRODUCT,
CUSTOMER ASSUMES FULL RESPONSIBILITY FOR CUSTOMERS INSTALLATION, USE AND THE
RESULTS OF THAT USE.
Copyright © 2015-2016 Cavalli Audio, LLC Page 13 of 15
Limitation of Liability
IN NO EVENT WILL CAVALLI AUDIO OR ITS SUPPLIERS BE LIABLE TO CUSTOMER FOR ANY
CONSEQUENTIAL, SPECIAL, PUNITIVE, INCIDENTAL, OR INDIRECT DAMAGES OF ANY KIND
ARISING OUT OF THE USE OF OR INABILITY TO USE THE PRODUCT, INCLUDING LOST PROFITS,
LOSSES ASSOCIATED WITH BUSINESS INTERRUPTION, LOSS OF USE OF THE PRODUCT, LOSS OF
DATA, COSTS OF RE-CREATING LOST DATA, OR COSTS OF PROCUREMENT OF SUBSTITUTE
GOODS, EVEN IF CAVALLI AUDIO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES
AND NOTWITHSTANDING THE FAILURE OF ESSENTIAL PURPOSE OF ANY REMEDY. IN NO EVENT
WILL CAVALLI AUDIO’S AGGREGATE LIABILITY FOR ANY CLAIM, WHETHER IN CONTRACT, TORT
OR ANY OTHER THEORY OF LIABILITY, ARISING OUT OF USE OF THE PRODUCT THAT EXCEEDS
THE TOTAL FEES PAID BY CUSTOMER FOR THE APPLICABLE PRODUCT AND NOTWITHSTANDING
THE FAILURE OF ESSENTIAL PURPOSE OF ANY REMEDY.
[email protected]. We look forward to hearing from you!
For Your Protection
Water and moisture: NEVER use the Liquid Carbon amplifier near water. NEVER handle the
amplifier while in contact with water. NEVER let the amplifier come into contact with water.
NEVER spill water or other liquids into it.
Power Sources: Make sure that the voltage/frequency stated on the back label on your
amplifier is compatible the line/mains voltage in your location.
Grounding: The electrical ground in this amplifier is an important safety feature. Do not defeat
ground with special plugs, power cords, etc. Doing so will void your warranty.
Power Cords: Use one that meets the standards of your location.
Power and Signal: Cables should never be connected or disconnected with equipment powered
up. Failure to heed this warning may damage or destroy equipment.
Servicing: To reduce the risk of fire, electrical shock or other injuries, the user should not
attempt to service the amplifier beyond what is described in this manual. All other servicing
must be referred to authorized service personnel.
Page 14 of 15 Copyright © 2015-2016 Cavalli Audio, LLC
Copyright © 2015-2016 Cavalli Audio, LLC Page 15 of 15
Cavalli Audio –3300 Mossy Grove Court –Cedar Park, TX 78613
®
Table of contents
Other Cavalli Audio Amplifier manuals
