Cedex SOMFY-SD 0333-CPD-292029 User manual

2. GENE RAL DE SC RIPTION
The Somf y-SD helps to protect you and your home 24 hours a
day. It is specially designed for monitoring private dwellings
(houses, apartments, etc.).
If smoke is detected, a powerful audible alarm is triggered and an
alarm message is sent to the Somfy central unit.
Somfy-SD is not a gas detector.
3. RE COM M EN D ED LO CA TI O NS
For opti mum prot ecti on:
Place a detector in each room, avoiding the unadvisable
locations given in §4.
Fo r b as ic pr o tec t ion:
Place a detector on each storey.
Place a detector near sleeping areas (for example, in the
corridor leading to the bedrooms; if the corridor is long
(>10 m), place one detector at each end).
Place a detector in every bedroom occupied by a smoker.
If it is not possible to fix the
detector to the ceiling, fix it to the
wall:
15 to 25 cm away from the
ceiling.
More than 60 cm from any
corner of the room.
4. UNA DVISAB LE LOCATI ONS
Do not install the detector:
Within 1 m of heating, cooling or ventilation outlets. The
smoke could be extracted or diluted.
In a place where the temperature could drop below 0°C or
rise above +50°C; there is a risk that the detector will
malfunction.
In a room where there is a risk of condensation. Bathrooms
and laundry rooms should be avoided.
Anywhere where smoke may be emitted (kitchen or poorly
ventilated garage) and generate false alarms.
In an excessively dusty place.
Out of range of the Somfy central unit.
On a metal surface.
CONTENTS
1. CERTIFICATION
2. GENERAL DESCRIPTION
3. RECOMMENDED LOCATIONS
4. UNADVISABLE LOCATIONS
5. INSTALLING THE DETECTOR
6. REPLACING THE BATTERY
7. SOMFY-SD OPERATING TEST
8. MAINTENANCE
9. SMOKE DETECTOR LIMITATIONS
10. WARRANTY
1. CER TI FICA TI ON
The CE marking on this product certifies that it complies with the applicable
European directives, and in particular with the harmonised specifications of
standard EN 14604 in light of the Construction Products Directive
89/106/EEC.
It is issued by AFNOR Certification
11 rue Françis de Pressensé 93 571 LA PLAINE ST DENIS Cedex.
Dining
room
Kitchen
Bedroom
Bedroom
Smoker's
bedroom
Living
room
Basic protection
Additional protection
APPARTMENT
Bedroom
Corridor
Bedroom
Kitchen
Living room
Basement
HOUSE
Basic protection
Additional protection
Locat ion of the dete ctor i n the r oom :
It is essential to fix the detector to the ceil ing in the centre of the
room, and failing this:
More than 20 cm away from any obstacle (wall, partition,
beam, etc.).
More than 60 cm from any corner of the room.
Pro cessing of e nd-of-life ele ctri ca l and e lectronic ap p liances
This symbol indicates that this product must not be
processed with household waste.
It must be taken to a suitable collection point for electrical
and electronic equipment recycling:
•Retail outlets if an equivalent product is being
purchased.
Collection points available locally (local tip, separate
collection, etc.).
European Recycling Platform Member
This symbol indicates that this product must not
be processed with household waste.
It must be taken to a suitable collection point for
electrical and electronic equipment recycling:
Certified charac t e ri s tics
Type of
mounting
Wall only
Ceiling only
Wall or ceiling
YES No
YES No
YES No
Main power source
Inside the device
Battery life
ALKALINE battery
3 ye a rs
Interconnectable device (wired/radio)
YES No
Suitable for installation in motorhomes
YES No
Connection to external auxiliary devices
YES No
Radio link
YES No
Individual alarm indicator
YES No
Alarm deactivation device
YES No
MAF07-K
Phot oe lectri c d etect or
operating on alkaline batteries
(supplied)
Audible alarm: >85 dBA at 3 m
0333-CPD-
292029
(10)
SOMFY-SD
SMOKE D E TEC TOR
NF EN
14604
OPERATING MANUAL
This manual should be kept in a safe place after reading
for the entire lifetime of the detector
> 20 cm
> 15 cm
< 25 cm
Best l ocation
Acceptable location
CEILING
WALL

1
2

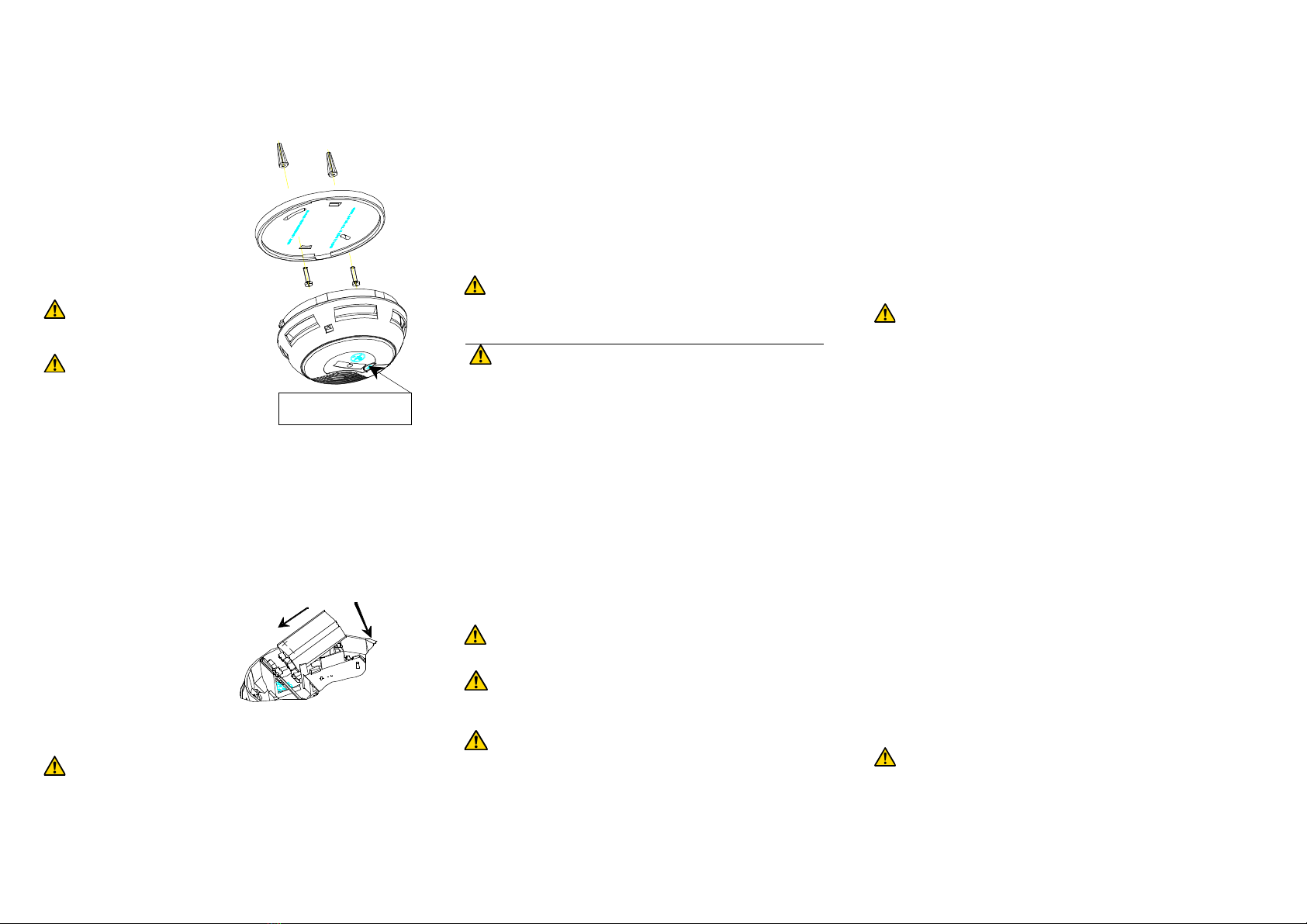

5. INS TA LLI N G TH E DETECTO R
Now that you have read paragraphs 1 to 4, you are ready to install
your So mfy-SD.
Remove the mounting plate from the detector by turning it
anti-clockwise.
Place the mounting plate in the
planned location and mark the
position of the 2 fixing holes with
a pencil.
Use the 2 fixing screws and
anchors supplied. Secure the
mounting plate firmly.
Install the battery (see §6).
Fix the detector to the
mounting plate by turning it
clockwise until it locks in
place.
The Somfy-SD is supp lied
with the bat tery
dis conn ected.
The Somfy-SD is fit ted with
a s a fet y d ev ic e th a t p re ve nts
it from being locked in place
wit ho u t a b at te ry .
7. SO MF Y -SD O PE RA T IN G T ES T
The set-up procedure is described in the Somfy central unit
instructions.
During normal operation, the red indicator on the So mfy-SD
flashes once a minute. You should perform a full operating test on
your detector once a month or after you have replaced the battery,
by pressing and holding the "TE ST" button located on the cover
(shown in §5) for around ten seconds:
The indicator on the Somfy-SD flashes.
Then, the alarm emits a high-pitched tone and the central
unit switches to fire alarm mode.
Releasing the button immediately stops the alarm.
Make sure that everyone who lives in your home is familiar with
the sound of the S omf y- SD and knows that they must evacuate
the house when they hear it.
Stay a re aso nabl e di stan ce aw ay fro m the dete ctor
(at arm's len gth) to prote ct your ear s from the very
loud t one.
High so und power > 85 dBA at 3m (94 d BA at 1m )
Do not at tempt to trigg er an alar m by a ny o ther
mea ns (u sin g a lighter, etc.); yo u could damage t he
detect or or wors e, st art a fire .
9. SMOKE D E TEC TOR LIMITA TI ONS
A smoke detector is an economical device that provides rapid
warning that a fire has started; however, residential fires start in
different ways and are often unforeseeable. Under certain
circumstances, the smoke detector might not provide warning of a
fire if:
The battery is low or the wrong type (see §6).
The electronics are faulty; they must be checked regularly as
set out in §7.
It has not been maintained (see §8).
It is in the wrong location (see recommendations in §4).
The smoke does not reach it. The smoke detector cannot
detect smoke generated by a fire on a different storey or on
the other side of a door.
It is out of range of the wireless central unit (see §7).
For maximum protection, we recommend that you place a
detector in every bedroom.
The Somf y-SD helps sa ve lives, but y ou must sti ll
take o ut insura nce to pr ot ect people a nd pr oper t y.
The d etector h as a 10-year s ervi ce life w hen it i s
locat ed in a clean en vir on me nt.
REP LA CING THE BATTERY
Your Somfy-SD will BEEP once a minute if the battery is low. You
should replace the battery immediately as set out below:
Remove the detector from its mounting plate (turn it anti-
clockwise).
Remove the spent battery. Do not throw the battery away;
return it to the retailer.
Insert a new 9 V DC A LKALINE battery with a 3-year life.
Make sure that the battery is
connected correctly and reinsert
it into the compartment.
Fix the detector to the mounting
plate by turning it clockwise
until it locks in place.
Check that the Somfy-SD
is operating correctly (§7).
We recommend that you replace the alkaline battery every 3
years.
Never use re ch argea ble batteries
8. MAINTE NANCE
Your detector has been designed to require as little maintenance
as possible. However, you should carry out a few simple
operations o nce a ye ar. Remove the detector and then:
Clean the slots on the detector (located on the side) with a
vacuum cleaner, using a soft brush or one of its accessories.
Use a slightly damp cloth to clean the outside of the cover.
We recommend that you replace the detector after 10 years.
If y our detector is in a dirty lo catio n, it m ust be
clea ned more often.
Main tain ing your dete ctor is importa nt to your
safet y. A dirty device can eit her tri gger f als ely or trig ger
too lat e.
In the ev ent of repe ated fals e alarms, ch eck that
you h av e not i nst alle d the dete ctor i n on e of the
unad vis able loc atio ns given in §4.
The au dibl e al arm can be st opp ed b y r e mov ing t he
detect or fro m its mou ntin g pl ate and ta king out t he
battery (see §6). Cle an th e det ect or, rein sert th e
battery and r eplace t he d etect or on its mou nting plat e.
10. 5-Y EAR WA R RANT Y
Somfy provides a 5- y ear warranty for the Somf y-SD
(ex cl udi ng t h e ba tte r y) against all manufacturing defects, from
the date of purchase.
SO MFY Fran ce
Cu sto mer S ervice Dep art m ent
1 pl ace du Cr ête t
74 300 CL US ES
This warranty does not apply to damaged, modified, incorrectly-
used or incorrectly-maintained Somfy-SD detectors.
Manufactured by FARE-BP10809 45308 PITHIVIERS CEDEX for Somfy.
The p urch aser mu st ke ep t his operat ing man ual f or
the ent ire lif etim e of the So mfy-SD.
Button
TES
TT
"
