Celair Profile Series User manual

TEK600 SERIES CONTROL
Using your
Domestic Ducted Evaporative Air Conditioning
with the
Climate Control
Celair Profile Series
Operating, Setup & Maintenance
www.celair.com.au
Please keep this important manual in a safe place. It is the owner’s responsibility to ensure that
regular maintenance is carried out on this Evaporative Air Conditioner. Failure to do so will void all
guarantees beyond statutory and legal requirements.
Owner’s Manual

Contents
P ROFILE S ERIES O WNER ’ S M ANUAL
TEK600 S ERIES C ONTROL Page 2
I NTRODUCTION .............................................................................................................4
D UCTED E VAPORATIVE A IR C ONDITIONER ......................................................................5
I NTRODUCTION ....................................................................................................................5
Exhaust...........................................................................................................................................5
Dialflo..............................................................................................................................................6
Optional Dump Valve......................................................................................................................6
O PERATING THE C ONTROLS ..........................................................................................7
Manual Operation............................................................................................................................7
Fan Only......................................................................................................................................7
Fan & Pump ................................................................................................................................7
Turning off Unit............................................................................................................................7
Ventilation .......................................................................................................................................7
Automatic Operation .......................................................................................................................7
Timer Function................................................................................................................................8
Timer ON.....................................................................................................................................8
Timer OFF...................................................................................................................................8
U NIT M AINTENANCE ......................................................................................................9
F ILTER P ADS .......................................................................................................................9
U NIT W ATER R ESERVOIR .....................................................................................................9
W ATER L EVEL / F LOAT V ALVE ..............................................................................................9
M OTOR AND F AN .................................................................................................................9
E LECTRICAL ........................................................................................................................9
B LEED O FF .........................................................................................................................9
P UMP .................................................................................................................................9
W ATER D ISTRIBUTION .......................................................................................................10
P ROBLEM S OLVING ...........................................................................................................10
C ONTROL S ETUP & C OMMISSIONING ............................................................................11
S AFETY ............................................................................................................................11
B EFORE C OMMENCING ......................................................................................................11
Packaging .....................................................................................................................................11
Is the control system correct?.......................................................................................................11
C ONTROL L OCATION ..........................................................................................................12
I NSTALLING THE C ONTROL .................................................................................................12
TEK 600 W IRING D IAGRAM ................................................................................................13
C LIMATE C ONTROL – S ETUP O PTIONS ................................................................................14
Options..........................................................................................................................................14
Parameter Settings Table.............................................................................................................15
Entering the Parameter Setting Mode ..........................................................................................15

Contents
P ROFILE S ERIES O WNER ’ S M ANUAL
TEK600 S ERIES C ONTROL Page 3
Setting the dump delay .................................................................................................................15
Setting the Pre-cool. .....................................................................................................................16
Setting the Dump Interval Cycles..................................................................................................16
Setting the Pre-fill (2 + 4 hour light on and the Auto light flashing). .............................................16
Reviewing Programmed Settings..................................................................................................17
Setting the Thermostat Control Minimum / Maximum speed settings..........................................18
H AND O VER ......................................................................................................................18
C OMMISSIONING C HECK L IST .............................................................................................19
General .........................................................................................................................................19
Unit - Ducted Evaporative Air Conditioner....................................................................................19
Ductwork.......................................................................................................................................19
Site................................................................................................................................................19
Customer Hand Over....................................................................................................................19
W ARRANTY ................................................................................................................20
S ERVICE ....................................................................................................................23

Introduction
P ROFILE S ERIES O WNER ’ S M ANUAL
TEK600 S ERIES C ONTROL Page 4
INTRODUCTION
C ONGRATULATIONS ON YOUR CHOICE
We are delighted you have chosen an air conditioning product from Climate Technologies
to cool your home. It’s an air conditioner we’re very proud of. Designed and made in
Australia by Climate Technologies, 100% Australian owned company, it contains the latest
advances in Fresh Air Conditioning technology in a stylish, attractive cabinet.

Ducted Evaporative Air Conditioner
P ROFILE S ERIES O WNER ’ S M ANUAL
TEK600 S ERIES C ONTROL Page 5
DUCTED EVAPOR ATIVE AIR COND ITIONER
I NTRODUCTION
The Ducted Evaporative Air Conditioner is engineered to meet the rigors of our harsh
Australian environment. Operated and maintained in accordance with this manual, it will
provide you with years of quiet, cool and environmentally friendly operation. Please take
the time to read this manual.
The principal of your unit is to introduce fresh air, which is washed through the filter pads to
provided cool fresh air. The air is exhausted taking with it any heat loadings on the home.
Exhaust
It is essential for successful operation of evaporative air-conditioning that there are
sufficient exhaust openings in the area to be ventilated. Open doors and windows will
usually provide this.
The minimum exhaust opening should be as per the table guide set out below. It is
recommended that ceiling vents or exhaust fans be used where there is any doubt about
there being sufficient exhaust area available. Ceiling exhaust fans or ceiling vents should
have a capacity equivalent to that of the air conditioner.
MODEL MINIMUM
EXHAUST AREA
Small Cabinet 0.80 m²
Medium Cabinet 1.43 m²
Large Cabinet 1.75 m²

Ducted Evaporative Air Conditioner
P ROFILE S ERIES O WNER ’ S M ANUAL
TEK600 S ERIES C ONTROL Page 6

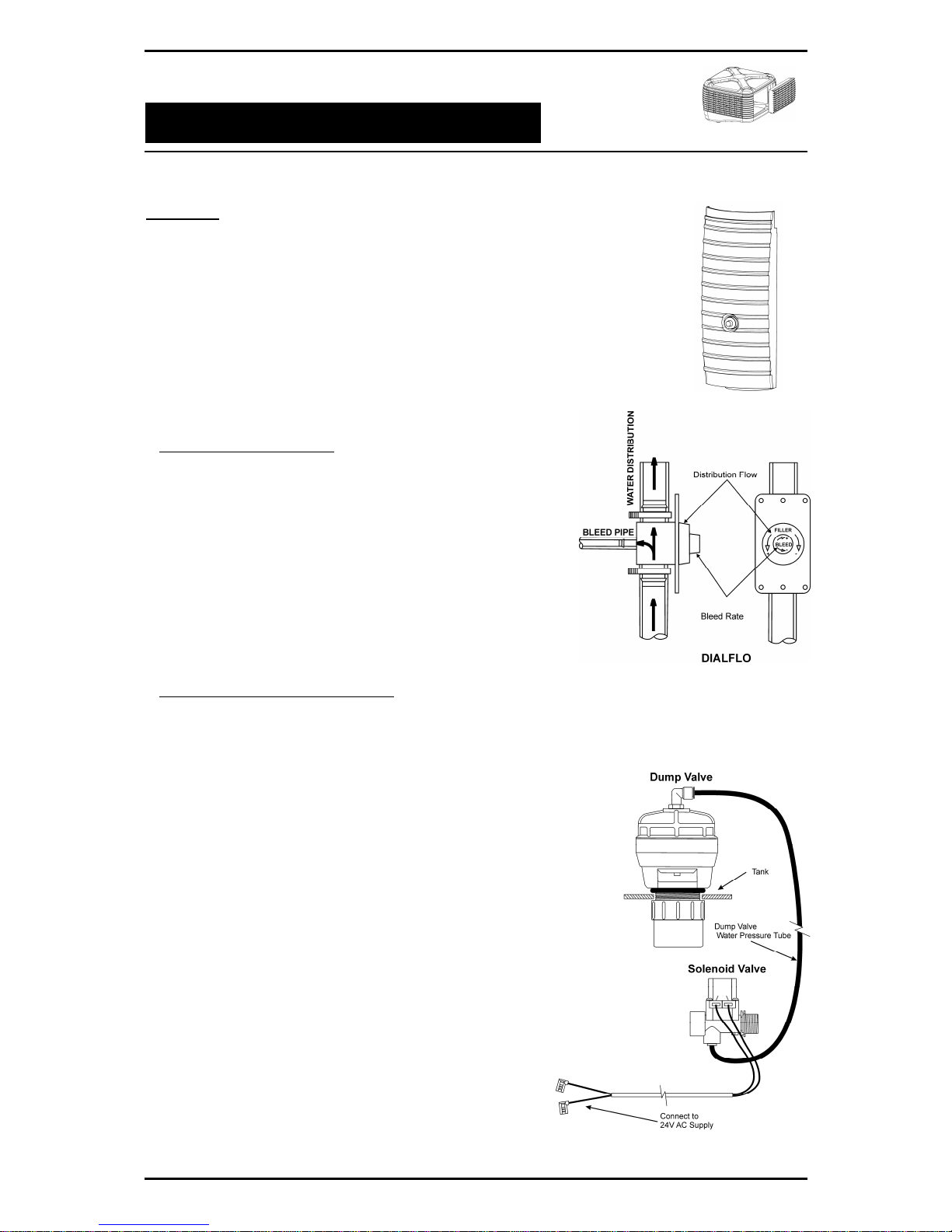

Dialflo
BLEED OFF
All evaporative air conditioners need some water bleed-off to
prevent build-up of mineral deposits in the system. The
correct setting of the bleed rate will ultimately govern the life of
the unit.
With normal town water supply, in good water quality areas,
bleed rate should be adjusted so that the discharge is not less
than 10 litres per hour subject to unit size. Increased water
hardness may require a higher bleed rate and increased
maintenance.
Setting the BLEED OFF Rate.
To set the bleed rate locate the patented DIALFLO
externally on one of the corner posts. Rotate the BLEED
knob clockwise for more flow and anti clockwise.
Note: Hold the distribution knob (Filler) while setting the
bleed rate as the distribution flow rate may go out of
adjustment.
It is recommended that the bleed water is plumbed away
to waste in accordance with local and state plumbing
requirements.
Setting the Water Distribution Flow Rate
To set the water distribution flow rate to the filter pads,
rotate filter knob anti-clockwise for more water and
clockwise for less water. To control bleed-off rate rotate
bleed dial clockwise for more water and anti-clockwise
for less water.
Note: Hold the bleed knob while setting the distribution
rate as the bleed rate may go out of adjustment.
Optional Dump Valve
If a dump valve is fitted and dumping cycles are
activated, bleed off may not be required. Drainage from
the dump valve needs also to be plumbed away in
accordance with local and state plumbing requirements.
It’s Climate Technologies recommendation that the drain
from the dump valve is plumbed to waste.

Controls Operation
P ROFILE S ERIES O WNER ’ S M ANUAL
TEK600 S ERIES C ONTROL Page 7
OPERATING TH E CONTR OL S

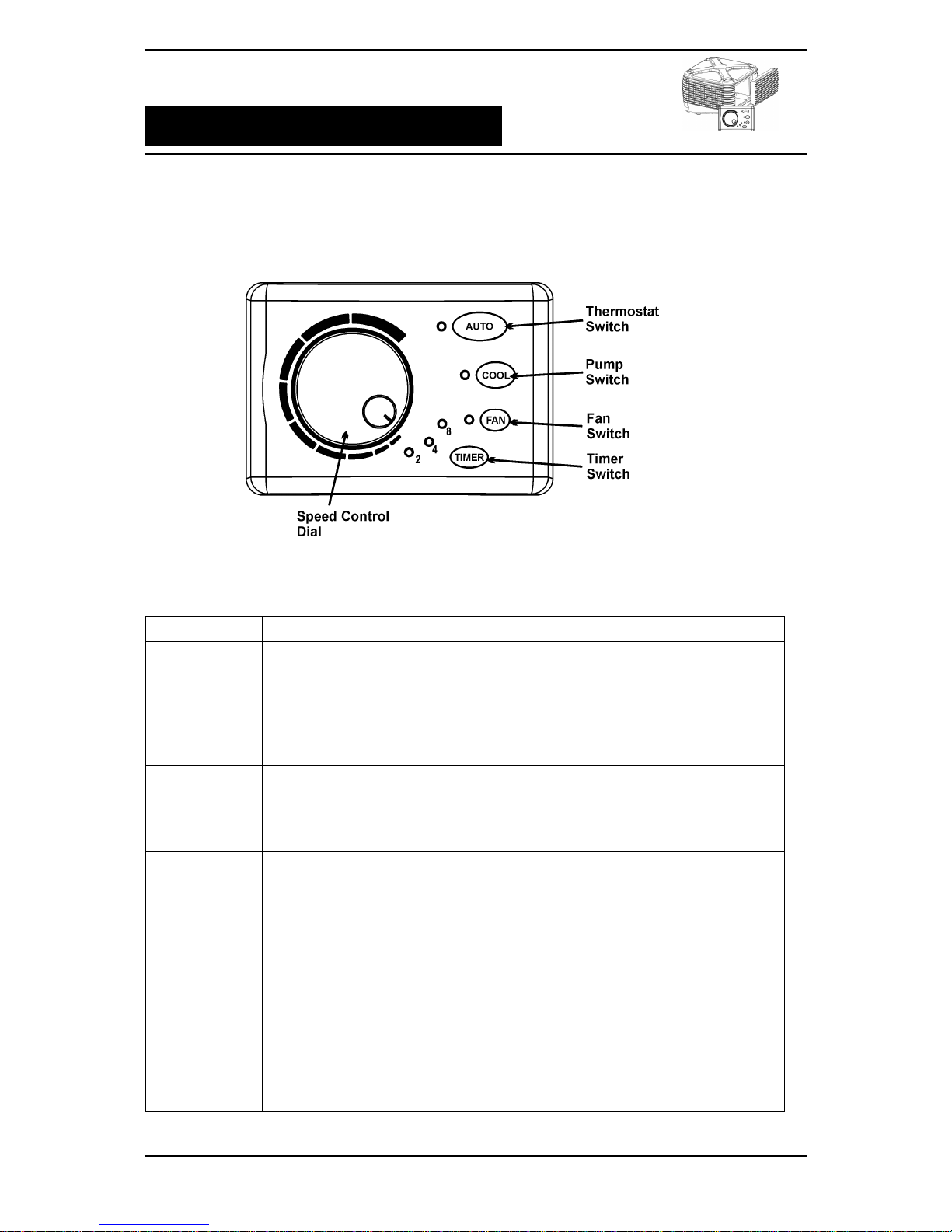

Your ducted evaporative air conditioner has been supplied with the 4-button Climate control.
The Climate controller has two modes of operation, MANUAL or AUTOMATIC. In addition it
has a TIMER, which will operate in either mode.
Manual Operation
Fan Only
Pressing the FAN button once will turn on the green fanlight and will start the fan only.
The variable speed dial will vary the speed of the fan.
Fan & Pump
Pressing the COOL button once will turn on the green cool light and will start the fan and
pump. The variable speed dial will vary the speed of the fan.
*NOTE: When the COOL button is pressed there may be a two or three minute delay in
start up if PRE-FILL, or PRE-COOL has been selected in the set up of the controller.
This is indicated by a flashing green light next to the COOL button or AUTO button. For
more information on these features contact your nearest Climate Technologies dealer or
from place of purchase.
Turning off Unit
To switch the unit off, press the button that has the green light. This light will then go out
to indicate the unit is off.
Ventilation
On days of high humidity, your unit may operate more effectively in ventilation mode.
To start the FAN ONLY press the fan button.
Use the dial to control the comfort level required (speed of the fan).
Automatic Operation
•To select AUTOMATIC mode press the AUTO button. The green light will be on to
indicate that the unit is in the auto mode.
•To select the desired comfort level use the dial . The dial does not control the
speed of the fan this is done automatically by the controller.
Note: The comfort level is individual to each situation and location. Some trial and
error may be required to set the dial to your desired comfort level; a good
starting point is to have the dial set at the Nine o'clock position. Once the unit
has been set, the fan speed and pump are controlled automatically. The unit
can be left and will cycle on and off to keep the area being cooled to the set
comfort level.
•Around the edge of the dial there is a marking, for more cooling turn the dial
clockwise to where the marking increases in size. If the room temperature is too cold
turn the dial anti-clockwise for less cooling (a warmer comfort setting).

Controls Operation
P ROFILE S ERIES O WNER ’ S M ANUAL
TEK600 S ERIES C ONTROL Page 8
Timer Function
The timer function operates either in Automatic or Manual modes and is designed to switch
the unit ON or OFF in a pre-set period (two, four or eight hours).
Note: Once the time function has activated or deactivated the unit, it will remain in this mode
until another selection has been made at the wall control.
Timer ON
•To switch the unit ON in a pre-set time, firstly select FAN, COOL, or AUTO. Adjust the
dial to your selected position. Press the same button again to turn the unit back to
the off mode.
•Select the desired time to switch the unit back on in two, four, or eight hours by
pressing the TIMER button until your selected time appears which is indicated by the
green light.
•The option that has been selected will begin to flash rapidly. This is indicating to the
user that the mode selected will start in the selected time.
•If the owner wants to start the unit instead of waiting for the timer, press the button that
the green light is flashing once then press the same button once more to start the unit.
This can be indicated by the green light coming on near the button selected.
*NOTE: Repeated TIMER button presses selects the desired time and also disables
the timer. The green lights near the two, four, or eight-hour time selections must be
illuminated else the timer is in the disabled mode.
Timer OFF
•The timer off mode will switch off the unit in the selected two, four, or eight hours.
•While the unit is running press the TIMER button to select the two, four, or eight-hour
time option.
•Once the time mode has been selected the unit will turn off in the selected time period
and remain in the off mode until pressing one of the function buttons (FAN, COOL, OR
AUTO) to restart it.
*NOTE: Repeated TIMER button presses selects the desired time and also disables
the timer. The green lights near the two, four, or eight-hour time selections must be
illuminated else the timer is in the disabled mode.

Unit Maintenance
P ROFILE S ERIES O WNER ’ S M ANUAL
TEK600 S ERIES C ONTROL Page 9
UNIT MAINTEN ANCE
Warning: Before commencing any maintenance work on your unit, isolate the power
at the supply (Fuse Box).
Note: It is essential that your evaporative air conditioner be maintained in accordance
with this manual. Failure to do so will affect the life of the product and reduce the
level of efficiency.
F ILTER P ADS
Visually check CELDEK pads for damage or blockage. Hose down pads from both sides to
remove any build up of salts, dust and pollen. In dusty areas more regular cleaning is
recommended. Check the water distributor, making sure it is clear and free from blockage.
Failure to do so may lead to uneven water distribution and therefore less efficient
operation. Do not hose Celdek with high pressure.
U NIT W ATER R ESERVOIR
It is important to keep the water tank clean and free from sediment and algae growth. To
clean the tank, use a soft brush or similar. Wipe all surfaces in the tank while it is full of
water (DO NOT FORGET THE PUMP STRAINER). Turn off the water inlet to the unit (an
Isolation Valve should be fitted to the water inlet before the Float Valve). Drain the tank by
removing the standpipe. It may be necessary to repeat this procedure if the tank is very
dirty.
SAFETY: Wet roofs are dangerous – Take Care When draining unit reservoir.
W ATER L EVEL / F LOAT V ALVE
The water level should be set at nominal 65-70mm from the top of the overflow. The float
valve is a mechanical type and is factory set. If it requires adjustment keep bends tight. If
the valve is leaking the seal may require cleaning or replacing. Turn the water off. Remove
the split pin and then float arm. Remove piston and clean or turn seal. Flush system and
replace piston, float arm and split pin.
Note: Water supply line to float valve must be flushed before connecting.
Note: Some discharge from the overflow may be experienced after shut down due to
water draining back from the Celdek pads. Adjust float valve.
M OTOR AND F AN
Check that the fan spins freely and that there is no build up on the blades.
E LECTRICAL
No general maintenance is required to the electrical system.
A Qualified Electrician should only carry out electrical connections and maintenance.
B LEED O FF
The bleed rate should be checked to ensure it is adequate and that there is no build up of
mineral deposits in or on your air conditioner. White deposits indicate high mineral content
and the Bleed Rate should be increased. If it is at maximum and the deposits are still
forming, then more regular maintenance is required.
P UMP
Check the pump spins freely and that the strainer is clean.

Unit Maintenance
P ROFILE S ERIES O WNER ’ S M ANUAL
TEK600 S ERIES C ONTROL Page 10
W ATER D ISTRIBUTION
Check the water distribution system for blockage. Check the delivery tube for kinks or
holes. Check that the clamps are secure and in place.
P ROBLEM S OLVING
THIS TROUBLE SHOOTING GUIDE IS A REFERENCE ONLY.
FOR SERVICE OR WARRANTY REQUIREMENTS PLEASE RING
YOUR NEAREST CLIMATE TECHNOLOGIES SERVICE PROVIDER
PROBLEM PROBABLE CAUSE REMEDY
a Black - out a Wait
b Tripped Circuit Breaker b Reset
c Blown Fuse c Replace
Unit fails to start d Electrical Fault d Call Climate Technologies
Service Provider
a Pump Seized a Call Climate Technologies
Service Provider
Pump fails to start b Pump Burnt Out b Call Climate Technologies
Service Provider
a Float Valve Leaking a Check adjustment or replace
sealWater leaking from
overflow b
Drain from Celdek Pads b Adjust Ball Valve level
a Loose Delivery Tube a Check and tighten
b Break in tubing b Replace as necessary
Water Droplets in air
stream c Pump Delivers Excessive
Water to Pads c Adjust the Dialflo to reduce the flow
a Inadequate Exhaust a Provide more open area to
exhaust stale air
Excessive humidity
b Outside humidity high b Turn pump off may assist.
a Dirty Filters a Clean
b Dry Filters b Check water delivery
system. Adjust dialflo if
necessary.
Inadequate Cooling
c Dialflo not set correctly c Adjust dialflo so that the
pads have even saturation.
a Unit located near odour
source a Remove source Unpleasant Odour
Rapid formation of
white deposits on
pads
High Mineral Content Bleed off should be set at
maximum. More regular
maintenance may be
required. Dump valve may
be required for cyclic
dumping
