Cello C20230DVB-LED User manual

C20230DVB-LED+
+
+
+
+
+
+
+
+
+
+

1
Contents
UnpackingtheTV/ Accessory's...........................................................................................................................................3
Installing / Removing the Base Stand..................................................................................................................................4
Front / Right Side View and Controls...................................................................................................................................5
Rear View and Sockets .•...............•............•............•...............•............•...............•............•............•...............•............•............•...............•............•......................................6
Remote Control ............................................................................................................................................................. 7- 8

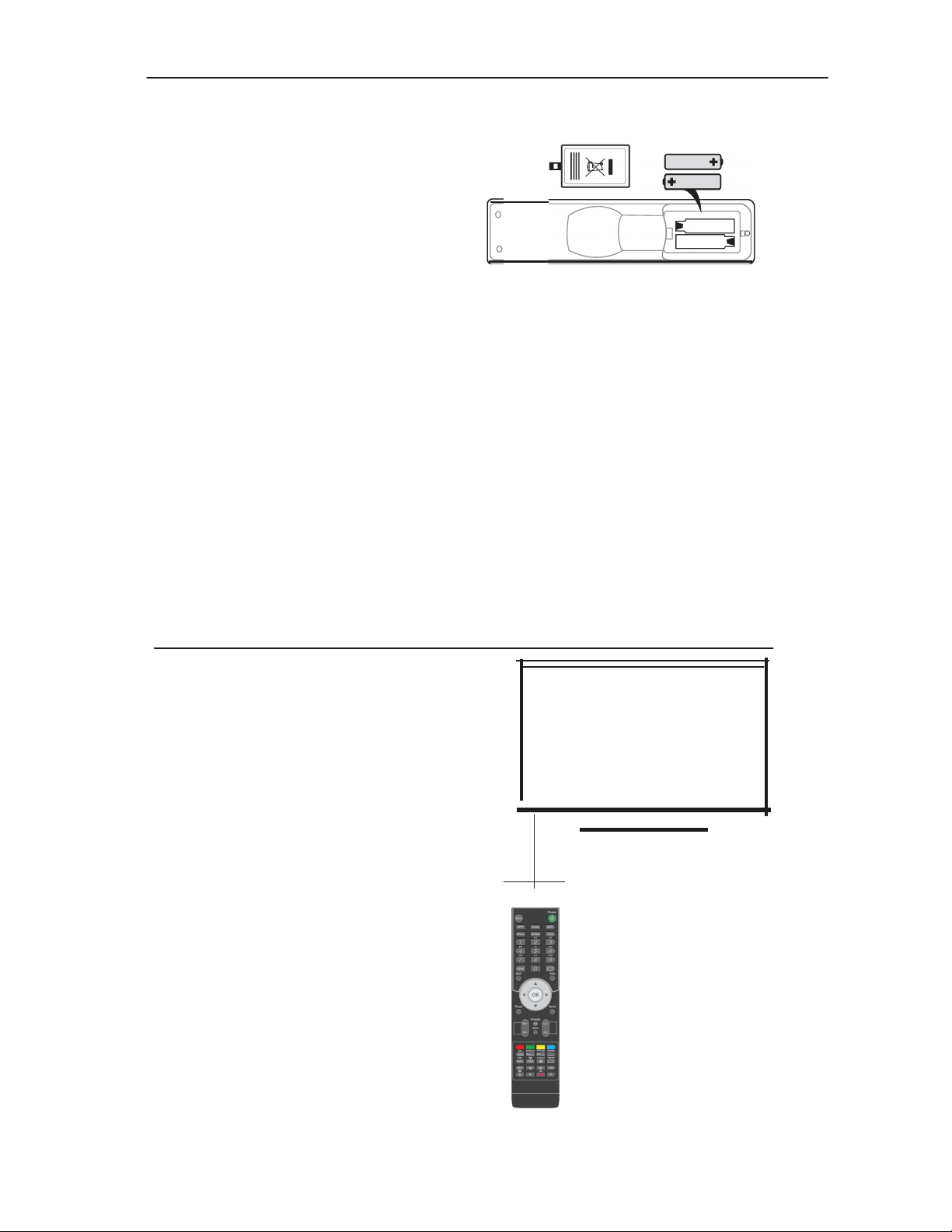

Installing Batteries inthe Remote Control...........................................................................................................................9
RemoteControl Operation Range.......................................................................................................................................9
Making Video and Audio Connections......................................................................................................................................10
Connecting an AV Device with an HDMI Cable.................................................................................................................. 10

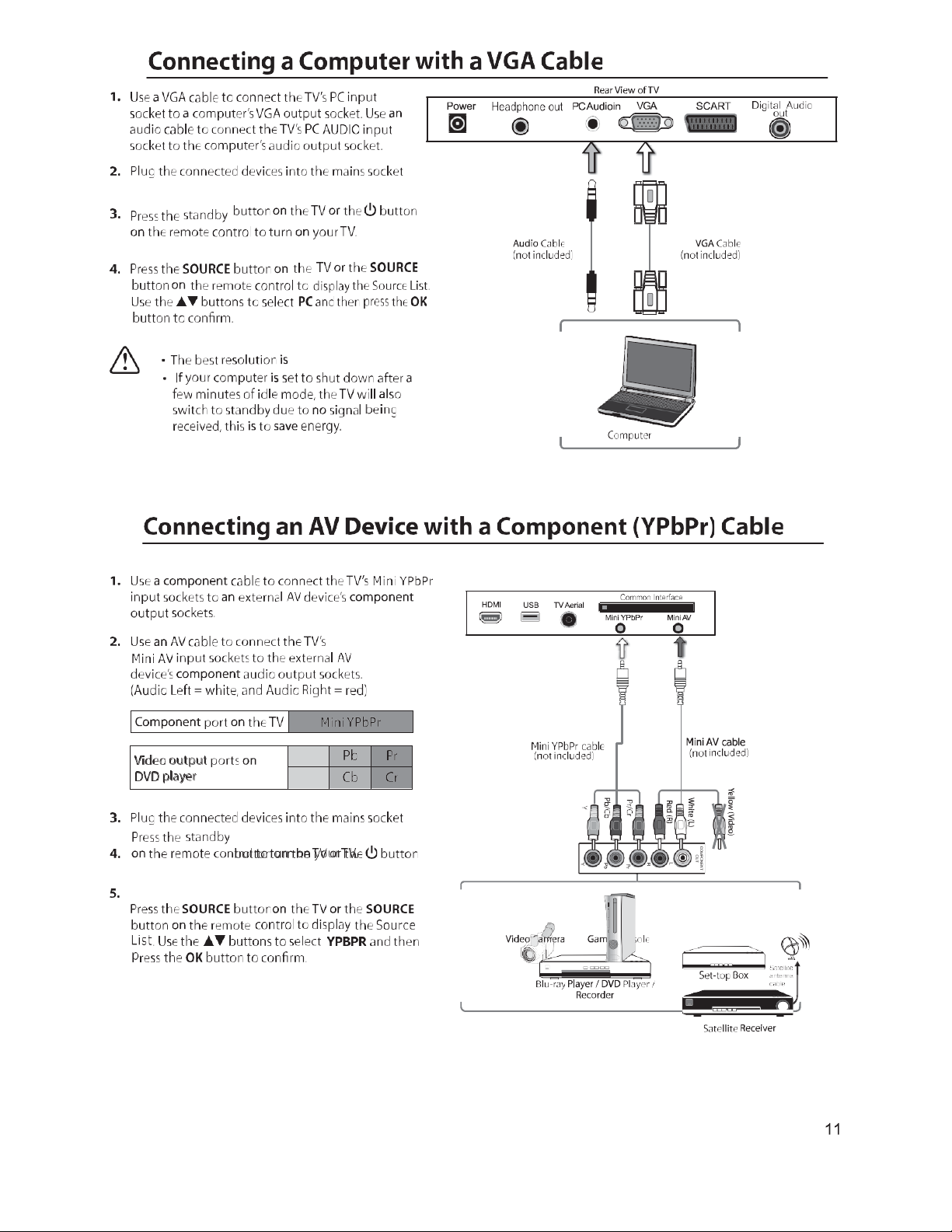

Connecting a Computer with a VGA Cable ...............................................................................................................................11
Connecting an AV Device with a Component (YPbPr) Cable ....................................................................................................11
Connecting an AV Device with a SCART Cable......................................................................................................................... 12
Connecting an AV Devicewith Composite Cable .............................................................................................................. 12
Connecting a Digital Audio Receiver................................................................................................................................. 13
Connecting Headphones ................................................................................................................................................. 13
Turning the TV on for the First Time ..................................................................................................................................................................:14-15
- Selecting theInput Source ......................................................................................................................................15
- Channel Selection...................................................................................................................................................15
- Display Channel Information...................................................................................................................................15
- Volume Adjustment.................................................................................................................................................15
Picture Setting • ............ •. ........... • .. • ............ •. ........... •. .............. •. ........... •. ........... •. .............. •. ........... •. ........... • ............ •. ........... • ............... • ............ •. .......... 16-17
Sound Setting ..................................................................................................................................................................18
- Stereo I Dual Sound Reception (ATV Mode) ....................................................................................................................... 18
- Speaker SoundOutput Selection (DTV Mode) .........................................................................................................18
Channel Setting (TV,DTVor Radio Mode) .........................................................................................................................19
- Channel Management............................................................................................................................................ 19
- Favorite Management..................................................................................................................................... 19
- Country •. ........... • ............... •. ........... • ............ •. .............. •. ........... •. ........... • ............... •. ........... • ............... •. ........... • ............ •. .............. •. ........... •. ........... • . 20
- Auto Search ...•......................................................................•.........................................•............................................................................................................. 20
- DTV Manual Search...............................................................................................................................................21
- ATV Manual Search ...................................................................................................................................................... 21
Feature Setting ................................................................................................................................................................22
- Lock........................................................................................................................................................................22
- Language ...............................................................................................................................................................22
- Clock ......................................................................................................................................................................23
- Sleep Time ..................................................................................................................................................................... 23
- Auto Standby..........................................................................................................................................................23
- Hearing I mpaired ................................................................................................................................................................... 23
- CI nfo.............................................................................................................................................................24
- PVR/Time Shift.......................................................................................................................................................25
Setup Setting ...................................................................................................................................................................26
- OSD Time....................................................................................................................................................................... 26
- PC Setup ....................................................•............................•.........................................•.........................................•............................•.............................. 26
- Blue Screen.................................................................................................................................................................... 26
- Home Mode.................................................................................................................................................................... 26
- Reset TV Setting.....................................................................................................................................................26

2
Contents
EPG (Electronic Programme Guide) (DTV Mode) ........................................................................................................................... 27
- Switch On / Off EPG................................................................................................................................................ 27
Teletext (ATV Mode) ................................................................................................................................................................28
- To Turn on Teletext Function.................................................................................................................................. 28
Digital Teletext (DTV Mode).....................................................................................................................................................28
- Teletext within Digital Service ................................................................................................................................ 28
Connecting a USBStorage Device...........................................................................................................................................29
Viewing Photos ............................................................................................................................................................... 30
Listeningto Music ............................................................................................................................................................ 30-31
Watching Movies....................................................................................................................................................... 31-32
Viewing Texts.................................................................................................................................................................. 32
Time Shift Function (DTV Mode)...................................................................................................................................... 33
Recording DTV Programme onto a USB Storage Device.........................................................................................................33
Timer Programming ........................................................................................................................................................ 34
Play Recorded Programme ...................................................................................................................................................... 35
Maintenance............................................................................................................................................................... 36
Hints and Tips ................................................................................................................................................................36-37
Display Modes .....................................................................................................................................................................38
YPbPr Mode.............................................................................................................................................................................38
PC Mode ..................................................................................................................................................................................38
HDMI Mode..................................................................................................................................................................... 38
Specifications...................................................................................................................................................................... 39
Safety Warnings ............................................................................................................................................................ 40-41
Waste Electrical Recycling ...................................................................................................................................... 42

3
Thankyoufor purchasing your new HD LED TV.
Your newTV has manyfeatures and incorporates the latest technology toenhance your viewing
experience.We recommend that you spend some time reading this instruction manual in order that you
fully understand these features. You will also find some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future reference.

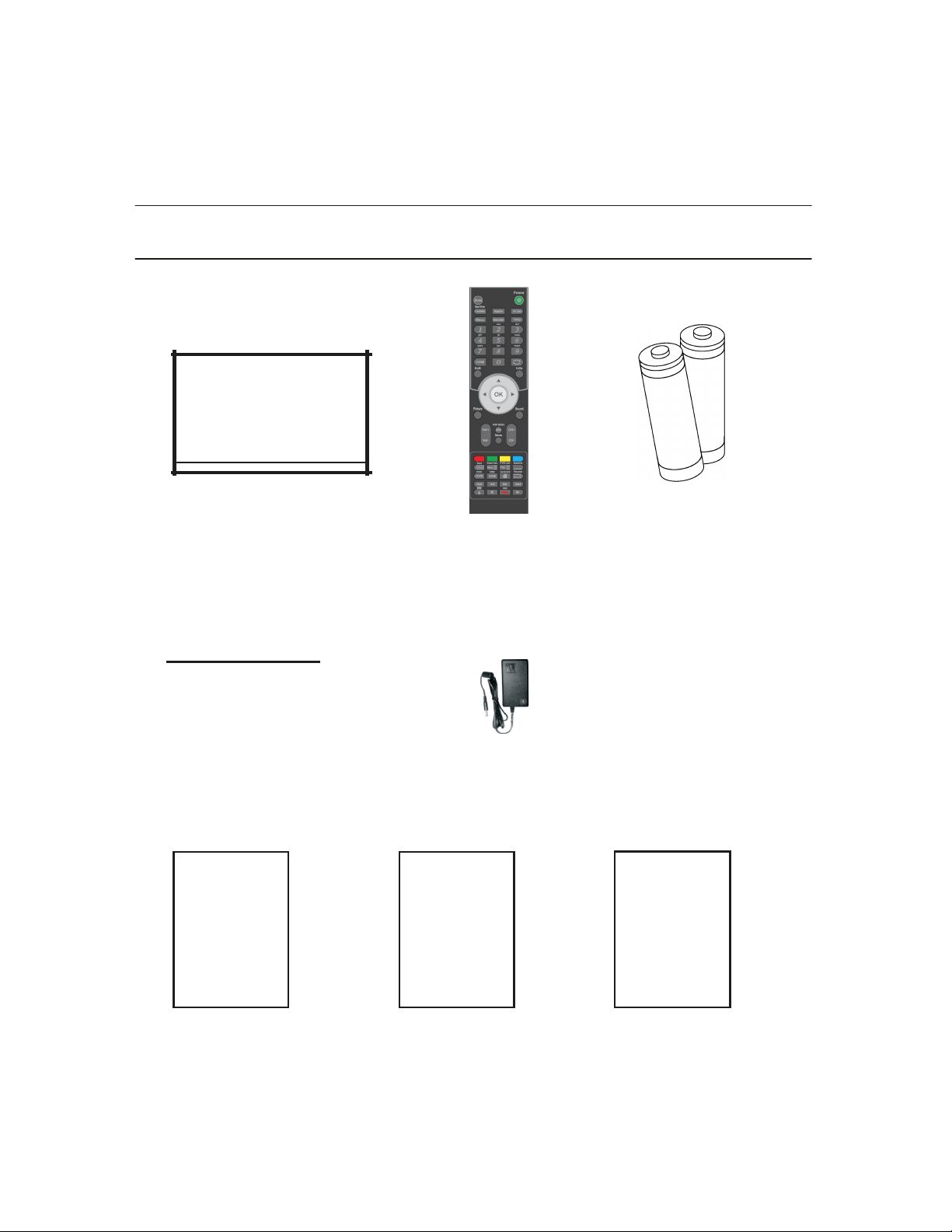

Unpackingthe TV / Accessory's
TV set
Remote Control
Batteries
Stand
Stand fixing screws Adapter
Quick Start Guide
Warranty Card Gold Care
QUICK START GUIDE
WARRANTY CARD
Gold Care

4
®

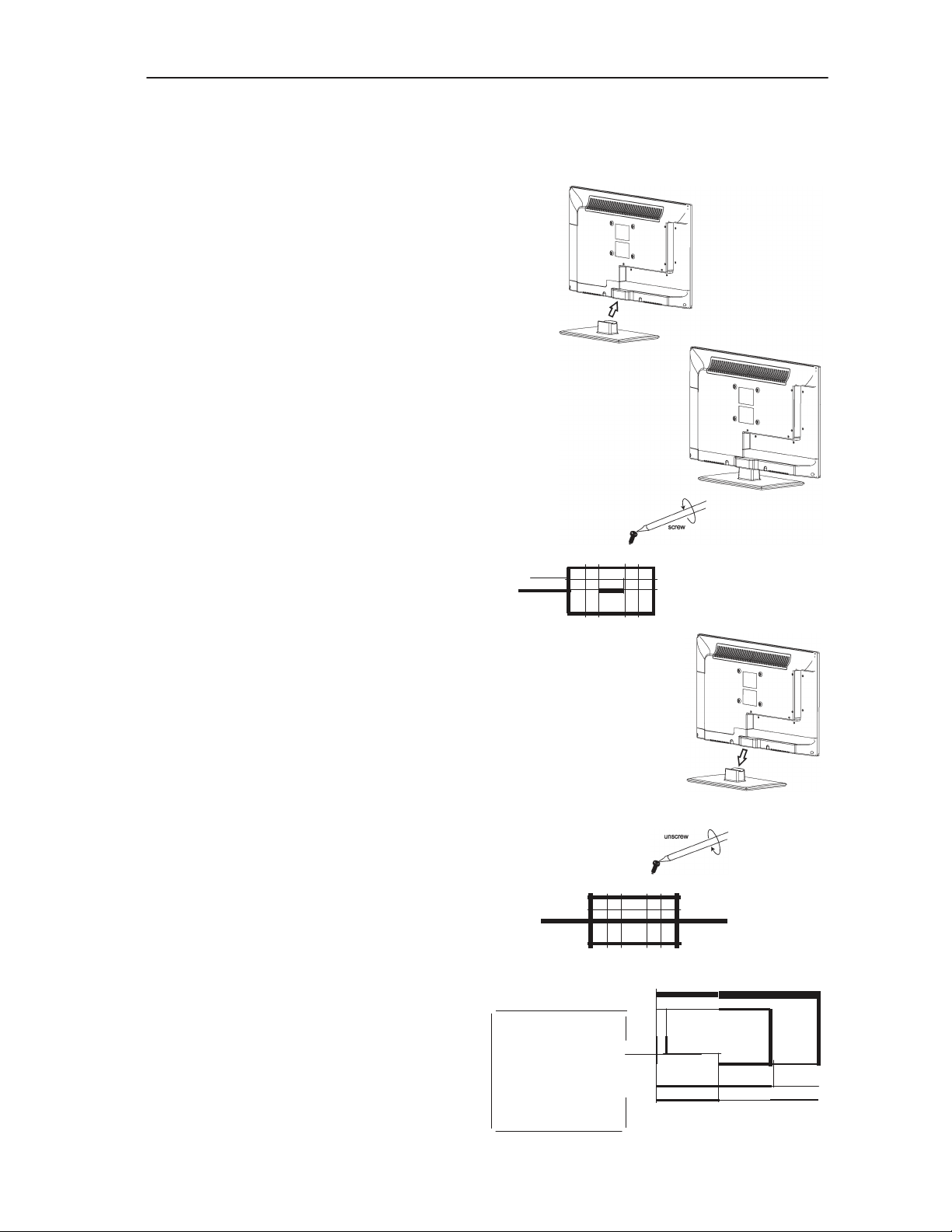

Installing / Removing the Base Stand
The LED display is very fragile, and must be protected at all times when installing and removing the base stand. Be
sure that no hard or sharp object,or anything that could scratch or damage the LED display, comes into contact with
it.DO NOT exert pressure on the front of the TV at any time because the screen could crack.
1. Disconnect all cables connected to the TV.
2. Lay the TV down on a flat surface with the back side
facing up. Please make sure to place a soft cushioned
material (such as a pillow or thick piece of foam) beneath
the screen.
3. To install the base stand first make sure you position
the front of the base stand facing towards the front of
the TV and then use the 2supplied screws to fix the base
stand to the TV.
The screw holes will only align if the front of
the base stand is facing towards the front of the TV
& Remove the stand base before wall mounting the TV.
4. To remove the stand assembly, lay the TV down on a flat
surface with the back side facing up. Please make sure
to place a soft cushioned material (such as a pillow or
thick piece of foam) beneath the screen.Remove the 2
screws that secure the stand base to the TV.Remove
the stand base by sliding it out.
Keep all the screws in a safe place, should
you want to attach the stand base at a later date.
This unit is VESA-Compl iant and designed to be wall
mounting kit. Mount this unit according to the instruc-
tions of the wall bracket (not supplied)
ITT!llllr--
mounted with a VESA-Compl iant 100mmx100mm
T
1
'
11 -
-
-
=
l
'
,
11
0
0
---------
1 111
I
100mm
rv
.
0 ,00mm
Four mounting holes
(Screw size M4 x 8)
o·
D.
---
®

5
Front / Right Side View and Controls
o- e
i i Ill
Item
Description
1
IR (Infrared Receiver)
Receives IR signals from the remote control.
Do not put anything near the sensor, as its function may be affected.
2
POWER LED
Illuminates green when the TV is turned on.Illuminates red when the TV is in standby
mode.The LED will alternate between red and green when the PVR timer
programming has started in the standby mode.
3
STANDBY
Switches the TV on from standby mode.
Switches the TV back to standby mode.
4
CH + / -
Press to select a channel or select a sub-menu from the 050 menu.
5
VOL + / -
Adjusts the volume.
Press to select and adjust a setting in the 050 menu.
6
MENU
Displays the 050 (on screen display) menu.
7
SOURCE
Press to select among different input signal sources:
DTV / ATV / SCART / YPbPr/ PC / HDMI / AV / Media .

6
Rear View and Sockets
Socket
Power
2
Headphone out
3
VGA/PC AUDIO IN
4
SCART
DIGITAL AUDIOOUT
(COAXIAL)
6 HDMI IN
7 use
8 TV Aerial
Description
Connect to power supply.
To connect to the earphones.
To connect to a computer or other devices with a VGA interface.
To connect to a VCR, DVD Player, or other AV device with a SCART output socket.
To connect to the audio socket on the digital/standard 5.1 audio system.
To connect to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
Allows the insertion of a USB storage device to play video, audio, photo and text files
(Media mode) and record DTV programmes on to a USB storage device.
To connect to the aerial socket on the wall with the RF coaxial cable.
9 Cl(Common Interface) Slot Allows the insertion of a Common Access Module.
10
Mini YPbPr To connect to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
11
Mini AV To connect to the Composite VIDEO and AUDIO (UR) output sockets on external video
devices.
.!:
C
0
E
.s
8
E
Cl
I
Power Headphone out PCAudioin VGA
(j)
SCART
s

7
Remote control
Dependant on the Model of the TV some keys will have no function
!Mute Mute sound
!Digital TV
Menu
Sound
Channel
Feature
Setup
Exit Exit from any menu
Picture / Aspect key
Volume +/-
Increase and decrease the volume
Teletext I MHEG5
(You can not record this)
DVD Switch to DVD mode *
DVD menu in DVD mode *
! Prev Track, File, Day . (Media , PVR, EPG)
* Show the keyboard in android mode
A DVD Eject *
Info key
In DTV mode-shows now/next.
2"d press Extended program Info.
Whilst Recording Shows detail of
recording and space available on the
Card.
Soft Keys.
The action is shown on the menu and
changes for each menu.
Reserved for MHEG in DTV
-- j Subtitle * DVD and DTV mode only
- ! Repeat Select the repeat mode
-- 1 Next Track, File , Day . (Media , PVR, EPG)
PVR & Multimedia
*Dependant on Model
Channel +/-
Increase and decrease the channel
number

8
Remote control (continued)
• Functions of remote control buttons
Dependant on the model of theTV some keys will have no function
Rad i o Switch between DTV and Radio .
HDMI Select the HDMI mode directly.
Quickstart
Recall the First nme Installation.
NUMBER BUTTONS
Press 0-9 to select a TV channel directly
when you are watching TV.
The channel change after 2 seconds.
Picture Swap Key
Back to last channel
POP MENU* POP MENU in blu-ray DVD
Timer
Show the Schedule list. (DTV mode)
USB Switch to USB mode
,.. Fast reverse
Stop PVR & Multimedia
PVR List
Display List of Recorded Programms
(DTV mode)
Android
*Switch to Android
*Android homepage in Android mode
shortcut to DVB-C source.
Fast forward
OSC*Show the OSC menu in
blu-ray DVD
Rec Start recording
*Dependant on Model
Thumb stick (.A.IT /<1111 / ... / OK)
Allows you to navigate the on-screen
menus and adjust the system settings to
your preference.
EPG
Press to enter the EPG,and press
again to exit
Input
DTV
ATV
AV
SCART
YPBPR
HDMI
PC
Media
