Celsi B-1004554 User manual

22” & 33” Ultiflame Electric Fire
Model No’s:
B-1004554, B-1004555
CEUL22RE-ERP, CEUL33RE-ERP
Packing Checklist
Electric Fire

Remote Control Handset*

Log Set

Ember Ice Set

Instruction Manual
*THIS PRODUCT REQUIRES 2 X AAA BATTERIES FOR USE IN THE HANDSET (NOT SUPPLIED)
IMPORTANT
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE
INSTALLATION AND USE OF THIS ELECTRIC FIRE AND RETAIN
FOR FUTURE REFERENCE.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or learning disabilities, or lack of experience
and knowledge, unless given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
Page 1

IMPORTANT SAFETY ADVICE
WHEN USING AN ELECTRICAL APPLIANCE, BASIC PRECAUTIONS SHOULD ALWAYS
BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO
PERSONS, INCLUDING THE FOLLOWING IMPORTANT SAFETY ADVICE.
DO NOT cover or obstruct the airflow to the front of the heater. This is to avoid over-heating
of the product.
DO NOT leave the heater unattended while it is in use. Always turn the appliance to the OFF
position and switch off at the mains socket when not in use.
DO NOT leave children unsupervised whilst the appliance is switched on.
DO NOT operate this appliance with a damaged cord or plug, or after the appliance
malfunctions, has been dropped or damaged in any way.
DO NOT install a timer switch to operate the appliance.
DO NOT use this appliance as a freestanding appliance. It must always be securely fixed into
a Chimney breast opening.
DO NOT insert or allow objects to enter any ventilation or exhaust openings on the appliance.
To prevent a possible fire do not block air intakes or exhaust openings in any manner.
DO NOT place this appliance near flammable materials, surfaces or substances, as there may
be a risk of fire. Keep flammable materials, surfaces or substances at least 1 metre away from
the front of the product.
DO NOT switch on the fire if volatile vapours are present in the room.
DO NOT use this appliance in any areas where petrol, paint or other flammable liquids are stored
e.g. a garage or a workshop as the appliance contains components capable of producing a spark.
DO NOT let bare skin touch any hot surfaces to avoid burns and personal injury. The heater vent
will get hot when in use.
DO NOT use outdoors.
CAUTION- Some parts of this product can become hot and cause burns. Particular attention has
to be given where children and vulnerable people are present.
This appliance is for household use only
Page 2

Product Technical Data Sheet
Supplier Name / Trademark CELSI
Supplier Model Identifier B-1004554, B-1004555 ULTIFLAME 22” & 33”
Voltage 230v AC 50HZ
Fuse 13 Amp
Nominal Heat Output (Measured) 1.6 kW
Minimum Heat Output (Indicative) 0.8 kW
Maximum Continuous Heat Output 1.6 kW
Auxiliary Electricity Consumption at Nominal Heat Output
0.016 kW
Auxiliary Electricity Consumption at Minimum Heat Output
0.016 kW
Auxiliary Electricity Consumption at Standby Mode
0.0005 kW
Type of heat Output / Room Temperature Control With electronic room temperature
control plus week timer
Other Control Options
With adaptive start control
Manufacturers Name and Address
BFM Europe Ltd. Gordon Banks Drive,
Trentham Lakes, Stoke-on-Trent, Staffs, ST4
4TJ Tel: [phone]
Ultiflame 22”
Ultiflame 33”
Page 3

Unpacking
Remove and discard the plastic bag.
Be responsible when handling the packing materials.
Keep the original packaging for future transportation and/or storage.
Check all accessories are removed from the packaging before storing it away for future use.
KEEP PLASTIC BAGS AWAY FROM CHILDREN!
Choosing a suitable location
This electric fire is designed to be fitted within an existing brick / masonry chimney breast which
must be dry with the chimney capped off using a suitable chimney cap.
The appliance must be kept away from any source of damp or moist conditions. Avoid any close
contact with water.
Important Notice: To reduce heat losses and to prevent any chimney up draught
affecting the operation of your fire we recommend that the chimney is blocked off.
The chimney breast, wall or fireplace must be of sound construction and all fixings used must
be suitable for the type of wall. If there is any doubt regarding the suitability of the installation
site please contact your supplier.
From the front of the fire ensure that there is a minimum clearance of 50mm between any
non-combustible materials. For combustible material clearances please consult with the
manufacturer.
The fire can be connected direct or plugged into a mains socket which can be sited on the
right hand side of the fire.
Ensure that the plug socket-outlet connection for this appliance is accessible. It MUST be readily
accessible for easy electrical isolation in the event of servicing and replacing components etc.
This appliance MUST NOT be located immediately below an electrical socket-outlet.
Page 4

Installation
Please refer to the relevant installation instructions applicable to the model fire
purchased. Installation must be carried out by a qualified and competent person.
The opening sizes required to install the fires are
Ultiflame 22”
H : 650mm
W : 610mm
D : 185mm
Ultiflame 33”
H : 605mm
W : 890mm
D : 185mm
Connect the appliance to single-phase AC supply of the voltage specified on the rating plate.
Should the fire be connected directly into the mains supply, then a fused switched spur with a
13 amp fuse must be fitted. It is imperative that the power supply is capable of handling a load
of 2000 watts (2kw). This appliance must be earthed. Allow sufficient flex to enable the fire to
be removed from the wall. Do not use an extension lead
IMPORTANT NOTE: Models which have LED downlights included in the suite / surround will
require an additional mains supply. If wired directly into the mains supply, then a fused
switched spur with a 3 amp fuse must be fitted ensuring that the plug socket-outlet connection
is accessible. It MUST be readily accessible for easy electrical isolation in the event of servicing
and replacing components etc.
Always ensure that all electrical work complies with the relevant Building Regulations
and the Electrical Code of Practice. All electrical work should be carried out by a
qualified electrician.
Page 5

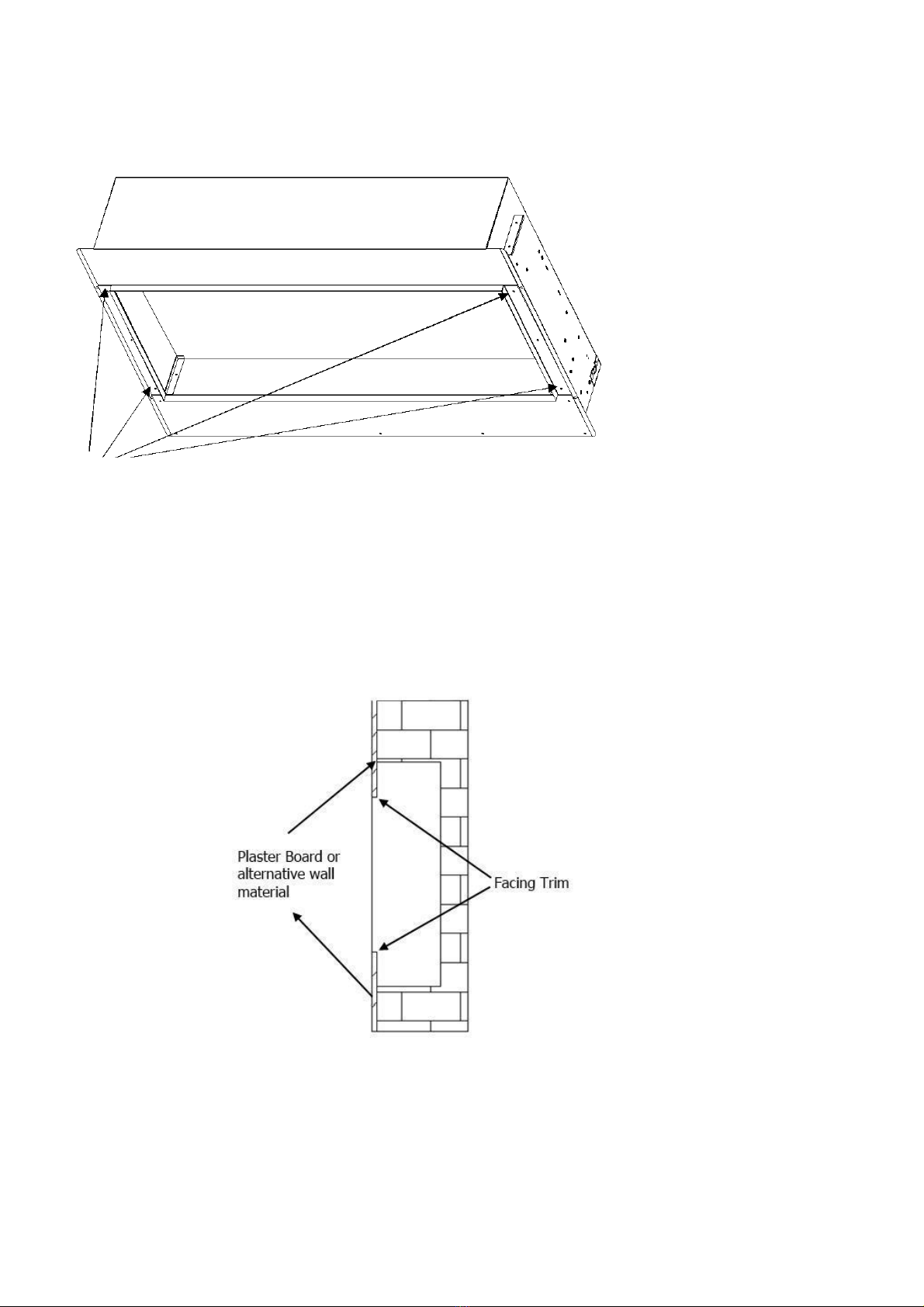

Ultiflame 22” & 33” Wall Mounting
The base of the fire opening must be solid, level and firmly fixed to safely support the weight
of the fire.
The fire is held in place using
4 suitable screws and
fasteners in the 4 fixing holes
on the sides of the appliance.
4 x Fixing Holes
A false studded chimney breast can be built with a plastered finish to encase the fire
The chimney wall can now be finished with plasterboard or an alternative facing material which
terminates at the facing trim.
The fire can be fitted direct into the chimney breast and plastered flush up to the facing trim
Ultiflame 22” & 33” with Trim option
Installation is the same principle as wall mounting but the fire is screwed to the plastered wall to
ensure that the facing trims protrude from the fire. For fitting of the trim please refer to the
instructions included with the trim.
Page 6

Rennes, Avignon & Lille Models (22”)
Fireplace opening for Pablo, Boticelli & Angelo Surrounds
When fitting this fire into a surround the fireplace opening needs to be prepared at
differing heights dependent upon which surround type is to be installed.
Pablo Surround
Fire opening to be
146mm from floor level
Boticelli Surround
Fire opening to be
146mm from floor level
Angelo Surround
Fire opening to be
172mm from floor level
Page 7

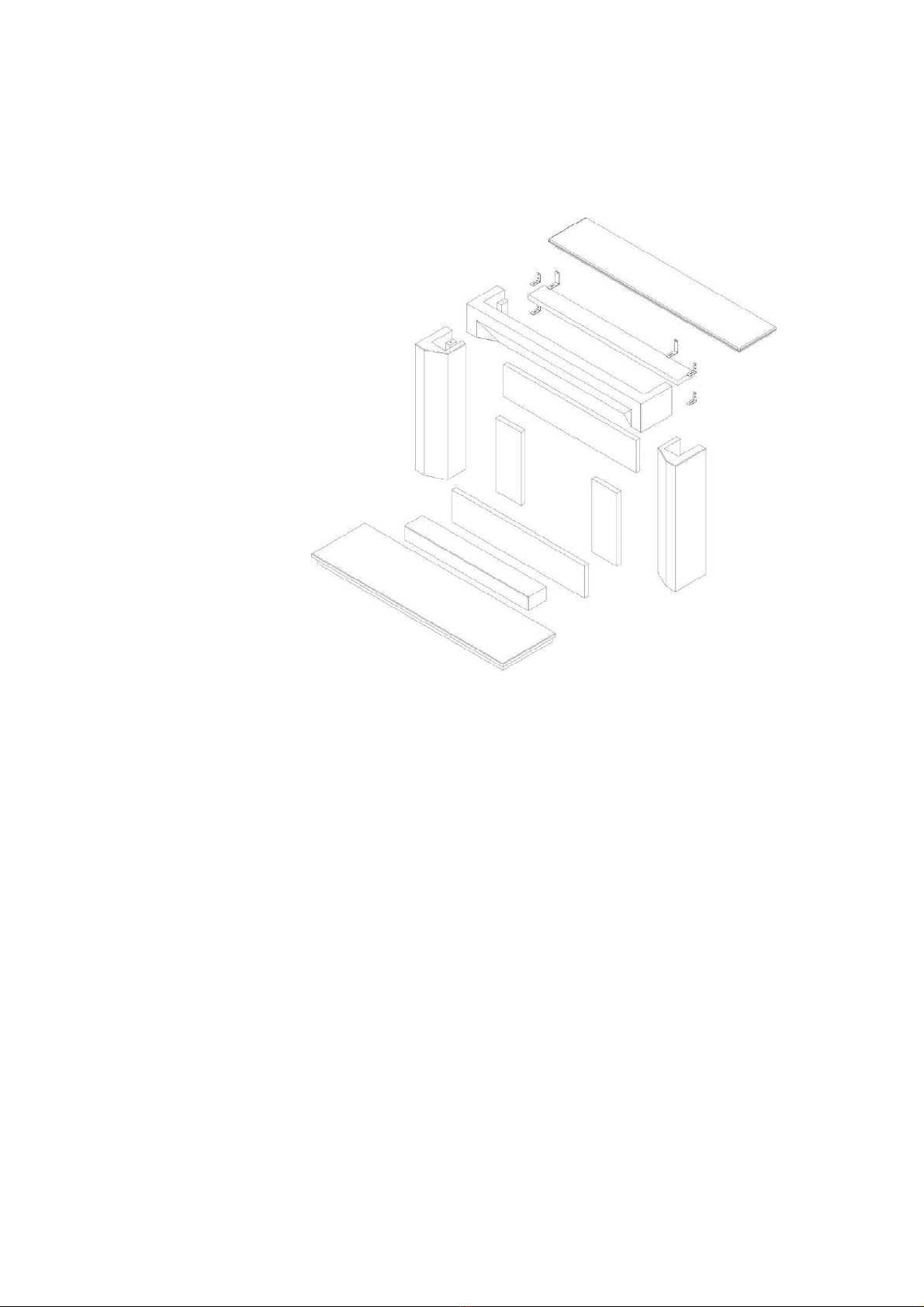

INSTALLING THE “PABLO” SURROUND
1. Unpack the surround from the wooden crate, check all parts are present and carefully store
the components.

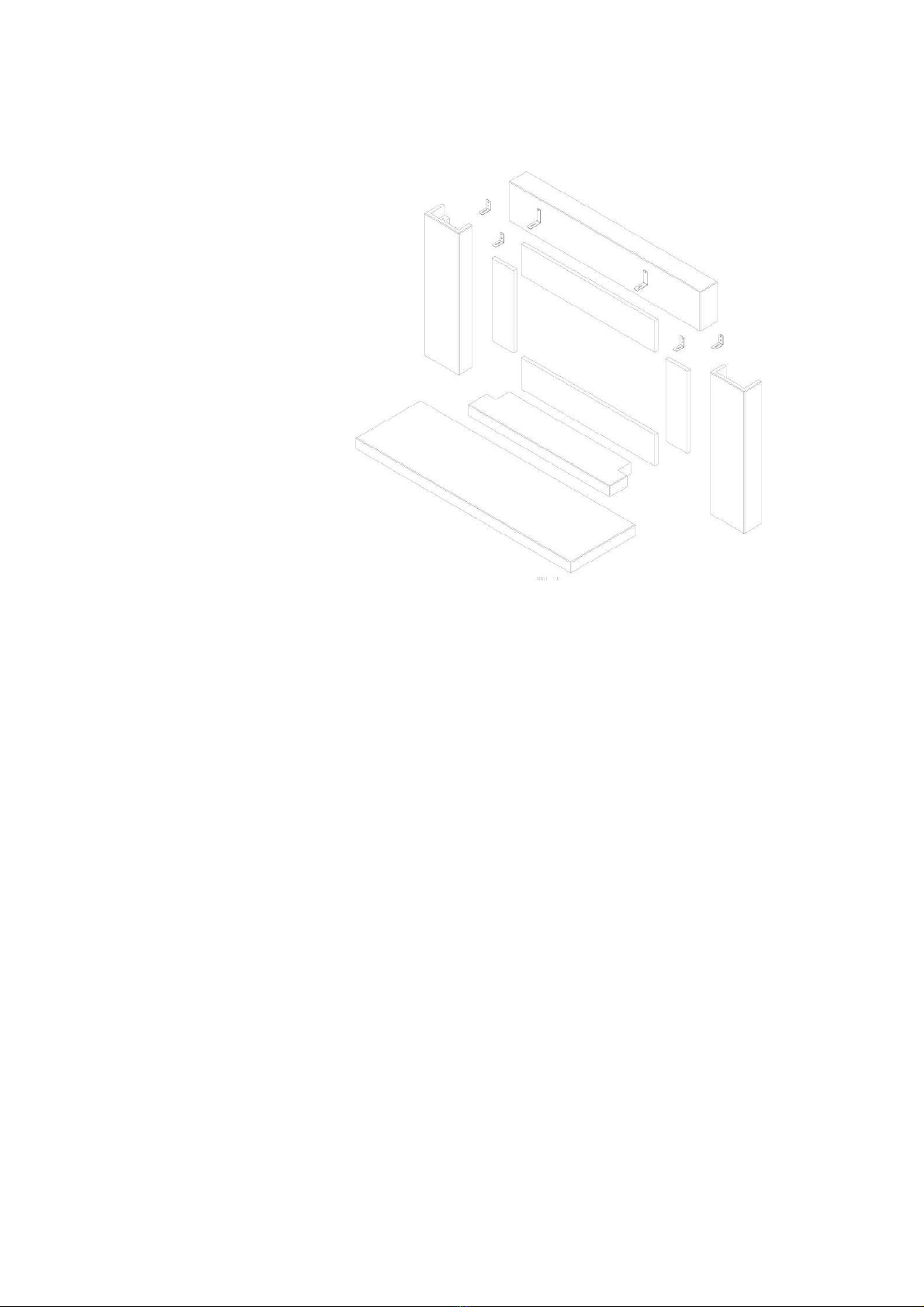

Contents of Pablo surround:-
1 off hearth panel
1 off R/H leg
1 off L/H leg
1 off R/H infill section
1 off L/H infill section
1 off bottom infill section
1 off shelf
1 off stub hearth
2. The underside of the hearth should be painted with a weak PVA (8 parts water to 1 part
PVA). This will prevent staining penetrating through the stone. The hearth must be
centred to the opening. If the fireplace is to be installed on a chimney breast ensure that
the opening is also centred to the chimney breast. It is essential that the hearth is
completely level. The hearth must be bedded down on bonding or an equivalent material.
Avoid cement based products and ensure the hearth is firmly fitted and well supported.
Allow the bedding material to set before any weight is placed onto the hearth. Wipe off
any surplus bonding material with a wet sponge.
3. Fit bottom section to hearth, ensure it is central before fixing with a suitable
mastic adhesive.
4. Fit brackets to top of legs, offer leg up to wall and mark position of fixing hole on wall, use
shelf to ensure legs are correctly spaced / positioned. Remove shelf then cover hearth with
dust sheet and drill the fixing holes. Remove the brackets from the legs, fix the side infills
into place with suitable adhesive and secure the leg fixing brackets only to the wall. Fit legs
to brackets that have been securely attached to the wall with fixings as detailed in Point 5.
5. Assess the chimney breast onto which the fire is to be installed and ensure that
it is of sound construction and suitable for supporting the weight of the
surround. Fixings used to secure the leg brackets to the masonry of the
chimney breast shall be of expansive stainless steel or galvanised steel type
masonry fixings for dense concrete blockwork or brickwork. Where fixings are
located into light weight blockwork or friable aggregate blocks, the fixings shall
be of the resin anchor type.
Page 8

6. Fix the top infill and shelf infill into place again with suitable mastic adhesive.
7. Fit shelf into place ensuring it is correctly aligned with legs, mark the position of holes for
securing brackets on wall, remove shelf and drill wall and insert fixings in accordance with
Point 5, these brackets can be recessed if required. Fit the stub hearth in position between
the legs.

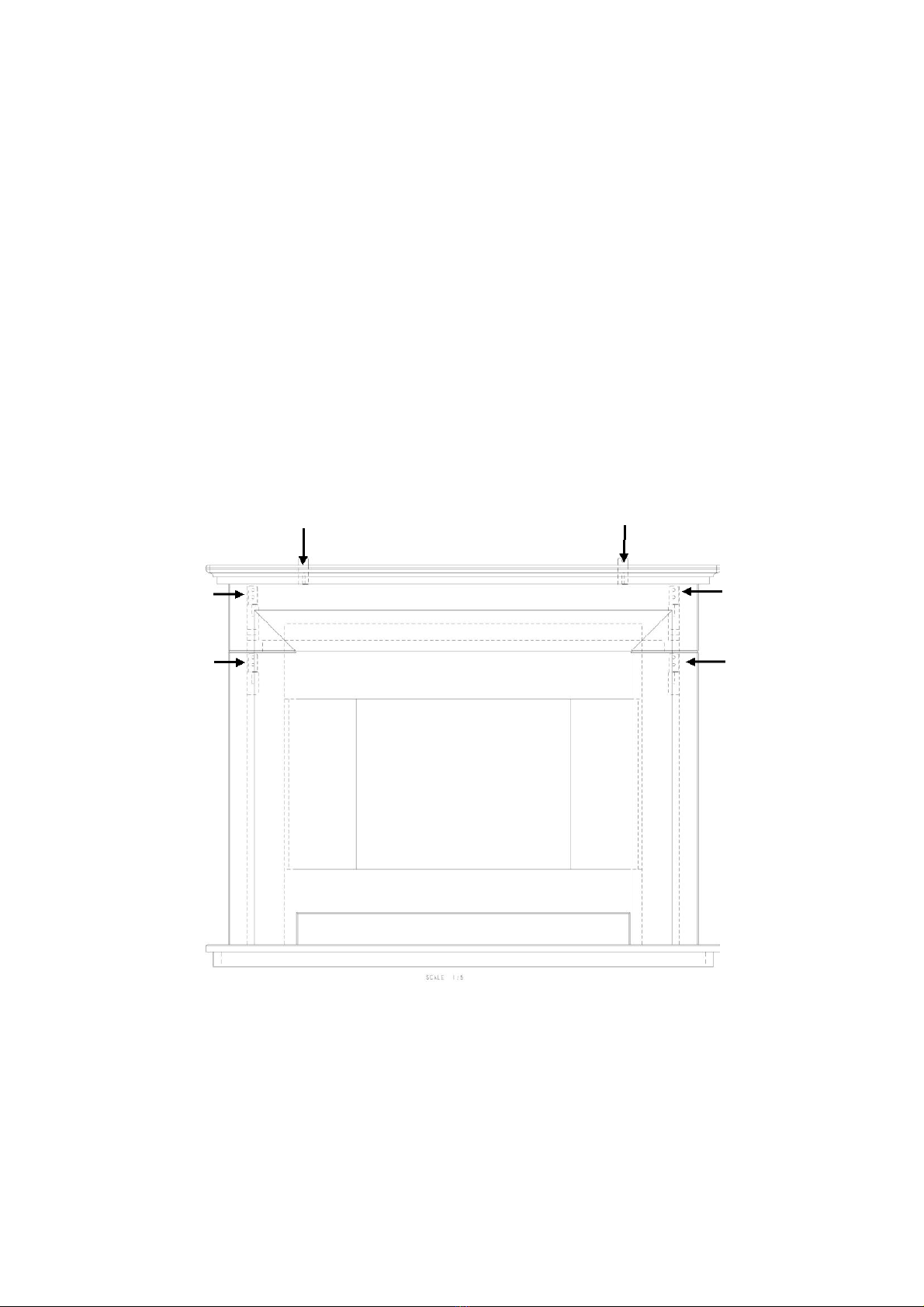

8. Ensure that the surround components as shown below are mechanically secured as
indicated, this is required in accordance with the latest revision of BS 1251 : 2015
Open Fireplace Components.
9. Once the fireplace is correctly installed, grout all of the joints including between the
fireplace and the wall with a water based cream mastic or tile grout. Ensure all surplus
grout is immediately removed by washing the stonework using a sponge and clean water.
Page 9

INSTALLING THE “BOTICELLI” SURROUND
1. Unpack the surround from the wooden crate, check all parts are present as per below and
carefully store the components.

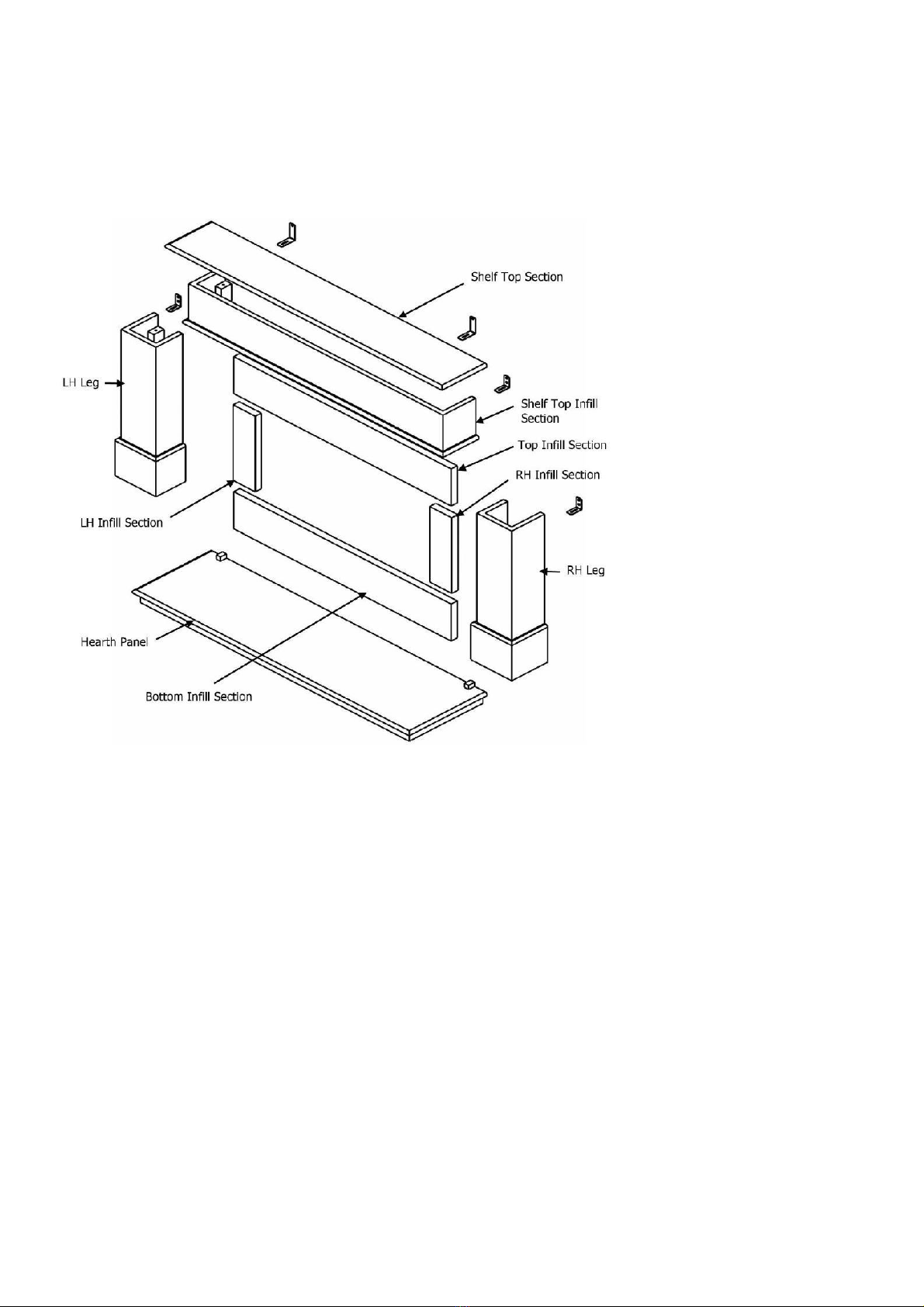

Contents of Boticelli surround:-
1 off hearth panel
1 off R/H leg
1 off L/H leg
1 off R/H infill section
1 off L/H infill section
1 off bottom infill section
1 off shelf top infill section
1 off shelf top section
1 off top infill section
1 off stub hearth
2. The underside of the hearth should be painted with a weak PVA (8 parts water to 1 part
PVA). This will prevent staining penetrating through the stone. The hearth must be
centred to the opening. If the fireplace is to be installed on a chimney breast ensure that
the opening is also centred to the chimney breast. It is essential that the hearth is
completely level. The hearth must be bedded down on bonding or an equivalent material.
Avoid cement based products and ensure the hearth is firmly fitted and well supported.
Allow the bedding material to set before any weight is placed onto the hearth. Wipe off
any surplus bonding material with a wet sponge.
3. Fit bottom section to hearth, ensure it is central before fixing with a suitable
mastic adhesive.
4. Fit brackets to top of legs, offer leg up to wall and mark position of fixing hole on wall, use
shelf to ensure legs are correctly spaced / positioned. Remove shelf then cover hearth with
dust sheet and drill the fixing holes. Remove the brackets from the legs, fix the side infills
into place with suitable adhesive and secure the leg fixing brackets only to the wall. Fit legs
to brackets that have been securely attached to the wall with fixings as detailed in Point 5.
5. Assess the chimney breast onto which the fire is to be installed and ensure that it is
of sound construction and suitable for supporting the weight of the surround.
Fixings used to secure the leg brackets to the masonry of the chimney breast shall
be of expansive stainless steel or galvanised steel type masonry fixings for dense
concrete blockwork or brickwork. Where fixings are located
Page 10

into light weight blockwork or friable aggregate blocks, the fixings shall be
of the resin anchor type.
6. Fix the shelf top infill section and shelf infill into place again utilising the same procedure
as for the legs, i.e. mark positions, drill holes to suit, remove brackets and secure brackets
to wall with suitable fixings as detailed in Point 5.
7. Fit shelf top section into place ensuring it is correctly centred, mark the position of holes for
securing brackets on wall, remove shelf and drill wall and insert fixings in accordance with
Point 5, these brackets can be recessed if required. Fit the stub hearth in position between
the legs.
8. Ensure that the surround components as shown below are mechanically secured as
indicated, this is required in accordance with the latest revision of BS 1251 : 2015
Open Fireplace Components.
9. Once the fireplace is correctly installed, grout all of the joints including between the fireplace
and the wall with a water based cream mastic or tile grout. Ensure all surplus grout is
immediately removed by washing the stonework using a sponge and clean water
Page 11

INSTALLING THE “ANGELO” SURROUND
1. Unpack the surround from the wooden crate, check all parts are present as per below and
carefully store the components.
Contents of Angelo surround:-
1 off hearth panel
1 off R/H leg
1 off L/H leg
1 off R/H infill section
1 off L/H infill section
1 off bottom infill section
1 off shelf top infill section
1 off shelf top section
1 off top infill section
1 off stub hearth
2. The underside of the hearth should be painted with a weak PVA (8 parts water to 1 part
PVA). This will prevent staining penetrating through the stone. The hearth must be
centred to the opening. If the fireplace is to be installed on a chimney breast ensure that
the opening is also centred to the chimney breast. It is essential that the hearth is
completely level. The hearth must be bedded down on bonding or an equivalent material.
Avoid cement based products and ensure the hearth is firmly fitted and well supported.
Allow the bedding material to set before any weight is placed onto the hearth. Wipe off
any surplus bonding material with a wet sponge.
3. Fit bottom section to hearth, ensure it is central before fixing with a suitable
mastic adhesive.
4. Fit brackets to top of legs, offer leg up to wall and mark position of fixing hole on wall, use
shelf to ensure legs are correctly spaced / positioned. Remove shelf then cover hearth with
dust sheet and drill the fixing holes. Remove the brackets from the legs, fix the side infills
into place with suitable adhesive and secure the leg fixing brackets only to the wall. Fit legs
to brackets that have been securely attached to the wall with fixings as detailed in Point 5.
Page 12

5. Assess the chimney breast onto which the fire is to be installed and ensure that
it is of sound construction and suitable for supporting the weight of the
surround. Fixings used to secure the leg brackets to the masonry of the
chimney breast shall be of expansive stainless steel or galvanised steel type
masonry fixings for dense concrete blockwork or brickwork. Where fixings are
located into light weight blockwork or friable aggregate blocks, the fixings shall
be of the resin anchor type.
6. Fix the shelf top infill section and shelf infill into place again utilising the same procedure
as for the legs, i.e. mark positions, drill holes to suit, remove brackets and secure brackets
to wall with suitable fixings as detailed in Point 5.
7. Fit shelf top section into place ensuring it is correctly centred, mark the position of holes for
securing brackets on wall, remove shelf and drill wall and insert fixings in accordance with
Point 5, these brackets can be recessed if required. Fit the stub hearth in position between
the legs.
8. Ensure that the surround components as shown below are mechanically secured as
indicated, this is required in accordance with the latest revision of BS 1251 : 2015
Open Fireplace Components .
9. Once the fireplace is correctly installed, grout all of the joints including between the
fireplace and the wall with a water based cream mastic or tile grout. Ensure all surplus
grout is immediately removed by washing the stonework using a sponge and clean water.
Page 13

Parada Illumia Elite & Avignon Elite Models (33”)
Fireplace opening for Parada Illumia Elite & Avignon Elite Surrounds
When fitting this fire into these surrounds the fireplace opening needs to be prepared at
103mm from the floor as shown below
INSTALLING THE “PARADA ILLUMIA ELITE” SURROUND
1. Unpack the surround from the wooden crate, check all parts are present as per below and
carefully store the components.
Contents of
surround:-1 off hearth
panel 1 off R/H leg
1 off L/H leg
1 off R/H infill section
1 off L/H infill section
1 off bottom infill section
1 off shelf top infill section
1 off shelf top section
1 off top infill section
1 off Down Lighting Kit
(not shown) includes
2 off MR11 2.4W 3000K LED Bulbs
2 off chrome downlights
1 off wiring Loom
1 off Remote handset
1 off 23A 12V Battery (A23)
1 off Handset wall bracket
Page 14

2. The underside of the hearth should be painted with a weak PVA (8 parts water to 1 part
PVA). This will prevent staining penetrating through the stone. The hearth must be
centred to the opening. If the fireplace is to be installed on a chimney breast ensure that
the opening is also centred to the chimney breast. It is essential that the hearth is
completely level. The hearth must be bedded down on bonding or an equivalent material.
Avoid cement based products and ensure the hearth is firmly fitted and well supported.
Allow the bedding material to set before any weight is placed onto the hearth. Wipe off
any surplus bonding material with a wet sponge.
3. Fit bottom section to hearth, ensure it is central before fixing with a suitable
mastic adhesive.
4. Fit brackets to top of legs, offer leg up to wall and mark position of fixing hole on wall, use
shelf to ensure legs are correctly spaced / positioned. Remove shelf then cover hearth with
dust sheet and drill the fixing holes. Remove the brackets from the legs, fix the side infills
into place with suitable adhesive and secure the leg fixing brackets only to the wall. Fit legs
to brackets that have been securely attached to the wall with fixings as detailed in Point 5
5. Assess the chimney breast onto which the fire is to be installed and ensure that
it is of sound construction and suitable for supporting the weight of the
surround. Fixings used to secure the leg brackets to the masonry of the
chimney breast shall be of expansive stainless steel or galvanised steel type
masonry fixings for dense concrete blockwork or brickwork. Where fixings are
located into light weight blockwork or friable aggregate blocks, the fixings shall
be of the resin anchor type.
6. Fix the shelf top infill section and shelf infill into place again utilising the same procedure
as for the legs, i.e. mark positions, drill holes to suit, remove brackets and secure brackets
to wall with suitable fixings as detailed in Point 5.
7. Safely route the lighting kit wiring up to the surround shelf infill level ensuring that the
wiring is kept clear of the fire and not trapped.
8. Remove the round locking clip from inside the chrome down lighter and fit the supplied LED
bulb. Refit the locking ring inside to keep the bulb in place. Repeat for the second down
lighter
9. Fit the 2 down lighters from the underside of the shelf top infill header, by lifting the spring
clamps and fitting into the two holes in the Shelf top infill
10. Once fitted in place connect the 2 bulbs using the two connectors on the wiring loom and
ensure the wiring, remote receiver unit and power unit are safely routed in the surround
11.Fit the supplied battery in the remote control handset and switch on power to the
downlights. Check the lighting works correctly with the remote control. If required move
the position of the remote receiver unit and aerial wire to ensure good signal coverage.
After checking the lighting switch off the power before proceeding.
Page 15

12.Fit shelf top section into place ensuring it is correctly centred, mark the position of holes for
securing brackets on wall, remove shelf and drill wall and insert fixings in accordance with
Point 5, these brackets can be recessed if required.
13.Ensure that both the Legs, the Top Infill section and the Shelf Top section are secured
using the supplied brackets, this is required in accordance with the latest revision of
BS 1251 : 2015 Open Fireplace Components .
14.Once the fireplace is correctly installed, grout all of the joints including between the
fireplace and the wall with a water based cream mastic or tile grout. Ensure all surplus
grout is immediately removed by washing the stonework using a sponge and clean water.
Page 16

INSTALLING THE “AVIGNON ELITE” SURROUND
1. Unpack the surround from the wooden crate, check all parts are present as per below and
carefully store the components.
Contents of Avignon surround:-
1 off hearth panel 1 off R/H leg
1 off L/H leg
1 off R/H infill section
1 off L/H infill section
1 off bottom infill section
1 off shelf top infill section
1 off shelf top section
1 off top infill section
2. The underside of the hearth should be painted with a weak PVA (8 parts water to 1 part
PVA). This will prevent staining penetrating through the stone. The hearth must be
centred to the opening. If the fireplace is to be installed on a chimney breast ensure that
the opening is also centred to the chimney breast. It is essential that the hearth is
completely level. The hearth must be bedded down on bonding or an equivalent material.
Avoid cement based products and ensure the hearth is firmly fitted and well supported.
Allow the bedding material to set before any weight is placed onto the hearth. Wipe off
any surplus bonding material with a wet sponge.
3. Fit bottom section to hearth, ensure it is central before fixing with a suitable
mastic adhesive.
4. Fit brackets to top of legs, offer leg up to wall and mark position of fixing hole on wall, use
shelf to ensure legs are correctly spaced / positioned. Remove shelf then cover hearth with
dust sheet and drill the fixing holes. Remove the brackets from the legs, fix the side infills
into place with suitable adhesive and secure the leg fixing brackets only to the wall. Fit legs
to brackets that have been securely attached to the wall with fixings as detailed in Point 5.
Page 17

5. Assess the chimney breast onto which the fire is to be installed and ensure that
it is of sound construction and suitable for supporting the weight of the
surround. Fixings used to secure the leg brackets to the masonry of the
chimney breast shall be of expansive stainless steel or galvanised steel type
masonry fixings for dense concrete blockwork or brickwork. Where fixings are
located into light weight blockwork or friable aggregate blocks, the fixings shall
be of the resin anchor type.
6. Fix the shelf top infill section and shelf infill into place again utilising the same procedure
as for the legs, i.e. mark positions, drill holes to suit, remove brackets and secure brackets
to wall with suitable fixings as detailed in Point 5.
7. Fit shelf top section into place ensuring it is correctly centred, mark the position of holes for
securing brackets on wall, remove shelf and drill wall and insert fixings in accordance with
Point 5, these brackets can be recessed if required.
8. Ensure that both the Legs, the Top Infill section and the Shelf Top section are secured
using the supplied brackets, this is required in accordance with the latest revision of
BS 1251 : 2015 Open Fireplace Components .
9. Once the fireplace is correctly installed, grout all of the joints including between the
fireplace and the wall with a water based cream mastic or tile grout. Ensure all surplus
grout is immediately removed by washing the stonework using a sponge and clean water.
Page 18

Laying the Logs & Embers –22” Models
The Logs and the Ember Ice are packed in a box within the fire. Take care when unpacking the
Logs and the Ember Ice. Scatter the Ember Ice over the Log Bed Base making sure the black and
clear embers are mixed evenly. Identify the 4 off individual logs by shape then lay the Logs on
top of the Ember Ice as shown in the pictures below.
Log 2
Log 1
Log 3
Log 4
Log 1
Log 3
Log 2
Log 4
Page 19

Laying the Logs & Embers –33” Models
The Logs and the Ember Ice are packed in a box within the fire. Take care when unpacking the
Logs and the Ember Ice. Scatter the Ember Ice over the Log Bed Base making sure the black and
clear embers are mixed evenly. Identify the 5 off individual logs by shape then lay the Logs on
top of the Ember Ice as shown in the pictures below.
Log 3
Log 2
Log 4
Log 1
Log 5
Log 1
Log 3
Log 5
Log 2
Log 4
Page 20
