Celsi Electriflame VR Commodus S User manual

Page 1
Electriflame VR Commodus S Electric Fire
Electriflame VR Commodus S-1000 - B-1031402 - EFVR10RE
Electriflame VR Commodus S-1250 - B-1032386 - EFVR12RE
Electriflame VR Commodus S-1600 - B-1031403 - EFVR16RE
Packing Checklist
•Electric Fire
•Remote Control Handset* with wall mounting bracket
•Log Set
•Ember Ice Set
•Instruction Manual
*THIS PRODUCT REQUIRES 3 X AAA BATTERIES FOR USE IN THE HANDSET (NOT SUPPLIED)
IMPORTANT
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE
INSTALLATION AND USE OF THIS ELECTRIC FIRE AND RETAIN FOR
FUTURE REFERENCE.
Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3
years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its
intended normal operating position and they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance or perform user maintenance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
learning disabilities, or lack of experience and knowledge, unless given supervision or instruction concerning use of
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.

Page 2
IMPORTANT SAFETY ADVICE
WHEN USING AN ELECTRICAL APPLIANCE, BASIC PRECAUTIONS SHOULD ALWAYS BE
FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO
PERSONS, INCLUDING THE FOLLOWING IMPORTANT SAFETY ADVICE.
DO NOT cover the heater, to avoid overheating of the product.
DO NOT leave the heater unattended while it is in use. Always turn the appliance to the OFF
position and switch off at the mains socket when not in use.
DO NOT leave children unsupervised whilst the appliance is switched on.
DO NOT operate this appliance with a damaged cord or plug, or after the appliance malfunctions,
has been dropped or damaged in any way. Contact the manufacturer.
DO NOT install a timer switch to operate the appliance.
DO NOT use this appliance as a freestanding appliance. It must always be securely fixed in
accordance with the manufacturer’s instructions.
DO NOT insert or allow objects to enter any ventilation or exhaust openings on the appliance. To
prevent a possible fire do not block air intakes or exhaust openings in any manner.
DO NOT place this appliance near flammable materials, surfaces or substances, as there may be
a risk of fire. Keep flammable materials, surfaces or substances at least 1 metre away from the
front of the product.
DO NOT switch on the fire if volatile vapours are present in the room.
DO NOT use this appliance in any areas where petrol, paint or other flammable liquids are stored
e.g. a garage or a workshop as the appliance contains components capable of producing a spark.
DO NOT touch any hot surfaces such as the heater vent when the heater is in use to avoid burns
and personal injury.
DO NOT install the heater immediately below an electrical socket outlet.
DO NOT use outdoors.
CAUTION- Some parts of this product can become hot during use and cause burns. Particular
attention has to be given where children and vulnerable people are present.
This appliance is for household use only

Page 3
Product Technical Data Sheet
Supplier Name / Trademark
CELSI
Supplier Model Identifier
B-1031402, B-1032386, B-1031403
ELECTRIFLAME VR COMMODUS S-1000, S-1250 &
S-1600
Voltage
230v AC 50HZ
Fuse
13 Amp
Nominal Heat Output (Measured)
1.6 kW
Minimum Heat Output (Indicative)
0.8 kW
Maximum Continuous Heat Output
1.6 kW
Type of heat Output / Room Temperature Control
Other Control Options
With adaptive start control
Manufacturers Name and Address
BFM Europe Ltd. Gordon Banks Drive, Trentham
Lakes, Stoke-on-Trent, Staffs, ST4 4TJ
Tel: [phone]
Fire Dimensions
Commodus S-1000 Commodus S-1250 Commodus S-1600
Height 470mm 470mm 470mm
Depth 219mm 219mm 219mm
Width 1002mm 1252mm 1602mm
With electronic room temperature
control plus 7 day timer

Page 4
Unpacking
Remove and discard the plastic bag.
Be responsible when handling the packing materials.
Keep the original packaging for future transportation and/or storage.
Check all accessories are removed from the packaging before storing it away for future use.
KEEP PLASTIC BAGS AWAY FROM CHILDREN!
Choosing a suitable location
This electric fire is designed to be fitted into a studded wall or supplied suite. Alternatively it can
be wall mounted to a solid wall using the wall mounting bracket as fitted to the rear of the fire.
The appliance must be kept away from any source of damp or moist conditions. Avoid any close
contact with water.
The wall must be of sound construction and all fixings used must be suitable for the type of wall.
If there is any doubt regarding the suitability of the installation site please contact your supplier.
From the front of the fire ensure that there is a minimum clearance of 50mm between any non-
combustible materials. For combustible material clearances please consult with the manufacturer.
The fire can be connected direct or plugged into a mains socket which can be sited on the right
hand side of the fire.
Ensure that the plug socket-outlet connection for this appliance is accessible. It MUST be readily
accessible for easy electrical isolation in the event of servicing and replacing components etc. This
appliance MUST NOT be located immediately below an electrical socket-outlet.
Installation
Installation must be carried out by a qualified and competent person.
Connect the appliance to single-phase AC supply of the voltage specified on the rating plate.
Should the fire be connected directly into the mains supply, then a fused switched spur with a 13
amp fuse must be fitted. It is imperative that the power supply is capable of handling a load of
2000 watts (2kw). This appliance must be earthed. Allow sufficient flex to enable the fire to be
removed from the wall. Do not use an extension lead.
Always ensure that all electrical work complies with the relevant Building Regulations
and the Electrical Code of Practice. All electrical work should be carried out by a
qualified electrician.

Page 5
Wall Mounting
Using a screwdriver remove the two screws that secure the wall mounting bracket to the top of
the appliance and remove the wall mounting bracket and keep in a safe place.
Position the mounting bracket where the appliance is to be installed on the wall and ensure that
the bracket is level. Mark all 12 holes on the wall mounting bracket as shown below.
Fix bracket to wall using suitable size screws and wall plugs appropriate for the walls construction.
Note heavy duty wall anchors or equivalent should be used when installing onto hollow/studded
walls.
Hang the appliance onto the hooks at the bottom of the bracket and push the top of the appliance
into the mounting bracket. Now fix the appliance to the mounting bracket by refitting the two
screws which were removed at the beginning.
3
1
2

Page 6
Studded Wall Installation (Media Wall)
The fire can be installed as either a 1, 2 or 3 glass sided product. Out of the box the fire comes
with removable side panels fitted to both ends of the firebox.
These side panels can be removed to create a side glass viewing window depending on your
installation requirements. Remove the screws which hold the side brackets and side panel, refit
the side brackets back into position.

Page 7
Laying the Log & Embers
Whilst supporting the front glass to prevent it from falling forward, remove the screws holding
the glass clamp (see page 6) in place. Carefully tilt glass panel forward so the top edge is clear
of chassis and slide upward enough to clear location at bottom of fire. Remove the glass and
put in a safe place.
Take care when unpacking the Logs and the Ember Ice crystals supplied with your fire. Scatter
the Ember Ice over the fire bed making sure the black and clear embers are mixed evenly.

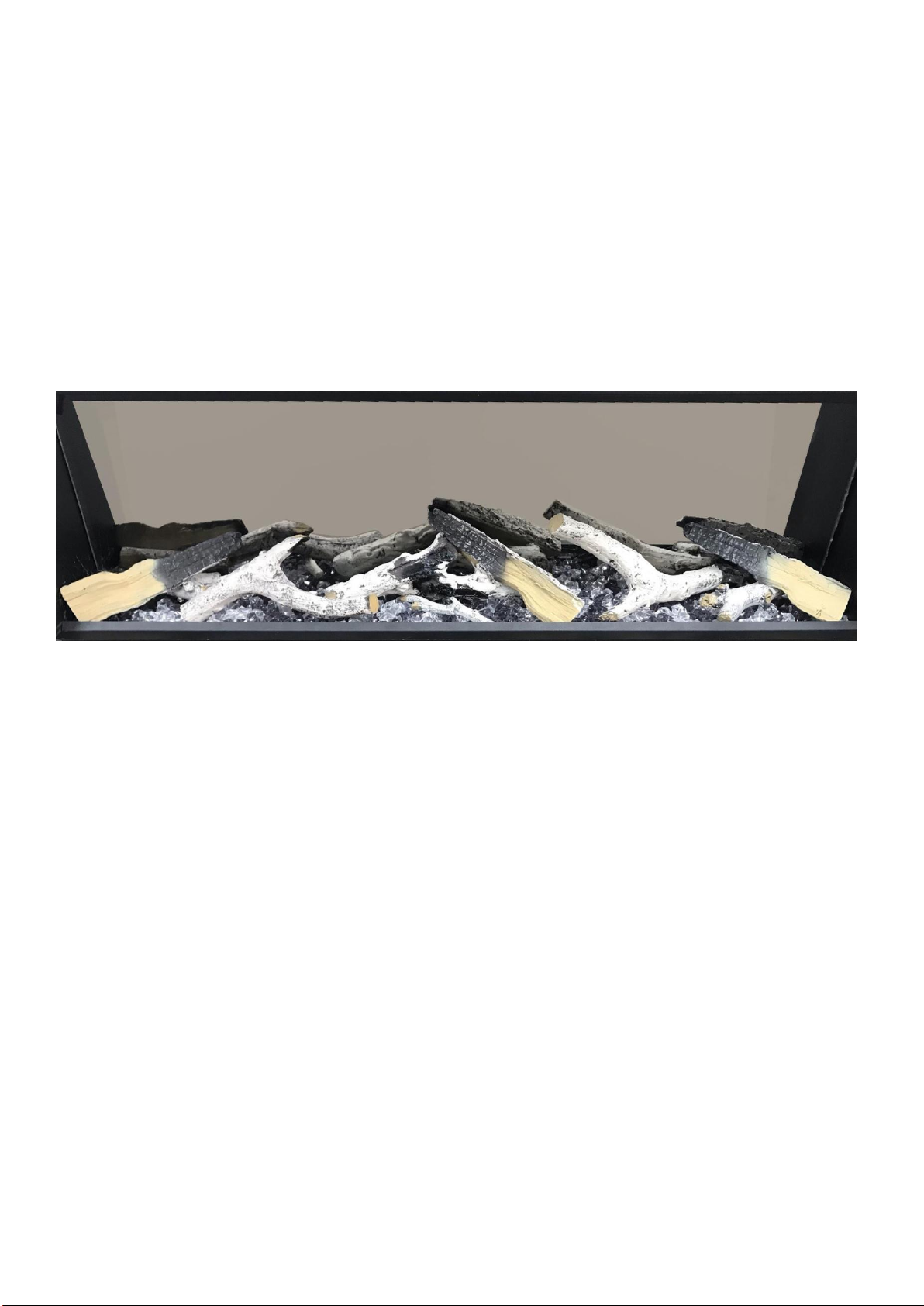

Place the logs onto the Ember ice crystals to give the desired log layout as the example shown
below
Refit the glass panel using the trim & screws previously removed.

Page 8
Operating the Fire
This appliance can be operated using 3 methods
Manual Control using the controls on the fire
Remote Control using the included remote-control handset
Celsi App Control using your smartphone or tablet
Manual Control
This appliance can be operated manually using the controls situated on the right-hand underside
of the upper grille.
ON / OFF Power Switch
This switch is used to turn the mains supply to the appliance ON or OFF. When
the switch is in the ON position an indicator light located in the centre of the
screen will glow amber to indicate the appliance is switched on and in standby
mode. This needs to be in the ON position for both manual and remote
operation.
STANDBY
Used to switch appliance ON or OFF into standby mode.
FLAME
Pressing this button will cycle through the 4 different flame brightness levels.
HEATER
Use this button to select Low Heat, High Heat or heater OFF.
When LOW heat is selected the indicator light will glow amber for 5 seconds.
When HIGH heat is selected the indicator light will glow red for 5 seconds.
Please note the heater will only operate when the room temperature is below
the temperature set on the handset, which can be adjusted using the remote
control or app. When the heater switches off, the fan will still continue to run
for a short period to allow the appliance to cool down.
MODE
Use this button to cycle through and select 1 of the 16 preset LED colour
combinations. Press and hold until a confirmation beep is heard to set on ‘Colour
Animation’ mode to slowly cycle through all the colour combinations.

Page 9
Remote Control
Remove the battery cover on the rear and insert 3 x AAA batteries ensuring the batteries are
fitted correctly. Refit the cover. Please ensure old batteries are disposed of responsibly by
contacting your local authority about recycling schemes.
Ensure that the ON / OFF Power Switch on the fire is in the ON position.
Before the handset can be used the current day and time will need to be set (See Clock setting
instructions on the next page).

Page 10
To use the remote handset ensure it is pointed directly towards the fire and press the appropriate
button to operate the fire.
Operating the fire and Child Lock mode
1. Use the On/Off button to switch the fire On and Off.
2. Holding the button in for 5 seconds will enable the Child Lock mode (a padlock will
appear on the handset display).
3. To disable the child lock press the On/Off button once.
Note: that after a short period of time the handset will automatically enable the Child
Lock mode
Clock Setting
1. Press the Clock Set button, which will start the day cursor to blink. Using the
selection wheel rotate to the current day e.g. S M T W T F S then press the
Clock Set button to confirm.
2. The hour will now be blinking, set using the selection wheel and confirm using
the Clock Set button.
3. The minute will now be blinking, set using the selection wheel and confirm using
the Clock Set button.
Flame Setting
1. Pressing this button will cycle through the 4 brightness settings of the LED flame
effects.
Heat Setting
1. Use to change the heater setting from LOW, HIGH and OFF
2. When the heater is ON the actual room temperature is displayed on the handset
3. By using the selection wheel you can set the desired temperature, this will save
after 5 seconds and the room temperature will be displayed
Note: the heater will only operate when the room temperature is below the
temperature set on the handset. When the heater switches off, the fan will still
continue to run for a short period to allow the appliance to cool down.
The displayed temperature can be displayed in Celsius or Fahrenheit. To change use
the Temperature units button.
LED Colour settings
1. Press the Mode/Set button and use the selection wheel to select one of the 16
preset LED colour combinations (the preset number will be displayed on the
handset)
If preferred, the LED colour settings can be changed individually for the
Flame Logs Ember
1. Press the one of the buttons above (symbol will flash on display) and use the selection
wheel to select your required colour setting for the specific lighting function.

Page 11
Alternatively the fire can be set to Colour Animation mode
1. Pressing the Colour Animation mode button will set the Lighting to a red glow and
then will slowly cycle through the 16 preset colour combinations.
2. Press the Colour Animation mode to exit the animation mode
Adaptive Mode
Adaptive mode works in conjunction with the timer programmes. When Adaptive model is turned
ON the fire monitors the room temperature in relation to the selected target temperature. If the
room temperature is sufficiently lower that the selected temperature the Adaptive mode will
instruct the fire to switch on up to 10 minutes earlier than the set time to ensure the room is at
the required temperature at the set time.
Celsi App control
The Celsi app can be downloaded from the IOS App Store or the Google Play Store by either
searching for Celsi or by scanning the QR code using a smart phone or tablet
The Celsi app can be used alongside the remote handset and provides additional feature of 7 day
Timer function.
** During the initial set up of the App, the fire needs to be in pairing mode **
Pairing Mode
With the fire off and in Standby mode press and hold the Standby button on the fire to hear a beep
and continue holding for 5 seconds to observe a red flashing light on the rear screen. When this
light is flashing the product is in pairing mode

Page 12
App setup
1. Open the app and when prompted either create a new Celsi account or Login using your
existing account details.
2. Once logged in, accept the notification to allow permission for the Celsi app to access
Notifications and Bluetooth.
3. On your smart device ensure that Bluetooth and Wi-Fi are switched ON.
4. Ensure the fire is in pairing mode.
5. On the app the All Devices screen will be displayed. Press the + button at the top R/H corner.
6. Allow the app to connect to devices on local network.
7. Click on Add button to discover devices.
8. Click on Manual Input and add the name and password of the Wi-Fi network you are
connecting the fire to.
9. Follow the on screen instructions to add device.
Using the App
The Home page of the app will allow you to
operate and customise the appearance of your fire
using the touchscreen interface.
The app has all the same features as the
remote Handset along with an additional 7 day
Timer function. Using this function you can set
timers for the fire to switch on at a given time
day / time.
Further information is available within FAQ
section of the app.

Page 13
IMPORTANT
This appliance is fitted with an automatic thermal cut-out safety feature to reduce the risk of
damage to appliance due to overheating. If the appliance overheats the heater element will cut out
whilst the fan will still continue to run to allow the fire to cool down sufficiently.
Once the appliance has cooled down the thermal cut-out will reset itself and switch the heater
back on. If the problem persists switch the appliance off and disconnect the power at the switch
and plug socket. Check that the heater warm air outlets and the inlets are not obstructed (the
outlets and inlets are situated on the underside of the upper canopy). If the fire is installed within
a chimney ensure that the chimney is blocked off as any draught can cause this problem.
If the heater is still not operating correctly disconnect the appliance and seek expert advice.
Maintenance Instructions
Always remove the plug from the socket-outlet and allow the heater to cool down
before cleaning. User maintenance should only be carried out by a competent person.
Light accumulated dust may be removed from the appliance with a soft dry cloth.
The exterior surface of the appliance can be cleaned with a soft damp cloth (not dripping wet).
Dry the exterior surface before operating the heater.
Household glass cleaner can be used on the fire glass.
WARNING!
Do not immerse the heater in water.
Do not use any cleaning chemicals such as detergents and abrasives.
Do not allow the interior to get wet as this could create a hazard.
In the event of malfunction contact the manufacturer, do not try to repair the heater
yourself as this may result in a fire hazard or electric shock.
Environment
Do not dispose of electrical appliances as unsorted municipal waste. Use
separate collection facilities. Contact your local government for information
regarding the collection services available in your local area. If electrical
appliances are disposed of in landfills or dumps hazardous substances can
leak into the groundwater and get into the food chain, thus damaging
your health and wellbeing.
When replacing old appliances with new ones the retailer is legally obligated
to take away your old appliance for disposal free of charge.

Page 14
Warranty
Congratulations on the purchase of your electric fire. This fire by BFM Europe Ltd is guaranteed for
5 years from the date of purchase against faulty materials or workmanship. Please note the 5 year
guarantee comprises of 24 months of parts and labour with an extended 36 months of parts only.
If your appliance is found to be defective within 24 months from the date of purchase, we or our
authorized agent will repair the faulty component on site.
This warranty does not cover consumable items which have a limited lifespan.
If a problem should occur, the nature of the problem together with the date of purchase and
installer information should be immediately reported to the retailer that the appliance was
purchased from. Proof of purchase will be required so the original invoice should be retained.
B-1032285
Issue 2
BFM Europe Ltd
Gordon Banks Drive
Trentham Lakes
Stoke-on-Trent
ST4 4TJ
Technical Queries: 01782 339039
Service Fault Enquiries: 01782 339008
