Celsi B-1036317 User manual

22” & 33” Ultiflame Electric Fire
Model No’s:
B-1036317, & B-1036318
CEU 22RE-RGB & CEU 33RE-RGB
Packing Checklist - Pack 1 of 1
Electric Fire
Remote Control Handset*
Black Chippings Set
Instruction Manual
Log Set
Log Layout Instruction Sheet
*THIS PRODUCT REQUIRES 3 X AAA BATTERIES FOR USE IN THE HANDSET (NOT SUPP IED)
IMPORTANT
P EASE READ THESE INSTRUCTIONS CAREFU Y BEFORE
INSTA ATION AND USE OF THIS E ECTRIC FIRE AND
RETAIN FOR FUTURE REFERENCE.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or learning disabilities, or lack of experience and knowledge, unless
given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.

IMPORTANT SAFETY ADVICE
WHEN USING AN E ECTRICA APP IANCE, BASIC PRECAUTIONS SHOU D
A WAYS BE FO OWED TO REDUCE THE RISK OF FIRE, E ECTRIC SHOCK AND
INJURY TO PERSONS, INC UDING THE FO OWING IMPORTANT SAFETY ADVICE.
DO NOT cover the heater, to avoid overheating of the product.
DO NOT leave the heater unattended while it is in use. Always turn the fire to the OFF
position and switch off at the mains socket when not in use.
DO NOT leave children unsupervised whilst the fire is switched on.
DO NOT operate this fire with a damaged cord or plug, or after the fire
malfunctions, has been dropped or damaged in any way. Contact the manufacturer.
DO NOT install a timer switch to operate the fire.
DO NOT insert or allow objects to enter any ventilation or exhaust openings on the
fire. To prevent a possible fire do not block air intakes or exhaust openings in any manner.
DO NOT place this fire near flammable materials, surfaces or substances, as there may be a
risk of fire. eep flammable materials, surfaces or substances at least 1 metre away from the
front of the product.
DO NOT switch on the fire if volatile vapours are present in the room.
DO NOT use this fire in any areas where petrol, paint or other flammable liquids are stored
e.g. a garage or a workshop as the fire contains components capable of
producing a spark.
DO NOT touch any hot surfaces such as the heater vent when the heater is in use to avoid
burns and personal injury.
DO NOT install the heater immediately below an electrical socket outlet.
DO NOT use outdoors.
CAUTION - Some parts of this product can become hot during use and cause burns.
Particular attention has to be given where children and vulnerable people are present.
This fire is for household use only.
Page 1 of 30

PRODUCT TECHNICA DATA SHEET
Supplier Name / Trademark Celsi
Supplier Model Identifier B-1036317 Ultiflame 22”
B-1036318 Ultiflame 33”
Voltage 230v AC 50HZ
Fuse 13 Amp
Nominal Heat Output (Measured) 1.6kW
Minimum Heat Output (Indicative) 0.8kW
Maximum Continuous Heat Output 1.6kW
Auxilliary Electrical Consumption 0.016kW
at Nominal Heat Output
Auxilliary Electrical Consumption 0.016kW
at Minimum Heat Output
Auxilliary Electrical Consumption 0.0005kW
at Standby Mode
Type of Heat Output / RTC* With electronic room temperature control
plus 7 day timer.
Other Control Options With adaptive start control
Manufacturers Name and Address BFM Europe Ltd. Gordon Banks Drive,
Trentham Lakes, Stoke-on-Trent,
Staffordshire, ST4 4TJ
*RTC = Room Temperature Control Tel: [phone]
Fire Dimensions - Fig. 1
Ultiflame 22” Ultiflame 33”
Page 2 of 30

Unpacking
Remove and discard the plastic bag.
Be responsible when handling the packing materials.
eep the original packaging for future transportation and/or storage.
Check all accessories are removed from the packaging before storing it away for future use.
KEEP P ASTIC BAGS AWAY FROM CHI DREN!
Choosing a Suitable ocation
This electric fire is designed to be fitted within an existing brick / masonry chimney breast
which must be dry with the chimney capped off using a suitable chimney cap.
The appliance must be kept away from any source of damp or moist conditions. Avoid any
close contact with water.
Important Notice: To reduce heat losses and to prevent any chimney up draught affecting
the operation of your fire we recommend that the chimney is blocked off.
The chimney breast, wall or fireplace must be of sound construction and all fixings used
must be suitable for the type of wall. If there is any doubt regarding the suitability of the in-
stallation site please contact your supplier.
From the front of the fire ensure that there is a minimum clearance of 50mm between any
non-combustible materials. For combustible material clearances please consult with the man-
ufacturer.
The fire can be connected direct or plugged into a mains socket which can be sited on the
right hand side of the fire.
Ensure that the plug socket-outlet connection for this appliance is accessible. It MUST be
readily accessible for easy electrical isolation in the event of servicing and replacing compo-
nents etc. This appliance MUST NOT be located immediately below an electrical socket-out-
let.
Please refer to the relevant installation instructions applicable to the model fire purchased.
Installation must be carried out by a qualified and competent person.
The opening sizes required to install the fires are
Ultiflame 22” Ultiflame 33”
Height = 650mm Height = 605mm
Width = 610mm Width = 890mm
Depth = 185mm Depth = 185mm
Page 3 of 30

Connect the appliance to single-phase AC supply of the voltage specified on the rating plate.
Should the fire be connected directly into the mains supply, then a fused switched spur with
a 13 amp fuse must be fitted. It is imperative that the power supply is capable of handling a
load of 2000 watts (2kw). This appliance must be earthed. Allow sufficient flex to enable the
fire to be removed from the wall. Do not use an extension lead
IMPORTANT NOTE: Models which have LED downlights included in the suite / surround
will require an additional mains supply. If wired directly into the mains supply, then a fused
switched spur with a 3 amp fuse must be fitted ensuring that the plug socket-outlet
connection is accessible. It MUST be readily accessible for easy electrical isolation in the
event of servicing and replacing components etc.
Always ensure that all electrical work complies with the relevant Building Regulations and the
Electrical Code of Practice. All electrical work should be carried out by a qualified electrician.
Ultiflame 22” & 33” Wall Mounting
The base of the fire opening must be solid, level and firmly fixed to safely support the weight
of the fire.
Fig. 2
The fire is held in place using 4 suitable screws and fasteners in the 4 fixing holes on the
sides of the appliance as shown above in figure 2.
A false studded chimney breast can be built with a plastered finish to encase the fire
The chimney wall can now be finished with plasterboard or an alternative facing material
which terminates at the facing trim.
The fire can be fitted direct into the chimney breast and plastered flush up to the facing trim
Page 4 of 30
4 x fixing holes

Fig. 3
Ultiflame 22” & 33” with Trim option
Installation is the same principle as wall mounting but the fire is screwed to the plastered
wall to ensure that the facing trims protrude from the fire. For fitting of the trim please refer
to the instructions included with the trim.
Page 5 of 30

Rennes, Avignon & ille Models (22”)
Fireplace opening for Pablo, Boticelli & Angelo Surrounds, see figures 4, 5 & 6
When fitting this fire into a surround the fireplace opening needs to be prepared at differing
heights dependent upon which surround type is to be installed.
Fig. 4 - Pablo Surround
Fire opening to be 146mm from floor level
Fig. 5 - Boticelli Surround
Fire opening to be 146mm from floor level
Fig. 6 - Angelo Surround
Fire opening to be 172mm from floor level
Page 6 of 30

INSTA ING THE “PAB O” SURROUND
1. Unpack the surround from the wooden crate, check all parts are present and carefully
store the components.
Contents of Pablo surround:-
1 off hearth panel
1 off R/H leg
1 off L/H leg
1 off R/H infill section
1 off L/H infill section
1 off bottom infill section
1 off shelf
1 off stub hearth
Fig. 7
2. The underside of the hearth should be painted with a weak PVA (8 parts water to 1 part
PVA). This will prevent staining penetrating through the stone. The hearth must be
centred to the opening. If the fireplace is to be installed on a chimney breast ensure that
the opening is also centred to the chimney breast. It is essential that the hearth is
completely level. The hearth must be bedded down on bonding or an equivalent
material. Avoid cement based products and ensure the hearth is firmly fitted and well
supported. Allow the bedding material to set before any weight is placed onto the
hearth. Wipe off any surplus bonding material with a wet sponge.
3. Fit bottom section to hearth, ensure it is central before fixing with a suitable mastic
adhesive.
4. Fit brackets to top of legs, offer leg up to wall and mark position of fixing hole on wall,
use shelf to ensure legs are correctly spaced / positioned. Remove shelf then cover
hearth with dust sheet and drill the fixing holes. Remove the brackets from the legs, fix
the side infills into place with suitable adhesive and secure the leg fixing brackets only to
the wall. Fit legs to brackets that have been securely attached to the wall with fixings as
detailed in Point 5.
5. Assess the chimney breast onto which the fire is to be installed and ensure that it is of
sound construction and suitable for supporting the weight of the surround. Fixings used
to secure the leg brackets to the masonry of the chimney breast shall be of expansive
stainless steel or galvanised steel type masonry fixings for dense concrete blockwork or
brickwork. Where fixings are located into light weight blockwork or friable aggregate
blocks, the fixings shall be of the resin anchor type.
Page 7 of 30

6. Fix the top infill and shelf infill into place again with suitable mastic adhesive.
7. Fit shelf into place ensuring it is correctly aligned with legs, mark the position of holes
for securing brackets on wall, remove shelf and drill wall and insert fixings in accordance
with Point 5, these brackets can be recessed if required. Fit the stub hearth in position
between the legs.
8. Ensure that the surround components as shown below in figure 8 are mechanically
secured as indicated, this is required in accordance with the latest revision of BS 1251 :
2015 Open Fireplace Components.
Fig. 8
9. Once the fireplace is correctly installed, grout all of the joints including between the
fireplace and the wall with a water based cream mastic or tile grout. Ensure all surplus
grout is immediately removed by washing the stonework using a sponge and clean
water.
Page 8 of 30

INSTA ING THE “BOTICE I” SURROUND
1. Unpack the surround from the wooden crate, check all parts are present as per below
and carefully store the components.
Contents of Boticelli surround:-
1 off hearth panel
1 off R/H leg
1 off L/H leg
1 off R/H infill section
1 off L/H infill section
1 off bottom infill section
1 off shelf top infill section
1 off shelf top section
1 off top infill section
1 off stub hearth
Fig. 9
2. The underside of the hearth should be painted with a weak PVA (8 parts water to 1 part
PVA). This will prevent staining penetrating through the stone. The hearth must be
centred to the opening. If the fireplace is to be installed on a chimney breast ensure that
the opening is also centred to the chimney breast. It is essential that the hearth is
completely level. The hearth must be bedded down on bonding or an equivalent
material. Avoid cement based products and ensure the hearth is firmly fitted and well
supported. Allow the bedding material to set before any weight is placed onto the
hearth. Wipe off any surplus bonding material with a wet sponge.
3. Fit bottom section to hearth, ensure it is central before fixing with a suitable mastic
adhesive.
4. Fit brackets to top of legs, offer leg up to wall and mark position of fixing hole on wall,
use shelf to ensure legs are correctly spaced / positioned. Remove shelf then cover
hearth with dust sheet and drill the fixing holes. Remove the brackets from the legs, fix
the side infills into place with suitable adhesive and secure the leg fixing brackets only to
the wall. Fit legs to brackets that have been securely attached to the wall with fixings as
detailed in Point 5.
5. Assess the chimney breast onto which the fire is to be installed and ensure that it is of
sound construction and suitable for supporting the weight of the surround. Fixings used
to secure the leg brackets to the masonry of the chimney breast shall be of expansive
stainless steel or galvanised steel type masonry fixings for dense concrete blockwork or
brickwork. Where fixings are located into light weight blockwork or friable aggregate
blocks, the fixings shall be of the resin anchor type. Page 9 of 30

6. Fix the shelf top infill section and shelf infill into place again utilising the same procedure
as for the legs, i.e. mark positions, drill holes to suit, remove brackets and secure
brackets to wall with suitable fixings as detailed in Point 5.
7. Fit shelf top section into place ensuring it is correctly centred, mark the position of holes
for securing brackets on wall, remove shelf and drill wall and insert fixings in accordance
with Point 5, these brackets can be recessed if required. Fit the stub hearth in position
between the legs.
8. Ensure that the surround components as shown below are mechanically secured as
indicated, this is required in accordance with the latest revision of BS 1251 : 2015 Open
Fireplace Components.
Fig. 10
9. Once the fireplace is correctly installed, grout all of the joints including between the
fireplace and the wall with a water based cream mastic or tile grout. Ensure all surplus
grout is immediately removed by washing the stonework using a sponge and clean water
Page 10 of 30

INSTA ING THE “ANGE O” SURROUND
1. Unpack the surround from the wooden crate, check all parts are present as per below
and carefully store the components.
Contents of Angelo surround:-
1 off hearth panel
1 off R/H leg
1 off L/H leg
1 off R/H infill section
1 off L/H infill section
1 off bottom infill section
1 off shelf top infill section
1 off shelf top section
1 off top infill section
1 off stub hearth
Fig. 11
2. The underside of the hearth should be painted with a weak PVA (8 parts water to 1 part
PVA). This will prevent staining penetrating through the stone. The hearth must be
centred to the opening. If the fireplace is to be installed on a chimney breast ensure that
the opening is also centred to the chimney breast. It is essential that the hearth is
completely level. The hearth must be bedded down on bonding or an equivalent
material. Avoid cement based products and ensure the hearth is firmly fitted and well
supported. Allow the bedding material to set before any weight is placed onto the
hearth. Wipe off any surplus bonding material with a wet sponge.
3. Fit bottom section to hearth, ensure it is central before fixing with a suitable mastic
adhesive.
4. Fit brackets to top of legs, offer leg up to wall and mark position of fixing hole on wall,
use shelf to ensure legs are correctly spaced / positioned. Remove shelf then cover
hearth with dust sheet and drill the fixing holes. Remove the brackets from the legs, fix
the side infills into place with suitable adhesive and secure the leg fixing brackets only to
the wall. Fit legs to brackets that have been securely attached to the wall with fixings as
detailed in Point 5.
5. Assess the chimney breast onto which the fire is to be installed and ensure that it is of
sound construction and suitable for supporting the weight of the surround. Fixings used
to secure the leg brackets to the masonry of the chimney breast shall be of expansive
stainless steel or galvanised steel type masonry fixings for dense concrete blockwork or
brickwork. Where fixings are located into light weight blockwork or friable aggregate
blocks, the fixings shall be of the resin anchor type.
Page 11 of 30

6. Fix the shelf top infill section and shelf infill into place again utilising the same procedure
as for the legs, i.e. mark positions, drill holes to suit, remove brackets and secure
brackets to wall with suitable fixings as detailed in Point 5.
7. Fit shelf top section into place ensuring it is correctly centred, mark the position of holes
for securing brackets on wall, remove shelf and drill wall and insert fixings in accordance
with Point 5, these brackets can be recessed if required. Fit the stub hearth in position
between the legs.
8. Ensure that the surround components as shown below are mechanically secured as
indicated, this is required in accordance with the latest revision of BS 1251 : 2015 Open
Fireplace Components.
Fig. 12
9. Once the fireplace is correctly installed, grout all of the joints including between the
fireplace and the wall with a water based cream mastic or tile grout. Ensure all surplus
grout is immediately removed by washing the stonework using a sponge and clean
water.
Page 12 of 30

Parada Illumia Elite & Avignon Elite Models (33”)
Fireplace opening for Parada Illumia Elite & Avignon Elite Surrounds
When fitting this fire into these surrounds the fireplace opening needs to be prepared at
103mm from the floor as shown below in figure 13.
Fig. 13
INSTA ING THE “PARADA I UMIA E ITE” SURROUND
1. Unpack the surround from the wooden crate, check all parts are present as
per below and carefully store the components.
Contents of surround:-1 off hearth panel 1 off R/H leg
Fig. 14
1 off L/H leg
1 off R/H infill section
1 off L/H infill section
1 off bottom infill section
1 off shelf top infill section
1 off shelf top section
1 off top infill section
1 off Down Lighting it (not shown)
includes
2 off MR11 2.4W 3000 LED Bulbs
2 off chrome downlights
1 off wiring Loom
1 off Remote handset
1 off 23A 12V Battery (A23)
1 off Handset wall bracket
Page 13 of 30

2. The underside of the hearth should be painted with a weak PVA (8 parts water to 1 part
PVA). This will prevent staining penetrating through the stone. The hearth must be
centred to the opening. If the fireplace is to be installed on a chimney breast ensure that
the opening is also centred to the chimney breast. It is essential that the hearth is
completely level. The hearth must be bedded down on bonding or an equivalent
material. Avoid cement based products and ensure the hearth is firmly fitted and well
supported. Allow the bedding material to set before any weight is placed onto the
hearth. Wipe off any surplus bonding material with a wet sponge.
3. Fit bottom section to hearth, ensure it is central before fixing with a suitable mastic
adhesive.
4. Fit brackets to top of legs, offer leg up to wall and mark position of fixing hole on wall,
use shelf to ensure legs are correctly spaced / positioned. Remove shelf then cover
hearth with dust sheet and drill the fixing holes. Remove the brackets from the legs, fix
the side infills into place with suitable adhesive and secure the leg fixing brackets only to
the wall. Fit legs to brackets that have been securely attached to the wall with fixings as
detailed in Point 5.
5. Assess the chimney breast onto which the fire is to be installed and ensure that it is of
sound construction and suitable for supporting the weight of the surround. Fixings used
to secure the leg brackets to the masonry of the chimney breast shall be of expansive
stainless steel or galvanised steel type masonry fixings for dense concrete blockwork or
brickwork. Where fixings are located into light weight blockwork or friable aggregate
blocks, the fixings shall be of the resin anchor type.
6. Fix the shelf top infill section and shelf infill into place again utilising the same procedure
as for the legs, i.e. mark positions, drill holes to suit, remove brackets and secure
brackets to wall with suitable fixings as detailed in Point 5.
7. Safely route the lighting kit wiring up to the surround shelf infill level ensuring that the
wiring is kept clear of the fire and not trapped.
8. Remove the round locking clip from inside the chrome down lighter and fit the supplied
LED bulb. Refit the locking ring inside to keep the bulb in place. Repeat for the second
down lighter.
9. Fit the 2 down lighters from the underside of the shelf top infill header, by lifting the
spring clamps and fitting into the two holes in the Shelf top infill.
10. Once fitted in place connect the 2 bulbs using the two connectors on the wiring loom
and ensure the wiring, remote receiver unit and power unit are safely routed in the sur
round.
11. Fit the supplied battery in the remote control handset and switch on power to the down
lights. Check the lighting works correctly with the remote control. If required move the
position of the remote receiver unit and aerial wire to ensure good signal coverage. After
checking the lighting switch off the power before proceeding.
Page 14 of 30

12. Fit shelf top section into place ensuring it is correctly centred, mark the position of holes
for securing brackets on wall, remove shelf and drill wall and insert fixings in accordance
with Point 5, these brackets can be recessed if required.
13. Ensure that both the Legs, the Top Infill section and the Shelf Top section are secured
using the supplied brackets, this is required in accordance with the latest revision of BS
1251 : 2015 Open Fireplace Components.
14. Once the fireplace is correctly installed, grout all of the joints including between the
fireplace and the wall with a water based cream mastic or tile grout. Ensure all surplus
grout is immediately removed by washing the stonework using a sponge and clean
water.
Page 15 of 30

INSTA ING THE “AVIGNON E ITE” SURROUND
1. Unpack the surround from the wooden crate, check all parts are present as per below
and carefully store the components.
Contents of Avignon surround:-
1 off hearth panel
1 off R/H leg
1 off L/H leg
1 off R/H infill section
1 off L/H infill section
1 off bottom infill section
1 off shelf top infill section
1 off shelf top section
1 off top infill section
Fig. 15
2. The underside of the hearth should be painted with a weak PVA (8 parts water to 1 part
PVA). This will prevent staining penetrating through the stone. The hearth must be
centred to the opening. If the fireplace is to be installed on a chimney breast ensure that
the opening is also centred to the chimney breast. It is essential that the hearth is
completely level. The hearth must be bedded down on bonding or an equivalent
material. Avoid cement based products and ensure the hearth is firmly fitted and well
supported. Allow the bedding material to set before any weight is placed onto the
hearth. Wipe off any surplus bonding material with a wet sponge.
3. Fit bottom section to hearth, ensure it is central before fixing with a suitable mastic
adhesive.
4. Fit brackets to top of legs, offer leg up to wall and mark position of fixing hole on wall,
use shelf to ensure legs are correctly spaced / positioned. Remove shelf then cover
hearth with dust sheet and drill the fixing holes. Remove the brackets from the legs, fix
the side infills into place with suitable adhesive and secure the leg fixing brackets only to
the wall. Fit legs to brackets that have been securely attached to the wall with fixings as
detailed in Point 5.
5. Assess the chimney breast onto which the fire is to be installed and ensure that it is of
sound construction and suitable for supporting the weight of the surround. Fixings used
to secure the leg brackets to the masonry of the chimney breast shall be of expansive
stainless steel or galvanised steel type masonry fixings for dense concrete blockwork or
brickwork. Where fixings are located into light weight blockwork or friable aggregate
blocks, the fixings shall be of the resin anchor type.
Page 16 of 30

6. Fix the shelf top infill section and shelf infill into place again utilising the same procedure
as for the legs, i.e. mark positions, drill holes to suit, remove brackets and secure
brackets to wall with suitable fixings as detailed in Point 5.
7. Fit shelf top section into place ensuring it is correctly centred, mark the position of holes
for securing brackets on wall, remove shelf and drill wall and insert fixings in accordance
with Point 5, these brackets can be recessed if required.
8. Ensure that both the Legs, the Top Infill section and the Shelf Top section are secured
using the supplied brackets, this is required in accordance with the latest revision of BS
1251 : 2015 Open Fireplace Components.
9. Once the fireplace is correctly installed, grout all of the joints including between the
fireplace and the wall with a water based cream mastic or tile grout. Ensure all surplus
grout is immediately removed by washing the stonework using a sponge and clean
water.
aying the ogs & Embers – 22” 33” Models
The Logs and the black chippings are packed in a box.
Take care when unpacking the logs and the black chippings. Scatter the black chippings over
the log bed base making sure the layer is even.
Follow the log layout instructions in the log pack to correctly position the logs.
Page 17 of 30

Operating the Fire
This fire can be operated using 4 methods:
Manual Control using the controls on the fire
Remote Control using the included remote-control handset
Celsi App Control using smartphone or tablet voice control, Alexa or Google Assistant
Manual Control

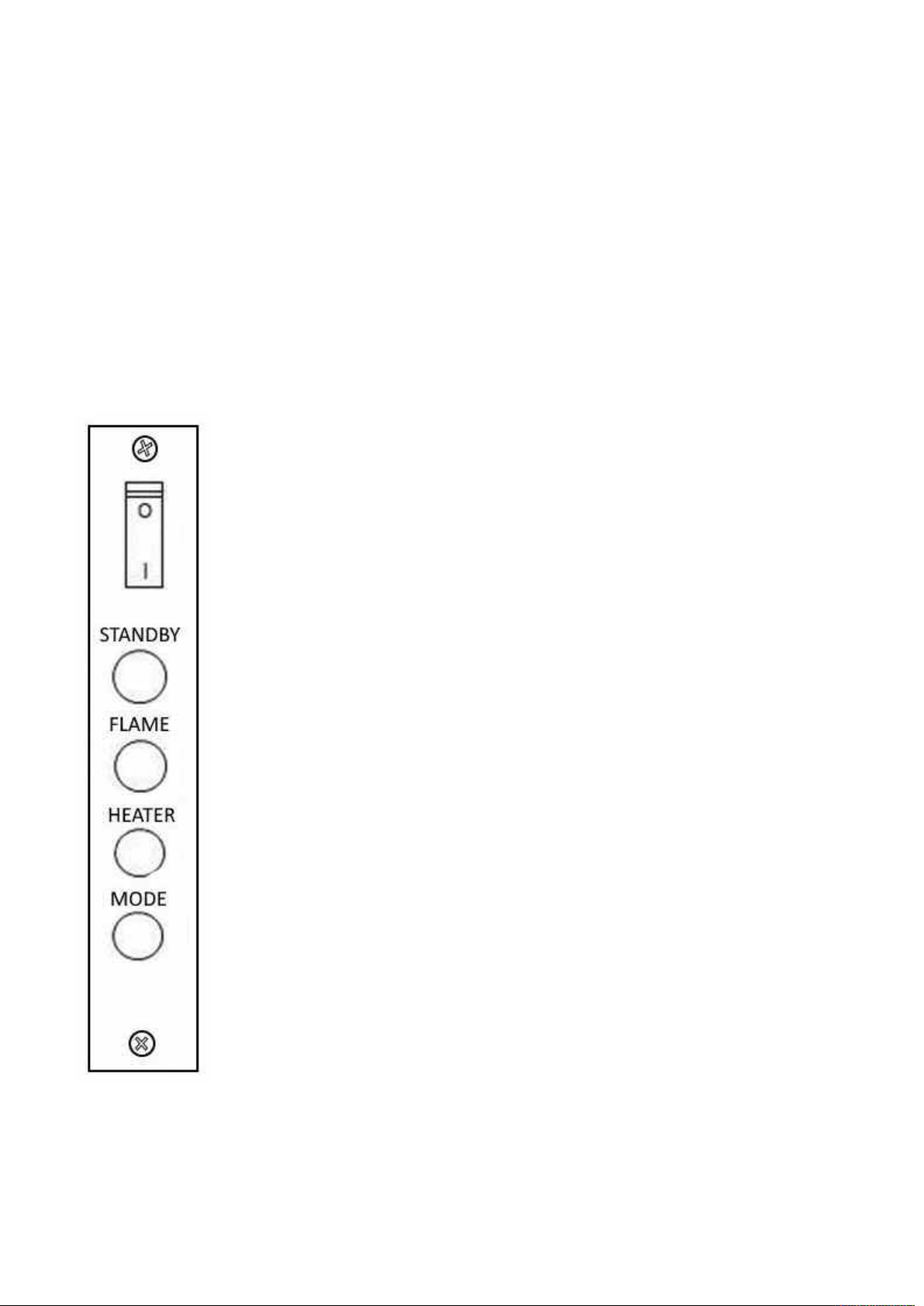

This fire can be operated manually using the control panel as shown below in figure 16.
Fig. 16
ON / OFF Power Switch
This switch is used to turn the mains supply to the fire
ON or OFF.
This needs to be in the ON position for both manual and
remote operation.
STANDBY
Used to switch fire ON or OFF into standby mode.
F AME
Pressing this button will cycle through the 4 different flame
brightness levels.
HEATER
Use this button to select Low Heat, High Heat or heater OFF.
When LOW heat is selected the indicator light will glow amber for 5
seconds. When HIGH heat is selected the indicator light will glow
red for 5 seconds.
Please note the heater will only operate when the room temperature
is below the temperature set on the handset, which can be adjusted
using the remote control or app. When the heater switches off, the
fan will still continue to run for a short period to allow the fire
to cool down.
MODE
Use this button to cycle through and select 1 of the 16 preset LED
colour combinations. Press and hold until a confirmation beep is
heard to set on ‘Colour Animation’ mode to slowly cycle through all
the colour combinations.
Page 18 of 30

Remote Control
Remove the battery cover on the rear and insert 3 x AAA batteries ensuring the batteries are
fitted correctly. Refit the cover. Please ensure old batteries are disposed of responsibly by
contacting your local authority about recycling schemes.
Ensure that the ON / OFF Power Switch on the fire is in the ON position.
Before the handset as shown below in figure 17 can be used the current day and time will
need to be set (see clock setting instructions on the next page).
Fig. 17
Page 19 of 30
